概要信息：

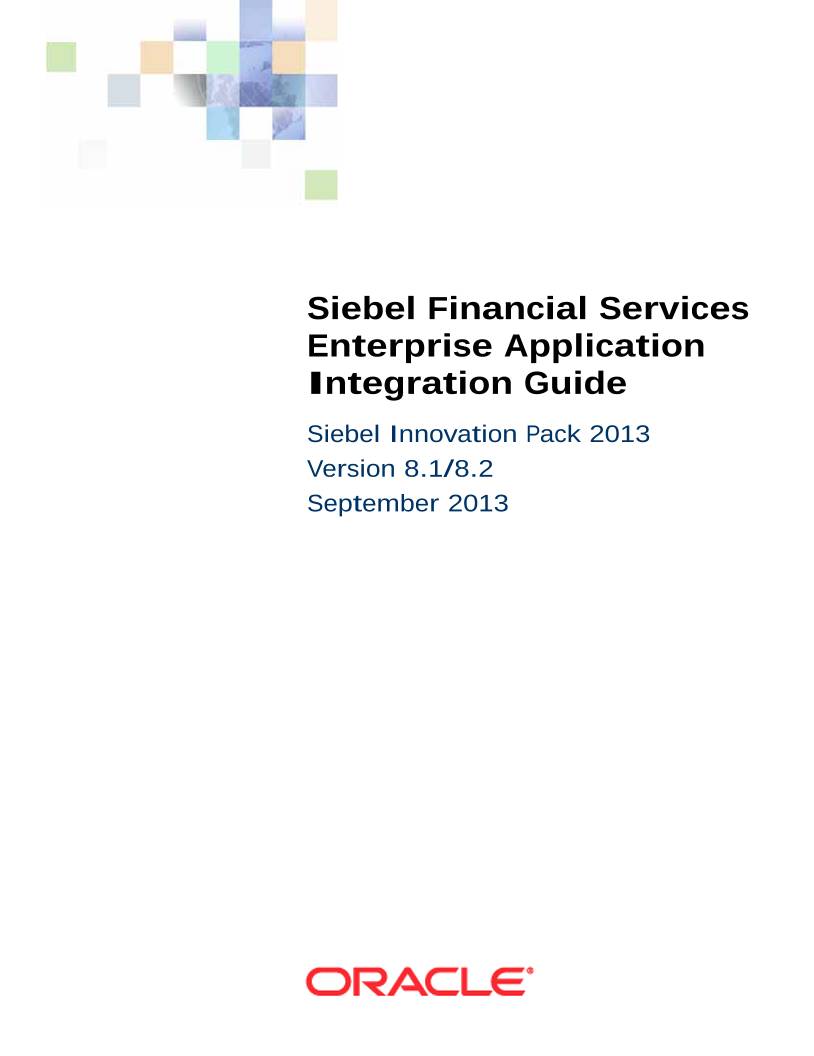

Siebel Financial Services
Enterprise Application
Integration Guide
Siebel Innovation Pack 2013
Version 8.1/8.2
September 2013

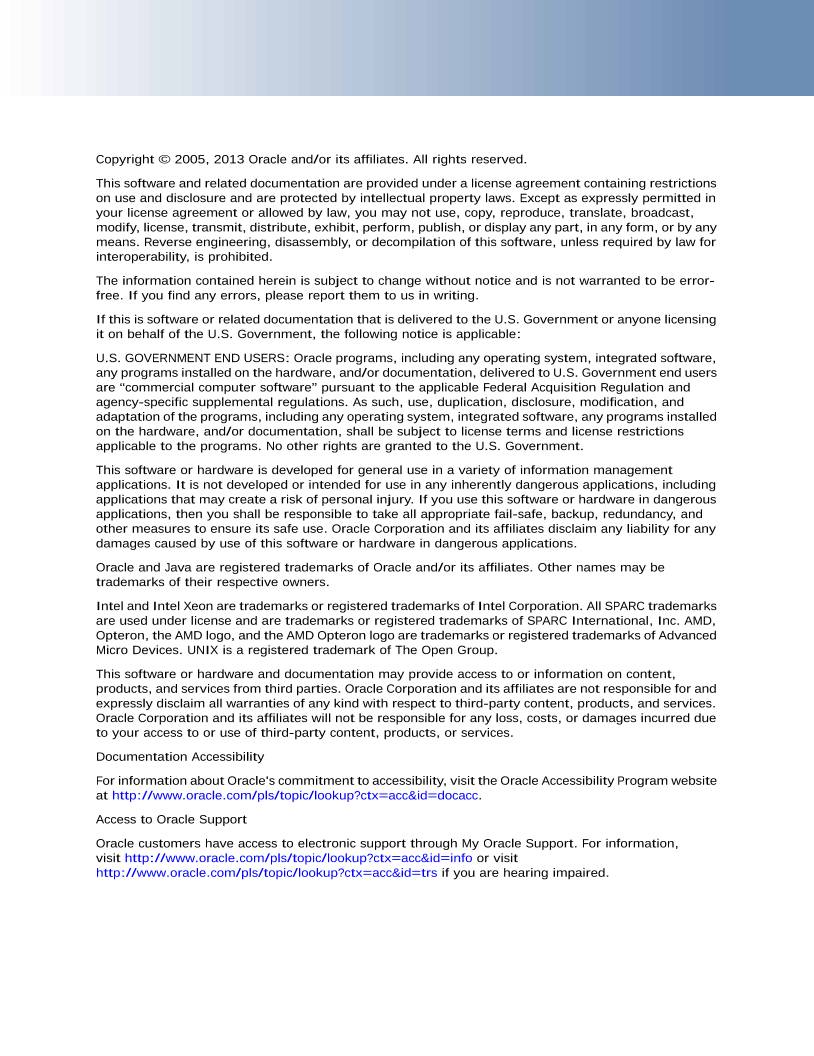

Copyright © 2005, 2013 Oracle and/or its affiliates. All rights reserved.
This software and related documentation are provided under a license agreement containing restrictions
on use and disclosure and are protected by intellectual property laws. Except as expressly permitted in
your license agreement or allowed by law, you may not use, copy, reproduce, translate, broadcast,
modify, license, transmit, distribute, exhibit, perform, publish, or display any part, in any form, or by any
means. Reverse engineering, disassembly, or decompilation of this software, unless required by law for
interoperability, is prohibited.
The information contained herein is subject to change without notice and is not warranted to be error-
free. If you find any errors, please report them to us in writing.
If this is software or related documentation that is delivered to the U.S. Government or anyone licensing
it on behalf of the U.S. Government, the following notice is applicable:
U.S. GOVERNMENT END USERS: Oracle programs, including any operating system, integrated software,
any programs installed on the hardware, and/or documentation, delivered to U.S. Government end users
are “commercial computer software” pursuant to the applicable Federal Acquisition Regulation and
agency-specific supplemental regulations. As such, use, duplication, disclosure, modification, and
adaptation of the programs, including any operating system, integrated software, any programs installed
on the hardware, and/or documentation, shall be subject to license terms and license restrictions
applicable to the programs. No other rights are granted to the U.S. Government.
This software or hardware is developed for general use in a variety of information management
applications. It is not developed or intended for use in any inherently dangerous applications, including
applications that may create a risk of personal injury. If you use this software or hardware in dangerous
applications, then you shall be responsible to take all appropriate fail-safe, backup, redundancy, and
other measures to ensure its safe use. Oracle Corporation and its affiliates disclaim any liability for any
damages caused by use of this software or hardware in dangerous applications.
Oracle and Java are registered trademarks of Oracle and/or its affiliates. Other names may be
trademarks of their respective owners.
Intel and Intel Xeon are trademarks or registered trademarks of Intel Corporation. All SPARC trademarks
are used under license and are trademarks or registered trademarks of SPARC International, Inc. AMD,
Opteron, the AMD logo, and the AMD Opteron logo are trademarks or registered trademarks of Advanced
Micro Devices. UNIX is a registered trademark of The Open Group.
This software or hardware and documentation may provide access to or information on content,
products, and services from third parties. Oracle Corporation and its affiliates are not responsible for and
expressly disclaim all warranties of any kind with respect to third-party content, products, and services.
Oracle Corporation and its affiliates will not be responsible for any loss, costs, or damages incurred due
to your access to or use of third-party content, products, or services.
Documentation Accessibility
For information about Oracle's commitment to accessibility, visit the Oracle Accessibility Program website
at http://www.oracle.com/pls/topic/lookup?ctx=acc&id=docacc.
Access to Oracle Support
Oracle customers have access to electronic support through My Oracle Support. For information,
visit http://www.oracle.com/pls/topic/lookup?ctx=acc&id=info or visit
http://www.oracle.com/pls/topic/lookup?ctx=acc&id=trs if you are hearing impaired.
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
3
Contents
Siebel Financial Services Enterprise Application Integration Guide 1
Chapter 1: What’s New in This Release
Chapter 2: Overview of Siebel Financial Services
Enterprise Application Integration
About Siebel Financial Services Enterprise Application Integration 9
Legacy Encapsulation 10
Peer-to-Peer Integration 11
Other Integration Strategies 12
Components of Siebel Financial Services EAI 12
XML and Siebel Financial Services EAI 13
ACORD XML and Siebel Financial Services EAI 14
IFX XML and Siebel Financial Services EAI 14
Siebel Financial Services EAI Adapters and Connectors 14
Siebel Virtual Business Components 15
Details of Siebel Financial Services EAI 15
Configurable and Upgradeable Integration 15
Extensible 16
Declarative Integration 17
Data Transformation 18
Siebel Database as Master for CRM 18
Siebel Database as Integrator for Other Systems 19
Siebel Application as Front-End Integrator for Other Systems 19
Siebel Financial Services EAI Connectors 19
Siebel Connector for IFX XML 19
Siebel Connector for ACORD XML 20
Chapter 3: Siebel Financial Services EAI Architecture
Layered Architecture 21
Integration Requirements and Siebel Financial Services EAI 22
Business Process Coordination Using Workflows 23
Transport Mechanisms 24
Industry XML Connector 25
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Contents ■
4

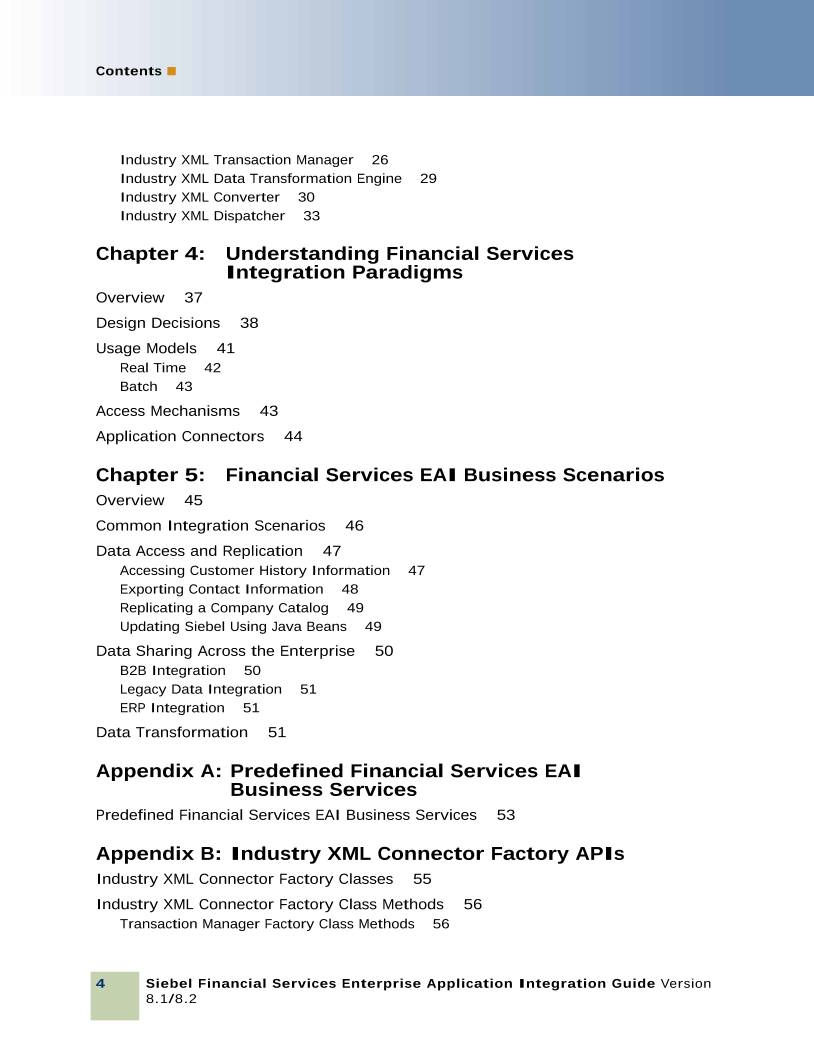

Industry XML Transaction Manager 26
Industry XML Data Transformation Engine 29
Industry XML Converter 30
Industry XML Dispatcher 33
Chapter 4: Understanding Financial Services
Integration Paradigms
Overview 37
Design Decisions 38
Usage Models 41
Real Time 42
Batch 43
Access Mechanisms 43
Application Connectors 44
Chapter 5: Financial Services EAI Business Scenarios
Overview 45
Common Integration Scenarios 46
Data Access and Replication 47
Accessing Customer History Information 47
Exporting Contact Information 48
Replicating a Company Catalog 49
Updating Siebel Using Java Beans 49
Data Sharing Across the Enterprise 50
B2B Integration 50
Legacy Data Integration 51
ERP Integration 51
Data Transformation 51
Appendix A: Predefined Financial Services EAI
Business Services
Predefined Financial Services EAI Business Services 53
Appendix B: Industry XML Connector Factory APIs
Industry XML Connector Factory Classes 55
Industry XML Connector Factory Class Methods 56
Transaction Manager Factory Class Methods 56
Contents ■
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
5

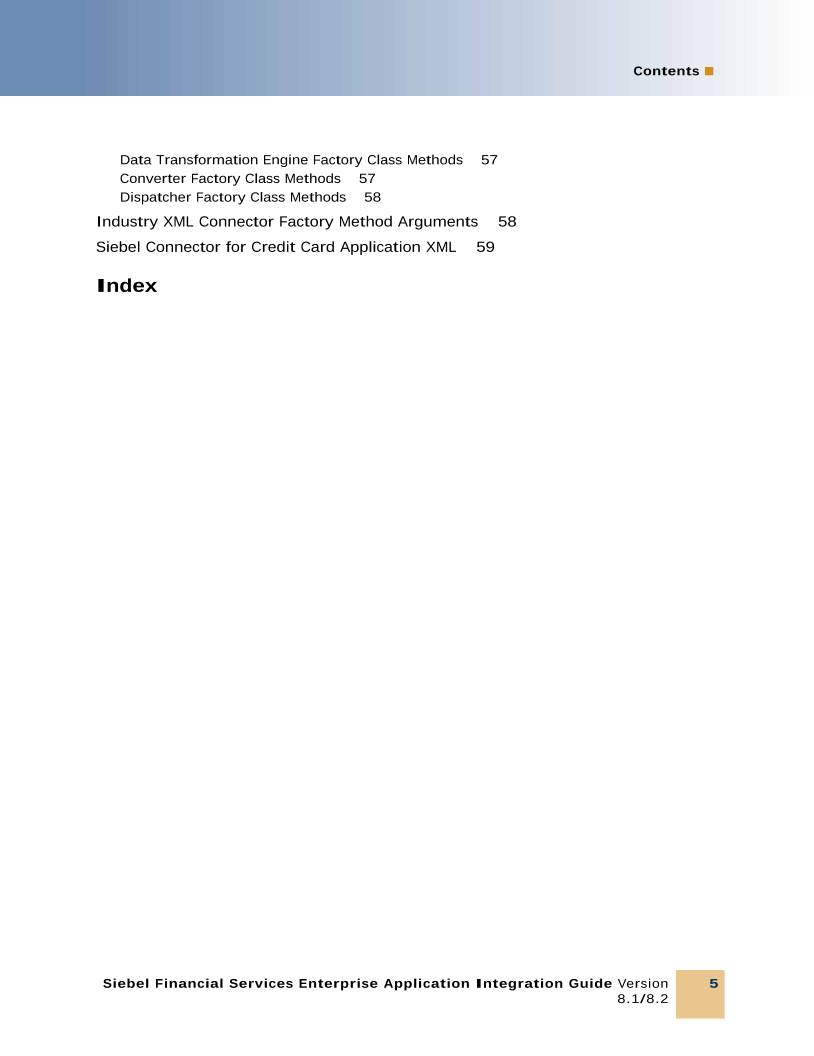

Data Transformation Engine Factory Class Methods 57
Converter Factory Class Methods 57
Dispatcher Factory Class Methods 58
Industry XML Connector Factory Method Arguments 58
Siebel Connector for Credit Card Application XML 59
Index
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Contents ■
6
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
7
1 What’s New in This Release
What’s New in Siebel Financial Services Enterprise Application
Integration Guide, Version 8.1/8.2
No new features have been added to this guide for this release. This guide has been updated to
reflect only product name changes.
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
What’s New in This Release ■
8
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
9
2 Overview of Siebel Financial
Services Enterprise Application
Integration
This chapter provides an overview of Siebel Financial Services Enterprise Application Integration. It
contains the following topics:
■ About Siebel Financial Services Enterprise Application Integration on page 9
■ Components of Siebel Financial Services EAI on page 12
■ Details of Siebel Financial Services EAI on page 15
■ Siebel Financial Services EAI Connectors on page 19
About Siebel Financial Services
Enterprise Application Integration
Oracle’s Siebel Financial Services Enterprise Application Integration platform combines a set of tools,
technologies, and prebuilt functional integration components to facilitate application integration. This
set of products is referred to as Siebel Financial Services Enterprise Application Integration (EAI).
Siebel Financial Services EAI is an EAI solution built on top of Siebel EAI offered by Oracle. Siebel
Financial Services EAI provides an integration solution using industry XML standards. These
standards have been adopted by the industry and extended by middleware companies, as in IBM's
MQSeries Financial Services Edition (MQSFSE).
Siebel Financial Services EAI is designed as a set of interfaces which interact with each other and
with other components within the Siebel application. These interfaces:
■ Allow configurable messages within Oracle’s Siebel Tools for exchanging information using the
various industry XML standards.
■ Expose internal Siebel Objects to external applications.
■ Take advantage of prebuilt adapters and enterprise connectors, and are compatible with third-
party adapters and connectors.
■ Allow prebuilt XML connectors for Siebel applications.
■ Allow for comprehensive data transformation.
■ Allow extension for customized XML connectors by providing the Siebel Industry XML Connector
Factory API.
NOTE: For details on Siebel EAI, see Overview: Siebel Enterprise Application Integration.
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Overview of Siebel Financial Services Enterprise Application Integration ■ About
Siebel Financial Services Enterprise Application Integration
10
Legacy Encapsulation
The Siebel Financial Services application can serve as either a front-end administration system or as
a back-end CRM information storing system. In either case, it is necessary for the Siebel Financial
Services application to integrate with one or more multi-channel back-end systems such as an
Insurance Policy Administration System. To achieve this, the Siebel Financial Services application
must be configured to subscribe, receive, and then filter out the necessary information to store in
the database. The goal of integration is to make the communication possible between systems that
have not been designed to communicate together.
In allowing communications between systems, many different approaches have been developed.
Among these, messaging architecture is widely used and supported by the industry. For example,
message oriented middleware, such as IBM's MQSFSE, provides cross-referencing functionality for
all the applications. MQSFSE provides the connecting avenue between source or front-end systems
with target or legacy systems. Many customers in the financial services business face the same
business problem of how to connect new front-end applications for CRM or Enterprise applications
with existing legacy applications that were designed for a different business model. Many of these
problems are addressed by a relatively small number of key business processes that are
implemented in most organizations. Companies such as IBM have encapsulated their experience and
expertise in the Insurance Application Architecture (IAA) organization. In a similar effort, large
insurance and banking organizations introduced ACORD (Association for Operations Research
Development) and IFX (Interactive Financial Exchange) standards. These standards provide the
definition of key data elements of insurance and financial services, business components, and the
interfaces to these components using XML messages. With the Siebel Financial Services connectors
provided, the Siebel Business Applications platform generates and processes the necessary request
and response expected in an encapsulated environment for legacy integration to support both
inbound and outbound real-time integration between Siebel applications and other applications.
Overview of Siebel Financial Services Enterprise Application Integration ■ About
Siebel Financial Services Enterprise Application Integration
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
11
This encapsulation architecture provided in Siebel Financial Services encompasses the Siebel Call
Center application as shown in Figure 1.
Peer-to-Peer Integration
In peer-to-peer integration shown in Figure 2, multiple applications interact through a central
software bus. Usually, applications use the messaging architecture and choose a specific standard.
For example, the insurance industry may use the ACORD standard for the syntax and rules of the
messages flowing in this information bus.
Figure 1. Legacy Encapsulation
Figure 2. Peer-to-Peer Integration
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Overview of Siebel Financial Services Enterprise Application Integration ■
Components of Siebel Financial Services EAI
12
Other Integration Strategies
Other integration strategies are applicable as well. These include master data partitioning, data
sharing, presentation layer integration (screen scrapping), and others, as explained below.
■ Data Sharing. Data Sharing is another integration strategy practiced by the financial services
industry. Using this strategy you can access external data in real-time without duplicating the
data. This is a very common practice due to the nature of large amounts of transaction data for
a business data flow. For example, you may need to review more than one year's bank
transaction records for an account or more than 10 years of a policy subscriber's credit reports
that are stored in a back-end applications database.
■ Presentation Layer Integration. Siebel Financial Services EAI supports client-side integration
in a Web client environment. Client-side integration consists of integrating applications at the
user interface level, either by just posing the screens within a portal and coordinating the
content, or by screen scrapping the content of one into the other.
■ Data Mapping and Transformation. Data shared between applications might not be structured
or encoded in the same way. To facilitate integration of nonidentical data structures, Siebel
Financial Services EAI specifies mapping and transformation rules, including filtering and
structural changes. Siebel Financial Services EAI provides a framework that is ready for
transforming heterogeneous data structures.
■ Heterogeneous XML Message Integration. Siebel Financial Services EAI supports
heterogeneous object operations for the industry XML integration solution. Heterogeneous XML
Messages enhance the turnaround time between messages and decrease the overhead between
messages. Instead of using one message for each request, you can use a single heterogeneous
message to handle requests.
■ Dispatching various XML standards. Using Siebel Financial Services EAI you can dispatch
different XML standards to the target business process through the dispatching rule sets
configuration and extension. Furthermore, it may also supply the necessary processing
components to the target business process.
■ Error Recovery. Messages sent to external applications may fail due to a variety of reasons. For
example, the data sent may not be valid or sufficient. To achieve this requirement, Siebel
Financial Services EAI specifies fault section elements and rollback rules to recover from the
transactions executed.
Components of Siebel Financial Services
EAI
Components of Siebel Financial Services EAI allows Siebel Financial Services EAI to support
information exchange and communication between Siebel applications and other applications using
XML technology while obeying industry XML requirements. Siebel Financial Services EAI provides an
open toolkit and framework for customers to implement integration solutions with the availability of
various components, such as Siebel Industry XML Connector Factory API, Siebel Connector for
ACORD XML, and Siebel Connector for IFX XML that can be used individually or together with an EAI
vendor's toolkit. The following section describes the components of Siebel Financial Services EAI.
Overview of Siebel Financial Services Enterprise Application Integration ■
Components of Siebel Financial Services EAI
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
13
XML and Siebel Financial Services EAI
Commercial transactions have always consisted of an exchange of goods and services, and an
exchange of documents. EXtensible Markup Language (XML) allows us to implement the exchange
of documents electronically. XML is essentially a platform-neutral data format that makes it possible
to send messages across heterogeneous systems. Business messaging based on XML is one of the
most effective ways to adapt existing application software to support external internet applications.
Models are needed for integration because you must specify the structure and content of the
message. Without a business content, XML is purely an empty shell.
XML provides data interchange that includes industry-specific formatting, vendor-neutral data
exchange, global data exchange, language-neutral, and others. Siebel Financial Services EAI
developed an infrastructure that supports the development of industry XML connectors to send,
parse, and receive XML that supports different industry standards. XML assists trade to happen
between different people—especially international trade because it provides common vocabularies.
However, these standardized XML tags across industries are very different. Some industry groups are
defining interfaces and services that could be used by industries. For example, insurance has ACORD
and banking has IFX.
Siebel Financial Services EAI aimed to provide support for generic requirements across industry XML
standards in order to support various Financial Services industry XML standard extensions. Siebel
Financial Service EAI goal is to pinpoint the similarities among industry XML standards and thus
develop and implement certain infrastructure that supports the development of industry XML
connectors implement certain XML standards and messages. In the effort of providing this open
infrastructure, several sets of connectors are built based on the standards emerging key roles in the
financial services industry. In order to support various financial services industry standards, Siebel
Financial Services EAI provides a generic connector called Industry XML Connector, which is the base
connector for Siebel prebuilt connectors and Siebel Industry XML Connector Factory classes.
NOTE: Other industry XML standards can be supported by using various prebuilt Siebel connectors
or implementing Siebel Industry XML Connector Factory APIs. For details, see Appendix B, “Industry
XML Connector Factory APIs” and individual prebuilt Siebel Connector guides.
Generally the focus of companies integrating disparate applications are in two areas:
■ Middleware. Some companies use middleware. You pass an XML document to the middleware
and the middleware maps the data to its XML standard document structure. As a result, within
an organization you can define the tags and the middleware maps between different
organizations.
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Overview of Siebel Financial Services Enterprise Application Integration ■
Components of Siebel Financial Services EAI
14
■ Industry Standard. In the second area the tags and vocabularies are defined by organizations
and companies according to industry standards. This method does not require mapping.
Organizations that follow the industry standard framework can talk to each other. Also different
applications within the enterprise adapting to these standards can integrate with each other.
Siebel Financial Services provides support for this direction of creating tags and vocabularies
defined by industry standard organizations. Industry groups provide document type definitions
(DTDs) along with tags and vocabularies to standardize data exchange within specific industries.
A DTD defines the legal building blocks of an XML document by defining the document structure
with a list of legal elements. It provides ways to extend the message sets to cover different
business scenarios. DTD describes the document structure and provides a list of elements for a
document. Groups can agree to use a common DTD for interchanging data. An application can
use a standard DTD to verify that the data it receives from the outside world is valid. DTD defines
messages that encapsulate an industry specific data model in depth. It contains rich sets of data
exchange syntax and rules.
NOTE: None of the industry group standards have been adopted by a standards organization,
such as ISO (International Standards Organization), or by W3C (World Wide Web Consortium).
They are all in various stages of development.
ACORD XML and Siebel Financial Services EAI
The ACORD XML for Property and Casualty (P&C) and Surety is an insurance industry definition of
XML that contains appropriate messages for the property, casualty, and surety business sector in the
insurance industry. The ACORD standard defines the required structure and format of an XML
message to describe data elements and contents needed for the policy application, approval, and so
on. The definition exists in the ACORD document type definition (DTD), which is incorporated by the
Siebel connector to construct ACORD XML messages.
IFX XML and Siebel Financial Services EAI
The IFX XML is the standard developed by the Interactive Financial eXchange (IFX) Forum. This
organization establishes and maintains a set of XML messages for the financial industry. The IFX XML
Forum publishes a DTD that allows the Siebel Connector for IFX XML to create mappings between its
data and data in external databases.
Siebel Financial Services EAI Adapters and Connectors
Siebel Financial Services EAI provides connectors to help create integrations between Siebel
Financial Services applications and external applications. There are also additional connectors
developed by Siebel Business Applications partners.
Overview of Siebel Financial Services Enterprise Application Integration ■ Details of
Siebel Financial Services EAI
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
15
Siebel Connectors
Siebel Financial Services EAI connectors provide low-level connectivity to other back-office
applications such as Customer Information Integration Solutions (CIIS), but also includes the
business processes used for connecting to the external applications. Used in tandem, they allow for
the exchange of policy, bank account, and similar information between Siebel applications and
external applications.
Third-Party Connectors
Your organization may have a need to integrate multiple applications—such as Siebel Financial
Services applications, SAP, Oracle, and so on—with one another. If so, you might need an EAI solution
from one of the EAI vendors. These vendors work closely with Oracle to develop adapters to Siebel
Financial Services applications using Siebel EAI. Oracle has a validation program to make sure that
these adapters work according to Oracle standards.
Siebel Virtual Business Components
Virtual Business Components (VBC) are used to view data from an external system in Siebel
applications. Using this mechanism, no replication within the Siebel database is required.
Virtual Business Components are configured in Siebel Tools and use business services to access data
from an external system. VBCs use standard transports like MQSeries, HTTP, and MSMQ, along with
the XML Gateway Server, to query, insert, and update data.
NOTE: For details, see Integration Platform Technologies: Siebel Enterprise Application Integration.
Details of Siebel Financial Services EAI
The following section describes details of Siebel Financial Service EAI regarding upgrade,
configuration, and extensibility.
Configurable and Upgradeable Integration
Siebel Financial Services EAI can be configured both as a server and as a client. As a client, use
Siebel Financial Services EAI to send out requests. You initiate requests and ask an external
application to provide service. Siebel Financial Services application used as a server publishes
services available within Siebel applications to receive requests from external applications. When a
request is received by a Web server or a Siebel Listener thread, or through a Siebel Object, it is
processed and services are rendered. Siebel applications provide a comprehensive set of CRM
services that can be configured as described below:
Integration objects. Use the wizards in Siebel Tools to define integration objects. The integration
object can be external, such as industry XML standard data hierarchy, or internal, such as Siebel
business object hierarchy.
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Overview of Siebel Financial Services Enterprise Application Integration ■ Details of
Siebel Financial Services EAI
16
Connector user properties. Connector user properties can modify default behavior, such as
altering the envelope, header, or fault section of the message generated.
Connector input arguments. Connector input arguments can take on heterogeneous messages
that combine multiple integration objects that might be built from different business objects.
Extensible
Siebel Financial Services EAI can be extended using standard class derivation or API implementation.
You can extend the generic industry XML connector by modifying its user properties and
implementing the Siebel Industry XML Connector Factory APIs to support other industry XML
standards. The Industry XML Connector provides the following services that are required in most
industry XML standards.
■ Envelope and Header section
■ Fault or Error section
■ Body with heterogeneous command or messages
■ Data Type Formatting - Support for multiple formats. For example, Interactive Financial
eXchange (IFX) has Data type in DTD
■ Data model mapping and transformation
Overview of Siebel Financial Services Enterprise Application Integration ■ Details of
Siebel Financial Services EAI
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
17
■ Overwriting the methods available in the APIs to customize industry XML connector on the Siebel
Business Application platform. Figure 3 illustrates the architecture of a customized industry XML
connector.
NOTE: For details on customization solution, see Appendix B, “Industry XML Connector Factory
APIs.”
Declarative Integration
Siebel integration objects allow you to represent integration metadata for Siebel business objects,
XML, SAP IDOCs, and SAP BAPIs as common structures that the EAI infrastructure can understand.
Because these integration objects adhere to a set of structural conventions, they can be traversed
and transformed programmatically, using Oracle’s Siebel eScript objects, methods, and functions, or
transformed declaratively using Siebel Data Mapper. There are three types of integration object used
within Siebel Financial Services EAI, Envelope Integration Object, Internal Integration Object, and
External Integration Object.
Envelope Integration Object. This object presents the hierarchy of the envelope and header
section of any industry XML standards.
Figure 3. Customized Industry XML Connector Architecture
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Overview of Siebel Financial Services Enterprise Application Integration ■ Details of
Siebel Financial Services EAI
18
Internal Integration Object. This object defines the Siebel data hierarchy for an external
application. The internal integration object has the hierarchy of Siebel business object and business
components as well as the fields. It maps to the objects in the Siebel Financial Services application
and is created using Integration Object Builder in Siebel Tools. The internal integration object is
required to facilitate the Industry XML Transaction Manager to package the gathered data. This
service gathers the data needed for a particular message and packages it into the hierarchy defined
in the internal integration object.
External Integration Object. This object defines the XML hierarchy. The external integration
object maps the internal integration object components and fields to external application
aggregations and fields. The Data Transformation Engine and Converter use this object to construct
the external format structures.
Data Transformation
Siebel Financial Services EAI provides a declarative data mapper (Siebel Data Mapper) to transform
the data expected by Siebel applications (internal integration object) to the data received from the
external system (external integration object) and the other way around. A run-time engine, the
Industry XML Data Transformation Engine, implements complex domain and structure mapping. XML
documents can be mapped so that one document can be transformed into another XML document
with programming. For example, data in one system's LastName field can be used in another
system's field named Surname. Siebel Financial Services EAI also supports transformation of
heterogeneous messages.
NOTE: This type of exchange can take place within middleware, or between internal and external
applications.
Cross-Application Process IntegrationThe Siebel Financial Service
platform supports workflow control in order to achieve process level integration between Siebel
applications and external applications. You use the Siebel Workflow Designer to define the integration
processes and Siebel Workflow Engine to execute and manage integration processes.
The business services you use to build the workflow process can be a prebuilt component, such as a
transport adapter and the Industry XML Dispatcher, or can be custom developed at design time or
run time using one of the Siebel Scripting languages.
Siebel Database as Master for CRM
The Siebel Database is supported on multiple platforms, which allows organizations to adopt the
Siebel schema as the master data schema for customers and customer relationship data.
Alternatively, many financial services organizations have deployed a mainframe-based customer
information file (CIF), which is used by many back-end systems. Siebel Financial Services EAI
includes a number of technologies to allow using the CIF in place of, or in combination with, the
equivalent structure in the Siebel system.
Overview of Siebel Financial Services Enterprise Application Integration ■ Siebel
Financial Services EAI Connectors
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
19
Siebel Database as Integrator for Other Systems
Siebel Financial services EAI can play a subscriber role in terms of other industry data not in the CRM
model that is specific to a particular industry. For example, insurance industry customers may want
to store very high-level policy information within Siebel Financial Services EAI. This allows them to
associate customers with certain policies and to display data from a back-end system when needed
in virtual business components.
Siebel Application as Front-End Integrator for Other
Systems
You may want to query data from external systems. In this case, the search specification is captured
by the Siebel Financial Services EAI infrastructure. It then sends the specification to the external
system in real-time and displays the results received using Siebel connectors and virtual business
components.
Siebel Financial Services EAI Connectors
Siebel Financial Services EAI provides connectors to help create integrations between Siebel
Financial Services applications and external applications.
Siebel Connector for IFX XML
The Siebel Connector for IFX XML module extends from the Siebel Financial Services Industry XML
Connector module. It is based on the IFX Forum standard for financial data exchange using XML. The
Siebel Connector for IFX XML uses an IFX-compliant server, such as IBM WSBCC or another
middleware application.
Siebel Connector for IFX XML provides integration between the Siebel Financial Services application
and external IFX-based applications. The IFX specification supports financial communications
between banks, brokerage houses (future), service providers, financial advisors (future), small
businesses, and consumers. The IFX specification allows financial institutions to support customers
using a broad range of client devices, including, but not limited to:
■ World Wide Web access using any standard Web Browser software
■ Personal computers with Personal Financial Manager (PFM) software
■ Voice Response Units (VRUs) that provide bank by phone services
■ Automated Teller Machines (ATMs)
■ Consumer handheld devices such as Personal Digital Assistants (PDAs)
■ Mobile telephones with data capabilities
NOTE: For details, see Siebel Financial Services Connector for IFX XML Guide.
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Overview of Siebel Financial Services Enterprise Application Integration ■ Siebel
Financial Services EAI Connectors
20
Siebel Connector for ACORD XML
The Siebel Connector for ACORD XML is an enhancement of the generic Siebel Financial Services
Industry XML Connector. This connector allows Siebel applications to transfer data between Siebel
applications and external ACORD-based applications. It uses XML to handle data formatting and
conversion according to the ACORD forum standard.
The Siebel Connector for ACORD XML provides integration between Siebel Business Applications and
other insurance application systems, such as a policy administration system that implements the
ACORD XML standard. The connector supports the ACORD XML Business Message Specification for
P&C Insurance and Surety, an insurance industry standard XML specification. The Siebel Connector
for ACORD XML receives, parses, and processes the business operations specified in the XML
message for both outbound and inbound integrations. This integration solution offers powerful
capabilities designed to meet all Property and Casualty message specification requirements. This
solution also allows you to effectively harness the synergies between Siebel front office applications
and ACORD-based applications. The Siebel Connector for ACORD XML allows Siebel applications to
integrate with back office data and business processes for both synchronous and asynchronous
transactions across applications.
NOTE: For details, see Siebel Financial Services Connector for ACORD P&C and Surety Guide.
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
21
3 Siebel Financial Services EAI
Architecture
This chapter describes Siebel Financial Services Enterprise Application Integration architecture. It
contains the following topics:
■ Layered Architecture on page 21
■ Integration Requirements and Siebel Financial Services EAI on page 22
■ Business Process Coordination Using Workflows on page 23
■ Transport Mechanisms on page 24
■ Industry XML Connector on page 25
Layered Architecture
The Siebel Financial Services Enterprise Application Integration (EAI) is an extension of the standard
Siebel EAI designed to address integration approaches adopted by the vertical industry. It provides
a platform for the development of specific connectors for different industry XML standards.
Figure 4 illustrates the high-level architecture of Siebel Financial Services EAI and various industry
XML connectors.
Figure 4. High-level architecture of Siebel Financial Services EAI
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Siebel Financial Services EAI Architecture ■ Integration Requirements and Siebel
Financial Services EAI
22
Integration Requirements and Siebel
Financial Services EAI
Table 1 maps real-world data and application integration requirements with their corresponding
Siebel Financial Services EAI features.
Table 1. Integration Requirements and How They Relate to Siebel Financial Services EAI
Features (1 of 2)
Integration
Requirements
Siebel Financial Services
EAI Features and
Components Notes
Metadata Definition
XML Metadata
External application
metadata
■ Integration objects based
on Siebel business objects
■ Integration objects based
on external metadata
■ FINS ACORD Wizard
■ FINS IFX Wizard
■ FINS OFX Wizard
In any integration project, you need a
way to supply data about data, called
metadata. Siebel Financial Services
applications provides XML as the
common format for representing
external application data. In addition,
Siebel Financial Services applications
provides an object type in Siebel Tools
called the Integration Object, as well
as an Integration Object Wizard, which
automates the task of creating
integration objects.
Data Transformation
Declarative data
transformation mapping
High-performance
transformation engine
■ Siebel Data Mapper Siebel Financial Services EAI allows
you define what type of data is to be
exchanged, and allows you to export a
DTD for a Siebel integration object.
Industry standards-
based Integration
Mechanism
■ Interactive Financial
Exchange XML (IFX XML)
as a format for data
exchange
■ ACORD XML as a format
for data exchange
■ Any other industry XML
standards or industry XML
alike standards
See Siebel Financial Services
Connector for IFX XML Guide, and
Siebel Financial Services Connector for
ACORD P&C and Surety Guide.
Also see Appendix B, “Industry XML
Connector Factory APIs,”and “Industry
XML Connector” on page 25.
Business Process
Coordination
■ Workflow Process
Designer
■ Workflow Process
Manager
See Business Process Coordination
Using Workflows on page 23.
Siebel Financial Services EAI Architecture ■ Business Process Coordination Using
Workflows
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
23
Business Process Coordination Using
Workflows
Connectors are composed of multiple components. These components are tied together using
workflows. With different sets of configuration, you can alter generated messages and behavior. You
can use the Workflow Process Designer and the Workflow Process Manager to configure your data
integration business process flow. The Siebel Financial Services application provides sample
workflows which you can use as a reference implementation for your data integration business
processes. Figure 5 shows one of these sample workflows from the sample database.
Transport Mechanisms
(for interfacing with
other technologies)
Transport Adapters:
■ IBM MQ Series
■ Microsoft MSMQ
■ HTTP
See Transport Mechanisms on page 24.
High Volume Data
Exchange
■ EIM (Enterprise
Integration Manager)
See Overview: Siebel Enterprise
Application Integration.
Figure 5. Siebel Workflow Architecture for Siebel Financial Services EAI
Table 1. Integration Requirements and How They Relate to Siebel Financial Services EAI
Features (2 of 2)
Integration
Requirements
Siebel Financial Services
EAI Features and
Components Notes
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Siebel Financial Services EAI Architecture ■ Transport Mechanisms
24
Transport Mechanisms
Many companies have standardized transport solutions such as MQSeries from IBM or MSMQ from
Microsoft. These transports allow the transportation of messages between one system and another.
Oracle conforms to this standard by allowing you to “plug” Siebel Financial Services applications into
these environments through Siebel Financial Services EAI’s comprehensive set of adapters, that
include the MQSeries adapter, the MSMQ adapter, and the HTTP adapter.
Transport adapters developed by Oracle and Oracle-certified partners allow diverse applications to
communicate with Siebel Financial Services applications across virtually any operating system,
network, and database. Any one or any combination of these transports could be used in an
integration solution, depending upon existing applications and other factors.
Siebel Financial Services EAI Architecture ■ Industry XML Connector
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
25
Industry XML Connector
The Industry XML Connector is a configured set of components that allows Siebel applications to
exchange data with external systems using XML messages. These components are called business
services and can be extended to support multiple connectors. You can use the overwrite methods to
extend the functionality of both industry XML connectors as well as Siebel Financial Service EAI
infrastructure for enterprise data sharing and data synchronization for your integration
implementation. By using the overwrite methods to extend the functionality, you obey the rules of
data exchange set forth by the legacy or back-end systems, such as specific XML structure and
envelope details, while using the common requirements for business processes and transactions.
Figure 6 illustrates architecture of the Industry XML Connector.
The Industry XML connector has four key components: Industry XML Transaction Manager, Industry
XML Data Transformation Engine, Industry XML Converter, and Industry XML Dispatcher. They are
described in following sections.
NOTE: For details on the IFX XML integration solution, see Siebel Financial Services Connector for
IFX XML Guide, for details on the ACORD XML integration solution, see Siebel Financial Services
Connector for ACORD P&C and Surety Guide, and for details on implementing other industry XML
integration solutions see Appendix B, “Industry XML Connector Factory APIs.”
Figure 6. High-level architecture of Industry XML Converter
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Siebel Financial Services EAI Architecture ■ Industry XML Connector
26
Industry XML Transaction Manager
The Industry XML Transaction Manager is responsible for interfacing with the Siebel database. It
retrieves data and executes database operations for financial services industry integration
architecture. The Industry XML Transaction Manager can also extract query specifications entered by
users in the memory cache, and run them through the connector modules to send a query message
to external systems. Furthermore, it can undo operations if it receives an error in the fault section
of the response message indicating that the external systems failed to execute the specified
operations.
Table 2 lists all the user properties for Industry XML Transaction Manager.
The Industry XML Transaction Manager uses the prebuilt methods described in Table 3 to process
inbound or outbound integration.
Table 2. Industry XML Transaction Manager User Properties
Name Value Description
DispatcherMapName IXMLDispMap Transaction Manager uses this map to tag the Body
information for other components. This value can also
be set as a runtime input argument.
IgnoreSvcMethodArgs true or false This parameter allows runtime input arguments.
SaveInFileForRollback  The filename to save current record for future rollback
when rollback operation is desired.
SaveInMemForRollback  The session key to set or look up the record cached in
memory if rollback operation is desired.
XXX (Operation) ServiceName/
MethodName/
Argument
Type of operation to use. For example, Name =
IXMLOperation_QUERY, Value= EAI Siebel Adapter/
Query/PrimaryRowId;!SiebelMessage.
Table 3. Industry XML Transaction Manager Methods
Method
Default Display
Name Description
Execute Execute
Transaction
This method can be used for inbound or outbound
purpose, as long as the integration object instance is
provided. You should use the Execute Outbound method
when Row Id is the only available input.
ExecuteOutbound Execute
Outbound
This method can only be used for outbound purpose to
execute operation specified in input arguments. See
Table 6 on page 28.
ExecuteSave Execute and
Save
This method executes outbound operation specified in
input arguments and also saves the transaction into
memory or file. See Table 7 on page 28.
Siebel Financial Services EAI Architecture ■ Industry XML Connector
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
27
The Industry XML Transaction Manager business service uses combinations of user property, method,
and method arguments to achieve different tasks.Table 4 lists all the method arguments available to
use with The Industry XML Transaction Manager business service.
Table 4. Industry XML Transaction Manager Method Arguments
Argument Default Value Description
OnlyIOI false This is only used for Inbound integration. The
inbound message may contain header, body, and
envelope portion. When Transaction Manager takes
the proper operation against the Siebel application,
the integration object instances for response is
generated as well. All information from the request
message is dropped if this value is set to true.
Therefore, the Industry XML Converter and Industry
XML Data Transformation Engine do not need to deal
with the overheads. If this is not set to true, then
request information will still be carried over.
XMLHierarchy N/A Property set in internal integration object hierarchy.
IXMLMapPath N/A Store the key value for the dispatch map. Industry
XML Transaction Manager will use it to look up the
value, and attach necessary value into integration
object instance.
PrimaryRowId N/A The PrimaryRowId of the integration object.
SiebelFINSOperationOut N/A The outbound operation Industry XML Transaction
Manager takes through its user property.
SearchSpec N/A The Search Specification for query.
PlaceToSave mem PlaceToSave indicates whether the rollback instance
is getting from “file” or “mem.” Valid values are “file”
or “mem.”
RollbackInError false Indicates whether the transaction should be rolled
back. Valid values are “true” or “false.”
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Siebel Financial Services EAI Architecture ■ Industry XML Connector
28
Although these arguments are available to use with the Industry XML Transaction Manager, not all
can be used with each method. Table 5 through Table 7 list all the method arguments for each
method.
Table 5. Method Arguments for Execute Method
Argument Display Name Data Type Type Optional
OnlyIOI Only produce Integration
Object Instance
String Input Yes
XMLHierarchy XML Property Set Hierarchy Input/Output No
RollbackInError  Is Rollback in Error String Input Yes
Table 6. Method Arguments for ExecuteOutbound Method
Argument Display Name Data Type Type Optional
IXMLMapPath IXML Map Path String Input No
PrimaryRowId Primary Row Id String Input Yes
SiebelFINSOperationOut Outbound
Operation
String Input No
SearchSpec Search
Specification
String Input Yes
XMLHierarchy XML Property Set Hierarchy Input/Output No
Table 7. Method Arguments for ExecuteSave Method
Argument Display Name Data Type Type Optional
IXMLMapPath IXML Map Path String Input No
PrimaryRowId Primary Row Id String Input Yes
SiebelFINSOperationOut Outbound Operation String Input No
SearchSpec Search Specification String Input Yes
XMLHierarchy XML Property Set Hierarchy Output No
PlaceToSave Place To Save String Input Yes
Siebel Financial Services EAI Architecture ■ Industry XML Connector
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
29
Industry XML Data Transformation Engine
The Industry XML Data Transformation Engine transforms the hierarchy between external and
internal data models that are represented by integration object instances. The Industry XML Data
Transformation Engine is designed to handle heterogeneous messages to allow more than one
business object scenario. It also takes extra input arguments specified in the data transformation
map to indicate the possibility of removing empty value tags from the instances transformed.
Table 8 lists the specific methods for the industry XML Data Transformation Engine.
Industry XML Data Transformation Engine business service uses combinations of method, and
method arguments to achieve different tasks.Table 9 lists all the method arguments available to use
with Industry XML Data Transformation Engine business service.
Table 8. Industry XML Data Transformation Engine Methods
Methods Display Name Description
ToExternal Transform To External
Hierarchy
Transforms Siebel internal
integration object hierarchy into the
industry XML external hierarchy.
ToInternal Transform To Siebel
Hierarchy
Transform industry XML external
hierarchy into the Siebel internal
integration object hierarchy.
Table 9.  Industry XML Data Transformation Engine Method Arguments
Argument Default Value Description
XMLHierarchy N/A Property set in internal or external integration
object hierarchy.
 N/A See Business Processes and Rules: Siebel
Enterprise Application Integration.
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Siebel Financial Services EAI Architecture ■ Industry XML Connector
30
Each method defined for the Industry XML Data Transformation Engine business service takes some
input arguments and produces some output arguments as listed in Table 10 and Table 11.
Industry XML Converter
The Industry XML Converter supports the generic syntax and rules requirements of the general
industry XML standard. It converts the data from Siebel external integration object hierarchy to XML
hierarchy that conforms to DTD specifications. For example, it generates certain authentication
parameters for the XML message, and also generates and detects the fault sections in an XML
message for extended converters to manipulate. Table 12 lists all the user properties for this
converter.
Table 10. Method Arguments for ToExternal Method
Name Display Name Data Type Type Optional
XMLHierrarchy XML Property Set Hierarchy Input/Output No
 String Input Yes
Table 11. Method Arguments for ToInternal Method
Name Display Name Data Type Type Optional
XMLHierrarchy XML Property Set Hierarchy Input/Output No
 String Input Yes
Table 12. Industry XML Converter User Properties
Name Value Description
EscapeNames true or false If set to true, the converter replaces
illegal XML name characters with escape
characters. Otherwise, it will ignore
illegal XML name characters. The default
value is true.
HierarchyFormat XML Hierarchy Format of the property set input or
output. Internal use only.
XMLEnvIntObjectName  Name of an integration object that
defines the content and hierarchy for the
envelope and header section of any
industry XML standards.
Siebel Financial Services EAI Architecture ■ Industry XML Connector
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
31
This service provides several ready-to-use-methods as described in Table 13.
For each method defined the Industry XML Converter business service takes input arguments and
produces output arguments. These arguments are described in Table 14.
Table 13. Industry XML Converter Methods
Methods Display Name Description
PropSetToXML PropSetToXML Converts an integration object
hierarchy to XML string.
PropSetToXMLPropSet PropSetToXMLPropSet Converts an integration object
hierarchy to XML hierarchy.
XMLToPropSet XMLToPropSet Converts an XML string to an
integration object hierarchy.
XMLPropSetToPropSet XMLPropSetToPropSet Converts an XML hierarchy to an
integration object hierarchy.
Table 14. Industry XML Converter Method Arguments
Method Argument Default Description
XML Document N/A XML document streams.
Escape Names true Escape characters, invalid XML characters, to be
removed or not.
Ignore Character Set
Conversion Errors
false If some characters cannot be represented in the
destination character set, for example, local codepage,
the errors can be ignored.
XML Character Encoding N/A XML character encoding to use in the output XML
document. If encoding is blank or not supported, errors
will be produced.
XML Header Text N/A Text to preappend to the XML document.
XML Hierarchy N/A Property Set in external integration object or XML
hierarchy.
External Entity Directory N/A Location of an external entity file, such as a DTD file.
Validate External Entity false If true, the XML parser will validate the document
according to the DTD specified in the
element.
Truncate Field Values true truncate field values.
Contains Inline Attachments true Indicates the message contains attachment
documents.
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Siebel Financial Services EAI Architecture ■ Industry XML Connector
32
Each Industry XML Converter method uses groups of these method arguments to convert the data
for the next service in the integration process. Table 15 through Table 18 on page 33 display the
method arguments for each method.
Table 15. Method Arguments for PropSetToXML Method
Name Display Name
Data
Type Type Optional
 XML Document String Output Yes
EscapeName Escape Name String Input Yes
IgnoreCharSetConvErrors Ignore Character String
Set Conversion Errors
String Input Yes
XMLCharEncoding XML Character Encoding String Input Yes
XMLHeaderText XML Header Text String Input Yes
XMLHierarchy XML Hierarchy Hierarchy Input No
Table 16. Method Argument for PropSetToXMLPropSet Method
Name Display Name Data Type Type Optional
XMLHierarchy XML Hierarchy Hierarchy Input/Output No
Table 17. Method Arguments for XMLToPropSet Method
Name Display Name
Data
Type Type Optional
 XML Document String Input No
EscapeName Escape Name String Input Yes
ExternalEntityDirectory External Entity Directory String Input Yes
IgnoreCharSetConvErrors Ignore Character String
Set Conversion Errors
String Input Yes
ValidateExternalEntity Validate External Entity String Input Yes
XMLCharEncoding XML Character Encoding String Output Yes
XMLHierarchy XML Hierarchy Hierarchy Output Yes
Siebel Financial Services EAI Architecture ■ Industry XML Connector
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
33
Industry XML Dispatcher
The Industry XML Dispatcher is responsible for receiving and dispatching inbound messages. It
receives the message and determines the specific XML standards associated with the message. It
also scans the message for commands that are supported and specified in its rule sets dispatcher
map and associates each command with the corresponding integration objects and so on. Table 19
lists all the user properties for the Industry XML Dispatcher.
Table 18. Method Arguments for XMLPropSetToPropSet Method
Name
Default Display
Name Data Type Type Optional
ContainsInlineAttachments Contains Inline
Attachments
String Input Yes
TruncateFieldValues Truncate Field Values String Input Yes
XMLHierarchy XML Hierarchy Hierarchy Input/Ouput No
Table 19. Industry XML Dispatcher User Properties
Name Value Description
DispatcherMapName
Name of an integration object that details the
dispatching rules and syntax for the XML
standard. This map is usually created along with
all the other integration objects by the wizard.
The default map name is “IXMLDispMap”.
XMLEnvIntObjectName
Name of an integration object that defines the
content and hierarchy for the envelope and
header section of any industry XML standards.
XMLFaultObject_O
This allows the dispatcher to identify a fault
section with the first token and further confirm it
with the value of the second token if applicable.
Extra fault objects can be added by incrementing
the name with _1,_2, and so on. An example for
the value for this user property name is
XMLFaultObject_1 and value is //IOI/
@cmdstatus;fail.
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Siebel Financial Services EAI Architecture ■ Industry XML Connector
34
The Industry XML Dispatcher business service provides ready-to-use methods described in Table 20.
Table 20. Industry XML Dispatcher Methods
Methods Display Name Description
DispatchMessage Dispatch Message Validates the incoming XML message. If the
message conforms to the dispatching rules,
integration object names and other necessary
information will be attached. It also checks for
the respective envelope, header, and fault
section of the message and identifies them.
DispatchStdMessage Dispatch Standard
Message
Identifies the industry XML standard of the
incoming XML message. It recognizes all XML
standards configured in its input arguments.
Value “Unknown” will be the output argument, if
it does not recognize the XML standard.
Siebel Financial Services EAI Architecture ■ Industry XML Connector
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
35
For each method defined the Industry XML Dispatcher business service takes input arguments and
produces output arguments. These arguments are described in Table 21 through Table 23.
Table 21. Industry XML Dispatcher Method Arguments
 Argument Default Description
XML Hierarchy N/A Property Set in XML hierarchy.
 N/A An XML standard. For example, when configuring this
input argument, the Input Argument is the XML standard
and the Value is its envelope XML tag.
XML Standard N/A The XML standard that matches the incoming XML
message’s envelope tag.
Table 22. Method Arguments for DispatchMessage Method
Name Display Name Data Type Type Optional
XMLHierarchy XML Hierarchy Hierarchy Input/Output No
Table 23. Method Arguments for DispatchStdMessage Method
Name Display Name Data Type Type Optional
XMLHierarchy XML Hierarchy Hierarchy Input No
 String Input Yes
XMLStandard XML Standard String Output No
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Siebel Financial Services EAI Architecture ■ Industry XML Connector
36
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
37
4 Understanding Financial
Services Integration Paradigms
This chapter includes information about how to plan your integration. It contains the following topics:
■ Overview on page 37
■ Design Decisions on page 38
■ Usage Models on page 41
■ Access Mechanisms on page 43
■ Application Connectors on page 44
Overview
You need to integrate your Siebel applications with other external systems for the following reasons:
■ You have invested in several legacy applications, back office systems, and eCommerce
applications and would like to have one integrated view of all your systems.
■ You want to use Siebel applications as your primary application and access all other applications
using Siebel applications as the front-end system.
■ You want to reflect changes made to your external systems in your Siebel applications and
update your Siebel database with information from other applications in your enterprise.
Before you begin an integration project, identify your integration needs. You may have data in a
variety of applications such as back-office solutions for Policy Administration, Claims, or accounting;
e-commerce applications such as Web store fronts; and help desk applications.
There are several ways you can approach your integration, depending on your needs. You can
connect Siebel applications and your back-office or e-commerce system using prebuilt Siebel
Financial Services EAI connectors. You can connect Siebel applications and an external application,
using Siebel Financial Services EAI custom-built connectors. You can integrate Siebel Financial
Services applications with middleware solutions. And you can integrate Siebel Financial Services
applications with external applications, using a third-party EAI product.
Siebel Financial Services EAI provides solutions for each element of the EAI planning process.
■ Programmatic interfaces like COM and Siebel Java Beans provide a tightly-coupled integration for
real time data exchange.
■ Adapters like MQSeries and the HTTP adapters provide a loosely-coupled mechanism for real-
time integration. This means that one system needs to be aware of implementation details of the
other system's integration mechanisms. A message or a document is exchanged between these
systems.
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Understanding Financial Services Integration Paradigms ■ Design Decisions
38
■ For high volume batch integrations, Siebel EAI provides you with Batch Integration Manager
(BIM) and Siebel Enterprise Integration Manager (EIM). BIM and EIM can replicate data between
Siebel and other systems at the database layer, and both provide high performance for importing
or exporting of large volume of data.
■ Connectors, such as the Siebel Connector for IFX XML and other prebuilt connectors, provide
loosely coupled integration using XML technologies. These connectors focus on existing industry
XML standards.
Siebel Integration Designer provides the infrastructure that allows you to define real-time interfaces
to external systems in a variety of ways. You can use the Siebel BIM to send and receive requests
for data, requests for action, and data synchronization. You can define integration workflow
processes by sequencing integration requests without programming using Siebel Workflow Designer.
NOTE: For details on Siebel Workflow, see Siebel Business Process Framework: Workflow Guide.
Design Decisions
Performing the right analysis and making the right decision is important for any software project but
this is especially true for integration. Integrating disparate systems is a complex process because
most customized applications that are created in an enterprise, and some commercially available
applications, do not have a published API (Application Programming Interface). This makes seamless
integration difficult, if not impossible. To add to this complexity, there are multiple infrastructures
used by companies to “glue” systems together.
You need to carefully analyze the integration effort to understand your business needs and
integration requirements. Before deciding to integrate your applications, you should perform a cost
benefit analysis, review how you use the applications, and analyze the applications’ data structure.
Some of the factors to be considered as part of this process include:
■ Does the data need to be shared or synchronized?
■ Does the data need to be transformed before it can be shared or synchronized?
■ Is the requirement for data real-time or batch?
NOTE: You will need more resources to build and maintain real-time integration than would be
required by batch integration.
■ How is the data presented to the user?
■ How is the data requested?
■ Where does the data come from?
■ How is the data updated?
■ What are the service-level or performance requirements?
■ Is there an existing third-party product that can help?
Siebel Financial Service EAI offers different tool sets for different types of integration requirements.
Siebel Financial Services EAI is a technology that allows for data sharing, data replication, and
function passing across applications. Siebel Financial Services EAI includes the following
technologies:
Understanding Financial Services Integration Paradigms ■ Design Decisions
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
39
■ Business Integration Manager
■ Virtual Business Components
■ Enterprise Integration Manager
■ Business Services
■ Business Object Interfaces
■ ActiveX Plugins
There are several approaches to integrating the Siebel application with other applications based on
the Business needs. Following are some of approaches which were considered:
Synchronize Siebel data with non-Siebel data. Synchronizing Siebel data with external
applications can be achieved either through the Business Integration Manager, any of the
Connectors, which Siebel ships as a part of the product, Enterprise Integration Manager (EIM), or
any of the Object Interfaces.
Display non-Siebel data in Siebel applets. Displaying non-Siebel data within a Siebel application
can be achieved through VBC or ActiveX Plugin.
Display Siebel data in another application. Displaying Siebel data within another application
without the Siebel User Interface can be achieved by plugging Siebel data as an Active-X plugin, or
through a Data Service of Object interface provided by Siebel applications.
Incorporate the Siebel User Interface (UI) into another application or incorporate non-
Siebel UI within Siebel applications. Siebel provides an open interface which can be adapted
using COM, Active X Controls, and Java Data Beans. You can use these technologies if an external
application needs to have the look and feel of the Siebel application within its own user interface or
if the Siebel application needs to incorporate the user interface of an external application.
Control the Siebel application from another application. You can use Object Interfaces such as
COM Servers to have another application control Siebel applications.
Export Siebel data. To export data, you can use EIM or other Object Interfaces.
Table 24 lists the best Siebel solution for your integration problems.
Table 24. Best Siebel Solutions for Integration Issues
Integration Problem Siebel Solution
High Volume Batch Interface Enterprise Integration Manager
Accessing Data stored Outside of Siebel Virtual Business Components (VBC)
Transactional Replication of Data Business Integration Manager (BIM)
Siebel Financial Services Connectors
Interface to popular financial services
back office applications using XML
technologies
Siebel Financial Services Enterprise Application
Integration Connectors (IFX XML, ACORD XML
Connectors. Siebel Industry XML Connector,
Siebel Industry XML Connector Factory APIs)
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Understanding Financial Services Integration Paradigms ■ Design Decisions
40
To choose the appropriate and economical solution for your integration issue, you need to perform a
step-by-step evaluation process for the following:
Transactions. List the business transactions that are executed within your Siebel implementation.
These transactions should contain the information that is required for applications to integrate and
work together. For example, if a company has a policy management system as one of its legacy
systems but policy information initially is captured in the Siebel application, the transaction would
be to add policy details in the policy management legacy system.
Applications. List the other applications you need to query or write to in order to complete the
transactions. For example, in the above case 'Policy Management System' would be the other
application to integrate with the Siebel application.
Integration Points. Identify the points within the transaction flow at which the integration needs
to take place (integration points). For example, populate a data warehouse with a nightly download
of data. Consolidate integration points to reduce cost of ownership or verify open stock before
showing the customer a product choice on a Web page. Add the transaction into the legacy system
in real time as soon as a policy is added. Also identify what form of integration is required, real-time
or batch, synchronous or asynchronous, tightly or loosely coupled.
Identify solutions. Identify the best solution for your integration need. There may be more than
one solution in solving an integration problem. Consider the solution that is most optimal for your
problem. You can use Table 24 on page 39 to analyze the most optimal solution for each of your
integration points. For example, connector, middleware, VBC, or EIM.
Other Considerations. Determine whether you need to transform, share, or replicate your data. If
you do not need to have the data in both systems but need to share it in real-time, consider VBC.
Data sharing solves many of the problems associated with data replication. However, you need to
consider data ownership contention and network traffic. Real-time access always carries a premium
related to slow response time and the fact that it is expensive to maintain and build. Data sharing is
appropriate for integration points that involve volatile or highly specialized source data such as credit
card authorization, tax calculation, and so on. Other instances in which data sharing might be
appropriate would be when you need to occasionally access large amounts of used data such as a
credit card payment history. For details, see “Access Mechanisms” on page 43.
Interface to Popular Back-Office
Applications (SAP, Oracle, PeopleSoft)
Siebel Connectors (SAP, Oracle, PeopleSoft
Connectors)
External applications to control Siebel
Application or Siebel application
controlling external application
Object Interface such COM Servers (Automation
and Data), Active X controls (Application and
Data), and Java Data Beans
Table 24. Best Siebel Solutions for Integration Issues
Integration Problem Siebel Solution
Understanding Financial Services Integration Paradigms ■ Usage Models
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
41
Figure 7 illustrates available Siebel Financial Services interfaces.
Usage Models
When looking at your requirements, you should understand how you intend to use Siebel Financial
Services EAI’s integration capabilities. You need to determine how the integration will behave and
under what circumstances. In other words, in what way are you planning to use this integration? This
is referred to as the usage model.
There are two basic usage models, real time and batch, as shown in Figure 8 on page 42. Batch mode
has a single mode, and real time has two modes, either tightly-coupled or loosely-coupled. To help
you determine the appropriate usage model, ask yourself the following questions.
■ How do I plan to integrate Siebel Financial Services applications with other applications?
■ Do I want to do it in real-time or in batch mode?
Figure 7. Siebel Siebel Financial Services Interfaces
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Understanding Financial Services Integration Paradigms ■ Usage Models
42
■ If I want to do it in real-time, do I want the solution to be tightly-coupled or loosely-coupled?
Real Time
With a real time model, you may choose to deploy Siebel Financial Services applications as a client
or as a server. As a client, Siebel Financial Services applications access another program or initiate
a transaction on an external system. Typical scenarios include:
■ Sending an insurance policy created from Siebel Financial Services applications to a 'Policy
Management' system and receiving the policy status in return.
■ Accessing a mainframe banking application to retrieve customer bank deposits in real time and
display it within the Siebel user interface.
■ Sending claims to independent claims agents over corporate firewalls without compromising
security.
■ Accessing an external rating engine system to calculate a quote and then displaying the
information in the Siebel system.
Figure 8. Integration Usage Model
Understanding Financial Services Integration Paradigms ■ Access Mechanisms
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
43
As a server, Siebel Financial Services applications are accessed by an external program to query,
insert, update, or delete data without any initiation from the Siebel system. Typical scenarios
include:
■ An external EJB Web application accessing a Siebel Financial Services application to retrieve
contact information.
■ Call center software extracting customer service request information from a Siebel Financial
Services application.
Batch
Batch processing typically is used for periodic uploads or downloads of large amounts of information
into the Siebel database. A typical batch scenario includes:
■ Uploading a batch of product catalog and item information into a Siebel Financial Services
application from an external system or downloading a batch of all opportunities from Siebel
Financial Services applications to another database.
■ Downloading all the new contact and accounts for that day from the Siebel application to an
external Customer Information File (CIF).
Access Mechanisms
When your business problem is accessing other applications from Siebel Financial Services
applications or accessing Siebel Financial Services applications from other applications, you need to
ask: Exactly what kind of data exchange do I require?
Data Sharing. You may just need to share data that exists outside of the Siebel system. For example
you may have several legacy mainframe systems that you need to access with Siebel Financial
Services to provide customers with comprehensive information on their insurance record. You might
not want to replicate this information in the Siebel system, but may want to dynamically share this
mainframe data as needed and display it within a Siebel Financial Services application. For data
sharing, use VBC.
Replication. Replication of data is often useful. For example, you might want to integrate data in
CIF (Customer Information File) with data in the Siebel system, keeping order status information in
both systems. For mass replication of the order status information in Siebel Financial Services
applications, use Siebel Business Integration Manager (BIM) and Siebel Enterprise Integration
Manager (EIM).
Presentation Layer (UI) Integration. Integration at the presentation layer is useful in cases
where you only need to look at the other application’s user interface (UI) and the data does not need
to be retrieved. You would capture just the “screen” from the external system using ActiveX Data
Controls (ADCs) and represent it natively within a Siebel Financial Services application. This is the
least expensive form of integrating two applications, however, it is also the least flexible.
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Understanding Financial Services Integration Paradigms ■ Application Connectors
44
Screen Scrapping. Screen scrapping is another approach you may want to consider. Screen
scrapping is never a good long term solution mainly due to performance considerations, cost of
ownership, and lack of change management functionality within the application. It is a temporary
solution available from some Siebel partners. Screen scrapping can be a very powerful tactical
weapon for a project that requires shorter development time and when the project’s timeline needs
to be separated from availability of legacy application or infrastructure resources.
These Siebel Financial Services solutions can be either real-time or batch. Figure 9 shows the various
access mechanism options and where they fit into the integration process.
Application Connectors
Application connectors allow for the deployment of a point-to-point connection between Siebel
Financial Services applications and other applications. These applications include IBM Websphere
Composer, CBTF (Core Point Bank Teller Framework), and WSBCC (Web Sphere Business Component
Composer). Oracle provides solutions for prepackaged connectors either directly or through partners
and third-party developers.
Figure 9. Siebel Financial Services Solutions
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
45
5 Financial Services EAI Business
Scenarios
This chapter describes several common integration scenarios. It contains the following topics:
■ Overview on page 45
■ Common Integration Scenarios on page 46
■ Data Access and Replication on page 47
■ Data Sharing Across the Enterprise on page 50
■ Data Transformation on page 51
Overview
Sometimes, the best way to determine your integration needs is to study examples of similar
problems faced by other financial services organizations. This chapter presents three scenario
categories, each with a number of permutations. The categories are:
■ “Data Access and Replication” on page 47
■ “Data Sharing Across the Enterprise” on page 50
■ “Data Transformation” on page 51
This first step in getting started on an integration project is to identify your integration needs. Siebel
Business Applications provide solutions for a variety of business requirements. They play a key role
in the application environment in which you might use other applications, such as:
■ Back-office solutions for claims processing, policy administration, or bank transaction
management
■ E-commerce applications as Web store fronts
■ Mainframe-based applications that can store millions of customer transactions
As customer facing applications, Siebel Business applications need to interact with multiple external
systems to provide an integrated view of customer information to the enterprise. Siebel Financial
Services EAI provides the tools as well as prebuilt components that a company can use to allow this
integration.
It is important to identify your needs prior to designing the integration. Your design choice could be
based on the following:
■ Data Transformation
Data transformation between two systems is a key part of any integration project. You might
want to implement this data transformation using the Siebel-provided data transformation
functions or, if your organization has already standardized on a data transformation tool, you
might choose to model the integration flow so that it uses the external tool for data
transformation.
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Financial Services EAI Business Scenarios ■ Common Integration Scenarios
46
■ Data Sharing
Sometimes you might need only to view data from an external source within your Siebel
applications, rather than needing replicated data. In this case, you might use a specific set of
objects and tools designed explicitly for this purpose. For example, you might want to view credit
card transaction details from within the Siebel applications. Your credit card transaction details
might be stored in a mainframe system, whereas the Siebel applications maintain the contact
information. When a customer requests credit card transaction details, you want to access the
mainframe system and display the transaction details for that contact within your Siebel
application, rather than replicating all the information within the Siebel application.
■ Real-Time versus Batch
Another important issue to consider is what type of integration you need: real-time integration
or a batch-mode process. In certain situations you might want to publish to the external system
any new opportunities or contact information created or updated in the Siebel application as soon
as the creation or update occurs. Likewise, you might want to exchange information in batch
mode. For example, you might want to aggregate account information from all the customers
financial institutions and load it into the Siebel application in batch mode.
Common Integration Scenarios
The scenarios described in this chapter apply to many of the integration requirements you might
face. Siebel Financial Services EAI allows you to accomplish integrations within the scope of these
scenarios, but is not limited to the scenarios described here.
Outbound Message to a File
In this scenario, you create a Siebel workflow process to create a unique report in a company
standardized format such as XML. The file is to be sent to a central directory on a network server,
where at midnight it is bundled automatically into a company standardized format for that day. These
become part of a corporate knowledge base to go to top management.
Round Trip Message from a File to Siebel and Back
In this scenario, you want all service requests entered from the company’s EJB Web site to be entered
as a service request in Siebel Service. You also want to pull an automatically generated service
request number from Siebel Service, add it to the service request, and generate a file that is attached
to a confirmation email message to the service requestor's email address.
Round Trip Message from an External Application
In this scenario, whenever your back-office, for example ACORD based Policy Management, issues a
new type of life product, it sends a message to your Siebel system to notify salespeople. If the
salespeople like to issue such a policy, they can respond to the message and the response message
will be generated and routed back to the back-office application indicating interest.
Financial Services EAI Business Scenarios ■ Data Access and Replication
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
47
Round Trip Message to an External Application
In this scenario, your salespeople want to be able to issue a new loan issued from Siebel Business
Applications to companies credit rating systems such as Fair, Isaac’s Liquid Credit System and receive
a confirmation with a rating score generated by the Fair, Isaac’s Liquid Credit System.
Inbound Message from an External Application
In this scenario, whenever new auto policy information in the enterprise back-office (for example,
ACORD-based Policy Management system) is updated, you want the system to send an update to
your Siebel system in the form of an ACORD XML message containing the
message and have the policy information updated in the Siebel Asset business object.
Outbound Message to an External Application
In this scenario, you want to update a subscribed policy modification made through your Siebel
Business Application to the Policy Administration system. An outbound message containing the
modification of customers' policy data is sent from the preconfigured business process in Siebel
applications. The outbound message can be a standard ACORD XML message.
Data Access and Replication
At times, you may need access to some specific data to accomplish a given task. Often it is not
sufficient to bring everything to the same screen. Many business processes require access to
particular data in order to accomplish a given task. This section describes the following four
examples:
■ “Accessing Customer History Information” on page 47
■ “Exporting Contact Information” on page 48
■ “Replicating a Company Catalog” on page 49
■ “Updating Siebel Using Java Beans” on page 49
Accessing Customer History Information
Financial Service institutions are typically very cautious in the way they treat customer data.
However, they still need to provide access to data while replicating as few times as possible, if at all.
Your Customer Service agents need to know the transaction history of your customers in order to
serve them best. This information is typically stored in Customer Account Transaction Management
systems on mainframe computers.
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Financial Services EAI Business Scenarios ■ Data Access and Replication
48
Table 25 details the requirements for integrating customer transaction history information into
Siebel.
Siebel Virtual Business Components (VBC) are built to handle just this business need. VBCs abstract
external data and present it to the Siebel application as part of the Siebel data model. All the Siebel
business logic and user interface components can process Virtual Business Components in exactly
the same way that they handle regular Siebel Business Application components.
Table 26 displays the requirements for customer data access integration.
Exporting Contact Information
Consider a sample business scenario where you want to send all changes to contact information in
the Siebel database to an external mainframe system through the IBM MQ Series transport
mechanism.
Table 25. Customer Data Import Integration Requirements
Business Requirement
Technological
Requirement Oracle’s EAI Solution
To access the Siebel database Business service to query
the integration object
Industry XML Transaction Manager
FINS ACORD XML Transaction
Manager
FINS IFX XML Transaction Manager
Transaction Manager Factory Class
To convert internal Siebel
message format into different
industry XML standards.
Siebel message-to-XML
conversion technology
Industry XML Converter
FINS ACORD XML Converter
FINS IFX XML Converter
Converter Factory Class
To place the converted XML
document in the destination
queue
IBM MQSeries
compatibility
EAI MQSeries AMI Transport
EAI MQSeries Server Transport
Table 26. Customer Data Access Integration Requirement
Business Requirement
Technological
Requirement
Oracle’s EAI
Solution
To provide access to the Customer
Information Files (CIF) stored on a
mainframe and display the information
in the customer portal
Access to non-Siebel data
without replication
Siebel Virtual Business
Components (VBC)
Financial Services EAI Business Scenarios ■ Data Access and Replication
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
49
Your first step in this process would be to define and configure the message that needs to be
exchanged. In this case, you want to exchange contact information. In the Siebel database, the
Contact business object contains several business components and each business component has
several fields. You do not want to send all of this information to the external system. You want to
choose only a subset of this information. You also want to determine the XML standards the external
systems implement and obtain the right version of the XML standards schemas or DTDs.
The first task, therefore, is to use Siebel Tools to define the integration objects for the Contact
contents in XML message you want to exchange. Siebel Tools provides an Integration Object Builder
that walks you through the process of defining your integration objects. Once you define the
message, you define what you want to do with this message.
You can now use the Siebel Workflow Process Manager to model this integration message flow to
send the message to the external system. An integration message flow is a sequence of business
services that are connected. For information on configuring messages, see:
■ Chapter 3, “Siebel Financial Services EAI Architecture”
■ Appendix B, “Industry XML Connector Factory APIs”
■ Siebel Financial Services Connector for ACORD P&C and Surety Guide
■ Siebel Financial Services Connector for IFX XML Guide
Replicating a Company Catalog
In this scenario, you need to provide your sales people access to a price list while they are on the
road. So, you need to import the price list information into Siebel so that Oracle’s Siebel Remote can
take care of the mobile replication. The Enterprise Integration Manager (EIM) can take care of this
task for you.
Table 27 details the requirements for importing a company’s catalog for mobile replication.
Updating Siebel Using Java Beans
In this scenario, you have a Customer Service Web application written using J2EE Server Pages
(JSPs). To pass this data into Siebel so that account records can be updated, you invoke the Siebel
Object Interface, Siebel Java Data Beans. Now your Customer Service representatives can use the
same information from the Java Server Pages while serving the customer.
Table 27. Company Catalog Replication Integration Requirement
Business Requirement
Technological
Requirement Oracle’s EAI Solution
To import the company’s
product catalog
High-volume batch
replications
Siebel Enterprise
Integration Manager (EIM)
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Financial Services EAI Business Scenarios ■ Data Sharing Across the Enterprise
50
Table 28 details the requirements for updating Siebel using JSP technology.
Data Sharing Across the Enterprise
Business processes often need to cross departmental or even enterprise boundaries. Because
different organizations may be using different applications, you need a way to make sure one
application can hand off the execution of a business process to the next application. This section
describes three examples:
■ “B2B Integration” on page 50
■ “Legacy Data Integration” on page 51
■ “ERP Integration” on page 51
B2B Integration
To allow business-to-business transactions to take place over the Internet, Siebel Financial Services
EAI provides HTTP adapter and the Business Integration Manager, which are used to model and
execute business processes. In case the organization supports IFX XML or ACORD XML standards for
B2B integration, Siebel provides connectors that work with the HTTP adapter. Furthermore,
organizations may implement the Siebel Industry XML Connector Factory APIs for building
customized XML connectors. Table 29 details the requirements and the solution for a successful B2B
integration.
Table 28. Siebel Update Integration Requirement
Business Requirement
Technological
Requirement Oracle’s EAI Solution
To update Siebel account data from a J2EE
Server Page (JSP) enabled application
Programmatic
interaction
Siebel Java Data Beans
Object Interfaces
Table 29. B2B Integration Requirement
Business Requirement
Technological
Requirement Oracle’s EAI Solution
To create a business-to-
business integration to
send an order directly to a
partner over the Internet
for fulfillment
XML messaging over HTTP ■ Siebel Workflow Process Manager
■ EAI HTTP Transport adapter
■ Siebel Connectors for different
industry XML standards
■ Siebel Industry XML Connector
Factory APIs
■ Business Integration Manager (BIM)
Financial Services EAI Business Scenarios ■ Data Transformation
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
51
Legacy Data Integration
On the Internet, HTTP is the standard protocol for exchanging data. In a mainframe environment,
IBM MQ Series is the most common application messaging transport. Therefore, the HTTP protocol
can be replaced with MQ Series and still carry out the transaction. In case the organization supports
IFX XML or ACORD XML standards for legacy data integration, Siebel provides Connectors that work
with the HTTP adapter as well as IBM's WSBCC and MQSFSE product suite. In addition, they can be
customized to support different message sets and packages to suit your business needs. Table 30
details the requirements and the solution for a successful integration of legacy data existing on a
mainframe.
ERP Integration
In this scenario, the main purpose is the correct and timely fulfillment of an order, but the back-end
is now a popular ERP application. Siebel has developed prebuilt solutions that interface with SAP R/
3, PeopleSoft, and with Oracle applications (both for the character-based 10.7 release and the GUI
and web client release 11i). These applications are set up to exchange order information, customer
information, and so on, out-of-the-box. Additionally, they can be customized as needed to exchange
as much or as little information from these external applications as your situation requires.
Table 31 details the requirements and the solution for a successful integration of ERP data.
Data Transformation
4
Table 30. Legacy Data Integration Requirements
Business Requirement
Technological
Requirement Oracle’s EAI Solution
To create an order against
a mainframe system
Cross-application business
process management
■ Siebel Workflow Process Manager
■ EAI MQ Series transport adapter
■ Siebel Connectors for different
industry XML standards
■ Siebel Industry XML Connector
Factory APIs
Table 31. ERP Integration Requirements
Business
Requirement
Technological
Requirement Oracle’s EAI Solution
To create an order
against SAP R/3
Integration with
popular applications
Siebel Enterprise Application
Integration Connector for SAP
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Financial Services EAI Business Scenarios ■ Data Transformation
52
When performing the data transformation within the Siebel environment, you use two types of
integration objects.
■ Internal integration objects mirror the data structure of a Siebel business object and contain a
subset of business components and fields.
■ External integration objects mirror the data structure of an external system. You define
integration objects of both types in Siebel Tools.
The Industry XML Transformation Engine performs the same function whether the data
transformation is performed inside or outside of the Siebel environment. The Industry XML Converter
and the transports also perform the same function, whether used within the Siebel environment or
outside the Siebel environment. The only difference is that when used outside the Siebel
environment, these business services perform operations on external integration object instances as
opposed to performing operations on internal integration object instances when used within the
Siebel environment.
Each of the Siebel Connectors for industry XML standards (IFX XML and ACORD XML) has a slightly
different data transformation process that is specific to the industry that uses it. For more
information about the data transformation process and connector configuration procedures, see
Chapter 3, “Siebel Financial Services EAI Architecture,” Siebel Financial Services Connector for ACORD
P&C and Surety Guide, and Siebel Financial Services Connector for IFX XML Guide.
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
53
A Predefined Financial Services
EAI Business Services
This appendix describes the predefined Siebel Financial Services EAI business services.
Predefined Financial Services EAI
Business Services
Siebel Financial Services Enterprise Applications provide a number of business services in addition
to business services provided by Siebel Business Applications. These services do not require any
modification, but do require that you choose and configure them to suit your business requirements.
NOTE: For information on using business services, see Overview: Siebel Enterprise Application
Integration, and for a list of business services provided by Siebel Business Applications, see
Integration Platform Technologies: Siebel Enterprise Application Integration.
Table 32 describes the predefined Siebel Financial Services EAI business services.
Table 32. Predefined Financial Services EAI Business Services (1 of 2)
Business Service Class Description
FINS Industry XML
Transaction Manager
CSSFAIXMLTransMgrService Industry XML Transaction
Manager Service.
FINS Industry XML Data
Transformation Engine
CSSFAIXMLDTEService Industry XML Data
Transformation Engine
Service.
FINS Industry XML
Converter
CSSFAIXMLCnvService Industry XML Converter
Service.
FINS Industry XML
Dispatcher
CSSFAIXMLDispService Industry XML Dispatcher
Service.
FINS Industry XML Query
Service
CSSFAEAIUtilService The business service to query
the XML instance using XPath.
FINS Industry XML BC
Facility Service
CSSFAIXMLBCFService The business service to get
the search specification.
FINS ACORD XML
Transaction Manager
CSSFAACORDIXMLTransMgrService ACORD XML Transaction
Manager Service.
FINS ACORD XML DTE CSSFAIXMLDTEService ACORD XML Data
Transformation Engine
Service.
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Predefined Financial Services EAI Business Services ■ Predefined Financial Services
EAI Business Services
54
FINS ACORD XML Converter CSSFAACORDBASEIXMLCnvService ACORD XML Converter
Service.
FINS ACORD XML
Dispatcher
CSSFAIXMLDispService ACORD XML Dispatcher
Service.
FINS ACORD Wizard
Service
CSSFAACORDUIService The business service to create
ACORD XML external and
Siebel internal integration
objects.
FINS IFX XML Transaction
Manager
CSSFAIFXIXMLTransMgrService IFX XML Transaction Manager
Service.
FINS IFX XML DTE CSSFAIXMLDTEService IFX XML Data Transformation
Engine Service.
FINS IFX XML Converter CSSFAIFXIXMLCnvService IFX XML Converter Service.
FINS IFX XML Dispatcher CSSFAIXMLDispService IFX XML Dispatcher Service.
FINS IFX Wizard Service CSSFAIFXUIService The business service to create
IFX XML external and Siebel
internal integration objects.
FINS OFX Wizard Service CSSFAOFXUIService The business service to create
OFX XML external and Siebel
internal integration objects.
Table 32. Predefined Financial Services EAI Business Services (2 of 2)
Business Service Class Description
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
55
B Industry XML Connector Factory
APIs
This appendix describes the Industry XML Factory Classes and their methods. It contains the
following topics:
■ Industry XML Connector Factory Classes on page 55
■ Industry XML Connector Factory Class Methods on page 56
■ Industry XML Connector Factory Method Arguments on page 58
■ Siebel Connector for Credit Card Application XML on page 59
Industry XML Connector Factory Classes
The Industry XML Connector Factory Classes are developed based on the Siebel Financial Services
EAI infrastructure aimed at supporting variety XML Standards extension for the Industry XML
Connector described in Chapter 3, “Siebel Financial Services EAI Architecture.” The factory classes are
built to leverage the functionality of Industry XML Connector while giving customers the
opportunity to customize generic connector business services through configuration and
programming scripts. In most cases, scripts are needed for presentation purpose, but in rare cases
they may be used to add or enhance the connector functionality.
To set up a customized XML Connector
1 Configure the customized connector by configuring the four business services based on the
factory classes, configure methods, and method arguments for each business service which
should be identical to Industry XML Connector business services.
NOTE: For a list of methods and method arguments available for the four business services, see
Chapter 3, “Siebel Financial Services EAI Architecture.”
2 Customize the behavior of the connector through the user properties of the four business
services configured in Step 1.
NOTE: For a list of available user properties for the four business services, see Chapter 3, “Siebel
Financial Services EAI Architecture.”
3 Overwrite any extension method from the factory classes to fulfill the different syntax and rules
of a desired XML standard when applicable.
NOTE: For details, see “Industry XML Connector Factory Class Methods” on page 56 and “Siebel
Connector for Credit Card Application XML” on page 59.
4 Generate all the necessary integration objects and compile all configurations to your .srf file.
5 Configure the data transformation maps to map the internal and external integration objects.
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Industry XML Connector Factory APIs ■ Industry XML Connector Factory Class Methods
56
6 Configure the business logic and flow using workflow and invoke these four customized business
services in the workflow steps.
Industry XML Connector Factory Class
Methods
The Industry XML Connector Factory consists of four main classes:
■ Transaction Manager
■ Data Transformation Engine
■ Converter
■ Dispatcher
NOTE: For a description of functionality of each class, see “Industry XML Connector” on page 25.
Each class exposes a number of methods to fulfill customization and extension. The collection of
these methods made up the Industry XML Connector Factory APIs. Using the overwrite methods, you
can use the functionality of both Industry XML Connector as well as Siebel Financial Services EAI
infrastructure for enterprise data sharing and data synchronization in your integration
implementation while obeying the rules of data exchange set forth by the legacy or back-end systems
such as specific XML structure and envelope details.
NOTE: Only methods absolutely needed should be overwritten to modify the generic behavior. A list
of available methods for each module is provided later in this appendix.
Transaction Manager Factory Class Methods
The Transaction Manager Factory Class (CSSFAELTransMgrService) provides the methods described
in Table 33 that you can overwrite.
Table 33. Transaction Manager Factory Class Methods
Method Description
PreProcess You can use this method to modify or reserve information
within the integration object instance.
PostProcess You can use this method to modify or restore stored
information into the integration object instance.
Industry XML Connector Factory APIs ■ Industry XML Connector Factory Class Methods
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
57
Data Transformation Engine Factory Class Methods
The Data Transformation Engine Factory Class (CSSFAELDTEService) provides the methods
described in Table 34 that you can overwrite.
Converter Factory Class Methods
The Converter Factory Class (CSSFAELCnvService) provides the methods described in Table 35 that
you can overwrite.
Table 34. Data Transformation Engine Factory Class Methods
Method Description
PreProcess Allows application developers to modify or reserve
information within the integration object instance.
PostProcess Allows application developer to modify or restore stored
information into the integration object instance.
ProcessMessage Allows application developer to process information within
the root tag of message.
ProcessHeader Allows application developer to process information within
the header portion of message.
Table 35. Converter Factory Class Methods
Method Description
GenerateEnvelope Allows application developer to prepare the envelope section of the XML
message to be sent.
GenerateHeader Allows application developer to prepare the header section of the XML
message to be sent.
GenerateError Allows application developer to generate the fault section of the XML message
to be responded to.
GeneratePI Allows application developer to prepare the processing instruction section of
the XML message to be sent.
ProcessEnv Allows application developer to process the envelope section of the XML
message received.
ProcessHdr Allows application developer to process the header section of the XML
message received.
ProcessError Allows application developer to process the fault section of the XML message
received.
ProcessPInst Allows application developer to process the processing instruction section of
the XML message received.
PreProcessBody Allows special processing of the body section of the XML message.
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Industry XML Connector Factory APIs ■ Industry XML Connector Factory Method
Arguments
58
Dispatcher Factory Class Methods
The Dispatcher Factory Class (CSSFAELDispService) provides the methods that you can overwrite.
These methods are described in Table 36.
Industry XML Connector Factory Method
Arguments
All extension methods for the factory classes are based on the Siebel Property Set data structure,
with no exception. Table 37 lists the method arguments.
PostProcessBody Allows special processing of the body section of the XML message after
conversion is done.
StartProcess Allows special processing of the body section of the XML message for each
command.
EndProcess Allows special processing of the body section of the XML message for each
command after conversion is done.
Table 36. Dispatcher Factory Class Methods
Method Description
DispatchEnvelope Allows application developer to identify the envelope
section of the message, tag it, and insert other information
such as its matching integration object involved.
DispatchHeader Allows application developer to identify the header section
of the message, tag it, and insert other information such as
its matching integration object name.
Table 37. Industry XML Method Arguments
Argument Description
XMLHierarchy Input Property Set
XMLHierarchy Output Property Set
Table 35. Converter Factory Class Methods
Method Description
Industry XML Connector Factory APIs ■ Siebel Connector for Credit Card Application XML
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
59
Siebel Connector for Credit Card
Application XML
The following example shows the extension connector that implements the Industry XML classes
through the sets of APIs. It shows how each of the steps is carried out to achieve supporting the
credit card application services.
Sample Result
-
-
-
  UserId
  PASSWD



-
-
-
1-DLN
  1-109
  1-109
  1-109
  1-16UU

-
  AAA CreditCard Join


  03 - Qualification
  Credit Card Application

Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Industry XML Connector Factory APIs ■ Siebel Connector for Credit Card Application XML
60
-
  Enid
  J
  Alberts
  San Jose
  CA
  95110




To implement the industry XML classes through the sets of APIs
1 The following four business services have been configured to support all the methods and method
arguments in Industry XML Connector.
■ FINS EL XML Transaction Manager
■ FINS EL XML Data Transformation Engine
■ FINS EL XML Converter
■ FINS EL XML Dispatcher
For example, FINS EL XML Data Transformation Engine business services has Execute,
ExecuteOutbound, and ExecuteSave methods.
NOTE: The “FINS Connector Factory” project, in the Sample database, includes all the business
services configurations. You can access the project through Siebel Tools.
2 User properties have also been configured for the four business services configured in Step 1 on
page 60.
NOTE: The “FINS Connector Factory” project, in the Sample database, includes all the user
properties configurations. You can access the project through Siebel Tools.
Industry XML Connector Factory APIs ■ Siebel Connector for Credit Card Application XML
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
61
3 Only a few necessary Industry XML APIs have been overwritten to modify the presentation logic.
The following example shows the customized converter over the functions to generate message
header and preprocess the body section. In GenerateHeader function, application calls the
CreateSignOn function to generate the login information portion of the XML document. In
PreProcessBody function, the service aggregate  is added to embed the
 message aggregate. Your scenario may be different.
NOTE: The common usage of MethodName in standard scripting is a publicly available business
service method such as PropSetToXMLPropSet. However, in this example, the MethodName does not
correspond to the business service method when implementing the factory classes. Instead, it refers
to the methods in the Industry XML APIs.
function Service_PreInvokeMethod (MethodName, Inputs, Outputs)
{
    var retVal = CancelOperation;
    if (MethodName == "GenerateHeader") {
        Func_GenerateHeader(Inputs, Outputs);
    }
    else if (MethodName == "PreProcessBody") {
        Func_PreProcessBody(Inputs, Outputs);
    }
    else {
       retVal = ContinueOperation;
    }
return (retVal);
}
// Overwrite GenerateHeader method to handle SignonRq message
function Func_GenerateHeader (Inputs, Outputs)
{
  var child;
  // Enumerate the first layer header definition
  for (var i = 0; i < Outputs.GetChildCount(); i++)
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Industry XML Connector Factory APIs ■ Siebel Connector for Credit Card Application XML
62
  {
  child = Outputs.GetChild(i);

  if ( child.GetType() == "SignonRq")
  {
    // Create SignOn Segment
    Func_CreateSignOn(child);
  }
  else if (child.GetType() != "xxxSvcRq")
  {
    // Remove other header definitions
    Outputs.RemoveChild(i--);
  }
  }
}
// Overwrite PreProcessBody method to add service aggregate
function Func_PreProcessBody (Inputs, Outputs)
{
  var serviceName;

  if (Inputs.PropertyExists("SiebelFINSObjType"))
  {
      Func_CopyPropSet(Inputs, Outputs);
  }
  else if (Inputs.PropertyExists("IFX Service Name"))
  {
    serviceName = Inputs.GetProperty("IFX Service Name");
Industry XML Connector Factory APIs ■ Siebel Connector for Credit Card Application XML
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
63
  // add CreditCardSvcRq aggregate
    Outputs.SetType(serviceName);

  // copy CardAppAddRq aggregate
    Outputs.AddChild(Inputs.Copy());
  }
  else
  {
    Func_CopyPropSet(Inputs, Outputs);
  }
}
// Sign on utility to access user name and password
function Func_CreateSignOn(Inputs)
{
  var child;
  var grdChild;
  // Enumerate the first layer header definition
  for (var i=0; i < Inputs.GetChildCount(); i++)
  {
  child = Inputs.GetChild(i);
  if ( child.GetType() == "UsrLoginSegment")
  {
for (var j=0; j < child.GetChildCount(); j++)
{
    grdChild = child.GetChild(j);
if (grdChild.GetType() == "LoginUserId")
{
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Industry XML Connector Factory APIs ■ Siebel Connector for Credit Card Application XML
64
grdChild.SetValue("UserId");
}
if (grdChild.GetType() == "LoginCurPassword")
{
grdChild.SetValue("PASSWD");
}
}
  }
  else
  {
    // Remove other header definitions
    Inputs.RemoveChild(i--);
  }
  }
}
// Generic copy property set utility
function Func_CopyPropSet( Inputs, Outputs)
{
  var propName = "";
  var propVal = "";
  var child;
  Outputs.SetType(Inputs.GetType());
  Outputs.SetValue(Inputs.GetValue());
  propName = Inputs.GetFirstProperty();
  while (propName != "")
  {
    propVal = Inputs.GetProperty(propName);
Industry XML Connector Factory APIs ■ Siebel Connector for Credit Card Application XML
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
65
    Outputs.SetProperty(propName, propVal);
    propName = Inputs.GetNextProperty();
  }
  for (var i = 0; i < Inputs.GetChildCount(); i++)
  {
   child = Inputs.GetChild(i);
     Outputs.AddChild(child.Copy());
  }
}
4 Some integration objects have been configured for this example.
NOTE: The “FINS Connector Factory” project, in Oracle’s Siebel Tools, includes all the integration
objects.
5 Two data transformation maps have been configured. You can list them in Oracle’s Siebel
Financial Services application with a query specification of “Credit Card*Add*” in the Comments
field of the Integration Object Map screen.
6 Two workflows have been configured—”Credit Card Application Inbound Workflow” and “Credit
Card Application Outbound Workflow.”
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Industry XML Connector Factory APIs ■ Siebel Connector for Credit Card Application XML
66
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
67
Index
A
ActiveX Data Controls 43
adapters
adapters and connectors, diagram 24
architecture
business requirements to Siebel features
chart 22
B
batch integration
usage scenarios 43
BIM
See Business Integration Manager
Business Integration Manager (BIM)
data replication scenario 43
C
client deployment 42
client-side integration 12
connectors
connectors and adapters, diagram 24
ERP and eCommerce connectors,
diagram 44
D
data exchange
mainframe scenario 43
presentation layer 43
replication scenario 43
type of exchange, identifying 43
data replication 43
data sharing
data exchange modes, about 43
mainframe scenario 43
replication scenario 43
data transformation
about 22
data mapping integration 12
E
external applications
metadata, about 22
H
HTTP
transport adapter 24
I
integration
adapters and connectors, diagram 24
data presentation level 43
data replication scenario 43
loosely-coupled 42
mainframe scenario 43
planning, overview of 38
tightly-coupled 42
Integration Object 22
Integration Object Wizard 22
integration objects
Siebel Integration Object 22
integration scenarios
screen scraping 43
integration strategies
data mapping 12
peer-to-peer 11
presentation layer integration 12
L
loosely-coupled integration, usage
model 42
M
mainframes
data sharing scenario 43
metadata
corresponding Siebel EAI feature 22
MSMQ adapter 24
O
order status information 43
P
peer-to-peer encapsulation 11
point-to-point connection 44
presentation layer
integration, about 12
R
real-time integration
client vs. service 42
Siebel Financial Services Enterprise Application Integration Guide Version
8.1/8.2
Index ■ S
68
usage scenarios 42
S
screen scraping, integration scenario 43
service deployment 42
Siebel Call Center, data sharing example 43
T
tightly-coupled integration
usage model 42
transport adapters
connectors and adapters, diagram 24
U
usage models, diagram 41
W
Web client, client-side integration 12
