Datasheet

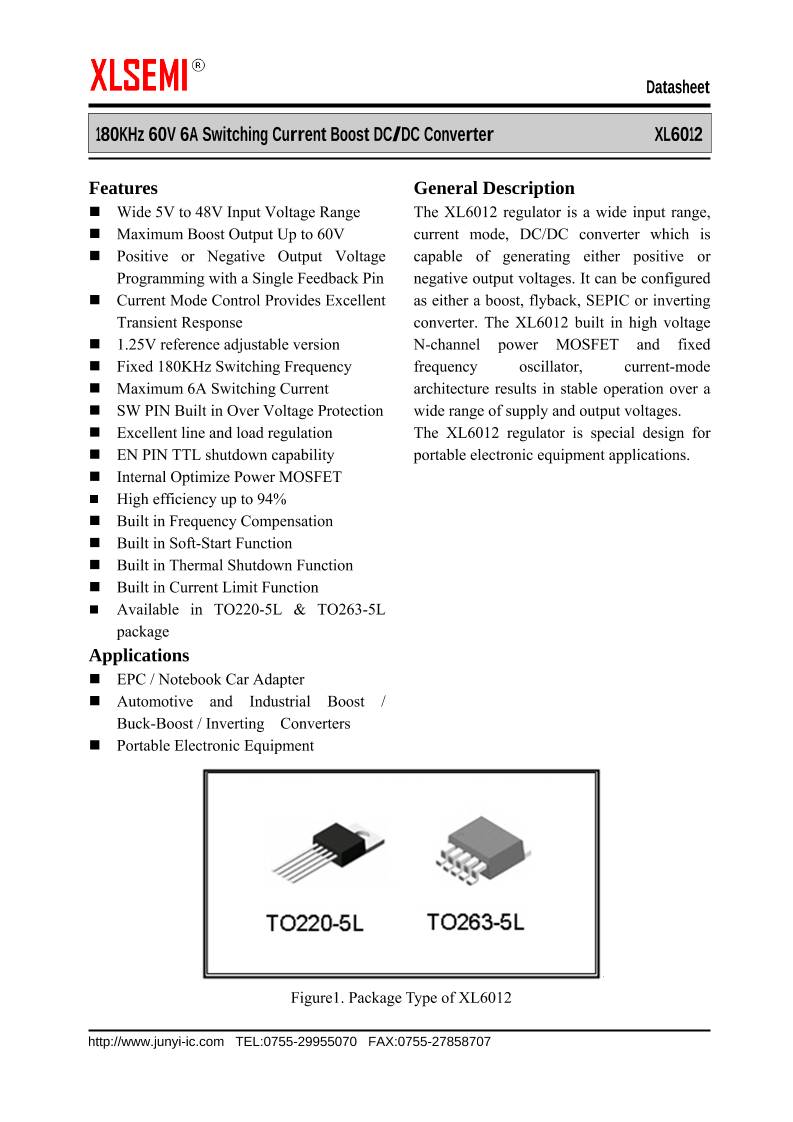

180KHz 60V 6A Switching Current Boost DC/DC Converter                XL6012


Features
 Wide 5V to 48V Input Voltage Range
 Maximum Boost Output Up to 60V
 Positive or Negative Output Voltage
Programming with a Single Feedback Pin
 Current Mode Control Provides Excellent
Transient Response
 1.25V reference adjustable version
 Fixed 180KHz Switching Frequency
 Maximum 6A Switching Current
 SW PIN Built in Over Voltage Protection
 Excellent line and load regulation
 EN PIN TTL shutdown capability
 Internal Optimize Power MOSFET
 High efficiency up to 94%
 Built in Frequency Compensation
 Built in Soft-Start Function
 Built in Thermal Shutdown Function
 Built in Current Limit Function
 Available in TO220-5L & TO263-5L
package
Applications
 EPC / Notebook Car Adapter
 Automotive and Industrial Boost /
Buck-Boost / Inverting  Converters
 Portable Electronic Equipment
General Description
The XL6012 regulator is a wide input range,
current mode, DC/DC converter which is
capable of generating either positive or
negative output voltages. It can be configured
as either a boost, flyback, SEPIC or inverting
converter. The XL6012 built in high voltage
N-channel power MOSFET and fixed
frequency oscillator, current-mode
architecture results in stable operation over a
wide range of supply and output voltages.
The XL6012 regulator is special design for
portable electronic equipment applications.















Figure1. Package Type of XL6012
http://www.junyi-ic.com   TEL:0755-29955070   FAX:0755-27858707
                                         Datasheet

180KHz 60V 6A Switching Current Boost DC/DC Converter                XL6012

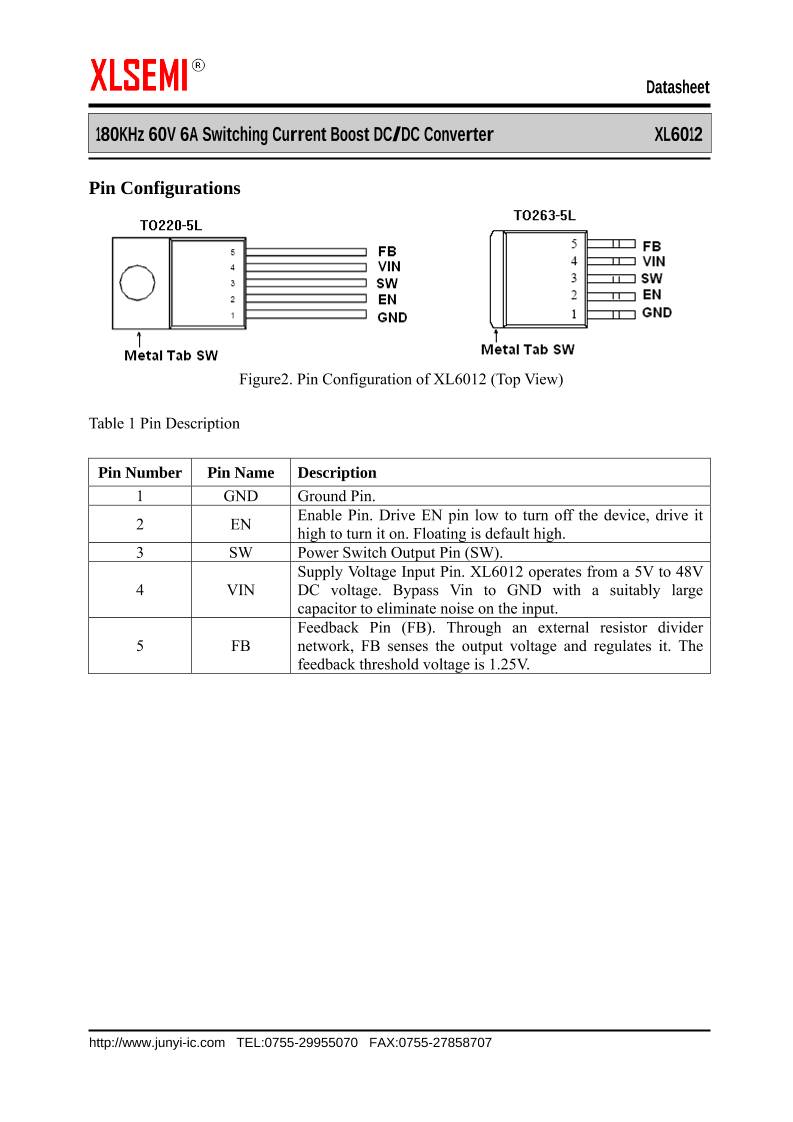

Pin Configurations

Figure2. Pin Configuration of XL6012 (Top View)

Table 1 Pin Description

Pin Number Pin Name Description
1 GND Ground Pin.
2 EN Enable Pin. Drive EN pin low to turn off the device, drive it
high to turn it on. Floating is default high.
3 SW Power Switch Output Pin (SW).
4 VIN
Supply Voltage Input Pin. XL6012 operates from a 5V to 48V
DC voltage. Bypass Vin to GND with a suitably large
capacitor to eliminate noise on the input.
5 FB
Feedback Pin (FB). Through an external resistor divider
network, FB senses the output voltage and regulates it. The
feedback threshold voltage is 1.25V.


http://www.junyi-ic.com   TEL:0755-29955070   FAX:0755-27858707
                                         Datasheet

180KHz 60V 6A Switching Current Boost DC/DC Converter                XL6012

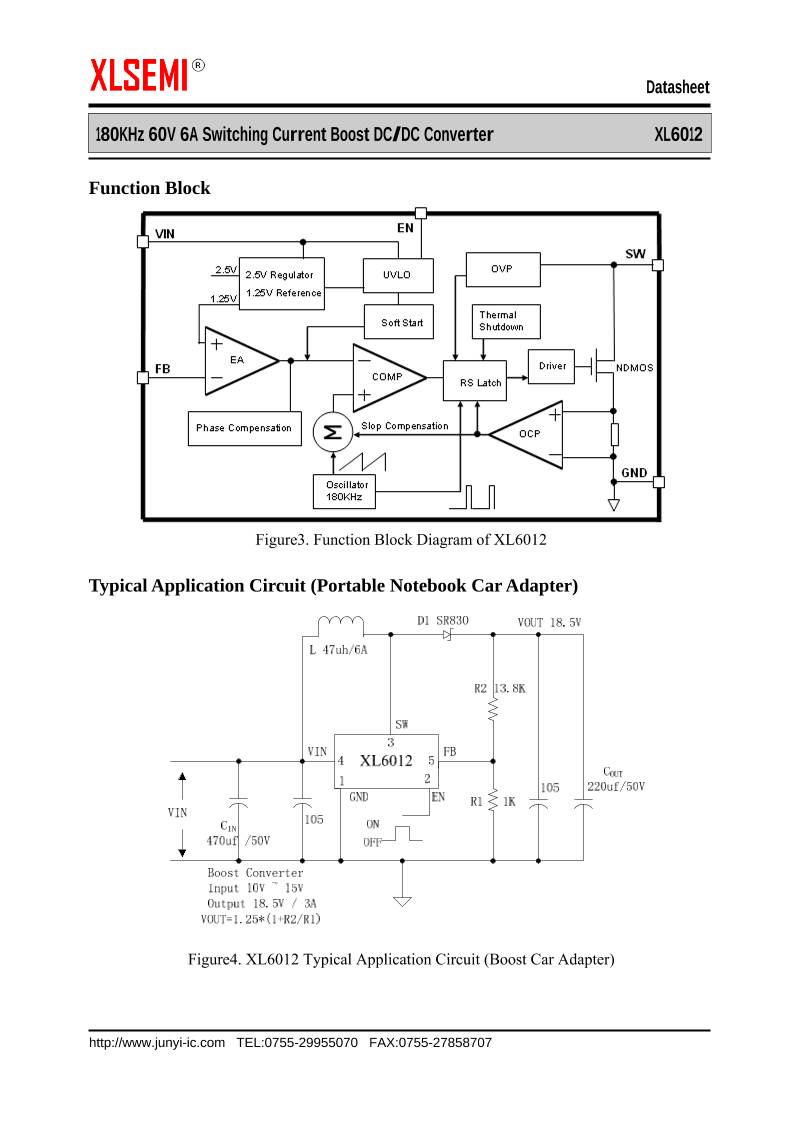

Function Block

Figure3. Function Block Diagram of XL6012

Typical Application Circuit (Portable Notebook Car Adapter)

Figure4. XL6012 Typical Application Circuit (Boost Car Adapter)
http://www.junyi-ic.com   TEL:0755-29955070   FAX:0755-27858707
                                         Datasheet

180KHz 60V 6A Switching Current Boost DC/DC Converter                XL6012

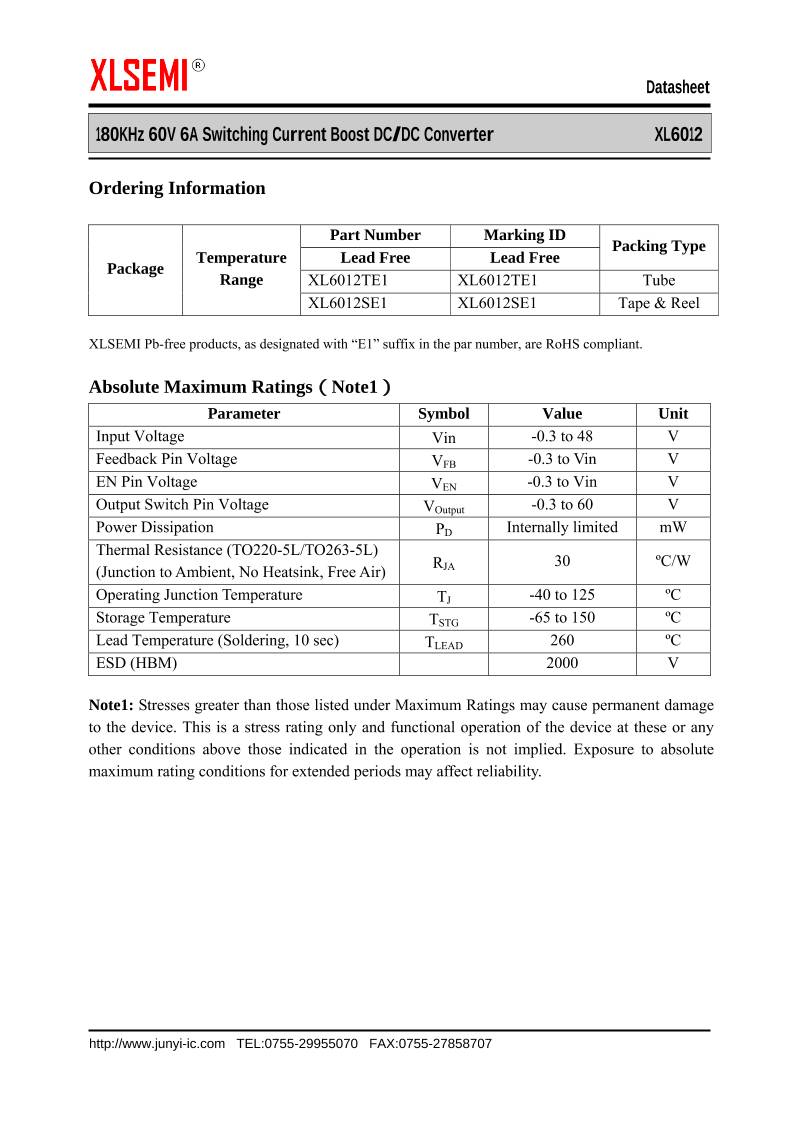

Ordering Information

Part Number Marking ID
Lead Free Lead Free
Packing Type
XL6012TE1 XL6012TE1 Tube
Package
Temperature
Range
XL6012SE1 XL6012SE1 Tape & Reel

XLSEMI Pb-free products, as designated with “E1” suffix in the par number, are RoHS compliant.

Absolute Maximum Ratings（Note1）
Parameter Symbol Value Unit
Input Voltage Vin -0.3 to 48 V
Feedback Pin Voltage VFB -0.3 to Vin V
EN Pin Voltage VEN -0.3 to Vin V
Output Switch Pin Voltage VOutput -0.3 to 60 V
Power Dissipation PD Internally limited mW
Thermal Resistance (TO220-5L/TO263-5L)
(Junction to Ambient, No Heatsink, Free Air) RJA 30 ºC/W
Operating Junction Temperature TJ -40 to 125 ºC
Storage Temperature TSTG -65 to 150 ºC
Lead Temperature (Soldering, 10 sec) TLEAD 260 ºC
ESD (HBM)  2000 V

Note1: Stresses greater than those listed under Maximum Ratings may cause permanent damage
to the device. This is a stress rating only and functional operation of the device at these or any
other conditions above those indicated in the operation is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect reliability.
http://www.junyi-ic.com   TEL:0755-29955070   FAX:0755-27858707
                                         Datasheet

180KHz 60V 6A Switching Current Boost DC/DC Converter                XL6012

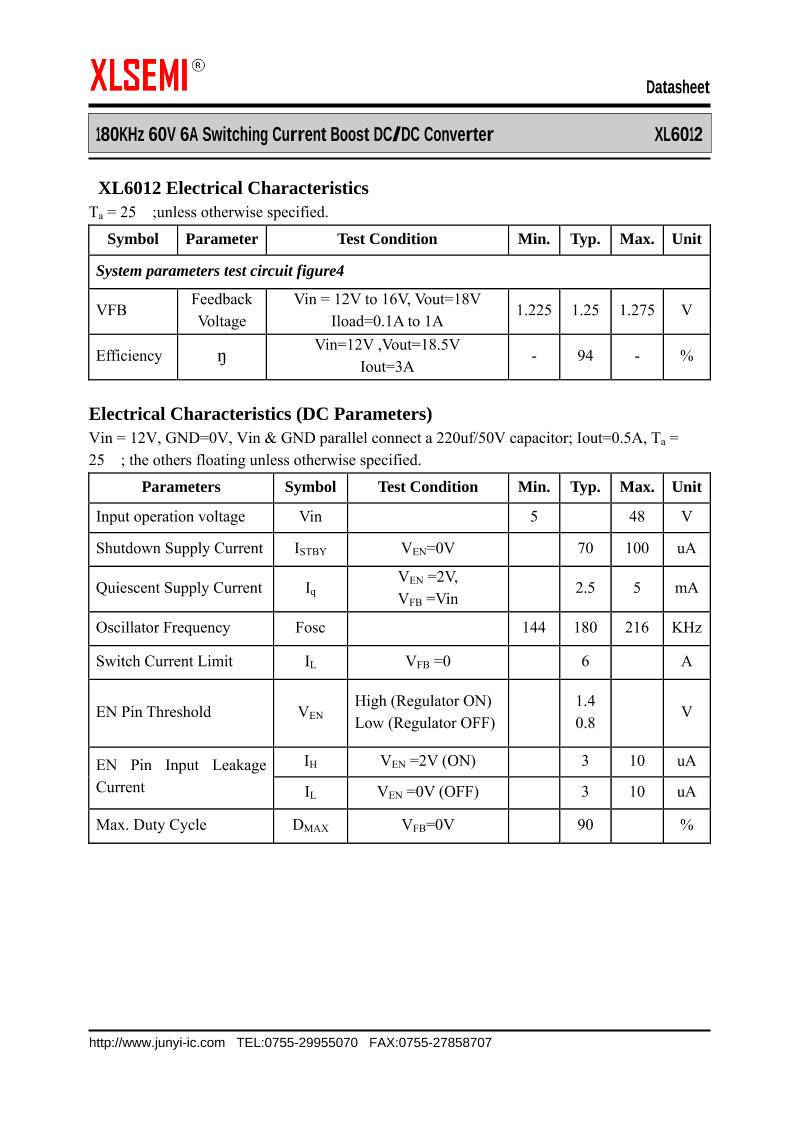

 XL6012 Electrical Characteristics
Ta = 25℃;unless otherwise specified.
Symbol Parameter Test Condition Min. Typ. Max. Unit
System parameters test circuit figure4
VFB
Feedback
Voltage
Vin = 12V to 16V, Vout=18V
Iload=0.1A to 1A
1.225 1.25 1.275 V
Efficiency ŋ Vin=12V ,Vout=18.5V
Iout=3A
- 94 - %

Electrical Characteristics (DC Parameters)
Vin = 12V, GND=0V, Vin & GND parallel connect a 220uf/50V capacitor; Iout=0.5A, Ta =
25℃; the others floating unless otherwise specified.
Parameters Symbol Test Condition Min. Typ. Max. Unit
Input operation voltage Vin  5  48 V
Shutdown Supply Current ISTBY VEN=0V  70 100 uA
Quiescent Supply Current Iq
VEN =2V,
VFB =Vin
 2.5 5 mA
Oscillator Frequency Fosc  144 180 216 KHz
Switch Current Limit IL VFB =0  6  A
EN Pin Threshold VEN
High (Regulator ON)
Low (Regulator OFF)

1.4
0.8
 V
IH VEN =2V (ON)  3 10 uA EN Pin Input Leakage
Current IL VEN =0V (OFF)  3 10 uA
Max. Duty Cycle  DMAX VFB=0V  90  %

http://www.junyi-ic.com   TEL:0755-29955070   FAX:0755-27858707
                                         Datasheet

180KHz 60V 6A Switching Current Boost DC/DC Converter                XL6012

Schottky Diode Selection Table
Current Surface
Mount
Through
Hole
VR (The same as system maximum input voltage)
   20V 30V 40V 50V 60V
1A  √ 1N5817 1N5818 1N5819

 √ 1N5820 1N5821 1N5822
 √ MBR320 MBR330 MBR340 MBR350 MBR360
√  SK32 SK33 SK34 SK35 SK36
√   30WQ03 30WQ04 30WQ05
 √  31DQ03 31DQ04 31DQ05
3A
 √ SR302 SR303 SR304 SR305 SR306

 √ 1N5823 1N5824 1N5825
 √ SR502 SR503 SR504 SR505 SR506
 √ SB520 SB530 SB540 SB550 SB560
5A
√   50WQ03 50WQ04 50WQ05

8A  √ SR820 SR830 SR840 SR850 SR860
Typical System Application for EPC/Notebook Car Adapter – Boost (Output 18.5V/3A)

Figure5. XL6012 Typical System Application (Boost Car Adapter)
http://www.junyi-ic.com   TEL:0755-29955070   FAX:0755-27858707
                                         Datasheet

180KHz 60V 6A Switching Current Boost DC/DC Converter                XL6012

Typical System Application for Portable Notebook Car Adapter
 – SEPIC Buck-Boost Topology (Input 10V~30V, Output 12V/4A)
XL6012
CIN
470uf /50V
D1 SR860
L1A 47uh/6A
VIN
4
1 2
5
3
GND
VIN
SW
105
EN
ON
OFF
Buck-Boost Converter
Input 10V ~ 30V
Output 12V / 4A
VOUT=1.25*(1+R2/R1)
R1   1K
COUT
 220uf/50V
R2 8.6K
VOUT 12V
105
FB
L1B 47uh/6A
CDC 22uf/100V

Figure6. XL6012 Typical System Application (SEPIC Buck-Boost Converter)

Typical System Application for Portable Notebook Car Adapter
 – SEPIC Buck-Boost Topology (Input 12V~30V, Output 18.5V/3A)
XL6012
CIN
470uf /50V
D1 SR860
L1A 47uh/6A
VIN
4
1 2
5
3
GND
VIN
SW
105
EN
ON
OFF
Buck-Boost Converter
Input 12V ~ 30V
Output 18.5V / 3A
VOUT=1.25*(1+R2/R1)
R1   1K
COUT
 220uf/50V
R2 13.8K
VOUT 18.5V
105
FB
L1B 47uh/6A
CDC 22uf/100V

Figure7. XL6012 Typical System Application (SEPIC Buck-Boost Converter)
http://www.junyi-ic.com   TEL:0755-29955070   FAX:0755-27858707
                                         Datasheet

180KHz 60V 6A Switching Current Boost DC/DC Converter                XL6012


 Typical System Application for Inverting Converter
 – SEPIC Inverting Topology (Input 10V~30V, Output + -12V/2A)
XL6012
CIN
100uf /50V
D1 SR860
L1A
VIN
4
1 2
5
3
GND
VIN
SW
105
EN
ON
OFF
SEPIC + - Converter
Input 10V ~ 30V
Output +-12V / 2A
VOUT=1.25*(1+R2/R1)
R1   1K
COUT
 220uf/50V
R2 8.6K
VOUT +12V
105
FB
L1B
CDC 22uf/100V
VOUT -12V
D1 SR860
COUT
 220uf/50V
CDC 22uf/100V
L1C

Figure8. XL6012 Typical System Application (SEPIC Inverting Converter)
http://www.junyi-ic.com   TEL:0755-29955070   FAX:0755-27858707
                                         Datasheet

180KHz 60V 6A Switching Current Boost DC/DC Converter                XL6012

Package Information
TO220-5L




http://www.junyi-ic.com   TEL:0755-29955070   FAX:0755-27858707
                                         Datasheet

180KHz 60V 6A Switching Current Boost DC/DC Converter                XL6012

Package Information
TO263-5L
