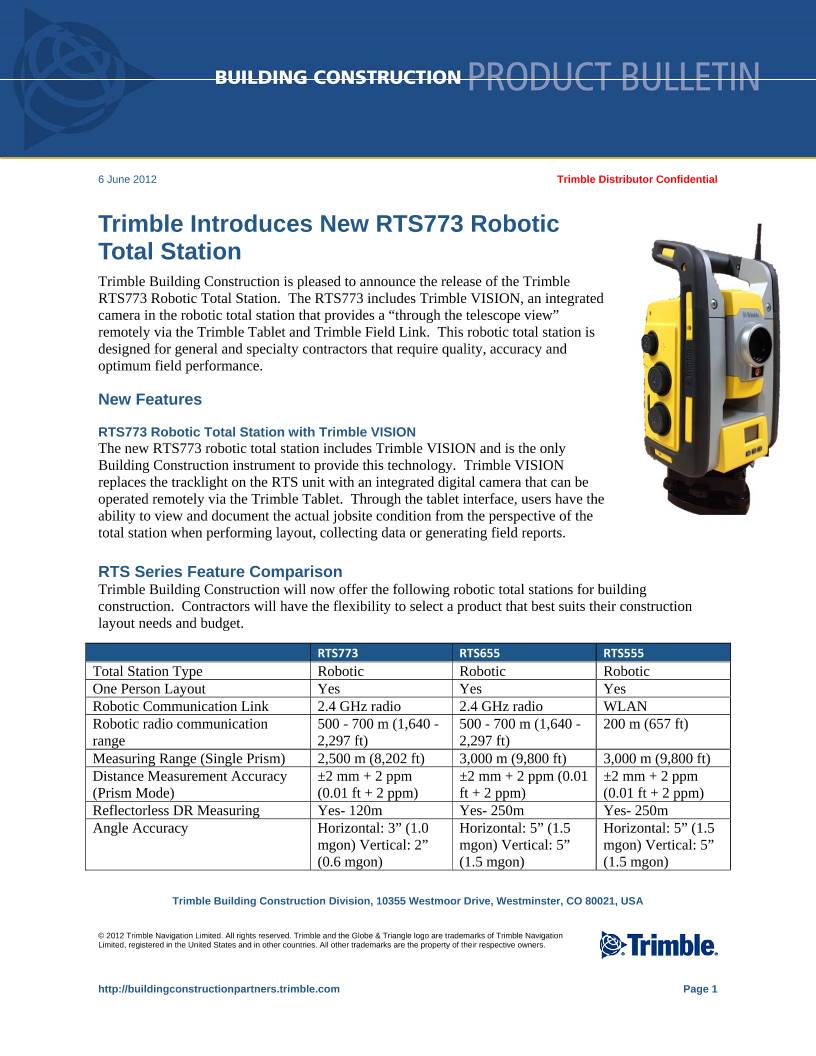

Trimble Introduces New RTS773 Robotic
Total Station
Trimble Building Construction is pleased to announce the release of the Trimble
RTS773 Robotic Total Station.  The RTS773 includes Trimble VISION, an integrated
camera in the robotic total station that provides a “through the telescope view”
remotely via the Trimble Tablet and Trimble Field Link.  This robotic total station is
designed for general and specialty contractors that require quality, accuracy and
optimum field performance.
New Features
RTS773 Robotic Total Station with Trimble VISION
The new RTS773 robotic total station includes Trimble VISION and is the only
Building Construction instrument to provide this technology.  Trimble VISION
replaces the tracklight on the RTS unit with an integrated digital camera that can be
operated remotely via the Trimble Tablet.  Through the tablet interface, users have the
ability to view and document the actual jobsite condition from the perspective of the
total station when performing layout, collecting data or generating field reports.
RTS Series Feature Comparison
Trimble Building Construction will now offer the following robotic total stations for building
construction.  Contractors will have the flexibility to select a product that best suits their construction
layout needs and budget.
  RTS773   RTS655   RTS555
Total Station Type  Robotic  Robotic  Robotic
One Person Layout  Yes  Yes  Yes
Robotic Communication Link  2.4 GHz radio  2.4 GHz radio  WLAN
Robotic radio communication
range
500 - 700 m (1,640 -
2,297 ft)
500 - 700 m (1,640 -
2,297 ft)
200 m (657 ft)
Measuring Range (Single Prism)  2,500 m (8,202 ft)  3,000 m (9,800 ft)  3,000 m (9,800 ft)
Distance Measurement Accuracy
(Prism Mode)
±2 mm + 2 ppm
(0.01 ft + 2 ppm)
±2 mm + 2 ppm (0.01
ft + 2 ppm)
±2 mm + 2 ppm
(0.01 ft + 2 ppm)
Reflectorless DR Measuring  Yes- 120m  Yes- 250m  Yes- 250m
Angle Accuracy  Horizontal: 3” (1.0
mgon) Vertical: 2”
(0.6 mgon)
Horizontal: 5” (1.5
mgon) Vertical: 5”
(1.5 mgon)
Horizontal: 5” (1.5
mgon) Vertical: 5”
(1.5 mgon)
 http://buildingconstructionpartners.trimble.com Page 2

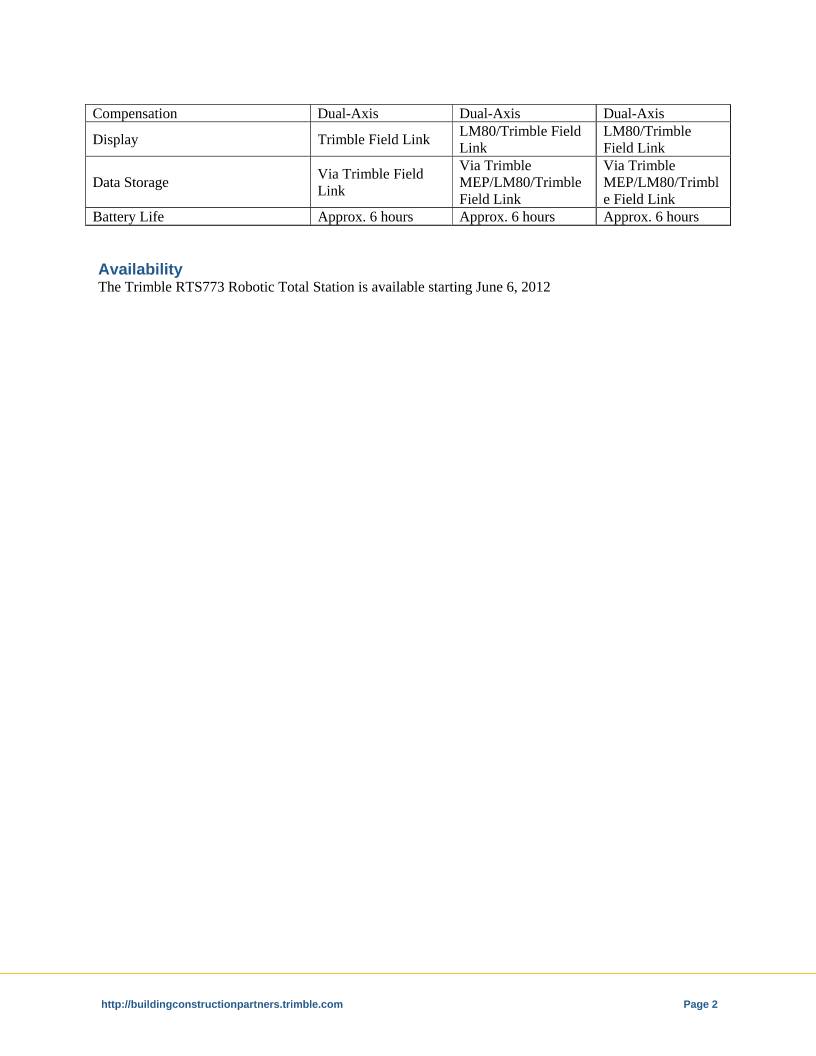

Compensation  Dual-Axis  Dual-Axis  Dual-Axis
Display Trimble Field Link
LM80/Trimble Field
Link
LM80/Trimble
Field Link
Data Storage
Via Trimble Field
Link
Via Trimble
MEP/LM80/Trimble
Field Link
Via Trimble
MEP/LM80/Trimbl
e Field Link
Battery Life  Approx. 6 hours  Approx. 6 hours  Approx. 6 hours

Availability
The Trimble RTS773 Robotic Total Station is available starting June 6, 2012
