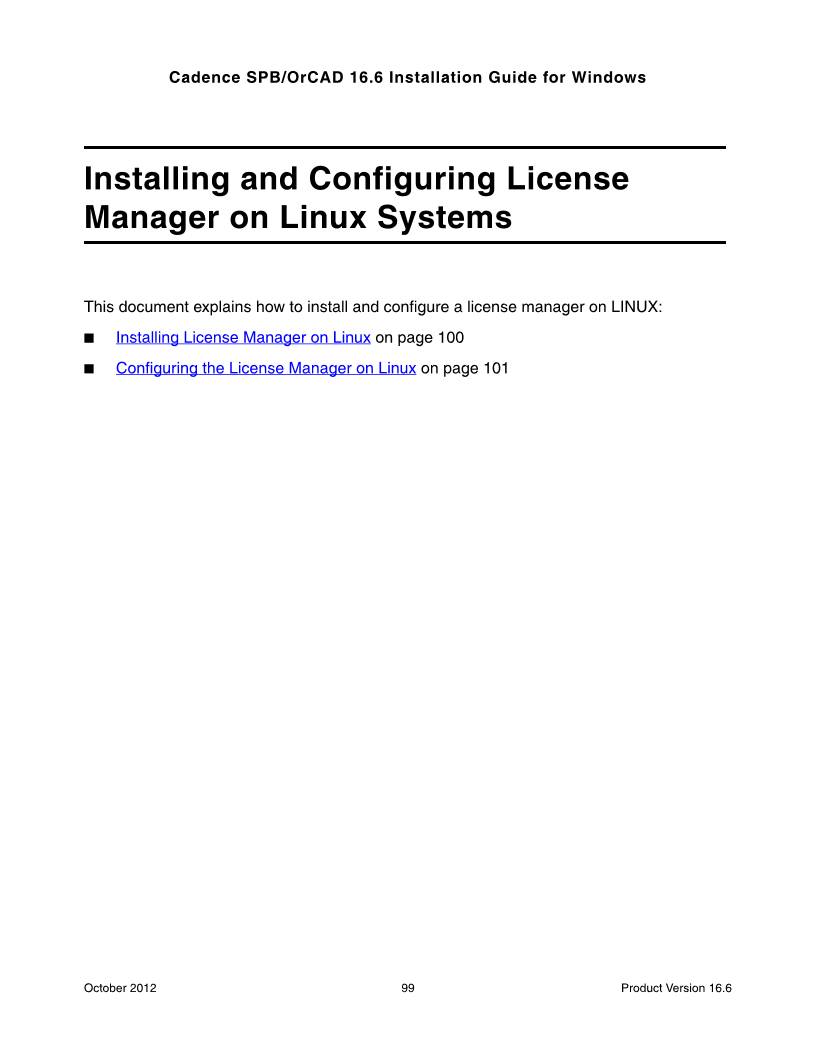

Cadence SPB/OrCAD 16.6 Installation Guide for Windows
October 2012 99 Product Version 16.6
Installing and Configuring License
Manager on Linux Systems
This document explains how to install and configure a license manager on LINUX:
■ Installing License Manager on Linux on page 100
■ Configuring the License Manager on Linux on page 101

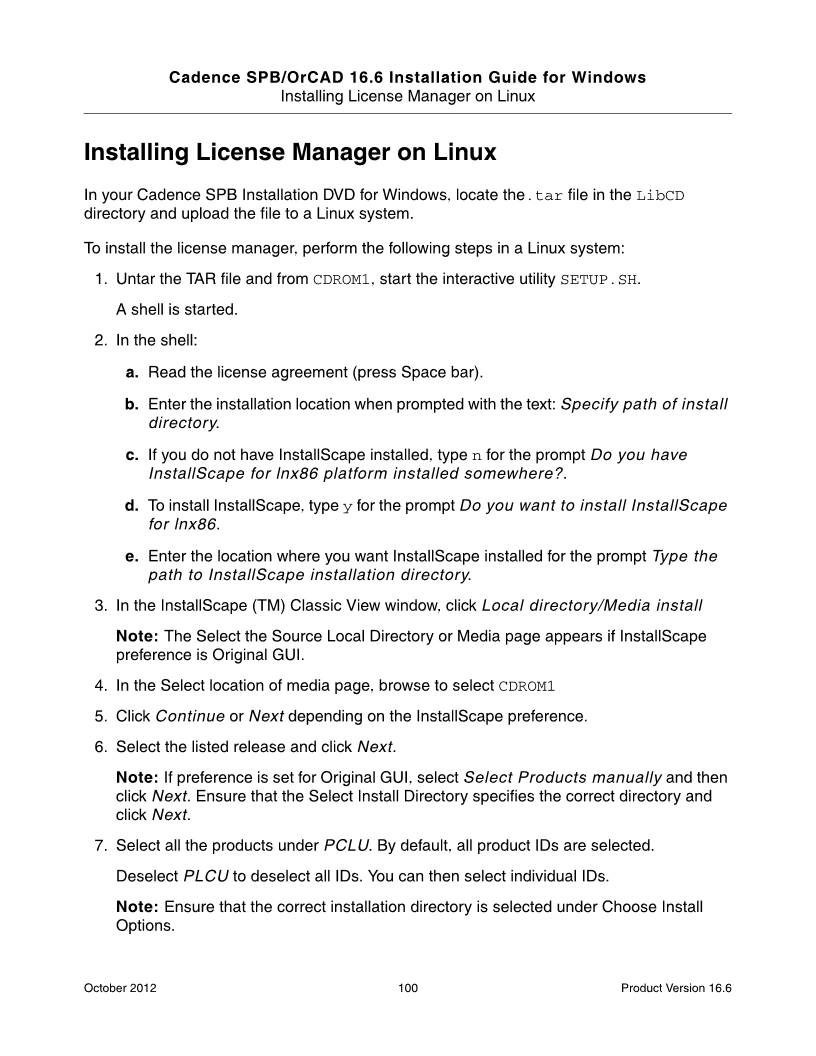

Cadence SPB/OrCAD 16.6 Installation Guide for Windows
Installing License Manager on Linux
October 2012 100 Product Version 16.6
Installing License Manager on Linux
In your Cadence SPB Installation DVD for Windows, locate the.tar file in the LibCD
directory and upload the file to a Linux system.
To install the license manager, perform the following steps in a Linux system:
1. Untar the TAR file and from CDROM1, start the interactive utility SETUP.SH.
A shell is started.
2. In the shell:
a. Read the license agreement (press Space bar).
b. Enter the installation location when prompted with the text: Specify path of install
directory.
c. If you do not have InstallScape installed, type n for the prompt Do you have
InstallScape for lnx86 platform installed somewhere?.
d. To install InstallScape, type y for the prompt Do you want to install InstallScape
for lnx86.
e. Enter the location where you want InstallScape installed for the prompt Type the
path to InstallScape installation directory.
3. In the InstallScape (TM) Classic View window, click Local directory/Media install
Note: The Select the Source Local Directory or Media page appears if InstallScape
preference is Original GUI.
4. In the Select location of media page, browse to select CDROM1
5. Click Continue or Next depending on the InstallScape preference.
6. Select the listed release and click Next.
Note: If preference is set for Original GUI, select Select Products manually and then
click Next. Ensure that the Select Install Directory specifies the correct directory and
click Next.
7. Select all the products under PCLU. By default, all product IDs are selected.
Deselect PLCU to deselect all IDs. You can then select individual IDs.
Note: Ensure that the correct installation directory is selected under Choose Install
Options.

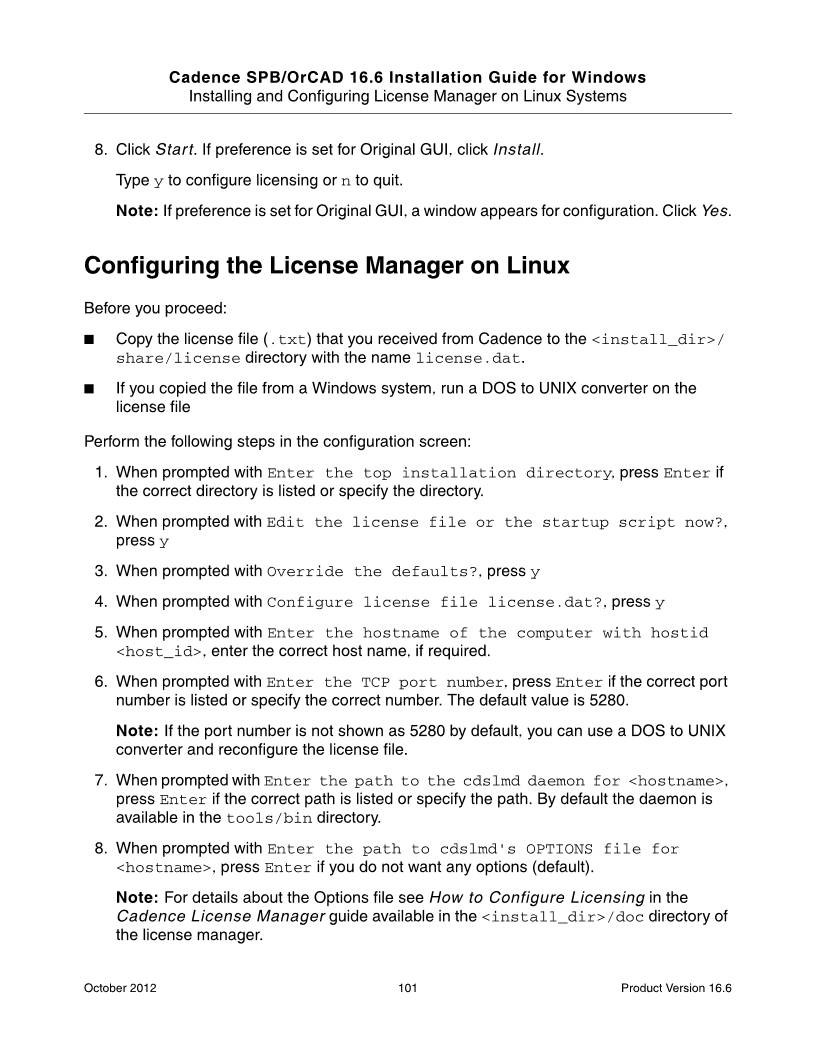

Cadence SPB/OrCAD 16.6 Installation Guide for Windows
Installing and Configuring License Manager on Linux Systems
October 2012 101 Product Version 16.6
8. Click Start. If preference is set for Original GUI, click Install.
Type y to configure licensing or n to quit.
Note: If preference is set for Original GUI, a window appears for configuration. Click Yes.
Configuring the License Manager on Linux
Before you proceed:
■ Copy the license file (.txt) that you received from Cadence to the /
share/license directory with the name license.dat.
■ If you copied the file from a Windows system, run a DOS to UNIX converter on the
license file
Perform the following steps in the configuration screen:
1. When prompted with Enter the top installation directory, press Enter if
the correct directory is listed or specify the directory.
2. When prompted with Edit the license file or the startup script now?,
press y
3. When prompted with Override the defaults?, press y
4. When prompted with Configure license file license.dat?, press y
5. When prompted with Enter the hostname of the computer with hostid
, enter the correct host name, if required.
6. When prompted with Enter the TCP port number, press Enter if the correct port
number is listed or specify the correct number. The default value is 5280.
Note: If the port number is not shown as 5280 by default, you can use a DOS to UNIX
converter and reconfigure the license file.
7. When prompted with Enter the path to the cdslmd daemon for ,
press Enter if the correct path is listed or specify the path. By default the daemon is
available in the tools/bin directory.
8. When prompted with Enter the path to cdslmd's OPTIONS file for
, press Enter if you do not want any options (default).
Note: For details about the Options file see How to Configure Licensing in the
Cadence License Manager guide available in the /doc directory of
the license manager.

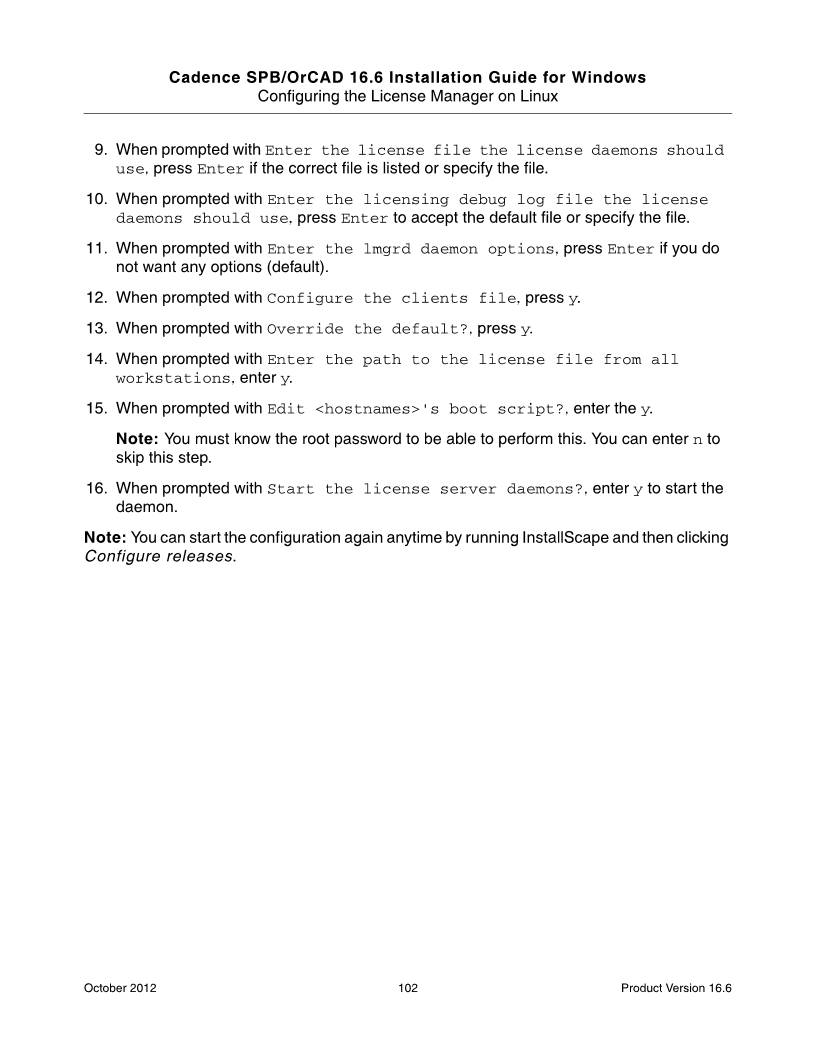

Cadence SPB/OrCAD 16.6 Installation Guide for Windows
Configuring the License Manager on Linux
October 2012 102 Product Version 16.6
9. When prompted with Enter the license file the license daemons should
use, press Enter if the correct file is listed or specify the file.
10. When prompted with Enter the licensing debug log file the license
daemons should use, press Enter to accept the default file or specify the file.
11. When prompted with Enter the lmgrd daemon options, press Enter if you do
not want any options (default).
12. When prompted with Configure the clients file, press y.
13. When prompted with Override the default?, press y.
14. When prompted with Enter the path to the license file from all
workstations, enter y.
15. When prompted with Edit 's boot script?, enter the y.
Note: You must know the root password to be able to perform this. You can enter n to
skip this step.
16. When prompted with Start the license server daemons?, enter y to start the
daemon.
Note: You can start the configuration again anytime by running InstallScape and then clicking
Configure releases.
