The document is forAspen HYSYS
Dynamics     User Guide    EMail:cadserv21@hotmail.com
 study only,if tort to your rights,please inform us,we will delete
www.c

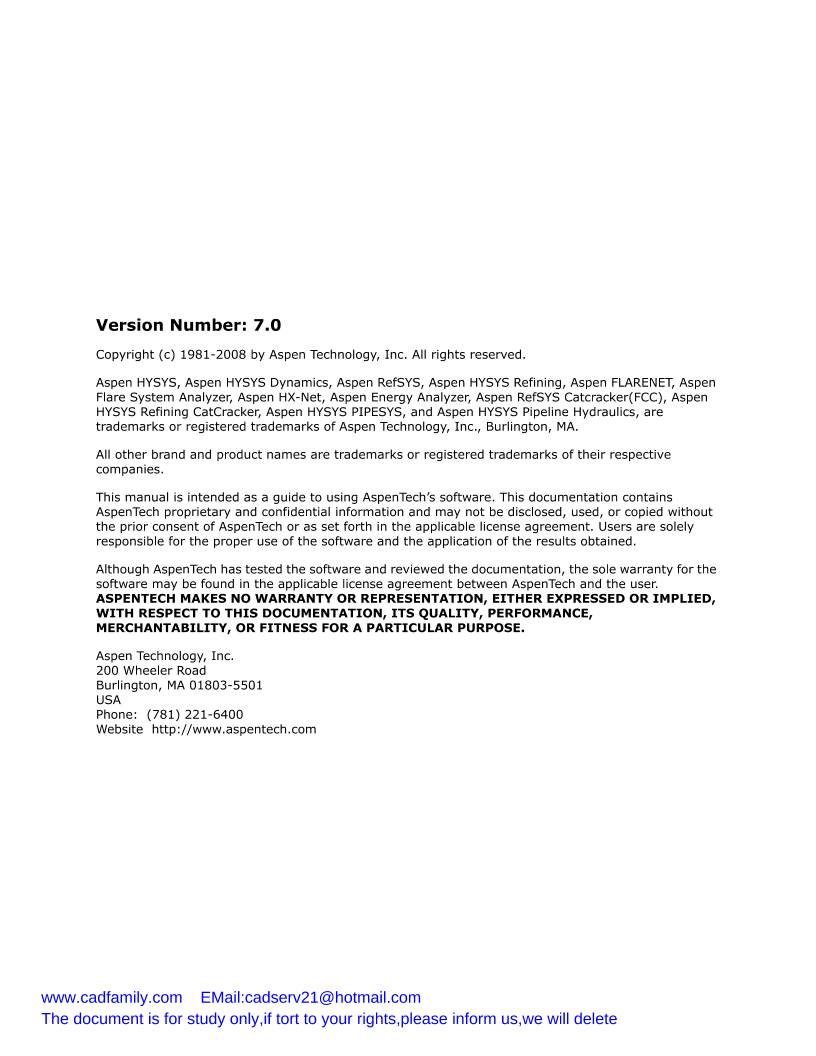

The doVersion Number: 7.0
Copyright (c) 1981-2008 by Aspen Technology, Inc. All rights reserved.
Aspen HYSYS, Aspen HYSYS Dynamics, Aspen RefSYS, Aspen HYSYS Refining, Aspen FLARENET, Aspen
Flare System Analyzer, Aspen HX-Net, Aspen Energy Analyzer, Aspen RefSYS Catcracker(FCC), Aspen
HYSYS Refining CatCracker, Aspen HYSYS PIPESYS, and Aspen HYSYS Pipeline Hydraulics, are
trademarks or registered trademarks of Aspen Technology, Inc., Burlington, MA.
All other brand and product names are trademarks or registered trademarks of their respective
companies.
This manual is intended as a guide to using AspenTech’s software. This documentation contains
AspenTech proprietary and confidential information and may not be disclosed, used, or copied without
the prior consent of AspenTech or as set forth in the applicable license agreement. Users are solely
responsible for the proper use of the software and the application of the results obtained.
Although AspenTech has tested the software and reviewed the documentation, the sole warranty for the
software may be found in the applicable license agreement between AspenTech and the user.
ASPENTECH MAKES NO WARRANTY OR REPRESENTATION, EITHER EXPRESSED OR IMPLIED,
WITH RESPECT TO THIS DOCUMENTATION, ITS QUALITY, PERFORMANCE,
MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE.
Aspen Technology, Inc.
200 Wheeler Road
Burlington, MA 01803-5501
USA
Phone:  (781) 221-6400
Website  http://www.aspentech.comadfamily.com    EMail:cadserv21@hotmail.com
cument is for study only,if tort to your rights,please inform us,we will delete
www.c
The doadfamily.com    EMail:cadserv21@hotmail.com
cument is for study only,if tort to your rights,please inform us,we will delete
 v
ww

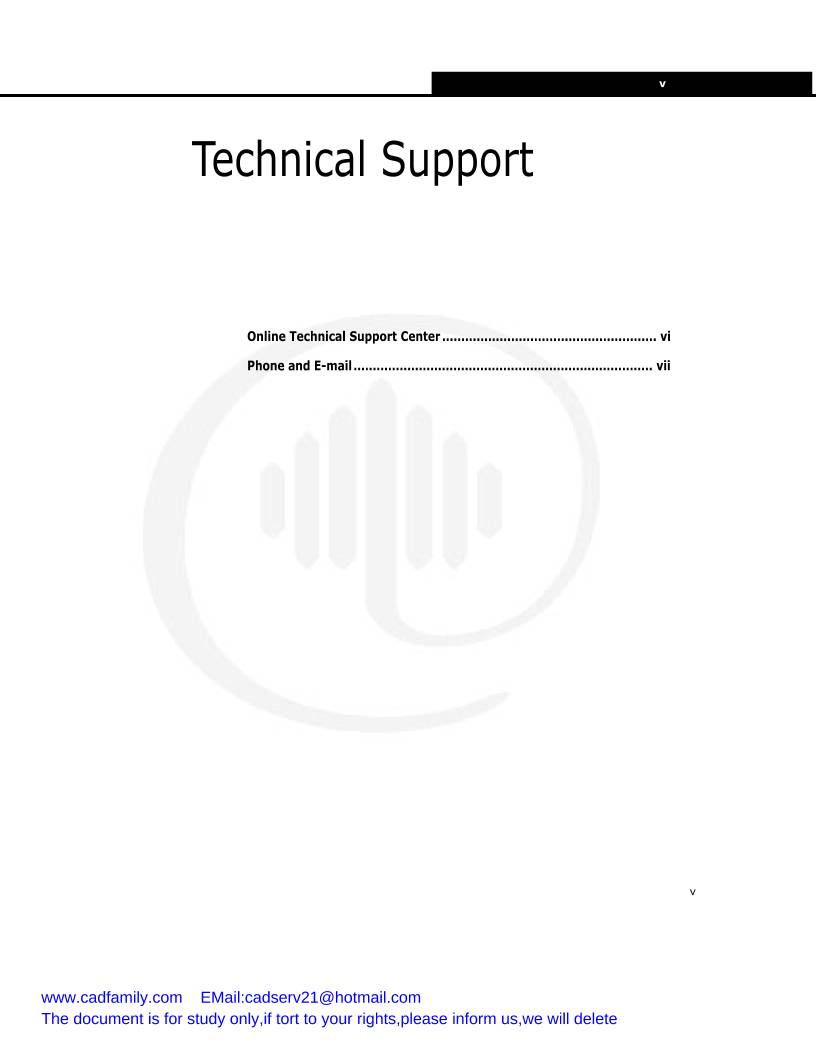

ThTechnical Supportv
  Online Technical Support Center ........................................................ vi
  Phone and E-mail .............................................................................. vii
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
 vi
ww

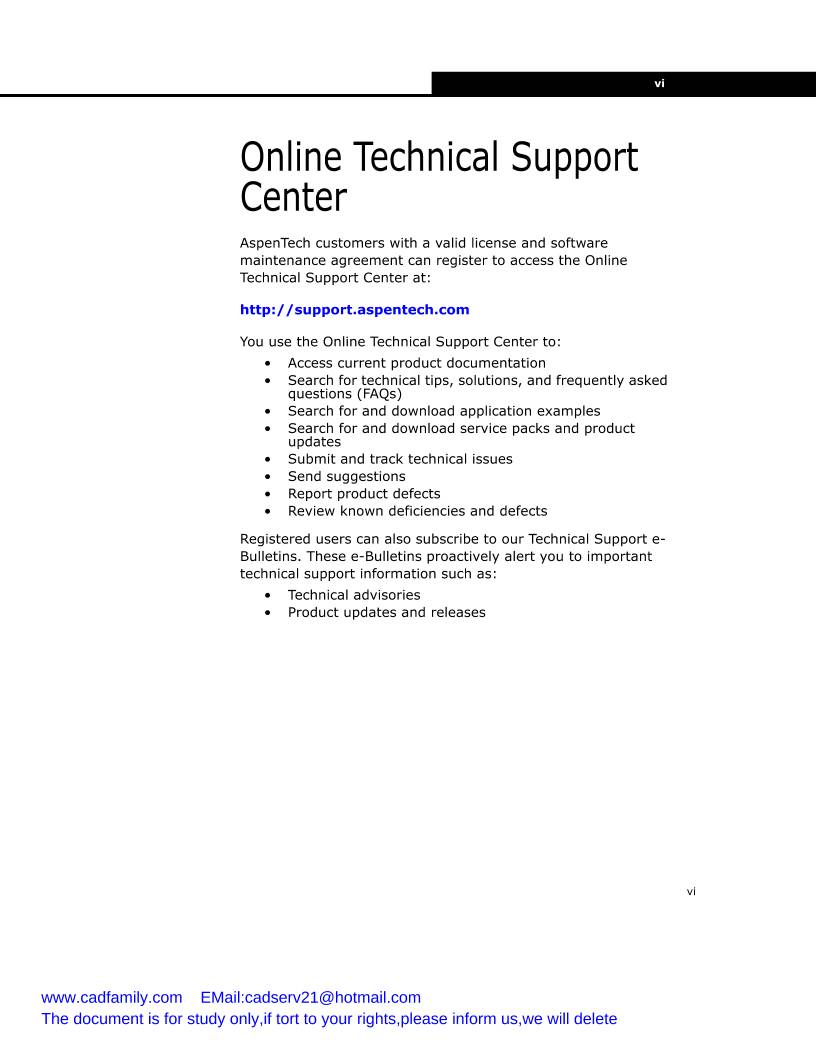

ThOnline Technical Support
Center
AspenTech customers with a valid license and software
maintenance agreement can register to access the Online
Technical Support Center at:
http://support.aspentech.com
You use the Online Technical Support Center to:
• Access current product documentation
• Search for technical tips, solutions, and frequently asked
questions (FAQs)
• Search for and download application examples
• Search for and download service packs and product
updates
• Submit and track technical issues
• Send suggestions
• Report product defects
• Review known deficiencies and defects
Registered users can also subscribe to our Technical Support e-
Bulletins. These e-Bulletins proactively alert you to important
technical support information such as:
• Technical advisories
• Product updates and releasesvi
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
 vii
ww
ThPhone and E-mail
Customer support is also available by phone, fax, and e-mail for
customers who have a current support contract for their
product(s). Toll-free charges are listed where available;
otherwise local and international rates apply.
For the most up-to-date phone listings, please see the Online
Technical Support Center at:
http://support.aspentech.comvii
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
 viii
ww
Thviii
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Table of ContentsTechnical Support..................................................... v
Online Technical Support Center ............................vi
Phone and E-mail................................................ vii
1  Dynamic Theory....................................................1-1
1.1 Introduction .................................................... 1-3
1.2 General Concepts ............................................. 1-6
1.3 Holdup Model .................................................1-13
1.4 Pressure Flow Solver .......................................1-29
1.5 Dynamic Operations: General Guidelines ............1-42
1.6 Aspen HYSYS Dynamics ...................................1-49
1.7 References .....................................................1-71
2  Dynamic Tools ......................................................2-1
2.1 Introduction .................................................... 2-3
2.2 Dynamics Assistant .......................................... 2-4
2.3 Equation Summary Property View......................2-28
2.4 Integrator ......................................................2-38
2.5 Event Scheduler..............................................2-45
2.6 Control Manager .............................................2-72
2.7 Dynamic Initialization ......................................2-73
3  Control Theory......................................................3-1
3.1 Introduction .................................................... 3-2
3.2 Process Dynamics ............................................ 3-3
3.3 Basic Control ..................................................3-10
3.4 Advanced Control ............................................3-32
3.5 General Guidelines ..........................................3-39
3.6 References .....................................................3-58
 Index.................................................................... I-1ix
www.cadfamily.com    EMail:cadserv21@hotmail.com
The document is for study only,if tort to your rights,please inform us,we will delete
x
www.cadfamily.com    EMail:cadserv21@hotmail.com
The document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-1
ww
Th1  Dynamic Theoryw.cadfamily.com    EMa
e document is for study 1.1  Introduction................................................................................... 3
1.2  General Concepts ........................................................................... 6
1.2.1  Mathematical Model Classification............................................... 6
1.3  Holdup Model ............................................................................... 13
1.3.1  Assumptions of Holdup Model .................................................. 14
1.3.2  Accumulation......................................................................... 14
1.3.3  Non-Equilibrium Flash ............................................................. 15
1.3.4  Heat Loss Model..................................................................... 20
1.3.5  Chemical Reactions................................................................. 23
1.3.6  Related Calculations ............................................................... 24
1.3.7  Advanced Holdup Properties .................................................... 24
1.4  Pressure Flow Solver ................................................................... 29
1.4.1  Simultaneous Solution in Pressure Flow Balances........................ 30
1.4.2  Basic Pressure Flow Equations.................................................. 31
1.4.3  Pressure Flow Specifications .................................................... 34
1.5  Dynamic Operations: General Guidelines ..................................... 42
1.5.1  Differences between Dynamic & Steady State Mode .................... 43
1.5.2  Moving from Steady State to Dynamics ..................................... 44
1.6  HYSYS Dynamics.......................................................................... 49
1.6.1  Detailed Heat Model ............................................................... 51
1.6.2  Nozzles................................................................................. 53
1.6.3  Control Valve Actuator ............................................................ 57
1.6.4  Inertia .................................................................................. 62
1.6.5  Static Head ........................................................................... 68
1.6.6  Design.................................................................................. 711-1
il:cadserv21@hotmail.com
only,if tort to your rights,please inform us,we will delete
1-2 Dynamic Theory
www.cadfamily.com    EMa
The document is for study 1.7  References....................................................................................711-2
il:cadserv21@hotmail.com
only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-3
ww
Th1.1 Introduction
Dynamic simulation can help you to better design, optimize, and
operate your chemical process or refining plant. Chemical plants
are never truly at steady state. Feed and environmental
disturbances, heat exchanger fouling, and catalytic degradation
continuously upset the conditions of a smooth running process.
The transient behavior of the process system is best studied
using a dynamic simulation tool like Aspen HYSYS.
The design and optimization of a chemical process involves the
study of both steady state and dynamic behavior. Steady state
models can perform steady state energy and material balances
and evaluate different plant scenarios. The design engineer can
use steady state simulation to optimize the process by reducing
capital and equipment costs while maximizing production.
With dynamic simulation, you can confirm that the plant can
produce the desired product in a manner that is safe and easy to
operate. By defining detailed equipment specifications in the
dynamic simulation, you can verify that the equipment functions
as expected in an actual plant situation. Offline dynamic
simulation can optimize controller design without adversely
affecting the profitability or safety of the plant.
You can design and test a variety of control strategies before
choosing one that is suitable for implementation. You can
examine the dynamic response to system disturbances and
optimize the tuning of controllers. Dynamic analysis provides
feedback and improves the steady state model by identifying
specific areas in a plant that have difficulty achieving the steady
state objectives.
In Aspen HYSYS, the dynamic analysis of a process system can
provide insight into the process system when it is not possible
with steady state modeling.
Note: Aspen HYSYS Thermodynamics COM Interface is not
optimized for Dynamics mode and can result in performance
issues if used in Dynamics mode.
Contact your Aspentech
agent for more
information, or e-mail us
at
info@aspentech.com.1-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-4 Introduction
ww
ThWith dynamic simulation, you can investigate:
• Process optimization
• Controller optimization
• Safety evaluation
• Transitions between operating conditions
• Startup/Shutdown conditions
The Aspen HYSYS dynamic model shares the same physical
property packages as the steady state model. The dynamic
model simulates the thermal, equilibrium, and reactive behavior
of the chemical system in a similar manner as the steady state
model.
On the other hand, the dynamic model uses a different set of
conservation equations which account for changes occurring
over time. The equations for material, energy, and composition
balances include an additional “accumulation” term which is
differentiated with respect to time. Non-linear differential
equations can be formulated to approximate the conservation
principles; however, an analytical solution method does not
exist.
Therefore, numerical integration is used to determine the
process behavior at distinct time steps. The smaller the time
step, the more closely the calculated solution matches the
analytic solution. However, this gain in rigour is offset by the
additional calculation time required to simulate the same
amount of elapsed real time. A reasonable compromise is
achieved by using the largest possible step size, while
maintaining an acceptable degree of accuracy without becoming
unstable.
The Aspen HYSYS dynamic simulation package has the capacity
to reach a wide audience by offering the following features
demanded by industry:
• Accuracy. The Aspen HYSYS dynamic model provides
accurate results based on rigorous equilibrium, reaction,
unit operations, and controller models. You must be able
to trust the results if the dynamic tool is to prove useful.
• Ease of Use. The Aspen HYSYS dynamic package uses
the same intuitive and interactive graphical environment
as the Aspen HYSYS steady state model. Streams and
unit operations in the flowsheet can be added to the 1-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-5
ww
Thdynamic simulation environment as easily as in steady
state. All flowsheet information from a steady state
simulation case transfers easily to the dynamic
simulation environment.
• Speed. The dynamic modeling options in Aspen HYSYS
were developed to provide a balance between accuracy
and speed. Aspen HYSYS uses the Implicit fixed step size
Euler method. Volume, energy, and composition balances
are solved at different frequencies. Volume (pressure-
flow) balances are defaulted to solve at every time step,
whereas energy and composition balances are defaulted
to solve at every second and tenth time step. This
solution method allows Aspen HYSYS to perform quick,
accurate and stable calculations in your simulation case.
• Detailed Design. You can provide specific rating details
for each piece of equipment in the plant and confirm that
the specified equipment can achieve desired product
specs and quality. Rating information includes the
equipment size, geometry, nozzle placement, and
position relative to the ground. A comprehensive holdup
model calculates levels, heat loss, static head
contributions, and product compositions based on the
rating information of each piece of equipment.
• Realism. A new level of realism with regards to material
flow within the simulation is achieved with the Pressure
Flow solver. With the Pressure Flow option, the flow rate
through any unit operation depends on the pressures of
the surrounding pieces of equipment. Material flow
through an actual plant can be more accurately modeled
using the Pressure Flow solver.
• Customizable. The Aspen HYSYS dynamic model is
customizable. Many organizations have proprietary
information that they want to integrate into their
commercial simulator platform. Aspen HYSYS allows you
to add your own OLE modules to the Aspen HYSYS
dynamic simulation environment.1-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-6 General Concepts
ww
Th1.2 General Concepts
1.2.1 Mathematical Model
Classification
Distributed & Lumped Models
Most chemical engineering systems have thermal or component
concentration gradients in three dimensions (x,y,z) as well as in
time. This is known as a distributed system. If you were to
characterize such a system mathematically, you would obtain a
set of partial differential equations (PDEs).
If the x, y, and z gradients are ignored, the system is “lumped”,
and all physical properties are considered to be equal in space.
Only the time gradients are considered in such an analysis. This
consideration allows for the process to be described using
ordinary differential equations (ODEs) which are much less
rigorous than PDEs, thereby saving calculation time. For most
instances, the lumped method gives a solution which is a
reasonable approximation of the distributed model solution.
Aspen HYSYS uses lumped models for all of the unit operations.
For instance, in the development of the equations describing the
separator operation, it is assumed that there are no thermal or
concentration gradients present in a single phase. In other
words, the temperature and composition of each phase are the
same throughout the entire separator.
In the solution algorithm, the PFR reactor is subdivided into
several sub-volumes which are considered to be lumped; that is,
the reaction rate, temperature and compositions are constant
through each sub-volume, varying only with time. In essence,
Notice that by definition, the PFR has thermal and
concentration gradients with respect to the length of the
vessel.1-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-7
ww
Ththerefore, the PFR model, though inherently distributed (with
respect to the length of the vessel), still uses a lumped analysis
to obtain the solution.
Linear & Non-Linear Systems
A linear first-order ODE can be described as follows:
In a non-linear equation, the process variable Y is displayed as a
power, exponential, or is not independent of other process
variables. Refer to the following two examples:
The great majority of chemical engineering processes occurring
in nature are nonlinear. Nonlinearity arises from equations
describing equilibrium behavior, fluid flow behavior, or reaction
rates of chemical systems. While a linear system of equations
are solved analytically using matrix algebra, the solution to a
non-linear set of equations usually requires the aid of a
computer.
Conservation Relationships
Material Balance
The conservation relationships are the basis of mathematical
modeling in Aspen HYSYS. The dynamic mass, component, and
energy balances that are derived in the following section are
similar to the steady state balances with the exception of the
accumulation term in the dynamic balance. It is the
(1.1)
(1.2)
(1.3)
τ Yd td
----- Y+ Kf u( )=
τ Yd td
----- Y3+ Kf u( )=
τ Yd
td
----- YY2+ Kf u( )=1-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-8 General Concepts
ww
Thaccumulation term which allows the output variables from the
system to vary with time.
The conservation of mass is maintained in the following general
relation:
For the simple case of a perfectly mixed tank with a single
component feed, the mass balance is as follows:
where:
Fi = flowrate of the feed entering the tank
 = density of the feed entering the tank
Fo = flowrate of the product exiting the tank
 = density of the product exiting the tank
V = volume of the fluid in the tank
Rate of accumulation of mass = mass flow into system -
mass flow out of system
(1.4)
 Figure 1.1
(1.5)ρoV( )d
td
----------------- Fiρi Foρo–=
ρi
ρo1-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-9
ww
ThComponent Balance
Component balances can be written as follows:
Flow into or out of the system can be convective (bulk flow)
and/or molecular (diffusion). While convective flow contributes
to the majority of the flow into and out of a system, diffusive
flow becomes significant if there is a high interfacial area to
volume ratio for a particular phase.
For a multi-component feed for a perfectly mixed tank, the
balance for component j would be as follows:
where:
Cji = concentration of j in the inlet stream
Cjo = concentration of j in the outlet stream
Rj = reaction of rate of the generation of component j
For a system with NC components, there are NC component
balances. The total mass balance and component balances are
not independent; in general, you would write the mass balance
and NC-1 component balances.
Equation (1.5) is a simplification of the more rigorous
equation used inside Aspen HYSYS which also considers
other phenomena such as vapourization, reactions, density
changes, etc.
Rate of accumulation of component j = Flow of component
j into system - Flow of component j out of system +
Rate of formation of component j by reaction
(1.6)
(1.7)
CjoV( )d
td
------------------- FiCji FoCjo– RjV+=1-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-10 General Concepts
ww
ThEnergy Balance
The energy balance is as follows:
The flow of energy into or out of the system is by convection or
conduction. Heat added to the system across its boundary is by
conduction or radiation.
For a CSTR with heat removal, the following general equation
applies:
where:
u = internal energy (energy per unit mass)
k = kinetic energy (energy per unit mass)
 = potential energy (energy per unit mass)
V = volume of the fluid
w = shaft work done by system (energy per time)
Po = vessel pressure
Pi = pressure of feed stream
Q = heat added across boundary
Qr = , heat generated by reaction
Several simplifying assumptions can usually be made:
• The potential energy can almost always be ignored; the
inlet and outlet elevations are roughly equal.
• The inlet and outlet velocities are not high, therefore
kinetic energy terms are negligible.
• If there is no shaft work (no pump), w=0.
Rate of accumulation of total energy = Flow of total energy
into system - Flow of total energy out of system +
Heat added to system across its boundary + Heat
generated by reaction - Work done by system on
surroundings
(1.8)
(1.9)
td
d u k φ+ +( )V[ ] Fiρi ui ki φi+ +( ) Foρo uo ko φo+ +( ) Q Qr w FoPo FiPi–+( )–+ +–=
φ
DHrxnrA1-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-11
ww
ThThe general energy balance for a 2-phase system is as follows:
Solution Method
Implicit Euler Method
Yn+1 is analytically calculated to equal:
where:
Ordinary differential equations are solved using the Implicit
Euler method. The Implicit Euler method is simply an
approximation of Yn+1 using rectangular integration. Graphically,
a line of slope zero and length h (the step size) is extended from
tn to tn+1 on an f(Y) vs. time plot. The area under the curve is
approximated by a rectangle of length h and height fn+1(Yn+1):
(1.10)

(1.11)
(1.12)
td
d ρvVvH ρlVlh+[ ] Fiρihi F– lρlh FvρvH– Q Qr+ +=
Yn 1+ Yn f Y( ) td
tn
tn 1+
∫+=
dY
dt
------ f Y( )=
Yn 1+ Yn hfn 1+ Yn 1+( )+=1-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-12 General Concepts
ww
ThThe figure below shows the integration of f(Y) over time step, h,
using exact integration and the Implicit Euler approximation:
The Implicit Euler method handles stiff systems well. This is an
implicit method because information is required at time tn+1.
Integration parameters such as the integration time step can be
specified in the Integrator property view from the Simulation
menu in Aspen HYSYS. The integration time step can be
adjusted to increase the speed or stability of the system.
Integration Strategy
In Aspen HYSYS, dynamic calculations are performed at three
different frequencies:
• Volume (pressure-flow)
• Energy
• Composition
These relations are not solved simultaneously at every time
step. This would be computationally expensive. The compromise
is to solve the balances at different time step frequencies. The
default solution frequencies, which are multiples of the
integration time step, are one, two, and ten for the pressure
flow equations, energy, and composition balances.
Meaning pressure flow equations are solved at every time step
while composition balances are solved at every 10th time step.
Since composition tends to change much more gradually than
the pressure, flow, or energy in a system, the equations
associated with composition can be solved less frequently. An
 Figure 1.2
tn tn+1
f(Y)
tn tn+1
f(Y)
Area f Y( )dt
fn
fn 1+
∫= Area fn 1+( )h=
Exact Integration Rectangular Integration (Implicit Euler)1-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-13
ww
Thapproximate flash is used for each pressure flow integration
time step. A rigorous flash is performed at every composition
integration time step.
1.3 Holdup Model
Dynamic behavior arises from the fact that many pieces of plant
equipment have some sort of material inventory or holdup. A
holdup model is necessary because changes in the composition,
temperature, pressure or flow in an inlet stream to a vessel with
volume (holdup) are not immediately seen in the exit stream.
The model predicts how the holdup and exit streams of a piece
of equipment respond to input changes to the holdup over time.
In some cases, the holdup model corresponds directly with a
single piece of equipment in Aspen HYSYS. For example, a
separator is considered a single holdup. In other cases, there
are numerous holdups within a single piece of equipment. In the
case of a distillation column, each tray can be considered a
single holdup. Heat exchangers can also be split up into zones
with each zone being a set of holdups.
Calculations included in the holdup model are:
• Material and energy accumulation
• Thermodynamic equilibrium
• Heat transfer
• Chemical reaction
The new holdup model offers certain advantages over the
previous Aspen HYSYS dynamic model:
• An adiabatic PH flash calculation replaces the bubble
point algorithm used in the previous holdup model.
Adiabatic flashes also allow for more accurate
calculations of vapour composition and pressure effects
in the vapour holdup.
• Flash efficiencies can be specified allowing for the
modeling of non-equilibrium behavior between the feed
phases of the holdup.
• The placement of feed and product nozzles on the
equipment has physical meaning in relation to the
holdup. For example, if the vapour product nozzle is
placed below the liquid level in a separator, only liquid
exits from the nozzle.1-13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-14 Holdup Model
ww
Th1.3.1 Assumptions of Holdup
Model
There are several underlying assumptions that are considered in
the calculations of the holdup model:
• Each phase is assumed to be well mixed.
• Mass and heat transfer occur between feeds to the
holdup and material already in the holdup.
• Mass and heat transfer occur between phases in the
holdup.
1.3.2 Accumulation
The lagged response that is observed in any unit operation is the
result of the accumulation of material, energy, or composition in
the holdup. To predict how the holdup conditions change over
time, a recycle stream is added alongside the feed streams. For
example, the material accumulation in a holdup can be
calculated from:
The recycle stream is not a physical stream in the unit
operation. Rather, it is used to introduce a lagged response in
the output. Essentially, the recycle stream represents the
material already existing in the piece of equipment. It becomes
apparent that a greater amount of material in the holdup means
a larger recycle stream and thus, a greater lagged response in
the output.
Material accumulationnew = material flow into system +
material accumulationold (recycle stream) - material
flow out of system
(1.13)1-14
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-15
ww
ThThe holdup model is used to calculate material, energy, and
composition accumulation. Material accumulation is defaulted to
calculate at every integration time step. The energy of the
holdup is defaulted to calculate at every second time step. The
composition of the holdup is defaulted to calculate at every
tenth time step.
1.3.3 Non-Equilibrium Flash
As material enters a holdup, the liquid and vapour feeds can
associate in different proportions with the existing material
already in the holdup. For instance, a separator’s vapour and
liquid feeds can enter the column differently. It is very likely that
the liquid feed mixes well with the liquid already in the holdup.
The vapour feed is not mixed as well with the existing material
in the vessel since the residence time of the vapour holdup is
much smaller than that of the liquid. If the feed nozzle is
situated close to the vapour product nozzle, it is possible that
even less mixing occurs. In the physical world, the extent of
mixing the feeds with a holdup depends on the placement of the
feed nozzles, the amount of holdup, and the geometry of the
piece of equipment.
 Figure 1.31-15
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-16 Holdup Model
ww
ThEfficiencies
In Aspen HYSYS, you can indirectly specify the amount of
mixing that occurs between the feed phases and the existing
holdup using feed, recycle, and product efficiencies. These feed
efficiency parameters can be specified on the Efficiencies tab of
the unit operation’s Advance property view. Click the Advance
button on the Holdup page under the Dynamics tab to open the
Advance property view.
Essentially, the efficiencies determine how rapidly the system
reached equilibrium. If all efficiencies are 1, then all feeds reach
equilibrium instantaneously. If the values are lower, it takes
longer and the phases cannot be in equilibrium and can have
different temperatures.
 Figure 1.41-16
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-17
ww
ThA flash efficiency can be specified for each phase of any stream
entering the holdup. A conceptual diagram of the non-
equilibrium flash is shown for a two phase system in the figure
below:
As shown, the flash efficiency, , is the fraction of feed stream
that participates in the rigorous flash. If the efficiency is
specified as 1, the entire stream participates in the flash; if the
efficiency is 0, the entire stream bypasses the flash and is mixed
with the product stream.
The recycle stream (and any streams entering the holdup)
participates in the flash. You can specify the flash efficiency for
each phase of the recycle stream and any feed entering the
holdup. The flash efficiency can also be specified for each phase
of any product streams leaving the holdup.
The default efficiencies for the feed, product, and recycle
streams is 1, and this value is sufficient in the vast majority of
cases. The flash efficiencies can be changed to model non-
 Figure 1.5
Product flash efficiencies are only used by the holdup model
when reverse flow occurs in the product flow nozzles. In
such cases, the product nozzle effectively becomes a feed
nozzle and uses the product flash efficiencies that you
provided.
η
1-17
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-18 Holdup Model
ww
Thequilibrium conditions. For example, the efficiency of vapour
flowing through a vessel containing liquid can be reduced if the
residence time of the vapour is very small and there is little time
for it to reach thermodynamic equilibrium with the liquid. Also,
in some narrow boiling systems, lower efficiencies can be used
to reduce the rate at which material can condense or evaporate.
This can help to stabilize the pressure in certain difficult cases
such as narrow boiling systems like steam.
For example, a water system is heated by pure steam (no
inerts) can encounter problems if the stream efficiency is
specified as 1. If the holdup material is significantly larger than
the stream flow, all the steam condenses and the holdup
temperature increases accordingly. No vapour is present which
can complicate pressure control of the system. In the physical
world, typically not all of the steam condenses in the water and
there are also some inerts (e.g., nitrogen or air) present in the
system. Using lower efficiencies can help to model this system
better.
Nozzles
In Aspen HYSYS, you can specify the feed and product nozzle
locations and diameters. These nozzle placement parameters
can be specified in the unit operation’s Nozzles page under the
Rating tab.
 Figure 1.61-18
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-19
ww
ThThe placement of feed and product nozzles on the equipment
has physical meaning in relation to the holdup. The exit stream’s
composition depends partially on the exit stream nozzle’s
location in relation to the physical holdup level in the vessel. If
the product nozzle is located below the liquid level in the vessel,
the exit stream draws material from the liquid holdup. If the
product nozzle is located above the liquid level, the exit stream
draws material from the vapour holdup. If the liquid level sits
across a nozzle, the mole fraction of liquid in the product stream
varies linearly with how far up the nozzle the liquid is.
Static Head Contributions
When the Static Head Contributions checkbox is selected on
the Options tab of the Integrator property view, Aspen HYSYS
calculates static head using the following contributions:
• Levels inside separators, tray sections, and so forth
• Elevation differences between connected equipment
For unit operations with negligible holdup, such as the valve
operation, Aspen HYSYS incorporates only the concept of
nozzles. There is no static head contributions for levels, unless
the feed and product nozzles are specified at different
elevations.
You can specify the elevation of both the feed and product
nozzles. If there is a difference in elevation between the feed
and product nozzles, Aspen HYSYS uses this value to calculate
the static head contributions. It is recommended that static
head contributions not be modeled in these unit operations in
this way since this is not a realistic situation. Static head can be
better modeled in these unit operations by relocating the entire
piece of equipment.
Static head is important in vessels with levels. For example,
consider a vertical separator unit operation that has a current
liquid level of 50%. The static head contribution of the liquid
Including static head contributions in the modeling of
pressure-flow dynamics is an option in Aspen HYSYS.1-19
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-20 Holdup Model
ww
Thholdup makes the pressure at the liquid outlet nozzle higher
than that at the vapour outlet nozzle. Nozzle location also
becomes a factor. The pressure-flow relationship for the
separator is different for a feed nozzle which is below the
current liquid holdup level as opposed to a feed which is
entering in the vapour region of the unit.
It is important to notice that exit stream pressures from a unit
operation are calculated at the exit nozzle locations on the piece
of equipment and not the inlet nozzle locations of the next piece
of equipment.
1.3.4 Heat Loss Model
The heat loss experienced by any pieces of plant equipment is
considered by the holdup model in Aspen HYSYS. The heat loss
model influences the holdup by contributing an extra term to the
energy balance equation.
Energy Balances
Heat is lost (or gained) from the holdup fluid through the wall
and insulation to the surroundings.
There are several underlying assumptions that are considered
during a heat loss calculation:
 Figure 1.71-20
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-21
ww
Th• There is heat capacity associated with the wall (metal)
and insulation housing the fluid.
• There is thermal conductivity associated with the wall
and insulation housing the fluid.
• The temperature across the wall and insulation is
assumed to be constant (lumped parameter analysis).
• You can now have different heat transfer coefficients on
the inside of a vessel for the vapour and the liquid. The
heat transfer coefficient between the holdup and the wall
is no longer assumed to be same for the vapour and
liquid.
• The calculation uses convective heat transfer on the
inside and outside of the vessel.
• The calculations assume that the temperature does not
vary along the height of the vessel, and there is a
temperature gradient through the thickness of the wall
and insulation.
A balance can be performed across the wall:
The balance across the insulation is:
where:
A = the heat transfer area
x = the thickness
Cp = the heat capacity
T = the temperature
k = the thermal conductivity
h = the heat transfer coefficient
As shown, both the insulation and wall can store heat. The heat
loss term that is accounted for in the energy balance around the
holdup is . If Tfluid is greater than Twall, the
heat is lost to the surroundings. If Tfluid is less than Twall, the heat
(1.14)
(1.15)
td
d AxwallCpwallTwall[ ] h fluid wall,( )A Tfluid Twall–( )
kins
xins
--------A Twall Tins–( )–=
td
d AxinsCpins
Tins
2
---------⎝ ⎠
⎛ ⎞ kins
xins
--------A Twall Tins–( ) h ins surr,( )A Tins Tsurr–( )+=
h fluid wall,( )A Tfluid Twall–( )1-21
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-22 Holdup Model
ww
This gained from the surroundings.
Heat Loss Parameters
The heat loss parameters can be specified for most unit
operations in the Heat Loss page under the Rating tab. You can
choose to neglect the heat loss calculation in the energy balance
by selecting the None radio button.
There are two heat loss models available:
• Simple
• Detailed
Simple Model
The Simple model allows you to either specify the heat loss
directly or have the heat loss calculated from specified values:
• Overall U value
• Ambient Temperature
The heat transfer area, A, and the fluid temperature, Tf, are
calculated by Aspen HYSYS. The heat loss is calculated using:
The wall temperature and insulation temperature are
considered separately. At any given time, the wall is
assumed to be at the wall temperature, and the insulation is
at the insulation temperature. The temperature at the wall/
insulation interface is calculated using a pseudo steady state
assumption for viewing purpose.
(1.16)Q = UA(Tf Tamb )–1-22
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-23
ww
ThDetailed Model
The Detailed model allows you to specify more detailed heat
transfer parameters. There are three radio buttons in the Heat
Loss Parameters group as described in the table below:
1.3.5 Chemical Reactions
Chemical reactions that occur in plant equipment are considered
by the holdup model in Aspen HYSYS. Reaction sets can be
specified in the Results page of the Reactions tab.
The holdup model is able to calculate the chemical equilibria and
reactions that occur in the holdup. In a holdup, chemical
reactions are modeled by one of four mechanisms:
• Reactions handled inside thermophysical property
packages
• Extent of reaction model
• Kinetic model
• Equilibrium model
Radio Button Description
Temperature
Profile
Displays the temperatures of the:
• fluid
• wall
• insulation
• surroundings
Conduction Displays the conductive properties of the wall and
insulation. The following properties can be specified by you:
• Conductivity of material
• Thickness of material
• Heat capacity of material
• Density of material
Equation (1.14) and (1.15) demonstrate how the
parameters are used by the heat loss model.
Convection Displays the convective heat transfer coefficients for heat
transfer within the holdup and heat transfer occurring from
the outside the holdup to the surroundings.
For more information on
how reaction sets can be
created and used within
the simulation, see
Chapter 5 - Reactions
in the Aspen HYSYS
Simulation Basis
guide.1-23
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-24 Holdup Model
ww
Th1.3.6 Related Calculations
There are calculations which are not handled by the holdup
model itself, but can impact the holdup calculations. The
following calculations require information and are solved in
conjunction with the holdup model as described in the following
table:
1.3.7 Advanced Holdup
Properties
Located on each Holdup page found on the Dynamics tab of the
unit operation property view there is an Advanced button. This
button accesses the Holdup property view that provides more
detailed information about the holdup of that unit operation.
Calculations Description
Vessel Level
Calculations
The vessel level can be calculated from the vessel
geometry, the molar holdup and the density for each
liquid phase.
Vessel Pressure The vessel pressure is a function of the vessel volume
and the stream conditions of the feed, product, and the
holdup. The pressure in the holdup is calculated using
a volume balance equation. Holdup pressures are
calculated simultaneously across the flowsheet.
Tray Hydraulics Tray Hydraulics determines the rate from which liquid
leaves the tray, and hence, the holdup and the
pressure drop across the tray. The Francis Weir
equation is used to determine the liquid flow based on
the liquid level in the tray and the tray geometry.
Right-click anywhere in the property view to bring up the
object inspect menu. Selecting the Open Page command
displays the information on the Holdup page in a separate
property view.1-24
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-25
ww
ThGeneral Tab
This tab provides the same information as shown in the Holdup
page of the Dynamics tab. The accumulation, moles, and
volume of the holdup appear on this tab. The holdup pressure
also appears on this tab.
Select the Active Phase Flip Check checkbox to enable Aspen
HYSYS to check if there is a phase flip between Liquid 1 (light
liquid) and Liquid 2 (heavy liquid) during simulation and
generate a warning message whenever the phase flip occur. If
the checkbox is clear, Aspen HYSYS generates a warning only on
the first time the phase flip occur.
 Figure 1.81-25
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-26 Holdup Model
ww
ThNozzles Tab
The Nozzles tab displays the same information as shown in the
Nozzles page of the Ratings tab. The nozzle diameters and
elevations for each stream attached to the holdup appear on this
tab. This section also displays the holdup elevation which is
essentially equal to the base elevation of the piece of equipment
relative to the ground. Changes to nozzle parameters can either
be made in this tab or in the Nozzles page of the Ratings tab.
The Nozzles tab requires Aspen HYSYS Dynamics license.
 Figure 1.9
Refer to Section 1.6 -
HYSYS Dynamics for
more information.1-26
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-27
ww
ThEfficiencies Tab
The nozzle efficiencies can be specified in this tab. In Aspen
HYSYS, you can indirectly specify the amount of mixing that
occurs between the feed phases and existing holdup using feed,
recycle and product efficiencies.
A flash efficiency, , is the fraction of feed stream that
participates in the rigorous flash. If the efficiency is specified as
100, the entire stream participates in the flash; if the efficiency
is 0, the entire stream bypasses the flash and is mixed with the
product stream.
The Efficiencies tab requires Aspen HYSYS Dynamics license.
 Figure 1.10
Nozzle Efficiency Description
Feed Nozzle
Efficiency
The efficiencies of each phase for each feed
stream into the holdup can be specified in these
cells. These efficiencies are not used by the
holdup model if there is flow reversal in the feed
streams.
Refer to Section 1.6 -
HYSYS Dynamics for
more information.
For more information
regarding feed, product,
and recycle efficiencies,
see Section 1.3.3 -
Non-Equilibrium Flash.
η
1-27
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-28 Holdup Model
ww
ThProperties Tab
The following fluid properties for each phase in the holdup
appear on the Properties tab:
• Temperature
• Pressure
• Flow
• Molar Fraction of the specific phase in the holdup
• Enthalpy
• Density
• Molecular Weight
Product Nozzle
Efficiency
Product nozzle efficiencies are used only when
there is flow reversal in the product streams. In
this situation, the product nozzles act as effective
feed nozzles.
Recycle Efficiency Essentially, the recycle stream represents the
material already existing in the holdup. Recycle
efficiencies represent how much of the material in
the holdup participates in the flash.
 Figure 1.11
Nozzle Efficiency Description1-28
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-29
ww
ThCompositions Tab
The compositional molar fractions of each phase in the holdup
displays in the Compositions tab.
1.4 Pressure Flow Solver
Aspen HYSYS offers an advanced method of calculating the
pressure and flow profile of a simulation case in Dynamics
mode. Almost every unit operation in the flowsheet can be
considered a holdup or carrier of material (pressure) and
energy. A network of pressure nodes can therefore be conceived
across the entire simulation case. The P-F solver considers the
integration of pressure flow balances in the flowsheet. There are
two basic equations which define most of the pressure flow
network and these equations only contain pressure and flow as
variables:
• Resistance equations. Which define flow between
pressure holdups.
• Volume balance equations. Which define the material
balance at pressure holdups.
The pressure flow balances both require information from and
provide information to the holdup model. While the holdup
model calculates the accumulation of material, energy, and
composition in the holdup, the pressure flow solver equations
 Figure 1.121-29
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-30 Pressure Flow Solver
ww
Thdetermine the pressure of the holdup and flow rates around it.
The holdup model brings the actual feed and product stream
properties to holdup conditions for the volume balance
equations using a rigorous or approximate flash. The pressure
flow solver returns information essential to the holdup model
calculations: the pressure of the holdup or the flow rates of
streams around the holdup.
1.4.1 Simultaneous Solution in
Pressure Flow Balances
All material streams within Aspen HYSYS can be solved for
pressure and flow. All unit operations can be solved for
pressure. As an example, consider the following flowsheet.
There are 26 variables to solve for in the PF matrix. Twelve
material streams contribute 24 variables to the flowsheet. The 2
vessels, V-100 and V-101, contribute 1 variable each. The valve
and tee operations are not considered nodes. These unit
operations define a pressure flow relation between the inlet and
exit streams, but rarely are they modeled with any inventory.
A pressure-flow matrix is setup which solves the variables
required. The matrix consists of: Volume balance equations,
Resistance equations and Pressure-Flow specifications input by
 Figure 1.131-30
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-31
ww
Thyou. The number of pressure flow specifications that need to be
provided are discussed in Degrees of Freedom Analysis
section.
1.4.2 Basic Pressure Flow
Equations
The equations that are discussed in this section define the basis
of the pressure flow network.
Volume Balance
For equipment with holdup, an underlying principle is that the
physical volume of the vessel, and thus, the volume of material
in the vessel at any time remains constant. Therefore, during
calculations in dynamics, the change in volume of the material
inside the vessel is zero:
where:
V = volume of the vessel
t = time
flow = mass flowrate
h = holdup
P = vessel pressure
T = vessel temperature
As such, a vessel pressure node equation is essentially a
(1.17)
(1.18)
V Constant f flow h P T, , ,( )= =
dV
dt
------ 0=1-31
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-32 Pressure Flow Solver
ww
Thvolumetric flow balance and can be expressed as follows:
In the volume balance equation, pressure and flow are the only
two variables to be solved in the matrix. All other values in the
equation are updated after the matrix solves. Each vessel
holdup contributes at least one volume balance equation to the
pressure-flow matrix. When sufficient pressure-flow
specifications are provided by you, any unknown(s) can be
solved whether it be a vessel pressure or one of its flowrates.
The volume balance equation allows you to observe pressure
effects in the vapour holdup due to disturbances in the feed.
Consider a separator whose feed flow suddenly increases.
Assume that the exit streams from the separator are specified
by you and are thus, constant. The vessel pressure would
increase for two reasons:
• Because the material of the exit streams remain
constant, an increase in the vapour feed flow would
increase the vapour holdup. An increase in the vapour
holdup means that a larger amount of material is
compressed into the same vapour volume resulting in a
vessel pressure increase.
• The increase in the liquid level causes the vapour holdup
to occupy a smaller volume within the vessel, causing the
vessel pressure to rise.
Resistance Equations
Flows exiting from a holdup are calculated from a volume
balance equation, specified by you, or calculated from a
resistance equation. In general, the resistance equation
calculates flowrates from the pressure differences of the
surrounding nodes. Aspen HYSYS contains unit operations such
as valves and heat exchangers which calculate flowrates using
resistance equations. The resistance equations are modeled
Volume change due to pressure + Volume change due to
flows + Volume change due to temperature +
Volume change due to other factors = 0
(1.19)1-32
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-33
ww
Thafter turbulent flow equations and have the form:
where:
Flow = mass flow rate
k = conductance, which is a constant representing the
reciprocal of resistance to flow
 = frictional pressure loss, which is the pressure drop
across the unit operation without static head
contributions
Equation (1.20) is a simplified form of the basic valve
operation equation which uses the valve flow coefficient Cv. The
mass flowrate through the valve is a function of the valve flow
coefficient and the frictional pressure drop across the valve:
where:
Flow = mass flowrate
Cv = conductance, which is a constant representing the
reciprocal of resistance to flow
P1 = upstream pressure
P2 = downstream pressure
As shown, a resistance equation relates the pressures of two
nodes and the flow that exists between the nodes. The following
unit operations have a resistance equation associated with
them.
(1.20)
(1.21)
Unit Operation Resistance Term
Valve With a pressure flow specification, you can specify
conductance, Cv, on the Specs page of the
Dynamics tab.
Pump The heat flow and pump work define the pressure
flow relation of the pump. These parameters can
be specified and/or calculated on the Specs page
of the Dynamics tab.
Flow k ΔP=
ΔP
Flow f Cv P1 P2,,( )=
For a more detailed
description on the
individual unit operations
and the resistance
equations associated with
them, see the appropriate
unit operation section in
the Aspen HYSYS
Operations Guide.1-33
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-34 Pressure Flow Solver
ww
Th1.4.3 Pressure Flow
Specifications
In Dynamics mode, you can specify the pressure and/or flow of
a material stream in a flowsheet. The pressure flow
specifications are made in the Dynamics tab of the Material
Stream property view.
To satisfy the degrees of freedom of the pressure-flow matrix,
you must input a certain number of pressure-flow specifications.
The volume balance equations, resistance equations, and
pressure-flow relation equations make up a large number of
equations in the pressure-flow matrix. However, you should be
aware of the specifications that are needed before the matrix
solves.
Degrees of Freedom Analysis
In almost all cases, a flowsheet being modeled dynamically
using pressure-flow requires one pressure-flow specification per
flowsheet boundary stream. A flowsheet boundary is one that
crosses the model boundary and is attached to only one unit
operation. Examples of such streams are the model’s feed and
product streams. All other specifications for the flowsheet are
Compressor/
Expander
The heat flow and compressor work define the
pressure flow relation of the compressor. These
parameters can be specified and/or calculated on
the Specs page of the Dynamics tab.
Heater/Cooler/Heat
Exchanger/Air
Cooler/LNG
With a pressure flow specification, you can specify
the k-value on the Specs page of the Dynamics
tab.
Tray Sections, Weir
Equation
The Weir equation determines liquid flow rate from
the tray as a function of liquid level in the tray.
Tray geometry can be specified on the Sizing page
of the Ratings tab.
Tray Sections, K-
Value
The K-value is used to determine vapour flow
exiting from the tray as a function of the pressure
difference between trays. K-values can either be
calculated or specified on the Specs page of the
Dynamics tab.
Unit Operation Resistance Term
For more information on
specifying Pressure-Flow
specifications for a
material stream, see
Chapter 12 - Streams
in the Aspen HYSYS
Operations Guide.1-34
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-35
ww
Thhandled when each unit operation is sized using the
conductance or valve flow coefficient.
The following example confirms the “one P-F specification per
flowsheet boundary stream” rule. In Figure 1.14, since there
are four flowsheet boundary streams, you are required to make
four pressure-flow specifications for the pressure flow matrix to
solve.
Notice that the pressure flow specifications do not necessarily
have to be set for each flowsheet boundary stream.
Specifications can be made for internal flowsheet streams as
long as there is one P-F specification per flowsheet boundary
stream.
In the flowsheet shown above, there are eight streams and one
vessel holdup. To fully define the pressure flow matrix, the
pressure and flow for each material stream and the pressure of
each holdup must be solved for. In short, two variables are
required for each material stream and one variable is required
for each holdup:
 Figure 1.14
8 material streams x 2 + 1 vessel holdup x 1 = 17
pressure-flow variables
(1.22)1-35
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-36 Pressure Flow Solver
ww
ThThe accumulation or amount of holdup is solved using material
balances in the holdup model. Although the holdup is not solved
by the pressure-flow matrix, it is used by the volume balance
equation to calculate the vessel pressure of the holdup which is
a variable in the matrix.
The pressure and flow of material streams are named Pstream name
and Fstream name, respectively. The pressure of the holdup is
named PH.
There are a number of equations which describe the relationship
between the pressures and flows in this network. They are as
shown below:
Pressure-Flow Equation Description # of Eqns
Separator
Volume Balance equation
The volume balance relates PH with F2, F3 and F5.
1
General Pressure
relation
If the static head contribution option in the integrator is not
activated, this general pressure relation is observed.
3
Valves
Resistance equations
This is the general form of the valve resistance equation.
The actual equations vary according to inlet stream
conditions.
3
General Flow relations
Since the valves are usually not specified with holdup, this
relation is observed.
3
Mixer
General Pressure
relation
The equalize option is recommended for the operation of
the mixer in Dynamics mode. If this option is activated, this
general pressure relation is observed.
2
dPH
dt
--------- f P T holdup flows,, ,( )=
PH P2 P3 P5= = =
F2 KVLV100 P1 P2–
F4 KVLV101 P3 P4–
F8 KVLV102 P7 P8–=
=
=
F1 F2
F3 F4
F7 F8=
=
=
P5 P6 P7= =1-36
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-37
ww
ThWith 17 variables to solve for in the network and 13 available
equations, the degrees of freedom for this network is four.
Therefore, four variables need to be specified to define this
system. This is the same number of flowsheet boundary
streams.
Pressure-Flow Specification
Guidelines
The previous section outlined the number of pressure-flow
specifications that are required by the flowsheet in order for the
degrees of freedom to be satisfied. This section presents
possible PF specifications that can be made for the inlet and exit
streams of stand alone operations.
The purpose of this section is to demonstrate the range of
specifications that can be made for different unit operations in
Aspen HYSYS. It is hoped that this section provides insight as to
what should and should not be specified for each unit operation.
Valve
Rating information for the valve operation including the valve
type and Cv values can be input on the Sizing page in the
Ratings tab.
The dynamic valve can either be specified as having a set
pressure drop or a pressure flow relation. This option is set on
the Specs page of the Dynamics tab in the valve property view.
• For a pressure drop specification on the valve: one
pressure spec and one flow spec is required for the inlet
and exit streams.
General Flow relation
Since the mixer is usually not specified with holdup, this
relation is observed.
1
Total Number of Pressure Flow Equations 13
Pressure-Flow Equation Description # of Eqns
F7 F5 F6+=1-37
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-38 Pressure Flow Solver
ww
Th• For a pressure-flow specification on the valve: two
pressures are specified or one pressure and one flow.
Pressure and level control can be achieved in a separator using
valves on the vapour and liquid streams, respectively. It is best
to use a pressure specification downstream of each valve. The
percent openings on each valve can then be used to control the
flow through each valve with a PID controller.
Heat Exchanger/Cooler/Heater
The dynamic heat exchanger can be specified as having a set
pressure drop or a Overall K-Value (pressure-flow) relation. This
option is set on the Specs page of the Dynamics tab in the heat
exchanger property view:
• For a pressure drop specification on either the tube side
or shell side: one pressure spec and one flow spec is
recommended.
• For a K-value spec on either the tube or shell side: two
pressures can be specified or one pressure and one flow.
K-values can be calculated using the Calculate K button on the
Specs page of the Dynamics tab in the operation’s property
view.
Heater and cooler operations are much like heat exchangers.
However, they only have a single K-value on their process side.
The P-F spec option for conductance-type unit operations
should be used as much as possible since it is much more
realistic in determining pressure flow relations in an actual
plant. The pressure drop option is provided to ease the
transition between steady state and Dynamics mode. The
pressure drop option can help more difficult simulations run
since the initial exit stream conditions of the valve can be
easily calculated using the pressure drop option.
The heat exchange operations, like the valve, should use the
P-F spec option as much as possible to simulate actual
pressure flow relations in the plant.1-38
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-39
ww
ThSeparators
Rating information including the volume of the vessel, boot
capacity, and nozzle location can be input on the Sizing and
Nozzles pages in the Ratings tab.
A separator with no valves attached to the inlet and exit streams
requires at most one pressure specification. The other two
streams are specified with flows. A more realistic way to run the
separator is to attach valves to the inlet and exit streams of the
vessel. The boundary streams of the separator with valves
should be specified with pressure.
Condenser/Reboiler
Rating information for the condenser and reboiler including the
vessel volume, boot capacity, and nozzle location can be input
on the Sizing and Nozzles pages of the vessel’s Ratings tab.
It is highly recommended that the proper equipment be added
to the reflux stream (e.g., pumps, valve, etc.). In all cases, level
control for the condenser should be used to ensure a proper
liquid level.
The Partial Condenser has three exit streams:
• overhead vapour stream
• reflux stream
• distillate stream
All three exit streams must be specified when attached to the
main tray section. One pressure specification is recommended
for the vapour stream. The other two exit streams must be
specified with flow rates. Another option is to specify a Reflux
Flow/Total Liq Flow value on the Specs page in the Dynamics
tab. In this case, only one flow spec is required on either the
reflux or distillate stream.
• The Fully-Refluxed Condenser has two exit streams: the
overhead vapour stream and the reflux stream.
One pressure and flow specification is required for the
two exit streams.1-39
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-40 Pressure Flow Solver
ww
Th• A Fully-Condensed Condenser has two exit streams: the
reflux stream and the distillate stream.
There are several possible configurations of pressure flow
specifications for this type of condenser. A flow
specification can be used for the reflux stream and a
pressure flow spec can be used for the distillate stream.
Two flow specifications can be used, however it is
suggested that a vessel pressure controller be setup with
the condenser duty as the operating variable.
• The Reboiler has two exit streams: the boilup vapour
stream and the bottoms liquid stream.
Only one exit stream can be specified. If a pressure
constraint is specified elsewhere in the column, this exit
stream must be specified with a flow rate.
Separation Columns
For all separation columns, the tray section parameters
including the tray diameter, weir length, weir height, and tray
spacing can be specified on the Sizing page in the Ratings tab of
the Main TS property view.
The basic Absorber column has two inlet and two exit streams.
When used alone, the absorber has four boundary streams and
therefore requires four pressure-flow specifications. A pressure
specification is always required for the liquid product stream
leaving the bottom of the column. A second pressure
specification should be added to the vapour product of the
column, with the two feed streams having flow specifications.
The basic Refluxed absorber column has a single inlet and two
or three exit streams, depending on the condenser
configuration. When used alone, the refluxed ratios has three or
four boundary streams (depending on the condenser) and
requires four or five pressure-flow specifications; generally two
pressure and three flow specifications. A pressure specification
is always required for the liquid product stream leaving the
bottom of the column.
The Reboiled Absorber column has a single inlet and two exit
streams. When used alone, the reboiled absorber has three
boundary streams and therefore requires three pressure-flow
specifications; one pressure and two flow specifications. A 1-40
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-41
ww
Thpressure specification is always required for the vapour product
leaving the column.
The basic Distillation column has one inlet and two or three exit
streams, depending on the condenser configuration. When used
alone, the distillation column has three or four boundary
streams, but requires four or five pressure-flow specifications;
generally one pressure and three or four flow specifications. The
extra pressure flow specification is required due to the reflux
stream, and is discussed in Section  - Column-Specific
Operations from the Aspen HYSYS Operations Guide.
Compressor/Expander/Pump
Rating information for the dynamic compressor, expander, and
pump operations can be input on the Curves and Inertia pages
in the Ratings tab.
In general, two specifications should be selected in the
Dynamics Specifications group in the Specs page of the
Dynamics tab in order for these unit operations to fully solve.
You should be aware of specifications which causes
complications or singularity in the pressure flow matrix. Some
examples of such cases are:
• The Pressure rise checkbox should be cleared if the
inlet and exit stream pressures are specified.
• The Speed checkbox should be cleared if the Use
Characteristic Curves checkbox is cleared.
The compressor, expander and pump operations have one inlet
stream and one exit stream. Two pressures are specified for the
inlet and exit streams or one pressure and one flow are
specified.
Mixer/Tee
The dynamic mixer and tee operations are very similar. It is
recommended that the mixer be specified with the Equalize All
option in Dynamics mode. It is also recommended that the
dynamic tee not use the dynamic splits as specifications. These 1-41
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-42 Dynamic Operations: General
ww
Thoptions are set on the Specs page of the Dynamics tab in their
respective operation property views.
By specifying the dynamic mixer and tee as recommended, the
pressure of the surrounding streams of the unit operation are
equal if static head contributions are not considered. This is a
realistic situation since the pressures of the streams entering
and exiting a mixer or tee must be the same. With the
recommended specifications, flow to and from the tee is
determined by pressures and resistance through the flowsheet.
This is more realistic than using the split fractions which can also
cause complications with regard to flow reversal.
A number of streams can enter or exit a mixer or tee. For stand
alone operations, one stream must be specified with pressure.
The other inlet/exit streams are specified with flow.
1.5 Dynamic Operations:
General Guidelines
This section outlines some guidelines or steps that you follow in
order to create and run a simulation case in Dynamics mode.
It is possible to create a case directly in Dynamics mode. Unit
operations can be added just as easily in Dynamics mode as in
steady state. The integrator should be run after every few
additions of a unit operation to initialize exit stream conditions
for the added unit operations.
It is also possible for you to build a dynamics case by first
creating the case in Steady State mode. You can make the
transition to Dynamics mode with some modifications to the
flowsheet topology and stream specifications. Section 1.5.2 -
Moving from Steady State to Dynamics outlines some
general steps you can take to create a dynamics case from
Steady State mode.
The Dynamics Assistant can be used to quickly modify the
steady state flowsheet so that it has a correct set of pressure 1-42
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-43
ww
Thflow specifications. It is important to note, however, that not all
the modifications suggested by the assistant are always suited
to your case.
It is suggested when you are first learning dynamics, that you
build simple cases in Steady State mode so that the transition to
Dynamics mode is relatively easy. Once the transition from
Steady State to Dynamics mode is made, other unit operations
can easily be added to better model the process system. If you
are more experienced, you can adopt different and more
efficient ways to create a dynamics case.
1.5.1 Differences between
Dynamic & Steady State
Mode
It is apparent that the specifications required by the unit
operations in Dynamics mode are not the same as the Steady
State mode. This section outlines the main differences between
the two modes in regards to specifying unit operations.
Steady State
The Steady State mode uses modular operations which are
combined with a non-sequential algorithm. Information is
processed as soon as it is supplied. The results of any
calculation are automatically propagated throughout the
flowsheet, both forwards and backwards.
Material, energy, and composition balances are considered at
the same time. Pressure, flow, temperature, and composition
specifications are considered equally. For example, a column’s
overhead flow rate specification is replaced by a composition
specification in the condenser. The column can solve with either
specification.1-43
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-44 Dynamic Operations: General
ww
ThDynamics
Material, energy and composition balances in Dynamics mode
are not considered at the same time. Material or pressure-flow
balances are solved for at every time step. Energy and
composition balances are defaulted to solve less frequently.
Pressure and flow are calculated simultaneously in a pressure-
flow matrix. Energy and composition balances are solved in a
modular sequential fashion.
Because the pressure flow solver exclusively considers pressure-
flow balances in the network, P-F specifications are separate
from temperature and composition specifications. P-F
specifications are input using the “one P-F specification per
flowsheet boundary stream” rule. Temperature and composition
specifications should be input on every boundary feed stream
entering the flowsheet. Temperature and composition are then
calculated sequentially for each downstream unit operation and
material stream using the holdup model.
Unlike in Steady State mode, information is not processed
immediately after being input. The integrator should be run
after the addition of any unit operation to the flowsheet. Once
the integrator is run, stream conditions for the exit streams of
the added unit operation is calculated.
1.5.2 Moving from Steady
State to Dynamics
You should be aware that flow in the plant occurs because of
resistance and driving forces. Before a transition from steady
state to dynamics mode occurs, the simulation flowsheet should
be set up so that a realistic pressure difference is accounted for
across the plant. 1-44
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-45
ww
ThThe following table indicates some basic steps you can take to
set up a case in Steady State mode and then switch to
Dynamics mode.
Step Description
Adding Unit
Operations
Identify material streams which are connected to two unit
operations with no pressure flow relation and whose flow
must be specified in Dynamics mode. These unit
operations include the separator operation and tray
sections in a column operation.
Add unit operations, such as valves, heat exchangers, and
pumps, which define a pressure flow relation to these
streams. It is also possible to specify a flow specification
on this stream instead of using an operation to define the
flow rate.
Equipment
Sizing
Size all the unit operations in the simulation using actual
plant equipment or predefined sizing techniques. Sizing of
trays in columns can be accomplished using the Tray
Sizing utility available from the Utilities page. Vessels
should be sized to accommodate actual plant flowrates
and pressures while maintaining acceptable residence
times.
General Equipment Sizing Rules
Vessels (Separators, Condensers, Reboilers) should be
sized for 5 - 15 minutes of liquid holdup time. Sizing and
Costing calculations are also performed using the Vessel
Sizing utility in the Sizing page of the Rating tab.
Valves should be sized using typical flowrates. The valve
should be sized with a 50% valve opening and a pressure
drop between 15 and 30 kPa.
Column Tray Sizing Rules
Tray Sizing can be accomplished for separation columns
using the Tray Sizing utility in the Utilities page. Any use
of utilities should be restricted to Steady State mode. The
trays are sized according to the existing flow rates and the
desired residence times in the tray. Important variables
include:
• Tray diameter
• Weir length
• Weir height
• Tray spacing1-45
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-46 Dynamic Operations: General
ww
ThAdjusting
Column
Pressure
In steady state, the pressure profile of the column is user
specified. In dynamics, it is calculated using dynamic
hydraulic calculations. If the steady state pressure profile
is very different from the calculated pressure drop, there
can be large upsets in flow in the column when the
integrator is run.
A reasonable estimate of the column’s pressure profile can
be calculated using the Tray Sizing utility. This utility
provides a  value in the Results tab. The
column pressure profile can be calculated using this value,
the  value, and a desired pressure
specification anywhere on the column.
You can change the  value to achieve a
desired pressure profile across the column. This can easily
be done by modifying the Weir height in the Ratings tab in
the Tray Sizing utility. Reducing the weir height lowers the
static head contributions and lowers the
value.
In Dynamics mode, the Nozzle Pressure Flow K-factors
(found on the Dynamics tab of the Main TS property view)
can also be adjusted to better model the pressure drop
across the column.
Logical
Operations
Some logical operations from the steady state are
ignored. The Adjust operation can be replaced by PID
Controllers. The recycle operation is redundant in
Dynamics mode.
Adding Control
Operations
Identify key control loops that exist within the plant.
Implementing control schemes increases the realism and
stability of the model. Disturbances in the plant can be
modeled using the Transfer Function operation. The
Events Scheduler can be used to model automated
shutdowns and startups.
Enter Aspen
HYSYS
Dynamic
Environment
Click on the Dynamic Mode icon to switch from Steady
State mode to Dynamics mode.
Step Description
MaxΔP Tray⁄
MaxΔP Tray⁄
MaxΔP Tray⁄
MaxΔP Tray⁄
Dynamic Mode icon1-46
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-47
ww
ThAdding
Pressure-Flow
Specifications
Specify one pressure-flow specification for each flowsheet
boundary stream.
Controllers play a large part in stabilizing the PF Solver.
Precautions
• Pay special attention to equipment with fixed
pressure drops. Any fixed pressure drop
specifications in equipment can yield unrealistic
results, such as flow occurring in the direction of
increasing pressure. Remember to check for fixed
pressure drops in the reboiler and condenser of
columns.
• Be cautious of Heaters/Coolers with fixed duties. This
can cause problems if the flow in the heater/cooler
happens to fall to zero. It is recommended to use a
controller, or a Spreadsheet function, or a
temperature specification to control the temperature
of a stream.
• Feed and product streams entering and exiting tray
sections should be at the same pressure as the tray
section itself. Any large pressure differences between
a feed or product stream and its corresponding tray
section can result in large amounts of material
moving into or out of the column.
It is necessary to isolate and converge single pieces of
equipment in the plant using the Ignored feature for each
unit operation if there is an especially large number of unit
operations in the flowsheet.
Run the Integrator after any unit operation is added in
Dynamics mode. Unlike the steady state environment, the
exit streams of unit operations in Dynamics mode are not
calculated until the Integrator is run. The Integrator
should be run long enough to obtain reasonable values for
the exit streams of the new operations.
Step Description
For more information
regarding pressure-flow
specifications for
individual unit operations,
refer to Section 1.4.3 -
Pressure Flow
Specifications.
For more information
regarding the
implementation of
controllers in Aspen
HYSYS, see Section
3.5.4 - Setting Up a
Control Strategy.1-47
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-48 Dynamic Operations: General
ww
ThTrouble
Shooting
Error messages appear once the integrator is run.
Dynamics Assistant can be also be used to trouble shoot
specification problems.
Too Many Specifications/Not Enough Specifications
• The “Too many specifications” message indicates
that Aspen HYSYS has detected too many
specifications. The Equation Summary property view
that appears with the message can provide help
indicating the specification that is most likely not
required. Click the Full Analysis button (or
Partitioned Analysis button, if it is made available).
At this point, Aspen HYSYS examines possible
problem areas with the simulation case. Clicking the
Extra Specs tab reveals the variable(s) most likely
not required by Aspen HYSYS.
• The “Not enough specifications” message indicates
that the simulator has detected too few
specifications. The Extra Specs tab in the Equation
Summary property view indicates possible variables
that are missing from the simulation case. The
Dynamics Assistant can aid in identifying which P-F
specifications should be added or deleted from a
dynamic simulation case.
Singular Problem
• This message indicates that not all of the equations
in the P-F solver matrix are independent of one
another. This occurs when one or more equations are
redundant. For instance, if a valve operation is using
a pressure drop specification, the inlet and exit
streams cannot both be specified with pressure. The
pressure drop equation becomes redundant. It is
useful to overspecify a singular problem. Aspen
HYSYS might be able to identify the redundant
pressure flow specification and allow the case to
solve.
The Pressure Flow Solver Failed to Converge
• This message indicates that one or more pressure-
flow specifications are unreasonable. This message
can also appear if there are sudden large upsets to
the simulation case. It is helpful to enter the
Equation Summary property view to identify problem
areas in the flowsheet. Click the Full Analysis button
(or Partitioned Analysis button, if it is made
available). By clicking the Update Sorted List button
in the Unconverged tab, Aspen HYSYS shows the
type of equation, location, and scaled error
associated with the unconverged nodes in the
flowsheet.
• Pay special attention to the unit operations with the
largest errors in the Uncoverged tab. Check the
vessel volumes of the uncoverged unit operations
and ensure they are sized with reasonable residence
times. Check the size of the valves attached to the
unconverged unit operations.
Step Description
For more information
regarding the Equations
Summary property view,
see Chapter 2 -
Dynamic Tools.1-48
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-49
ww
Th1.6 Aspen HYSYS
Dynamics
Aspen HYSYS Dynamics contains Fidelity (an extension of Aspen
HYSYS) that provides advanced dynamic features to your
simulation. Aspen HYSYS Dynamics allows you to put together
very detailed models for operator training work or detailed
dynamic studies. The capabilities exclusive to Aspen HYSYS
Dynamics are as follows:
• Static head included in the pressure relationships. You
also have the ability to modify equipment elevations.
• Nozzle locations can be modified. For example an
overhead vapour nozzle is somewhere near the top of the
vessel.
• Detailed valve actuator dynamics. The dynamics of the
valve opening and closing are included in the model.
• A detailed heat loss model to take into account heat loss
from vessels with holdup to the environment. For
example, You can supply details about the equipment
and insulation to take into account heat transfer from the
vessel to the environment.
• Details on rotating equipment. Inertia terms account for
the starting up and shutdown of rotating equipment.
To use the Aspen HYSYS Dynamics features, you must
purchase a Aspen HYSYS Dynamics license. If you do not
have a Aspen HYSYS Dynamics license, or it is not activated,
you are not able to see or access these features.1-49
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-50 Aspen HYSYS Dynamics
ww
ThTo activate the features available with the Aspen HYSYS
Dynamics license:
1. On the Aspen HYSYS desktop, select Tools | Preferences
to access the Session Preferences property view.
2. Click on the Simulation tab, and select the Licensing page
as shown in the figure below.
3. Open the Aspen HYSYS Fidelity drop-down list and select
one of the following behavior option to access the Aspen
HYSYS Dynamics license:
• No default behavior. This option prompts you to select
a behavior option when changing a variable value that
requires the license.
• Ask every time. This option prompts you to check the
license when changing a variable value that requires the
license.
• Validate immediately. This option causes the license in
question to be validated as soon as any value that
requires this license is changed. If the license is not
available, an error message appears and the value is not
changed. This option is recommended for users with
standalone keys.
• Check out now and validate later. This option causes
the license to be checked out immediately, but it is
validated at a later stage (for example, the Aspen HYSYS
Dynamics license is validated when you try to start the
integrator).
 Figure 1.151-50
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-51
ww
ThThis option is useful because you does not see any slow-
down due to network problems. Aspen HYSYS is
assumed, however, that the license is there and you can
make changes resulting in the case being stopped when
the validation is complete. This option is recommended
for users with network based security.
• Check out when in the relevant mode. This option
checks the licenses in a run-time usage mode
(essentially pay-per-use), so the Aspen HYSYS Dynamics
license is only checked out while the case is in dynamics
mode, and the Aspen HYSYS Dynamics license is
returned while the case is in steady state mode. This
option is recommended for users with token based
security.
• Don’t check out. This option means that licenses are
not checked out. It is recommended for users that do not
have the licenses available. Input requiring the license is
then ignored by Aspen HYSYS.
1.6.1 Detailed Heat Model
The Detailed Heat model is located on the Heat Loss page of the
Rating tab for most of the unit operations that allow detailed
heat model calculation. Refer to the figure below to see how the
options are displayed:
There are two values that are common to each of the three radio
buttons found in the Detailed Heat Loss Model: the Overall Heat
 Figure 1.161-51
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-52 Aspen HYSYS Dynamics
ww
ThLoss value and the Overall Heat Transfer Area.
The other parameters that appear by selecting one of the three
radio buttons are described in the table below.
The governing equations relating heat loss from the vessel and
the Detailed heat loss parameters shown here are discussed in
Section 1.3.4 - Heat Loss Model.
Radio Button Description
Temperature
Profile
Displays the temperatures of the various fluids, walls,
insulation and surroundings.
Notice the parameters that appear on this page varies
between different unit operations.
Conduction Displays the conductive properties of the wall and
insulation. The following properties can be specified by
you:
• Conductivity of material
• Thickness of material
• Heat capacity of material
• Density of material
Equation (1.14) and (1.15) demonstrate how the
parameters are used by the heat loss model.
The heat transfer area is calculated from the vessel
geometry. The rest of the heat transfer parameters are
modified. The insulation thickness can be specified as
zero to model vessels without insulation. The metal
wall must be specified with a finite thickness.
Convection Displays the convective heat transfer coefficients for
heat transfer within the holdup and heat transfer
occurring from the outside the holdup to the
surroundings.
Both the inside and outside heat transfer coefficients
are modified from their default values.1-52
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-53
ww
Th1.6.2 Nozzles
The Nozzles page of the Rating tab contains information
regarding the elevation and diameter of the nozzles.
The elevations of each nozzle attached to the part of the
equipment appear relative to two reference points:
• Inlet connection. Point from which the stream is
entering the unit operation. The inlet connection
indicates the height of the nozzle entering the unit
operation.
• Outlet connection. Point where the stream comes out
from a piece of equipment. The outlet connection
indicates the height of the nozzle coming out from the
unit operation.
You can view these elevations of each nozzle on the PFD by
pressing:
• SHIFT I. Shows all the inlet connection point associated
with each nozzle.
• SHIFT O. Shows all the outlet connection point.
 Figure 1.17
You must have the Aspen HYSYS Dynamics license in order
to activate the Nozzle page on the Rating tab.1-53
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-54 Aspen HYSYS Dynamics
ww
ThThe inlet and outlet connection point are all relative to ground
level, which is set by default at 0. All the elevation points can be
user-specified but default settings are supplied by Aspen HYSYS
as a starting point. You can adjust the elevations for each nozzle
on the Nozzle page of the Rating tab as desired. To turn off the
elevation display on the PFD, press SHIFT N and the name of
each stream reappears.
The following is a summary of the Nozzle Parameters section:
The nozzle diameter and elevation as well as the levels of the
phases inside the vessel determine what flows out through the
nozzle. If the nozzle opening is exposed to several different
phases, then the amount of each phase that flows out through
the nozzle depends on how much of the nozzle opening is
exposed to that particular phase.
The nozzle elevation refers to the center of the nozzle opening,
and not the bottom or top of it. For practical purposes, Aspen
HYSYS moves nozzles located at the extreme bottom or top of
the vessel very slightly. This minor adjustment is not displayed
and does not impact the static head contributions. The
adjustment is mostly done so that users do not have to consider
The elevation of the nozzle is displayed as  on the
PFD when the condition is inapplicable. For example, the
final product stream will have an  inlet elevation
and the initial feed stream will have an  outlet
elevation.
Nozzle Parameter Description
Diameter The nozzle diameter appears and can be modified
in this cell.
Elevation (Base) Elevation of the nozzle above the base (the bottom
of the piece of equipment).
Elevation (Ground) Elevation of the nozzle above the ground.
Elevation (% of
Height)
Elevation of the nozzle as a percentage of the
height of the vessel.
Base Elevation
relative to Ground
How far the piece of equipment is from the
ground.
Diameter Allows you to specify the Diameter of the vessel.
Height Allows you to specify the Height of the vessel.1-54
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-55
ww
Thnozzle diameters carefully when setting elevations. The
adjustment makes the calculated values more realistic.
Nozzle elevations can impact the pressure profile if static head
contributions are enabled through the Integrator property view.
Static head contributions come from levels inside vessels as well
as elevation differences between pieces of equipment connected
together. For example, consider a vessel filled with liquid. The
pressure shown for the vessel is the pressure right at the top of
the vessel. For product outlet streams the pressure is typically
equal to the vessel pressure plus an appropriate static head
contribution that depends on the nozzle elevation and the
contents of the vessel. An outlet at the bottom of the vessel can
have a higher pressure than an outlet located closer to the top
of the vessel.
It is important to note that the pressure displayed for a stream
is a point value. The stream pressure is taken immediately at
the exit point of the operation.
 Figure 1.18
If a valve is attached to the outlet
stream of a vessel and the valve is
at a much lower elevation than
the vessel, then the pressure in
the outlet stream does not show
the static head contribution. The
outlet stream sampling point is
located at the vessel outlet and
not at the lower valve inlet.
Height
difference
Pressure taken
at this point of
the stream.1-55
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-56 Aspen HYSYS Dynamics
ww
ThMain Tray Section
The Nozzle page for the Main Tray Section in the column
environment is setup different from all the other unit operations.
The information is broken down into three groups:
• Tray by tray for internal nozzle
• Feed nozzles
• Product nozzles
The following information is available within these groups.
 Figure 1.19
Object Description
Traysection
Elevation Relative to
Ground
Specify the height of the tray section above the
ground. The height is measured as the distance
between the ground to the bottom tray.
Holdup RG The height of each tray relative to the ground. The
values are dependent on the tray spacing and the
value entered in the Tray section Elevation
Relative to Ground cell.
VToAbove The elevation for vapour leaving the tray relative
to the tray. By default this value is the tray
spacing.
LToBelow The elevation for liquid leaving the tray relative to
the tray. By default this value is zero.1-56
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-57
ww
ThThe discussion in the previous section about nozzle elevations,
diameters and phases apply to tray section as well. Each stage
is treated as if it was a vessel in itself. However, the liquid on a
tray is typically an emulsion. Hence if there are two liquid
phases in the tray, then both liquid phases flow through the
nozzle located at the bottom of the tray.
1.6.3 Control Valve Actuator
The Actuator page, located on the Dynamics tab of the Valve
unit operation, allows you to model valve dynamics in the valve
operation. This page also contains information regarding the
dynamic parameters of the valve and the per cent open
positions of the actuator and the valve.
A control valve in Aspen HYSYS consists of a valve and an
Elevation RH This value can be specified for both the feed and
product nozzles. This gives the elevation of the
nozzles relative to the height of the column.
Diameter Specifies the diameter of the nozzle for the Feed
nozzles, Product nozzles, VToAbove and LtoBelow
sections.
 Figure 1.20
Object Description1-57
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-58 Aspen HYSYS Dynamics
ww
Thactuator. They are defined as follows:
In reality, changes that occur in the actuator are not observed
instantaneously in the valve. Moreover, changes in the output
signal of a controller, OP, do not instantaneously translate to
changes in the actuator. Because the actuator and valve are
physical items, they take time to move to their respective
desired positions. This causes dynamic behavior in actual control
valves.
Valve Modes
The valve mode defines the relationship between the desired
actuator position and current actuator position. The desired
actuator position can be set by a PID Controller or Spreadsheet
operation. A controller’s output, OP, for instance, is exported to
the desired actuator position.
Depending on the valve mode, the current actuator position can
behave in one of the following three ways:
• Instantaneous Mode
• First Order Mode
• Linear Mode
Instantaneous Mode
In this mode, the actuator moves instantaneously to the desired
actuator position defined by the controller. The equation defining
the relationship is:
Valve component Description
Actuator An actuator is a device which applies the force required
to cause movement in the valve.
Valve The valve opening has a direct impact on the flow
through the valve. This relationship is a function of the
valve type and the pressure of the surrounding pieces
of equipment.
(1.23)Act% ActDesired%=1-58
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-59
ww
ThFirst Order Mode
A first order lag can be modeled in the response of the actuator
position to changes in the desired actuator position. The
movement of the actuator is defined by the solution of the
following differential equation:
The actuator time constant, , in Equation (1.24) can be
specified in the Actuator Time Constant cell.
Linear Mode
The actuator can be modeled to move to the desired actuator
position at a constant rate. The actuator moves according to the
following equation (if the desired actuator position is above the
current actuator position):
The linear rate can be specified in the Actuator Linear Rate cell.
Typical stroke times (closure rates) are as follows:
• Electric-Hydraulic Actuators: approximately 12
inches/minute
• Piston Actuators (Motor Driven): under 70 inches/
minute
(1.24)
(1.25)
τd Act%( )
dt
--------------------- Act%+ ActDesired%=
τ
Act% Actuator Linear Rate( )Δt Acto%
until Act%
+
ActDesired%
=
=
1-59
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-60 Aspen HYSYS Dynamics
ww
ThValve Stickiness
In reality, the valve does not respond instantaneously to
changes in the actuator. A first order lag can be modeled in the
response of the actual valve position to changes in the actuator
position. The behavior of the valve percent opening as a function
of the actuator position is shown as follows:
The valve stickiness time constant is specified in the Valve
Stickiness Time Constant cell. The offset can be specified in the
Valve Position section. If the valve stickiness time constant is
left empty, the time constant value is assumed to be zero.
If the Valve has Worn Trim checkbox has been selected, a
0.1% offset is added to the right hand side of Equation (1.26).
This offset disallows the valve percent opening to fully close.
K Value Damping Factor
On this same page, the user has the option of specifying the
damping factor to modulate the iterative convergence of the
computed valve conductance parameter K in the valve flow
equation when convergence on this parameter is not achieved.
This iterative computation is a modified successive substitution
method, where
where:
q = damping or relaxation factor
F(K)  = value for  computed directly from the valve flow
equation
Kn = value of   for the current iteration
Kn+1 = value of   at the end of the current iteration
(1.26)
(1.27)
τsticky
d Valve%( )
dt
---------------------------- Valve%+ Act%+ Offset=
Kn 1+ 1 q–( )F Kn( ) qKn+=1-60
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-61
ww
ThThe default value for q is 0.95 and the possible choices are in
the range 0 to 1.
Fail Modes
Actuators usually have a fail-safe function. If there is a
disruption to the power source driving the valve, the actuator
places the valve in a safe position, either fail open or fail close.
Fail modes can be specified by selecting the corresponding radio
button in the Positions group. The valve can be modeled to fail
by selecting the Actuator has failed checkbox.
Fail Open Mode
In the event that the signal from the controller is cut off from
the valve, the valve becomes wide open. In Aspen HYSYS, if the
Fail Open radio button in selected, the signal received by the
valve is modified by the valve as follows:
Notice that if ActDesired% (from controller) becomes zero in the
event of a signal failure, the actuator becomes fully open. The
fact that the signal from the controller is modified (by the valve
operation using Equation (1.28)) has implications on the
direction of the controller. If the Fail Open mode is selected for
the valve, reverse acting controllers need to be toggled as
direct-acting and direct-acting controllers need to be toggled as
reverse acting.
Fail Shut Mode
In the event that the signal from the controller is cut off from
the valve, the valve becomes fully closed. Aspen HYSYS does
not modify the signal from the controller as with the Fail Open
mode. If the signal from the controller becomes zero, so can the
ActDesired% value. Since the signal from the controller is not
modified by the valve, the controller’s direction does not have to
ActDesired% = 100% - ActDesired% (from controller) (1.28)1-61
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-62 Aspen HYSYS Dynamics
ww
Thbe changed.
Fail Hold Mode
In the event that the signal from the controller is cut off from
the valve, the valve fails in its current position.
Positions Group
Various valve position parameters for the actuator and the valve
appear in the Positions group:
1.6.4 Inertia
The inertia modeling parameters and the frictional or power loss
associated with the rotating equipment in the Pump,
Compressor, and Expander can be specified on the Inertia page
Valve Position Parameter Definition
Minimum The minimum position the actuator or valve
can physically achieve. Leaky valves can be
modeled by specifying a non-zero value for
the minimum valve position.
Maximum The maximum position the actuator or valve
can physically achieve.
Current The actual position of the actuator or valve in
time.
Desired The desired actuator position set by a PID
Controller operation or imported from a
Spreadsheet operation.
Offset The Offset defined in Equation (1.26) can be
specified in this cell.1-62
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-63
ww
Thof the Rating tab for these unit operations.
Not all of the energy supplied to a dynamic pump or compressor
is transferred to the fluid. Likewise, not all the energy provided
by an expander translates to kinetic energy. There are frictional
losses associated with the moving parts of these unit operations.
Power is also required to accelerate the rotating impeller and
shaft. In general, the total power or duty supplied to or provided
from a pump, compressor, or expander has three parts:
• Rate of energy imparted to or provided by the fluid.
• Rate of energy required to accelerate or decelerate the
rotational speed of the shaft.
• Rate of energy lost due to mechanical friction loss.
The rate of energy supplied to the fluid can be observed in the
enthalpy change between the inlet and exit streams. For a pump
or compressor, this is:
where:
F = molar flow rate
h2 = molar enthalpy of the exit stream
h1 = molar enthalpy of the inlet stream
 Figure 1.21
(1.29)
The Size Inertia button option is only available in the Pump unit
operation.
Rate of energy imparted to the fluid F MW( ) h2 h1–( )=1-63
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-64 Aspen HYSYS Dynamics
ww
ThMW = molecular weight
The fluid power can also be calculated from the relationship:
where:
cf = correction factor
Fm = mass flow rate
H = head (adiabatic or polytropic depending on selection)
η = efficiency (adiabatic or polytropic depending on selection)
g = acceleration due to gravity
(1.30)
(1.31)
Rate of energy imparted to the fluid
g cf( ) Fm( ) H( )
η
----------------------------------   (compressor, pump)=
Rate of energy imparted to the fluid cf Fm( ) H( ) η( )  (expander, turbine)=1-64
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-65
ww
ThInertial Modeling Parameters
The rate of energy required to accelerate the speed of a pump or
compressor is a function of the rotational inertia of the impeller
and the rotational speed. The rotational inertia, I, is calculated
as follows:
where:
M = mass of the impeller and rotating shaft
R = radius of gyration
The mass and radius of gyration can be specified in the Inertia
page. If you have a total inertia value just back calculate the
mass given any assumed radius. It is only the inertia which is
used in the dynamic simulation.
If you have inertia for different parts of the train rotating at
different speeds, you need to pro-rate these to a common speed
basis:
where:
Ib = rotational inertia with respect to some base speed
Iι = rotational inertia of the ith component on the rotating
shaft (with respect to the speed at this gear ratio)
ωb = base nominal speed
ωi = nominal speed of the ith component on the rotating shaft
(at this gear ratio)
GRi = gear ratio of the ith component
(1.32)
(1.33)
I MR2=
Ib
1
ωb
2
------ Ii∑ ωi
2( )
IiGRi
2
∑=
=
1-65
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-66 Aspen HYSYS Dynamics
ww
ThThe power required to accelerate the equipment, PI, can be
calculated using:
where:
  = rotation speed (radians/unit time)
The rotational power, which can be viewed on the Performance
tab is related to torque, τ, via the following relationship:
You can also calculate the inertia by sizing method. The sizing
method uses the following equation to calculation the inertia:
where:
I = inertia
P = design power
N = design speed
(1.34)
The rotational speed above and for friction loss is in radian
units not revolutions. When the rotating equipment slows
down, the stored rotational energy is either given back to
the fluid or lost to friction.
(1.35)
(1.36)
The sizing method for calculating inertia is only available in
the Pump unit operation.
PI I ω dωdt
------=
ω
τ
Pi
ω
----
Idωdt
------=
=
I 0.03768 P
N3
-----⎝ ⎠
⎛ ⎞ 0.9556
=
1-66
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-67
ww
ThTo calculate the inertia, specify the design power and design
speed in the appropriate fields in the Design page and click the
Size Inertia button on the Inertia page.
Friction Loss
The rate of energy lost from mechanical inefficiencies depends
on the frictional power loss factor, ffric, which can be specified in
the Friction Loss group. The frictional work, Pf, can be calculated
as follows:
This relationship is the basis that the torque due to mechanical
bearing loss varies directly with the speed, which is generally
accurate down to about 20% of normal speed1. Below this it has
been suggested the mechanical bearing loss torque is constant.
Although compressors normally startup and shutdown under
flowing conditions, pumps are often started and stopped with no
flow. In the situation where the fluid power is zero, the rate of
acceleration /deceleration is actually a first order response with
time constant as follows:
The user can also enter the time constant directly, and the
friction loss factor is calculated from the inertia.
The friction loss factor for a compressor should be obtained
directly from the manufacturer, or it could be tuned to give the
appropriate power loss at design. You can view this power loss
on the Performance tab.
(1.37)
(1.38)
The approach to tuning the friction loss factor for rundown
rate may produce an inaccurate power loss at design
conditions because there is a short-circuit power loss of the
fluid at zero load, which is not currently taken into account1.
Pf ffricω ω=
τc I ffric⁄=1-67
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-68 Aspen HYSYS Dynamics
ww
ThEnergy Balance Relationship
The complete energy balance for these unit operations is
therefore given by Equation (1.39) and Equation (1.40).
For compressors and pumps:
For expanders and turbines:
The external Work, W, is positive normally meaning energy into
the system for Equation (1.39), but energy out for Equation
(1.40). The absolute speeds are only required in the rare
circumstance of negative flow and rotation.
1.6.5 Static Head
For any unit operations with holdup, Aspen HYSYS calculates the
static head considering the equipment holdup, the geometry,
and the elevation of any attached nozzles. To use this static
head calculation, you need to enable the calculations on the
(1.39)
(1.40)
W
g cf( ) Fm( ) H( )
η
---------------------------------- I ω dωdt
------ ffricω ω+ +=
W g cf( ) Fm( ) H( ) η( ) I ω dωdt
------– ffricω ω–=1-68
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-69
ww
ThGeneral Options group on the Options tab of the Integrator.
The two checkboxes used to manipulate the static head are
described below:
The Static Head page, found on the Dynamics tab of the Main
Tray Section in the column environment, allows you to choose
the calculation method used to calculate the static head for this
operation. There are four options given on this page:
• Use global option in integrator (full on or off)
• No contributions for this operation
• Internal levels contribution only (partial)
 Figure 1.22
Checkbox Description
Enable static
head
contributions
When you select this checkbox, Aspen HYSYS includes
the effects of static head in the calculations.
Enable Implicit
Static Head
Vessels can optionally be solved using implicit static
head calculations for the pressure contributions
associated with the levels inside the vessel rather than
using explicit static head calculations. This option
provides increased stability in applications where these
static head contributions play a crucial role.
The options in the integrator are for global settings, while
options in the column environment are for local settings.1-69
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-70 Aspen HYSYS Dynamics
ww
Th• Levels and feed nozzle elevation differences (full)
In the column operation, the contribution of the internal levels is
always calculated by Aspen HYSYS. Whether this calculation is
used or not depends on the situation.
For tray sections:
• If No contributions for this operation is selected, the
static contributions will not be included for tray sections
whether the integrator setting is selected or not.
• If Internal level contributions only or Levels and
feed nozzle elevation differences is selected, the
static contributions will be included for tray sections
whether the integrator setting is selected or not.
• If Use global option in integrator (full on or off) is
selected and the integrator setting is not selected, the
static contributions will not be included for tray sections.
• If Use global option in integrator (full on or off) and
the integrator setting are both selected, the static
contributions will be included for tray sections.
For streams:
• If No contributions for this operation is selected,
none of the static contributions will be included whether
the integrator setting is selected or not.
• If Internal level contributions only is selected, only
the level contributions will be included whether the
integrator setting is selected or not.
• If Levels and feed nozzle elevation differences is
selected, the full contributions will be included whether
the integrator setting is selected or not.
• If Use global option in integrator (full on or off) and
the integrator setting are both selected, the full
contributions will be included.
• If Use global option in integrator (full on or off) is
selected and the integrator setting is not selected, none
of the static contributions will be included.1-70
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Theory 1-71
ww
Th1.6.6  Design
The Design page, on the Rating tab of the Pump unit operation,
lets you specify the following variables in the Design Flow group:
• Typical operating capacity, this parameter is used to aid
in starting pumps up, which can have vapour in the line
(for example, due to a reverse flow).
• Design power, this parameter is used to calculate the
inertia value.
• Design speed, this parameter is also used to calculate
the inertia value.
The existence of vapour can cause difficulty when the pump
starts up. Hence, if the flow is less than a certain fraction of this
typical operating capacity, then the density is compensated to
help start the pump up. The Typical operating capacity value
enables Aspen HYSYS to decide when it is reasonable to
compensate the density.
1.7 References
 1 Marks, Lionel S., Marks Mechanical Engineers Handbook, 3rd ed,
p.1848. McGraw Hill Book Co., 1930.
 Figure 1.231-71
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-72 References
ww
Th1-72
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-1
ww
Th2  Dynamic Toolsw.cadfamily.com    EMa
e document is for study 2.1  Introduction................................................................................... 3
2.2  Dynamics Assistant........................................................................ 4
2.2.1  General Tab............................................................................. 7
2.2.2  Streams Tab ............................................................................ 8
2.2.3  Pressure Flow Specs Tab ......................................................... 14
2.2.4  Unknown Sizing Tab................................................................ 15
2.2.5  Tray Sections Tab ................................................................... 18
2.2.6  Other Tab.............................................................................. 21
2.2.7  User Items Tab ...................................................................... 24
2.3  Equation Summary Property View................................................ 28
2.3.1  Summary Tab ........................................................................ 28
2.3.2  General Equations Tab ............................................................ 29
2.3.3  Unconverged Tab.................................................................... 30
2.3.4  Extra Variables Tab................................................................. 31
2.3.5  Extra Specifications Tab .......................................................... 32
2.3.6  Specified Equations Tab........................................................... 33
2.3.7  General Variables Tab ............................................................. 33
2.3.8  Specification Variables Tab....................................................... 34
2.3.9  Internal Specification Equations Tab.......................................... 35
2.3.10  Internal Specifications Variables Tab........................................ 36
2.3.11  Simultaneous Equations Tab................................................... 37
2.4  Integrator .................................................................................... 38
2.4.1  General Tab........................................................................... 38
2.4.2  Execution Tab ........................................................................ 39
2.4.3  Options Tab ........................................................................... 42
2.4.4  Heat Loss Tab ........................................................................ 442-1
il:cadserv21@hotmail.com
only,if tort to your rights,please inform us,we will delete
2-2 Dynamic Tools
www.cadfamily.com    EMa
The document is for study 2.5  Event Scheduler............................................................................45
2.5.1  Theory ..................................................................................45
2.5.2  Event Scheduler Property View .................................................47
2.5.3  Sequence Property View ..........................................................53
2.5.4  Event Property View ................................................................57
2.5.5  Analyzing a Schedule...............................................................70
2.5.6  Running a Schedule.................................................................71
2.6  Control Manager ...........................................................................72
2.7  Dynamic Initialization...................................................................73
2.7.1  Cold Initialization Tab ..............................................................76
2.7.2  Notes Page.............................................................................852-2
il:cadserv21@hotmail.com
only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-3
ww
Th2.1 Introduction
Modeling a process in dynamics is a complex endeavour. From
the perspective of defining the model, you must consider
parameters such as vessel holdups, valve sizing, and use of
pressure flow specifications.
To help simplify this process, Aspen HYSYS has several dynamic
tools and they are described in the following table:
Tool Description
Dynamics
Assistant
The Assistant provides a tool for easily converting old
Aspen HYSYS dynamic cases to pressure flow
dynamics. It provides general assistance to users who
are learning how to create dynamic cases. It prepares
steady state cases for dynamic simulation by ensuring
that all the correct information is specified, thus
avoiding over or under specified or singular problems.
View Equations
Tool
Provides another means of analyzing cases for
dynamic simulation. This tool provides a summary of
the equations and variables used by the simulation
when running in dynamics. By analyzing the case, it is
possible to determine if there are required or
redundant pressure flow specifications. In some
instances, cases which are running in dynamics fails to
converge, in this case, the View Equations tool can be
used to help determine what part of the simulation is
causing problems.
Integrator Allows you to control some of the integration
parameters which are used by Aspen HYSYS. Simple
parameters such as the time step or the integration
stop time or advanced parameters such as the
execution rates of the different balances can be set
from this tool. Once a case is running in dynamics, the
current simulation time and the real time factor can be
viewed.
Event Scheduler Aspen HYSYS can perform predetermined actions at
given times in the simulation; warn you by playing a
sound when the temperature of a stream reaches a
certain point, stop the integration once a condenser
level stabilizes, or increase a feed rate after the
simulation has run for a given time period.2-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-4 Dynamics Assistant
ww
Th2.2 Dynamics Assistant
The Dynamics Assistant provides a quick method for ensuring
that a correct set of pressure flow specifications is used. The
Assistant can be used when initially preparing your case for
dynamics, or when opening an old Aspen HYSYS 1.x dynamic
case.
The Assistant recommends a set of specifications which is
reasonable and guarantees that the case is not over specified,
under specified, or singular. It has an option of doing a quick
examination for potential problems that can occur while moving
from steady state to dynamics as well as before running the
case in dynamics.
In the case of a simple separator, Aspen HYSYS adds pressure
flow specifications as shown in the figure below.
The Assistant makes recommendations for specifying your
model in Dynamics mode. You do not have to follow all the
suggestions. It is recommended that you are aware of the
effects of each change you make.
 Figure 2.1
Original
Configuration
Configuration and
Pressure Flow Specifications
after using Dynamics Assistant2-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-5
ww
ThHowever, in more complicated models such as the one shown in
the figure below, the Dynamics Assistant recommends the
insertion of valves in some terminal streams.
Although the Pressure Flow specifications added by the Assistant
are adequate for starting a case in dynamics, detailed dynamic
modeling can require more advanced modifications.
In cases where unit operations such as separators are directly
connected through multiple streams, the flow cannot always be
determined. As a temporary fix the Assistant adds a flow
specification. However, you should add the missing unit
operations (e.g., pumps, valves, etc.) to define the pressure-
flow relation between the vessel unit operations.
 Figure 2.2
A Flow Specification warning from the Dynamics Assistant
usually indicates that your model is missing some
equipment.
Original Configuration Configuration and Pressure
Flow Specifications after using
Dynamics Assistant2-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-6 Dynamics Assistant
ww
ThIn addition to ensuring that the correct Pressure Flow
specifications are used for your dynamic case, the Assistant
sizes all necessary equipment that has not yet been sized.
The parameters sized are:
• vessel volumes
• valve Cvs
• k values (for equipment such as heaters, coolers, and
heat exchangers)
The assistant sizes required unit operations based on the flow
conditions and specified residence times. The assistant also
checks the Tray Section pressure profile for both steady state
and dynamic model to ensure a smooth dynamics start. It also
ensures that the tray section and attached stream have the
same pressure.
Although the assistant ensures that your case runs in dynamics,
it is not intended that the changes made are sufficient for your
case to line out. It is still your responsibility to ensure that an
adequate control scheme is added to the case and that your
model is properly rated (i.e., existing vessels are adequately
sized).
 Figure 2.3
Configuration of two units without
Pressure Flow relationships when
using the Dynamics Assistant.
Configuration of two units without
Pressure Flow relationships when
preparing for detailed dynamic
modeling.2-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-7
ww
ThThe Dynamics Assistant can be opened using any of the four
following methods:
• Using the hot key combination of CTRL Y
• Selecting Tools | Dynamics Assistant from the menu
bar
• Clicking the Dynamics Assistant icon in the toolbar.
• Clicking the Dynamics Assistant button from the
Equation Summary property view.
Each view of the Dynamics Assistant view has two buttons:
• Analyze Again re-evaluates the simulation case. This is
particularly useful if you make changes to the case that
affect the setup of the simulation for dynamics.
• Make Changes makes all the enabled changes within
the Assistant.
2.2.1 General Tab
The General tab contains a summary of the changes which
Aspen HYSYS recommends for dynamic simulation. Each item in
the list has either a green checkmark or a red ‘x’ located to the
right of the item indicating if the change is made. The
checkmark indicates that the change is made while the ‘x’
indicates that the change is not made.
The Preferences button opens the Assistant Preferences
property view, which allows you to change the way Dynamics
Assistant runs. This view displays three options:
• The Set stream pressure and flow specifications in
the background option allows the Assistant to activate
and deactivate stream pressure and flow specifications
as it sees fit.
• The Perform checks before running dynamics option
allows the Dynamics Assistant to check for any missing
specification which can cause potential problems in
dynamic simulation before you switch to Dynamics mode
or run the Integrator.
The Dynamics Assistant button is only available on the
Equation Summary property view after the Full Analysis
button is clicked and if there are problems with the case.
Dynamics Assistant icon2-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-8 Dynamics Assistant
ww
Th• The Save steady state case on switch to dynamics
option allows Aspen HYSYS to automatically save Steady
State cases before they are transferred to Dynamics.
2.2.2 Streams Tab
The Streams tab consists of the following pages:
• Pressure Specs
• Flow Specs
• Uninitialized
• Insert Valves
• Int. Flow Spec
Pressure Specs Page
The Pressure Specs page, lists all the streams that have
pressure specifications either added or removed.
The list of streams in the Remove pressure specifications in
these streams group corresponds to the streams which currently
have pressure specifications that the Assistant suggests you
remove. Streams contained in the Set pressure specifications in
these streams group are those where a pressure specification is
recommended.
 Figure 2.42-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-9
ww
ThAs a rule, pressure specs should be added to boundary streams
and not internal streams whose pressure should be determined
by the surrounding equipment. If the Assistant plans to insert a
valve, the stream in question is shown as not needing a
pressure specification because the new stream at the other end
of the valve receives the pressure specification.
If you do not want Aspen HYSYS to change the pressure
specification for a stream listed in either group, clear the OK
checkbox for the given stream. This prevents Aspen HYSYS from
making the pressure specification change for the stream. To
view a stream in either list, double-click on the stream to open
its property view.
Flow Specs Page
The Flow Specs page, lists all the streams which have flow
specifications either added or removed. The list of streams in
the Remove flow specifications in these streams group
corresponds to the streams that currently have flow
specifications which are not recommended, and are removed.
Streams contained in the Set flow specifications in these
streams group are those which require a flow specification as a
If you do not understand the reasoning behind the Dynamics
Assistant’s recommendations, click the Tell me why button
for a brief explanation.2-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-10 Dynamics Assistant
ww
Thtemporary measure.
Flow rates should be determined by pressure differences or
equipment such as pumps and compressors. For simplicity, the
Dynamics Assistant can add flow specifications to feed streams
instead of adding additional equipment.
If you do not want Aspen HYSYS to change the flow specification
for a stream listed in either group, clear the OK checkbox for
the given stream. This prevents Aspen HYSYS from making the
flow specification change for the stream. To view a stream in
either list, double-click on the stream to open its property view.
Uninitialized Page
The Uninitialized page contains the list of streams which are not
completely defined. For Aspen HYSYS to initialize any streams
listed on this page, you must be in Dynamics mode; uninitialized
 Figure 2.52-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-11
ww
Thstreams is not initialized when in Steady State mode.
Cases saved in Aspen HYSYS 1.2 dynamics lack stream phase
information. This information can be replaced by flashing the
streams in question. Switching back to steady state, solving,
then returning to Dynamics mode also fixes these streams.
Streams with no values receives initial estimates for
temperature and pressure of 25°C and 101.33 kPa.
 Figure 2.62-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-12 Dynamics Assistant
ww
ThInsert Valves Page
The Insert Valves page lists the valves which Aspen HYSYS
inserts to ensure the pressure flow specifications are not
singular (i.e., the pressure-flow matrix is unsolvable). Aspen
HYSYS attempts to attach valves to boundary streams that are
connected to unit operations without pressure flow (flow
proportional to pressure difference) capability.
The outlet stream for the valve is automatically assigned a
pressure specification. Both the outlet stream and the valve
added by Aspen HYSYS are named according to the original
boundary stream; a valve attached to boundary stream 4 is
named VLV-4 and the outlet stream 4-1.
 Figure 2.7
A situation can arise where the Dynamics Assistant
recommends the addition of a valve on a stream where you
do not want to add one. In this case, you should ensure that
those streams receive either a flow or pressure specification.2-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-13
ww
ThInternal Flow Specs Page
The Internal Flow Specs page lists the internal streams which
require a flow specification. This is used primarily where
separators are directly connected to each other by two or more
streams. The flow specification which is added is sufficient to
start a case in dynamics, however, it is highly recommended
that a unit operation with pressure flow relationships (as such
an operation is probably missing) be placed between such
separators.
Examples of unit operations with pressure flow relationships
include:
• valve
• compressor
• pump
• heater
Once such a unit operation is placed between the separators,
the flow specification can be removed.
 Figure 2.82-13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-14 Dynamics Assistant
ww
Th2.2.3 Pressure Flow Specs Tab
The Pressure Flow Specs tab consists of two pages: PF versus
DP and LNG.
PF versus DP Page
The PF versus DP page lists the unit operations which currently
have a specified pressure drop as the dynamic specification. The
pressure drop option should not be used because this is
physically unrealistic. Material flow is driven by pressure
differences as well as resistances and stops when the pressures
have been equalized.
A fixed pressure drop specification does not allow for this
process. The k values are calculated based on the initial
specified pressure drop.
If you do not want Aspen HYSYS to change the pressure drop
specification to a pressure flow specification, simply clear the
OK checkbox for the unit operation. Double-clicking on the
name of the unit operation opens its property view.
 Figure 2.92-14
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-15
ww
ThLNG Page
The LNG page indicates which LNG exchangers are currently
specified with a pressure drop specification or which LNGs are
missing k values (depending on the dynamic rating method
chosen). Pressure drop specifications should be changed to
either pressure flow equation specifications (k values) or
suitable pressure drop correlations.
2.2.4 Unknown Sizing Tab
The Unknown Sizing tab consists of the following pages:
• Valves
• Volumes
• K values
Valves Page
The Valves page lists the valves that are not sized. The current
conditions for the valve are listed and the calculated valve Cv
based on the pressure drop and percent opening of the valve,
both of which are changed directly on the page.
 Figure 2.102-15
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-16 Dynamics Assistant
ww
ThBy default, any valve Cv values which are calculated to be less
than 50 are defaulted to 50.
It is possible to change any of the sizing data for the valve. The
Cv value is updated based on any changes that are made. If you
change Cv, the new value is added to the valve when the Make
Changes button is clicked.
If you do not want Aspen HYSYS to size a valve, clear the OK
checkbox for the valve.
 Figure 2.112-16
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-17
ww
ThVolumes Page
The Volumes page lists the unit operations which have unknown
volumes.
Units which need volumes include:
• Separators (regular, 3 phase and tanks)
• Condensers
• Reboilers
• Reactors
• Heat exchangers
• Coolers
• Air coolers
• Heaters
The unknown volumes are calculated based on the volumetric
feed flow rate and the specified residence time. However, if the
quick sizing feature is applicable, its volume and corresponding
residence time is given.
If you do not want Aspen HYSYS to implement the calculated
volume for a unit operation, clear the OK checkbox for the unit
operation.
 Figure 2.12
If you do not like the suggested volume, either specify a new
value or have it calculated by changing the volumetric flow
rate and the residence time.2-17
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-18 Dynamics Assistant
ww
ThK Values Page
The k values page lists unit operations for which the k value is
unknown. The information required to calculate the k value is
listed along with the current calculated k value.
Unit which can have ‘k’ values include:
• Heaters
• Coolers
• Heat exchangers
• Air coolers
• Valves
If you do not want Aspen HYSYS to calculate a k value, clear the
OK checkbox for the unit operation.
2.2.5 Tray Sections Tab
The Tray Sections tab consists of the following pages:
• SS Pressures
• Dry Hole Losses
• Stream Connection
 Figure 2.13
For more information on
k values or other
pressure flow
parameters, see
Chapter 1.4.2 - Basic
Pressure Flow
Equations.2-18
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-19
ww
ThSS Pressures Page
The SS Pressure page identifies tray sections where the total
steady state pressure drop seems to be inconsistent with the
total pressure drop calculated according to the dynamics rating
model.
By default, the Assistant provides tray section parameters based
on its own internal sizing method. However, you can choose to
use the Create sizing utility for selected sections button which
brings up the Tray Sizing utility.
The results from the utility can be exported to the tray sections.
You can also invoke the quick size feature for selected sections
and then repeat the analysis to check if that resolves problems.
If the dry hole pressure loss is larger than the suggested
maximum, a diameter is suggested. If you use this value and
calculate k values based on it, the dry hole pressure losses
should be more realistic. The Dynamics Assistant makes
changes to the diameter such that the new pressure flow k
values for the vapour gives reasonable pressure drops. The
steady state pressure profile is updated to the suggested value.
 Figure 2.14
The SS Pressure page is active in Steady State mode only.2-19
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-20 Dynamics Assistant
ww
ThYou can view the tray section property view by double-clicking
on the tray section name.
Dry Hole Losses Page
The Dry hole losses page displays the tray sections where the
dry hole pressure loss is very high. By default the assistant fixes
this by changing the diameter of the tray section and calculating
new k values based on it.
The Sizing utility for selected sections button opens the tray
sizing utility view which can be used to minimize the pressure
losses.
 Figure 2.152-20
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-21
ww
ThStream Connections Page
The Stream connections page list the streams whose pressure
do not match with those of the trays where they connect. For a
ratings model you should supply any missing valves or pumps
that are needed in the steady state model.
2.2.6 Other Tab
The Other tab consists of the following pages:
• Misc Specs
• Component Splitter
 Figure 2.16
The Stream Connections page is not active when static heads
are enabled or in Dynamics mode.2-21
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-22 Dynamics Assistant
ww
ThMisc Specs Page
The Misc page displays the dynamic specifications which are not
based on sizing equipment, adding valves, or adding pressure
and flow specs.
Some examples of the types of changes that are made are listed
below:
• Pump delta P specs removed
• Pump power spec activated
• Mixer equal pressure option active
• Compressor power spec activated
• Expander power spec activated
 Figure 2.172-22
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-23
ww
ThComponent Splitter Page
The Component Splitter page display all the component splitters
in your case.
They do not follow pressure flow principles because they have
fixed flow split fractions. Therefore, the Assistant can not
properly cope with them.
One option is to use a pressure specification on each stream
connected to the component splitter. If the component splitter is
not connected to other operations, then only one stream needs
a flow specification.
The component splitter also offers an “equal pressures” option.
With this option the specifications needed are the same as those
you would need for a mixer or a tee, except that you would need
one fewer specification for each overhead stream because of the
split fractions.
Where a component splitter is not connected to other operations
all feed flow rates are set to specifications with the two product
 Figure 2.18
The material balance can be considered as providing an extra
specification and for each overhead stream the split
fractions provide an extra specification as well.2-23
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-24 Dynamics Assistant
ww
Thflow rates not specified. Connected component splitters need
your intervention.
2.2.7 User Items Tab
The User Items tab consists of the following pages:
• Multiple Connections
• Conflicts
• Unit Operations
• Ignored Opers
• Flow direction
Multiple Connections Page
The Multiple Connections page lists any streams which are used
in multiple connections.
Streams which are attached as feeds or products to multiple unit
operations are not allowed in dynamics since they represent
physically impossible situations. You must make any changes
listed here, the Dynamics Assistant does not correct any
multiple connection errors. It is recommended to delete these
streams and make proper reconnections.
 Figure 2.192-24
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-25
ww
ThConflicts Page
The Conflicts page lists any streams that have their flows
directly controlled by controllers.
It also lists streams that do not contain flow specifications or
have specifications that the Assistant recommends you remove.
Although this is allowed in Aspen HYSYS, it is recommended that
a valve be placed in the stream to control the flow. If it is
desired to directly control the flow of the stream another
specification needs to be disabled.
This method can cause singular solution in the Flowsheet. The
Assistant fixes this problem by moving the controller OP to a
valve when one exists or is added.
 Figure 2.20
You can open the property view for a given unit operation by
double-clicking on its name.2-25
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-26 Dynamics Assistant
ww
ThUnit Operations Page
The Unit Operations page lists any unit operations in the case
that are not supported in dynamics. These unit operations
should be either deleted, replaced with a suitable unit operation
which is supported in dynamics, or disconnected from the active
flowsheet and ignored.
Ignored Opers Page
The Ignored Opers page lists any unit operations which are
currently ignored.
 Figure 2.21
 Figure 2.222-26
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-27
ww
ThYou need to fix any problems listed on this page as the
Dynamics Assistant cannot fix them. If an ignored unit operation
should not be ignored, clear the Ignored checkbox for the unit
operation.
If you want a unit operation not to be included in the dynamic
simulation, disconnect it from the active flowsheet.
Flow Direction Page
The Flow direction page lists the valves where the flow is going
from low to high pressure or where the pressure drop is zero for
non zero flow.
If the case is in Steady State mode, this alerts you to unrealistic
setups that you should investigate before switching to Dynamics
mode. Most likely the case is missing important pieces such as
pumps or valves.
You can open the property view for a given unit operation by
double-clicking on its name.
 Figure 2.23
The Flow direction page is only active when static heads are
disabled.2-27
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-28 Equation Summary Property View
ww
Th2.3 Equation Summary
Property View
The Equation Summary property view is accessed by selecting
Simulation | Equation View Summary from the menu bar.
2.3.1 Summary Tab
The Summary tab contains information that can help you find
specification problems in your case.
The General Results group contains a summary of the number of
equations and variables that are in the case. The group on the
right, contains information regarding the general status of the
case. If there are problems with the specifications, some basic
information is provided.
If you open Equation Summary property view from the menu
bar, the Summary tab initially contains a single button. Clicking
the Full Analysis button causes Aspen HYSYS to analyze the
pressure-flow parameters in order to determine if there are
enough specifications for the problem.
If Aspen HYSYS determines a problem, the Dynamics Assistant
button becomes visible and the Partitioned Analysis button
 Figure 2.242-28
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-29
ww
Thbecome visible. The Full Analysis and Partitioned Analysis use
different methods of analyzing pressure-flow parameters.
In addition, should Aspen HYSYS detect any problems the
Unconverged tab is replaced with a Extra Vars or Extra Specs
tab, depending on the nature of the specification problem.
2.3.2 General Equations Tab
The General Eqns tab contains a list of all the equations that are
used by the integrator. The number of equations corresponds to
the value given in the Number of Equations cell on the Summary
tab.
Double-clicking on the Equations cell for any given equation
opens the property view for that equation. Double-clicking on
the Owner cell opens the unit operation or stream that the
equation is attached to.
 Figure 2.252-29
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-30 Equation Summary Property View
ww
Th2.3.3 Unconverged Tab
If an error occurs while the integrator is running (PF solver failed
to converge) you can view the equations that have solved up to
the point of failure.
When troubleshooting your simulation, it is best to begin at the
top of the equation list. These equations contain serious errors
and therefore give the greatest insight into correcting the
simulation.
 Figure 2.26
Clicking the Update Sorted List button causes Aspen HYSYS to
reveal the type of equations, location, and scaled error
associated with the unconverged nodes in the flowsheet.2-30
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-31
ww
Th2.3.4 Extra Variables Tab
When the Full Analysis or Partitioned Analysis buttons are
clicked, and Aspen HYSYS determines that not enough
specifications were known, then the Extra Vars tab is added to
the Equation Summary property view.
This property view shows possible variables that are missing
from the case.
Double-clicking on the Variable cell opens the Variable property
view. Double-clicking on the Owner cell opens the unit operation
or stream that requires the missing variable.
 Figure 2.272-31
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-32 Equation Summary Property View
ww
Th2.3.5 Extra Specifications Tab
When the Full Analysis or Partitioned Analysis buttons are
clicked, and Aspen HYSYS determines that too many
specifications were known, then the Extra Specs tab is added to
the Equation Summary property view.
 Figure 2.28
Double-clicking on the Equations cell opens the property
view for the equation.
Double-clicking on the Owner cell opens the unit operation
or stream that contains the extra specification.2-32
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-33
ww
Th2.3.6 Specified Equations Tab
The Spec Eqns tab contains a list of the specified equations in
the case.
The Type cell displays the type of specified equation such as:
Pressure Balance Equation or Flow Balance Equation.
2.3.7 General Variables Tab
The General Vars tab contains the list of variables being used by
the integrator for dynamic simulation.
 Figure 2.29
 Figure 2.30
This number
corresponds to
the number
displayed in
the Number of
Variables cell
on the
Summary tab. 2-33
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-34 Equation Summary Property View
ww
Th2.3.8 Specification Variables
Tab
The Specs Vars tab contains the list of specified variables being
used by the integrator for dynamic simulation.
 Figure 2.31
This number
corresponds
to the
number
displayed in
the User Spec
Vars cell on
the Summary
tab. 2-34
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-35
ww
Th2.3.9 Internal Specification
Equations Tab
The InterSpecEqns tab contains the list of Internal Specification
Equations that are used by the integrator for dynamic
simulation.
 Figure 2.32
Double-clicking on the Equations cell opens the property
view for the equation, while double-clicking on the Owner
cell opens the unit operation or stream associated with the
equation.2-35
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-36 Equation Summary Property View
ww
Th2.3.10 Internal Specifications
Variables Tab
The InterSpecVars tab contains the list of Internal Specification
Variables that are used by the integrator for dynamic simulation.
 Figure 2.33
Double-clicking on the Variables cell opens the variable
property view, while double-clicking on the Owner cell opens
the unit operation or stream from which the variable is
taken.2-36
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-37
ww
Th2.3.11 Simultaneous
Equations Tab
The Simultaneous Equations (SimulEqns) tab lists the equations
that are solved simultaneously by the integrator.
The Type cell displays the type of specified equation such as:
Pressure Balance Equation or Flow Balance Equation.
 Figure 2.34
Double-clicking on the Equations cell opens the property
view for the equation, while double-clicking on the Owner
cell opens the unit operation or stream associated with the
equation.2-37
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-38 Integrator
ww
Th2.4 Integrator
The Integrator is used when running a case in Dynamics mode.
You can access the Integrator property view by one of the
following methods:
• Select Integrator command from the Simulation
menu.
• Press CTRL I.
Aspen HYSYS solves all equations using the fully Implicit Euler
integration method. On the Integrator property view, various
integration parameters can be specified.
2.4.1 General Tab
The General tab has three groups which contain the time
parameters for the integrator. The Integration Control group has
the controls for whether the integration is Automatic or Manual.
Manual integration lets you specify the number of time steps
which Aspen HYSYS executes. It is usually used when you are
trouble shooting or debugging your case because it allows you
to move from one time step to the next.
 Figure 2.352-38
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-39
ww
ThOnce the integrator has executed the number of time steps, the
integrator does not stop, but remains in a holding mode. If
additional time steps are entered, the integrator continues
integration for the given number of time steps.
2.4.2 Execution Tab
The Calculation Execution Rates group contains parameters that
indicates the frequency at which the different balance equations
are solved.
The default values for Pressure-Flow equations, Control and
Logic Ops, Energy Calculations, and Composition and Flash are
1, 2, 2, and 10 respectively. A value of 2 for the Energy
Calculations means that an energy balance is performed every 2
time steps.
 Figure 2.36
Do not change any of these numbers unless you have good
reason for doing so.2-39
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-40 Integrator
ww
ThThe following is a table describing the setting for each of the
four execution rates.
You can apply the execution rate values setting to all operations
by selecting the Use these default periods for all operations
checkbox. Clear the checkbox if you do not want to apply the
execution rate values entered in this group.
You have the option of specifying the composition and energy
balance execution rates per integration time step for individual
dynamic unit operations.
To specify individual execution rates for different unit
operations, it is necessary to add a new Dynamic Equipment
Ops tab to the Workbook.
1. Clear the Use these default periods for all operations
checkbox in the Calculation Execution Rates group of the
Integrator property view.
2. Select the Workbook. Select Workbook from the menu bar,
and then select Setup. This opens the Setup property view.
Field Description
Pressure Flow
Solver
Since pressure and flow can change rapidly, their
calculations are solved at the highest frequency and
should be left at its default, 1.
Control and
Logical Ops
The default number should always be sufficient, but
you can reduce this number for special cases. (E.g.,
When you need rapid control responses or to mimic
equipment where sample data can only be obtained at
a low frequency.)
Energy
Calculations
The energy calculation interpolates between the flash
calculations. The value should be lower than that of the
composition and flash calculations.
Composition and
Flash
Calculations
The composition and flash calculations number is the
most important on this page. If you reduce this
number the flashes will be performed more frequently.
This can slow down the calculation speed of Aspen
HYSYS, but it may result in more accurate
compositions and results in some cases. This number
can be reduced in cases where the phase change in an
individual vessel is being studied and a high degree of
accuracy is required with regard to the phase
composition.2-40
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-41
ww
Th3. Click the Add button in the Workbook Tabs group. The New
Object Type property view automatically opens.
4. Scroll down the list and select the Dynamic Equipment Op
item. Click the OK button. You are returned to the Setup
property view.
5. Close the Setup property view, and go to the Workbook
property view. The Dynamic Equipment Op variable set is
added as a Workbook tab.
On the Dynamic Equipment Ops tab, if you select or clear the
any one of the Use integrator periods checkbox, all other Use
integrator periods checkboxes in the flowsheet will also be
selected or cleared.
 Figure 2.37
 Figure 2.382-41
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-42 Integrator
ww
ThYou must clear all the Use integrator periods checkbox,
before you can specify individual execution rates for the
different unit operations.
2.4.3 Options Tab
The Options tab contains the advanced parameters that are
used in dynamics.
The General Options group contains the following parameters:
 Figure 2.39
Parameter Description
Enable static head
contributions
Aspen HYSYS calculates the static head considering
the equipment hold up, the geometry, and the
elevation of any attached nozzles.
This option requires the Aspen HYSYS Dynamics
feature.
Enable implicit
static head
calculation
If this options is active, it will implicitly solve for
static head contributions resulting from level changes
inside the vessels. This can increase the stability in
cases where the levels in a vessel are closely tied
with the flow rates and the liquid height in the vessel
can change rapidly. Use this option only if you are
experiencing stability problems related to the above
setup.
The Remove Fidelity
button enables you to
reset all variables
(affected by the Aspen
HYSYS Dynamics
features) to their default
values.
Refer to Section 1.6 -
HYSYS Dynamics for
more information.2-42
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-43
ww
ThEnable heat losses
calculations as
configured
When checkbox is selected, heat loss model settings
for unit operations (such as vessel and tray sections)
are accounted for. If checkbox is cleared, all heat
losses are zero irrespective of individual heat loss
settings.
Singularity
pressure flow
analysis before
running
When checkbox is selected, Aspen HYSYS warns you
of a possible singular solution matrix before starting
integration.
For larger cases it is recommended that this
checkbox be cleared to increase the overall start up
speed. For cases where a singular solution is not
considered to be a problem, this option can be
disabled which increases the overall speed.
Rigorous non
equilibrium mixed
properties
It is recommended that this option remains active.
Deactivating this option provides a slight speed
increase when nozzle efficiencies are not 100%,
although instabilities can occur.
Skip flashes under
acceptable
conditions
It is recommended that this option remain inactive.
Activating this option tells Aspen HYSYS to skip
flashes calculations under acceptable conditions
(e.g., valves with zero pressure drop or mixers/tees
with only one effective feed). This provides a slight
speed increase, although instabilities can occur.
Simultaneously
solve heat transfer
eqns with IOFlash
When the checkbox is selected and IOFlash is the
flash algorithm selected in the Basis environment,
then Aspen HYSYS tries to solve heat transfer
equations (from heat exchangers) simultaneously
with the flash, and potentially make the dynamics
run faster.
If you encounter inconsistencies with your heat
transfer equipment, clear this checkbox.
Access Fidelity
license options
When selected, the Aspen HYSYS Dynamics features
are activated. Once the features are used this
checkbox cannot be cleared.
This option gives access to nozzle properties and
other advanced features.
Model choking of
liquid inside the
valve
When selected, this activates the model liquid
choking option for all the valves.
Use implicit check
valve model
It is recommended to use this option if you are
experiencing a delay in the opening and closing of
check valves.
Parameter Description2-43
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-44 Integrator
ww
Th2.4.4 Heat Loss Tab
The Heat loss tab allows you to specify the ambient temperature
Truncate large
volume integration
errors
If there are large upsets or sudden severe changes in
the system, it can result in a volume balance error,
where the volume of the material shown does not
match the physical volume that it occupies. If the
error is large, you can enable the Truncate Large
Volume Error option and Aspen HYSYS truncates
the error and restore material inventory.
However, truncating the error can cause a bump in
the model and will also violate the overall material
balance. For small errors (and if this option is turned
off), Aspen HYSYS will slowly correct the error
naturally over time. It is recommended that this
option be turned off for depressuring utilities.
Reduced recycle
efficiency for small
timesteps
For smaller integration step sizes (where the
composition time step ends up being less than 5
seconds), you can enable the Small dt Reduced
Recycle Efficiency option and Aspen HYSYS
reduces the flash efficiency of material inside
vessels. This option improves stability of the system,
but in some cases can produce undesirable results.
For example, the phases in a vessel may no longer
be in equilibrium and can be at different
temperatures. If you are reducing the integration
step size or lower the composition period, you can
turn this option off if you experience problems or
unexpected results.
Close component
material and
energy balance
Enables Aspen HYSYS to perform careful calculation
on component and energy balances to avoid
imbalances.
Parameter Description2-44
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-45
ww
Ththat is used in the heat loss equations.
2.5 Event Scheduler
Using the Event Scheduler, it is possible to have Aspen HYSYS
perform given tasks at predetermined times once a simulation is
running in dynamics.
The tasks can be triggered by a pre-determined simulation time
or elapsed time, a logical expression becoming true, or a
variable stabilizing to within a given tolerance for a set amount
of time.
2.5.1 Theory
The Event Scheduler property view as shown in Figure 2.42
contains all the Event Schedules in the current Aspen HYSYS
case.
Each Schedule is comprised of Sequences, which in turn are
made up of Events. An Event must have a Condition (a null
 Figure 2.402-45
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-46 Event Scheduler
ww
Thcondition is always true).
The event may have zero or more enabled actions. Normal
sequential stepping of the events occurs, although forward and
backward branching may also be configured.
It is recommended that each schedule be treated and
implemented as a separate autonomous set of sequences.
Interaction between sequences in different schedules is not
possible. Within each schedule, the user must configure one or
more sequences. Each active sequence in the schedule is
executed once per time step, in the order they appear. For an
active sequence (that has been started and is not holding), the
sequence status would be Waiting and there would be one
current (or active) event. The current event means that this
particular event is having its condition evaluated to determine
any actions to take and which event in the sequence takes
control next (becoming the next current event). You can think of
the event's condition as being a logical True or False evaluation
and the actions are manipulations on the simulation case. When
the current event’s condition is met, its action(s) (if any) are
 Figure 2.41
Schedule Manager
Schedule 1 Schedule 2 Schedule 3 Schedule N
Sequence A
Condition
Action List
Action 1
Action M
Event 1
Event X
Sequence Z2-46
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-47
ww
Thexecuted and by default control passes to the next event in the
sequence. Normally (without Multi-Events turned on) only one
event is evaluated and allowed to execute each time step. If
branching has been configured for the current event, control
may not be passed to the next step in the sequence. Instead
control will be passed to the specified Jump To Event if the
branching requirement is met. The branching requirement is
nothing more than a condition that determines if or when the
branching takes place. Both forward and backwards branching is
permitted. If one sequence Starts, Stops, Pauses, or Resumes
another sequence, this takes place on the current time step if
the effected sequence is lower in the Schedules list; otherwise
the effect is relevant on the next time step.
It is usually recommended to keep as many as possible of a
series of steps within a single sequence. Rather than starting
and stopping related sequences within a schedule, the use of
branching can be easier to follow. Figure 2.46 shows the
Sequence property view's Jump When column which allows you
to see any branching within the sequence.
The Event Scheduler is an ideal way of implementing a flow
chart representation of sequence logic control systems, which
are typically implemented in Programmable Logic Controllers in
the real plant.
2.5.2 Event Scheduler
Property View
You can access the Event Scheduler by selecting Event 2-47
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-48 Event Scheduler
ww
ThScheduler from the Simulation menu.
You can also access the Event Scheduler by using the hot key
CTRL E.
 Figure 2.42
The tree browser contains a list of the schedules in a
case. Each schedule is comprised of sequences,
which in turn are made up of events.
Sequences group for a particular Schedule.
Sequence Control group
The Event Scheduler property view is now a combination of
property views as shown in the figure below.
The right pane of the property view now shows the Schedule,
Sequence, Event, or specific Action information as you
navigate through and click on the tree browser on the left
pane.
You can also view this information in separate property
views as described in Section 2.5.3 - Sequence Property
View and Section 2.5.4 - Event Property View.2-48
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-49
ww
ThThe buttons in the Schedule Options group are used to manage
the schedules for the current case.
The Legend group displays the status icons, which are shown as
the tree icons in the tree browser, and indicate the current state
of the schedule, sequence, event, or action.
Button Description
Add Allows you to add new schedules to the case.
Delete Allows you to delete the selected schedule. This is only active
when a schedule exists in the case.
Copy Allows you to make a copy of the selected schedule. This is only
active when a schedule exists in the case.
Import Allows you to import a saved schedule from disk. Schedules
have the extension *.sch.
Export Allows you to export the selected schedule to disk. Once
exported, a schedule can be retrieved using the Import button.
This is only active when a schedule exists in the case.
Sort Allows you to re-order the schedules. This is only active when at
least two schedules exist in the case.
 Figure 2.43
The following states are valid:
• Schedule: Fully Specified and
Incomplete
• Sequence: Complete, Holding, Inactive,
Incomplete and Waiting.
• Event: Complete, Fully Specified,
Holding, Inactive, Incomplete, Running,
Time Elapsed and Waiting.
• Action: Fully Specified and Incomplete.2-49
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-50 Event Scheduler
ww
ThThe Event Scheduler property view also consists of the following
checkboxes:
When you add a new schedule, Aspen HYSYS opens a Schedule
Sequences group. You can manage the sequences in the
schedule on the Event Scheduler property view.
Checkbox Description
Smart Tree When this checkbox is selected and the Integrator is
running, the tree browser expands and shows the current
event of the last selected sequence or schedule.
Trace
Messages
Allows you to enable or disable the tracing of Event
Scheduler messages.The Aspen HYSYS Desktop Trace
Window displays useful status and execution messages
while the sequence is executing.
Trace Dump and Trace Message actions will always
appear in the Trace Window.
Multi Events When the checkbox is selected, this option allows you to
execute multiple contiguous events, with conditions of
True, in a single time step.
The events will not continue after any Jump To Event
occurs since a backwards jump could result in an infinite
loop.
 Figure 2.442-50
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-51
ww
ThThe Schedule Sequences group consists of the following
columns:
The buttons in the Schedule Sequences group are used to
manage the events in a sequence.
Field Description
Sequence Allows you to modify the name of the sequence without
opening the Sequence property view.
Double-clicking on any cell opens a relevant separate
dedicated property view.
Run Mode Displays the sequence mode.
Status Displays the status of the sequence.
Event Displays the number of the event currently being
executed.
Waiting For Displays the condition the sequence is waiting for before
executing.
Pending
Actions
Displays the name of the action list associated with the
event being executed.
Button Description
View Allows you to view the selected sequence. The Sequence
property view appears. This is only active when a sequence
exists in the schedule.
Add Allows you to add a new sequence to the schedule.
Delete Allows you to delete the selected sequence. This is only
active when a sequence exists in the schedule.
Copy Allows you to make a copy of the selected sequence. This
is only active when a sequence exists in the schedule.
Import Allows you to import a saved sequence from the disk.
Schedules have the extension *.seq.
Export Allows you to export the selected sequence to disk. Once
exported, a sequence can be retrieved using the Import
button. This is only active when a sequence exists in the
schedule.
Sort Allows you to re-order the sequences. This is only active
when at least two sequences exist in the schedule.
Refer to the section on
the Settings Tab for
more information.2-51
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-52 Event Scheduler
ww
ThThe Sequence Control group is only available when you have
added a sequence to the schedule.
The Schedule Name field allows you to modify the name of the
schedule.
You can view the status of the selected schedule by clicking on
the Status Panel button although the individual schedule
property view is not used by most users. The individual schedule
property view also allows you to control the schedule by using
the Start, Stop, Resume, and Hold buttons.
Button Description
Start Allows you to start the selected sequence(s).
Stop Allows you to stop the selected sequence(s).
Resume Allows you to resume paused sequence(s).
Hold Allows you to pause the selected sequence(s).
Force Allows you to execute the selected sequences current
event. The actions will be executed.
Skip Allows you to skip the selected sequences current event. No
actions will be executed.
 Figure 2.452-52
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-53
ww
Th2.5.3 Sequence Property View
When you select a particular sequence from the tree browser of
the Event Scheduler property view, the Sequence property view
appears.
There are two tabs on the Sequence property view:
• Schedule of Events
• Settings
 Figure 2.46
You can also click the View button from the Schedule
Sequences group of the Event Scheduler property view to
view the Sequence property view.
The Schedule of Events tab is the best place to review your
sequence branching by perusing the Jump When and Jump
To columns.
The status bar indicates the current status of
the sequence, which is also shown as the icon
on the Event Scheduler tree browser.
You can change the
sequence name.2-53
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-54 Event Scheduler
ww
ThSchedule of Events Tab
The Schedule of Events tab shows the list of events for the
schedule. The following columns are available on the Schedule
of Events tab.
Column Description
# Displays the number of the event on this row.
Event Displays the name of the event.
Double-clicking on any cell opens a relevant separate
dedicated property view.
Specified Indicates whether the event is fully defined.
Condition Displays the condition name of the event.
Action List Displays the name of the events action list.
Jump When Displays whether the event jumps over any events and if so
under what condition. The following options are available
from the drop-down list:
• Never. The default value is Never. It is configured on
the Branching & Time Out behavior tab of the Event
property view. The event cannot jump to another
event.
• Always. The event always jumps to another event
once it is executed.
• True. The event jumps to another event once the
logic on the Condition tab is true.
• Timeout. The event jumps to another event if the
timeout condition is met.
• False. The event jumps to another event once the
logic on the Condition tab is False.
Jump To Displays the event to jump to. In this way a single event or
a group of events can be skipped under certain
circumstances.2-54
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-55
ww
ThThe following buttons are available on the Schedule of Events
tab:
Settings Tab
On the Settings tab, you can specify the sequence’s universal
settings, status window reporting, and the event conditions
default timeout behavior.
Button Description
View Allows you to view the selected event. This is only active
when an event exists in the sequence.
Add Allows you to add a new event to the sequence.
Delete Allows you to delete the selected event. This is only active
when an event exists in the sequence.
Copy Allows you to make a copy of the selected event. This is
only active when an event exists in the sequence.
Sort Allows you to re-order the events. This is only active when
at least two events exist in the sequence.
Analyze This is only active when a sequence is incomplete.
 Figure 2.47
Refer to Section 2.5.5 -
Analyzing a Schedule
for more information.2-55
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-56 Event Scheduler
ww
ThThe Universal Settings group consists of the following options:
You can also specify the default time out behavior, which applies
to all events unless a specific event overrides this behavior.
• Hold. Pauses the execution of the sequence when an
event in the sequence times out.
• Play Audio File. Plays a specified audio file when an
event in the sequence times out. You can also test the
sound by clicking on the Test Sound button after you
have selected the audio file.
• Stop Integrator. The Integrator is stopped when an
event in the sequence times out.
Options Description
Run Mode You can select the sequence mode from the drop-
down list. There are two options:
• One Shot. Executes all its Events in order
then changes its status to Complete.
• Continuous. Returns to the first Event after
the last Event has executed in a continuous
loop.
You can also set the Run Mode from the Event
Scheduler property view as shown in Figure 2.42.
Unit Set for Logical
Expressions
Allows you to select a unit set from the drop-down
list. These are the available unit sets that are on
the Variables tab of the Session Preferences
property view.
Synchronize All Time
Sensitive Conditions
When you select the checkbox, this ensures
execution of a particular event at an exact
simulation time. The Logic Condition Wait for Time
or Elapsed Time may internally adjust time step to
integrate precisely to a time sensitive event
condition.
True Event does NOT
step if
JumpWhen=Timeout
It is NOT recommended to select this checkbox. It
is used for backward compatibility of models built
in older Aspen HYSYS versions. In older Aspen
HYSYS versions, if the user specified Branching
Jump When Timeout, a potential problem
occurred. When the events condition evaluated
True and remained True, the actions repeated
multiple times and the event would not naturally
step to the next event in the sequence. Instead
the event would wait for the timeout timer to
elapse and then jump to the requested event.
Aspen HYSYS cases built in older versions will load
into the new Aspen HYSYS version with this
checkbox on.
Refer to Section 12.3.1 -
Units Page in the Aspen
HYSYS User Guide for
more information.
Refer to Section 2.5.4 -
Event Property View on
the Branching & Time
Out Behaviour Tab for
more information.2-56
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-57
ww
Th2.5.4 Event Property View
When you select a particular event from the tree browser of the
Event Scheduler property view, the Event property view
appears.
You do not have to select any of the Default TimeOut
checkboxes, in which case the default behavior is to stop the
sequence upon Timeout.
If an events Branching Jump When Timeout is set, this will
complement any of the above behavior.
 Figure 2.48
You can also click the View button from the Schedule of
Events tab of the Sequence property view to view the Event
property view.
You can change the event name and
condition name using these fields.
This status is also shown on the
tree browser of the Event
Scheduler property view.2-57
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-58 Event Scheduler
ww
ThThe Event Options group consists of two buttons.
There are three tabs on the Event property view:
• Condition
• Action List
• Branching & Time Out behavior
Condition Tab
The Condition tab as shown in Figure 2.48 shows the four
possible conditions located within the Wait For group. The
condition the user selects determines:
• When the actions associated with this event are
executed.
• When the sequence proceeds to the next event.
A True or 1 condition is required for the above.
The Logic to Evaluate True
The Wait For Logic to Evaluate True requires variables whose
Tags become part of the Logical ‘If’ Expression.
 Figure 2.49
The Force and Skip buttons affect the current event which
may not be the event you are viewing.
 Figure 2.50
Allows you to bypass
the current event of
the selected sequence.
Allows you to execute
the current event of
the selected
sequence.
Shows the timer which counts up to
the user specified True For time.
The True For field is optional. The
logical expression must continuously
evaluate True for the amount of time
you have entered in this field.2-58
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-59
ww
ThVariables are selected by clicking the Add Variable button, which
opens the Variable Navigator. If no expression is provided, the
condition always and immediately evaluates True.
Help is available by clicking the Expression Help button. This is
the same logic that is used by the Spreadsheet.
The Syntax State reports whether or not the expression is valid
syntax and returns Incomplete, Bad Syntax, or Complete (not
the evaluation of the expression).
An Elapsed Amount of Time
The actions execute after the user specified amount of time has
elapsed.
 Figure 2.51
 Figure 2.52
 Figure 2.53
Allows you to specify the amount of
time you want to wait before the
actions are executed.
Shows the timer which counts up to
the user specified elapsed time.2-59
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-60 Event Scheduler
ww
ThA Specific Simulation Time
Actions execute only at the specific simulation time. This option
is not commonly used since it is based upon the sequence
always starting at the same absolute simulation time. Wait For
An Elapsed Amount of Time is the preferred option.
A Variable to Stabilize
The actions execute after a variable has stabilized.
For the variable to stabilize the following information is required:
• basis for calculation
• bandwidth about the basis (percent or absolute)
• period that the variable must be within the bandwidth
The basis for calculation is a selected simulation variable from
your case. The percentage bandwidth is specified as a percent
delta from the average value over the stabilization period.
 Figure 2.54
 Figure 2.55
The bandwidth as entered is plus or minus so for a ±2kPa
bandwidth, for example, the variable must remain within a
range of 4kPa.
Allows you to specify the exact time
you want the actions to execute at.2-60
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-61
ww
ThThe condition evaluates True when the selected variable value is
within the given bandwidth for the specified length of time.
You can view what the variable movement has been over the
most recent stabilization period. The Variable Stability field
shows the variable movement in either engineering units or
percent depending on the type of tolerance you selected.
Action List Tab
The user may define zero or more actions which execute once
the Condition is met. The user might specify no actions, if the
user wants to simply perform a branching operation.
The name and type of the action selected in the List Of Actions
For This Event group can be changed in the Individual Action
Specification group.
The Name field allows you to change the action name while the
Type drop-down list provides the available action types. After an
Variable stability is not available until the event has been the
current event of the sequence for at least the stabilization
period.
 Figure 2.562-61
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-62 Event Scheduler
ww
Thaction type is selected, the Configuration group changes to show
the information required for the action type.
Specify Variable
The Specify Variable action requires an Object and a Value.
To select an Object, click the Select Target button which opens
the Variable Navigator. The current value and units of the
selected object are shown. If the Increment Only checkbox is
selected the Value cell is added to the Current Value cell at the
time of execution otherwise the Value cell replaces the Current
Value cell.
Start/Stop/Hold/Resume Sequence
The Start, Stop, Hold, and Resume Sequence actions all require
that a Sequence is selected from the drop-down list.
 Figure 2.57
 Figure 2.582-62
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-63
ww
ThThe View button displays the selected sequence. It is not
possible for a Sequence to Start or Resume itself, but it can Stop
itself and put itself in Hold Mode.
Play Sound
The Play Sound action requires a *.wav audio file, which can be
selected by clicking the Select Audio File button. When a file is
selected, the Test sound button is enabled and the audio file can
be played.
Trace Dump
The Trace Dump action requires the selection of a source
variable by clicking the Select Source button.
The available Sequences are only those that are part of the
parent Schedule. You cannot control sequences of other
schedules.
 Figure 2.59
 Figure 2.602-63
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-64 Event Scheduler
ww
ThThe default format for the variable is shown, and can be
changed by clicking the button at the end of the Format cell.
When an object is selected, the Trace Dump button is
activated, allowing you to dump the current variable information
to the Trace Window.
Play Script Action
The Play Script action requires a Aspen HYSYS script file that
can be selected by clicking the Select File button. When a file is
selected, the Play Script button is enabled and the script can be
played.
Save Snapshot
The Save Snapshot action requires a snapshot file that can be
selected by clicking the Select Snapshot File button.
 Figure 2.61
 Figure 2.62
For more information,
refer to Taking a
Snapshot in the Event
Scheduler section from
Section 11.12.3 -
External Snapshots in
the Aspen HYSYS User
Guide.2-64
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-65
ww
ThSend DDE Command
The Send DDE Command action requires inputs of Service,
Topic, and Command.
For example, when execution occurs the Excel Sheet1, MyMacro
runs using the Dynamic Data Exchange protocol. When the
three inputs are specified, the Execute button becomes enabled
and the action can be tested.
In addition, the Transaction Time Out checkbox can be
selected which then requires an input time. The command
execution by the external service (i.e., Excel) returns control to
Aspen HYSYS after the input time expires otherwise it waits until
the external command completes its execution. When the
Transaction Time Out checkbox is selected, the Time Out
Notification checkbox becomes enabled and selecting this
checkbox notifies you if a time out occurs.
Stop Integrator
The Stop Integrator action stops the integrator.
 Figure 2.63
 Figure 2.64
Service Excel
Topic Sheet1
Command MyMacro2-65
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-66 Event Scheduler
ww
ThRamp Controller
The Ramp Controller action requires a Controller, a Target Set
Point, and a Ramp Duration as inputs.
The controller is selected by clicking the Select Target button
that browses all the controllers in the case. After selecting a
controller, the current set point is shown for reference and the
View button is enabled.
Click the View button to open the Controller property view.
Optionally, the Increment Only checkbox can be selected
which increments the set point rather than setting it. Upon
execution the controller is switched to Ramp mode, the target
set point and duration are specified and the Ramp Controller
message is sent.
Set Controller Mode
The Set Controller Mode action requires a Controller and a New
Mode as inputs.
 Figure 2.65
 Figure 2.662-66
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-67
ww
ThThe controller is selected by clicking the Select Target button
that browses all the controllers in the case. After selecting a
controller the current mode is shown and the View button is
enabled.
Trace Message
The Trace Message action traces a message to the Aspen HYSYS
Trace Window. The user specifies the text of the message in the
Message field.
 Figure 2.672-67
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-68 Event Scheduler
ww
ThBranching & Time Out behavior Tab
The information contained on this tab is not necessary for an
event to be completely defined. Branching is optional and
permits sequence flow control other than the default sequential
forward stepping.
The Jump When drop-down list contains five conditions, which
are described in the table below:
 Figure 2.68
Condition Description
Never This is the default. The Event cannot jump to another
Event.
Always The Event always jumps to another Event regardless of the
condition evaluation. If however, the condition is True, the
actions will execute first.
True The Event jumps to another Event after the Condition is
met. The actions execute first.
Timeout The Event jumps to another Event after the timeout period.
False The Event jumps to another event once the logic on the
Condition tab is False.2-68
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-69
ww
ThIf a Jump When condition other than Never is selected, an Event
must be selected in the Jump To field. The Jump To field
contains a drop-down list with all the Events in the Sequence.
Events can only jump to other Events in the same Sequence.
Backwards jumping is permitted.
You can also specify a Time Out for the event so that the
sequence does not get stuck and remain on the event
indefinitely. If you want to configure Time Out behavior, you
must select the Event Logic Condition Time Out After
checkbox and enter the time out period. The Count Up field
shows the alarm counter such that when it reaches the Time Out
time, the event times out.
Selecting the Event Specific behavior checkbox enables the
behavior group options. The three checkboxes in the group can
be selected in any combination from all three to none. These
selections override the default behavior defined in the parent
sequence.
If you have the Jump When not set to Timeout and you have
not selected any of the three checkboxes in the behavior
group, the sequence becomes inactive (stops). You can only
re-start the sequence.
If you have the Jump When not set to Timeout and you have
any of the three checkboxes selected in the behavior group,
you have to resume the sequence or start the Integrator if
necessary.   You must manually either Force or Skip the
Timeout Event.
If you have the Jump When set to Timeout and you have
selected zero to all checkboxes in the behavior group, the
sequence remains active. Then, the sequence proceeds with
the Jump To Event. You may have to resume the sequence or
start the Integrator.2-69
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-70 Event Scheduler
ww
Th2.5.5 Analyzing a Schedule
Aspen HYSYS has a built in tool for analyzing Schedules which
are not yet fully defined. From the Sequence property view, it is
possible to analyze an incomplete sequence by clicking the
Analyze button. When the Analyze button is clicked, Aspen
HYSYS opens the Analysis of Sequence property view, which is
Modal.
This property view displays a matrix with a list of all the Events
that are not fully specified. Selecting an Event and double-
clicking in the Event column or clicking the Analyze Event button
opens the Analysis of Event property view.
The Analysis of Event property view provides feedback about the
 Figure 2.69
The Analyze button is only active when the Sequence is
incomplete.
 Figure 2.702-70
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-71
ww
ThEvent. The contents of the Required Specifications group
changes depending on the Event Wait For condition. Fields that
are  can be specified at this point or the View Event
button can be clicked, opening the Event property view where
the specifications can be made. Actions that are not fully
specified are displayed in the Incomplete Actions matrix.
Double-clicking the Event cell in the matrix opens the Event on
the Action List tab with the Action selected.
When you click the View Event button from the Analysis of
Event property view, a Modal Event property view appears. You
can click the Pin button to make the property view non-Modal,
the active property view returns to the Analysis of Event
property view which is also Modal.
2.5.6 Running a Schedule
After a Schedule is fully defined, each Sequence is in an Inactive
state. Sequences can be run from the Event Scheduler property
view as shown in Figure 2.42.
To activate a Sequence, select it from the tree browser and click
the Start button. Alternatively, you can select the desired
Schedule from the tree browser and then select the sequence
from the list in the Schedule Sequences group. The status
changes from Inactive to Waiting. The integrator has to be
running for evaluations to occur.
At every time step, any Sequences that are in the Waiting state
have their current Event’s Wait For Condition evaluated. When a
current event evaluates True, the associated Action List items
are executed, and provided no Branching behavior is specified,
the next Event in the list becomes the current event and
evaluations continue.
When you edit an event while the schedule is running, the
sequence will either continue running or be put in the Hold
state if further information is required before everything is
sufficiently satisfied.
Click the Resume button to continue the sequence after your
edits. 2-71
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-72 Control Manager
ww
ThIf the Sequence RunMode is One Shot and the last event in the
list executes, the status changes from Waiting to Complete and
the Sequence is reset.
2.6 Control Manager
The Control Manager is a summary of the PID Controllers and
MPC Controllers contained within the current simulation. There
are three tabs available within this property view: PIDs, MPCs,
and User Variables.
PIDs Tab
This tab provides a summary of the PID Controllers within the
current simulation. There are three modes displayed:
• Controller mode. Allows you to set the controller to
automatic, manual, or off.
• Aspen HYSYS mode. Allows you to toggle the Aspen
HYSYS mode between Internal and External.
• Sp mode. Displays whether the SP is set to local or
remote.
 Figure 2.712-72
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-73
ww
ThThere are also three key variables displayed: set point (Sp),
process variable (Pv), and operating target object (Op).
MPC Tab
This tab provides a summary of the MPC Controllers within the
current simulation. There are two modes that appear:
• Controller mode. Allows you to set the controller to
automatic, manual, or off.
• Aspen HYSYS mode. Allows you toggle the Aspen
HYSYS mode between Internal and External.
There are also three key variables displayed: set point (Sp),
process variable (Pv), and operating target object (Op).
User Variable Tab
The User Variables tab allows you to create and implement
variables in the Aspen HYSYS simulation case.
2.7 Dynamic Initialization
Dynamic Initialization allows you to initialize user-specified unit
operations and/or streams, all at once or in different areas, to a
consistent operating state in dynamics modeling. Typically you
can initialize the selected objects to cold, empty, depressurized,
Refer to Chapter 5 -
User Variables in the
Aspen HYSYS
Customization Guide
for more information.2-73
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-74 Dynamic Initialization
ww
Thand off-line.
To access Dynamic Initialization, select Dynamic Initialization
from the Flowsheet menu. The Dynamic Initialization Manager
appears.
The Dynamic Initialization Manager organizes multiple dynamic
initialization areas. A dynamic Initialization area is a grouping of
flowsheet objects with specific initialization stream(s), and cold
Correct set up of the cold initialization configuration is not
only necessary for obtaining accurate results, but it can also
prevent movements in the model, and pressure-flow non-
convergence error.
It is recommended that you run the Integrator a few time
steps on any unit operations and streams before dynamic
initialization can have an effect on those operations. After
performing dynamic initialization, if the simulation
progresses through numerous steps without any errors or
significant movement in the process, the initialization is
successful.
If significant movement within the model is detected after
initialization, set the Integrator in Manual mode and
initialize the case again to locate the source for movement.
In most cases, controls and logic operations, boundary
streams, isolation valves, and pressure/flow specifications
are the common sources for movements and errors.
 Figure 2.72
You can also access the Dynamic Initialization Manager by
right-clicking on a selected object or a blank area on the
PFD, in the object inspect menu select the Dynamic
Initialization menu, and select View Dynamic Init Manager
command.2-74
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-75
ww
Thinitialization conditions.
There are four buttons in the Dynamic Initialization Manager:
• Add. Adds a new dynamic initialization area to the
simulation case and opens a blank Dynamic Initialization
property view.
• View. Opens the property view of the dynamic
initialization area selected from the drop-down list.
• Delete. Delete an existing dynamic initialization area
selected from the drop-down list.
• Cancel. Exit the Dynamic Initialization Manager property
view.2-75
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-76 Dynamic Initialization
ww
ThThe Dynamic Initialization property view contains two tabs:
• Cold Initialization
• Notes
2.7.1 Cold Initialization Tab
The Cold Initialization tab allows you to enforce certain cold
initialization conditions for the selected streams and unit
operations. All objects of this Dynamic Initialization Area using
the same Fluid Package must be initialized to the same
conditions as the Initialization Stream. You can apply similar
initialization parameters to successive dynamic simulations to
eliminate the need to either return to the steady state
environment or manually specify each individual simulation
object. Dynamic Initialization saves time during multiple
dynamic simulation runs.
There are three pages on the Cold Initialization tab: Objects,
Fluid Packages, and Configuration pages. These pages contain
the initialization parameters and are described in the following
sections.
 Figure 2.73
Refer to Fluid Packages
Page for more
information on fluid
package and initialization
stream.2-76
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-77
ww
ThObjects Page
The Objects page displays a list of objects that have been
selected for this dynamic initialization area. In the Selected
Objects table, the Name, and Type for each selected object is
shown.
The objects listed in the Selected Objects table are to be cold
initialized using the data specified on the Fluid Packages and
Configuration pages.
• You can add more objects to the list by clicking the Add
Object button.
• You can remove objects from the Selected Objects
table, by clicking the checkbox in the Remove column,
or by selecting the row containing the object and clicking
the Remove Object button.
• You can remove all of the objects from the Selected
Objects table by click the Remove All button.
 Figure 2.74
You can rename
the dynamic
initialization area
in the Name field.2-77
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-78 Dynamic Initialization
ww
ThYou can also add object(s) to the Selected Objects table
directly from the PFD by performing the following:
1. Select the object(s) in the PFD.
To select multiple objects on the PFD, hold down SHIFT and
left-click the mouse button (or click and drag the cursor)
over the objects you want to add to the list.
2. Right-click on one of the selected objects or right-click on a
blank area of the PFD.
The Object Inspect menu appears.
3. Select Dynamic Initialization from the Object Inspect
menu. Three sub-menus appear:
• Add Objects to Default. Adds the selected object(s)
directly to the Selected Objects table on the Objects
Page.
• Remove Objects from Default. Removes the selected
object(s) directly from the Selected Objects table on the
Objects Page.
• View Dynamic Init Manager. Opens the Dynamic
Initialization Manager.
 Figure 2.75
The Add Objects to Default and Remove Objects from Default
functions operate on the last Dynamic Initialization Area
which was selected in the Dynamic Initialization Manager.2-78
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-79
ww
ThFluid Packages Page
The Fluid Packages page allows you to specify the parameters of
an initialization stream for a specific fluid package. The holdups
as well as the streams for the selected objects on the Objects
page are initialized to be identical to the values of the
initialization stream.
 Figure 2.76
Object Description
Fluid Package
drop-down list
Displays a list of fluid packages for the simulation case.
Each fluid package used by the selected objects must
have an initialization stream.
Stream drop-
down list
Displays all the streams that use the selected fluid
package. The selected stream is the initialization
stream for the selected fluid package.
The initialization fluid must be vapour thus the stream
must have a vapour fraction of 1 (gas phase only).
Stream Data Set
radio buttons
Allows you to display the condition or composition for
the selected stream in the Stream Properties table.
View Stream
button
Opens the property view for the selected stream.
Stream
Properties table
• Condition. Displays the temperature, pressure,
and the vapour fraction for the selected stream.
• Composition. Displays the mole fractions of each
component in the selected stream.
Initialize Objects
button
Allows you to cold initialize all the selected objects on
the Objects page to the parameters specified for the
selected initialization stream.2-79
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-80 Dynamic Initialization
ww
ThConfiguration Page
The Configuration page allows you to activate the initialization
settings for specific equipment, logical operations, and stream
specifications for this dynamic initialization area.
You can also use a macro to programmatically manipulate the
initialization settings for any objects, particularly control logics
in spreadsheet operations. You can specify the name of the
macro in the User Variable Macro group. Once you click the
Initialize Objects button, the macro is executed.
To prevent heat transfer in a cold plant, the temperature of
the initialization stream must be set to the Default Ambient
Temperature, which is specified on the Heat Loss tab in the
Integrator property view.
Similarly, any heat transfer unit operations (e.g., heat
exchangers) that have two or more fluid packages used by
their associated streams should be initialized to the same
temperature as the Default Ambient Temperature.
 Figure 2.77
Aspen HYSYS provides default settings (in the Configuration
page) for a standard cold initialization process.
Refer to Chapter 2.4.4 -
Heat Loss Tab for more
information.
Refer to Boolean Logical
Operations,
Spreadsheets, and
Event Schedules
sections for more
information.2-80
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-81
ww
ThThe following operations and specifications are listed in the Unit
Operation Setting group:
Any unchecked operations or specifications listed in the Unit
Operation Setting group will have no effect when you
initialize objects.
Checkbox Description
Controller
Initialization
You can select this checkbox to initialize all controllers.
By default, the controller mode is set to Manual, and
the output is set to 0%.
You can specify a desired OP value other than the
default (0%). For more information, refer to the
following sections in the Aspen HYSYS Operations
Guide:
• Section 5.4.2 - Split Range Controller
(Initialization Page)
• Section 5.4.3 - Ratio Controller
(Initialization Page)
• Section 5.4.4 - PID Controller
(Initialization Page)
To restore the default Controller Initialization setting,
delete the Cold Init OP value in the Initialization page
(i.e., the Cold Init OP field is  on the
Initialization page).
Reset Digital
Point
There are three options available from the drop-down
list:
• No. Ignores the initialization option.
• OFF. Sets the output state to OFF.
• ON. Sets the output state to ON.
If the particular Digital Point(s) is in Manual mode, the
output state will remain when the integrator is started.
You can also specify the OP state in the Parameters
tab of the Digital Point operation.
Reset Selector Allows you to initialize the Selector output to 0.
Once the Integrator starts, the Selector will only
maintain its output at the desired value if the Selector
is in Hand Select mode or if the operations feeding the
Selector have been properly initialized.
You can specify a user-defined OP value for each
Selector.
Reset Transfer
Function
Allows you to initialize the transfer function with the OP
and PV equal to their minimum.
Transfer function block should have a user-specified PV
to ensure that its output remains constant.
You can specify a user-defined OP value for each
Transfer Function Block.
Reset Energy
Streams
Allows you to set the duty and any duty fluid flows to
0.
Refer to Spreadsheets
section for more
information on Controller,
Digital Point, Selector,
and Transfer Function.
Refer to Section 5.5.3 -
Parameters Tab in the
Aspen HYSYS
Operations Guide for
more information.
Refer to Selection Mode
Page section from
Section 5.8.3 -
Parameters Tab in the
Aspen HYSYS
Operations Guide for
more information.
Refer to Configuration
Page section from
Section 5.12.3 -
Parameters Tab in the
Aspen HYSYS
Operations Guide for
more information.2-81
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-82 Dynamic Initialization
ww
ThReset Stream
Flow Specs
Allows you to reset all stream flow specifications to 0.
Stream flow specifications in Aspen HYSYS dynamics
are not a natural way for modeling real life behavior
since flow usually occurs due to pressure gradients.
You should use the flow specifications with caution. It
is recommended to set the flow specifications to 0 for
cold initialization. It should be noted that when there is
a zero flow specification into a closed valve or flow
path, an absolute zero pressure is produced, and the
corrected pressure message appears in the trace
window.
Reset Stream
Pressure Specs
You can select this checkbox to set the pressure equal
to that of the initialization stream (Atmospheric
pressure is commonly used).
If you insert isolation valves on boundary streams that
have a different pressure than the initialization stream,
then you do not need to select this checkbox. Most
users would prefer to preserve pressure specifications.
Reset Valves There are three options available from the drop-down
list:
• No. Ignores this initialization option.
• Fail Position. The valve is set to its failed
position as specified on the Actuator page in the
Dynamics tab of the Valve.
Refer to Section 6.7 - Valve in the Aspen
HYSYS Operations Guide for more information.
• Closed. Indicates a 0% opening.
If a valve is used as a pressure drop device, most likely
it should not be set to Closed. Instead the actuator
minimum valve position could be set to 100%, so that
any non-open signal from the dynamic initialization will
be rejected.
Pump Off Allows you to set the duty, delta P, head, capacity, and
speed to 0 for all the pumps.
This option also turns off the pump by clearing the On
checkbox in the Pump property view.
Air Cooler Fans
Off
Allows you to turn off all the air cooler fans.
Reset
Compressor/
Expander
Allows you to set the speed, head, pressure drop, and
duty to 0 for all compressors and expanders.
Reset Heater/
Cooler specs
Allows you to set the duty to 0 for all heaters and
coolers. The product temperatures are set to be the
same as the temperature of the initialization stream.
All dynamic unit operations will have their holdups initialized
to that of the Initialization Stream.
Checkbox Description
Refer to Special
Behaviours and Usage
for Unit Operations
during Dynamic
Initialization for
additional information on
valve behavior during
dynamic initialization.
Refer to Section 9.3.2 -
Pump Property View in
the Aspen HYSYS
Operations Guide for
more information.2-82
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-83
ww
ThSpecial behaviors and Usage for Unit
Operations during Dynamic
Initialization
The following sections describe the special behaviors and usage
for some of the unit operations during dynamic initialization:
Valves
When an isolation valve is initialized to be closed, but its
downstream equipment is not in this initialization area, the
valves downstream holdup is still initialized to that of the
initialization stream. As a result, when a valve is cold initialized
without including any of its downstream equipment, the valve
will be closed but its downstream holdup (especially for non-
zero volume) will be set to the upstream initialization contents.
Boolean Logical Operations
Boolean logical operations and any complex logic modeling could
be done on a separate flowsheet with the output connections
going through a spreadsheet. This way, the flowsheet or
spreadsheet can be ignored or turned off and you can manually
line up any inconsistent logic. The cause-and-effect matrix
operation is not automatically initialized in any way.
Spreadsheets
The Spreadsheet operation is often used in control modeling.
The Integrator must be started on a new model before
performing the dynamic initialization. If you are having
difficulties converging the pressure-flow solver or you just
want to quickly cold initialize your new model, just set the
Integrator in manual mode, and start the Integrator. You do
not need to take any steps. Now you can cold initialize.2-83
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-84 Dynamic Initialization
ww
ThHowever in dynamic initialization, a spreadsheet cell should NOT
be used for the start of control or logic propagation. Instead,
Controller, Selector, Transfer Function, or Digital Control Points
could be used as the operator accessible points for turning on or
off the plant. For instance, the OP state of a Digital Point can be
imported into a spreadsheet cell and then operated upon before
it is sent out to the On/Off switch of a pump. As long as the
spreadsheets do not contain any time dependent behavior, they
should initialize with the inputs coming from one of the four
mentioned logical operations.
Event Schedules
It is recommended that all the schedules in the Event Scheduler
be reset manually to their OFF state before running the case in
dynamic initialization.
Static Head Contributions
There may be small movements in the cold initialized model if
static head contributions are turned on and the unit operations
have non-zero elevations entered. These should be minimal
since all streams and holdup should contain light gas.2-84
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Dynamic Tools 2-85
ww
Th2.7.2 Notes Page
The Notes page provides a text editor that allows you to record
any comments or information for future reference. You can use
the Notes page to describe the portion of the simulation case
that is initialized in this Dynamic Initialization Area.
 Figure 2.782-85
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-86 Dynamic Initialization
ww
Th2-86
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-1
ww
Th3  Control Theory3-1
3.1  Introduction................................................................................... 2
3.2  Process Dynamics .......................................................................... 3
3.2.1  Characteristic Parameters of the Process System .......................... 3
3.3  Basic Control................................................................................ 10
3.3.1  Available Control Operations .................................................... 16
3.4  Advanced Control......................................................................... 32
3.4.1  Model Predictive Control.......................................................... 32
3.5  General Guidelines....................................................................... 39
3.5.1  Effect of Characteristic Process Parameters on Control................. 39
3.5.2  Choosing the Correct Controller................................................ 41
3.5.3  Choosing Controller Tuning Parameters ..................................... 42
3.5.4  Setting Up a Control Strategy .................................................. 48
3.6  References................................................................................... 58
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-2 Introduction
ww
Th3.1 Introduction
Process control on a working level involves the control of
variables such as flowrate, temperature, and pressure in a
continuously-operating plant. Process control in a general sense
attempts to maximize profitability, ensure product quality, and
improve the safety and operating ability of the plant.
While steady state simulation in Aspen HYSYS allows the design
engineer to optimize operating conditions in the plant, dynamic
simulation allows you to:
• design and test a variety of control strategies before
choosing one that is suitable for implementation
• stress the system with disturbances as desired to test for
plant performance
Even after a plant has started operation, process engineers can
look for ways to improve the quality of the product, maximize
yield, or reduce utility costs. Dynamic simulation using Aspen
HYSYS allows the process engineer to compare alternative
control strategies and operating schemes in order to improve
the overall performance of the plant. In short, the engineer can
analyze performance off-line on a dynamic simulator, instead of
disturbing the actual process.
Three topics are covered in this chapter:
• The characteristic parameters of a process are discussed
in the Section 3.2 - Process Dynamics.
• The control strategies available in Aspen HYSYS are
discussed in the Section 3.3 - Basic Control and the
Section 3.4 - Advanced Control.
• The Section 3.5 - General Guidelines outlines some
steps you can follow to implement a control strategy in
Aspen HYSYS. Included in this section are several
techniques that can be used to determine possible initial
tuning values for the controller operations.3-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-3
ww
Th3.2 Process Dynamics
As a precursor to understanding the concepts of process control,
the dynamic characteristics of the process are discussed. The
task of designing a control scheme is best carried out if there is
a good understanding of the process system being studied. A
process’ response to change can vary considerably depending
on the manner in which the input is applied to the system and
the nature of the system itself. Therefore, it is important to
understand the dynamic characteristics of the process system
before proceeding with the process control design.
As detailed in Chapter 1 - Dynamic Theory, many chemical
engineering systems are non-linear in nature. However, it is
convenient to define some essential characteristic parameters of
a process system by approximating the system as linear.
3.2.1 Characteristic
Parameters of the Process
System
It is easiest to define a chemical process system using the
general conservation principle which states that:
Rate of accumulation = Input - Output + Internal
Generation
(3.1)3-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-4 Process Dynamics
ww
ThTo describe some characteristic parameters of a chemical
process system, the general conservation principle is applied to
a flow relation first order liquid level system:
The conservation of material in the tank is expressed as follows:
where:
H = liquid height in the tank
A = cross-sectional area of the tank
Fi = inlet flow rate
Fo = exit flow rate
There is a non-linear relationship describing the flow out of the
bottom of the tank, Fo, and the liquid height in the tank, H.
However, to express Equation (3.2) as a first order linear
differential equation, it must be assumed that the exit flow
varies linearly with height. Linearity can be assumed in
situations where the flow does not vary considerably over time.
The exit flow, Fo, can be expressed in terms of the linearity
constant, R (the valve resistance):
 Figure 3.1
(3.2)
(3.3)
AdHdt
------- Fi Fo–=
Fo
H
R
---=3-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-5
ww
ThEquation (3.2) can therefore be expressed as:
Equation (3.5) is a general first-order differential which can be
expressed in terms of two characteristic parameters: the steady
state gain, K, and the time constant, :
where:
y(t) = output of the system
u(t)= input to the system
K = steady state gain
 = time constant of the system
The change in liquid level, H, is the change in the output of the
system, y(t). The change in the input to the system, u(t), is the
change in flow into the tank, Fi. Similarly, the time constant, ,
and the steady state gain, K, can be expressed as:
(3.4)
(3.5)
(3.6)
(3.7)
AdHdt
------- Fi
H
R
---   –=
RAdHdt
------- H+ RFi=
τ
τdydt
----- y t( )+ Ku t( )=
τ
τ
τ AR  and  K R ==3-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-6 Process Dynamics
ww
ThWhen a step function of magnitude M is applied to the general
first-order system, the output response, y(t), is as follows:
As shown, the output, y(t), attains 63.2% of its final steady
state value in one time constant. The output’s response in
equation form is:
or in terms of the first-order tank example:
The following is a list of characteristic parameters that can be
defined in terms of the first-order response illustrated in the
previous example.
 Figure 3.2
(3.8)
(3.9)
y t( ) MK 1 e
t–
τ
----
–=
H t( ) MR 1 e
t
AR
-------–
–=3-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-7
ww
ThProcess Gain
The process gain is defined as the ratio of the change/deviation
in the process output to the change/deviation in the process
input. The change in the process input is defined in Equation
(3.6) as u(t). The change in the process output is defined as
y(t). The first term in Equation (3.6) is transient and becomes
zero at steady state. Therefore, the gain can be calculated as
shown in the equation below.
where:
ySSnew = new steady state y
uSSnew = new steady state U
For this liquid level example, the steady state gain, K, is the
valve resistance, R. Therefore, a step change in the flow into the
tank of magnitude M results in a change in liquid level, H(t), in
the tank equal to MR.
Time Constant
The time constant, , defines the speed of the response. The
response of the system always follow the profile shown in
Figure 3.2. After  time units, the response y(t) equals
0.632MK or 63.2% of the ultimate gain. This is always true for
first-order systems without time delays. For this liquid level
example, the time constant is the product of the area of the
tank, A, and the resistance of the exit valve, R.
(3.10)Steady state gain
ySSnew ySS–
uSSnew uSS–
------------------------------ K= =
τ
τ
3-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-8 Process Dynamics
ww
ThCapacity
Definition 1
Capacity can be defined simply as the volume or storage space
of a system. The capacitance of a system dampens the output
causing the response to take time to reach a new steady state.
For electrical systems, the capacity is defined in terms of the
resistance of the system and the time constant of the response:
In the liquid level example, the capacity is the cross sectional
area of the tank. Since the capacity of a system is proportional
to the time constant, , it can be concluded that the larger the
capacity, the slower the response of the system for a given
forcing function.
In first order systems, the capacity of a system has no effect on
the process gain. However, the capacity varies in direct
proportion with the time constant of a system.
Definition 2
A system’s capacity is also defined as its ability to attenuate an
incoming disturbance. Attenuation is defined as:
(3.11)
The time constant is the same as the hold up or residence
time.
(3.12)
C τ
R
--=
τ
Attenuation 1  Response Amplitude out of the system
Disturbance Amplitude into the system
---------------------------------------------------------------------------------------------–
Attenuation =   1 Amplitude Ratio–
=
3-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-9
ww
ThThe input, u(t), to the first order system can be changed from a
step function to a sinusoidal function:
where:
 = frequency of the input response
M = amplitude of the input function
The response of the system y(t) becomes:
where:
After the transient term becomes negligible (the first bracketed
term), an ultimate periodic response remains (the second term).
The response amplitude of the system is therefore:
Since the disturbance amplitude into the system is M, the
amplitude ratio is:
(3.13)
(3.14)
(3.15)
(3.16)
u t( ) M ωt( )sin=
ω
y t( ) MK ωτ
ωτ( )2 1+
-----------------------e t τ/– 1
ωτ( )2 1+
--------------------------- ωt φ+( )sin+=
φ ωτ–( )1–tan=
y t( ) MK
ωτ( )2 1+
---------------------------=
AR K
ωτ( )2 1+
---------------------------=3-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-10 Basic Control
ww
ThDead Time
While capacitance is a measure of how fast a system responds
to disturbances, dead time is a measure of the amount of time
that elapses between a disturbance to the system and the
observed response in the system.
Time delays in a system can be significant depending on the
nature of the process and the location of measuring devices
around the process. It is usually the time associated with the
transport of material or energy from one part of the plant to
another that contributes to time delays observed in a system.
The dead time of a process is easily modeled using the Transfer
Function block operation.
3.3 Basic Control
The PID Controller operation is the primary tool that you can use
to manipulate and control process variables in the dynamic
simulation. You can implement a variety of feedback control
schemes by modifying the tuning parameters in the PID
Controller operation. Tuning parameters can be modified to
incorporate proportional, integral, and derivative action into the
controller. A Digital On/Off control operation is also available.
Cascade control can be realized using interacting PID Controller
operations. There is a feed forward controller built into the PID.
Instrumentation dynamics can also be modeled in Aspen HYSYS,
increasing the fidelity of the simulation with real valve
dynamics. Final control elements can be modeled with
hysteresis. The valve response to controller input can be
modeled as instantaneous, linear, or first order. Dead time, lags,
leads, whether they originate from disturbances or within the
process control loop can be modeled effectively using the
Transfer function operation.
One has cascade control when the output of one controller is
used as the set point of another controller.3-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-11
ww
ThTerminology
Before reviewing the major control operations that are available
in Aspen HYSYS, it is useful to be familiar with the following
terms.
Disturbances
A disturbance upsets the process system and causes the output
variables to move from their desired set points. Disturbance
variables cannot be controlled or manipulated by the process
engineer. The control structure should account for all
disturbances that can significantly affect a process. The
disturbances to a process can either be measured or
unmeasured.
Open Loop Control
An open loop response from a process is determined by varying
the input to a system and measuring the output’s response. The
open loop response to a first-order system from a step input is
shown in Figure 3.2. In open loop control, the controller sets
the input to the process without any knowledge of the output
variable that closes the loop in feedback control schemes.
 Figure 3.33-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-12 Basic Control
ww
ThA common example of open loop control is the control of traffic
in a city. The traffic lights change according to a set of
predetermined rules.
Feedback Control (Closed Loop)
Feedback control is achieved by “feeding back” process output
information to the controller. The controller makes use of the
current information about the process variable to determine
what action to take to regulate the process variable. This is the
simplest and most widely used control structure in chemical
process systems.
Feedback control attempts to maintain the output variable, PV,
at a user-defined set point, SP. There are some basic steps that
are carried out by the controller to achieve this task:
1. Measure the output variable, PV.
2. Compare the measured value, PV, with the desired set point
value, SP. Calculate the error, E(t), between the two values.
The definition of error depends on the whether the controller
is direct or reverse acting.
 Figure 3.43-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-13
ww
Th3. Supply the error, E(t), to the general control equation. The
value of the desired percent opening of the control valve,
OP%, is calculated.
4. The value of OP% is passed to the final control element
which determines the input to the process, U(t).
5. The entire procedure is repeated.
The general control equation for a PID controller is given by:
where:
OP(t) = controller output at time t
E(t) = error at time t
Kc = proportional gain of the controller
Ti = integral (reset) time of the controller
Td = derivative (rate) time of the controller
 Figure 3.5
(3.17)OP t( ) KcE t( )
Kc
Ti
----- E t( ) KcTd
dE t( )
dt
-------------+∫+=3-13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-14 Basic Control
ww
ThDirect and Reverse Acting
The input to the feedback controller is called the error or the
difference between the output process variable and the set
point. The error is defined differently depending on whether the
process has a positive or negative steady state gain. For a
process with a positive steady state gain, the error should be
defined as reverse acting.
where:
SP(t) = set point
PV(t) = measured output process variable
If the PV rises above the SP, the OP, or input to the process,
decreases. If the PV falls below the SP, the OP increases.
For a process with a negative steady state gain, the error should
be set as direct acting:
That is, if the PV rises above the SP, the OP, or input to the
process, increases. If the PV falls below the SP, the OP
decreases.
A typical example of a reverse acting controller is in the
temperature control of a reboiler. In this case, as the
temperature in the vessel rises past the SP, the OP decreases, in
effect closing the valve and hence the flow of heat.
(3.18)
(3.19)
E t( ) SP t( ) PV t( )–=
E t( ) PV t( ) SP t( )–=3-14
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-15
ww
ThStability
The stability of a system is a very important aspect to consider
when designing control schemes. Most systems can have
oscillatory responses, depending on its controller tuning
parameters. When a process is upset by a bounded disturbance
or bounded change in the input forcing function, the output
typically responds in one of three ways:
• The response proceeds to new steady state and
stabilizes.
• The response oscillates continuously with a constant
amplitude.
• The response grows continuously and never reaches
steady state conditions.
The system is generally considered stable if the response
proceeds to a steady state value and stabilizes. It is considered
unstable if the response continues to grow unbounded. A stable
open loop response is said to be self-regulating. If the open loop
response of a system is not stable, it is said to be non-self-
regulating.
 Figure 3.63-15
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-16 Basic Control
ww
ThFor example, a pure integrating process, such as a tank with a
pumped (constant) exit flow, is non-self-regulating since a
bounded increase in the flow input to the system from steady
state results in the response (liquid height) to increase
continuously.
A prerequisite for closed loop control is that the closed loop
response is stabilizable. The closed loop response can vary
considerably depending on the tuning parameters used in the
feedback control equation. In general, a higher controller gain
gives tighter control. However, the value of Kc cannot increase
indefinitely. The response remains stable up to a certain value of
Kc. Increasing Kc beyond the stability limit can cause the closed
loop response to become unstable.
A number of factors can affect the stability of a closed loop
system:
• Tuning parameters
• Non-linearities in the process
• Range and non-linearities in the instruments
• Interactions between control loops
• Frequency of disturbance
• Capacity of process
• Noise in measurement of process variables
3.3.1 Available Control
Operations
Modeling Hardware Elements
The plant can be simulated more accurately by modeling the
hardware elements of the control loop. Non-linearities can be
modeled in the Valve operation in the Actuator page of the
Dynamics tab.3-16
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-17
ww
ThSensors
Sensors are used to measure process variables. In Aspen
HYSYS, the sensing instrument is incorporated directly in the
PID Controller operation. You can choose the range of the
sensing instrument in the Min and Max PV parameters in the
controller operation. It is assumed in Aspen HYSYS that the PID
controller is perfectly accurate in its measurement of the
process variable.
Final Control Element – Valve Dynamics
You have the option of specifying a number of different dynamic
modes for the valve. If valve dynamics are very quick compared
to the process, the instantaneous mode can be used. The
following is a list of the available dynamic modes for the valve
operation:
Final Control Element – Valve Type
The flowrate through a control valve varies as a function of the
valve percent opening and the Valve Type. Valve type can be
defined more easily by expressing flow as a percentage, Cv (0%
representing no flow conditions and 100% representing
maximum flow conditions). The valve type can then be defined
as the dependence on the quantity of %Cv as a function of the
actual valve percent opening.
Valve Mode Description
Instantaneous In this mode, the actuator moves instantaneously to the desired
OP% position from the controller.
First Order A first order lag can be modeled in the response of the actuator
position to changes in the desired OP%. The actuator time constant
can be specified in the Parameters field.
Similarly, a first order lag can be modeled in the response of the
actual valve position to changes in the actuator position. The valve
stickiness time constant is specified in the Parameters field. In
effect, a second order lag can be modeled between the valve
position and the desired OP%.
Linear The actuator can be modeled to move to the desire OP% at a
constant rate. This rate is specified in the Parameters field.
For more information
about the dynamic valve
operation, see Section
6.7 - Valve in the Aspen
HYSYS Operations
Guide.3-17
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-18 Basic Control
ww
ThThere are three different valve characteristics available in Aspen
HYSYS. The valve types are specified in the Ratings tab in the
Valve Type and Sizing Methods group.
The valve characteristics are shown graphically as follows:
Valve Type Description
Linear A control valve with linear valve characteristics has a flow
which is directly proportional to the valve% opening.
Quick
Opening
A control valve with quick opening valve characteristics
obtains larger flows initially at lower valve openings. As the
valve opens further, the flow increases at a smaller rate.
Equal
Percentage
A control valve with equal percentage valve characteristics
initially obtains very small flows at lower valve openings.
However, the flow increases rapidly as the valve opens to
its full position.
 Figure 3.7
CV% Valve Opening %=
CV% Valve Opening %( )0.5=
CV% Valve Opening %( )3=
0 20 40 60 80 100
0
20
40
60
80
100
Quick Opening
Linear
Equal
Percentage
% Valve Position
% Cv
CONTROL VALVE FLOW CHARACTERISTICS3-18
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-19
ww
ThFeedback Control
Digital On/Off
Digital On/Off control is one of the most basic forms of
regulatory control. In Aspen HYSYS, it is implemented using the
Digital Point operation. An example of On/Off control is a home
heating system. When the thermostat detects that the
temperature is below the set point, the heating element turns
on. When the temperature rises above the set point, the heating
element turns off.
Control is maintained using a switch as a final control element
(FCE). On/Off control parameters are specified in the
Parameters page of the Digital Point operation in Aspen HYSYS.
If the OP is ON option is set to “PV < Threshold”, the controller
output turns on when the PV falls below the set point.
The opposite is true when the OP is ON option is set to “PV >
Threshold”.
(3.20)
(3.21)
For more information on
the Digital Point
operation in Aspen
HYSYS, see Section 5.5
- Digital Point in the
Aspen HYSYS
Operations Guide.
OP 0% for PV > SP and OP 100% for PV < SP ==
OP 0% for PV < SP and OP 100% for PV > SP ==3-19
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-20 Basic Control
ww
ThOne main characteristic of the On/Off controller is that the PV
always cycle about the set point.
The cycling frequency depends on the dynamics of the process.
Those systems with a large capacity (large time constant) cycles
less frequently. The On/Off controller is an appropriate controller
if the deviation from the set point is within an acceptable range
and the cycling does not destabilize the rest of the process.
 Figure 3.83-20
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-21
ww
ThProportional Control (P-only)
Unlike On/Off control, proportional control can damp out
oscillations from disturbances and stop the cycling of the
process variable. P-only control is implemented in Aspen HYSYS
by setting the values of Td and Ti to infinity (or in Aspen HYSYS
to ) in the PID Controller operation. With P-only
control, oscillations that occur in the process variable due to
disturbances or changes in the set point dampen out the
quickest (have the smallest natural period) among all other
simple feedback control schemes. The output of the proportional
control is defined as:
The value of the bias, OPss, is calculated when the controller is
switched to Automatic mode. The set point is defaulted to equal
the current PV. In effect, the error becomes zero and OPss is
then set to the value of OP(t) at that time.
A sustained offset between the process variable and the set
point is always present in this sort of control scheme. The error
becomes zero only if:
• the bias, OPss, equals the operating variable, OP
• Kc becomes infinitely large
However, Kc cannot practically become infinitely large. The
magnitude of Kc is restricted by the stability of the closed loop
system.
(3.22)
In general, a higher controller gain gives tighter control.
However, the value of Kc cannot increase indefinitely. The
response remains stable up to a certain value of Kc.
Increasing Kc beyond the stability limit causes the closed
loop response to become unstable.
OP t( ) OPss KcE t( )+=3-21
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-22 Basic Control
ww
ThThe following shows the effect of the magnitude of Kc on the
closed loop response of a first order system to a unit step
change in set point.
Proportional only control is suitable when a quick response to a
disturbance is required. P-only control is also suitable when
steady state offsets are unimportant, or when the process
possesses a large integrating process (has a large capacity).
Many liquid level control loops are under P-only control. If a
sustained error is undesirable, integral action is required to
eliminate the offset.
 Figure 3.93-22
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-23
ww
ThProportional Integral Control (PI)
Unlike P-only control, proportional + integral control can
dampen out oscillations and return the process variable to the
set point. Despite the fact that PI control results in zero error,
the integral action of the controller increases the natural period
of the oscillations. That is, PI control takes longer to line out
(dampen) the process variable than P-only control. The output
of the proportional controller + integral controller is defined as:
The integral term serves to bring the error to zero in the control
scheme. The more integral action there is, the slower the
response of the controller. The integral term continuously moves
to eliminate the error. The closed loop response of a process
with PI control and P-only control is shown as follows:
(3.23)
 Figure 3.10
OP t( ) KcE t( )
Kc
Ti
----- E t( )∫+=3-23
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-24 Basic Control
ww
ThThe integral time, Ti, is defined as the amount of time required
for the controller output to move an amount equivalent to the
error. Because the relationship between Ti and the control action
is reciprocal, increasing Ti results in less integral action, while
decreasing Ti results in greater integral action. The integral time
should be decreased (increased integral action) just enough to
return the process variable to the set point. Any more action
only serves to lengthen the response time.
PI control is suitable when offsets cannot be tolerated. The
majority of controllers in chemical process plants are under PI
control. They combine accuracy (no offset) with a relatively
quick response time. However, the added integral action acts as
a destabilizing force which can cause oscillations in the system
and cause the control system to become unstable. The larger
the integral action the more likely it becomes unstable.
Proportional Integral Derivative Control
(PID)
If the response of a PI controller to a disturbance is not fast
enough, the derivative action in a PID controller can reduce the
natural period of oscillations even further. By measuring the rate
of change in error, the controller can anticipate the direction of
the error and thus respond more quickly than a controller
without derivative action. The output of the proportional +
integral + derivative controller is defined as:
Td is defined as the time required for the proportional action to
reach the same level as the derivative action. It is, in effect, a
lead term in the control equation. For a ramped input, the
proportional only response is ramped, as well. For the same
ramped input the derivative only response is constant.
As the slope of the measured error increases to infinity, so does
the derivative action. While a perfect step change with a slope of
(3.24)OP t( ) KcE t( )
Kc
Ti
----- E t( ) KcTd
dE t( )
dt
-------------+∫+=3-24
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-25
ww
Thinfinity in either the set point or the measured process variable
is not physically possible, signals which have short rise times
and fall times can occur. This adversely affects the output of the
derivative term in the control equation, driving the controller
response to saturation.
Derivative action control is best for processes that have little or
no dead times and large capacities. Processes such as these
having large lags benefit from the additional response speed
that derivative action provides.
While the integral term in PID control schemes reduces the error
to zero, it also adds a considerable lag to the response
compared to P-only control. It is the derivative action in PID
control which shortens the controller’s response to be
comparable to the response of a P-only controller.
However, if a controller has a noisy input which cannot be
filtered or minimized in the process, PID control is not a suitable
control scheme.
 Figure 3.113-25
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-26 Basic Control
ww
ThCascade Control
Cascade control is a technique that implements a secondary
feed back control loop within a primary feedback control loop.
Cascade control can be used when there are significant
disturbances to the manipulated variable of the primary loop.
A secondary loop is created to control the manipulated variable
of the primary loop. The primary loop then manipulates the set
point of the secondary controller.
Consider an example where the main process variable could
better be controlled using a cascade control scheme. The Btms
stream of a distillation column is being heated in a reboiler
whose energy source is steam.
As shown above, the objective is to regulate T, the temperature
of the Btms stream. A possible feedback control scheme is to
control the Btms stream temperature using the steam valve
opening. This traditional control setup works well if the steam
valve opening corresponds exactly with the flow of steam to the
reboiler.
 Figure 3.123-26
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-27
ww
ThHowever, disturbances occurring in the steam supply header can
alter the flow of steam significantly even at a constant valve
opening. The only way this type of disturbance can be detected
by the controller is with a change in the Btms temperature, T. If
there is a large lag associated with the reboiler heating system
and if disturbances to the steam header flow occur frequently,
there is the possibility that the Btms temperature, T, never
settles to the desired set point.
Cascade control dampens disturbances to the inlet flow of steam
by using a feedback controller within a feedback controller. The
primary (or Master) controller measures the variable to be
controlled, the exit temperature T, and determines the required
steam flow requirement in a feedback loop.
The steam flow requirement becomes the set point of the
secondary feedback controller. The secondary control loop is set
up as a regular feedback controller. It measures the flow rate of
steam as the Process Variable Source.
 Figure 3.133-27
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-28 Basic Control
ww
ThThe Output Target Object is the steam control valve opening
which needs to be sized as usual. Because the Output Target
Object of the primary loop is the secondary loop’s set point, the
primary loop does not have a control valve. It is the secondary
controller that physically interacts with the system by adjusting
the steam valve.
Cascade control can be successfully implemented if the following
occur:
• Disturbances affect the input to the primary feedback
controller.
• Disturbances are measurable by the secondary control
loop.
• The response period of the primary loop is more than 3
times greater than the response period of the secondary
loop.
Starting up a Cascade System1
To put a cascade system into operation in Aspen HYSYS:
1. Place the primary control in manual. This breaks the cascade
and allows the secondary controller to be tuned.
2. Tune the secondary controller as if it were the only control
loop present.
3. Return the secondary controller to the remote set point by
placing the primary controller in automatic.
4. Now tune the primary loop normally. If the system begins to
oscillate when the primary controller is put in automatic,
reduce the primary controller’s gain.
Feedforward Control
Feedforward control can be used in cases for which feedback
control cannot effectively control a process variable. The main
disadvantage of feedback control is that the controller must wait
until disturbances upset the process before responding.
With feedforward control, the controller can compensate for
disturbances before the process is affected. Cascade control is
useful when measured disturbances significantly affect the input 3-28
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-29
ww
Thto a process. However, feedforward control is useful if there are
measured disturbances which affect the output of the process.
With feedback control, the controller requires information about
the controlled process variable, PV, and the set point, SP, in
order to determine the value of OP%, the desired valve percent
opening of the input to the process. To determine the value of
OP%, the feedforward controller requires information from two
variables: the set point of the process variable, SP, and the
disturbance affecting the process.
The current implementation contains a lead/lag transfer
function.
 Figure 3.143-29
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-30 Basic Control
ww
ThConsider an example of a liquid stream being heated in a steam
heat exchanger.
It is desired to control the Exit stream temperature, T2, at a
certain set point, SP, using the Steam flow as the manipulated
variable. However, the process suffers from frequent changes in
the Feed temperature, T1.
To determine the value of OP%, the values of SP and T1 are
required by the controller. At steady state, the overall energy
balance relates the steam flow to the disturbance of the process,
T1, and the temperature of stream Exit, T2:
where:
Fs = steam flow
 = heat of condensation for steam
F = flow of stream Exit
Cp = specific heat of stream Exit
 Figure 3.15
(3.25)Fsλ FCp T2 T1–( )– 0=
λ
3-30
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-31
ww
ThFrom this process model, the desired value of steam flow into
the heat exchanger can be calculated. The flow of steam must
be calculated such that the temperature of stream Exit, T2,
equals the desired temperature, SP. Therefore, Equation
(3.25) becomes:
To calculate the feedforward controller output, a linear relation
is assumed to exist between the steam flow and the valve
opening of the steam valve. Therefore, the final form of the
feedforward controller equation is:
To successfully implement a feedforward control system,
consider the following:
• It cannot be implemented if the disturbance is not
measurable. If unexpected disturbances enter the
process when pure feedforward control is used, no
corrective action is taken and the errors build up in the
system.
• A fairly accurate model of the system is required.
• The feedforward controller contains the reciprocal of the
process model. Even if the process model is accurate, a
time delay in the process model implies that a predictor
is required in the feedforward controller. Unfortunately, it
is impossible to predict the nature of disturbances before
they occur.
The process variable to be controlled is not measured using
feedforward control. There is no way of confirming that the
process variable is attenuating disturbances or maintaining a
desired set point.
Considering that an accurate model of the process is not usually
available, that the process or valve dynamics are not accounted
for in this control scheme, and that the valve opening percent is
not related linearly to the flow in most dynamic simulation
applications, there is probably an offset between the actual
controlled variable and its desired set point.
(3.26)
(3.27)
Fs
Cp
λ
------F SP T1–( )=
OP t( )
Cp
λ
-----F SP T1–( )steam valve span
100%
---------------------------------------------=3-31
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-32 Advanced Control
ww
ThTherefore, feedback control is often used in conjunction with
feedforward control to eliminate the offset associated with
feedforward-only control. Feedforward control in Aspen HYSYS,
can be implemented using the spreadsheet operation. Variables
can be imported from the simulation flowsheet.
A feedforward controller can be calculated in the spreadsheet
and the controller output exported to the main flowsheet. If the
operating variable, OP, is a valve in the plant, the desired
controller output calculated by the spreadsheet should be
exported to the Actuator Desired Position of the valve.
3.4 Advanced Control
3.4.1 Model Predictive Control
Model Predictive Control (MPC) refers to a class of algorithms
that compute a sequence of manipulated variable adjustments
to optimize the future behavior of a plant. A typical MPC has the
following capabilities:
• Handles multi-variable systems with process interactions.
• Encapsulates the behavior of multiple Single Input Single
Output (SISO) controllers and de-couplers.
• Uses a process model, i.e., a first order model or a step
response data is required.
• Incorporates the features of feedforward control, i.e.,
must be a measured disturbance by taking in
consideration the model disturbances in its predictions.
• Poses as an optimization problem and is therefore
capable of meeting the control objectives by optimizing
the control effort, and at the same time is capable of
handling constraints.
MPC technology was originally developed to meet the specialized
control needs of power plants and petroleum refineries, but it
can now be found in a wide variety of application areas
including:
• chemicals
• food processing
• automotive
• aerospace
• metallurgy
• pulp and paper3-32
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-33
ww
ThMPC vs. PID
When the MPC controller is compared to the ubiquitous PID
controller, some differences are readily apparent. First, it is
essential that there exist a model of the process to use an MPC
controller.
Like most advanced controllers, the model of the process is used
to form predictions of the process outputs based on present and
past values of the input and outputs. This prediction is then
used in an optimization problem in which the output is chosen
so that the process reaches or maintains its set point at some
projected time in the future.
MPC Theory
Currently most model predictive control techniques like Dynamic
Matrix Control (DMC) and Model Algorithmic Control (MAC) are
based on optimization of a quadratic objective function involving
the error between the set point and the predicted outputs. In
these cases, a discrete impulse response model can be used to
derive the objective function.
Let a0, a1, a2,...,aT represent the value of the unit step response
function obtained from a typical open loop process, as shown in
the figure below:
 Figure 3.163-33
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-34 Advanced Control
ww
ThFrom the figure above, you can define ai = 0 for . Consider a
step response resulting from a change ( ) in the input. Let
be the actual output,  the predicted value of the output
variable and  the value of the manipulated variable at the nth
sampling interval. If there is no modeling error and no
disturbances to them.
Denoting , the convolution model of the single
step response function, see figure below, is given as follows:
The control horizon U is the number of control actions (or
control moves) that are calculated to affect the predicted
outputs over the prediction horizon V, (i.e., over the next V
sampling periods). Similarly, the discrete model can be written
as follows:
(3.28)
(3.29)
 Figure 3.17
(3.30)
i 0≤
Δm cn
ĉn
mn
ĉn cn=
Δmi mi mi 1––=
ĉn 1+ c0 aiΔmn 1 i–+
i 1=
T
∑+=
ĉn 1+ c0 himn 1 i–+
i 1=
T
∑+=3-34
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-35
ww
ThWhere hi is the impulse response coefficient. Shifting the model
back one time step, Equation (3.30) can be written as follows:
Subtracting Equation (3.31) from Equation (3.30), a
recursive form of the model expressed in incremental change
can be obtained:
To provide corrections for the influence of model errors and
unmeasured load changes during the previous time step, a
corrected prediction is used in the model. This corrected
value is obtained by comparing the actual value of  with
and then shifting the correction forward, as follows:
Substituting the corrected prediction in Equation (3.32) results
in the following recursive form:
The Equation (3.34) can be extended to incorporate
predictions for a number of future time steps allowing the
model-based control system to anticipate where the process is
heading.
(3.31)
(3.32)
(3.33)
(3.34)
ĉn c0 himn i–
i 1=
T
∑+=
Δm
ĉn 1+ ĉn hiΔmn 1 i–+
i 1=
T
∑+=
cn 1+
*
cn ĉn
cn 1+
* ĉn 1+– cn ĉn–=
cn 1+
* cn hiΔmn 1 i–+
i 1=
T
∑+=3-35
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-36 Advanced Control
ww
ThA new design parameter called prediction horizonV is
introduced, which influences control system performance, and is
expressed in terms of incremental changes in the manipulated
variable:
where:
j = 1, 2, ..., V
Suppose that arbitrary sequence of U input changes are made,
then using a prediction horizon of V sampling periods, Equation
(3.35) can be expressed in a vector-matrix form as:
where:
Using the predicted behavior of the process (see Equation
(3.36)) over the prediction horizon, a controller in model
(3.35)
(3.36)
(3.37)
(3.38)
(3.39)
cn j+
* cn j 1–+
* hiΔmn j i–+
i 1=
T
∑+=
cn 1+
*
cn 2+
*
cn 3+
*
.
.
.
cn V+
*
a1 0 0 … 0
a2 a1 0  0
a3 a2 a1  0
.    .
.    .
.    .
aV aV 1– aV 2– … aV U– 1+
Δmn
Δmn 1+
Δmn 2+
.
.
.
Δmn U 1–+
cn P1+
cn P2+
cn P3+
.
.
.
cn PV+
+=
ai hj
j 1=
i
∑=
Pi Sj
j 1=
i
∑= for i 1 2 … V,,,=
Si hi Δmn j i–+
i j 1+=
T
∑= for j 1 2 … V,,,=3-36
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-37
ww
Thpredictive control can be designed. The control objective is to
compute the manipulated variables to ensure that the predicted
response has certain desirable characteristics (i.e., to have the
corrected predictions  approach the set point as closely as
possible).
One sampling period after the application of the current control
action, the predicted response is compared with the actual
response. Using the corrective feedback action for any errors
between actual and predicted responses, the entire sequence of
calculation is then repeated at each sampling instant.
Denoting the set point trajectory, (in other words, the desired
values of the set point V time steps into the future), as
, Equation (3.36) can be written as:
where:
 = the  triangular matrix
 = the  vector of future control moves.
 and  = the closed loop and open loop predictions,
respectively, and are defined as follows:
For a perfect match between the predicted output trajectory of
the closed loop system and the desired trajectory, then
and Equation (3.40) becomes:
(3.40)
(3.41)
cn j+
*
rn j+ j 1 2 … V,,,=,
Ê A Δm– E'ˆ+=
A V U×
Δm U 1×
Ê E'ˆ
Ê
rn 1+ cn 1+
*–
rn 2+ cn 2+
*–
.
.
.
rn V+ cn V+–
= E'ˆ
En P1–
En P2–
.
.
.
En PV–
=
Ê 0=
Δm A( ) 1– E'ˆ=3-37
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-38 Advanced Control
ww
ThThe best solution can be obtained by minimizing the
performance index:
Here, the optimal solution for an over-determined system
turns out to be the least squares solution and is given by
where:
 = pseudo-inverse matrix
 = matrix of feedback gains (with dimensions )
One of the shortcomings of Equation (3.42) is that it can result
in excessively large changes in the manipulated variable, when
 is either poorly defined or singular. One way to overcome
this problem is by modifying the performance index by
penalizing movements of the manipulated variable.
where:
 and  are positive-definite weighting matrices for
predicted errors and control moves, respectively. These
matrices allows you to specify different penalties to be
placed on the predicted errors resulting in a better
tuned controller.
The resulting control law that minimizes  is
The weighting matrices  and  contains a potentially large
number of design parameters. It is usually sufficient to select
 and  (  is the identity matrix and  is a scalar
(3.42)
(3.43)
(3.44)
(3.45)
J Δm[ ] ÊTÊ=
U V<( )
Δm ATA( )
1– ATE'ˆ KcE'ˆ= =
ATA( )
1– AT
Kc V U×
ATA
J Δm[ ] ÊTΓuÊ ΔmTΓyΔm+=
Γu Γy
J
Δm ATΓuA Γy+( )
1– ATΓuE'ˆ KcE'ˆ= =
Γu Γy
Γu I= Γy f I= I f3-38
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-39
ww
Thdesign parameter). Large values of  penalize the magnitude of
 more, thus giving less vigorous control. When , the
controller gains are very sensitive to , largely because of the
poor definition of , and  must be made small.
3.5 General Guidelines
3.5.1 Effect of Characteristic
Process Parameters on
Control
The characteristic parameters of a process have a significant
effect on how well a controller is able to attenuate disturbances
to the process. In many cases, the process itself is able to
attenuate disturbances and can be used in conjunction with the
controller to achieve better control. The following is a brief
outline of the effect of capacity and dead time on the control
strategy of a plant.
Capacity
The ability of a system to attenuate incoming disturbances is a
function of the capacitance of a system and the period of the
disturbances to the system. From Terminology section,
attenuation is defined as:
The time constant, , is directly proportional to the capacity of a
linear process system. The higher the capacity (time constant)
is in a system, the more easily the system can attenuate
incoming disturbances since the amplitude ratio decreases.
(3.46)
f
Δm f 0=
U
ATA U
Attenuation = 1 K
ωτ( )2 1+
---------------------------–
τ
3-39
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-40 General Guidelines
ww
ThThe frequency of incoming disturbances affects the system’s
ability to attenuate these disturbances. High-frequency
disturbances are more easily attenuated than low-frequency
disturbances.
Dead Time
The dead time has no effect on attenuating disturbances to open
loop systems. However, it does have a significant negative effect
on controllability. Dead time in a process system reduces the
amount of gain the controller can implement before
encountering instability. Because the controller is forced to
reduce the gain, the process is less able to attenuate
disturbances than the same process without dead time.
Tight control is possible only if the equivalent dead time in the
loop is small compared to the shortest time constant of a
disturbance with a significant amplitude. It is generally more
effective to reduce the dead time of a process than increase its
capacity.
To reduce dead time:
• Relocate sensor and valves to more strategic locations.
• Minimize sensor and valve lags (lags in the control loop
act like dead time).
To reduce the lag in a system and therefore reduce the effects of
dead time, you can also modify the controller to reduce the lead
terms to the closed loop response. This can be achieved by
adding derivative action to a controller. Other model-based
controller methods anticipate disturbances to the system and
reduce the effective lag of the control loop.
With capacity-dominated processes (with little or no dead
time), proportional-only control can achieve much better
disturbance rejection. The system itself is able to attenuate
disturbances in the frequency range that the controller
cannot. High frequency disturbances can be handled by the
system. Low frequency disturbances are handled best with
the controller.3-40
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-41
ww
Th3.5.2 Choosing the Correct
Controller
You should consider what type of performance criteria is
required for the set point variables, and what acceptable limits
they must operate within. Generally, an effective closed loop
system is expected to be stable and cause the process variable
to ultimately attain a value equal to the set point. The
performance of the controller should be a reasonable
compromise between performance and robustness.
A very tightly tuned or aggressive controller gives good
performance, but is not robust to process changes. It could go
unstable if the process changes too much. A very sluggishly-
tuned controller delivers poor performance, but is very robust. It
is less likely to become unstable.
The following is a flowchart that outlines a method for selecting
a feedback controller2.
 Figure 3.183-41
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-42 General Guidelines
ww
ThIn general, if an offset can be tolerated, a proportional controller
should be used. If there is significant noise, or if there is
significant dead time and/or a small capacity in the process, the
PI controller should be used. If there is no significant noise in
the process, and the capacity of the system is large and there is
no dead time, a PID controller is appropriate.
3.5.3 Choosing Controller
Tuning Parameters
The following is a list of general tuning parameters appropriate
for various processes3. The suggested controller settings are
optimized for a quarter decay ratio error criterion. There is no
single correct way of tuning a controller. The objective of control
is to provide a reasonable compromise between performance
and robustness in the closed loop response.
The following rules are approximate. They help you obtain tight
control. You can adjust the tuning parameters further if the
closed loop response is not satisfactory. Tighter control and
better performance can be achieved by increasing the gain.
Decreasing the controller gain results in a slower, but more
stable response.
Generally, proportional control can be considered the principal
component of controller equation. Integral and derivative action
should be used to trim the proportional response. Therefore, the
controller gain should be tuned first with the integral and
derivative actions set to a minimum. If instability occurs, the
controller gain should be adjusted first. Adjustments to the
controller gain should be made gradually.3-42
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-43
ww
ThFlow Control
Flow in a pipe is typically a fast responding process. The dead
time and capacity associated with a length of pipe is generally
small. It is therefore not unusual for the process to be limited by
the final control element (valve) dynamics. You can easily
incorporate valve dynamics in the Aspen HYSYS model by
modifying the valve parameters in the Actuator page of the
Dynamics tab.
Tuning a flow loop for PI control is a relatively easy task. For the
flow measurement to track the set point closely, the gain, Kc,
should be set between 0.4 and 0.65 and the integral time, Ti,
should be set between 0.05 and 0.25 minutes.
Since the flow control is fast responding, it can be used
effectively as the secondary controller in a cascade control
structure. The non-linearity in the control loop can cause the
control loop to become unstable at different operating
conditions.
Therefore, the highest process gain should be used to tune the
controller. If a stability limit is reached, the gain should be
decreased, but the integral action should not. Since flow
measurement is naturally noisy, derivative action is not
recommended.
Liquid Pressure Control
Like the flow loop process, the liquid pressure loop is typically
fast. The process is essentially identical to the liquid flow
process except that liquid pressure instead of flow is controlled
using the final control element.
The liquid pressure loop can be tuned for PI and Integral-only
control, depending on your performance requirements. Like flow
control, the highest process gain should be used to tune the
controller. Typically, the process gain for pressure is smaller than
the flow process gain. The controller gain, Kc, should be set
between 0.5 and 2 and the integral time, Ti, should be set
between 0.1 and 0.25 minutes.3-43
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-44 General Guidelines
ww
ThLiquid Level Control
Liquid level control is essentially a single dominant capacity
without dead time. In some cases, level control is used on
processes which are used to attenuate disturbances in the
process. In this case, liquid level control is not as important.
Such processes can be controlled with a loosely tuned P-only
controller. If a liquid level offset cannot be tolerated, PI level
controllers should be used.
There is some noise associated with the measurement of level in
liquid control. If this noise can be practically minimized, then
derivative action can be applied to the controller. It is
recommended that Kc be specified as 2 and the bias term, OPss,
be specified as 50% for P-only control.
This ensures that the control valve is wide open for a level of
75% and completely shut when the level is 25% for a set point
level of 50%. If PI control is desired, the liquid level controller is
typically set to have a gain, Kc, between 2 and 10. The integral
time, Ti, should be set between 1 and 5 minutes.
Common sense dictates that the manipulated variable for level
control should be the stream with the most direct impact on the
level. For example, in a column with a reflux ratio of 100, there
are 101 units of vapour entering the condenser and 100 units of
reflux leaving the reflux drum for every unit of distillate leaving.
The reflux flow or vapour boilup is used to control the level of
the reflux drum. If the distillate flow is used, it would only take a
change of slightly more than 1% in the either the reflux or
vapour flow to cause the controller to saturate the distillate
valve.3-44
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-45
ww
ThGas Pressure Control
Gas pressure control is similar to the liquid level process in that
it is capacity dominated without dead time. Varying the flow into
or out of a vessel controls the vessel pressure. Because of the
capacitive nature of most vessels, the gas pressure process
usually has a small process gain and a slow response.
Consequently, a high controller gain can be implemented with
little chance of instability.
The pressure loop can easily be tuned for PI control. The
controller gain, Kc, should be set between 2 and 10 and the
integral time, Ti, should be set between 2 and 10 minutes.
Like liquid level control, it is necessary to determine what affects
pressure the most. For example, on a column with a partial
condenser, you can determine whether removing the vapour
stream affects pressure more than condensing the reflux. If the
column contains noncondensables, these components can affect
the pressure considerably. In this situation, the vent flow,
however small, should be used for pressure control.
Temperature Control
Temperature dynamic responses are generally slow, so PID
control is used. Typically, the controller gain, Kc, should be set
between 2 and 10, the integral time, Ti, should set between 2
and 10 minutes, and the derivative time Td, should be set
between 0 and 5 minutes.
Tuning Methods
An effective means of determining controller tuning parameters
is to bring the closed loop system to the verge of instability. This
is achieved by attaching a P-only controller and increasing the
gain such that the closed loop response cycles with an amplitude
that neither falls nor rises over time. At a system’s stability
margins, there are two important system parameters, the
ultimate period and the ultimate gain, which allow the
calculation of the proportional, integral, and derivative gains.3-45
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-46 General Guidelines
ww
ThATV Tuning Technique
The ATV (Auto Tuning Variation) technique is used for processes
which have significant dead time. A small limit cycle disturbance
is set up between the manipulated variable (OP%) and the
controlled variable (PV). The ATV tuning method is as follows:
1. Determine a reasonable value for the OP% valve change (h
= fractional change in valve position).
2. Move valve +h%.
3. Wait until process variable starts moving, then move valve -
2h%.
4. When the process variable (PV) crosses the set point, move
the valve position +2h%.
5. Continue until a limit cycle is established.
6. Record the amplitude of the response, A. Make sure to
express A as a fraction of the PV span.
 Figure 3.193-46
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-47
ww
Th7. The tuning parameters are calculated as follows:
Ziegler-Nichols Tuning Technique
The Ziegler-Nichols4 tuning method is another method which
calculates tuning parameters. The Z-N technique was originally
developed for electromechanical system controllers and is based
on a more aggressive “quarter amplitude decay” criterion. The
Z-N technique can be used on processes without dead time. The
procedure is as follows:
1. Attach a proportional-only controller (no integral or
derivative action).
2. Increase the proportional gain until a limit cycle is
established in the process variable, PV.
3. The tuning parameters are calculated as follows:
Tuning Parameter Equation
Ultimate Gain
Ultimate Period
Controller Gain
Controller Integral Time
Tuning Parameter Equation
Ultimate Gain
Ultimate Period
Ku
4h
πa
------=
Pu Period taken from limit cycle=
Kc
Ku
3.2
------=
Ti 2.2Pu=
Ku Controller gain that produces limit cycle=
Pu Period taken from limit cycle=3-47
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-48 General Guidelines
ww
Th3.5.4 Setting Up a Control
Strategy
This section outlines how to create a control strategy in Aspen
HYSYS. First follow the guidelines outlined in Section 1.5.2 -
Moving from Steady State to Dynamics to setup a stable
dynamic case. In many cases, an effective control strategy
serves to stabilize the model.
You can install controllers in the simulation case either in steady
state or Dynamics mode. There are many different ways to
setup a control strategy. The following is a brief outline of some
of the more essential items that should be considered when
setting up controllers in Aspen HYSYS.
In the following sections you will:
• select the controlled variables in the plant
• select controller structures for each controlled variable
• set final control elements
• set up the data book and strip charts
• set up the controller faceplates
• set up the integrator
• fine tune the controllers
Selecting the Controlled Variables in
the Plant
Plan a control strategy that is able to achieve an overall plant
objective and maintain stability within the plant. Either design
the controllers in the plant according to your own standards and
conventions or model a control strategy from an existing plant.
Controller Gain
Controller Integral Time
Tuning Parameter Equation
Kc
Ku
2.2
------=
Ti Pu 1.2⁄=3-48
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-49
ww
ThIn Aspen HYSYS, there are a number a variables that can either
be set or controlled manually in a dynamic simulation case. You
should distinguish between variables that do not change in a
plant and those variables which are controlled.
Set variables do not change in the dynamic simulation case.
Variables such as temperature and composition should be set at
each flowsheet boundary feed stream. One pressure-flow
specification is usually required for each flowsheet boundary
stream in the simulation case. These are the minimum number
of variables required by the simulation case for a solution.
These specifications should be reserved for variables that
physically remain constant in a plant. For example, you can
specify the exit pressure of a pressure relief valve since the exit
pressure typically remains constant in a plant.
In some instances, you can vary a set variable such as a
stream’s temperature, composition, pressure or flow. To force a
specification to behave sinusoidally or ramped, you can attach
the variable to the Transfer Function operation. A variety of
different forcing functions and disturbances can be modeled in
this manner.
The behavior of controlled variables are determined by the type
of controller and the tuning parameters associated with the
controller. Typically, the number of control valves in a plant
dictate the possible number of controlled variables. There are
more variables to control in Dynamics mode than in Steady
State mode.
For example, a two-product column in Steady State mode
requires two steady state specifications. The simulator then
manipulates the other variables in the column to satisfy the
provided specifications and the column material and energy
balances.
The same column in Dynamics mode requires five specifications.
The three new specifications correspond to the inventory or
integrating specifications that were not fixed in steady state.
The inventory variables include the condenser level, the reboiler
For more information on
setting pressure-flow
specifications in a
dynamic simulation case,
see Chapter 1 -
Dynamic Theory.3-49
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-50 General Guidelines
ww
Thlevel, and the column pressure.
Selecting Controller Structures for
Each Controlled Variable
Select appropriate controller structures for each controlled
variable in the simulation case.
The controller operations can be added in either steady state or
Dynamics mode. However, controllers have no effect on the
simulation in Steady State mode. You must specify the following
information to fully define the PID Controller operation.
Connections Tab
In the Connections tab, you can specify/select the variable
information entering and exiting the controller.
Process Variable (PV)
The process variable can be specified by clicking the Select PV
button. The controller measures the process variable in an
attempt to maintain it at a specified set point, SP.
Operating Variable (OP)
The operating variable, OP, can be specified by clicking the
Select OP button. The output of the controller is a control valve.
The output signal, OP, is the percent opening of the control
valve. The operating variable can be specified as a physical
valve in the plant, a material stream, or an energy stream.
A good controller strategy includes the control of both
integrating variables and steady state variables. By
maintaining the integrating variables at specified set points,
controllers add stability to the plant. Other controllers
maintain the desired steady state design specifications such
as product composition and throughput.
Some general guidelines
in selecting appropriate
controllers can be found
in Section 3.5.2 -
Choosing the Correct
Controller.3-50
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-51
ww
ThOperating
Variable
Description
Physical Valve It is recommended that a physical valve be used as the
operating variable for a controller. The controller’s
output signal, OP, is the desired actuator position of
the physical valve. With this setup, a more realistic
analysis of the effect of the controller on the process is
possible. Material flow through the valve is calculated
from the frictional resistance equation of the valve and
the surrounding unit operations. Flow reversal
conditions are possible and valve dynamics can be
modeled if a physical valve is selected.
Material Stream If a material stream is selected as an operating
variable, the material stream’s flow becomes a P-F
specification in the dynamic simulation case. You must
specify the maximum and minimum flow of the
material stream by clicking the Control Valve button.
The actual flow of the material stream is calculated
from the formula:
Aspen HYSYS varies the flow specification of the
material stream according to the calculated controller
output, OP. (Therefore, a non-realistic situation can
arise in the dynamic case since material flow is not
dependent on the surrounding conditions.)
Energy Stream If an energy stream is selected as an operating
variable, you can select a Direct Q or a Utility Fluid
Duty Source by clicking the Control Valve button.
If the Direct Q option is selected, specify the maximum
and minimum energy flow of the energy stream. The
actual energy flow of the energy stream is calculated
similarly to the material flow:
If the Utility Fluid option is chosen, you need to specify
the maximum and minimum flow of the utility fluid.
The heat flow is then calculated using the local overall
heat transfer coefficient, the inlet fluid conditions, and
the process conditions.
Flow OP %( )
100
----------------- Flowmax Flowmin–( ) Flowmin+=
Energy Flow OP %( )
100
----------------- Flowmax Flowmin–( ) Flowmin+=3-51
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-52 General Guidelines
ww
ThParameters Tab
The direction of the controller, the controller’s PV range, and the
tuning parameters can be specified in the Parameters tab.
A controller’s direction (whether it is direct or reverse acting) is
specified using the Action radio buttons.
A controller’s PV span is also specified in the PV Range field. A
controller’s PV span must cover the entire range of the process
variable that the sensor is to measure.
Tuning parameters are specified in the tuning field.
Final Control Elements
Set the range on the control valve at roughly twice the steady
state flow you are controlling. This can be achieved by sizing the
valve with a pressure drop between and 15 and 30 kPa with a
valve percent opening of 50%. If the controller uses a material
or energy stream as an operating variable (OP), the range of the
stream’s flow can be specified explicitly in the FCV property view
of the material or energy stream. This property view is displayed
by clicking on the Control Valve button in the PID Controller
property view.
The final control element can be characterized as a linear, equal
percentage, or quick opening valve. Control valves also have
time constants which can be accounted for in Aspen HYSYS.
It is suggested that a linear valve mode be used to characterize
the valve dynamics of final control elements. This causes the
actual valve position to move at a constant rate to the desired
valve positions much like an actual valve in a plant. Since the
actual valve position does not move immediately to the OP% set
by the controller, the process is less affected by aggressive
controller tuning and can possibly become more stable.
For more information
about whether a
controller is direct or
reverse acting, refer to
Terminology section.
For more information
about the choice of tuning
parameters for each
controller, see Section
3.5.3 - Choosing
Controller Tuning
Parameters.
For more information
about the
characterization of final
control elements in
Aspen HYSYS, see
Modeling Hardware
Elements section from
Section 3.3.1 -
Available Control
Operations.3-52
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-53
ww
ThSetting up the Databook & Strip
Charts
Set up strip charts for your model. Enter the Databook property
view. Select the desired variables that are to be included in the
strip chart in the Variables tab.
From the Strip Charts tab, add a new strip chart by clicking the
Add button and activate the variables to be displayed on the
strip chart. No more than six variables should be selected for
each strip chart to keep it readable.
Click on the Strip Chart button in the View group to see the strip
chart. Size as desired and then right-click on the strip chart.
Select Graph Control command from the Object Inspect menu.
 Figure 3.20
 Figure 3.213-53
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-54 General Guidelines
ww
ThThere are six tabs, where you can manipulate the strip chart
display features, set the numerical ranges of the strip chart for
each variable, the nature of the lines for each variable, and how
the strip chart updates and plots the data.
Add additional strip charts as desired by going back into the
Databook property view and going to the Strip Charts tab.
Setting up the Controller Faceplates
Click on the Face Plate button in the PID Controller property
view to display the controller’s faceplate. The faceplate displays
the PV, SP, OP, and mode of the controller. Controller faceplates
can be arranged in the Aspen HYSYS work environment to allow
for monitoring of key process variables and easy access to
tuning parameters.
 Figure 3.22
Clicking the Face Plate button opens
the Face Plate property view.
You can edit the
set point or mode
directly from the
Face Plate.3-54
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-55
ww
ThSetting up the Integrator
The integration step size can be modified in the Integrator
property view located in the Simulation menu. If desired,
change the integration step size to a smaller interval. The
default integration time step is 0.5 seconds.
Changing the step size causes the model to run slowly, but
during the initial switch from steady state to Dynamics mode,
the smaller step sizes allow the system to initialize better and
enable close monitoring of the controllers to ensure that
everything was set up properly.
A smaller step size also increases the stability of the model since
the solver can more closely follow changes occurring in the
plant.
Increase the integration step size to a reasonable value when
the simulation case has achieved some level of stability. Larger
step sizes increase the speed of integration and might be
specified if the process can maintain stability.
 Figure 3.233-55
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-56 General Guidelines
ww
ThFine Tuning of Controllers
Before the Integrator runs, each controller should be turned off
and then put back in manual mode. This initializes the
controllers. Placing the controllers in manual defaults the set
point to the current process variable and allow you to
“manually” adjust the valve% opening of the operating variable.
If reasonable pressure-flow specifications are set in the dynamic
simulation and all the equipment is properly sized, most process
variables should line out once the Integrator runs. The transition
of most unit operations from steady state to Dynamics mode is
smooth.
However, controller tuning is critical if the plant simulation is to
remain stable. Dynamic columns, for example, are not open
loop stable like many of the unit operations in Aspen HYSYS.
Any large disturbances in the column can result in simulation
instability.
After the Integrator is running:
1. Slowly bring the controllers online starting with the ones
attached to upstream unit operations. The control of flow
and pressure of upstream unit operations should be handled
initially since these variables have a significant effect on the
stability of downstream unit operations.
2. Concentrate on controlling variables critical to the stability of
the unit operation. Always keep in mind that upstream
variables to a unit operation should be stabilized first. For
example, the feed flow to a column should be controlled
initially. Next, try to control the temperature and pressure
profile of the column. Finally, pay attention to the
accumulations of the condenser and reboiler and control
those variables.
3. Start conservatively using low gains and no integral action.
Most unit operations can initially be set to use P-only control.
If an offset cannot be tolerated initially, then integral action
should be added.
4. Trim the controllers using integral or derivative action until
satisfactory closed loop performance is obtained. 3-56
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Control Theory 3-57
ww
Th5. At this point, you can concentrate on changing the plant to
perform as desired. For example, the control strategy can be
modified to maintain a desired product composition. If
energy considerations are critical to a plant, different control
strategies are tested to reduce the energy requirements of
unit operations.
Stability
It is shown that the stability of a closed loop process depends on
the controller gain. If the controller gain is increased, the closed
loop response is more likely to become unstable. The controller
gain, Kc, input in the PID Controller operation in Aspen HYSYS is
a unitless value defined in Equation (3.47).
To control the process, the controller must interact with the
actual process. This is achieved by using the effective gain, Keff,
which is essentially the controller gain with units. The effective
gain is defined as:
(3.47)
(3.48)
The stability of the closed loop response is not only
dependent on the controller gain, Kc, but also on the PV
range parameters provided and the maximum flow allowed
by the control valve. Decreasing the PV range increases the
effective gain, Keff, and therefore decreases the stability of
the overall closed loop response. Decreasing the final control
element’s flow range decreases the effective gain, Keff, and
therefore increases the stability of the closed loop response.
Kc
OP% PV Range×
error
--------------------------------------------=
Keff
Kc Flowmax Flowmin–( )
PV Range
------------------------------------------------------------=3-57
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-58 References
ww
ThIt is therefore possible to achieve tight control in a plant and to
have the simulation case become unstable due to modifications
in the PV range or Cv values of a final control element.
You should also consider the effect of interactions between the
control loops existing in a plant. Interactions between the
control loops change the effective gain of each loop. It is
possible for a control loop that was tuned independently of the
other control loops in the plant to become unstable as soon as it
is put into operation with the other loops. It is therefore useful
to design feedback control loops which minimize the interactions
between the controllers.
3.6 References
 1 Svrcek, Bill. A Real Time Approach to Process Controls First Edition
(1997) p. 91
 2 Svrcek, Bill. A Real Time Approach to Process Controls First Edition
(1997) p. 70
 3 Svrcek, Bill. A Real Time Approach to Process Controls First Edition
(1997) p. 105-123
 4 Ogunnaike, B.A. and W.H. Ray. Process Dynamics, Modelling, and
Control Oxford University Press, New York (1994) p. 531
 5 Seborg, D. E., T. F. Edgar and D. A. Mellichamp. Process Dynamics
and Control John Wiley & Sons, Toronto (1989) p. 649-667
The process gain has units which are reciprocal to the
effective gain.3-58
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Index
www.c
The doA
Accumulation 1-14
Advanced Holdup
componsitions tab 1-29
efficiencies tab 1-27
general tab 1-25
nozzles tab 1-26
properties tab 1-28
Advanced Holdup Properties 1-24
Ambient 2-44
ATV Tuning 3-46
B
Balance
 See Material Balance, Component Bal-
ance and Energy Balance
C
Capacity 3-8, 3-39
Cascade Control 3-26
See also PID Controller
Cold Initialization 2-76
adding objects 2-77
configuring objects 2-79
removing objects 2-77
selecting fluid package 2-79
Component Balance 1-9
Control Strategy 3-48
Controller
available control operations 3-16
choosing correct 3-41
selecting variables 3-50
tuning 3-42
Controller Theory
capacity 3-8
dead time 3-10
process gain 3-7
terminology 3-11
time constant 3-7
Cv
See Valve Flow Coefficient (Cv)
D
Databook 3-53
DDE 2-65
Dead Time 3-10, 3-40
Degrees of Freedom 1-34
Distributed Models 1-6
Dynamic Assistant
general tab 2-7
other specs tab 2-21
pressure flow specs tab 2-14
streams tab 2-8
unknown sizing tab 2-15
user items tab 2-24
Dynamic Initialization 2-73
See also Cold Initialization
Dynamic Simulation
control strategy 3-48
converting steady state models 1-44
degrees of freedom 1-34
differences from steady state 1-43
general concepts 1-6
linear 1-7
non-linear 1-7
theory 1-3, 1-6
Dynamics Assistant 2-4
E
Efficiencies 1-16
Energy Balance 1-10, 1-20
Equation Summary
property view 2-28
Event Scheduler 2-45
F
Face Plate 3-54
Feedback Control 3-12, 3-19
direct acting 3-14
reverse acting 3-14
Feedforward Control 3-28
Flash
non-equilibrium 1-15
Flow Control 3-43
Flowsheet Menu
dynamic initialization 2-73
G
Gas Pressure Control 3-45
H
Heat Loss Model 1-20
detailed 1-23
parameters 1-22
simple 1-22
Holdup Model 1-13I-1
adfamily.com    EMail:cadserv21@hotmail.com
cument is for study only,if tort to your rights,please inform us,we will delete
I-2
www.c
The doadvantages of 1-13
assumptions 1-14
I
Implicit Euler Method 1-11
Integration Strategy 1-12
Integrator 2-38, 3-55
K
k Values 1-32
L
Liquid Level Control 3-44
Liquid Pressure Control 3-43
Lumped Models 1-6
M
Material Balance 1-7
N
Nozzles 1-18
O
Open Loop Control 3-11
Operations
general guidelines 1-42
Ordinary Differential Equations 1-7
P
Partial Differential Equations 1-6
PID Controller
ATV tuning 3-46
choosing correct controller 3-41
See also Controller Theory
tuning 3-42, 3-56
Ziegler-Nichols tuning 3-47
Pressure Flow
failed convergence 1-48
model 1-31
specifications 1-34, 1-37
volume balance 1-31
Pressure Flow Solver 1-29
simultaneous solution 1-30
Process Dynamic 3-3
Process Gain 3-7
Proportional Control 3-21
Proportional Integral Control (PI) 3-23
Proportional Integral Derivative Control (PID)
3-24
R
Reactions 1-23
Resistance Equation 1-33
S
Scripts 2-64
Sensors 3-17
Singular Problem 1-48
Solution
Implicit Euler 1-11
Stability 3-15, 3-57
Static Head Contributions 1-19
T
Temperature Control 3-45
Time Constant 3-7
Tuning Methods 3-45
V
Valve
fail-safe function 1-61
modes 1-58
positions 1-62
stickiness 1-58, 1-60
Valve Dynamics 3-17
Valve Flow Coefficient (Cv) 1-33
Valve Type 3-17
Volume Balance 1-31
Z
Ziegler-Nichols Tuning Technique 3-47I-2
adfamily.com    EMail:cadserv21@hotmail.com
cument is for study only,if tort to your rights,please inform us,we will delete
