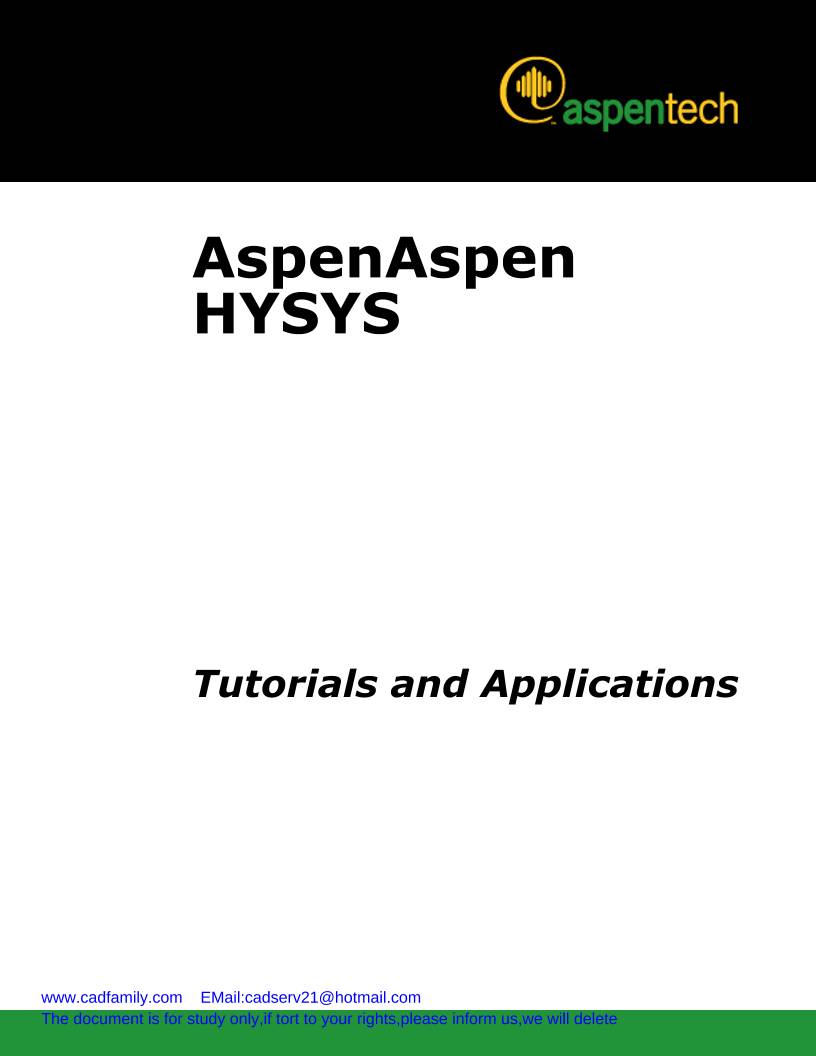

The document is forAspenAspen
HYSYS      Tutorials and Applications    EMail:cadserv21@hotmail.com
 study only,if tort to your rights,please inform us,we will delete
www.c

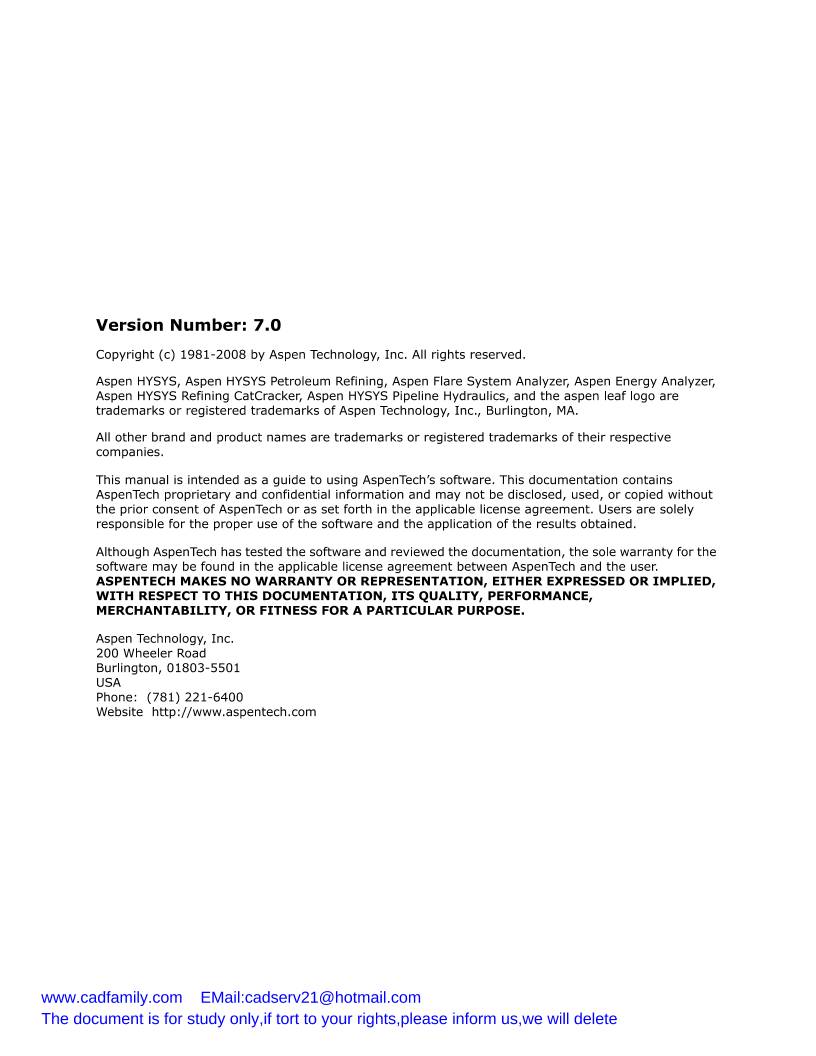

The doVersion Number: 7.0
Copyright (c) 1981-2008 by Aspen Technology, Inc. All rights reserved.
Aspen HYSYS, Aspen HYSYS Petroleum Refining, Aspen Flare System Analyzer, Aspen Energy Analyzer,
Aspen HYSYS Refining CatCracker, Aspen HYSYS Pipeline Hydraulics, and the aspen leaf logo are
trademarks or registered trademarks of Aspen Technology, Inc., Burlington, MA.
All other brand and product names are trademarks or registered trademarks of their respective
companies.
This manual is intended as a guide to using AspenTech’s software. This documentation contains
AspenTech proprietary and confidential information and may not be disclosed, used, or copied without
the prior consent of AspenTech or as set forth in the applicable license agreement. Users are solely
responsible for the proper use of the software and the application of the results obtained.
Although AspenTech has tested the software and reviewed the documentation, the sole warranty for the
software may be found in the applicable license agreement between AspenTech and the user.
ASPENTECH MAKES NO WARRANTY OR REPRESENTATION, EITHER EXPRESSED OR IMPLIED,
WITH RESPECT TO THIS DOCUMENTATION, ITS QUALITY, PERFORMANCE,
MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE.
Aspen Technology, Inc.
200 Wheeler Road
Burlington, 01803-5501
USA
Phone:  (781) 221-6400
Website  http://www.aspentech.comadfamily.com    EMail:cadserv21@hotmail.com
cument is for study only,if tort to your rights,please inform us,we will delete
www.c
The doadfamily.com    EMail:cadserv21@hotmail.com
cument is for study only,if tort to your rights,please inform us,we will delete
 v
ww

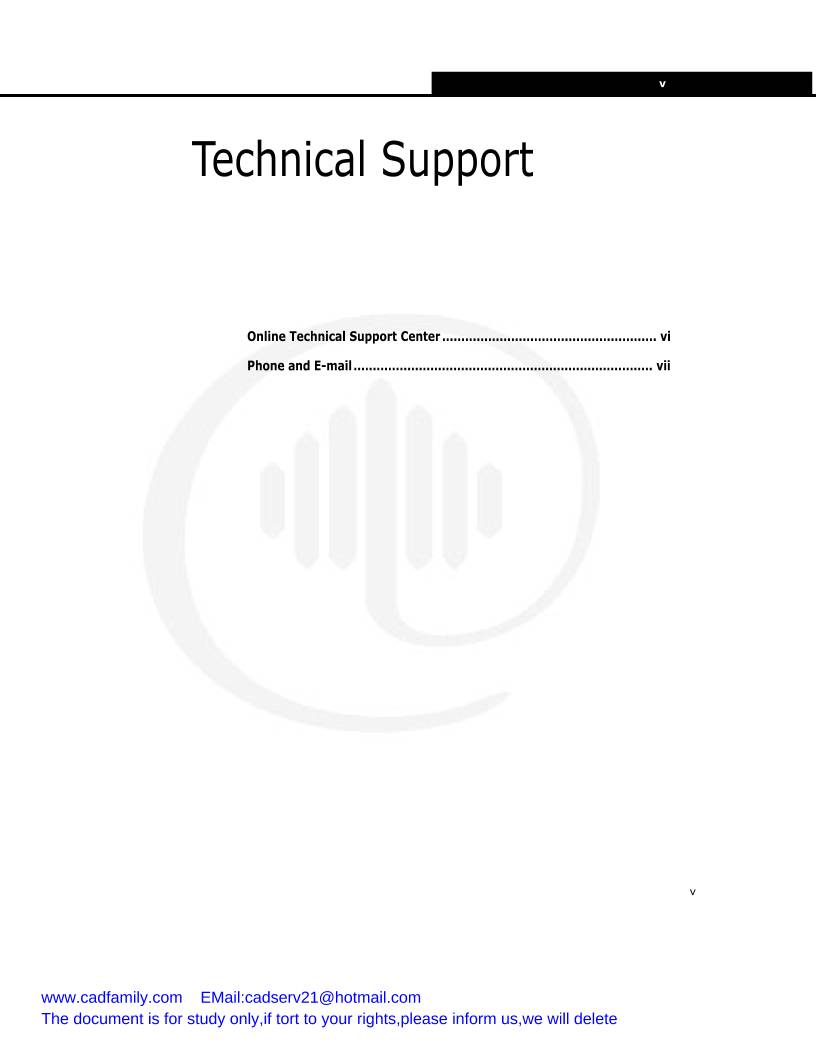

ThTechnical Supportv
  Online Technical Support Center ........................................................ vi
  Phone and E-mail .............................................................................. vii
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
 vi
ww

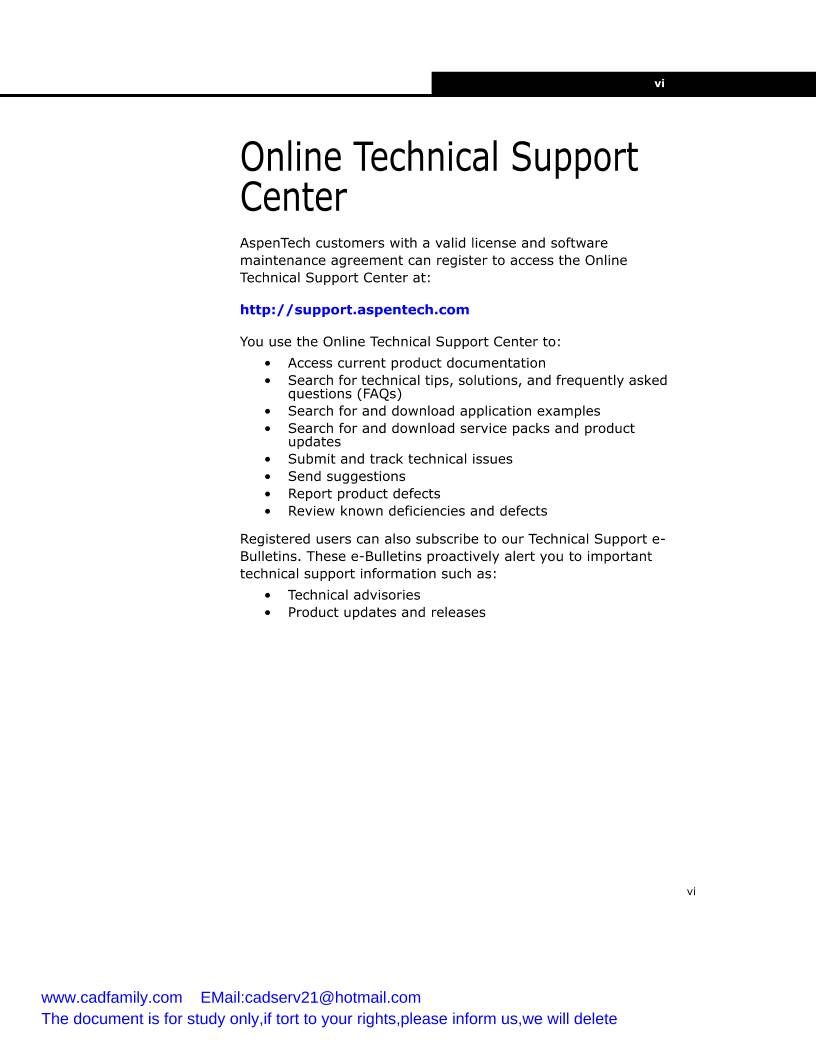

ThOnline Technical Support
Center
AspenTech customers with a valid license and software
maintenance agreement can register to access the Online
Technical Support Center at:
http://support.aspentech.com
You use the Online Technical Support Center to:
• Access current product documentation
• Search for technical tips, solutions, and frequently asked
questions (FAQs)
• Search for and download application examples
• Search for and download service packs and product
updates
• Submit and track technical issues
• Send suggestions
• Report product defects
• Review known deficiencies and defects
Registered users can also subscribe to our Technical Support e-
Bulletins. These e-Bulletins proactively alert you to important
technical support information such as:
• Technical advisories
• Product updates and releasesvi
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
 vii
ww
ThPhone and E-mail
Customer support is also available by phone, fax, and e-mail for
customers who have a current support contract for their
product(s). Toll-free charges are listed where available;
otherwise local and international rates apply.
For the most up-to-date phone listings, please see the Online
Technical Support Center at:
http://support.aspentech.comvii
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
 viii
ww
Thviii
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Table of ContentsTechnical Support..................................................... v
Online Technical Support Center ............................vi
Phone and E-mail................................................ vii
A  Aspen HYSYS Tutorials .........................................A-1
1  Gas Processing Tutorial ........................................1-1
1.1 Introduction .................................................... 1-2
1.2 Steady State Simulation.................................... 1-3
1.3 Dynamic Simulation.......................................1-114
2  Refining Tutorial...................................................2-1
2.1 Introduction .................................................... 2-2
2.2 Steady State Simulation.................................... 2-4
2.3 Dynamic Simulation.......................................2-130
3  Chemicals Tutorial................................................3-1
3.1 Introduction .................................................... 3-2
3.2 Steady State Simulation.................................... 3-3
3.3 Dynamic Simulation.........................................3-86
B  Aspen HYSYS Applications....................................B-1
G1  Acid Gas Sweetening with DEA ...........................G1-1
G1.1 Process Description ........................................ G1-2
G1.2 Setup ........................................................... G1-4
G1.3 Steady State Simulation.................................. G1-4
G1.4 Simulation Analysis ...................................... G1-15
G1.5 Calculating Lean & Rich Loadings.................... G1-15
G1.6 Dynamic Simulation...................................... G1-17
G1.7 References .................................................. G1-34
R1  Atmospheric Crude Tower ..................................R1-1iii
www.cadfamily.com    EMail:cadserv21@hotmail.com
The document is for study only,if tort to your rights,please inform us,we will delete
R1.1 Process Description ........................................ R1-2
R1.2 Setup ........................................................... R1-5
R1.3 Steady State Simulation.................................. R1-8
R1.4 Results ........................................................R1-16
R2  Sour Water Stripper ...........................................R2-1
R2.1 Process Description ........................................ R2-2
R2.2 Setup ........................................................... R2-4
R2.3 Steady State Simulation.................................. R2-4
R2.4 Results ......................................................... R2-7
R2.5 Case Study.................................................... R2-9
P1  Propylene/Propane Splitter................................P1-1
P1.1 Process Description .........................................P1-2
P1.2 Setup ............................................................P1-4
P1.3 Steady State Simulation...................................P1-4
P1.4 Results ..........................................................P1-9
C1  Ethanol Plant......................................................C1-1
C1.1 Process Description ........................................ C1-2
C1.2 Setup ........................................................... C1-5
C1.3 Steady State Simulation.................................. C1-5
C1.4 Results ........................................................C1-13
C2  Synthesis Gas Production ...................................C2-1
C2.1 Process Description ........................................ C2-2
C2.2 Setup ........................................................... C2-4
C2.3 Steady State Simulation.................................. C2-7
C2.4 Results ........................................................C2-14
X1  Case Linking .......................................................X1-1
X1.1 Process Description ........................................ X1-2
X1.2 Building Flowsheet 1....................................... X1-4
X1.3 Building Flowsheet 2....................................... X1-7
X1.4 Creating a User Unit Operation........................X1-10iv
www.cadfamily.com    EMail:cadserv21@hotmail.com
The document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Tutorials A-1
ww
ThA  Aspen HYSYS
Tutorials
The Tutorials section of this guide presents you with
independent tutorial sessions. Each tutorial guides you step-by-
step through the complete construction of a Aspen HYSYS
simulation. The tutorial(s) you choose to work through will likely
depend on the simulation topic that is most closely related to
your work, your familiarity with Aspen HYSYS, and the types of
simulation cases you anticipate on creating in the future.
Regardless of which tutorial you work through first, you will gain
the same basic understanding of the steps and tools used to
build a Aspen HYSYS simulation. After building one of these
tutorial cases, you might choose to build one or several more, or
begin creating your own simulations.
The three tutorials are grouped in three general areas of
interest:
• Gas Processing
• Refining
All completed Tutorial cases are included with your Aspen
HYSYS package, and are available on Aspen HYSYS\Samples
folder.
If you are new to Aspen HYSYS, it is recommended that you
begin with the steady state tutorials. These tutorials
explicitly detail each step required to complete the
simulation. In steps where more than one method is
available to complete a particular action, all methods are
outlined. The dynamic tutorials (which are continued after
the steady state section) are also presented in a step-by-
step manner, but are less detailed in their explanations.
They assume a rudimentary knowledge of the Aspen HYSYS
interface and methods.A-1
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-2
ww
Th• Chemicals
Each area has an associated steady state and dynamic tutorial.
The dynamic tutorials use the steady state cases and add
control schemes and dynamic specifications required to run the
case in Dynamic mode. If you are interested only in steady state
simulation, go through the steady state tutorial(s) that most
interest you and stop at the dynamics section. If you are
interested only in learning to apply dynamic simulation
methods, use the pre-built steady state base case, included with
Aspen HYSYS, as the starting point for your dynamic tutorial
case.
Introduction
In the chapters that follow, example problems are used to
illustrate some of the basic concepts of building a simulation in
Aspen HYSYS.
Three complete tutorials are presented:
1. Gas Processing
• Steady State. Models a sweet gas refrigeration plant
consisting of an inlet separator, gas/gas heat exchanger,
chiller, low-temperature separator and de-propanizer
column.
• Dynamics. Models the Gas Processing tutorial case in
Dynamic mode. This tutorial makes use of the
recommendations of the Dynamic Assistant when
building the case.
2. Refining
• Steady State. Models a crude oil processing facility
consisting of a pre-flash drum, crude furnace and an
atmospheric crude column.
• Dynamics. Models the Refining example problem in
Dynamic mode.
3. Chemicals
There are also several Aspen HYSYS training courses
available.
Contact your Hyprotech agent for more information, or visit
the training page of our web site www.AspenTech.com.A-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Tutorials A-3
ww
Th• Steady State. Models a propylene glycol production
process consisting of a continuously-stirred-tank reactor
and a distillation tower.
• Dynamics. Models the Chemicals example problem in
Dynamic mode. This tutorial make use of the
recommendations of the Dynamic Assistant when
building the case.
Each example contains detailed instructions for choosing a
property package and components, installing and defining
streams, unit operations and columns, and using various
aspects of the Aspen HYSYS interface to examine the results
while you are creating the simulation.
Often in Aspen HYSYS, more than one method exists for
performing a task or executing a command. Many times you can
use the keyboard, the mouse, or a combination of both to
achieve the same result. The steady state tutorials attempt to
illustrate Aspen HYSYS' flexibility by showing you as many of
these alternative methods as possible. You can then choose
which approach is most appropriate for you.
The dynamics tutorials use the steady state solution as a basis
for building the dynamic case. If you like, you can build the
steady state case and then proceed with the dynamic solution,
or you can simply call up the steady state case from disk and
begin the dynamic modeling.
The solved steady state cases are saved in the Aspen
HYSYS\Samples folder as TUTOR1.hsc, TUTOR2.hsc, and
TUTOR3.hsc files.
For the dynamics tutorials, you can use the pre-built steady
state cases as your starting point. The solved dynamics
cases are also included as dyntut1.hsc, dyntut2.hsc, and
dyntut3.hsc.A-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-4
ww
ThStarting Aspen HYSYS
The installation process creates the following shortcut to Aspen
HYSYS:
1. Click on the Start menu.
2. Select Programs | AspenTech | Process Modeling V.x |
Aspen HYSYS | Aspen HYSYS.
The Aspen HYSYS Desktop appears:
 Figure A.1
To learn more about the
basics of the Aspen HYSYS
interface, refer to
Chapter 1 - Interface in
the Aspen HYSYS User
Guide. Toolbar Menu Bar Maximize icon
Status Bar Object Status
Window
Trace Window Performance
SliderA-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Tutorials A-5
ww
ThGetting Started
You are now ready to begin building a Aspen HYSYS simulation,
so proceed to the Tutorial of your choice.
Once you have completed one or more tutorials, you may want
to examine the Applications section for other examples that may
be of interest.
Tutorial Chapter
Samples Case Name
(Steady State/Dynamic)
Gas Processing Chapter 1 TUTOR1.HSC
dyntut1.hsc
Refining Chapter 2 TUTOR2.HSC
dyntut2.hsc
Chemicals Chapter 3 TUTOR3.HSC
dyntut3.hsc
The tutorials start in Steady State mode, and end in Dynamic
mode.A-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-6
ww
ThA-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-1
ww
The1  Gas Processing
Tutorial1-1
1.1  Introduction................................................................................... 2
1.2  Steady State Simulation................................................................. 3
1.2.1  Process Description .................................................................. 3
1.2.2  Setting Your Session Preferences................................................ 5
1.2.3  Building the Simulation ............................................................. 9
1.2.4  Entering the Simulation Environment ........................................ 19
1.2.5  Using the Workbook................................................................ 21
1.2.6  Installing Unit Operations ........................................................ 36
1.2.7  Using Workbook Features ........................................................ 49
1.2.8  Using the PFD........................................................................ 54
1.2.9  Viewing and Analyzing Results ................................................. 87
1.2.10  Optional Study ....................................................................102
1.3  Dynamic Simulation ................................................................... 113
1.3.1  Modifying the Steady State Flowsheet ......................................114
1.3.2  Column Sizing.......................................................................124
1.3.3  Using the Dynamics Assistant .................................................131
1.3.4  Adding Controller Operations ..................................................138
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-2 Introduction
ww
The1.1 Introduction
The gas processing simulation will be built using the following
basic steps:
1. Create a unit set.
2. Choose a property package.
3. Select the components.
4. Create and specify the feed streams.
5. Install and define the unit operations prior to the column.
6. Install and define the column.
In this Tutorial, a natural gas stream containing N2, CO2, and
C1 through n-C4 is processed in a refrigeration system to
remove the heavier hydrocarbons. The lean, dry gas produced
will meet a pipeline hydrocarbon dew point specification. The
liquids removed from the rich gas are processed in a
depropanizer column, yielding a liquid product with a specified
propane content.
The following pages will guide you through building a HYSYS
case to illustrate the complete construction of the simulation,
from selecting a property package and components to
examining the final results. The tools available in the HYSYS
interface will be utilized to illustrate the flexibility available to
you.
A solved case is located in the file TUTOR1.HSC in your
HYSYS\Samples directory.
Before proceeding, you should have read the introductory
chapter which precedes the Tutorials in this guide.1-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-3
ww
The1.2 Steady State
Simulation
1.2.1 Process Description
This tutorial will model a natural gas processing facility that uses
propane refrigeration to condense liquids from the feed and a
distillation tower to process the liquids. The flowsheet for this
process appears below.
The combined feed stream enters an inlet separator, which
removes the free liquids. Overhead gas from the Separator is
fed to the gas/gas exchanger, where it is pre-cooled by already
refrigerated gas. The cooled gas is then fed to the chiller, where
further cooling is accomplished through exchange with
evaporating propane (represented by the C3Duty stream). In
the chiller, which will be modeled simply as a Cooler, enough
heavier hydrocarbons condense such that the eventual sales gas
meets a pipeline dew point specification. The cold stream is then
separated in a low-temperature separator (LTS). The dry, cold
gas is fed to the gas/gas exchanger and then to sales, while the
condensed liquids are mixed with free liquids from the inlet
separator. These liquids are processed in a depropanizer column
to produce a low-propane-content bottoms product.
 Figure 1.11-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-4 Steady State Simulation
ww
TheOnce the results for the simulation have been obtained, you will
have a good understanding of the basic tools used to build a
HYSYS simulation case. At that point, you can either proceed
with the Optional Study presented at the end of the tutorial or
begin building your own simulations.
In this tutorial, three logical operations will be installed in order
to perform certain functions that cannot be handled by standard
physical unit operations:
The Balance operation will be installed in the main example. In
the Optional Study section, the Adjust and Spreadsheet
operations will be installed to investigate the effect of the LTS
temperature on the sales gas heating value.
The two primary building tools, the Workbook and the PFD, will
be used to install the streams and operations and to examine
the results while progressing through the simulation. Both of
these tools provide you with a lot of flexibility in building your
simulation and in quickly accessing the information you need.
The Workbook will be used to build the first part of the
flowsheet, starting with the feed streams and building up to and
including the gas/gas heat exchanger. The PFD will be used to
install the remaining operations, from the chiller through to the
column.
Logical Flowsheet Function
Balance To duplicate the composition of the SalesGas
stream in order to calculate its dew point
temperature at pipeline specification pressure.
Adjust To determine the required LTS temperature which
gives a specified SalesGas dew point.
HYSYS Spreadsheet To calculate the SalesGas net heating value.1-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-5
ww
The1.2.2 Setting Your Session
Preferences
1. To start a new simulation case, do one of the following:
• From the File menu, select New and then Case.
• Click the New Case icon in the toolbar.
The Simulation Basis Manager appears:
The Simulation Basis Manager property view allows you to
create, modify, and manipulate fluid packages in your
simulation case. Most of the time, as with this example, you
will require only one fluid package for your entire simulation.
Next, you will set your Session Preferences before building a
case.
All commands on the toolbar are also available as menu
items.
 Figure 1.21-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-6 Steady State Simulation
ww
The2. From the Tools menu, select Preferences. The Session
Preferences property view appears.You should be on the
Options page of the Simulation tab.
The HYSYS default session settings are stored in a
Preference file called HYSYS.prf. When you modify any of
the preferences, you can save the changes in a new
Preference file by clicking the Save Preference Set button.
HYSYS prompts you to provide a name for the new
Preference file, which you can later load into any simulation
case by clicking the Load Preference Set button.
3. In the General Options group, ensure the Use Modal
Property Views checkbox is unchecked.
 Figure 1.31-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-7
ww
TheCreating a New Unit Set
The first step in building the simulation case is choosing a unit
set. Since HYSYS does not allow you to change any of the three
default unit sets listed, you will create a new unit set by cloning
an existing one. For this example, a new unit set will be made
based on the HYSYS Field set, which you will then customize.
To create a new unit set, do the following:
1. In the Session Preferences property view, click the
Variables tab.
2. Select the Units page if it is not already selected.
3. In the Available Unit Sets group, select Field to make it the
active set.
4. Click the Clone button. A new unit set named NewUser
appears. This unit set becomes the currently Available Unit
Set.
5. In the Unit Set Name field, enter a name for the new unit
set.
You can now change the units for any variable associated
with this new unit set.
 Figure 1.41-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-8 Steady State Simulation
ww
The6. In the Display Units group, scroll down until you find the unit
for Flow. The default setting is lbmole/hr.
A more appropriate unit for the Flow is MMSCFD.
7. To view the available units for Flow, open the drop-down list
in the cell beside the Flow cell.
8. Scroll through the list using either the scroll bar or the arrow
keys, and select MMSCFD.
Your new unit set is now defined.
9. Click the Close icon  (in the top right corner) to close the
Session Preferences property view.
Next, you will start building the simulation case.
 Figure 1.51-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-9
ww
The1.2.3 Building the Simulation
In building a simulation case HYSYS split the configuration
options into two different environment:
• Basis environment enables you to specify the basic
information like components, property package,
reactions and so forth associated to the simulation.
• Case environment enables you to specify the streams
and operation equipment associated to the simulation,
and view the calculated results from the simulation.
Creating a Fluid Package
The next step is to add a Fluid Package. As a minimum, a Fluid
Package contains the components and property method (for
example, an Equation of State) HYSYS will use in its calculations
for a particular flowsheet. Depending on what is required in a
specific flowsheet, a Fluid Package may also contain other
information such as reactions and interaction parameters.
1. On the Simulation Basis Manager property view, click the
Fluid Pkgs tab.
2. Click the Add button, and the property view for your new
Fluid Package appears.
 Figure 1.61-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-10 Steady State Simulation
ww
TheThe property view is divided into a number of tabs. Each tab
contains the options that enables you to completely define
the Fluid Package.
The first step in configuring a Fluid Package is to choose a
Property Package on the Set Up tab. The current selection is
.
For this tutorial, you will select the Peng Robinson property
package.
3. Do one of the following:
• Select  in the Property Package Selection list
and type Peng Robinson. HYSYS automatically finds the
match to your input.
• Select  in the Property Package Selection list
and the up and down keys to scroll through the Property
Package Selection list until Peng Robinson is selected.
• Use the vertical scroll bar to move up and down the list
until Peng Robinson becomes visible, then select it.
The Property Pkg indicator at the bottom of the Fluid
Package property view now indicates that Peng Robinson is
the current property package for this Fluid Package. HYSYS
has also automatically created an empty component list to
be associated with the Fluid Package.
HYSYS has created a Fluid Package with the default name
Basis-1. You can change the name of this fluid package by
typing a new name in the Name field at the bottom of the
property view.
 Figure 1.71-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-11
ww
The
Alternatively, you could have selected the EOSs radio button
in the Property Package Filter group, which filters the list to
display only property packages that are Equations of State.
The filter option helps narrow down your search for the Peng
Robinson property package, as shown in the figure below.
Creating a Component List
Now that you have selected a property package to be used in
the simulation, the next step is to select the components. You
can create a list of components using the options on the
Components tab of the Simulation Basis Manager property view
or from the Set Up tab of the Fluid Package property view.
In this tutorial, we will create the component list using the
option in the Fluid Package property view:
1. In the Set Up tab, select Component List-1 from the
Component List Selection drop-down list.
2. Click the View button.
 Figure 1.8
 Figure 1.91-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-12 Steady State Simulation
ww
TheThe Component List property view appears.
There are a number of ways to select components for your
simulation. One method is to use the matching feature. Each
component is listed in three ways on the Selected tab:
At the top of each of these three columns is a corresponding
radio button. Based on the selected radio button, HYSYS
locates the component(s) that best matches the input you
type in the Match cell.
For this tutorial, you will add the following components: N2,
CO2, C1, C2, C3, i-C4 and n-C4.
First, you will add nitrogen using the match feature.
3. Ensure the Full Name/Synonym radio button is selected,
and the Show Synonyms checkbox is checked.
 Figure 1.10
Matching Method Description
Sim Name The name appearing within the simulation.
Full Name/
Synonym
IUPAC name (or similar), and synonyms for many
components.
Formula The chemical formula of the component. This is useful
when you are unsure of the library name of a
component, but know its formula.1-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-13
ww
The4. Move to the Match field by clicking on the field, or by
pressing Alt M.
5. Type Nitrogen. HYSYS filters as you type and displays only
components that match your input.
6. With Nitrogen selected, add it to the current composition
list by doing one of the following:
• Press the ENTER key.
• Click the Add Pure button.
• Double-click on Nitrogen.
In addition to the three match criteria radio buttons, you can
also use the Filters property view to display only those
components belonging to certain families.
Next you will add CO2 to the component list using the filter
feature.
7. Ensure the Match field is empty by pressing ALT M and
DELETE.
 Figure 1.111-13
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-14 Steady State Simulation
ww
The8. Click the View Filters button. The Filters property view
appears as shown in the figure below.
9. Select the Use Filter checkbox.
10.CO2 does not fit into any of the standard families, so select
the Miscellaneous checkbox.
11.Scroll down the filtered list until CO2 becomes visible.
12.Add the CO2 component to the component list.
The Match feature remains active when you use a filter, so
you could also type CO2 in the Match field to find the
component.
13. To add the remaining components C1 through n-C4 using
the filter, clear the Miscellaneous checkbox, and check the
Hydrocarbons checkbox.
 Figure 1.121-14
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-15
ww
TheThe following shows you a quick way to add components that
appear consecutively in the library list:
14.Click on the first component in the list (in this case, C1).
15.Do one of the following:
• Hold the SHIFT key and click on the last component
required, in this case n-C4. All components C1 through
n-C4 will now be selected. Release the SHIFT key.
• Click and hold on C1, drag down to n-C4, and release
the mouse button. C1 through n-C4 will be selected.
16.Click the Add Pure button. The highlighted components are
transferred to the Selected Components list.
The completed component list appears below.
A component can be removed from the current components
list by selecting it in the Selected Components list and
clicking the Remove button or pressing the DELETE key.
To select multiple non-consecutive components, use the
CTRL key.
 Figure 1.131-15
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-16 Steady State Simulation
ww
TheViewing Component Properties
To view the properties of one or more components, select the
component(s) and click the View Component button. HYSYS
opens the property view(s) for the component(s) you selected.
For example:
1. Click on CO2 in the Selected Components list.
2. Press and hold the CTRL key.
3. Click on n-Butane. The two components should now be
selected.
4. Release the CTRL key.
 Figure 1.141-16
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-17
ww
The5. Click the View Component button. The property views for
the two components appear.
The Component property view only allows you to view the
pure component information. You cannot modify any
parameters for a library component, however, HYSYS allows
you to clone a library component as a Hypothetical
component, which you can then modify as required.
6. Close both of the component property views and the
Component List property view to return to the Fluid Package
property view.
If your project required it, you could continue to add
information such as interaction parameters and reactions to
the Fluid Package. For the purposes of this tutorial, however,
the Fluid Package is now completely defined.
 Figure 1.15
If the Simulation Basis Manager is not visible, click the Home
View icon from the toolbar.
See Chapter 3 -
Hypotheticals in the
HYSYS Simulation
Basis guide for more
information about cloning
library components.
View icon1-17
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-18 Steady State Simulation
ww
The7. Close the Fluid Package property view to return to the
Simulation Basis Manager property view.
The list of Current Fluid Packages now displays the new Fluid
Package, Basis-1, and shows the number of components
(NC) and property package (PP). The new Fluid Package is
assigned by default to the main flowsheet, as shown in the
Flowsheet-Fluid Pkg Associations group. Now that the Basis
is defined, you can install streams and operations in the
Main Simulation environment.
8. To leave the Basis environment and enter the Simulation
environment, do one of the following:
• Click the Enter Simulation Environment button on the
Simulation Basis Manager property view.
• Click the Enter Simulation Environment icon on the
tool bar.
 Figure 1.16
Enter Simulation
Environment icon1-18
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-19
ww
The1.2.4 Entering the Simulation
Environment
When you enter the Simulation environment, the initial property
view that appears depends on your current Session Preferences
setting for the Initial Build Home property view. Three initial
property views are available:
• PFD
• Workbook
• Summary
Any or all of these can be displayed at any time; however, when
you first enter the Simulation environment, only one appears. In
this example, the initial home property view is the PFD (HYSYS
default setting).
 Figure 1.171-19
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-20 Steady State Simulation
ww
TheThere are several things to note about the Main Simulation
environment. In the upper right corner, the Environment has
changed from Basis to Case (Main). A number of new items
are now available in the menu bar and tool bar, and the PFD and
Object Palette are open on the Desktop. These latter two objects
are described below.
1. Before proceeding any further, save your case by doing one
of the following:
• From the File menu, select Save.
• Press CTRL S.
• Click the Save icon on the toolbar.
If this is the first time you have saved your case, the Save
Simulation Case As property view appears.
Objects  Description
PFD The PFD is a graphical representation of the flowsheet topology for a
simulation case. The PFD property view shows operations and streams and
the connections between the objects. You can also attach information tables
or annotations to the PFD. By default, the property view has a single tab. If
required, you can add additional PFD pages to the property view to focus in
on the different areas of interest.
Object
Palette
A floating palette of buttons that can be used to add streams and unit
operations.
You can toggle the palette open or closed by pressing F4, or by selecting the
Open/Close Object Palette command from the Flowsheet menu.
 Figure 1.18
Save icon1-20
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-21
ww
TheBy default, the File Path is the Cases sub-directory in your
HYSYS directory.
2. In the File Name cell, type a name for the case, for example
GASPLANT. You do not have to enter the *.hsc extension;
HYSYS automatically adds it for you.
3. Once you have entered a file name, press the ENTER key or
click the Save button.
HYSYS saves the case under the name you have given it
when you save in the future. The Save As property view will
not appear again unless you choose to give it a new name
using the Save As command.
If you enter a name that already exists in the current
directory, HYSYS will ask you for confirmation before over-
writing the existing file.
1.2.5 Using the Workbook
The Workbook displays information about streams and unit
operations in a tabular format, while the PFD is a graphical
representation of the flowsheet.
1. Click the Workbook icon on the toolbar to access the
Workbook property view.
When you choose to open an existing case by clicking the
Open Case icon, or by selecting Open Case from the File
menu, a property view similar to the one shown in Figure
1.18 appears.
The File Filter drop-down list will then allow you to retrieve
backup (*.bk*) and HYSIM (*.sim) files in addition to
standard HYSYS (*.hsc) files.
Open Case icon
Workbook icon1-21
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-22 Steady State Simulation
ww
TheInstalling the Feed Streams
In general, the first action you perform when you enter the
Simulation environment is installing one or more feed streams.
The following procedure explains how to create a new stream.
1. On the Material Streams tab of the Workbook, type the
stream name Feed 1 in the cell labelled **New**, and
press ENTER.
HYSYS will automatically create the new stream with the
name defined above.
Your Workbook should appear as shown below.
When you pressed ENTER after typing in the stream name,
HYSYS automatically advanced the active cell down one to
Vapour Fraction.
Next you will define the feed conditions.
2. Move to the Temperature cell for Feed 1 by clicking it, or by
pressing the DOWN arrow key.
3. Type 60 in the Temperature cell. In the Unit drop-down
list, HYSYS displays the default units for temperature, in this
case F. This is the correct unit for this exercise.
4. Press the ENTER key.
HYSYS accepts blank spaces within a stream or operation
name.
 Figure 1.191-22
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-23
ww
TheYour active location should now be the Pressure cell for Feed
1. If you know the stream pressure in another unit besides
the default unit of psia, HYSYS will accept your input in any
one of the available different units and automatically convert
the supplied value to the default unit for you. For this
example, the pressure of Feed 1 is 41.37 bar.
5. In the Pressure cell, type 41.37.
6. Click the  icon in the Unit drop-down list to open the list of
units, or press the SPACE BAR to move to the Units drop-
down list.
7. Either scroll through the list to find bar, or begin typing it.
HYSYS will match your input to locate the required unit.
8. Once bar is selected, press the ENTER key.
HYSYS will automatically convert the pressure to the default
unit, psia, and the active selection moves to the Molar Flow
cell for Feed 1.
9. In the Molar Flow cell, type 6 and press ENTER. The
default Molar Flow unit is already MMSCFD, so you do not
have to modify the units.
 Figure 1.201-23
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-24 Steady State Simulation
ww
TheProviding Compositional Input
In the previous section you specified the stream conditions in
the Workbook property view. Next you will input the composition
information in the Stream property view.
1. Close the Workbook property view.
The PFD becomes visible and displays a light blue arrow on
it, labeled Feed 1. That arrow is the stream Feed 1 that you
just created.
2. Double-click the blue arrow. The Feed 1 view appears.
 Figure 1.21
 Figure 1.221-24
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-25
ww
The3. Click on the Composition page. By default, the components
are listed by Mole Fractions.
4. Click on the Mole Fractions cell for the first component,
Nitrogen.
5. Type 0.01 and press ENTER.
The Input Composition for Stream property view appears.
This property view enables you to access certain features
designed to streamline the specification of a stream
composition and complete the stream’s compositional input.
 Figure 1.23
 Figure 1.241-25
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-26 Steady State Simulation
ww
TheThe following table lists and describes the features available
on the Input Composition for Stream property view:
6. Click on the Mole Fraction cell for CO2, type 0.01, then
press ENTER.
Composition Input Feature Description
Composition Basis
Radio Buttons
Allows you to input the stream composition in
some fractional basis other than Mole Fraction, or
by component flows, by selecting the appropriate
radio button before providing your input.
Normalizing The Normalizing feature allows you to enter the
relative ratios of components; for example, 2 parts
N2, 2 parts CO2, 120 parts C1, etc. Rather than
manually converting these ratios to fractions
summing to one, enter the individual numbers of
parts and click the Normalize button. HYSYS will
compute the individual fractions to total 1.0.
Normalizing is also useful when you have a stream
consisting of only a few components. Instead of
specifying zero fractions (or flows) for the other
components, enter the fractions (or the actual
flows) for the non-zero components, leaving the
others . Click the Normalize button, and
HYSYS will force the other component fractions to
zero.
Calculation status/
colour
As you input the composition, the component
fractions (or flows) initially appear in red,
indicating the final composition is unknown. These
values will become blue when the composition has
been calculated. Three scenarios will result in the
stream composition being calculated:
• Input the fractions of all components,
including any zero components, such that
their total is exactly 1.0000. Then click the
OK button.
• Input the fractions (totalling 1.000), flows or
relative number of parts of all non-zero
components. Click the Normalize button,
then the OK button.
• Input the flows or relative number of parts of
all components, including any zero
components, then click the OK button.
The red and blue text are the default colours;
yours may appear different depending on your
settings on the Colours page of the Session
Preferences property view.1-26
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-27
ww
The7. Enter the remaining fractions as shown in the figure below.
When you have entered the fraction of each component the
total at the bottom of the property view will equal 1.0000.
8. Click the OK button, and HYSYS accepts the composition.
The stream is now completely defined, so HYSYS flashes it at
the conditions given to determine its remaining properties.
9. Close the Feed 1 property view and access the Workbook
property view by clicking on the Workbook icon.
10.Ensure that the Material Streams tab is active.
 Figure 1.25
 Figure 1.26
Workbook icon1-27
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-28 Steady State Simulation
ww
TheThe properties of Feed 1 appear below. The values you
specified are blue and the calculated values are black.
Alternative Methods for Defining Streams
In addition to the method you just learned, there are several
alternative ways to define streams.
1. Access the Object Palette by pressing F4.
2. Do any one of the following:
• Press F11.
• From the Flowsheet menu, select Add Stream.
• Double-click the Material Stream icon on the Object
Palette.
• Click the Material Stream icon on the Object Palette,
then click on the Add Object icon.
Each of the above four methods creates a new stream and
access the property view of the new stream.
 Figure 1.27
If you want to delete a stream, click on it in the PFD, then
press the DELETE key. HYSYS will ask for confirmation
before deleting.
You can also delete the stream using the Delete button on
that stream’s property view.
Material
Stream icon
Add Object
icon1-28
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-29
ww
TheThe new stream is named according to the Automatic
Naming of Flowsheet Objects setting defined in the Session
Preferences (Simulation tab, Naming page). HYSYS names
any new material streams with numbers starting at 1 and
any new energy streams starting at 100.
When you initially access the stream property view, the
Conditions page on the Worksheet tab is the active page,
and 1 appears in the Stream Name cell.
3. In the Stream Name cell, replace the name by typing Feed
2, then press ENTER.
4. Enter the following values:
• Temperature: 60
• Pressure: 600
• Molar Flow: 4
5. Select the Composition page and click the Edit button.
The above variable values are in the default units.
 Figure 1.281-29
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-30 Steady State Simulation
ww
TheThe Input Composition for Stream property view appears.
6. Change the Composition Basis to Mass Fractions by
selecting the appropriate radio button, or by pressing ALT
N.
7. Click on the compositional cell for Nitrogen, type 6 for the
number of parts of this component, then press ENTER.
8. Press the DOWN arrow key to move to the input cell for
Methane. Feed 2 does not contain CO2.
 Figure 1.29
The current Composition Basis setting is the Preferences
default. You must enter the stream composition on a mass
basis.1-30
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-31
ww
The9. Input the number of mass parts for the remaining
components as shown in the following figure.
10.Click the Normalize button once you have entered the
parts, and HYSYS will convert your input to component mass
fractions.
11.Click the OK button to close the property view and return to
the stream property view.
HYSYS performed a flash calculation to determine the
unknown properties of Feed 2, as indicated by the green OK
status in the status bar.
 Figure 1.30
For CO2 (the component you left ), the Mass
Fraction was automatically forced to zero.
 Figure 1.311-31
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-32 Steady State Simulation
ww
The
For streams with multiple phases, you can view the
properties of each phase using the horizontal scroll bar in
the table on the property view, or drag and expand the
stream property view to see all the phase columns.
To expand the property view, move your cursor over the
right border of the property view. The cursor becomes a
sizing arrow. With the arrow visible, click and drag to the
right until the horizontal scroll bar disappears, leaving the
entire table visible.
The compositions currently appear in Mass Fraction. To
change this, click the Basis button, then select the
appropriate radio button in the Composition Basis group of
the property view that appears.
 Figure 1.32
 Figure 1.33
Sizing Arrow cursor1-32
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-33
ww
TheTo view the calculated stream properties, click the
Conditions page. New or updated information is
automatically and instantly transferred among all locations
in HYSYS.
Viewing a Phase Diagram
You can view a phase diagram for any material stream using the
HYSYS Envelope Utility.
1. On the property view for stream Feed 2, click the
Attachments tab, then select the Utilities page.
2. Click the Create button to create a phase envelope for the
stream. The Available Utilities property view appears,
displaying a list of HYSYS utilities.
3. Do one of the following:
• Select Envelope and click the Add Utility button.
• Double-click on Envelope.
 Figure 1.341-33
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-34 Steady State Simulation
ww
TheThe Envelope Utility property view appears.
HYSYS creates and displays a phase envelope for the
stream. Just as with a stream, a Utility has its own property
view containing all the information needed to define the
utility.
Initially, the Connections page of the Design tab appears.
 Figure 1.35
A Utility is a separate entity from the stream to which it is
attached; if you delete it, the stream will not be affected.
Likewise, if you delete the stream, the Utility will remain but
will not display any information until you attach another
stream using the Select Stream button.
 Figure 1.361-34
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-35
ww
TheThe Design tab allows you to change the name of the Utility
and the stream that it is attached to, and view Critical Values
and Maxima.
4. Click the Performance tab, then select the Plots page.
The default Envelope Type is PT.
To view another envelope type, select the appropriate radio
button in the Envelope Type group. Depending on the type of
envelope selected, you can specify and display Quality
curves, Hydrate curves, Isotherms, and Isobars.
To view the data in a tabular format, select the Table page.
5. Close the Utility property view.
6. Close the Feed 2 property view.
 Figure 1.37
To make the envelope property view more readable,
maximize or re-size the property view.
For more information
about defining utilities,
refer to Section 7.26 -
Utilities in the HYSYS
User Guide.1-35
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-36 Steady State Simulation
ww
The1.2.6 Installing Unit
Operations
In the last section you defined the feed streams. Now you will
install the necessary unit operations for processing the gas.
Installing the Mixer
The first operation that you will install is a Mixer, used to
combine the two feed streams. As with most commands in
HYSYS, installing an operation can be accomplished in a number
of ways. One method is through the Unit Ops tab of the
Workbook.
1. Click the Workbook icon to access the Workbook property
view.
2. Click the Unit Ops tab of the Workbook.
3. Click the Add UnitOp button.
 Figure 1.38
Workbook icon1-36
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-37
ww
TheThe UnitOps property view appears, listing all available unit
operations.
4. Select Mixer by doing one of the following:
• Click on an operation in the Available Unit Operations list
and type mixer.
• Click on an operation in the Available Unit Operations list
an press the DOWN arrow key to scroll down the list of
available operations to Mixer.
• Scroll down the list using the vertical scroll bar and click
on Mixer.
5. With Mixer selected, click the Add button or press the
ENTER key.
You can also use the filters to find and add an operation. For
example, select the Piping Equipment radio button under
Categories. A filtered list containing just piping operations
appears in the Available Unit Operations group.
 Figure 1.39
You can also double-click an operation name to install it.1-37
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-38 Steady State Simulation
ww
TheThe Mixer property view appears.
As with a stream, a unit operation’s property view contains
all the information defining the operation, organized in tabs
and pages. The four tabs shown for the Mixer, namely
Design, Rating, Worksheet, and Dynamics, appear in the
property view for most operations. More complex operations
have more tabs. HYSYS provides the default name MIX-100
for the Mixer.
As with streams, the default naming scheme for unit
operations can be changed on the Session Preferences
property view.
Many operations, such as the Mixer, accept multiple feed
streams. Whenever you see a table like the one in the Inlets
group, the operation will accept multiple stream connections at
that location. When the Inlets table has focus, you can access a
drop-down list of available streams.
6. Click the <> cell.
The status bar at the bottom of the property view shows that
the operation requires a feed stream.
 Figure 1.40
See Section 12.2.4 -
Naming Page in the
HYSYS User Guide for
detailed information on
setting your Session
Preferences.1-38
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-39
ww
The7. Open the <> drop-down list of feeds by clicking
on  or by pressing the F2 key and then the DOWN arrow
key.
8. Select Feed 1 from the list. The stream is added to the list
of Inlets, and <> automatically moves down to a
new empty cell.
9. Repeat steps 6-8 to connect the other stream, Feed 2.
The status indicator now displays Requires a product
stream.
10.Click in the Outlet field.
11. Type MixerOut in the cell and press ENTER.
HYSYS recognizes that there is no existing stream named
MixerOut, so it will create the new stream with this name.
 Figure 1.41
Alternatively, you can make the connections by typing the
exact stream name in the cell, then pressing ENTER.1-39
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-40 Steady State Simulation
ww
TheThe status indicator now displays a green OK, indicating that
the operation and attached streams are completely
calculated.
12.Click the Parameters page.
13. In the Automatic Pressure Assignment group, leave the
default setting at Set Outlet to Lowest Inlet.
HYSYS has calculated the outlet stream by combining the
two inlets and flashing the mixture at the lowest pressure of
the inlet streams. In this case, both inlets have the same
pressure (600 psia), so the outlet stream is set to 600 psia.
 Figure 1.42
 Figure 1.431-40
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-41
ww
The14.To view the calculated outlet stream, click the Worksheet
tab and select the Conditions page.
15.Now that the Mixer is completely known, close the property
view to return to the Workbook. The new operation appears
in the table on the Unit Ops tab of the Workbook.
The table shows the operation Name, its Object Type, the
attached streams (Feeds and Products), whether it is
Ignored, and its Calculation Level.
 Figure 1.44
The Worksheet tab is a condensed Workbook property view,
displaying only those streams attached to the selected
operation.
 Figure 1.451-41
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-42 Steady State Simulation
ww
TheWhen you select an operation in the table and click the View
UnitOp button, the property view for the selected operation
appears. Alternatively, double-clicking on any cell (except
Inlet, Outlet, and Ignored) associated with the operation
also opens the operation property view.
When any of the Name, Object Type, Ignored, or Calc. Level
cells are active, the box at the bottom of the Workbook
displays all streams attached to the current operation.
Currently, the Name cell for MIX-100 has focus, and the box
displays the three streams attached to this operation.
You can also open the property view for a stream directly
from the Unit Ops tab. To open the property view for one of
the streams attached to an operation, do one of the
following:
• Select the operation in the Unit Ops tab and double-click
on the stream you want to access in the list at the
bottom of the Workbook property view.
• Double-click on the Inlet or Outlet cell of the operation.
The property view for the first listed feed or product
stream appears.
Installing the Inlet Separator
Next you will install and define the inlet separator, which splits
the two-phase MixerOut stream into its vapour and liquid
phases.
1. In the Workbook property view, click the Unit Ops tab.
2. Click the Add UnitOp button. The UnitOps property view
appears. You can also access the Unit Ops property view by
pressing F12.
3. In the Categories group, select the Vessels radio button.
4. In the list of Available Unit Operations, select Separator.
5. Click the Add button. The Separator property view appears,
displaying the Connections page on the Design tab.
6. In the Name cell, change the name to InletSep and press
ENTER.
7. Move to the Inlets list by clicking on the << Stream>> cell,
or by pressing ALT L.
8. Open the drop-down list of available feed streams.1-42
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-43
ww
The9. Select the stream MixerOut by doing one of the following:
• Click on the stream name in the drop-down list.
• Press the DOWN arrow key to highlight the stream name
and press ENTER.
10.Move to the Vapour Outlet cell by pressing ALT V.
11.Create the vapour outlet stream by typing SepVap and
pressing ENTER.
12.Click on the Liquid Outlet cell, type the name SepLiq, and
press ENTER. The completed Connections page appears as
shown in the following figure.
 Figure 1.46
An Energy stream could be attached to heat or cool the
vessel contents. For this tutorial, however, the energy
stream is not required.1-43
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-44 Steady State Simulation
ww
The13.Select the Parameters page. The current default values for
Delta P, Volume, Liquid Volume, and Liquid Level are
acceptable.
14. To view the calculated outlet stream data, click the
Worksheet tab, then select the Conditions page. The table
appearing on this page is shown below.
15.When finished, click the Close icon  to close the
separator property view.
 Figure 1.47
The Volume, Liquid Volume, and Liquid Level default values
generally apply only to vessels operating in dynamic mode or
with reactions attached.
 Figure 1.481-44
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-45
ww
TheInstalling the Heat Exchanger
Next, you will install the gas/gas exchanger.
1. Access the Object Palette by pressing F4.
2. On the Object Palette, double-click the Heat Exchanger
icon.
The Heat Exchanger property view appears.
The Connections page on the Design tab is active.
3. In the Name field, change the operation name from its
default E-100 to Gas/Gas.
 Figure 1.49
Heat Exchanger icon1-45
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-46 Steady State Simulation
ww
The4. Attach the Inlet and Outlet streams as shown below, using
the methods learned in the previous sections.
You will have to create all streams except SepVap, which is
an existing stream that can be selected from the Tube Side
Inlet drop-down list.
Create the new streams by selecting the appropriate input
field, typing the name, then pressing ENTER.
5. Click the Parameters page.
The Exchanger Design (End Point) is the acceptable
default setting for the Heat Exchanger Model for this tutorial.
 Figure 1.501-46
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-47
ww
The6. Enter a pressure drop of 10 psi for both the Tube Side
Delta P and Shell Side Delta P.
7. Click the Rating tab, then select the Sizing page.
8. In the Configuration group, click in the Tube Passes per
Shell cell and change the value to 1, to model Counter
Current Flow.
 Figure 1.51
 Figure 1.521-47
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-48 Steady State Simulation
ww
The9. A warning appears to remind you that the number of tube
passes must be an even multiple of the shell passes. Click
the OK button.
10.Close the Heat Exchanger property view to return to the
Workbook property view.
11.Click the Material Streams tab of the Workbook.
Stream CoolGas has not yet been flashed, as its temperature
is unknown. The CoolGas stream is flashed later when a
temperature approach is specified for the Gas/Gas heat
exchanger.
 Figure 1.53
Notice how partial information is passed (for stream
CoolGas) throughout the flowsheet. HYSYS always calculates
as many properties as possible for the streams based on the
available information.1-48
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-49
ww
The1.2.7 Using Workbook
Features
Before installing the remaining operations, you will examine a
number of Workbook features that allow you to access
information quickly and change how information is displayed.
Accessing Unit Operations from the
Workbook
There are several ways to open the property view for an
operation directly from the Workbook. In addition to using the
Unit Ops tab, you can use the following method:
1. Click one of the Workbook stream tabs (Material Streams,
Compositions, or Energy Streams).
The list at the bottom of the Workbook property view
displays the operations to which the selected stream is
attached.
2. Click on any cell associated with the stream SepVap.
The list at the bottom displays the names of the two
operations, InletSep and Gas/Gas, to which this stream is
attached.
Any utilities attached to the stream with the Workbook
active also appears in (and are accessible through) this list.1-49
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-50 Steady State Simulation
ww
The3. To access the property view for either of these operations,
double-click on the operation name.
Adding a Tab to the Workbook
When the Workbook has focus, the Workbook item appears in
the HYSYS menu bar. This allows you to customize the
Workbook to display specific information.
In this section you will create a new Workbook tab that displays
only stream pressure, temperature, and flow.
1.  Do one of the following:
• From the Workbook menu, select Setup.
• Right-click the Material Streams tab in the Workbook,
then select Setup from the object inspect menu that
appears.
 Figure 1.54
The operations to which SepVap is attached
are displayed in this list. You can access the
property view by double-clicking on the
corresponding operation name.
Stream SepVap is the current
Workbook location.1-50
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-51
ww
TheThe Workbook Setup property view appears.
The four existing tabs are listed in the Workbook Pages
group. When you add a new tab, it will be inserted before
the highlighted tab (currently Material Streams).
2. In the Workbook Tabs group list, select the Compositions
tab.
3. In the Workbook Tabs group, click the Add button. The New
Object Type property view appears.
 Figure 1.55
 Figure 1.56
Currently, all variables are displayed with four
significant figures. You can change the display format or
precision of any Workbook variables by clicking the 1-51
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-52 Steady State Simulation
ww
The4. Click the + icon beside Stream to expand the tree branch
into Material Stream and Energy Streams.
5. Select the Material Stream and click the OK button. You
will return to the Setup property view, and the new tab
appears in the list after the existing Material Streams tab.
6. In the Object group, click in the Name cell and change the
name for the new tab from the default Material Streams 1 to
P,T,Flow to better describe the tab contents.
Next you will customize the tab by removing the irrelevant
variables.
7. In the Variables group, select the first variable, Vapour
Fraction.
 Figure 1.57
 Figure 1.581-52
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-53
ww
The8. Press and hold the CTRL key.
9. Click on the following variables: Mass Flow, Heat Flow,
and Molar Enthalpy. Four variables are now selected.
10.Release the CTRL key.
11.Click the Delete button. The variables are removed from the
list. The finished Setup appears below.
Deleting variables removes them from the current Workbook
tab only. If you want to remove variables from another tab,
you must edit each tab individually.
12.Close the Setup property view to return to the Workbook
property view and check the new tab.
 Figure 1.59
 Figure 1.60
The new tab
displays only
these four
Variables.
The new tab
now appears in
the list of
Workbook Tabs
in the same
order as it
appears in the
Workbook.1-53
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-54 Steady State Simulation
ww
The13.At this point, save your case by doing one of the following:
• Click the Save icon on the toolbar.
• Select Save from the File menu.
• Press CTRL S.
1.2.8 Using the PFD
The PFD is the other home property view used in the Simulation
environment. To open the PFD:
1. Do one of the following:
• Click the PFD icon on the toolbar.
• Press CTRL P or from the Tools menu select PFDs. The
Select PFD property view appears. Select the PFD you
want to access from the list and click the View button.
The current tutorial PFD property view appears as shown in
the figure below, with all streams and unit operations visible.
If the streams or operations are not all visible, select Auto
Position All from the PFD menu. HYSYS now displays all
streams and operations, arranging them in a logical manner.
The PFD menu option appears in the HYSYS menu bar
whenever the PFD is active.
 Figure 1.61
Save icon
PFD icon
PFD toolbar
Stream/
Operation
labels
Unit Operation icon for
a Separator
Material
Stream arrow1-54
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-55
ww
TheAs a graphic representation of your flowsheet, the PFD shows
the connections among all streams and operations, also known
as ‘objects’. Each object is represented by a symbol or ‘icon’. A
stream icon is an arrow pointing in the direction of flow, while an
operation icon is a graphic representation of the actual physical
operation. The object name or ‘label’ appears near each icon.
Like any other non-modal property view, the PFD property view
can be re-sized by clicking and dragging anywhere on the
outside border. Other functions you can perform while the PFD is
active include the following:
• Access commands and features from the PFD tool bar.
• Open the property view for an object by double-clicking
on its icon.
• Move an object by clicking and dragging it to the new
location.
• Access ‘fly-by’ summary information for an object by
placing the cursor over it.
• Change an icon's size by clicking the Size Mode icon,
clicking on the icon you want to resize, then clicking and
dragging the sizing “handles” that appear.
• Accessing the Object Inspection menu for an object by
placing the cursor over it and right-clicking. This menu
provides access to a number of commands associated
with that particular object.
• Zoom in and out or display the entire flowsheet in the
PFD window by clicking the zoom buttons at the bottom
left corner of the PFD property view.
Some of these functions will be illustrated in this tutorial. For
more information, refer to the HYSYS User Guide.
 Figure 1.62
Fly-by information example:
Icon Name Icon Name
Zoom Out 25% Zoom In 25%
Display Entire PFD
Size Mode icon1-55
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-56 Steady State Simulation
ww
TheCalculation Status
Before proceeding, you will examine a feature of the PFD which
allows you to trace the calculation status of the objects in your
flowsheet. If you recall, the status indicator at the bottom of the
property view for a stream or operation displayed three different
states for the object:
When you are working in the PFD, the streams and operations
are also colour-coded to indicate their calculation status. The
mixer and inlet separator are completely calculated, so they
have a black outline. For the heat exchanger Gas/Gas, however,
the conditions of the tube side outlet and both shell side streams
are unknown, so the exchanger has a yellow outline indicating
its unsolved status.
A similar colour scheme is used to indicate the status of
streams. For material streams, a dark blue icon indicates the
stream has been flashed and is entirely known. A light blue icon
indicates the stream cannot be flashed until some additional
information is supplied. Similarly, a dark red icon indicates an
energy stream with a known duty, while a purple icon indicates
an unknown duty.
Indicator Status Description
Red Status A major piece of defining information is missing from
the object.
For example, a feed or product stream is not attached
to a Separator. The status indicator is red, and an
appropriate warning message appears.
Yellow Status All major defining information is present, but the
stream or operation has not been solved because one
or more degrees of freedom is present.
For example, a Cooler where the outlet stream
temperature is unknown. The status indicator is yellow,
and an appropriate warning message appears.
Green Status The stream or operation is completely defined and
solved. The status indicator is green, and an OK
message appears.
Keep in mind that the above colours are the HYSYS default
colours. You can change/customize the colours in the
Session Preferences.1-56
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-57
ww
TheInstalling the Chiller
In the next step you will install a chiller, which will be modeled
as a Cooler. The operation is installed using the Object Palette
the PFD.
Adding the Chiller to the PFD
1. Press F4 to access the Object Palette
The Chiller will be added to the right of the LTS, so make
some empty space available in the PFD by scrolling to the
right using the horizontal scroll bar.
2. Click the Cooler icon on the Object Palette.
If you click the wrong button, click the Cancel icon.
3. Position the cursor over the PFD.
The cursor changes to a special cursor with a + symbol
attached to it. A frame attached to the cursor is used to
indicate the location of the operation icon.
4. Click on the PFD where you want to drop the Cooler.
HYSYS creates a new Cooler with a default name, E-100.
The Cooler has a red status (and colour), indicating that it
requires feed and product streams.
The icons for all streams installed to this point are dark blue
except for the Heat Exchanger shell-side streams LTSVap
and SalesGas, and tube-side outlet CoolGas.
 Figure 1.63
Cooler icon
Cancel icon1-57
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-58 Steady State Simulation
ww
TheConnecting the Chiller
1. Click the Attach Mode icon on the PFD toolbar to enter
Attach mode.
When you are in Attach mode, you will not be able to move
objects in the PFD. To return to Move mode, click the Attach
icon again.
You can temporarily toggle between Attach and Move mode
by holding down the CTRL key.
2. Position the cursor over the right end of the CoolGas stream
icon.
A small transparent box appears at the cursor tip. Through
the transparent box, you can see a square connection point,
and a pop-up description attached to the cursor tail. The
pop-up Out indicates which part of the stream is available
for connection, in this case the stream outlet.
3. With the pop-up Out visible, click and hold.
The transparent box becomes solid black, indicating that you
are beginning a connection.
4. Move the cursor toward the left (inlet) side of the Cooler.
A trailing line appears between the CoolGas stream icon and
the cursor, and a connection point appears at the Cooler
inlet.
5. Place the cursor near the connection point, and the trailing
line snaps to that point.
 Figure 1.64
.
Attach Mode icon1-58
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-59
ww
TheAlso, a solid white box appears at the cursor tip, indicating
an acceptable end point for the connection.
6. Release the left mouse button, and the connection is made
to the connection point at the Cooler inlet.
Adding Outlet and Energy Streams
1. Position the cursor over the right end of the Cooler icon.
The connection point and pop-up Product appears.
2. With the pop-up visible, left-click and hold.
The transparent box again becomes solid black.
3. Move the cursor to the right of the Cooler.
A white stream icon appears with a trailing line attached to
the Cooler outlet.
The stream icon indicates that a new stream will be created
after the next step is completed.
4. With the white stream icon visible, release the left mouse
button.
HYSYS creates a new stream with the default name 1.
5. Repeat steps 1-4 to create the Cooler energy stream,
originating the connection from the arrowhead on the Cooler
icon.
 Figure 1.65
 Figure 1.661-59
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-60 Steady State Simulation
ww
TheThe new stream is automatically named Q-100. The Cooler
has yellow (warning) status, indicating that all necessary
connections have been made but the attached streams are
not entirely known.
6. Click the Attach Mode icon again to return to Move mode.
If you make an incorrect connection:
1. Click the Break Connection icon on the PFD toolbar.
2. Move the cursor over the stream line connecting the two
icons. A checkmark attached to the cursor appears,
indicating an available connection to break.
3. Click once to break the connection.
Defining the Material and Energy Streams
The Cooler material streams and the energy stream are
unknown at this point, so they are light blue and purple,
respectively.
1. Double-click the Cooler icon to open its property view.
On the Connections page, the names of the Inlet, Outlet,
and Energy streams that you recently attached appear in the
appropriate cells.
 Figure 1.67
Break Connection icon1-60
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-61
ww
The2. In the Name field, change the operation name to Chiller.
3. Select the Parameters page.
4. In the Delta P field, specify a pressure drop of 10 psi.
5. Close the cooler property view.
At this point, the Chiller has two degrees of freedom; one of
these will be exhausted when HYSYS flashes the CoolGas
stream after the exchanger temperature approach is
specified.
To use the remaining degree of freedom, either the Chiller
outlet temperature or the amount of duty in the Chiller
energy stream must be specified. The amount of chilling
duty which is available is unknown, so you will provide an
 Figure 1.68
 Figure 1.691-61
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-62 Steady State Simulation
ww
Theinitial guess of 0oF for the Chiller outlet temperature. Later,
this temperature can be adjusted to provide the desired
sales gas dew point temperature.
6. Double-click on the outlet stream icon (1) to open its
property view.
7. In the Name field, change the name to ColdGas.
8. In the Temperature field, specify a temperature of 0oF.
The remaining degree of freedom for this stream has now
been used, so HYSYS flashes ColdGas to determine its
remaining properties.
9. Close the ColdGas property view and return to the PFD
property view.
The Chiller still has yellow status, because the temperature
of the CoolGas stream is unknown.
10.Double-click the energy stream icon (Q-100) to open its
property view.
The required chilling duty (in the Heat Flow cell) is calculated
by HYSYS when the Heat Exchanger temperature approach
is specified in a later section.
 Figure 1.701-62
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-63
ww
The11.Rename the energy stream C3Duty and close the property
view.
Installing the LTS
Now that the chiller has been installed, the next step is to install
the low-temperature separator (LTS) to separate the gas and
condensed liquids in the ColdGas stream.
Adding and Connecting the LTS
1. Make some empty space available to the right of the Chiller
using the horizontal scroll bar.
2. Position the cursor over the Separator icon on the Object
Palette.
3. Right-click, hold, and drag the cursor over the PFD to the
right of the Chiller.
The cursor changes to a special “bulls-eye” cursor. A frame
attached to the bulls-eye cursor indicates the location of the
operation icon.
4. Release the right mouse button to drop the Separator onto
the PFD.
A new Separator appears with the default name V-100.
5. Click the Attach Mode icon on the PFD tool bar.
6. Position the cursor over the right end of the ColdGas stream
icon. The connection point and pop-up Out appears.
 Figure 1.71
Separator icon
Attach Mode icon1-63
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-64 Steady State Simulation
ww
The7. With the pop-up visible, left-click, hold, and drag the cursor
toward the left (inlet) side of the Separator.
Multiple connection points appear at the Separator inlet.
8. Place the cursor near the inlet area of the Separator. A solid
white box appears at the cursor tip.
9. Release the mouse button and the connection is made.
Adding Connections
The Separator has two outlet streams, liquid and vapour. The
vapour outlet stream LTSVap, which is the shell side inlet stream
for Gas/Gas, has already been created. The liquid outlet will be
a new stream.
1. In the PFD, position the cursor over the top of the Separator
icon.
The connection point and pop-up Vapour Product appears.
2. With the pop-up visible, left-click and hold.
3. Drag the cursor to the LTSVap stream icon.
A solid white box appears when you move over the
connection point.
Multiple connection points appear because the Separator
accepts multiple feed streams.
 Figure 1.72
 Figure 1.731-64
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-65
ww
The4. Release the mouse button, and the connection is made.
5. Position the cursor over the bottom of the Separator icon.
The connection point and pop-up Liquid Product appears.
6. With the pop-up visible, left-click and hold.
7. Move the cursor to the right of the Separator.
A white arrow stream icon appears with a trailing line
attached to the Separator liquid outlet.
8. With the stream icon visible, release the mouse button.
HYSYS creates a new stream with the default name 1.
9. Click the Attach Mode icon to leave Attach mode.
10.Double-click on the stream icon 1 to open its property view.
11. In the Stream Name cell, type LTSLiq, then press ENTER.
12.Close the LTSLiq stream property view.
13.Select Auto Position All from the PFD menu.
Your PFD should appear similar to the one shown below.
14.Double-click the icon for the new Separator (V-100) to open
its property view.
15. In the Name field, change the name to LTS.
 Figure 1.74
Streams LTSVap and LTSLiq are now known, as shown by the
change in their PFD colour from light blue to dark blue.
Attach Mode icon1-65
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-66 Steady State Simulation
ww
The16.Close the LTS property view.
At this point, the outlet streams from heat exchanger Gas/
Gas are still unknown.
17.Double-click on the Gas/Gas icon to open the exchanger
property view.
18.Click the Design tab and select the Specs page.
The Specs page allows you to input specifications for the
Heat Exchanger and view its calculation status. The Solver
group on this page shows that there are two Unknown
Variables and the Number of Constraints is 1, so the
remaining Degrees of Freedom is 1. HYSYS provides two
default constraints in the Specifications group, although only
one has a value:
 Figure 1.75
Specification Description
Heat
Balance
The tube side and shell side duties must be equal, so the
heat balance must be zero (0).
UA This is the product of the overall heat transfer coefficient
(U) and the area available for heat exchange (A). HYSYS
does not provide a default UA value, so it is unknown at this
point. It will be calculated by HYSYS when another
constraint is provided.1-66
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-67
ww
TheAdding a Heat Exchanger
Specification
To exhaust the remaining degree of freedom, a 10oF minimum
temperature approach to the hot side inlet of the exchanger will
be specified.
1. In the Specifications group, click the Add button.
The ExchSpec (Exchanger Specification) view appears.
2. In the Name cell, change the name to Hot Side Approach.
The default specification in the Type cell is Delta Temp,
which allows you to specify a temperature difference
between two streams. The Stream (+) and Stream (-)
cells correspond to the warmer and cooler streams,
respectively.
3. In the Stream (+) cell, select SepVap from the drop-down
list.
4. In the Stream (-) cell, select SalesGas from the drop-down
list.
5. In the Spec Value cell, enter 10oF.
The property view should appear as shown in the following
figure.
HYSYS will converge on both specifications and the unknown
streams will be flashed.
6. Close the specification property view to return to the Gas/
Gas property view.
 Figure 1.761-67
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-68 Steady State Simulation
ww
TheThe new specification appears in the Specifications group on
the Specs page.
7. Click the Worksheet tab, then select the Conditions page
to view the calculated stream properties.
Using the 10oF approach, HYSYS calculates the temperature
of CoolGas as 42.9oF. All streams in the flowsheet are now
completely known.
 Figure 1.77
 Figure 1.781-68
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-69
ww
The8. Click the Performance tab, then select the Details page,
where HYSYS displays the Overall Performance and Detailed
Performance.
Two parameters of interest are the UA and LMTD
(logarithmic mean temperature difference), which HYSYS
has calculated as 2.08e4 Btu/F-hr and 22.6oF,
respectively.
9. When you are finished reviewing the results, click the Close
icon  to leave the Gas/Gas property view.
 Figure 1.791-69
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-70 Steady State Simulation
ww
TheChecking the Sales Gas Dew Point
The next step is to check the SalesGas stream to see if it meets
a dew point temperature specification. This is to ensure no
liquids form in the transmission line. A typical pipeline dew point
specification is 15oF at 800 psia, which will be used for this
example.
You can test the current dew point by creating a stream with a
composition identical to SalesGas, specifying the dew point
pressure, and having HYSYS flash the new stream to calculate
its dew point temperature. To do this you will install a Balance
operation.
1. Double-click the Balance icon on the Object Palette.
The property view for the new operation appears.
2. In the Name field, type DewPoint, then press ENTER.
3. Click in the <> cell in the Inlet Streams table.
 Figure 1.80Balance icon1-70
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-71
ww
The4. Open the drop-down list of available streams and select
SalesGas.
5. Click in the <> cell in the Outlet Streams table.
6. Create the outlet stream by typing SalesDP, then press
ENTER.
7. Click the Parameters tab.
Changes made to the vapour fraction, temperature or
pressure of stream SalesDP will not affect the rest of the
flowsheet. However, changes which affect SalesGas will
cause SalesDP to be re-calculated because of the molar
balance between these two streams.
8. In the Balance Type group, select the Mole radio button.
 Figure 1.81
 Figure 1.821-71
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-72 Steady State Simulation
ww
The9. Click the Worksheet tab.
The vapour fraction and pressure of SalesDP can now be
specified, and HYSYS will perform a flash calculation to
determine the unknown temperature.
10. In the SalesDP column, Vapour cell, enter 1.0.
11. In the Pressure cell, enter 800 psia.
HYSYS flashes the stream at these conditions, returning a
dew point Temperature of 5.27oF, which is well within the
pipeline of 15oF.
12.Close the DewPoint property view to return to the PFD.
When HYSYS created the Balance and new stream, their
icons were probably placed in the far right of the PFD. If you
like, you can click and drag the Balance and SalesDP icons to
a more appropriate location, such as immediately to the
right of the SalesGas stream.
Installing the Second Mixer
In this section you will install a second mixer, which is used to
combine the two liquid streams, SepLiq and LTSLiq, into a single
feed for the Distillation Column.
1. In the PFD, make some empty space available to the right of
the LTS using the horizontal scroll bar.
2. Click the Mixer button on the Object Palette.
 Figure 1.83
Mixer icon1-72
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-73
ww
The3. In the PFD, position the cursor to the right of the LTSLiq
stream icon.
4. Click to drop the Mixer onto the PFD.
A new Mixer named MIX-101 appears.
5. Press and hold the CTRL key to temporarily enable Attach
mode while you make the Mixer connections.
6. Position the cursor over the right end of the LTSLiq stream
icon.
The connection point and pop-up Out appears.
7. With the pop-up visible, click and drag the cursor toward the
left (inlet) side of the Mixer, and multiple connection points
appear at the Mixer inlet.
Multiple connection points appear because the Mixer accepts
multiple feed streams.
8. Place the cursor near the inlet area of the Mixer.
When the solid white box appears at the cursor tip, release
the left mouse button to make the connection.
9. Repeat steps 5-8 to connect SepLiq to the Mixer.
10.Move the cursor over the right end of the Mixer icon.
The connection point and pop-up Product appears.
11.With the pop-up visible, click and drag the cursor to the right
of the Mixer.
A white arrow stream icon appears.
12.With the stream icon visible, release the mouse button.
HYSYS will create a new stream with the default name 1.
13.Release the CTRL key to leave Attach mode.
14.Double-click on the outlet stream icon 1 to access its
property view.
When you created the Mixer outlet stream, HYSYS
automatically combined the two inlet streams and flashed
the mixture to determine the outlet conditions.
 Figure 1.841-73
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-74 Steady State Simulation
ww
The15. In the Stream Name cell, rename the stream to
TowerFeed, then click the Close icon .
Installing the Column
HYSYS has a number of pre-built column templates that you can
install and customize by changing attached stream names,
number of stages, and default specifications.
In this section, you will install a Distillation Column.
1. From the Tools menu, select Preferences.
2. On the Simulation tab, Options page, ensure that the Use
Input Experts checkbox is selected (checked), then close
the property view.
3. Press F4 to access the Object Palette.
4. Double-click on the Distillation Column icon on the Object
Palette.
The first page of the Input Expert property view appears.
 Figure 1.85
The Input Expert property view is a logical sequence of input
property views that guide you through the initial installation
of a Column. Completion of the steps will ensure that you
have provided the minimum amount of information required
to define the column.
Distillation Column icon1-74
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-75
ww
TheWhen you install a column using a pre-built template, HYSYS
supplies certain default information, such as the number of
stages. The current active cell is # Stages (Number of
Stages), indicated by the thick border around this cell and
the presence of 10 (default number of stages).
Some points worth noting:
• These are theoretical stages, as the HYSYS default stage
efficiency is one. If you want to specify real stages, you
can change the efficiency of any or all stages later.
• The Condenser and Reboiler are considered separate
from the other stages, and are not included in the Numb
Stages field.
For this example, 10 theoretical stages will be used, so leave
the Number of Stages at its default value.
5. Click on the <> cell in the Inlet Streams table.
6. Open the drop-down list for the available feed streams by
clicking the  icon or pressing F2 then the DOWN or UP
arrow key.
7. Select TowerFeed as the inlet feed stream to the column.
HYSYS will supply a default feed location in the middle of the
Tray Section (TS), in this case stage 5 (indicated by 5_Main
TS). This default location is used, so there is no need to
change the Feed Stage.
This column has Overhead Vapour and Bottoms Liquid
products, but no Overhead Liquid (distillate) product.
8. In the Condenser group, select the Full Rflx radio button.
The distillate stream disappears. This is the same as leaving
the Condenser as Partial and later specifying a zero distillate
rate.1-75
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-76 Steady State Simulation
ww
The9. Enter the stream and Column names as shown in the figure
below.
When you are finished, the Next button becomes active,
indicating sufficient information has been supplied to
advance to the next page of the Input Expert.
10.Click the Next button to advance to the Pressure Profile
page.
11. In the Condenser Pressure field, enter 200 psia.
12. In the Reboiler Pressure field, enter 205 psia.
 Figure 1.861-76
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-77
ww
TheThe Condenser Pressure Drop can be left at its default value
of zero.
13.Click the Next button to advance to the Optional
Estimates page.
14.Specify a Condenser temperature of 40°F and a Reboiler
Temperature Estimates of 200°F.
 Figure 1.87
Although HYSYS does not require estimates to produce a
converged column, good estimates will usually result in a
faster solution.
 Figure 1.881-77
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-78 Steady State Simulation
ww
The15.Click the Next button to advance to the fourth and final
page of the Input Expert.
The Specifications page allows you to supply values for the
default column specifications that HYSYS has created.
16.Enter a Vapour Rate of 2.0 MMSCFD and a Reflux Ratio
of 1.0.
The Flow Basis applies to the Vapour Rate, so leave it at the
default of Molar.
In general, a Distillation Column has three default
specifications, however, by specifying zero overhead liquid
flow (Full Reflux Condenser) one degree of freedom was
eliminated. For the two remaining default specifications,
overhead Vapour Rate is an estimate only, and Reflux Ratio
is an active specification.
17.Click the Done button.
 Figure 1.891-78
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-79
ww
TheThe Distillation Column property view appears.
18.Select the Monitor page.
The Monitor page displays the status of your column as it is
being calculated, updating information with each iteration.
You can also change specification values and activate or de-
activate specifications used by the Column solver directly
from this page.
 Figure 1.90
 Figure 1.911-79
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-80 Steady State Simulation
ww
TheAdding a Column Specification
The current Degrees of Freedom is zero, indicating the column is
ready to be run. The Vapour Rate you specified in the Input
Expert, however, is currently an Active specification, and you
want to use this only as an initial estimate for the solver for this
exercise.
1. In the Vent Rate row, click the Active checkbox to clear it,
leaving the Estimate checkbox checked.
The Degrees of Freedom will increase to 1, indicating that
another active specification is required. For this example, a
2% propane mole fraction in the bottoms liquid will be
specified.
2. Select the Specs page.
This page lists all the Active and non-Active specifications
which are required to solve the column.
3. In the Column Specifications group, click the Add button.
The Add Specs property view appears.
4. From the Column Specification Types list, select Column
Component Fraction.
5. Click the Add Spec(s) button.
 Figure 1.921-80
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-81
ww
TheThe Comp Frac Spec property view appears.
6. In the Name cell, change the specification name to
Propane Fraction.
7. In the Stage cell, select Reboiler from the drop-down list of
available stages.
8. In the Spec Value cell, enter 0.02 as the liquid mole
fraction specification value.
 Figure 1.93
 Figure 1.941-81
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-82 Steady State Simulation
ww
The9. Click in the first cell <> in the Components
table, and select Propane from the drop-down list of
available components.
10.Close this property view to return to the Column property
view.
The new specification appears in the Column Specifications
list on the Specs page.
11.Return to the Monitor page.
The new specification may not be visible unless you scroll
down the table because it has been placed at the bottom of
the Specifications list.
 Figure 1.95
HYSYS automatically made the new specification active
when you created it.1-82
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-83
ww
The12.Click the Group Active button to bring the new specification
to the top of the list, directly under the other Active
specification.
The Degrees of Freedom has returned to zero, so the column
is ready to be calculated.
 Figure 1.961-83
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-84 Steady State Simulation
ww
TheRunning the Column
1. Click the Run button to begin calculations.
The information displayed on the Monitor page is updated
with each iteration. The column converges quickly, in three
iterations.
The table in the Optional Checks group displays the Iteration
number, Step size, and Equilibrium error and Heat/Spec
error.
The column temperature profile appears in the Profile
group.You can view the pressure or flow profiles by selecting
the appropriate radio button
The status indictor has changed from Unconverged to
Converged.
 Figure 1.971-84
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-85
ww
The2. Click the Performance tab, then select the Column
Profiles page to access a more detailed stage summary.
Accessing the Column Sub-flowsheet
When considering the column, you might want to focus only on
the column sub-flowsheet. You can do this by entering the
column environment.
1. Click the Column Environment button at the bottom of the
column property view.
HYSYS desktop now displays the Column Sub-flowsheet
environment.
 Figure 1.98
 Figure 1.99
The Environment label displays DePropanizer (Col1).1-85
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-86 Steady State Simulation
ww
The2. In this environment you can do the following:
• Click the PFD icon to view the column sub-flowsheet
PFD.
• Click the Workbook icon to view a Workbook for the
column sub-flowsheet objects.
 Figure 1.100
 Figure 1.101
PFD icon
Workbook icon1-86
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-87
ww
The• Click the Column Runner icon to access the inside
column property view.
This property view is essentially the same as the outside,
or main flowsheet, property view.
3. When you are finished in the column environment, return to
the main flowsheet by clicking the Enter Parent
Simulation Environment icon in the tool bar or the Parent
Environment button on the column Worksheet property
view.
1.2.9 Viewing and Analyzing
Results
1. Open the Workbook for the main case to access the
calculated results for all streams and operations.
2. Click the Material Streams tab.
Column Runner icon
Enter Parent Simulation
Environment icon
 Figure 1.1021-87
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-88 Steady State Simulation
ww
The3. Click the Compositions tab.
Using the Object Navigator
In this section, you will use the Object Navigator to view
properties for a particular stream or operation. The Object
Navigator allows you to quickly access the property view for any
stream or unit operation at any time during the simulation.
1. To open the Navigator, do one of the following:
• Press F3.
• From the Flowsheet menu, select Find Object.
• Click the Object Navigator icon.
The Object Navigator property view appears:
 Figure 1.103
 Figure 1.104
Object Navigator icon1-88
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-89
ww
TheThe UnitOps radio button in the Filter group is currently
selected, so only the Unit Operations appear in the list of
available objects.
2. To open a property view, select the operation in the list and
click the View button, or double-click on the operation.
• To change which objects appear, select a different radio
button in the Filter group.
• To list all streams and unit operations, select the All
button.
3. You can also search for an object by clicking the Find
button.
When the Find Object property view appears, enter the
Object Name, then click the OK button. HYSYS opens the
property view for the object.
Using the Databook
The HYSYS Databook provides you with a convenient way to
examine your flowsheet in more detail. You can use the
Databook to monitor key variables under a variety of process
scenarios, and view the results in a tabular or graphical format.
For this example, the effects of LTS temperature on the Sales
Gas dew point and flow rate, and the Liquid Product flow rate
will be examined.
You can start or end the search string with an asterisk (*),
which acts as a wildcard character. This lets you find
multiple objects with one search.
For example, searching for VLV* will open the property view
for all objects with VLV at the beginning of their name.1-89
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-90 Steady State Simulation
ww
TheDefining the Key Variables
Before opening the Databook, close the Object Navigator or any
property view you might have opened using the Navigator.
1. To open the Databook, do one of the following:
• Press CTRL D.
• Open the Tools menu and select Databook.
The Databook appears as shown below.
2. Click the Variables tab.
Here you will add the key variables to the Databook.
3. Click the Insert button.
 Figure 1.1051-90
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-91
ww
TheThe Variable Navigator property view appears.
The Variable Navigator is used extensively in HYSYS for
locating and selecting variables.
The Navigator operates in a left-to-right manner. The
selected Flowsheet determines the Object list; the chosen
Object dictates the Variable list; the selected Variable
determines whether any Variable Specifics are available.
4. In the Object Filter group, select the UnitOps radio button.
The Object list will be filtered to show unit operations only.
5. In the Object list, select LTS.
The Variable list available for the LTS appears to the right of
the Object list.
6. In the Variable list, select Vessel Temperature.
HYSYS displays this variable name in the Variable
Description field.
 Figure 1.1061-91
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-92 Steady State Simulation
ww
The
7. Click the OK button to add this variable to the Databook.
The new variable Vessel Temperature appears in the
Databook.
Continue adding variables to the Databook.
8. Click the Insert button, and the Variable Navigator
reappears.
9. In the Object Filter group, select the Streams radio button.
The Object list is filtered to show streams only.
10. In the Object list, select SalesDP.
The Variables list available for material streams appears to
the right of the Object list.
 Figure 1.107
 Figure 1.1081-92
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-93
ww
The11. In the Variable list, select Temperature.
12. In the Variable Description field, change description to
Dew Point, then click the Add button.
The variable now appears in the Databook, and the Variable
Navigator property view remains open.
13.Repeat the previous steps to add the following variables to
the Databook:
• SalesGas stream; Molar Flow variable; change the
Variable Description to Sales Gas Production
• LiquidProd stream; Liq Vol Flow@Std Cond variable;
change the Variable Description to Liquid Production
14.Click the Close button to close the Variable Navigator
property view.
 Figure 1.1091-93
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-94 Steady State Simulation
ww
TheThe completed Variables tab of the Databook appears as
shown below.
Creating the Data Table
In this section you will create a data table to display the
variables.
1. Click the Process Data Tables tab.
2. In the Available Process Data Tables group, click the Add
button.
HYSYS creates a new table with the default name ProcData1.
 Figure 1.110
 Figure 1.1111-94
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-95
ww
TheThe four variables that were added to the Databook appear
in the table on this tab.
3. In the Process Data Table field, change the name to Key
Variables.
4. Activate each variable by clicking on the corresponding
Show checkbox.
5. Click the View button to view the Key Variables Data table,
which appears below.
You will access this table again later to demonstrate how its
results are updated whenever a flowsheet change is made.
6. For now, click the Minimize icon  in the upper right
corner of the Key Variables Data property view.
HYSYS reduces the property view to an icon and places it at
the bottom of the Desktop.
 Figure 1.112
 Figure 1.1131-95
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-96 Steady State Simulation
ww
TheUsing the Data Recorder
In this section you will use the Data Recorder to automatically
record the current values of the key variables before making any
changes to the flowsheet.
1. On the DataBook property view, click the Data Recorder
tab.
When using the Data Recorder, you first must create a
Scenario containing one or more of the key variables, then
record the variables in their current state.
2. In the Available Scenarios group, click the Add button.
HYSYS creates a new scenario with the default name
Scenario 1.
 Figure 1.1141-96
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-97
ww
The3. In the table, activate each variable by clicking on the
corresponding Include checkbox.
4. Click the Record button to record the variables in their
current state.
The New Solved State property view appears, prompting you
for the name of the new state.
5. Enter the new name Base Case, then click OK.
The New Solved State property view close and you return to
the Databook property view.
6. In the Available Display group, select the Table radio
button.
7. Click the View button.
 Figure 1.1151-97
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-98 Steady State Simulation
ww
TheThe Data Recorder appears, displaying the values of the key
variables in their current state.
Now you can make the necessary flowsheet changes and
these current values remain as a permanent record in the
Data Recorder unless you choose to erase them.
8. Click the Minimize button  to reduce the Data Recorder
to an icon.
9. Click the Restore Up icon  on the Key Variables Data
property view to restore the property view to its original
size.
Modifying the ColdGas Stream
In this section, you will change the temperature of stream
ColdGas (which determines the LTS temperature) and view the
changes in the process data table.
1. Click the Object Navigator icon on the toolbar. The Object
Navigator property view appears
2. In the Filter group, select the Streams radio button.
3. In the Streams list, select ColdGas, then click the View
button.
 Figure 1.116
Object Navigator icon1-98
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-99
ww
TheThe ColdGas property view appears.
4. Ensure that you are on the Worksheet tab, Conditions
page of the property view.
5. Arrange the two property views, as shown below, by clicking
and dragging on their title bars.
 Figure 1.117
 Figure 1.1181-99
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-100 Steady State Simulation
ww
TheCurrently, the LTS temperature is 0oF. The key variables will
be checked at 10oF.
6. In the ColdGas Temperature cell, type 10oF.
HYSYS automatically recalculates the flowsheet. The new
results are shown below.
The change in Temperature generates the following results:
• The Sales Gas flow rate has increased.
• The Liquid Product flow rate has decreased.
• The sales gas dew point has increased to 15.9oF. This
temperature no longer satisfies the dew point
specification of 15oF.
7. Click the Close icon  on the ColdGas stream property
view and return to the Databook.
 Figure 1.1191-100
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-101
ww
TheRecording the New Variables in the
Databook
In this section you will record the key variables in their new
state.
1. Click the Data Recorder tab in the Databook.
2. Click the Record button, and the New Solved State property
view appears.
HYSYS provides you with the default name State 2 for the
new state.
3. Change the name to 10F in LTS, then click the OK button to
accept the new name.
4. Click the View button and the Data Recorder appears,
displaying the new values of the variables.
5. Click the Close icon  on the Data Recorder, then on the
Databook, and finally on the Key Variables Table.
6. Save the case.
The basic simulation for this example has now been completed.
You can continue with this example by proceeding to the
Optional Study sections, or you can begin building your own
simulation case. In the Optional Study, you will use some of the
other tools available in HYSYS to examine the process in more
detail.
 Figure 1.1201-101
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-102 Steady State Simulation
ww
The1.2.10 Optional Study
In the following sections, the effects of the LTS temperature on
the SalesGas dew point and heating value are determined.
Before proceeding, re-specify the temperature of ColdGas back
to its original value of 0oF:
1. Click the Workbook icon on the toolbar.
2. On the Material Streams tab of the Workbook, click in the
Temperature cell for the ColdGas stream.
3. Type 0, then press ENTER.
Using the Spreadsheet
HYSYS has a Spreadsheet operation that allows you to import
stream or operation variables, perform calculations, and export
calculated results.
To install a Spreadsheet and display its property view:
1. Access the Object Palette.
2. Double-click the Spreadsheet icon in the Object Palette.
The Spreadsheet property view appears.
3. On the Connections tab, change the spreadsheet name to
Heating Value.
 Figure 1.121
Workbook icon
Spreadsheet icon1-102
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-103
ww
TheThe heating value of the sales gas is calculated by importing
the stream composition into the Spreadsheet then
multiplying the mole fraction of each component by its
individual heating value.
Importing Variables - First Method
In this section you will import variables on the Connections tab.
1. Click the Add Import button, and the Select Import for cell
property view appears.
2. Choose the SalesGas Object, Comp Mole Frac Variable,
and Methane Variable Specific as shown.
NO2 and CO2 are not included in the calculation as their
individual heating values are negligible.
3. Click the OK button.
4. Click the Add Import button again, then select the
SalesGas Object, Comp Mole Frac Variable, and Ethane
Variable Specific.
5. Click the OK button.
6. Repeat steps 4 and 5 to add the Propane Variable Specific.
For illustration purposes, the two remaining components will
be added later using an alternative import method. HYSYS
assigned the imported variables to Spreadsheet cells A1
through A3, by default.
 Figure 1.1221-103
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-104 Steady State Simulation
ww
The7. Change the cell locations to B3 through B5 as shown in the
following figure; the reason for doing so will become
apparent on the Spreadsheet tab.
8. No information is required on the Parameters and Formulas
tabs, so click the Spreadsheet tab.
9. Enter the column headings as shown in the table below.
You can move to a cell by clicking it, or by pressing the
arrow keys.
10.Enter the components in the Component column as shown
as shown in the table below.
 Figure 1.123
Column/Row Heading
A1 Component
B1 Mole Fraction
C1 Comp Heat Value
D1 Total Heat Value
The HYSYS Spreadsheet behaves similarly to commercial
spreadsheet packages; you enter data and formulas in the
cells, and calculated results are returned.
Row Component
3 C1
4 C2
5 C3
6 iC4
7 nC41-104
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-105
ww
The11.Enter the component net heating values in the Comp Heat
Value column as shown in the figure below.
Importing Variables - Second Method
The next task is to import the remaining two variables’ mole
fractions in the Sales Gas.
1. Select the Spreadsheet cell B6, which is reserved for the i-
C4 mole fraction.
2. Right-click and select Import Variable from the Object
Inspect menu.
The Select Import for cell property view appears.
3. Select the SalesGas Object, Comp Mole Frac Variable, and
i-Butane Variable Specific.
4. Click the OK button to accept the input and close the
property view.
5. Follow steps 1 to 4 to import the mole fraction for n-C4 into
cell B7.
• Position the cursor over cell B7.
• Right-click once, and select Import Variable.
• Select the SalesGas Object, Comp Mole Frac Variable,
and n-Butane Variable Specific.
 Figure 1.124
Object Inspect menu1-105
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-106 Steady State Simulation
ww
The• Click the OK button.
Entering Formulas
The next task is entering the formulas for calculating the
component and total sales gas heating values.
1. Click in cell D3.
2. Type +b3*c3, then press ENTER.
This multiplies the Methane mole fraction by its Net Heating
Value.
3. Enter the following formulas in cells D4 through D7.
4.  The table should appear as shown in the figure below.
5. Click in cell C9, and type Sales Gas NHV.
6. Click in cell D9.
All formulas must be preceded by a +.
Cell Formula
D4 +b4*c4
D5 +b5*c5
D6 +b6*c6
D7 +b7*c7
 Figure 1.1251-106
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-107
ww
The7. Enter +d3+d4+d5+d6+d7 in cell D9 to sum the individual
heating values.
The result is the NHV of SalesGas in Btu/scf.
The current heating value of the sales gas is 1080 Btu/scf.
Whenever flowsheet changes are made that result in the re-
calculation of the stream SalesGas, the compositional
changes will be automatically transferred to the
Spreadsheet, and the heating value updated accordingly.
8. Close the Heating Value property view.
Optional, you can add the value of Sales Gas NHV to the
Databook by:
1. Click the Parameters tab of the Heating Value property
view.
2. In the Exportable Cells table, enter a Variable Name for cell
D9 (for example NHV).
3. Open the Databook by pressing CTRL D.
4. On the Variables tab, insert the variable, selecting the
Heating Value operation as the Object and NHV as the
variable.
 Figure 1.1261-107
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-108 Steady State Simulation
ww
TheInstalling an Adjust for Calculating
the LTS Temperature
Suppose the market price of your liquid product is currently
unfavourable and you want to raise the LTS temperature to
leave more of the heavier components in the gas phase. This
will increase the sales gas heating value, resulting in a bonus
from the transmission company. The sales gas must, however,
still comply with the dew point specification.
An Adjust operation can be used to adjust the temperature of
the LTS (ColdGas stream) until the sales gas dew point is within
a few degrees of the pipeline specification. In effect, this
increases the gas heating value while still satisfying the dew
point criteria.
Installing, Connecting, and Defining the
Adjust
1. Click the PFD icon to display the PFD and access the Object
Palette by pressing F4.
2. Click the Adjust icon on the Object Palette.
3. Position the cursor on the PFD to the right of the SalesDP
stream icon.
4. Click to drop the Adjust icon onto the PFD.
A new Adjust object appears with the default name ADJ-1.
5. Click the Attach Mode icon on the PFD toolbar to enter
Attach mode.
6. Position the cursor over the left end of the ADJ-1 icon.
The connection point and pop-up Adjusted Object appears.
7. With the pop-up visible, left-click and drag toward the
ColdGas stream icon.
The Adjust operation performs automatic trial-and-error
calculations until a target value is reached.
PFD icon
Adjust icon
Attach Mode icon1-108
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-109
ww
The8. When the solid white box appears on the ColdGas stream,
release the mouse button.
The Select Adjusted Variable property view appears.
At this point, HYSYS knows that the ColdGas should be
adjusted in some way to meet the required target. An
adjustable variable for the ColdGas must now be selected
from the Select Adjusted Variable property view.
9. From the Variable list, select Temperature.
10.Click the OK button.
11. Position the cursor over the right corner of the ADJ-1 icon.
The connection point and pop-up Target Object appears.
12.With the pop-up visible, left-click and drag toward the
SalesDP stream icon.
13.When the solid white box appears at the cursor tip, release
the mouse button.
The Select Target Variable property view appears.
14. From the Variable list, select Temperature.
15.Click the OK button.
 Figure 1.127
 Figure 1.1281-109
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-110 Steady State Simulation
ww
The16.Click the Attach Mode icon to leave Attach mode.
17.Double-click the ADJ-1 icon to open its property view.
The connections made in the PFD have been transferred to
the appropriate cells in the property view.
Adjusting the Target Variable
The next task is to provide a value for the target variable, in this
case the dew point temperature. A 5°F safety margin will be
used on the pipeline specification of 15°F, so the desired dew
point is 10°F.
1. In the Connections page, enter 10°F in the Specified
Target Value field.
2. Click the Parameters tab.
3. In the Parameters page, enter 0.1°F in the Tolerance cell.
4. In the Step Size cell, enter 5°F.
 Figure 1.1291-110
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-111
ww
TheNo values will be entered in the Minimum and Maximum
field, as these are optional parameters.
5. Click the Monitor tab.
This tab enables you to view the calculations.
6. Click the Start button.
The Adjust converges on the target value within the
specified tolerance in five iterations. An LTS temperature
(adjusted variable) of 4.4°F gives a sales gas dew point
(target variable) of 10°F.
 Figure 1.130
 Figure 1.1311-111
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-112 Steady State Simulation
ww
TheThe Adjust has changed the LTS temperature from the
original value of 0°F to 4.4°F. The new sales gas heating
value can now be compared to the previous value to see the
effect of this change.
7. Click the Close icon  on the Adjust property view.
Results of the Study
1. Open the Workbook to access the calculated results for the
entire flowsheet.
The Material Streams and Compositions tabs of the
Workbook appear below.
 Figure 1.1321-112
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-113
ww
The1.3 Dynamic Simulation
In this tutorial section, the dynamic capabilities of HYSYS will be
incorporated into a basic steady state gas plant model.
The plant takes two different natural gas streams containing
carbon dioxide and methane through n-butane and combines
and processes them in a simple refrigeration system. A series of
separators and coolers removes the heavier hydrocarbon
components from the natural gas stream, allowing it to meet a
pipeline dew point specification. The heavier liquid component of
the gas stream is processed in a depropanizer column, yielding
a liquid product with a specified propane content.
The Dynamics Assistant will be used to make pressure-flow
specifications and size pieces of equipment in the simulation
flowsheet. It is also possible to set your own pressure-flow
specifications and size the equipment without the aid of the
Dynamics Assistant.
You can continue to this dynamic section with the case you
built during the steady state section, or you can open the
completed steady state version (which is the starting point
for this dynamic section) called TUTOR1.hsc in the
HYSYS\Samples directory.
 Figure 1.1331-113
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-114 Dynamic Simulation
ww
TheThis tutorial will comprehensively guide you through the steps
required to add dynamic functionality to a steady state gas plant
simulation.
To help you navigate these detailed procedures, the following
milestones have been established for this tutorial:
1. Modify the steady state model so that a pressure-flow
relation exists between each unit operation.
2. Implement a tray sizing utility for sizing the Depropanizer
column.
3. Use the Dynamics Assistant to set pressure flow
specifications and size the equipment in the simulation case.
4. Install and define the appropriate controllers.
In this tutorial section, you will follow this basic procedure in
building the dynamic model.
5. Set up the Databook. Make changes to key variables in the
process and observe the dynamic behaviour of the model.
1.3.1 Modifying the Steady
State Flowsheet
It is necessary to add unit operations such as valves, heat
exchangers, or pumps, to define pressure flow relations
between unit operations that have no pressure flow relation. In
this tutorial, valve operations will be added between Separator,
Mixer, and Column operations.
This is only one method of preparing a steady state case for
Dynamic mode.
A completed dynamic case has been pre-built and is called
dyntut1.hsc in the HYSYS\Samples directory.1-114
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-115
ww
TheA Heater operation will also be added between the Mixer and
Column operation for dynamic simulation purposes. Installing a
heater allows you to vary the temperature of the feed entering
the column.
Valves will be added to the following material streams:
• SepLiq
• LTSLiq
• TowerFeed
• LiquidProd
Set Session Preferences
The first task is to set the session preferences.
1. Open the pre-built case file TUTOR1.hsc.
The steady state Gas Processing simulation file TUTOR1.hsc
is located in your HYSYS\Samples directory.
2. From the Tools menu, select Preferences.
The Session Preferences property view appears.
3. Click the Variables tab, then select the Units page.
4. In the Available Unit Sets group list, select Field.
5. Click the Simulation tab, then select the Dynamics page.
In the Dynamic simulation part of this tutorial you will work
with the default Field units.1-115
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-116 Dynamic Simulation
ww
The6. In the Assistant group, uncheck both the Set dynamic
stream specifications in the background and the
Perform checks when switching to dynamics or
starting the integrator checkboxes.
7. Close the Session Preferences property view along with all
the open property views on the HYSYS desktop (except for
the PFD property view) by clicking the Close icon  in the
top right corner of each property view.
Remove Specified Pressures
In the PFD, the stream pressure for Feed 2 will be deleted so
that it will be calculated by the MIX-100 in dynamic mode.
1. Double-click the Feed 2 stream icon to open its property
view.
2. On the Conditions page of the Worksheet tab, click in the
Pressure cell, then press DELETE to remove the stream
pressure.
3. Close the stream property view.
Next you will change the pressure setting for the MIX-100 so
that the whole PFD can be simulated.
4. Double-click the MIX-100 icon to open its property view.
5. On the Design tab, select the Parameters page.
 Figure 1.1341-116
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-117
ww
The6. In the Automatic Pressure Assignment group, click the
Equalize All radio button.
7. Close the MIX-100 property view.
Insert Sep Valve
Next you will insert a valve operation between the SepLiq
stream and the MIX-101 unit operation.
1. Click the Break Connection icon in the PFD toolbar.
2. Break the SepLiq stream connection by doing the following:
• Position the mouse pointer over the connection line
between the SepLiq stream icon and the MIX-101 icon.
• When the mouse pointer has a checkmark beside it, left-
click and the SepLiq stream will disconnect from the MIX-
101.
3. Open the Object Palette by pressing F4.
4. On the Object Palette, right-click and hold on the Valve icon.
5. Drag the cursor over the PFD.
The mouse pointer becomes a bullseye.
6. Position the bullseye pointer beside the SepLiq stream and
release the mouse button.
7. A Valve icon named VLV-100 appears.
8. Double-click the VLV-100 icon on the PFD to open its
property view.
9. In the valve property view, specify the following
connections:
10.Click the Close icon  to close the valve property view.
11.Connect the SepExit stream to the inlet of the MIX-101 unit
operation by doing the following:
• Click the PFD Attach Mode icon.
Tab [Page] In this cell... Enter...
Design
[Connections]
Name Sep Valve
Inlet SepLiq
Outlet SepExit
Design [Parameters] Delta P 25 psi
Break Connection icon
Valve icon
Attach Mode icon1-117
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-118 Dynamic Simulation
ww
The• Position the mouse pointer at the tip of the SepExit
stream arrow. A white box appears.
• Click and drag the pointer to the left side of MIX-101. A
white box appears, indicating a connection point.
• Release the mouse button to complete the connection.
• Click the Attach Mode icon again to exit from the attach
mode.
Insert LTS Valve
Next you will insert a valve operation between the LTSLiq stream
and the MIX-101 unit operation.
1. Break the line between the LTSLiq stream and the MIX-101
unit operation.
• Click the Break Connection icon in the tool bar.
• Click to the right of the arrow on the LTSLiq stream.
2. Install a second valve operation.
• On the Object Palette, right-click the Valve icon.
• Drag the cursor to the right of the LTSLiq stream.
• Release the mouse button.
3. Double-click the valve icon to open its property view.
4. Specify the following connections:
5. Close the valve property view.
6. Attach the LTSExit stream to the MIX-101 unit operation.
• Click the Attach Mode icon
• Move the cursor over the LTSExit stream icon. A white
box appears.
• Click and drag the cursor to the inlet side of the MIX-101
icon. A white box appears, indicating a connection point.
• Release the mouse button to complete the connection.
• Click the Attach Mode icon again to exit the attach
mode.
Tab [Page] In this cell... Enter...
Design
[Connections]
Name LTS Valve
Inlet LTSLiq
Outlet LTSExit
Design [Parameters] Delta P 5 psi1-118
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-119
ww
TheInsert Tower Valve
Next you will add a valve operation between the MIX-101 unit
operation and the TowerFeed stream.
1. Break the line between the TowerFeed stream and the MIX-
101 unit operation. Be sure to break the line to the left of the
TowerFeed stream arrow.
2. Install a third valve operation with the following connections:
3. Close the valve property view.
4. Click the Attach Mode icon, then connect the TowerIn
stream to the exit of the MIX-101 unit operation.
5. Exit the attach mode.
6. Install a Heater operation and position it near the Tower
Valve and the DePropanizer.
• In the Object Palette, click once on the Heater icon.
• In the PFD, click where you want to insert the heater.
7. Open the heater property view and specify the following
connections:
Tab [Page] In this cell... Enter...
Design
[Connections]
Name Tower Valve
Inlet TowerIn
Outlet TowerInlet
Design [Parameters] Delta P 363 psi
You can use the scroll bars to navigate around the PFD.
You can also use the PAGE UP and PAGE DOWN keys to zoom
in and out of the PFD, respectively.
Tab [Page] In this cell... Enter...
Design
[Connections]
Name Heater
Inlet TowerInlet
Outlet TowerFeed
Energy Heater Q
Design [Parameters] Delta P 9 psi1-119
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-120 Dynamic Simulation
ww
The8. In the heater property view, click the Worksheet tab, then
select the Conditions page.
9. In the Temperature cell of the TowerFeed stream, enter
24.73°F.
10.Close the Heater property view.
Insert Reboil Valve
Next you will add a valve to the LiquidProd stream in the Column
subflowsheet. The valve operation will be inserted between the
LiquidProd stream and the Reboiler unit operation in the Column
subflowsheet.
 Figure 1.135
When considering pieces of equipment associated with a
column, it may be necessary to enter the Column sub-
flowsheet environment.1-120
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-121
ww
The1. Double-click the DePropanizer column to open its property
view.
2. Click the Column Environment button to enter the Column
Sub-flowsheet environment.
3. In the PFD of the column sub-flowsheet, break the
connection between the LiquidProd stream and the
Reboiler unit operation.
4. Press F4 to open the Object Palette.
5. Install a valve operation between the Reboiler and the
LiquidProd stream icon. Move the LiquidProd stream to make
room if required.
 Figure 1.136
The Object Palette in the Column Environment contains
fewer available unit operations than the Object Palette in the
Parent Environment.1-121
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-122 Dynamic Simulation
ww
The6. Open the valve property view and specify the following
connections:
7. Close the valve property view.
8. Press CTRL to connect the LiquidExit stream to the liquid
exit connection point of the Reboiler.
9. Click the Run Column Solver icon in the tool bar.
The column will solve with the existing column specifications
and the added valve unit operations.
Tab [Page] In this cell... Enter...
Design
[Connections]
Name Reboil Valve
Inlet LiquidExit
Outlet LiquidProd
Design [Parameters] Delta P 25 psi
 Figure 1.137
Run Column Solver icon1-122
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-123
ww
TheRemove Non-Applicable Operations
Next you will delete unit operations that have no impact on the
Dynamic solver.
1. Return to the Main Flowsheet environment by clicking the
Enter Parent Simulation Environment icon in the toolbar.
2. Close the DePropanizer column property view.
The ADJ-1 and DewPoint logical operations have calculated
the ColdGas stream temperature required to achieve a 10°F
dewpoint in the SalesGas stream.
3. In the PFD, double-click the ColdGas icon to open the
stream property view.
4. Record the temperature of the ColdGas material stream so
that it may be controlled in Dynamic mode:
5. Close the ColdGas property view.
6. On the PFD, click on the ADJ-1 logical operation icon, then
press the DELETE key.
 Figure 1.138
Variable Value
Cold Gas Stream Temperature 4.444°F
Enter Parent Simulation
Environment icon1-123
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-124 Dynamic Simulation
ww
The7. HYSYS prompts you to confirm that you want to delete the
object. Click the Yes button.
8. Delete the DewPoint logical operation and the SalesDP
material stream from the PFD.
9. Ensure that the Standard Windows file picker radio
button is selected on the File tab in the Session Preferences
property view.
10. From the File menu, select Save As. Save the file as
DynTUT1-1.hsc.
1.3.2 Column Sizing
In preparation for Dynamic operation, the column and
surrounding equipment must be sized. In the steady state
environment, column pressure drop is user-specified. In
dynamics, it is calculated using dynamic hydraulic calculations.
Complications will arise in the transition from steady state to
dynamics if the steady state pressure profile across the column
is very different from that calculated by the dynamics pressure-
flow solver.
Column Tray Sizing
1. To access the Available Utilities property view, do one of the
following:
• Press CTRL U.
• From the Tools menu, select Utilities.
When you delete a stream, unit or logical operation from the
flowsheet, HYSYS will ask you to confirm the deletion.
For more information on
Session Preferences refer
to Section 12.5 - Files
Tab in the HYSYS User
Guide.1-124
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-125
ww
The2. Scroll down the list of available utilities and select the Tray
Sizing utility.
3. Click the Add Utility button.
The Tray Sizing property view appears.
4. In the Name field, change the name to DEPROP TS.
5. Click the Select TS button.
The Select Tray Section property view appears.
 Figure 1.139
 Figure 1.1401-125
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-126 Dynamic Simulation
ww
The6. In the Flowsheet group, select DePropanizer. In the Object
group, select Main TS. Click the OK button.
7. In the Setup Sections group, click the Auto Section button.
The Auto Section Information property view appears. The
default tray internal types appear as follows:
8. Select the Valve radio button and click Next.
 Figure 1.141
 Figure 1.1421-126
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-127
ww
TheThe Tray Section Information property view displays the
specific dimensions of the valve-type trays.
9. Keep the default values. Click the Complete AutoSection
button.
HYSYS calculates the Main TS tray sizing parameters based
on the steady state flow conditions of the column and the
desired tray types. HYSYS labels the DePropanizer tray
section as Section_1.
10. To confirm the dimensions and configuration of the trays for
Section_1, click the Performance tab, then select the
Results page.
 Figure 1.1431-127
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-128 Dynamic Simulation
ww
TheConfirm the following tray section parameters for Section_1,
which will be used for the Main TS tray sections.
11.Click Design tab, then select the Setup page.
12.Select the Active checkbox.
13.On the Results page of the Performance tab, click the
Export Pressures button.
For now, ignore any warnings by clicking the OK button.
14.Close the Tray Sizing property view and the Available Utilities
property view.
 Figure 1.144
Variable Value
Section Diameter 2.5 ft
Weir Height 2 in
Tray Spacing 24 in
Total Weir Length 25.38 in
Remember the Max DP/Tray value on the Results page.
You can view column profile information on the Table and
Plot pages.1-128
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-129
ww
The15.Double-click the DePropanizer icon to open the Column
property view.
16.Click the Column Environment button to enter the Column
sub-flowsheet.
17. In the column PFD, double-click the Main TS Column object
to open the Main TS property view.
18.Click the Rating tab, then select the Sizing page.
19.Enter the tray section parameters as follows:
20. In the Internal Type group, select the Valve radio button.
Variable Value
Diameter 2.5 ft
Weir Height 2 in
Tray Space 24 in
Weir Length 25.38 in
Be aware that the units for each tray section parameter may
not be consistent with the units appearing in the tray sizing
utility. Use the drop-down list to select the units you want to
input. HYSYS automatically converts the value to the default
unit.
 Figure 1.145
Open this drop-down list to select the proper units.1-129
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-130 Dynamic Simulation
ww
TheThe complete Main TS tray section property view appears
below:
21.Close the Main TS property view.
22.Access the Column property view by clicking the Column
Runner icon.
23. In the Profiles page of the Parameters tab, note the
steady state pressure profile across the column.
The theoretical top and bottom stage pressure should be
calculated so that the pressure on stage 5_Main TS (the
Tower Feed stage) is about 203 psia, while the total
pressure drop across the column is about 0.7 psi.
24. In the Profiles group, Pressure column, click in the Pressure
cell for the Condenser and press DELETE.
25.Click in the Reboiler pressure cell and press DELETE.
26.Click in the Pressure cell for the top stage (1_Main TS) and
input a value of 202.6 psia.
27.Specify the bottom stage pressure (10_Main TS) as 203.3
psia.
28.Click the Run button at the bottom of the column property
view to start the Column Solver.
29.Return to the Parent (Main) Simulation environment.
30.Save the case as DynTUT1-2.hsc.
 Figure 1.146
Column Runner icon1-130
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-131
ww
The1.3.3 Using the Dynamics
Assistant
Before you can run the simulation case in Dynamic mode, the
degrees of freedom for the flowsheet must be reduced to zero
by setting the pressure-flow specifications. It is also necessary
to size the existing valves, vessels, coolers, and heat
exchangers in the Main Flowsheet and the Column Sub-
flowsheet. The following sizing parameters must be specified for
these unit operations:
The Dynamics Assistant makes recommendations as to how the
flowsheet topology should change and what pressure-flow
specifications are required in order to run a case in Dynamic
mode. In addition, it automatically sets the sizing parameters of
the equipment in the simulation flowsheet. Not all the
suggestions that the Dynamics Assistant offers need to be
followed.
The Dynamics Assistant will be used to do the following:
• Add Pressure-Flow specifications to the simulation case.
• Size the Valve, Vessel, and Heat Exchanger operations.
Unit Operation Sizing Parameter
Valves Cv value
Vessels Volume
Coolers/Heat Exchangers k-values1-131
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-132 Dynamic Simulation
ww
The1. Click the Dynamics Assistant icon in the toolbar.
Green checkmarks appear in the Make Changes column
beside all recommendations by default. You can choose
which recommendations will be executed by the Assistant by
activating or deactivating the checkboxes beside each
recommendation.
Browse through each tab in the Dynamics Assistant property
view to inspect the recommendations.
2. Click the Streams tab.
 Figure 1.147
 Figure 1.148
Dynamics Assistant icon1-132
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-133
ww
TheThe Streams tab contains a list of recommendations
regarding the setting or removing of pressure-flow
specifications in the flowsheet.
3. For each page in the Streams tab, set the following
recommendations as active or inactive according to the table
shown below:
Tab [Page] Recommendation Stream OK Checkbox
Streams
[Pressure Specs]
Remove Pressure
Specifications
Feed 1 Active
Set Pressure
Specifications
LiquidProd Active
SalesGas Active
Streams [Flow
Specs]
Remove Flow
Specifications
Feed 1 Inactive
Feed 2 Inactive
Streams [Insert
Valves]
Insert Valves Feed 1 Inactive
Feed 2 Inactive
Ovhd Inactive
Streams [Int.
Flow Spec]
Set Internal Flow
Specification
Reflux Active
Checkbox Description
An active recommendation will be implemented by the
Dynamics Assistant.
An inactive recommendation will be ignored by the
Dynamics Assistant.
If some of the columns or rows on the pages are not visible,
use the scroll bars beside or under the information area to
bring the columns or rows into view.1-133
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-134 Dynamic Simulation
ww
The4. Click the Pressure Flow Specs tab.
This tab contains a list of unit operations which can use a
Pressure Flow or Pressure Drop (DeltaP) specification.
Typically, all unit operations in Dynamic mode should use the
Pressure Flow specification.
5. Ensure that all the recommendations in this page are active:
 Figure 1.149
Tab [Page] Recommendation Unit Operation OK Checkbox
Pressure Flow Specs
[PF versus DP]
Pressure Flow Spec
instead of Delta P
Chiller Active
Gas/Gas Active
Heater Active1-134
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-135
ww
The6. Click the Unknown Sizes tab and select the Volumes
page.
You can modify any of the default sizing parameters in the
Unknown Sizes tab. Once you modify a sizing parameter, the
piece of equipment is automatically sized and the volume,
Cv, or k-value displayed.
7. For each page in the Unknown Sizes tab, ensure that all
the recommendations are active:
 Figure 1.150
The Unknown Sizes tab contains a list of the unit operations
in the flowsheet that require sizing.
• The Valve operations are sized based on the
current flow rate and pressure drop across the
valve. The valves are sized with a 50% valve
opening.
• The Vessel operation volumes are determined
based on the liquid exit volumetric flow rate and
a 10-second residence time.
• The Heat Exchanger operations are sized based
on the current flow rate and pressure drop
across the equipment.
Tab [Page] Recommendation Unit Operation OK Checkbox
Unknown
Sizes
[Volumes]
Vessel Sizing Chiller Active
Gas/Gas (Tube) 1 Active
Gas/Gas (Shell) 2 Active1-135
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-136 Dynamic Simulation
ww
The8. Click the Tray sections tab.
The Tray sections tab identifies tray sections and streams
whose total steady state pressure drops are inconsistent
with the total pressure drop calculated according to the
dynamics rating model.
For the purpose of this tutorial, recommendations on this tab
will be ignored.
9. Click the Other tab.
10.Activate the following recommendations:
The Other tab contains a list of miscellaneous changes that
should to be made in order for the Dynamic simulation case
to run effectively.
11.Click the Make Changes button once.
All the active suggestions in the Dynamics Assistant are
implemented.
12.Close the Dynamics Assistant property view.
Unknown
Sizes
[k values]
Heat Exchanger
Sizing
Chiller Active
Gas/Gas (Tube) Active
Gas/Gas (Shell) Active
 Figure 1.151
Tab [Page] Recommendation Unit Operation OK Checkbox
Other [Misc
Specs]
Set Equalize
Option Mixers
Mixer-101 Active
Tab [Page] Recommendation Unit Operation OK Checkbox1-136
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-137
ww
The13.Switch to Dynamic mode by clicking the Dynamic mode
icon. When asked “Are you sure you want to switch to
dynamics?”, click the Yes button.
Since you deactivated the suggestion to insert a valve on the
Ovhd stream, you must set a pressure-flow specification on
this stream.
14. In the PFD, double-click the Ovhd stream icon to open
stream property view.
15.Click the Dynamics tab, then select the Specs page.
16.Activate the Pressure specification by selecting the
appropriate checkbox.
The Pressure specification should be the only specification
active.
Ensure that the Ovhd Molar Flow specification is inactive.
17.Close the Ovhd property view.
18. In the PFD, double-click the Heater icon to access the
property view.
You can enter the Ovhd stream pressure specification in
either the Main Flowsheet environment or the Column Sub-
Flowsheet.
 Figure 1.152
Dynamic Mode icon1-137
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-138 Dynamic Simulation
ww
TheYou can specify the exit temperature of the Heater operation
in Dynamic mode. The duty of the heater is back-calculated
to make the temperature specification.
19.Click the Dynamics tab, then select the Specs page.
20. In the Model Details group, select the Product Temp Spec
radio button.
21.Close the property view.
22.Save the case as DynTUT1-3.hsc.
1.3.4 Adding Controller
Operations
In this section you will identify and implement key control loops
using PID Controller logical operations. Although these
controllers are not required to run in Dynamic mode, they will
increase the realism of the model and provide more stability.
 Figure 1.1531-138
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-139
ww
ThePFD of the main flowsheet environment after all controllers are
added:
PFD of the Column sub-flowsheet after controllers are added:
 Figure 1.154
 Figure 1.1551-139
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-140 Dynamic Simulation
ww
TheLevel Control
In this section you will add level controllers to both the Main
flowsheet and Column sub-flowsheet to control the liquid levels
of each vessel operation.
1. In the Main flowsheet, access the Object Palette by pressing
F4.
2. In the Object Palette, click the Control Ops icon.
A sub-palette appears.
3. In the sub-palette, right-click and drag the PID Controller
icon to the PFD between InletSep and Sep Valve.
The controller icon IC-100 appears in the PFD.
4. Double-click the controller icon to open its property view.
5. Click the Connections tab. In the Name field, change the
name of the PID Controller operation to Sep LC.
6. In the Process Variable Source group, click the Select PV
button.
The Select Input PV property view appears.
 Figure 1.156
PID Controller icon1-140
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-141
ww
The7. In the Flowsheet list, select Case (Main). In the Object list,
select InletSep. In the Variable list, select Liquid Percent
Level. Click the OK button.
8. In the Output Target Object group, click the Select OP
button. The Select OP Object property view appears.
The Select OP Object property view is exactly the same as
the Select Input PV property view.
9. In the Flowsheet list, select Case (Main). In the Object list,
select Sep Valve. In Variable list, select Percentage open.
Click the OK button.
10.Click the Parameters tab, then select the Configuration
page.
11.Enter the information specified in the following table:
12.Click the Face Plate button at the bottom of the property
view.
13.Change the controller mode to Auto on the face plate by
opening the drop-down list and selecting Auto. Close the
face plate property view when you are finished.
 Figure 1.157
In this cell... Enter...
Action Select the Direct radio button
Kc 2
PV Minimum 0%
PV Maximum 100%1-141
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-142 Dynamic Simulation
ww
The14.Using the same procedures, add another PID Controller
operation that will serve as the LTS level controller. Specify
the following details:
15.Click the Face Plate button. Change the controller mode to
Auto on the face plate property view.
Next you will enter the Column sub-flowsheet environment.
16. Instead of entering through the Column property view, click
the Object Navigator icon in the toolbar.
17.Double-click on DePropanizer in the Flowsheets group to
enter the Column sub-flowsheet environment.
18. Ensure the PFD for the column is visible.
19. In the Column sub-flowsheet, add a PID Controller operation
that will serve as the Condenser level controller. Specify the
following details:
Tab [Page] In this cell... Enter...
Connections Name LTS LC
Process Variable Source LTS object, Liquid Percent
Level variable
Output Target Object LTS Valve, Percentage open
Parameters
[Configuration]
Action Direct
Kc 2
PV Minimum 0%
PV Maximum 100%
Tab [Page] In this cell... Enter...
Connections Name Cond LC
Process Variable Source Condenser, Liquid Percent
Level
Output Target Object Reflux, Control Valve
Parameters
[Configuration]
Action Direct
Kc 1
Ti 5 minutes
PV Minimum 0%
PV Maximum 100%
Object Navigator icon1-142
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-143
ww
The20.Click the Control Valve button.
The FCV for Reflux property view appears.
21. Enter the following details in the Valve Sizing group:
22.Close the FCV for Reflux property view.
23.Click the Face Plate button. Change the controller mode to
Auto on the face plate property view, then close the
property view.
24.Close the Cond LC controller property view.
The Column sub-flowsheet uses a simplified Object Palette.
To add a PID Controller operation in the sub-flowsheet,
right-click the PID Controller icon in the Object Palette and
drag the cursor to the PFD.
In this cell... Enter...
Flow Type Molar Flow
Minimum Flow 0 lbmole/h
Maximum Flow 500 lbmole/h
The Flow values shown above do not use the default units.
Enter the values, then select the correct units from the drop-
down list. HYSYS automatically converts the values to the
default units.
 Figure 1.1581-143
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-144 Dynamic Simulation
ww
The25.Add another PID Controller operation that will serve as the
Reboiler level controller. Specify the following details:
26.Click the Control Valve button.
The FVC for RebDuty view appears.
27. In the Duty Source group, select the Direct Q radio button if
it is not already selected.
28. In the Direct Q group, enter the following values:
The values shown above do not use the default units.
Enter the values, then select the correct units from the drop-
down list. HYSYS automatically converts the values to the
default units.
Tab [Page] In this cell... Enter...
Connections Name Reb LC
Process Variable Source Reboiler, Liq Percent Level
Output Target Object RebDuty, Control Valve
Parameters
[Configuration]
Action Direct
Kc 0.1
Ti 3 minutes
PV Minimum 0%
PV Maximum 100%
In this cell... Enter...
Min Available 0 Btu/h
Max Available 6e6 Btu/h
 Figure 1.1591-144
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-145
ww
The29.Close the FCV for RebDuty view.
30.Click the Face Plate button. Change the controller mode to
Auto on the face plate. Close the face plate property view.
31.Close the Reb LC property view.
Temperature Control
Temperature control is important in this dynamic simulation
case. A temperature controller will be placed on the ColdGas
stream to ensure that the SalesGas stream makes the 10°F
dewpoint specification. Temperature control will be placed on
the top and bottom stages of the depropanizer to ensure
product quality and stable column operation.
1. Enter the Main Flowsheet environment by clicking the Enter
Parent Simulation Environment button.
Next you will add a PID Controller operation that will serve
as the ColdGas temperature controller.
2. On the Object Palette, click the Control Ops icon.
A sub-palette appears.
3. Right-click the PID Controller icon, and drag the cursor to
the PFD.
4. Double-click the controller icon to open its property view.
Specify the following details:
Tab [Page] In this cell... Enter...
Connections Name Cold TC
Process Variable Source ColdGas, Temperature
Output Target Object C3Duty, Control Valve
Parameters
[Configuration]
Action Direct
Kc 1
Ti 10 minutes
PV Minimum -20 oF
PV Maximum 20 oF
The temperature values shown above do not use the default
units. Enter the values, then select the correct units from the
drop-down list. HYSYS automatically converts the values to
the default units.
Enter Parent Simulation
Environment icon
PID Controller icon1-145
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-146 Dynamic Simulation
ww
The5. Click the Control Valve button.
The FCV for C3Duty appears.
6. In the Duty Source group, select the Direct Q radio button.
7. In the Direct Q group, enter the following details:
8. Close the FCV for C3Duty view.
9. Click the Face Plate button. Change the controller mode to
Auto on the face plate property view, then close the
property view.
10.Enter the Depropanizer Column sub-flowsheet environment.
11.Add a PID Controller operation that will serve as the
Depropanizer Top Stage temperature controller.
12. In the controller property view, specify the following details:
13.Click the Control Valve button.
The FCV for CondDuty view appears.
In this cell... Enter...
Min Available 0 Btu/h
Max Available 2e6 Btu/h
The values shown here do not use the default units. Enter
the values, then select the correct units from the drop-down
list. HYSYS automatically converts the values to the default
units.
Tab [Page] In this cell... Enter...
Connections Name Top Stage TC
Process Variable Source Main TS, Top Stage
Temperature
Output Target Object CondDuty, Control Valve
Parameters
[Configuration]
Action Direct
Kc 1
Ti 5 minutes
PV Minimum 50oF
PV Maximum 130oF
Ensure that you select the correct temperature units from
the units drop-down list.1-146
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-147
ww
The14. In the Duty Source group, select the Direct Q radio button.
15.  in the Direct Q group, enter the following details:
16.Close the FCV for CondDuty view.
17.Click the Face Plate button.
The Top Stage TC face plate property view appears.
18.Change the controller mode to Auto. In the PV field, enter a
set point of 86oF.
19.Close the Top Stage TC face plate property view.
20.Close the Top Stage TC property view.
21.Add another PID Controller operation that will serve as the
Depropanizer 9th stage temperature controller.
22. In the controller property view, specify the following details:
23.Click the Face Plate button.
The Stage 9 TC face plate property view appears.
In this cell... Enter...
Min Available 0 Btu/h
Max Available 3e6 Btu/hr
Ensure that you select the correct units from the units drop-
down list.
Tab [Page] In this cell... Enter...
Connections Name Stage9 TC
Process Variable Source Main TS, Stage
Temperature, 9_Main TS
Output Target Object Reboil Valve, Percentage
open
Parameters
[Configuration]
Action Direct
Kc 2
Ti 5 minutes
PV Minimum 110oF
PV Maximum 260oF1-147
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-148 Dynamic Simulation
ww
The24.Change the controller mode to Auto. In the PV field, input a
set point of 184oF.
You should be able to run the integrator at this point without
any problems, however, you will probably want to monitor
important variables in the dynamic simulation using strip
charts.
25.Return to the Parent Environment.
26.Save the case as DynTUT1-4.hsc.
Monitoring in Dynamics
Now that the model is ready to run in Dynamic mode, you will
create a strip chart to monitor the general trends of key
variables. The following is a general procedure for installing strip
charts in HYSYS.
1. Open the Databook by using the hot key combination CTRL
D.
In the next set of steps, you will add all of the variables that
you would like to manipulate or model.
Ensure that you select the correct temperature units from
the units drop-down list.
 Figure 1.160
For more information,
refer to section Using
the Databook.1-148
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-149
ww
The• Include feed and energy streams that you want to modify
in the dynamic simulation.
• Include unit operation temperature, levels, and pressures
that you want to monitor and record.
2. On the Variables tab, click the Insert button. The Variable
Navigator appears.
Select Case (Main) in the Flowsheet group to ensure you can
find all streams and operations.
3. Select the Object and Variable groups for any of the
following suggested variables.
4. Click the Add button to add the selected variable to the
Variables page.
 Figure 1.161
Object Variable
Tower Feed Molar Flow
Heater Q Utility outlet Temp
Feed 1 Molar Flow
Feed 2 Molar Flow
Ovhd Molar Flow
InletSep Liquid Percent Level
LTS Liquid Percent Level1-149
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-150 Dynamic Simulation
ww
The5. Repeat steps #3 and #4 to add any remaining variables to
the Databook.
6. Click the Strip Charts tab.
7. In the Available Strip Charts group, click the Add button.
HYSYS will create a new strip chart with the default name
DataLogger1. You may change the default name by editing
the Logger Name cell.
8. In the table, check the Active checkbox for each of the
variables that you would like to monitor on this particular
strip chart.
9. If required, add more strip charts by repeating steps #7 and
#8.
The purpose of selecting manipulated and monitored objects
is to see how the monitored objects will respond to the
changes you make to the manipulated variable.
 Figure 1.162
To make the strip chart easier to read, do not activate more
than six variables per strip chart.
To change the configuration of each strip chart, click the
Setup button. 1-150
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Gas Processing Tutorial 1-151
ww
The10.To access a strip chart property view, select the strip chart
name, then click the Strip Chart button.
11.Minimize the Databook property view.
12.Before starting the integrator, open the property view for the
Ovhd stream.
13.Click the Dynamics tab, then select the Specs page.
14. In the Dynamic Specifications group, ensure that the
Pressure specification checkbox is Active and the Molar Flow
specification checkbox is Inactive.
15.Close the Ovhd stream property view.
16.Arrange both strip chart property views so you can see
them.
17.Start the Integrator by clicking the Start Integrator icon in
the tool bar and observe as the variables line out on the strip
charts.
18.Click the Stop Integrator icon to stop the process.
To use the Databook feature for analysis, manipulate the
stream and operation variables via their property views, click
the Start Integrator icon again, and view the results in the
monitored variables in the strip charts.1-151
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
1-152 Dynamic Simulation
ww
The1-152
w.cadfamily.com    EMail:cadserv21@hotmail.com
 document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-1
ww
Th2  Refining Tutorial2-1
2.1  Introduction................................................................................... 2
2.2  Steady State Simulation................................................................. 4
2.2.1  Process Description .................................................................. 4
2.2.2  Setting Your Session Preferences................................................ 6
2.2.3  Building the Simulation ............................................................. 9
2.2.4  Entering the Simulation Environment ........................................ 39
2.2.5  Using the Workbook................................................................ 42
2.2.6  Installing Unit Operations ........................................................ 52
2.2.7  Using Workbook Features ........................................................ 58
2.2.8  Using the PFD........................................................................ 64
2.2.9  Viewing and Analyzing Results ................................................112
2.2.10  Installing a Boiling Point Curves Utility....................................114
2.2.11  Using the Databook .............................................................120
2.3  Dynamic Simulation ................................................................... 130
2.3.1  Simplifying the Steady State Flowsheet ....................................131
2.3.2  Adding Equipment & Sizing Columns ........................................136
2.3.3  Adding Controller Operations ..................................................149
2.3.4  Adding Pressure-Flow Specifications.........................................155
2.3.5  Monitoring in Dynamics..........................................................161
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-2 Introduction
ww
Th2.1 Introduction
You will build the Refining simulation using the following basic
steps:
1. Create a unit set.
2. Choose a property package.
3. Select the non-oil components.
4. Characterize the Oil.
5. Create and specify the preheated crude and utility steam
streams.
6. Install and define the unit operations in the pre-fractionation
train.
7. Install and define the crude fractionation column.
In this tutorial, crude oil is processed in a fractionation facility to
produce naphtha, kerosene, diesel, atmospheric gas oil, and
atmospheric residue products. Preheated crude (from an
upstream preheat train) is fed to a pre-flash drum where
vapours are separated from the liquids, which are heated in a
furnace. The pre-flash vapours bypass the furnace and are
recombined with the hot crude from the furnace. The combined
stream is then fed to the atmospheric crude column for
fractionation.
This complete case has also been pre-built and is located in
the file TUTOR2.HSC in your Aspen HYSYS\Samples
directory.2-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-3
ww
ThThe main flowsheet for this process appears in the figure below.
The crude column consists of a refluxed absorber with three side
strippers and three cooled pump around circuits. The column
sub-flowsheet appears below.
The following pages guide you through building a Aspen HYSYS
case for modeling this process. This tutorial illustrates the
complete construction of the simulation, from selecting a
property package and components, characterizing the crude oil,
to installing streams and unit operations, through to examining
 Figure 2.1
 Figure 2.22-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-4 Steady State Simulation
ww
Ththe final results. The tools available in Aspen HYSYS are utilized
to illustrate the flexibility available to you.
2.2 Steady State
Simulation
2.2.1 Process Description
This example models a crude oil processing facility consisting of
a pre-fractionation train used to heat the crude liquids, and an
atmospheric crude column to fractionate the crude into its
straight run products. The Main Flowsheet for this process
appears in the following figure.
Preheated crude (from a preheat train) is fed to the pre-flash
drum, modeled as a Separator, where vapours are separated
from the crude liquids. The liquids are then heated to 650°F in
the crude furnace, modeled as a Heater. The pre-flash vapours
bypass the furnace and are re-combined, using a Mixer, with the
hot crude stream. The combined stream is then fed to the
atmospheric crude column for separation.
Before proceeding, you should have read Chapter A - HYSYS
Tutorials which precedes the Tutorials in this guide.
 Figure 2.32-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-5
ww
ThThe crude column is modeled as a Refluxed Absorber, equipped
with three pump-around and three side stripper operations. The
Column sub-flowsheet appears in the figure below.
The main column consists of 29 trays plus a partial condenser.
The TowerFeed enters on stage 28, while superheated steam is
fed to the bottom stage. In addition, the trim duty is
represented by an energy stream feeding onto stage 28. The
Naphtha product, as well as the water stream WasteH2O, are
produced from the three-phase condenser. Crude atmospheric
Residue is yielded from the bottom of the tower.
Each of the three-stage side strippers yields a straight run
product. Kerosene is produced from the reboiled KeroSS side
stripper, while Diesel and AGO (atmospheric gas oil) are
produced from the steam-stripped DieselSS and AGOSS side
strippers, respectively.
The two primary building tools, Workbook and PFD, are used to
install the streams and operations and to examine the results
while progressing through the simulation. Both of these tools
provide you with a large amount of flexibility in building your
simulation, and in quickly accessing the information you need.
 Figure 2.42-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-6 Steady State Simulation
ww
ThThe Workbook is used to build the first part of the flowsheet,
from specifying the feed conditions through to installing the pre-
flash separator. The PFD is then used to install the remaining
operations, from the crude furnace through to the column.
2.2.2 Setting Your Session
Preferences
1. Start Aspen HYSYS and create a new case. The Simulation
Basis Manager property view appears.
Your first task is to set your Session Preferences.
2. From the Tools menu, select Preferences.
The Session Preferences property view appears.
The Workbook displays information about streams and unit
operations in a tabular format, while the PFD is a graphical
representation of the flowsheet.
 Figure 2.52-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-7
ww
ThThe most important preference you will set is the unit set.
Aspen HYSYS does not allow you to change any of the
default unit sets listed, however, you can create a new unit
set by cloning an existing one. In this tutorial you will create
a new unit set based on the Aspen HYSYS Field set and
customize it.
3. Click the Variables tab, then select the Units page.
4. In the Available Unit Sets group, select Field.
5. Click the Clone button.
A new unit set named NewUser appears and is automatically
selected as the current unit set.
6. In the Unit Set Name field, rename the new unit set to
Field-density.
You can now change the units for any variable associated
with this new unit set.
The default Preference file is named Aspen HYSYS.prf. When
you modify any of the preferences, you can save the changes
in a new Preference file by clicking the Save Preference Set
button. Aspen HYSYS prompts you to provide a name for the
new Preference file, which you can later use in any
simulation case by clicking the Load Preference Set button.
 Figure 2.62-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-8 Steady State Simulation
ww
Th7. In the Display Units group, use the vertical scroll bar to find
the Standard Density cell.
The current default unit for Standard Density is lb/ft3. A
more appropriate unit for this example is API_60.
8. Click in the Standard Density cell on lb/ft3.
9. Press the SPACEBAR or the DOWN arrow to open the drop-
down list of available units.
10. In the unit list, select API_60.
11.Repeat steps #8-#10 to change the Mass Density units to
API.
 Figure 2.7
 Figure 2.82-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-9
ww
Th12.Your new unit set is now defined. Close the Session
Preferences property view to return to the Simulation Basis
Manager property view.
2.2.3 Building the Simulation
Selecting Components
Before defining a fluid package in Aspen HYSYS, you will create
a component list for the fluid package. In this example, the
component list contains non-oil components, Light Ends, and
hypocomponents. You must first add the non-oil components
and Light Ends from Aspen HYSYS pure component library into
the component list.
1. Click the Components tab, then click the Add button. The
Component List property view appears.
All commands accessed via the toolbar are also available as
Menu items.
 Figure 2.92-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-10 Steady State Simulation
ww
ThThere are a number of ways to select components for your
simulation. One method is to use the matching feature.
Notice that each component is listed in three ways on the
Selected tab:
At the top of each of these three columns is a corresponding
radio button. Based on the selected radio button, Aspen
HYSYS will locate the component(s) that best matches the
input you type in the Match cell.
2. Optional: To rename the component list, click in the Name
field at the bottom of the property view and type a new
name.
For this tutorial example, you will add the following non-oil
components: H2O, C3, i-C4, n-C4, i-C5 and n-C5.
First, you will add H2O using the match feature.
3. Ensure the Sim Name radio button is selected, and the
Show Synonyms checkbox is selected.
4. Click in the Match field.
You can also move to the Match field by pressing ALT M.
Matching Method Description
SimName The name appearing within the simulation.
FullName/
Synonym
IUPAC name (or similar), and synonyms for many
components.
Formula The chemical formula of the component. This is useful
when you are unsure of the library name of a
component, but know its formula.
The Component List property view contains two tabs. In this
example, the Selected tab is the only tab used, because it
contains all the functions you need to add components to the
list.2-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-11
ww
Th5. Begin typing ‘water’. Aspen HYSYS filters through its library
as you type, displaying only those components that match
your input.
6. With Water selected, add it to the Current Component List by
doing one of the following:
• Press the ENTER key.
• Click the Add Pure button.
• Double-click on Water.
You can also use the Family Filter to display only those
components belonging to certain families. Next, you will add
Propane to the component list using a Family Filter:
7. Ensure the Match field is empty, and click the View Filter
button. The Filters property view appears as shown on the
left.
8. On the Filters property view, select the Use Filter checkbox
to activate the Family Filter.
 Figure 2.10
Filters property view2-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-12 Steady State Simulation
ww
Th9. Select the Hydrocarbons checkbox. The remaining
components are known to be hydrocarbons.
10.Double-click Propane to add it to the component list.
Next you will add the remaining Light Ends components i-C4
through n-C5. The following procedure shows you quick way
to add components that appear consecutively in the library
list.
11.Click on the first component to be added (in this case, i-C4).
12.Do one of the following:
• Hold down the SHIFT key and click on the last
component, in this case n-C5. All components i-C4
through n-C5 are now selected. Release the SHIFT key.
 Figure 2.11
The Match feature remains active when you are using a
family filter, so you could have also typed C3 in the Match
field and then added it to the component list.
To select consecutive components, use the SHIFT key.
To select non-consecutive components, use the CTRL key.
On the
Component
property
view,
Propane
appears
near the top
of the
filtered list.2-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-13
ww
Th• Click and drag from i-C4 to n-C5. Components i-C4
through to n-C5 are selected.
13.Click the Add Pure button. The selected components are
transferred to the Selected Component group.
The complete list of non-oil components appears in the
figure above.
14.Close the Component List property view and Filters property
views to return to the Simulation Basis Manager property
view.
On the Components tab, the Component Lists group now
contains the name of the new component list that you
created.
Defining a Fluid Package
In the Simulation Basis Manager property view, your next task is
to define a fluid package.
A fluid package contains the components and property methods
that Aspen HYSYS will use in its calculations for a particular
 Figure 2.12
Aspen HYSYS displays the current Environment and Mode in
the upper right corner of the property view. Whenever you
begin a new case, you are automatically placed in the Basis
environment, where you can choose the property package
and non-oil components.
To remove a
component from the
Current Components
List, select it and
click the Remove
button or press the
DELETE key. 2-13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-14 Steady State Simulation
ww
Thflowsheet. Depending on what is required, a fluid package can
also contain other information, such as a petroleum fluid
characterization.
The fluid package for this example will contain the property
package (Peng Robinson), the pure components H2O, C3, i-C4,
n-C4, i-C5, n-C5, and the hypothetical components which are
generated in the Oil characterization.
1. Click the Fluid Pkgs tab, then click the Add button. The
Fluid Package: Basis-1 view appears.
This property view is divided into a number of tabs that allow
you to supply all the information necessary to completely
define the fluid package. For this tutorial, however, only the
Set Up tab is used.
On the Set Up tab, the currently selected Property Package
The Simulation Basis Manager allows you to create, modify,
and otherwise manipulate fluid packages in your simulation
case. Most of the time, as with this example, you require only
one fluid package for your entire simulation.
Aspen HYSYS has created a fluid package with the default
name Basis-1. You can change the name of this fluid package
by typing a new name in the Name field at the bottom of the
property view.
 Figure 2.132-14
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-15
ww
This . Before you begin characterizing your petroleum
fluid, you must choose a property package that can handle
hypothetical components.
2. Select the Peng Robinson property package by doing one of
the following:
• Type Peng Robinson. Aspen HYSYS finds the match to
your input.
• Use the up and down arrow keys to scroll through the list
of available property packages until Peng Robinson is
selected.
• Use the vertical scroll bar to scroll through the list until
Peng Robinson becomes visible, then click on it.
The Fluid Package: Basis - 1 view appears as shown below.
Alternatively, you could have selected the EOSs radio button
in the Property Pkg Filter group. The list would then display
only those property packages that are Equations of State.
Peng Robinson would appear in this filtered list.
In the Component List Selection group, you could use the
drop-down list to find the name of any component lists you
 Figure 2.14
The Property Pkg indicator now indicates Peng Robinson
is the current property package for this fluid package.2-15
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-16 Steady State Simulation
ww
Thhad created (currently empty).
The View button opens the Component List property view of
the selected component list.
3. Close the Fluid Package: Basis - 1 view to return to the
Simulation Basis Manager property view.
The list in the Current Fluid Packages group displays the new
fluid package, Basis-1, showing the number of components
(NC) and property package (PP). The new fluid package is
assigned by default to the main flowsheet, as shown in the
Flowsheet-Fluid Pkg Associations group.
If you have multiple fluid packages and components lists in a
case, you can use the drop-down list in the Component List
Selection group to attache a component list to a particular
property package.
If the selected component list contains components not
appropriate for the selected property package, Aspen HYSYS
opens the Components Incompatible with Property Package
property view. On this property view, you have the options
of Aspen HYSYS removing the incompatible components
from the component list or changing to a different property
package using the drop-down list or the Cancel button.
 Figure 2.152-16
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-17
ww
ThCreating Hypocomponents
Your next task is to create and add the hypocomponents to the
component list. In this example, you will characterize the oil
(Petroleum Fluid) using the given Assay data to create the
hypocomponents.
Characterizing the Oil
In this section, you will use the following laboratory Assay data:
Bulk Crude Properties
MW 300.00
API Gravity 48.75
Light Ends Liquid Volume Percent
i-Butane 0.19
n-Butane 0.11
i-Pentane 0.37
n-Pentane 0.46
TBP Distillation Assay
Liquid Volume
Percent Distilled
Temperature (°F) Molecular Weight
0.0 80.0 68.0
10.0 255.0 119.0
20.0 349.0 150.0
30.0 430.0 182.0
40.0 527.0 225.0
50.0 635.0 282.0
60.0 751.0 350.0
70.0 915.0 456.0
80.0 1095.0 585.0
90.0 1277.0 713.0
98.0 1410.0 838.0
API Gravity Assay
Liq Vol% Distilled API Gravity
13.0 63.282-17
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-18 Steady State Simulation
ww
ThAccessing the Oil Environment
The Aspen HYSYS Oil Characterization procedure is used to
convert the laboratory data into petroleum hypocomponents.
1. On the Simulation Basis Manager property view, click the Oil
Manager tab.
The text on the right side of the property view indicates that
before entering the Oil Environment, two criteria must be
33.0 54.86
57.0 45.91
74.0 38.21
91.0 26.01
Viscosity Assay
Liquid Volume
Percent Distilled
Viscosity (cP) 100°F Viscosity (cP) 210°F
10.0 0.20 0.10
30.0 0.75 0.30
50.0 4.20 0.80
70.0 39.00 7.50
90.0 600.00 122.30
 Figure 2.16
API Gravity Assay2-18
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-19
ww
Thmet:
• at least one fluid package must be present. In this case,
only one fluid package, Basis-1, is selected.
• the property package must be able to handle
Hypothetical Components. In our case, the property
package is Peng Robinson, which is capable of handling
Hypothetical components.
Since both criteria are satisfied, the oil is characterized in
the Oil Environment.
2. To enter the Oil Characterization environment, do one of the
following:
• click the Enter Oil Environment button on the Oil
Manager tab.
• click the Oil Environment icon on the toolbar.
The Oil Characterization property view appears.
The Oil Characterization property view allows you to create,
modify, and otherwise manipulate the Assays and Blends in
your simulation case. For this example, the oil is
characterized using a single Assay.
The Associated Fluid Package drop-down list indicates which
fluid package is used for the oil characterization. Since there
is only one fluid package, Aspen HYSYS has made Basis-1 the
Associated Fluid Package.
 Figure 2.17
Oil Environment icon2-19
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-20 Steady State Simulation
ww
ThIn general, three steps must be completed when you are
characterizing a petroleum fluid:
1. Supply data to define the Assay.
2. Cut the Assay into hypothetical components by creating a
Blend.
3. Install the hypothetical components into the fluid package.
Defining the Assay
1. On the Assay tab, click the Add button to create and view a
new Assay. The Assay property view appears.
When the property view for a new Assay is opened for the
first time, the property view contains minimal information.
Depending on the Assay Data Type you choose, the property
view is modified appropriately. For this example, the Assay is
defined based on TBP data.
Aspen HYSYS has given the new Assay the default name of
Assay-1. You can change this by typing a new name in the
Name field.
 Figure 2.182-20
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-21
ww
Th2. From the Assay Data Type drop-down list, select TBP. The
property view is customized for TBP data.
The next task is to enter the composition of the Light Ends in
the Assay.
3. From the Light Ends drop-down list, select Input
Composition.
4. In the Input Data group, select the Light Ends radio button.
5. Ensure that Liquid Volume% is selected in the Light Ends
Basis drop-down list.
6. Click in the Composition cell for i-Butane.
7. Type 0.19, then press the ENTER key. You are automatically
advanced down one cell to n-Butane.
 Figure 2.192-21
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-22 Steady State Simulation
ww
Th8. Type the remaining compositions as shown. The total
Percent of Light Ends in Assay is calculated and displayed at
the bottom of the table.
Before entering any of the assay data, you must activate the
molecular weight, density, and viscosity curves by choosing
appropriate curve types in the Assay Definition group.
Currently, these three curves are not used.
9. From the Bulk Properties drop-down list, select Used. A new
radio button labeled Bulk Props appears in the Input Data
group.
10. From Molecular Wt. Curve drop-down list, select Dependent.
A new radio button labeled Molecular Wt appears in the
Input Data group.
11. From the Density Curve and Viscosity Curves drop-down
lists, select Independent as the curve type. For Viscosity, two
radio buttons appear as Aspen HYSYS allows you to input
viscosity assay data at two temperatures.
Your property view now contains a total of seven radio
buttons in the Input Data group. The laboratory data are
input in the same order as the radio buttons appear.
 Figure 2.202-22
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-23
ww
ThIn the next few sections, you will enter the following laboratory
assay data:
• bulk molecular weight and density
• TBP Distillation assay data
• dependent molecular weight assay data
• independent density assay data
• independent viscosity assay data (at two temperatures)
Entering Bulk Property Data
1. Select the Bulk Props radio button, and the bulk property
table appears to the right of the radio buttons.
2. Click in the Molecular Weight cell in the table. Type 300
and press ENTER. You are automatically advanced down one
cell to the Standard Density cell.
3. In the Standard Density cell, enter 48.75 and press
SPACE BAR. To the right of the cell, a field containing the
current default unit associated with the cell appears. When
you defined the new unit set, you specified the default unit
for standard density as API_60, which appears in the field.
4. Since this is the correct unit, press ENTER, and Aspen
HYSYS accepts the density value.
 Figure 2.212-23
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-24 Steady State Simulation
ww
ThNo bulk Watson UOPK or Viscosity data is available for this
assay. Aspen HYSYS provides two default temperatures
(100°F and 210°F) for entering bulk viscosity, but these
temperature values are ignored unless corresponding
viscosities are provided. Since the value for bulk viscosity is
not supplied, there is no need to delete or change the
temperature values.
Entering Boiling Temperature (TBP) Data
The next task is to enter the TBP distillation data.
1. Click the Calculation Defaults tab.
2. In the Extrapolation Methods group, select Lagrange for each
method using the drop-down lists.
3. Return to the Input Data tab.
4. Select the Distillation radio button.
The corresponding TBP data matrix appears. Aspen HYSYS
displays a message under the matrix, stating that ‘At least 5
points are required’ before the assay can be calculated.
5. From the Assay Basis drop-down list, select Liquid Volume.
6. Click the Edit Assay button. The Assay Input Table property
view appears.
7. Click in the top cell of the Assay Percent column.
8. Type 0 then press ENTER. You are automatically advanced
to the corresponding empty Temperature cell.
9. Type 80 then press ENTER. You are automatically advanced
down to the next empty Assay Percent cell.2-24
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-25
ww
Th10.Repeat steps #8 and #9 to enter the remaining Assay
Percent and Temperature values as shown.
11.Click the OK button to return to the Assay property view.
Entering Molecular Weight Data
1. Select the Molecular Wt radio button.
The corresponding assay matrix appears. Since the
Molecular Weight assay is Dependent, the Assay Percent
column displays the same values as those you entered for
the Boiling Temperature assay. Therefore, you need only
enter the Molecular Weight value for each assay percent.
2. Click the Edit Assay button and the Assay Input Table
property view appears.
3. Click on the first empty cell in the Mole Wt column.
4. Type 68, then press the down arrow key.
 Figure 2.222-25
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-26 Steady State Simulation
ww
Th5. Type the remaining Molecular Weight values as shown.
6. Click the OK button when you are finished.
Entering Density Data
1. Select the Density radio button.
The corresponding assay matrix appears. Since the Density
assay is Independent, you must input values in both the
Assay Percent and Density cells.
 Figure 2.232-26
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-27
ww
Th2. Using the same method as for the previous assays, enter the
API gravity curve data as shown here.
Entering Viscosity Data
1. Select the Viscosity 1 radio button. The corresponding
assay matrix appears.
2. In the Viscosity Type drop-down list above the assay matrix,
ensure Dynamic is selected.
3. In the Viscosity Curves group, select the Use Both radio
button. The Temperature field is for each of the two viscosity
curves.
Click the Edit Assay button to access the Assay Input Table.
 Figure 2.242-27
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-28 Steady State Simulation
ww
Th4. Input the Viscosity 1 assay data as shown here. This
viscosity curve corresponds to Temperature 1, 100°F.
5. Select the Viscosity 2 radio button.
6. Enter the assay data corresponding to Temperature 2, 210°F,
as shown.
The Assay is now completely defined based on our available
data.
7. Click the Calculate button at the bottom of the Assay
property view. Aspen HYSYS calculates the Assay, and the
status message at the bottom of the property view changes
to Assay Was Calculated.
 Figure 2.25
 Figure 2.262-28
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-29
ww
Th8. Click the Working Curves tab of the Assay property view to
view the calculated results.
Aspen HYSYS has calculated 50 points for each of the Assay
Working Curves.
9. To view the Assay data you input in a graphical format, click
the Plots tab. By default, Aspen HYSYS plots the Distillation
(TBP) data. This plot appears below.
 Figure 2.27
 Figure 2.282-29
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-30 Steady State Simulation
ww
ThThe independent (x-axis) variable is the Assay percent, while
the dependent variable is the TBP in °F. You can view any of
the other input curves by selecting the appropriate variable
in the Property drop-down list.
The plot property view can be re-sized to make the plot
more readable. To re-size the property view, do one of the
following:
• Click and drag the outside border to the new size.
• Click the Maximize icon .
The remaining tabs in the Assay property view provide access to
information which is not required for this tutorial.
10.Close the Assay property view to return to the Oil
Characterization property view.
Cutting the Assay (Creating the Blend)
Now that the assay has been calculated, the next task is to cut
the assay into individual petroleum hypocomponents.
1. Click the Cut/Blend tab of the Oil Characterization property
view.
The input curve that appears is dependent on the current
variable in the Property drop-down list.2-30
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-31
ww
Th2. Click the Add button. Aspen HYSYS creates a new Blend and
displays its property view.
3. In the list of Available Assays, select Assay-1.
4. Click the Add button. There are two results:
• The Assay is transferred to the Oil Flow Information
table. (When you have only one Assay, there is no need
to enter a Flow Rate in this table.)
• A Blend (Cut) is automatically calculated based on the
current Cut Option.
In this case, the Blend was calculated based on Auto Cut,
the default Cut Option. Aspen HYSYS calculated the Blend
based on the following default values for the boiling point
ranges and number of cuts per range:
• IBP to 800°F: 25°F per cut, generating [(800-IBP)/25]
hypocomponents
• 800 to 1200°F: 50°F per cut, generating 8
hypocomponents
• 1200 to 1400°F: 100°F per cut, generating 2
hypocomponents
The IBP, or initial boiling point, is the starting point for the
first temperature range. The IBP is the normal boiling point
(NBP) of the heaviest component in the Light Ends, in this
case n-Pentane at 96.9°F. The first range results in the
generation of (800-96.9)/25 = 28 hypocomponents. All the
cut ranges together result in a total of 28+8+2 = 38
hypocomponents.
 Figure 2.292-31
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-32 Steady State Simulation
ww
Th5. Click the Tables tab to view the calculated properties of
these hypocomponents.
These components could be used in the simulation.
Suppose, however, that you do not want to use the IBP as
the starting point for the first temperature range. You could
specify another starting point by changing the Cut Option to
User Ranges. For illustration purposes, 100°F is used as
the initial cut point.
6. Return to the Data tab.
7. From the Cut Option Selection drop-down list, select User
Ranges. The Ranges Selection group appears.
8. In the Starting Cut Point field, enter 100°F. This is the
starting point for the first range. The same values as the
Aspen HYSYS defaults are used for the other temperature
ranges.
 Figure 2.30
Since the NBP of the heaviest Light Ends component is the
starting point for the cut ranges, these hypocomponents
were generated on a “light-ends-free” basis. That is, the
Light Ends are calculated separately and are not included in
these hypocomponents.2-32
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-33
ww
Th9. In the Cut End point T column in the table, click on the top
cell labeled . The value you will enter in this cell is
the upper cut point temperature for the first range (and the
lower cut point for the second range).
10. Type 800 then press ENTER.
11. Enter the remaining cut point temperatures and the number
of cuts values as shown in the figure below.
12.Once you have entered the data, click the Submit button to
calculate the Blend based on the current initial cut point and
range values. The message Blend Was Calculated appears in
the status bar.
13.  Click the Tables tab to view the properties of the petroleum
hypocomponents.
 Figure 2.31
 Figure 2.322-33
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-34 Steady State Simulation
ww
ThUse the vertical scroll bar to view the components which are
not currently visible in the Component Physical
Properties table.

Viewing the Oil Distributions
1. To view the distribution data, select Oil Distributions from
the Table Type drop-down list.
The Tables tab is modified as shown below.
At the bottom of the Cut Input Information group, the
Straight Run radio button is selected, and Aspen HYSYS
provides default TBP cut point temperatures for each
Straight Run product. The Cut Distributions table shows the
Fraction of each product in the Blend. Since Liquid Vol is the
current Basis in the Table Control group, the products are
listed according to liquid volume fraction.
These fractions can be used to estimate the product flow
rates for the fractionation column. For example, the
Aspen HYSYS has provided the Initial Boiling Point (IBP) and
Final Boiling Point (FBP). The IBP is the normal boiling point
(NBP) of the heaviest component in the Light Ends (in this
case, n-Pentane). The FBP is calculated by extrapolating the
TBP Assay data to 100% distilled.
 Figure 2.332-34
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-35
ww
ThKerosene liquid volume fraction is 0.129. With 100,000 bbl/
day of crude feeding the tower, the Kerosene production is
expected at 100,000 * 0.129=12,900 or roughly 13,000
bbl/day.
If you want, you can investigate other reporting and plotting
options by selecting another Table Type or by viewing
information on the other tabs in the Blend property view.
2. When you are finished, close the Blend property view to
return to the Oil Characterization property view. Now that
the Blend has been calculated, the next task is to install the
oil.
Installing the Oil
The last step in the oil characterization procedure is to install the
oil, which accomplishes the following:
• The petroleum hypocomponents are added to the fluid
package.
• The calculated Light Ends and Oil composition are
transferred to a material stream for use in the
simulation.
1. On the Oil Characterization property view, click the Install
Oil tab.
2. In the Stream Name column, click in the top blank cell.2-35
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-36 Steady State Simulation
ww
Th3. Type the name Preheat Crude, then press the ENTER key.
Aspen HYSYS creates a new stream named Preheat Crude in
the flowsheet associated with the fluid package associated
with this oil.
In this case, there is only one fluid package (Basis-1) and
one flowsheet (the main flowsheet), so the stream is created
in the main flowsheet. Aspen HYSYS assigns the composition
of the calculated oil and light ends to stream Preheat Crude.
The properties of the new stream can be viewed from the
Simulation environment.
The characterization procedure is now complete.
4. Return to the Basis environment by clicking the Leave Oil
Environment icon.
5. Click the Components tab of the Simulation Basis Manager
property view.
6. Select Component List - 1 from the list in the Component
Lists group. Click the View button to open the component
list property view.
 Figure 2.34
Leave Oil Environment
icon2-36
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-37
ww
Th7. The hypocomponents generated during the oil
characterization procedure now appear in the Selected
Components group.
Viewing Component Properties
To view the properties of one or more components, select the
component(s) and click the View Component button. Aspen
HYSYS opens the property view(s) for the component(s) you
selected.
1. In the Selected Components list, select H2O and
NBP[0]113*.
Press and hold the CTRL key to select more than one
component.
 Figure 2.35
Hypothetical
components
are indicated
by a * after
the component
name.2-37
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-38 Steady State Simulation
ww
Th2. Click the View Component button. The property views for
these two components appear.
The Component property view provides you with complete
access to the component information. For pure components
like H2O, the information is provided for viewing only. You
cannot modify any parameters for a library (pure)
component, however, Aspen HYSYS allows you to clone a
library component into a Hypothetical component, which you
can then modify as required.
The petroleum hypocomponent shown here is an example of
a hypothetical component. You can modify any of the
parameters listed for this component. For this example, the
properties of the hypothetical components generated during
the oil characterization are not changed.
3. Close each of these two component property views.
4. The fluid package is now completely defined, so close the
Component List property view. The Simulation Basis
Manager property view should again be visible; if not, click
the Basis Manager icon to access it.
 Figure 2.36
See Chapter 3 -
Hypotheticals in the
Aspen HYSYS
Simulation Basis guide
for more information on
cloning library
components.
Basis Manager icon2-38
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-39
ww
Th5. Click the Fluid Pkgs tab to view a summary of the new fluid
package.
The list of Current Fluid Packages displays the new fluid
package, Basis-1, showing the number of components (NC)
and property package (PP). The fluid package contains a
total of 44 components:
• 6 library (pure) components (H2O plus five Light Ends
components)
• 38 petroleum hypocomponents
The new fluid package is assigned by default to the Main
Flowsheet, as shown in the Flowsheet-Fluid Pkg
Associations group. Next you will install streams and
operations in the Main Simulation environment.
 Figure 2.372-39
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-40 Steady State Simulation
ww
Th2.2.4 Entering the Simulation
Environment
1. To leave the Basis environment and enter the Simulation
environment, do one of the following:
• Click the Enter Simulation Environment button on the
Simulation Basis Manager property view.
• Click the Enter Simulation Environment icon.
When you enter the Simulation Environment, the initial
property view that appears depends on your current
preference setting for the Initial Build Home property view.
Three initial property views are available: PFD, Workbook,
and Summary. Any or all of these can be displayed at any
time, however, when you first enter the Simulation
Environment, only one appears. For this example, open the
Workbook under the Tools menu or by pressing CTRL W.
 Figure 2.38
Enter Simulation
Environment icon2-40
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-41
ww
ThThere are several things to note about the Main Simulation
Environment. In the upper right corner, the Environment
has changed from Basis to Case (Main). A number of new
items are now available on the menu and toolbar, and the
Workbook and Object Palette are open on the Desktop.
These latter two objects are described below.
Also notice that the name of the stream (Preheat Crude) you
created during the Oil characterization procedure appears in
the Workbook, and the white Object Status window at the
very bottom of the environment property view shows that
the stream has an unknown pressure. As you specify the
conditions of Preheat Crude, the message displayed in the
Object Status window is updated appropriately. Before
specifying the feed conditions, you can view the stream
composition, which was calculated by the Oil
characterization.
Objects Description
Workbook A multiple-tab property view containing information
regarding the objects (streams and unit operations) in the
simulation case. By default, the Workbook has four tabs,
namely Material Streams, Compositions, Energy Streams
and Unit Ops. You can edit the Workbook by adding or
deleting tabs, and changing the information displayed on
any tab.
Object
Palette
A floating palette of buttons which can be used to add
streams and unit operations.
You can toggle the palette open or closed by pressing F4,
or by selecting Open/Close Object Palette from the
Flowsheet menu.2-41
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-42 Steady State Simulation
ww
ThViewing the Feed Composition
1. In the Workbook, click the Compositions tab to view the
composition of the streams.
The Light Ends and petroleum hypocomponents are listed by
Mole Fraction. To view the components which are not
currently visible, use the up and down arrow keys or the
vertical scroll bar to advance down the component list.
Before proceeding any further to install streams or unit
operations, save your case.
2. Do one of the following:
• Click the Save icon on the toolbar.
• Select Save from the File menu.
• Press CTRL S.
If this is the first time you have saved your case, the Save
Simulation Case As property view appears. By default, the
File Path is the cases sub-directory in your Aspen HYSYS
directory.
 Figure 2.39
Save icon2-42
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-43
ww
Th3. In the File Name field, type a name for the case, for
example REFINING. You do not have to enter the *.hsc
extension; Aspen HYSYS adds it automatically.
4. Once you have entered a file name, press the ENTER key
and Aspen HYSYS saves the case under the name you gave
it. The Save As property view does not appear again unless
you choose to give it a new name using the Save As
command.
2.2.5 Using the Workbook
Click the Workbook icon on the toolbar to ensure the Workbook
property view is active.
Specifying the Feed Conditions
In general, the first task in the Simulation environment is to
install one or more feed streams, however, the stream Preheat
Crude was already installed during the oil characterization
procedure. At this point, your current location should be the
Compositions tab of the Workbook property view.
1. Click the Material Streams tab. The preheated crude
enters the pre-fractionation train at 450°F and 75 psia.
2. In the Preheat Crude stream, click in the Temperature cell
and type 450. Aspen HYSYS displays the default units for
temperature, in this case °F.
If you enter a name that already exists in the current
directory, Aspen HYSYS ask you for confirmation before
over-writing the existing file.
 Figure 2.40
Workbook icon2-43
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-44 Steady State Simulation
ww
Th3. Since this is the correct unit, press the ENTER key. Aspen
HYSYS accepts the temperature. Aspen HYSYS advances to
the Pressure cell.
If you know the stream pressure in another unit besides the
default of psia, Aspen HYSYS will accept your input in any
one of a number of different units and automatically convert
the value to the default. For example, the pressure of
Preheat Crude is 5.171 bar, but the default units are psia.
4. In the Pressure cell, type 5.171.
5. Press SPACE BAR. The field containing the active cell units
becomes active.
6. Begin typing ‘bar’. The field opens a drop-down list and
scrolls to the unit(s) most closely matching your input.
7. Once bar is selected, press the ENTER key. Aspen HYSYS
accepts the pressure and automatically converts to the
default unit, psia.
Alternately, you can specify the unit simply by selecting the
unit in the drop-down list.
8. Click in the Liquid Volume Flow cell, then type 1e5. The
stream flow is entered on a volumetric basis, in this case
100,000 barrel/day.
9. Press the ENTER key.
When you press ENTER after entering a stream property, you
are advanced down one cell in the Workbook only if the cell
below is . Otherwise, the active cell remains in its
current location.
 Figure 2.41

2-44
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-45
ww
ThThe stream is now completely defined, so Aspen HYSYS
flashes it at the conditions given to determine the remaining
properties.
The properties of Preheat Crude are shown below.
The values you specified are a different colour (blue) than
the calculated values (black).
The next task is to install and define the utility steam streams
that will be attached to the fractionation tower later.
Installing the Utility Steam Streams
1. On the Material Streams tab, click in the header cell
labeled **New**.
2. Type the new stream name Bottom Steam, then press
ENTER. Aspen HYSYS creates the new stream.
3. In the Temperature cell, enter 375°F.
If Aspen HYSYS does not flash the stream, ensure that the
Solver Active icon in the toolbar is selected.
 Figure 2.42
Aspen HYSYS accepts blank spaces within a stream or
operation name.
Solver Active icon2-45
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-46 Steady State Simulation
ww
Th4. In the Pressure cell, enter 150 psia.
5. In the Mass Flow cell, enter 7500 lb/hr.
6. Create a new utility stream called Diesel Steam.
7. Define the conditions of this stream as follows:
• Temperature 300°F
• Pressure 50 psia
• Mass Flow 3000 lb/hr.
The Workbook property view appears as shown below.
 Figure 2.43
 Figure 2.442-46
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-47
ww
ThProviding Compositional Input
Now that the utility stream conditions have been specified, the
next task is to input the compositions.
1. Click the Compositions tab in the Workbook. The
components are listed by Mole Fraction by default.
2. In the Bottom Steam column, click in the input cell for the
first component, H2O.
3. Since the stream is all water, type 1 for the H2O mole
fraction, then press ENTER.
The Input Composition for Stream property view appears,
allowing you to complete the compositional input.
The Input Composition for Stream property view is Modal,
indicated by the absence of the Minimize/Maximize icons in
the upper right corner.
When a Modal property view is visible, you are unable to
move outside the property view until you are finish with it,
by clicking either the Cancel or OK button.
 Figure 2.452-47
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-48 Steady State Simulation
ww
ThThe Input Composition for Stream property view allows you
to specify a stream composition quickly and easily. The
following table lists and describes the features available on
this property view:
This stream is pure water, therefore, there is no need to
enter fractions for any other components.
4. Click the Normalize button and all other component
fractions are forced to zero.
5. Click the OK button. Aspen HYSYS accepts the composition
and you are returned to the Workbook property view.
Features  Description
Compositional
Basis Radio
Buttons
You can input the stream composition in some
fractional basis other than Mole Fraction, or by
component flows, by selecting the appropriate radio
button before providing your input.
Normalizing The Normalizing feature is useful when you know the
relative ratios of components (2 parts N2, 2 parts CO2,
etc.) Rather than manually converting these ratios to
fractions summing to one, enter the numbers of parts
for each component and click the Normalize button.
Aspen HYSYS computes the individual fractions to total
1.0.
Normalizing is also useful when you have a stream
consisting of only a few components. Instead of
specifying zero fractions (or flows) for the other
components, enter the fractions (or the actual flows)
for the non-zero components, leaving the others
. Click the Normalize button, and Aspen
HYSYS forces the other component fractions to zero.
Calculation
status/colour
As you input the composition, the component fractions
(or flows) initially appear in red, indicating the final
composition is unknown. These values become blue
when the composition has been calculated. Three
scenarios result in the stream composition being
calculated:
• Input the fractions of all components, including
any zero components, such that their total is
exactly 1.0000, then click the OK button.
• Input the fractions (totalling 1.000), flows or
relative number of parts of all non-zero
components, then click the Normalize button then
the OK button.
• Input the flows or relative number of parts of all
components, including any zero components,
then click the OK button.
The above colours are the Aspen HYSYS default
colours; yours can appear differently depending on
your settings on the Colours page of the Session
Preferences property view.2-48
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-49
ww
ThThe stream is now completely defined, so Aspen HYSYS
flashes it at the conditions given to determine the remaining
properties.
6. Repeat steps #2 to #5 for the other utility stream, Diesel
Steam.
7. Click the Material Streams tab. The calculated properties
of the two utility streams appear here.
If you want to delete a stream, move to the Name cell for
the stream, then press DELETE. Aspen HYSYS ask for
confirmation of your action.
Next, you will learn alternative methods for creating a new
stream.
8. To add the third utility stream, do any one of the following:
• Press F11.
• From the Flowsheet menu, select Add Stream.
• Double-click the Material Stream icon on the Object
Palette.
• Click the Material Stream icon on the Object Palette,
then click on the Palette's Add Object icon.
Each of these four methods displays the property view for
the new stream, which is named according to the Auto
Naming setting in your Preferences. The default setting
names new material streams with numbers, starting at 1,
and energy streams starting at Q-100.
 Figure 2.46
Material Stream icon
Add Object icon2-49
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-50 Steady State Simulation
ww
Th9. In the stream property view, click in the Stream Name cell
and rename the stream AGO Steam.
10. Press enter.
11. In the Temperature cell, enter 300.
12. In the Pressure cell, enter 50.
Both of the temperature and pressure parameters are in the
default units, so you do not need to change the unit with the
values.
Do not enter a flow, it is entered through the Composition
page.
 Figure 2.472-50
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-51
ww
Th13.Select the Composition page to begin the compositional
input for the new stream.
14.Click the Edit button. The Input Composition for Stream
property view appears.
15. In the Composition Basis group, select the Mass Flows
radio button.
16.Click in the compositional cell for H2O.
17. Type 2500 for the steam mass flow, then press ENTER. As
there are no other components in this stream, the
compositional input is complete.
 Figure 2.48
The current Composition Basis setting is set to the
Preferences Default of Mole Fractions. The stream
composition is entered on a mass basis.2-51
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-52 Steady State Simulation
ww
Th18.Click the OK button to close the property view and return to
the stream property view.
Aspen HYSYS performs a flash calculation to determine the
unknown properties of AGO Steam, as shown by the status
indicator displaying ‘OK’. You can view the properties of each
phase using the horizontal scroll bar in the matrix or by re-
sizing the property view. In this case, the stream is
superheated vapour, so no Liquid phase exists and the
Vapour phase is identical to the overall phase. To view the
vapour compositions for AGO Steam, scroll to the right by
clicking the right scroll arrow, or by click and dragging the
scroll button.
19.Close the AGO Steam property view.
 Figure 2.49
Since only H2O contain any significant value, Aspen HYSYS
automatically forces all other components’ value to be zero.
The compositions are currently displayed by Mass Flows. You
can change this by clicking the Basis button and choosing
another Composition Basis radio button.2-52
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-53
ww
Th2.2.6 Installing Unit
Operations
Now that the feed and utility streams are known, the next task
is to install the necessary unit operations for processing the
crude oil.
Installing the Separator
The first operation is a Separator, used to split the feed stream
into its liquid and vapour phases. As with most commands in
Aspen HYSYS, installing an operation can be accomplished in a
number of ways. One method is through the Unit Ops tab of the
Workbook.
1. Click the Workbook icon to ensure the Workbook is the
active property view.
2. Move to the Unit Ops tab.
3. Click the Add UnitOp button. The UnitOps property view
appears, listing all available unit operations.
4. In the Categories group, select the Vessels radio button.
Aspen HYSYS produces a filtered list of unit operations,
showing only those in the current category.
 Figure 2.50
Workbook icon2-53
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-54 Steady State Simulation
ww
Th5. Add the separator by doing one of the following:
• Select Separator in the list of Available Unit Operations,
and click the Add button or the ENTER key.
• Double-click on Separator.
The property view for the separator appears in the figure
below.
A unit operation property view contains all the information
defining the operation, organized into tabs and pages. The
Design, Rating, and Worksheet tabs appear for most
operations. Property views for more complex operations
contain more tabs.
Many operations, like the separator, accept multiple feed
streams. Whenever you see a matrix like the one in the
Inlets group, the operation accepts multiple stream
connections at that location. When the matrix is active, you
can access a drop-down list of available streams.
6. Click in the Name field, type PreFlash, then press enter.
The status indicator at the bottom of the property view
shows that the operation requires a feed stream.
 Figure 2.51
Aspen HYSYS provides the default name V-100 for the
separator. The default naming scheme for unit operations
can be changed in your Session Preferences.2-54
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-55
ww
Th7. In the Inlets matrix, click in the <> cell.
8. Click the down arrow  to open the drop-down list of
available streams.
9. Select Preheat Crude from the list. Preheat Crude appears
in the Inlets matrix, and the <> label is
automatically moved down to a new empty cell. The status
indicator now displays Requires a product stream.
Alternatively, you could have made the connection by typing
the exact stream name in the cell, and pressing ENTER.
10.Click in the Vapour Outlet field, or press tab to move to the
field.
11. Type PreFlashVap in the field, then press enter. This
stream does not yet exist, so Aspen HYSYS creates this new
stream.
 Figure 2.522-55
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-56 Steady State Simulation
ww
Th12.Click in the Liquid Outlet field and type PreFlashLiq.
Aspen HYSYS creates another new stream.
The status indicator displays a green OK message, showing
that the operation and attached streams are completely
calculated.
 Figure 2.53
An Energy stream could be attached to heat or cool the
vessel contents, however, for the purposes of this example,
the energy stream is not required.2-56
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-57
ww
Th13.Select the Parameters page. The default Delta P (pressure
drop) of zero is acceptable for this example. The Liquid
Level is also acceptable at its default value.
 Figure 2.54
Since there is no energy stream attached to the separator,
no Optional Heat Transfer information is required.2-57
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-58 Steady State Simulation
ww
Th14.To view the calculated outlet streams, click the Worksheet
tab. This is a condensed Workbook displaying only those
streams attached to the operation.
15.Now that the separator is completely known, close the
PreFlash property view and the UnitOps property view, and
return to the Workbook property view. The new separator
appears on the Unit Ops tab.
The matrix shows the operation Name, its Object Type, the
attached streams (Inlet and Outlet), whether it is
Ignored, and its Calculation Level.
 Figure 2.55
 Figure 2.562-58
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-59
ww
ThOptional Methods for Accessing Property Views
When you click the View UnitOp button, the property view for
the operation occupying the active row in the matrix opens.
Alternatively, by double-clicking on any cell (except Inlet and
Outlet) associated with the operation, you also open its
property view.
You can also open the property view for a stream directly from
the Unit Ops tab of the Workbook. When any of the Name,
Object Type, Ignored or Calc. Level cells are active, the
display field at the bottom of the property view displays all
streams attached to the current operation. Currently, the Name
cell for PreFlash is active, and the display field displays the
three streams attached to this operation. To open the property
view for one of the streams attached to the separator (such as
Preheat Crude), do one of the following:
• Double-click on Preheat Crude in the display field at the
bottom of the property view.
• Double-click on the Inlet cell for PreFlash. The property
view for the first listed feed stream opens. In this case,
Preheat Crude is the only feed stream, so its property
view also opens.
2.2.7 Using Workbook
Features
Before you install the remaining operations, you will examine a
number of Workbook features that allow you to access
information quickly and change how information appears.2-59
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-60 Steady State Simulation
ww
ThAccessing Unit Operations from the
Workbook
There are a number of ways to open the property view for an
operation directly from the Workbook besides using the Unit
Ops tab.
1. Return to the Material Streams tab of the Workbook
property view.
When your current location is a Workbook streams tab
(Material Streams, Compositions, and Energy Streams tabs),
the field at the bottom of the Workbook property view
displays the operations to which the current stream is
attached.
2. In the display field, you can double-click on any unit
operation associated with the stream to open the unit
operation.
For example, if you click in any cell for Preheat Crude, the field
displays the name of the operation, PreFlash, to which this
stream is attached.
Any utilities attached to the stream with the Workbook
active are also displayed in (and are accessible through) this
display field.2-60
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-61
ww
ThThe display field also displays FeederBlock_Preheat Crude,
because the Preheat Crude stream is a boundary stream.
To access the property view for the PreFlash operation, double-
click on PreFlash.
The operation property view appears.
Adding a Tab to the Workbook
When the Workbook is active, the Workbook item appears in the
Aspen HYSYS menu bar. This item allows you to customize the
Workbook.
In this section, you will create a new Workbook tab that displays
only stream pressure, temperature, and flow.
1. Do one of the following:
• From the Workbook menu, select Setup.
• Object inspect (right-click) the Material Streams tab in
the Workbook, then select Setup from the menu that
appears.
 Figure 2.57
The operation to which Preheat Crude is attached appears in this
display field. Double-click the operation name to access its
property view.
Stream Preheat Crude is the current
Workbook location.2-61
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-62 Steady State Simulation
ww
ThThe Workbook Setup property view appears.
The four existing tabs are listed in the Workbook Tabs
area. When you add a new tab, it is inserted before the
selected tab (currently Material Streams). You will insert
the new tab before the Compositions tab.
2. In the Workbook Tabs group list, select Compositions.
3. Click the Add button. The New Object Type property view
appears.
 Figure 2.58
 Figure 2.59
Currently, all
variables appear
with four
significant
figures. You can
change the
display format or
precision of any
Workbook
variables by
clicking the
Format button.2-62
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-63
ww
Th4. Click the Plus icon  beside Stream, select Material
Stream from the branch, then click the OK button. You
return to the Setup property view, and the new tab appears
after the existing Material Streams tab.
5. In the Tab Contents Object group, click in the Name field.
6. Change the name of the new tab to P,T,Flow to better
describe the tab contents.
The next task is to customize the tab by removing the
variables that are not required.
7. In the Variables group, click on the first variable, Vapour
Fraction.
8. Press and hold the CTRL key.
9. Click on the other variables, Molar Flow, Mass Flow, Heat
Flow, and Molar Enthalpy. These four variables are now
highlighted.
10.Release the CTRL key.
 Figure 2.602-63
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-64 Steady State Simulation
ww
Th11.Click the Delete button to remove them from this
Workbook tab. The finished Setup property view appears
below.
If you want to remove variables from another tab, you must
edit each tab individually.
12.Click the Close icon  to return to the Workbook property
view and see the new tab.
13.Save your case by doing one of the following:
• Click the Save icon on the toolbar.
• Select Save from the File menu.
• Press CTRL S.
 Figure 2.61
 Figure 2.62
The new tab
displays only
these three
Variables.
The new tab
now appears
in the list of
Workbook
Tabs in the
same order as
it appears in
the Workbook.
Save icon2-64
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-65
ww
Th2.2.8 Using the PFD
The PFD is the other main property view used in Aspen HYSYS.
The PFD item appears in the Aspen HYSYS menu bar whenever
the PFD is active.
1. To open the PFD, click the PFD icon on the toolbar. The PFD
property view should appear similar to the one shown below,
except some stream icons may overlap each other.
As a graphical representation of your flowsheet, the PFD shows
the connections among all streams and operations, also known
as ‘objects’. Each object is represented by a symbol, also known
as an ‘icon’. A stream icon is an arrow pointing in the direction
of the flow, while an operation icon is a graphic representing the
actual physical operation. The object name, also known as a
‘label’, appears near each icon.
The PFD shown above has been rearranged by moving the three
utility stream icons below and to the left of the Separator. To
move an icon, click and drag it to the new location.
 Figure 2.63
You can click and drag either the icon (arrow) itself, or the
label (stream name), as these two items are grouped
together.
PFD icon
PFD toolbar Stream/Operation labels
Unit Operation
icon for a
Separator
Material
Stream icon2-65
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-66 Steady State Simulation
ww
ThLike any other non-modal property view, the PFD property view
can be re-sized by clicking and dragging anywhere on the
outside border.
Other things you can do while the PFD is active include the
following:
• Access commands and features through the PFD toolbar.
• Open the property view for an object by double-clicking
on its icon.
• Move an object by click and dragging it to the new
location.
• Access “pop-up” summary information for an object
simply by placing the cursor over it.
• Change an icon's size by clicking the Size Mode icon,
clicking on the icon, and click and dragging the sizing
handles that appear around the icon.
• Display the Object Inspection menu for an object by
placing the cursor over it, and right-clicking. This menu
provides access to a number of commands associated
with the particular object.
• Zoom in and out, or display the entire flowsheet in the
PFD window by clicking the zoom buttons at the bottom
left corner of the PFD property view.
Some of these functions are illustrated here.
Icon Name Icon Name
Zoom Out 25% Zoom In 25%
Display Entire PFD
Size Mode icon
For more information,
see Section 7.24 - PFD
in the Aspen HYSYS
User Guide.2-66
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-67
ww
ThCalculation Status
Before proceeding, you will examine a feature of the PFD that
allows you to trace the calculation status of the objects in your
flowsheet. If you recall, the status indicator at the bottom of the
property view for a stream or operation displays one of three
possible states for the object:
When you are in the PFD, the streams and operations are
colour-coded to indicate their calculation status. The inlet
separator is completely calculated, so its normal colours appear.
While installing the remaining operations through the PFD, their
colours (and status) changes appropriately as information is
supplied.
A similar colour scheme is used to indicate the status of
streams. For material streams, a dark blue icon indicates the
stream has been flashed and is entirely known. A light blue icon
indicates the stream cannot be flashed until some additional
information is supplied. Similarly, a dark red icon is for an
energy stream with a known duty, while a purple icon indicates
an unknown duty.
Status  Description
Red Status A major piece of defining information is missing from
the object. For example, a feed or product stream is
not attached to a separator. The status indicator is red,
and an appropriate warning message appears.
Yellow Status All major defining information is present, but the
stream or operation has not been solved because one
or more degrees of freedom is present, for example, a
cooler where the outlet stream temperature is
unknown. The status indicator is yellow, and an
appropriate warning message appears.
Green Status The stream or operation is completely defined and
solved. The status indicator is green, and an OK
message appears.
These status colours are the Aspen HYSYS default colours.
You can change the colours in the Session Preferences.
The icons for all streams installed to this point are dark blue,
indicating they have been flashed.2-67
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-68 Steady State Simulation
ww
ThInstalling the Crude Furnace
In this section, you will install a crude furnace. The furnace is
modeled as a Heater.
1. Ensure the Object Palette is visible (if it is not, press F4).
You will add the furnace to the right of the PreFlash
Separator, so make some empty space available by scrolling
to the right using the horizontal scroll bar.
2. In the Object Palette, click the Heater icon. The cursor
changes to a special cursor, with a black frame and plus (+)
symbol attached to it. The frame indicates the size and
location of the operation icon.
3. Position the cursor over the PFD to the right of the
separator.
4. Click to ‘drop’ the heater onto the PFD. Aspen HYSYS
creates a new heater with a default name, E-100.
Next you will change the heater icon from its default to one
more closely resembling a furnace.
5. Right-click the heater icon. The Object Inspect menu
appears.
 Figure 2.64
Notice the heater has red status (colour), indicating that it
requires feed and product streams.
Heater icon (Red)
Cooler icon (Blue)2-68
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-69
ww
Th6. Select Change Icon command from the Object Inspect
menu. The Select Icon property view appears.
7. Click the WireFrameHeater5 icon (scroll to the right), then
click the OK button. The new icon appears in the PFD.
Attaching Streams to the Furnace
1. Click the Attach icon on the PFD toolbar to enter Attach
mode.
2. Position the cursor over the right end of the PreFlashLiq
stream icon. A small box appears at the cursor tip.
3. With the pop-up ‘Out’ visible, click and hold the mouse
button. The white box becomes black, indicating that you
are beginning a connection.
 Figure 2.65
When you are in Attach mode, you are not able to move
objects in the PFD.
To return to Move mode, click the Attach button again.
You can temporarily toggle between Attach and Move mode
by holding down the CTRL key.
 Figure 2.66
Furnace icon
Attach Mode icon
At the square connection
point, a pop-up description
appears attached to the
cursor. The pop-up “Out”
indicates which part of the
stream is available for
connection, in this case, the
stream outlet.2-69
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-70 Steady State Simulation
ww
Th4. Drag the cursor toward the left (inlet) side of the heater. A
trailing line appears between the PreFlashLiq stream icon
and the cursor, and a connection point appears at the
Heater inlet.
5. Place the cursor near the connection point of the heater, and
the trailing line snaps to that point. As well, a white box
appears at the cursor tip, indicating an acceptable end point
for the connection.
6. Release the mouse button, and the connection is made to
the heater inlet.
7. Position the cursor over the right end of the heater icon.
The connection point and pop-up ‘Product’ appears.
8. With the pop-up visible, click and hold the mouse button.
The white box again becomes black.
9. Move the cursor to the right of the heater. A stream icon
appears with a trailing line attached to the heater outlet.
The stream icon indicates that a new stream is being
created.
10.With the stream icon visible, release the mouse button.
Aspen HYSYS creates a new stream with the default name 1.
 Figure 2.67
If you make an incorrect connection:
1. Click the Break Connection icon on the PFD toolbar.
2. Move the cursor over the stream line connecting the two icons.
A checkmark attached to the cursor appears, indicating an acceptable
connection to break.
3. Click once to break the connection.
 Figure 2.68
Break Connection icon2-70
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-71
ww
Th11.Create the Heater energy stream, starting the connection
from the bottom left connection point on the Heater icon
labeled ‘Energy Stream’. The new stream is automatically
named Q-100, and the heater now has yellow (warning)
status. This status indicates that all necessary connections
have been made, but the attached streams are not entirely
known.
12.Click the Attach icon again to return to Move mode.
The heater outlet and energy streams are unknown at this
point, so they appear light blue and purple, respectively.
Modifying Furnace Properties
1. Double-click the Heater icon to open its property view.
2. Click the Design tab, then select the Connections page.
The names of the Inlet, Outlet, and Energy streams appear
in the appropriate fields.
3. In the Name field, change the operation name to Furnace.
4. Select the Parameters page.
 Figure 2.69
 Figure 2.702-71
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-72 Steady State Simulation
ww
Th5. In the Delta P field, enter 10 psi, then close the property
view.
The Furnace has one available degree of freedom. Either
the outlet stream temperature or the amount of duty in the
energy stream can be specified. In this case, you will specify
the outlet temperature.
6. Double-click the outlet stream icon (1) to open its property
view.
7. In the Stream Name field, change the name to Hot Crude.
 Figure 2.712-72
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-73
ww
Th8. In the Temperature field, specify a temperature of 650°F.
The remaining degree of freedom in the Furnace has now
been used, so Aspen HYSYS can flash Hot Crude and
determine its remaining properties.
9. Close the property view to return to the PFD property view.
The Furnace now has green status, and all attached
streams are known.
10.Double-click on the energy stream icon (Q-100) to open its
property view. The required heating duty calculated by
Aspen HYSYS appears in the Heat Flow cell.
 Figure 2.722-73
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-74 Steady State Simulation
ww
Th11. In the Stream Name cell, rename this energy stream
Crude Duty, then close the property view.
Installing the Mixer
In this section, you will install a Mixer operation. The Mixer is
used to combine the hot crude stream with the vapours
bypassing the furnace. The resulting stream is the feed for the
crude column.
1. Make some empty space available to the right of the
Furnace using the horizontal scroll bar. Move other objects
if necessary.
2. Click the Mixer icon on the Object Palette.
3. Position the cursor over the PFD to the right of the Hot
Crude stream icon.
4. Click to ‘drop’ the mixer onto the PFD. Aspen HYSYS
creates a new mixer with the default name MIX-100.
5. Press and hold the CTRL key to temporarily enable the
Attach mode while you make the mixer connections (you
will not release it until step #13).
6. Position the cursor over the right end of the PreFlashVap
stream icon. The connection point and pop-up ‘Out’ appears.
7. With the pop-up visible, click and hold the mouse button,
then drag the cursor toward the left (inlet) side of the
mixer. Multiple connection points appear at the mixer inlet.
Multiple connection points appear because the Mixer
accepts multiple feed streams.
 Figure 2.73
Mixer icon2-74
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-75
ww
Th8. Place the cursor near the inlet area of the mixer, and when
the white box appears at the cursor tip, release the mouse
button to make the connection.
9. Repeat steps #6 to #8 to connect the Hot Crude stream to
the Mixer.
10. Position the cursor over the right end of the mixer icon. The
connection point and pop-up ‘Product’ appears.
11.With the pop-up visible, click and drag to the right of the
mixer. A white stream icon appears, with a trailing line
attached to the mixer outlet.
12.With the white stream icon visible, release the mouse
button. Aspen HYSYS creates a new stream with the default
name 1.
13.Release the CTRL key to leave Attach mode.
14.Double-click on the outlet stream icon 1 to access its
property view. When you created the mixer outlet stream,
Aspen HYSYS automatically combined the two inlet streams
and flashed the mixture to determine the outlet conditions.
15. In the Stream Name cell, rename the stream Tower Feed,
then close the property view.
16.Double-click the mixer icon, MIX-100. Change the name to
Mixer, then close the property view.
 Figure 2.742-75
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-76 Steady State Simulation
ww
ThResizing Icons in the PFD
Resize icons in the PFD to make it easier to read.
1. Resize the PFD property view by clicking and dragging the
outside border.
2. Click the Zoom All icon  to fill the PFD window, including
any objects that were not visible previously.
A possible property view of the resized PFD appears in the
figure below.
3. Click the Size Mode icon on the PFD toolbar.
4. Click the Furnace icon in the PFD. A frame with sizing
handles appears around the icon.
5. Place the cursor over one of the sizing handles. The cursor
changes to a double-ended sizing arrow.
 Figure 2.75
 Figure 2.76
Size Mode icon
Double-
ended sizing
arrow2-76
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-77
ww
Th6. With the sizing arrow visible, click and drag to resize the
icon.
7. Click the Size Mode icon again to return to Move mode.
Adding an Energy Stream
In this section, you will add an energy stream. Prior to installing
the column, an energy stream must be created to represent the
trim duty on stage 28 of the main tower.
1. Double-click on the Energy Stream icon on the Object
Palette. Aspen HYSYS creates a new energy stream with
the default name Q-100 and display its property view.
2. In the Stream Name field, change the name to Trim Duty.
3. Close the property view.
4. Save your case by doing one of the following:
• press CTRL S.
• from the File menu, select Save.
• click the Save icon.
Installing the Column
Aspen HYSYS has a number of pre-built column templates that
you can install and customize by changing attached stream
names, number of stages and default specifications, and adding
side equipment.
One of these templates is going to be used for this example (a
crude column with three side strippers), however, a basic
Refluxed Absorber column with a total condenser is installed
If you choose to use the pre-built crude column template you
still have to customize the column by modifying the various
draw and return stages and default specifications. Although
using the template eliminates the majority of the work over
the next few pages, it is recommended that you work
through these pages the first time you build a crude column
in Aspen HYSYS. Once you are comfortable working with the
side equipment, try using the template. Instructions on
using the crude column template are given in an annotation
on the next page.
Energy Stream icon
Save icon2-77
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-78 Steady State Simulation
ww
Thand customized in order to illustrate the installation of the
necessary side equipment.
1. Before installing the column, select Preferences from the
Aspen HYSYS Tools menu. Click the Simulation tab.
2. On the Options page, ensure the Use Input Experts
checkbox is selected, then close the property view.
3. Double-click the Refluxed Absorber icon on the Object
Palette. The first page of the Input Expert appears.
The Input Expert is a Modal property view, indicated by the
absence of the Maximize/Minimize icons. You cannot exit
or move outside the Expert property view until you supply
the necessary information or click the Cancel button.
When you install a column using a pre-built template, Aspen
HYSYS supplies certain default information, such as the number
 Figure 2.77
To install this column using the pre-built crude column template:
1. Double-click on the Custom Column icon on the Object Palette.
2. On the property view that appears, click the Read an Existing Column
Template button.
The Available Column Templates property view appears, listing the
template files *.col that are provided in your Aspen HYSYS\template
directory. Both 3- and 4-side stripper crude column templates are
provided.
3. Select 3sscrude.col and click the OK button. The property view for the
new column appears. You can now customize the new column.
Refluxed Absorber icon2-78
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-79
ww
Thof stages. The current active field is # Stages (Number of
Stages), indicated by the thick border inside this field.
Entering Inlet Streams and Number of Trays
For this example, the main column has 29 theoretical stages.
1. Enter 29 in the # Stages field.
2. Advance to the Optional Inlet Streams table by clicking on
the <> cell, or by pressing tab.
3. Click the down arrow  to open the drop-down list of
available feeds.
4. Select Tower Feed as the feed stream to the column. Aspen
HYSYS supplies a default feed location in the middle of the
Tray Section (TS), in this case stage 15 (indicated by
15_Main TS). However, the feed stream needs to enter
stage 28.
These are theoretical stages, as the Aspen HYSYS default
stage efficiency is one.
If present, the Condenser and Reboiler are considered
separate from the other stages, and are not included in the #
Stages field.
 Figure 2.782-79
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-80 Steady State Simulation
ww
Th5. In the Optional Inlet Streams group, click in the Inlet Stage
cell for TowerFeed.
6. Type 28 and press enter, or select 28_Main TS from the
drop-down list of stages.
7. Click on <> in the same table, which was
automatically advanced down one cell when you attached
the Tower Feed stream.
8. From the Stream drop-down list, select the Trim Duty
stream, which is also fed to stage 28.
9. Advance to the Bottom Stage Inlet field by clicking on it or
by pressing tab.
10. In the Bottom Stage Inlet field, click the down arrow  to
open the drop-down list of available feeds.
11. From the list, select Bottom Steam as the bottom feed for
the column.
Entering Outlet Streams
In the Condenser group of the Input Expert property view, the
default condenser type is Partial. To the right of this group,
there are two Overhead Outlets, vapour and liquid. In this
case, the overhead vapour stream has no flow, and two liquid
phases (hydrocarbon and water) are present in the condenser.
The hydrocarbon liquid product is attached in the liquid
Overhead Outlets field, while the water draw is attached using
the Optional Side Draws table.
 Figure 2.792-80
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-81
ww
Th
Although the overhead vapour product has zero flow, do not
change the condenser to Total. At this time, only the Partial
radio button allows you to specify a three-phase condenser.
1. Click in the top Ovhd Outlets field.
2. Enter Off Gas as the name of the overhead vapour product
stream. Aspen HYSYS creates and attaches a new stream
with this name.
3. Press tab again to move to the bottom Ovhd Outlets field,
and enter the new stream name Naphtha.
The next task is to attach the water draw stream to the
condenser.
4. In the Optional Side Draws table, click in the
<> cell.
5. Enter the name of the draw stream, WasteH2O. Aspen
HYSYS automatically places a hydrocarbon liquid (indicated
by the L in the Type column) draw on stage 15. You will
change this to a condenser water draw.
6. Click on the Type cell (the L) for the WasteH2O stream.
7. Specify a water draw by typing W then pressing enter, or by
selecting W from the drop-down list.
8. Click on the Draw Stage cell (15_Main TS) for the
WasteH2O stream.
 Figure 2.80
Overhead
vapour
product field.
Overhead
liquid
product field.
The water
draw is
attached
using this
table.2-81
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-82 Steady State Simulation
ww
Th9. Select Condenser from the drop-down list. The condenser is
now three-phase.
10. In the Column Name field, enter Atmos Tower.
11. In the Bottoms Liquid Outlet field, type Residue to create
a new stream.
12. In the Condenser Energy Stream field, type Cond Duty to
define a new stream. Press ENTER.
The first page of the Input Expert should appear as shown
below.
 Figure 2.81
 Figure 2.822-82
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-83
ww
ThThe Next button now becomes available, indicating sufficient
information has been supplied to advance to the next page
of the Input Expert.
13.Click the Next button to advance to the Pressure Profile
page.
Entering the Initial Estimate Values
1. On the Pressure Profile page, specify the following:
• Condenser Pressure 19.7 psia
• Condenser Pressure Drop 9 psi
• Bottom Stage Pressure 32.7 psia
2. Click the Next button to advance to the Optional
Estimates page. Although Aspen HYSYS does not usually
require estimates to produce a converged column, good
estimates result in a faster solution.
All stream attachments made on this page result in the
creation of Column sub-flowsheet streams with the same
names. For example, when the Main Flowsheet stream
BottomSteam was attached as a feed, Aspen HYSYS
automatically created an identical stream named
BottomSteam to be used in the Column sub-flowsheet.
 Figure 2.832-83
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-84 Steady State Simulation
ww
Th3. Specify the following:
• Condenser 100°F
• Top Stage 250°F
• Bottom Stage 700°F
4. Click the Next button to advance to the fourth and final
page of the Input Expert. This page allows you to supply
values for the default column specifications that Aspen
HYSYS has created.
In general, a refluxed absorber with a partial condenser has
two degrees of freedom for which Aspen HYSYS provides two
default specifications. For the two specifications given,
overhead Vapour Rate is used as an active specification, and
Reflux Ratio as an estimate only.
5. From the Flow Basis drop-down list, select Volume. All flow
specifications are provided in barrels per day.
6. Specify the following:
• Vapour Rate = 0
• Reflux Ratio = 1.0
 Figure 2.842-84
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-85
ww
Th
7. Click the Done button. The Column property view appears.
 Figure 2.85
 Figure 2.862-85
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-86 Steady State Simulation
ww
ThAdding Specification Values
1. On the Design tab, select the Monitor page.
The main feature of this page is that it displays the status of
your column as it is being calculated, updating information
with each iteration. You can also change specification values,
and activate or deactivate specifications used by the Column
solver, directly from this page.
The current Degrees of Freedom is one, indicating that
only two specifications are active.
As noted earlier, a Refluxed Absorber with a partial
condenser has two degrees of freedom and, therefore,
requires two active specifications. In this case, however, a
third degree of freedom was created when the Trim Duty
stream was attached as a feed, for which the heat flow is
unknown. Aspen HYSYS has not made a specification for the
third degree of freedom, therefore you need to add a water
draw spec called WasteH2O Rate to be the third active
specification.
2. Select the Specs page. Here you will remove two
specifications and add one new specification.
3. In the Column Specifications group, select Reflux Rate and
then click the Delete button.
4. Delete the Btms Prod Rate specification also.
5. Next you will add the WasteH2O Rate specification. Click the
Add button. The Add Specs property view appears.
6. Select Column Draw Rate and click the Add Spec(s) button.
The Draw Spec property view appears.
The basic column has three available degrees of freedom.
Currently, two Specifications are Active, so the overall
Degrees of Freedom is one. The number of available degrees
of freedom increases with the addition of side equipment.2-86
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-87
ww
Th7. In the Name cell, type WasteH2O Rate. No further
information is required as this specification is deactivated
and only estimated when you run the column.
The Draw Spec is entered so that the degrees of freedom is
kept at zero throughout this tutorial. It is good practice to
keep the degrees of freedom at zero as you modify your
column so that you can solve the column after every
modification.
8. Close the property view. The new specification appears in
the Column Specifications group. The Degrees of Freedom is
now zero.
9. Select the Connections page. See Figure 2.86.
The Connections page is similar to the first page of the
Input Expert. Currently, the column is a standard type, so
this page shows a column schematic with the names of the
attached streams. When the side equipment is added to the
column, the page becomes non-standard. There are a large
number of possible non-standard columns based on the
types and numbers of side operations that are added.
Therefore, Aspen HYSYS modifies the Connections page
into a tabular format, rather than a schematic format,
whenever a column becomes non-standard.
In the next section you will add the side equipment and
observe how the Connections page is modified.
 Figure 2.872-87
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-88 Steady State Simulation
ww
ThInstalling the Side Strippers
1. Click the Side Ops tab of the Column property view.
On this tab, you can Install, View, Edit, or Delete all types of
Side Equipment. The table displays summary information for
a given type of side operation, depending on the page you
are currently on.
When you install side equipment, it resides in the Column
sub-flowsheet. You can build a complex column in the sub-
flowsheet while in the Main Flowsheet, the column appears
as a single operation. You can then transfer any needed
stream information from the sub-flowsheet by simply
attaching the stream to the Main Flowsheet.
2. Ensure that you are on the Side Strippers page.
 Figure 2.882-88
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-89
ww
Th3. Click the Add button. The Side Stripper property view
appears.
4. In the Name field, change the name to KeroSS.
This is a reboiled 3-stage stripper with a 0.75 boil up ratio,
so leave the Configuration radio button at Reboiled, and
the k = and Boil Up Ratio fields at their defaults.
5. In the Return Stage drop-down list, select stage 8 (8_Main
TS).
6. In the Draw Stage drop-down list, select stage 9 (9_Main
TS).
7. In the Flow Basis group, select the Std Ideal Vol radio
button.
8. In the Product Stream field, enter Kerosene.
 Figure 2.892-89
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-90 Steady State Simulation
ww
ThThe straight run product distribution data calculated during
the Oil Characterization appears in the figure below.
The Kerosene liquid volume fraction is 0.129. For 100,000
bbl/day of crude fed to the tower, Kerosene production can
be expected at 100,000 * 0.129 = 12,900 or
approximately 13,000 bbl/day.
9. In the Draw Spec field, enter 13000. The completed Side
Stripper property view appears below.
10.Click the Install button, and a property view summarizing
your input appears.
 Figure 2.90
 Figure 2.91
Kerosene
Liquid
Volume
Fraction2-90
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-91
ww
Th11.Click the Close icon  to return to the Column property
view. Summary information for the new side operation
appears in the table on the Side Ops tab.
12.Use the previous steps to install the two remaining side
strippers DieselSS and AGOSS. These are both Steam
Stripped, so choose the appropriate Configuration radio
button and create the Steam Feed and Product streams
as shown in the following figures. The @COL1 suffix is added
automatically.
The completed DieselSS and AGOSS side stripper property
views appear in the following figure.
 Figure 2.92
 Figure 2.93
Although not a requirement, the names of the Steam Feed
streams created for these side strippers are identical to the
names of the utility steam streams that were created
previously in the Main Flowsheet. The conditions of these
Steam Feed streams, which reside in the Column sub-
flowsheet, are unknown at this point. The conditions of the
Main Flowsheet streams are duplicated into these sub-
flowsheet streams when the stream attachments are
performed.2-91
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-92 Steady State Simulation
ww
ThThe completed Side Stripper Summary table appears
below.
13.Click the Design tab and select the Monitor page.
The Specifications table on this page has a vertical scroll
bar, indicating that new specifications have been created
below the default ones. Resize the property view to examine
the entire table.
14.Click and drag the bottom border of the property view down
until the scroll bar disappears, making the entire matrix
visible.
The installation of the side strippers created four additional
degrees of freedom, so Aspen HYSYS created a Prod Flow
(product flow) specification for each side stripper, plus a
BoilUp Ratio specification for the Kerosene side stripper.
The new specifications were automatically made Active to
exhaust the four degrees of freedom, returning the overall
Degrees of Freedom to 0.
The addition of the side strippers has created four more
degrees of freedom above the basic column, resulting in a
total of seven available degrees of freedom. Currently,
however, seven Specifications are Active, so the overall
Degrees of Freedom is zero.
 Figure 2.94
 Figure 2.952-92
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-93
ww
ThInstalling the Pump Arounds
1. Click the Side Ops tab and select the Pump Arounds page.
2. Click the Add button. The initial Pump Around property view
appears.
3. In the Return Stage drop-down list, select stage 1 (1_Main
TS).
4. In the Draw Stage drop-down list, select stage 2 (2_Main
TS).
5. Click the Install button, and a more detailed Pump Around
property view appears.
Each cooled pump around circuit has two specifications
associated with it. The default Pump Around
Specifications are circulation rate and temperature drop
(Dt) between the liquid draw and liquid return. For this
example, the Dt specification is changed to a Duty
specification for the pump around cooler. The pump around
rate is 50,000 bbl/day.
6. In the empty cell under the PA_1_Rate(Pa) specification,
enter 5e4.
 Figure 2.96
 Figure 2.972-93
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-94 Steady State Simulation
ww
Th7. Double-click in the blank space under the PA_1_Dt(Pa)
specification, and the Spec property view appears.
8. In the Spec Type drop-down list, select Duty.
9. in the Spec Value cell, enter -55e6.
10.Click the Close icon  to return to the Pump Around
property view.
The remainder of the information on the above property
view is calculated by the Column solver.
11.Click the Close icon  on the main Pump Around property
view to return to the Column property view.
12.Repeat the previous steps to install the two remaining pump
arounds.
 Figure 2.98
 Figure 2.99
Notice the
negative sign
convention
indicates
cooling.2-94
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-95
ww
ThSummary of previous steps in table below:
Enter Rate specifications of 3e4 barrel/day and Duty
specifications of -3.5e7 Btu/hr for both of these pump
arounds.
The completed Pump Around property views and Liquid
Pump Around Summary table appear in the following
figures.
Step summary
1. Click the Add button.
2. Specify the Return Stage and
Draw Stage.
3. Click the Install button. The
second property view appears.
4. Specify the 1st Active spec.
5. Double-click the empty cell in the
2nd Active spec.
6. Select Duty from the Spec Type
drop-down list.
7. Enter the Spec Value.
8. Close the property view.
 Figure 2.100
 Figure 2.1012-95
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-96 Steady State Simulation
ww
Th13.Click the Design tab and select the Monitor page. Re-size
the property view again so the entire Specifications table is
visible.
The addition of each pump around created two additional
degrees of freedom. As with the side strippers, the
specifications for the pump arounds have been added to the
list and were automatically activated.
Overall the addition of the pump arounds has created six
more degrees of freedom, resulting in a total of 13 available
degrees of freedom. Currently, 13 Specifications are active,
so the overall Degrees of Freedom is zero.
 Figure 2.1022-96
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-97
ww
Th14.Select the Connections page.
The Connections page of a standard refluxed absorber
property view is essentially identical to the first page of the
refluxed absorber Input Expert, with a column schematic
showing the feed and product streams. Side equipment have
been added to the standard refluxed absorber, however,
making the column non-standard. The Connections page
has therefore been modified to show tabular summaries of
the Column Flowsheet Topology (i.e., all equipment),
Feed Streams, and Product Streams.
The column has 40 Total Theoretical Stages:
• 29 in the main tray section
• 1 condenser for the main column
• 9 in the side strippers (3 side strippers with 3 stages
each)
• 1 reboiler for the Kerosene side stripper
This topology results in 4 Total Tray Sections—one for the
main column and one for each of the three side strippers.
 Figure 2.1032-97
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-98 Steady State Simulation
ww
ThCompleting the Column Connections
When the stream attachments were made on the initial page of
the Input Expert, Aspen HYSYS automatically created Column
sub-flowsheet streams with the same names. For example,
when Bottom Steam was attached as a column feed stream,
Aspen HYSYS created an identical sub-flowsheet stream named
Bottom Steam. In the Inlet Streams table on the
Connections page, the Main Flowsheet stream is the External
Stream, while the sub-flowsheet stream is the Internal
Stream.
If you scroll down the list of Inlet Streams, notice that the two
side stripper steam streams, DieselSteam and AGOSteam,
are Internal and External, meaning that these streams are
attached to the Main Flowsheet streams that were created
earlier.
For the purposes of this tutorial, it is not required to export the
pump around duty streams PA_1_Q, PA_2_Q, and PA_3_Q to
the Main Flowsheet, so their External Stream cells remain
undefined.
Adding Column Specifications
Select the Monitor page of the Column property view.
The current Degrees of Freedom is zero, indicating the column
is ready to be solved. Before you run the column, however, you
will have to replace two of the active specifications, Waste H2O
Rate and KeroSS BoilUp Ratio, with the following new ones:
• Overflash specification for the feed stage (Tray Net
Liquid Flow specification)
 Figure 2.1042-98
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-99
ww
Th• Kerosene side stripper reboiler duty specification
Adding the Overflash Specification
1. On the Design tab, move to the Specs page.
2. In the Column Specifications group, click the Add button.
The Add Specs property view appears.
3. Select Column Liquid Flow as the Column Specification
Type.
4. Click the Add Spec(s) button, and the Liq Flow Spec
property view appears.
5. Change the name from its default to Overflash.
6. In the Stage cell, select 27_Main TS from the drop-down
list of available stages.
A typical range for the Overflash rate is 3-5% of the total
feed to the column. In this case, the total feed rate is
100,000 barrels/day. For the Overflash specification 3.5%,
or 3,500 barrels/day is used.
 Figure 2.1052-99
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-100 Steady State Simulation
ww
Th7. In the Spec Value cell, enter 3500.
8. Close the property view to return to the Column property
view. The new specification appears in the list of Column
Specifications group on the Specs page.
Adding the Duty Specification
1. Click the Add button again to add the second new
specification.
2. Select Column Duty as the Column Specification Type,
then click the Add Spec(s) button. The Duty Spec property
view appears.
3. In the Name cell, change the name to Kero Reb Duty.
4. In the Energy Stream cell, select KeroSS_Energy @COL1
from the drop-down list.
5. In the Spec Value cell, enter 7.5e6 (Btu/hr).
 Figure 2.106
 Figure 2.1072-100
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-101
ww
Th6. Close the property view to return to the Specs page of the
Column property view. The completed list of Column
Specifications is shown in the figure below
Running the Column
1. Select the Monitor page to view the Specifications matrix.
The Degrees of Freedom is again zero, so the column is
ready to be calculated, however, a value for the distillate
(Naphtha) rate specification must be supplied initially. In
addition, there are some specifications which are currently
Active that you want to use as Estimates only, and vice
versa.
Make the following final changes to the specifications:
2. In the Specified Value cell for the Distillate Rate
specification, enter 2e4 (barrel/day).
3. Activate the Overflash specification by selecting its Active
checkbox.
4. Activate the Kero Reb Duty specification.
5. Activate the Vap Prod Rate specification.
 Figure 2.108
If the column begins to run on its own before you click the
Run button, click the Stop button and continue activating or
deactivating specifications.2-101
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-102 Steady State Simulation
ww
Th6. Deactivate the Reflux Ratio specification.
7. Deactivate the Waste H2O Rate specification.
8. Deactivate the KeroSS BoilUp Ratio specification.
Aspen HYSYS begins calculations and the information
displayed on the page is updated with each iteration. The
column converges as shown in the figure below.
The converged temperature profile is currently displayed in
the upper right corner of the property view. To view the
pressure or flow profiles, select the appropriate radio button.
9. Click on the Performance tab, then select the Column
Profiles or Feed/Products page to see a more detailed
stage summary.
 Figure 2.109
This matrix displays the
Iteration number, Step size,
Equilibrium error and Heat/
Spec error.
The column temperature profile is shown
here. You can view the pressure or flow
profiles by picking the appropriate radio
button.
The status indicator has changed from Unconverged to Converged.2-102
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-103
ww
ThThe Column Profiles page appears below.
In the Basis group near the top of the property view, select
the Liq Vol radio button to examine the tray vapour and
liquid flows on a volumetric basis.
 Figure 2.1102-103
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-104 Steady State Simulation
ww
ThViewing Boiling Point Profiles for the
Product Stream
You can view boiling point curves for all the product streams on
a single graph:
1. On the Performance tab, click on the Plots page.
2. In the Assay Curves group, select Boiling Point Assay.
3. Click the View Graph button, and the Boiling Point
Properties property view appears.
 Figure 2.111
 Figure 2.112
No data is plotted
on the graph,
since there is
currently No Tray
Attached, as
shown in the title
bar.2-104
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-105
ww
Th4. Click the Profile Data Control button, and the Data Control
property view appears as shown below.
5. Select the Multi Tray radio button in the Style group. The
Data Control property view is modified, showing a matrix of
column stages with a checkbox for each stage.
You can view boiling point properties of a single tray or
multiple trays. The boiling point properties of all stages,
from which products are drawn, are important for this
Tutorial.
6. Activate the following stages by selecting on the
corresponding checkboxes:
• Condenser (Naphtha product stage)
• 29_Main TS (Residue)
• KeroSS_Reb (Kerosene)
• 3_DieselSS (Diesel)
• 3_AGOSS (AGO)
The TBP profile for the light liquid phase on each stage can
be viewed, on a liquid volume basis.
7. Select TBP in the drop-down list under the tray matrix in the
Style group.
8. In the Basis group, select the Liquid Vol radio button.
9. Select the Light Liquid checkbox in the Phase group to
activate it.
10. Leave the Visible Points at its default setting of 15 Points.
You can display more data points for the curves by selecting
the 31 Points radio button.
 Figure 2.1132-105
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-106 Steady State Simulation
ww
ThThe completed Data Control property view is shown below.
11.Click on the Close icon  to close the Data Control property
view. You return to the Boiling Point Properties property
view, which now displays the TBP curves.
12.Make the Boiling Point Properties property view more
readable by clicking the Maximize icon  in the upper right
corner of the property view, or by clicking and dragging its
border to a new property view size.
 Figure 2.114
The independent (x-axis) variable is the Assay Volume
Percent, while the dependent (y-axis) variable is the TBP in
°C.2-106
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-107
ww
ThThe Boiling Point Properties property view is shown below.
Move the graph legend by double-clicking inside the plot
area, then click and drag the legend to its new location.
13.When you are finished viewing the profiles, click the Close
icon .
Moving to the Column Sub-
Flowsheet
When considering the column, you might want to focus only on
the column sub-flowsheet. You can do this by entering the
column environment.
1. Click the Column Environment button at the bottom of the
column property view.
2. While inside the column environment, you might want to:
• view the Column sub-flowsheet PFD by clicking the PFD
icon.
• view a Workbook of the Column sub-flowsheet objects by
clicking the Workbook icon.
• access the “inside” column property view by clicking the
Column Runner icon. This property view is essentially
the same as the “outside”, or Main Flowsheet, property
view of the column.
 Figure 2.115
PFD icon
Workbook icon
Column Runner icon2-107
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-108 Steady State Simulation
ww
ThThe Column sub-flowsheet PFD is shown below.
Customizing the Column PFD
You can customize the PFD shown above by re-sizing the
column and “hiding” some of the column trays to improve the
overall readability of the PFD. To hide some of the trays in the
main column:
1. Click the PFD icon to ensure the column PFD is active.
2. Click the Maximize icon  in the upper right corner of the
PFD property view to make it full-screen.
3. Click the Zoom All icon  at the bottom left of the PFD
property view to fill the re-sized PFD property view.
4. Object inspect (right-click) the main column tray section and
the object inspection menu appears.
5. Select Show Trays from the object inspection menu. The
Stage Visibility view appears.
6. Select the Selected Expansion radio button.
7. Click the Check All button.
 Figure 2.116
Object Inspect menu2-108
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-109
ww
Th8. Hide stages 4, 5, 6, 11, 12, 13, 14, 24, 25, and 26 by
clearing their Shown checkboxes.
9. Click the Close icon  on the Stage Visibility view to return
to the PFD. The routing of some streams in the PFD can be
undesirable. You can improve the stream routing by
completing the next step.
10. From the PFD menu item, select Auto Position All, and
Aspen HYSYS rearranges the PFD in a logical manner.
Enlarge Icon
The next task in customizing the PFD is to enlarge the icon for
the main column:
1. Click on the icon for the main tray section (Main TS).
2. Click the Size icon on the PFD button bar, and a frame with
eight sizing handles appears around the tray section icon.
3. Place the cursor over the handle at the middle right of the
icon, and the cursor changes to a double-ended sizing arrow.
4. With the sizing cursor visible, click and drag to the right. An
outline appears, showing what the new icon size is when you
complete the next step.
5. When the outline indicates a new icon size of about 1.5 to 2
times the width of the original size, release the button. The
tray section icon is now re-sized.
6. Click the Size icon again to return to Move mode.
 Figure 2.117
Size icon2-109
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-110 Steady State Simulation
ww
ThThe final task is to customize the PFD by moving some of
the streams and operation labels (names) so they do not
overlap. To move a label:
7. Click on the label you want to move.
8. Right-click and select Move/Size Label.
9. Move the label to its new position by clicking and dragging it,
or by pressing the arrow keys.
You can also move the icon on its own simply by clicking and
dragging it to the new location.
10.When you are finished working with the maximized Column
PFD, click the Restore icon  for the PFD (not for the
Aspen HYSYS Application property view) in the upper right
corner of the property view of the PFD. The PFD returns to
its previous size.
11. You can manually resize the property view, and expand the
PFD to fill the new size by again clicking the Zoom All icon
 in the lower left corner of the PFD property view.
The customized PFD appears below.
 Figure 2.118
For more information on
customizing the PFD,
refer to Section 7.24 -
PFD in the Aspen
HYSYS User Guide. 2-110
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-111
ww
Th12.To view the workbook for the column, click the Workbook
icon.
13.When you are finished working in the Column environment,
return to the Main Flowsheet by clicking the Enter Parent
Simulation Environment icon.
 Figure 2.119
Enter Parent Simulation
Environment icon2-111
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-112 Steady State Simulation
ww
Th14.Open the PFD for the Main Flowsheet, then select Auto
Position All from the PFD menu item. Aspen HYSYS
arranges the Main Flowsheet PFD in a logical manner
according to the layout of the flowsheet.
The PFD shown in the Figure 2.120 has been manually
rearranged by moving some of the stream icons, and by
enlarging the furnace icon.
 Figure 2.1202-112
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-113
ww
Th2.2.9 Viewing and Analyzing
Results
1. Open the Workbook to access the calculated results for the
Main Flowsheet. The Material Streams tab of the
Workbook appears below.
Using the Object Navigator
Now that results have been obtained, you can view the
calculated properties of a particular stream or operation. The
Object Navigator allows you to quickly access the property
view for any stream or unit operation at any time during the
simulation.
1. Open the Navigator by doing one of the following:
• Press F3.
• From the Flowsheet menu, select Find Object.
• Double-click on any blank space on the Aspen HYSYS
Desktop.
• Click the Object Navigator icon.
 Figure 2.121
Object Navigator icon2-113
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-114 Steady State Simulation
ww
ThThe Object Navigator property view appears:
The UnitOps radio button in the Filter group is currently
selected, so only Unit Operations appear in the list of objects.
To open a property view, select the operation in the list and click
the View button, or double-click on the operation. You can
change which objects appear by selecting a different Filter radio
button. For example, to list all the streams and unit operations,
select the All radio button.
You can also search for an object by clicking the Find button.
When the Find Object property view appears, enter the Object
Name and click the OK button. Aspen HYSYS opens the
property view for the object whose name you entered.
 Figure 2.122
You can start or end the search string with an asterisk (*),
which acts as a wildcard character. This lets you find
multiple objects with one search. For example, searching for
VLV* will open the property view for all objects with VLV at
the beginning of their name.2-114
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-115
ww
Th2.2.10 Installing a Boiling
Point Curves Utility
Previously, the boiling point profiles for the product streams was
viewed using the Plots page in the column property view. You
can also view boiling point curves for a product stream using
Aspen HYSYS' BP Curves Utility.
To create a Boiling Point Curves utility for the Kerosene product:
1. Open the Navigator using one of the methods described
above.
2. Select the Streams radio button.
3. Scroll down the list of Streams and select Kerosene.
4. Click the View button, and the property view for stream
Kerosene appears.
5. On the Attachments tab, move to the Utilities page of the
stream property view.
6. Click the Create button. The Available Utilities property view
appears, presenting you with a list of Aspen HYSYS utilities.
7. Find BP Curves and do one of the following:
• Select BP Curves, then click the Add Utility button.
• Double-click on BP Curves.
8. Aspen HYSYS creates the utility and opens the Boiling Point
Curves property view.
9. On the Design tab, go to the Connections page. Change the
name of the utility from the default Boiling Point Curves-1 to
Kerosene BP Curves.
 Figure 2.1232-115
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-116 Steady State Simulation
ww
Th10.Change the curve basis to Liquid Volume by selecting it
from the Basis drop-down list.
A Utility is a separate entity from the stream it is attached
to; if you delete it, the stream is not affected. Likewise, if
you delete the stream, the Utility remains but cannot display
any information until you attach another stream using the
Select Object button.
 Figure 2.1242-116
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-117
ww
Th11.You can scroll through the matrix of data to see that the TBP
ranges from 267°F to 502°F by going to the Performance
tab and selecting the Results page.
This boiling range predicted by the utility is slightly wider
than the ideal range calculated during the Oil
characterization procedure for Kerosene, 356°F to 464°F.
 Figure 2.125
 Figure 2.126
Ideal boiling
range calculated
during Oil
Characterization.2-117
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-118 Steady State Simulation
ww
Th12.Select the Plots page on the Parameters tab of the utility
property view to view the data in graphical format.
13.When you move to the Plots property view, the graph legend
can overlap the plotted data. To move the legend, double-
click anywhere in the plot area then click and drag the
legend to its new location.
To make the envelope more readable, maximize or resize
the property view.
14.When you are finished viewing the Boiling Point Curves,
click the Close icon .
Installing a Second Boiling Point
Curves Utility
Alternative to using the Utilities page of a stream property
view, you can also install a utility using the Available Utilities
property view. Another BP Curves utility is installed for stream
Residue. This utility is used for the case study in the next
section.
 Figure 2.1272-118
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-119
ww
ThTo install the utility:
1. Do one of the following:
• press CTRL U.
• from the Tools menu, select Utilities.
The Available Utilities property view appears.
2. Select Boiling Point Curves and click the Add Utility button.
The Boiling Point Curves property view appears, opened to
the Design tab.
3. Change the name from its default Boiling Point Curves-1 to
Residue BP Curves.
4. Change the Basis to Liquid Volume by selecting it in the
drop-down list. The next task is to attach the utility to a
material stream.
 Figure 2.128
 Figure 2.129
Notice the name of the
utility created previously,
Kerosene BP Curves,
appears in the Available
Utilities property view.2-119
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-120 Steady State Simulation
ww
Th5. Click the Select Object button, and the Select Process
Stream property view appears.
6. Select Residue in the Object list, then click the OK button.
Aspen HYSYS calculates the boiling point curves. The
completed Performance tab appears below.
 Figure 2.130
 Figure 2.131
Notice that the stream name Residue now appears in the
Stream cell.2-120
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-121
ww
Th7. Click the Close icon  on the Residue BP Curves property
view, and then on the Available Utilities property view.
2.2.11 Using the Databook
The Aspen HYSYS Databook provides you with a convenient
way to examine your flowsheet in more detail. You can use the
Databook to monitor key variables under a variety of process
scenarios, and view the results in a tabular or graphical format.
1. To open the Databook, do one of the following:
• press CTRL D.
• from the Tools menu, select Databook.
The Databook appears below.
Adding Variables to Databook
The first step is to add the key variables to the Databook using
the Variables tab. For this example, the Overflash specification
is varied and examined to investigate its effect on the following
variables:
• D1160 Boiling Temperature for 5% volume cut point of
stream Residue
• heat flow of energy stream Trim Duty
• column reflux ratio
 Figure 2.1322-121
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-122 Steady State Simulation
ww
Th1. Click the Insert button and the Variable Navigator property
view appears.
2. Select the UnitOps radio button in the Object Filter group.
The Object list is filtered to show unit operations only.
3. Select Atmos Tower in the Object list, and the Variable list
available for the column appears to the right of the Object
list.
4. Select Reflux Ratio in the Variable list.
The Variable Navigator is used extensively in Aspen HYSYS
for locating and selecting variables. The Navigator operates
in a left-to-right manner—the selected Flowsheet determines
the Object list, the chosen Object dictates the Variable list,
and the selected Variable determines whether any Variable
Specifics are available.
5. Click the Add button. The variable appears in the Databook
and the Variable Navigator property view remains open.
6. To add the next variable, select the Streams radio button in
the Object Filter group. The Object list is filtered to show
streams only.
7. Scroll down and click on Trim Duty in the Object list, and
the Variable list available for energy streams appears to the
right of the Object list.
8. Select Heat Flow in the Variable list.
The variable name is duplicated in the Variable Description
field.
 Figure 2.1332-122
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-123
ww
ThIf you want, you can edit the default description. To edit the
default description:
9. Click inside the Variable Description field and delete the
default name.
10. Type a new description, such as Trim Duty, and click the
Add button. The variable now appears in the Databook.
11. To add the third variable, the ASTM D1160 cut point from
the Residue BP Curves utility, select the Utility radio
button in the Navigator Scope group.
12.Select Residue BP Curves in the Object list.
13.Select ASTM D1160 - Vac in the Variable list.
14.Select Cut PT-5.00% in the Variable Specifics column. This
corresponds to the 5% volume cut point.
 Figure 2.1342-123
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-124 Steady State Simulation
ww
Th15. In the Variable Description field, change the variable
name to ASTM 1160 - Vac 5% Residue, and click the
Close button.
16. The completed Variables tab of the Databook appears
below.
 Figure 2.135
 Figure 2.1362-124
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-125
ww
ThCreate a Data Table
Now that the key variables to the Databook have been added,
the next task is to create a data table to display those variables:
1. Click on the Process Data Tables tab.
2. Click the Add button in the Available Process Data Tables
group. Aspen HYSYS creates a new table with the default
name ProcData1.
3. Change the default name from ProcData1 to Key
Variables by editing the Process Data Table field.
Notice that the three variables added to the Databook
appear in the matrix on this tab.
4. Activate each variable by selecting on the corresponding
Show checkbox.
 Figure 2.137
 Figure 2.1382-125
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-126 Steady State Simulation
ww
Th5. Click the View button to view the new data table, which is
shown below.
This table is accessed later to demonstrate how its results
are updated whenever a flowsheet change is made.
6. For now, click the Minimize icon in the upper right corner of
the Key Variables Data property view. Aspen HYSYS reduces
the property view to an icon and place it at the bottom of the
Desktop.
Recording Data
Suppose you now want to make changes to the flowsheet, but
you would like to record the current values of the key variables
before making any changes. Instead of manually recording the
variables, you can use the Data Recorder to automatically
record them for you.
 Figure 2.1392-126
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-127
ww
ThTo record the current values:
1. Click on the Data Recorder tab.
When using the Data Recorder, you first create a Scenario
containing one or more of the key variables, then record the
variables in their current state.
2. Click the Add button in the Available Scenarios group, and
Aspen HYSYS creates a new scenario with the default name
Scenario 1. It is required to include all three key variables
in this scenario.
3. Activate each variable by selecting on the corresponding
Include checkbox.
4. Click the Record button to record the variables in their
current state. The New Solved State property view appears,
prompting you for the name of the new state.
 Figure 2.140
 Figure 2.1412-127
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-128 Steady State Simulation
ww
Th5. Change the Name for New State from the default State 1
to 3500 O.F. (denoting 3500 bbl/day Overflash). Click the
OK button and you return to the Databook.
6. In the Available Display group, select the Table radio
button.
7. Click the View button and the Data Recorder appears
showing the values of the key variables in their current
state.
Now you can make the necessary flowsheet changes and
these current values remain as a permanent record in the
Data Recorder unless you choose to erase them.
8. Click the Minimize icon to reduce the Data Recorder to an
icon.
Changing the Overflash Specification
The value of the Overflash specification is going to be changed
in the column and the changes is viewed in the process data
table:
1. Click the Object Navigator icon on the toolbar.
2. Select the UnitOps radio button in the Filter group.
3. Select Atmos Tower and click the View button. The Atmos
Tower property view appears.
4. Go to the Design tab and select the Monitor page.
 Figure 2.142
Object Navigator icon2-128
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-129
ww
Th5. Scroll down to the bottom of the Specifications table so the
Overflash specification is visible.
A typical range for the Overflash rate is 3-5% of the tower
feed. A slightly wider range is examined: 1.5-7.5%, which
translates to 1500-7500 bbl/d.
6. Change the Specified Value for the Overflash specification
from its current value of 3500 barrel/day to 1500 barrel/
day. Aspen HYSYS automatically recalculates the flowsheet.
7. Double-click on the Key Variables Data icon to restore the
property view to its full size. The updated key variables are
shown below.
As a result of the change:
• the Trim Duty has decreased
• the Residue D1160 Vacuum Temperature 5% cut point
has decreased
• the column reflux ratio has decreased
8. Press CTRL D to make the Databook active again. You can
now record the key variables in their new state.
9. Move to the Data Recorder tab in the Databook.
10.Click the Record button, and Aspen HYSYS provides you
with the default name State 2 for the new state.
11.Change the name to 1500 O.F. and click the OK button to
accept the new name.
 Figure 2.1432-129
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-130 Steady State Simulation
ww
Th12.Click the View button and the Data Recorder appears,
displaying the new values of the variables.
13.Record the process variables for Overflash rates of 5500
and 7500 barrels/day. Enter names for these variable states
of 5500 O.F. and 7500 O.F., respectively. The final Data
Recorder appears below.
14.Save your case by doing one of the following:
• press CTRL S.
• from the File menu, select Save.
• click the Save icon.
 Figure 2.144
 Figure 2.145
Save icon2-130
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-131
ww
Th2.3 Dynamic Simulation
In this tutorial, the dynamic capabilities of Aspen HYSYS are
incorporated into a basic steady state oil refining model.
A simple fractionation facility produces naphtha, kerosene,
diesel, atmospheric gas oil, and atmospheric residue products
from a heavy crude feed. In the steady state refining tutorial,
preheated crude was fed into a pre-flash drum which separated
the liquid crude from the vapour. The liquid crude was heated in
a furnace and recombined with the vapour. The combined
stream was then fed to the atmospheric crude column for
fractionation. The dynamic refining tutorial only considers the
crude column. That is, the crude preheat train is deleted from
the flowsheet and only the crude column in the steady state
refining tutorial is converted to dynamics.
The main purpose of this tutorial is to provide you with adequate
knowledge in converting an existing steady state column to a
This complete dynamic case has been pre-built and is located
in the file DynTUT2.hsc in your Aspen HYSYS\Samples
directory.
 Figure 2.1462-131
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-132 Dynamic Simulation
ww
Thdynamics column. The tutorial provides a single way of
preparing a steady state case for dynamics mode, however, you
can also choose to use the Dynamic Assistant to set pressure
specifications, size the equipment in the plant, and/or add
additional equipment to the simulation flowsheet.
This tutorial comprehensively guides you through the steps
required to add dynamic functionality to a steady state oil
refinery simulation. To help navigate these detailed procedures,
the following milestones have been established for this tutorial.
1. Obtain a simplified steady state model to be converted to
dynamics.
2. Implement a tray sizing utility for sizing the column and the
side stripper tray sections.
3. Install and define the appropriate controllers.
In this tutorial, you follow this basic procedure in building
the dynamic model.
4. Add the appropriate pressure-flow specifications.
5. Set up the Databook. Make changes to key variables in the
process and observe the dynamic behaviour of the model.
2.3.1 Simplifying the Steady
State Flowsheet
In this section, you will delete the preflash train in the steady
state simulation case R-1.hsc:
1. Open the pre-built case file R-1.hsc. The crude column
simulation file R-1.hsc is located in your Aspen
HYSYS\Samples directory.
2. Press F4 to make the Object Palette visible.
For the purpose of this example, the Session Preferences are
set so that the Dynamic Assistant will not manipulate the
dynamic specifications.
3. From the Tools menu, select Preferences. The Session
Preferences property view appears.
4. On the Simulation tab, select the Dynamics page. 2-132
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-133
ww
Th5. Clear the Set dynamic stream specifications in the
background checkbox.
6. Click the Variables tab, then select the Units page.
In this tutorial, you are working with SI units. The units are
changed by entering the Preferences property view in the
Tools menu bar. In the Units tab, specify SI in the Current
Unit Set group.
7. In the Available Unit Sets group, select SI.
8. Click the Close icon  to close the Session Preferences
property view. Close all other property views except for the
PFD property view.
9. Add a material stream to the PFD by doing one of the
following:
• From the Flowsheet menu, select Add Stream.
• Double-click the Material Stream icon on the Object
Palette.
10. In the Stream Name cell, type Store. This stream will be
used to store information from the Atm Feed stream.
 Figure 2.147
 Figure 2.1482-133
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-134 Dynamic Simulation
ww
Th11. In the Store stream property view, click the Define from
Other Stream button. The Spec Stream As property view
appears.
12. In the Available Streams group, select Atm Feed.
13.Click on the OK button to copy the Atm Feed stream
information to the Store stream.
 Figure 2.149
 Figure 2.1502-134
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-135
ww
Th14.Close the Store stream property view.
15.Delete all material streams and unit operations upstream of
the Atm Feed stream. The following eight items should be
deleted:
After you delete the above items, stream Atm Feed is not
fully specified.
16.Double-click the Atm Feed stream icon to open its property
view.
17.Click the Define from Other Stream button. The Spec
Stream As property view appears.
18. In the Available Streams group, select Store, then click OK.
Items to be deleted
Material Streams Energy Streams Unit Operations
• Hot Crude
• PreFlsh Liq
• PreFlsh Vap
• Raw Crude
Crude Duty • PreFlash
Separator
• Crude Heater
• Mixer
When you delete a stream, unit operation, or logical
operation from the flowsheet, Aspen HYSYS asks you to
confirm the deletion. If you want to delete the object, click
the Yes button. If not, click the No button.
 Figure 2.1512-135
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-136 Dynamic Simulation
ww
Th19.Close the Atm Feed stream property view, then delete the
stream Store.
This steady state case now contains the crude column
without the preflash train. Since the identical stream
information was copied to stream Atm Feed, the crude
column operates the same as before the deletion of the
preflash train.
20.Save the case as DynTUT2-1.hsc.
Make sure that the Standard Windows file picker radio
button is selected on the File page in the Session
Preferences property view.
For more information on
Session Preferences
please refer to Section
12.5 - Files Tab in the
Aspen HYSYS User
Guide.2-136
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-137
ww
Th2.3.2 Adding Equipment &
Sizing Columns
In preparation for dynamic operation, the column and side
stripper tray sections and surrounding equipment must be sized.
In the steady state scenario, column pressure drop is user
specified. In dynamics, it is calculated using dynamic hydraulic
calculations. Complications arise in the transition from steady
state to dynamics if the steady state pressure profile across the
column is very different from that calculated by the Dynamic
Pressure-Flow solver.
The Cooler operations in the pump arounds are not specified
with the Pressure Flow or Delta P option, however, each cooler
must be specified with a volume in order to run properly in
dynamic mode.
Column Tray Sizing
1. Open the Utilities property view by pressing CTRL U.
The Available Utilities property view appears.
2. Scroll down the list of available utilities until the Tray Sizing
utility is visible.
 Figure 2.1522-137
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-138 Dynamic Simulation
ww
Th3. Select Tray Sizing, then click the Add Utility button. The
Tray Sizing property view appears.
4. In the Name field, change the name to Main TS.
5. Click the Select TS button. The Select Tray Section property
view appears.
6. In the Flowsheet list, select T-100, then select Main TS in
the Object list. Click the OK button.
 Figure 2.153
 Figure 2.1542-138
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-139
ww
Th7. In the Use Tray Vapour to Size drop-down list, select
Always Yes.
8. Click the Auto Section button. The Auto Section
Information property view appears. The default tray internal
types appear with the Valve type selected.
9. Keep the default values and click Next. The next property
view displays the specific dimensions of the valve-type trays.
The Valve tray type is selected as the default option. This
option is entered into the Main TS property view.
 Figure 2.1552-139
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-140 Dynamic Simulation
ww
Th10.Keep the default values and click the Complete
AutoSection button.
Aspen HYSYS calculates the Main TS tray sizing parameters
based on the steady state flow conditions of the column and
the desired tray types.
Two tray section sizes, Section_1 and Section_2, appear in
the Setup page of the Design tab. Section_1 includes trays 1
to 27; Section_2 includes trays 28 and 29. Since there are
different volumetric flow conditions at each of these
sections, two different tray section types are necessary.
11.Click the Design tab, then select the Specs page.
 Figure 2.156
 Figure 2.1572-140
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-141
ww
Th12.  In the Number of Flow Paths cell, enter 3 for both
Section_1 and Section_2.
13.Click the Performance tab, then select the Results page to
see the dimensions and configuration of the trays for
Section_1 and Section_2. Since Section_1 is sized as having
the largest tray diameter, its tray section parameters should
be recorded.
14.Confirm the following tray section parameters for Section_1.
The number of flow paths for the vapour is 3. The Actual
Weir length is therefore the Total Weir Length recorded/3.
15.Calculate the Actual Weir length:
16.Confirm the Maximum Pressure Drop/Tray and check the
number of trays in the Main TS column. The Total Section
Pressure drop is calculated by multiplying the number of
trays by the Maximum Pressure Drop/Tray.
17.Close the Tray Sizing: Main TS and Available Utilities
property views.
18.Double-click on the Column T-100 icon in the PFD, then click
the Column Environment button to enter the Column
subflowsheet.
19.On the column PFD, double-click the Main TS Column icon to
enter the Main TS property view.
20.Click the Rating tab, then select the Sizing page.
Variable Value
Section Diameter 5.639 m
Weir Height 0.0508 m
Tray Spacing 0.6096 m
Total Weir Length 13.31 m
Variable Value
Actual Weir Length (Total Weir Length/3) 4.44 m
Variable Value
Maximum Pressure Drop/Tray 0.86 kPa
Number of Trays 29
Total Section DeltaP 24.94 kPa2-141
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-142 Dynamic Simulation
ww
Th21.Enter the previous calculated values into the following tray
section parameters:
• Diameter 5.639m
• Tray Spacing 0.6096m
• Weir Height 0.0508m
• Weir Length (Actual Weir Length) 4.44m
22. In the Internal Type group, select the Valve radio button.
23.Close the Main TS property view.
24.Access the Column property view by clicking the Column
Runner icon in the toolbar.
Be aware that the default units for each tray section
parameter may not be consistent with the units provided in
the tray sizing utility. You can select the units you want from
the drop-down list that appears beside each input cell.
 Figure 2.158
Column Runner icon2-142
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-143
ww
Th25.Click the Parameters tab, then select the Profiles page.
Observe the steady state pressure profile across the column.
26.Record the top stage pressure (1_Main TS). Calculate the
theoretical bottom stage pressure as follows:
27. In the Pressure column of the Profiles group, specify a
bottom stage pressure (29_Main TS) of 222.84 kPa.
28.Converge the Column sub-flowsheet by clicking the Run
Column Solver icon in the toolbar.
29.Close the Column property view.
 Figure 2.159
Bottom Stage Pressure = Top Stage Pressure + Total
Section Pressure Drop
(2.1)
Variable Value
Top Stage Pressure 197.9 kPa
Total Section Pressure Drop 24.94 kPa
Bottom Stage Pressure 222.84 kPa
Run Column Solver icon2-143
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-144 Dynamic Simulation
ww
ThSide Stripper Tray Sizing
In this section, you will size the following side stripper
operations using the tray sizing utility as described in the
Column Tray Sizing section.
• Kero_SS
• Diesel_SS
• AGO_SS
1. From the Tools menu, select Utilities. The Utilities property
view appears.
2. Double-click on the Tray Sizing utility. The Tray Sizing
property view appears.
3. In the Name field, change the name to Kero_SS TS.
4. Click the Select TS button. The Select Tray Section property
view appears.
5. From the Flowsheet list, select T-100, then select Kero_SS
from the Object list. Click the OK button.
6. Click the Auto Section button. The Auto Section
Information property view appears.
7. Select the Valve radio button and click the Next button.
8. Click the Complete AutoSection button to calculate the
Kero_SS TS tray sizing parameters.
9. Record the following tray section parameters available on
the Performance tab in the Results page:
10.Close the Kero_SS TS tray sizing utility.
11.Repeat steps #2-#8 to size the Diesel_SS and AGO_SS
side strippers.
Variable Kero_SS
Section Diameter 1.676 m
Weir Height 0.0508 m
Tray Spacing 0.6096 m
Total Weir Length 1.362 m
Number of Flow Paths 1
Actual Weir Length (calc) 1.362 m2-144
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-145
ww
Th12.Click the Performance tab, select the Results page, then
confirm that the following tray section parameters match the
table below:
The pressure drop rating information found in the side
stripper tray sizing utilities is not used to specify the
pressure profile of the Side Stripper unit operations. Since
there are only three trays in each side stripper, the pressure
drop across the respective tray sections is small. Keeping
the pressure profile across the side strippers constant does
not greatly impact the transition from steady state mode to
dynamics.
13.Close the Available Utilities property view.
You should still be in the Column sub-flowsheet
environment. If not, double-click the Column T-100 and then
click the Column Environment button on the bottom of the
Column property view.
14. In the PFD, double-click the Kero_SS side stripper icon to
open its property view.
15.Click the Rating tab, then select the Sizing page.
16.Specify the following tray section parameters that were
calculated in the previous table:
• Section Diameter
• Tray Spacing
• Weir Height
• Actual Weir Length
Variable Diesel_SS AGO_SS 1 AGO_SS 2
Section Diameter 1.676 m 1.067 m 0.6096 m
Weir Height 0.0508 m 0.0508 m 0.0508 m
Tray Spacing 0.6096 m 0.6096 m 0.6096 m
Total Weir Length 3.029 m 0.7038 m 0.5542 m
Number of Flow Paths 2 1 1
Actual Weir Length (calc) 1.515 m 0.7038 m 0.5542 m2-145
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-146 Dynamic Simulation
ww
Th17.Close the Kero_SS property view.
18.Double-click the Diesel_SS icon, then specify the tray rating
information using the table on the previous page. Close the
property view when you are done.
19.Repeat the same procedure to specify the tray rating
information for AGO_SS.
20.After the column has been specified with the tray rating
information, converge the column by clicking the Run
Column Solver icon in the toolbar.
21.Save the case as DynTUT2-2.hsc.
 Figure 2.160
Run Column Solver icon2-146
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-147
ww
ThVessel Sizing
The Condenser and Kero_SS_Reb operations require proper
sizing before they can operate effectively in dynamic mode. The
volumes of these vessel operations are determined based on a
10 minute liquid residence time.
1. Double-click the Condenser icon on the PFD to open its
property view.
2. Click the Worksheet tab, then select the Conditions page.
3. On the Conditions page, confirm the following Liquid
Volumetric Flow (Std Ideal Liq Vol Flow) of the following
streams:
 Figure 2.161
Liquid Volumetric Flow Rate (m3/h) Value
Reflux 106.7
Naphtha 152.4
Waste Water 5.736
To Condenser 264.82-147
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-148 Dynamic Simulation
ww
Th4. Calculate the vessel volume as follows, assuming a 50%
liquid level residence volume and a 10 min. residence time:
The vessel volume calculated for the Condenser is 88.3 m3.
5. Click the Dynamics tab, then select the Specs page.
6. In the Model Details group, specify the vessel Volume as
88.3 m3 and the Level Calculator as a Vertical Cylinder.
7. Close the Condenser property view.
8. In the PFD, double-click the Kero_SS_Reb icon to open its
property view.
9. Click the Worksheet tab, then select the Conditions page.
(2.2)
 Figure 2.162
 Figure 2.163
Vessel Volume Total Liquid Exit Flow Residence Time×
0.5
---------------------------------------------------------------------------------------------------------------=2-148
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-149
ww
Th10. In the Conditions page, confirm that the Liquid Volumetric
Flow (Std Ideal Liq Vol Flow) for Kerosene is 61.61 m3/h.
Assume a 10 minute of residence time and a 50% liquid
level residence volume. The vessel volume calculated for the
Kero_SS_Reb is 20.5 m3.
11.Click the Dynamics tab, then select the Specs page.
12. In the Volume cell, enter 20.5 m3. In the Level Calculator
cell, select Horizontal Cylinder from the drop-down list.
13.Close the Kero_SS_Reb property view.
Cooler Volume Sizing
Aspen HYSYS assigns a default volume to each Cooler unit
operation in the Column sub-flowsheet. In this section you will
modify each pump around cooler to initialize with a default
vessel volume.
1. Double-click the PA_1_Cooler operation in the PFD to open
the property view.
2. Click the Dynamics tab, then select the Specs page.
3. In the Model Details group, click in the Volume cell, then
press DELETE. The default volume of 0.10 m3 appears.
4. In the Dynamic Specifications group, ensure that all the
specification checkboxes are clear. No dynamic specifications
should be set for the pump around coolers.
 Figure 2.164
 Figure 2.1652-149
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-150 Dynamic Simulation
ww
Th5. Close the PA_1_Cooler property view.
6. Repeat this process for the PA_2_Cooler and the
PA_3_Cooler operations.
7. Save the case as DynTUT2-3.hsc.
2.3.3 Adding Controller
Operations
Controller operations can be added before or after the transition
to dynamic mode. Key control loops are identified and controlled
using PID Controller logical operations. Although these
controllers are not required to run the design in dynamic mode,
they increase the realism of the model and provide more
stability.
Adding a Level Controller
In this section you will add level controllers to the simulation
flowsheet to control the levels of the condenser and reboiler.
First you will install the Condenser controller.
1. If the Object Palette is not visible, press F4.
2. In the Object Palette, click the PID Controller icon.
3. In the PFD, click near the Condenser operation. The
controller icon, named IC-100, appears in the PFD.
4. Double-click the IC-100 icon to open the controller property
view.
5. On the Connections tab, click in the Name field and change
the name of the Controller to Cond LC.
PID Controller icon
For more information
regarding PID
Controller, see Section
5.4.4 - PID Controller
of the Aspen HYSYS
Operations Guide.2-150
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-151
ww
Th6. In the Process Variable Source group, click the Select PV
button, then select the information as shown in the figure
below. Click the OK button when you are done.
7. In the Output Target Object group, click the Select OP
button, then select the information as shown in the figure
below. Click the OK button when you are finished.
8. Click the Parameters tab, then select the Configuration
page.
9. Supply the following for the Configuration page:
 Figure 2.166
 Figure 2.167
In this cell... Enter...
Action Direct
Kc 42-151
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-152 Dynamic Simulation
ww
Th10.Click the Control Valve button. The FCV for Reflux property
view appears.
11. In the Max Flow cell of the Valve Sizing group, enter 2000
kgmole/h.
12.Close the FCV for Reflux property view.
13.Click the Face Plate button. The face plate for Cond LC
appears.
14.Change the controller mode to Auto on the face plate by
opening the drop-down list and selecting Auto.
15.Double-click the PV cell, then input the set point at 50%.
16.Close the Cond LC property view, but leave the face plate
property view open.
Ti 5 minutes
PV Minimum 0%
PV Maximum 100%
 Figure 2.168
 Figure 2.169
 Figure 2.170
In this cell... Enter...
For more information
regarding Face Plates,
see Section 5.13.2 -
Controller Face Plate
in the Aspen HYSYS
Operations Guide.2-152
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-153
ww
Th17.Repeat the procedures you just learned to add a PID
Controller operation which serves as the Kero_SS_Reb level
controller. Specify the following:
If you cannot locate a stream or operation in the Select
Input for PV property view, select the All radio button in the
Object Filter group and look again.
18.Click the Control Valve button. The FCV for Kero_SS_Draw
property view appears.
19. In the Valve Sizing group, enter the following
20.Close the FCV for Kero_SS_Draw property view.
21.Click the Face Plate button. Change the controller mode to
Auto on the face plate, then input a set point of 50%. Leave
the face plate property view open.
22.Close the Reb LC property view.
Tab [Page] In this cell... Enter...
Connections Name Reb LC
Process Variable Source Kero_SS_Reb, Liq Percent
Level
Output Target Object Kero_SS_Draw
Parameters
[Configuration]
Action Reverse
Kc 1
Ti 5 minutes
PV Minimum 0%
PV Maximum 100%
In this cell... Enter...
Flow Type MolarFlow
Minimum Flow 0 kgmole/h
Maximum Flow 1000 kgmole/h2-153
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-154 Dynamic Simulation
ww
ThAdding a Flow Controller
In this section you will add flow controllers to the product
streams of the column. These controllers ensure that sufficient
material is leaving the column.
1. Click the PID Controller icon in the Object Palette, then click
in the PFD near the Off Gas stream. The controller icon
appears.
2. Double-click the controller icon to access the property view.
Specify the following details:
3. Click the Control Valve button. The FCV for Atmos Cond
property view appears.
4. In the Duty Source group, ensure that the Direct Q radio
button is selected.
5.  In the Direct Q group, enter the following details:
6. Close the FCV for Atmos Cond property view.
7. Click the Face Plate button. The Off Gas FC face plate
property view appears. Change the controller mode to Auto,
then input a set point of 5 kgmole/h.
8. Close the Off Gas FC property view, but leave the face plate
property view open.
9. In the Object Palette, click the PID Controller icon, then
click in the PFD near the Diesel stream. The controller icon
appears in the PFD.
Tab [Page] In this cell... Enter...
Connections Name Off Gas FC
Process Variable Source Off Gas, Molar Flow
Output Target Object Atmos Cond
Parameters
[Configuration]3
Action Direct
Kc 0.01
Ti 5 minutes
PV Minimum 0 kgmole/h
PV Maximum 100 kgmole/h
In this cell... Enter...
Minimum Available 0 kJ/h
Maximum Available 2 x 108 kJ/h2-154
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-155
ww
Th10.  Double-click the controller icon to access the property view.
then specify the following details:
11.Click the Control Valve button. The FCV for
Diesel_SS_Draw property view appears.
12. In the Valve Sizing group, enter the following details:
13.Close the FCV for Diesel_SS_Draw property view.
14.Click the Face Plate button. The Diesel FC face plate
property view appears. Change the controller mode to Auto
and input a set point of 127.5 m3/h.
15.Close the property view, but leave the face plate property
view open.
16.Click the PID Controller icon in the Object Palette, then
click near the AGO stream on the PFD. The controller icon
appears.
17.Double-click the controller icon, then specify the following
details:
Tab [Page] In this cell... Enter...
Connections Name Diesel FC
Process Variable Source Diesel, Liq Vol Flow@Std
Cond
Output Target Object Diesel_SS_Draw
Parameters
[Configuration]
Action Reverse
Kc 1
Ti 5 minutes
PV Minimum 0 m3/h
PV Maximum 250 m3/h
In this cell... Enter...
Flow Type MolarFlow
Minimum Flow 0 kgmole/h
Maximum Flow 1200 kgmole/h
Tab [Page] In this cell... Enter...
Connections Name AGO FC
Process Variable Source AGO, Liq Vol Flow@Std
Cond
Output Target Object AGO_SS_Draw2-155
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-156 Dynamic Simulation
ww
Th18.Click the Control Valve button. The FCV for AGO_SS_Draw
property view appears.
19. In the Valve Sizing group, enter the following details:
20.Close the FCV for AGO_SS_Draw property view.
21.Click the Face Plate button. The AGO FC face plate property
view appears. Change the controller mode to Auto and input
a set point of 29.8 m3/h.
22.Close the property view, but leave the face plate property
view open.
23.Save the case as DynTUT2-4.hsc.
2.3.4 Adding Pressure-Flow
Specifications
Before integration can begin in Aspen HYSYS, the degrees of
freedom for the flowsheet must be reduced to zero by setting
the pressure-flow specifications.
Normally, you make one pressure-flow specification per
flowsheet boundary stream, however, there are exceptions to
the rule. One extra pressure flow specification is required for
every condenser or side stripper unit operation attached to the
main column. This rule applies only if there are no pieces of
equipment attached to the reflux stream of the condenser or the
draw stream of the side strippers. Without other pieces of
equipment (i.e., pumps, coolers, valves) to define the pressure
Parameters
[Configuration]
Action Reverse
Kc 0.7
Ti 3 minutes
PV Minimum 0 m3/h
PV Maximum 60 m3/h
In this cell... Enter...
Flow Type MolarFlow
Minimum Flow 0 kgmole/h
Maximum Flow 250 kgmole/h
Tab [Page] In this cell... Enter...2-156
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-157
ww
Thflow relation of these streams, they must be specified with a
flow specification.
Pressure-flow specifications for this case will be added to the
following boundary streams:
• Atm Feed
• Main Steam
• AGO Steam
• Diesel Steam
• Off Gas
• Waste Water
• Naphtha
• Kerosene
• Diesel
• AGO
• Residue
This simplified column has all the feed streams specified with a
flow specification. The Off Gas stream has a pressure
specification which defines the pressure of the condenser and
consequently the entire column. The liquid exit streams of the
column and the side stripper operations require pressure
specifications since there are no attached pieces of equipment in
these streams. All the other exit streams associated with the
column require flow specifications.
The following pump around streams require flow specifications
since both the Pressure Flow and the Delta P specifications are
not set for the pump around coolers.
• PA_1_Draw
• PA_2_Draw
• PA_3_Draw
The following streams have their flow specifications defined by
PID Controller operations.
• Reflux
• Kero_SS_Draw
• Diesel_SS_Draw
• AGO_SS_Draw
For more information
regarding Pressure Flow
specifications in Column
unit operations see
Chapter 2 - Column
Operations in Aspen
HYSYS Operations
Guide.2-157
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-158 Dynamic Simulation
ww
Th1. Enter the Main Flowsheet environment. Close the column
property view if it is still open.
2. Switch to dynamic mode by clicking the Dynamic Mode
icon. When asked if you want to allow dynamics assistant to
identify items which are needed to be addressed before
proceeding into dynamics, click the No button.
Every material stream in the Main Flowsheet requires either
a pressure or flow specification.
3. Double-click the Diesel Steam icon to enter its property
view.
4. Click the Dynamics tab, then select the Specs page.
5. In the Pressure Specification group, clear the Active
checkbox.
6. In the Flow Specification group, select the Molar radio
button, then select the Active checkbox.
7. In the Molar Flow cell, enter 75.54 kgmole/h if required.
Once a pressure or flow specification has been made active,
the stream value turns blue and can be modified.
 Figure 2.171
Enter Parent Simulation
Environment icon
Dynamic Mode icon2-158
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-159
ww
ThSet the following pressure or flow specifications for the
following streams in the Main Flowsheet.
8. Use the Object Navigator to enter the Column subflowsheet
environment. Click the Object Navigator icon in the
toolbar. The Object Navigator property view appears. In the
Flowsheets group, double-click T-100.
Every material stream in the column environment also
requires either a pressure or flow specification. Use the
following procedure to set a pressure-flow specification for
the PA_1_Draw stream.
9. In the PFD, double-click the PA_1_Draw stream icon to open
the property view.
10.Click the Dynamics tab, then select the Specs page.
Material Stream Pressure Specification Flow Specification Value
Atm Feed Inactive Molar Flow, Active 2826 kgmole/h
Main Steam Inactive Molar Flow, Active 188.8 kgmole/h
AGO Steam Inactive Molar Flow, Active 62.95 kgmole/h
Off Gas Active Inactive 135.8 kPa
Waste Water Inactive Molar Flow, Active 317.8 kgmole/h
Naphtha Inactive Ideal LiqVol, Active 152.4 m3/h
Kerosene Inactive Ideal LiqVol, Active 61.61 m3/h
Diesel Active Inactive 211.4 kPa
AGO Active Inactive 215.6 kPa
Residue Active Inactive 221.6 kPa2-159
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-160 Dynamic Simulation
ww
Th11. In the Flow Specification group, select the Molar radio
button, then select the Active checkbox.
12.Close the PA_1_Draw property view.
13.Activate the following flow specifications for the following
streams in the Column sub-flowsheet.
14.Save the case as DynTUT2-5.hsc.
15.Close all the property views except the face plates.
16. To arrange the face plates, select the Arrange Desktop
command from the Windows menu.
17. The integrator can be run at this point. Click the Start
Integrator icon. When you are given the option to run
dynamic assistant, select No.
 Figure 2.172
Material Stream Pressure-Flow Specification Value
PA_2_Draw Molar Flow 830.2 kgmole/h
PA_3_Draw Molar Flow 648.0 kgmole/h
Reflux Molar Flow 879.7 kgmole/h
Kero_SS_Draw Molar Flow 426.6 kgmole/h
Diesel_SS_Draw Molar Flow 616.8 kgmole/h
AGO_SS_Draw Molar Flow 124.8 kgmole/h
Start Integrator icon2-160
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-161
ww
ThWhen the integrator initially runs, Aspen HYSYS detects that
no vapour phase exists in the Condenser at the specified
process conditions. It displays the following message:
Aspen HYSYS recommends that you increase the
temperature setting to create a vapour phase. You can also
create a non-equilibrium vapour phase or set the liquid level
to be 100%. For the sake of this example, select the default
recommendation.
18.Click the Increase Temperature button.
19. Let the integrator run for few minutes so all the values can
propagate through the column. Observe the value changes
on the face plate property view.
20. To stop the integrator, click the Stop Integrator icon.
 Figure 2.1732-161
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-162 Dynamic Simulation
ww
Th2.3.5 Monitoring in Dynamics
Now that the model is ready to run in dynamic mode, the next
step is to install a strip chart to monitor the general trends of
key variables. The following is a general procedure for installing
strip charts in Aspen HYSYS.
1. Open the Databook by using the hot key combination CTRL
D.
2. On the Variables tab, click the Insert button. The Variable
Navigator property view appears.
The Variable Navigator is used extensively in Aspen HYSYS
for locating and selecting variables. The Navigator operates
in a left-to-right manner-the selected Flowsheet determines
the Object list, the chosen Object dictates the Variable list,
and the selected variable determines whether any Variable
Specifics are available.
3. In the Flowsheet list, select the Column T-100.
4. In the Object Filter group, select the UnitOps radio button.
The Object list is filtered to show unit operations only.
5. In the Object list, select the Condenser. The Variable list
available for the column appears to the right of the Object
list.
 Figure 2.1742-162
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Refining Tutorial 2-163
ww
Th6. In the Variable list, select Liquid Percent Level.
7. Click the OK button. The variable now appears in the
Databook.
8. Add the following variables to the Databook.
If you select the top variable in the list of Available Data
Entries before inserting a new variable, the new variable will
always be added to the top of the list.
The next task is to create a Strip Chart to monitor the
dynamics behaviour of the selected variables.
9. Click the Strip Charts tab in the Databook property view.
10.Click the Add button. Aspen HYSYS creates a new Strip
Chart with the name DataLogger1.
 Figure 2.175
Object Variable
Kero_SS_Reb Liquid Percent Level
Off Gas Molar Flow
Condenser Vessel Temperature
If you can’t find an Object in the Variable Navigator property
view, select the All radio button in the Object Filter group,
then select Case (Main) in the Flowsheet group. All
operations and streams for the design will appear in the
Object list.2-163
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-164 Dynamic Simulation
ww
Th11.Click in the blank Active checkbox beside the Condenser/
Liquid Percent Level variable.2-164
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-1
ww
Th3  Chemicals Tutorial3-1
3.1  Introduction................................................................................... 2
3.2  Steady State Simulation................................................................. 3
3.2.1  Process Description .................................................................. 3
3.2.2  Setting Your Session Preferences................................................ 4
3.2.3  Building the Simulation ............................................................. 7
3.2.4  Defining the Reaction.............................................................. 18
3.2.5  Entering the Simulation Environment ........................................ 28
3.2.6  Using the Workbook................................................................ 31
3.2.7  Installing Equipment on the PFD............................................... 52
3.2.8  Viewing Results...................................................................... 76
3.3  Dynamic Simulation ..................................................................... 88
3.3.1  Simplifying the Steady State Flowsheet ..................................... 89
3.3.2  Using the Dynamics Assistant .................................................. 91
3.3.3  Modeling a CSTR Open to the Atmosphere ................................. 95
3.3.4  Adding Controller Operations ................................................... 99
3.3.5  Monitoring in Dynamics..........................................................105
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-2 Introduction
ww
Th3.1 Introduction
In this tutorial, a flowsheet for the production of propylene
glycol is presented. Propylene oxide is combined with water to
produce propylene glycol in a continuously-stirred-tank reactor
(CSTR). The reactor outlet stream is then fed to a distillation
tower, where essentially all the glycol is recovered in the tower
bottoms. A flowsheet for this process appears below.
The following pages will guide you through building a Aspen
HYSYS case for modeling this process. This example will
illustrate the complete construction of the simulation, including
selecting a property package and components, defining the
reaction, installing streams and unit operations, and examining
the final results. The tools available in Aspen HYSYS interface
will be utilized to illustrate the flexibility available to you.
 Figure 3.1
The complete case for this tutorial has been pre-built and is
located in the file TUTOR3.HSC in your Aspen
HYSYS\Samples directory.
Before proceeding, you should have read Chapter A - Aspen
HYSYS Tutorials which precedes the tutorials in this guide.3-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-3
ww
Th3.2 Steady State
Simulation
3.2.1 Process Description
The process being modeled in this example is the conversion of
propylene oxide and water to propylene glycol in a CSTR
Reactor. The reaction products are then separated in a
distillation tower. A flowsheet for this process appears below.
The propylene oxide and water feed streams are combined in a
Mixer. The combined stream is fed to a Reactor, operating at
atmospheric pressure, in which propylene glycol is produced.
The Reactor product stream is fed to a distillation tower, where
essentially all the glycol is recovered in the bottoms product.
The two primary building tools, Workbook and PFD, are used to
install the streams and operations, and to examine the results
while progressing through the simulation. Both of these tools
provide you with a large amount of flexibility in building your
simulation and in quickly accessing the information you need.
 Figure 3.2
The simulation will be built using these basic steps:
1. Create a unit set.
2. Choose a property package.
3. Select the components.
4. Define the reaction.
5. Create and specify the feed streams.
6. Install and define the Mixer and
Reactor.
7. Install and define the Distillation
Column.3-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-4 Steady State Simulation
ww
ThThe Workbook is used to build the first part of the flowsheet,
including the feed streams and the mixer. The PFD is then used
to install the reactor, and a special sequence of property views
called the Input Expert will be used to install the distillation
column.
3.2.2 Setting Your Session
Preferences
Start Aspen HYSYS and create a new case. Your first task is to
set your Session Preferences.
1. From the Tools menu, select Preferences. The Session
Preferences property view appears.
2. The Simulation tab, Options page should be visible.
Ensure that the Use Modal Property Views checkbox is
clear.
The Workbook displays information about streams and unit
operations in a tabular format, while the PFD is a graphical
representation of the flowsheet.
 Figure 3.33-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-5
ww
Th3. Click the Variables tab, then select the Units page.
Creating a New Unit Set
The first task you perform when building the simulation case is
choosing a unit set. Aspen HYSYS does not allow you to change
any of the three default unit sets listed, however, you can create
a new unit set by cloning an existing one. For this tutorial, you
will create a new unit set based on the Aspen HYSYS Field set,
then customize it
1. In the Available Units Sets list, select Field.
The default unit for Liq. Vol. Flow is barrel/day; next you
will change the Liq. Vol. Flow units to USGPM.
The default Preference file is named Aspen HYSYS.prf.
When you modify any of the preferences, you can save the
changes in a new Preference file by clicking the Save
Preference Set button. Aspen HYSYS prompts you to
provide a name for the new Preference file, which you can
later recall into any simulation case by clicking the Load
Preference Set button.
2. Click the Clone button. A new unit set named NewUser
appears in the Available Unit Sets list.
 Figure 3.43-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-6 Steady State Simulation
ww
Th3. In the Unit Set Name field, change the name to Field-
USGPM. You can now change the units for any variable
associated with this new unit set.
4. Find the Liq. Vol. Flow cell. Click in the barrel/day cell
beside it.
5. To open the list of available units, click the down arrow , or
press the F2 key then the Down arrow key.
6. From the list, select USGPM.
7. The new unit set is now defined. Close the Session
Preferences property view.
 Figure 3.53-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-7
ww
Th3.2.3 Building the Simulation
1. Click the New Case icon.
The Simulation Basis Manager appears.
2. The next task is to create a Fluid Package.
A Fluid Package, at minimum, contains the components and
property method that Aspen HYSYS will use in its
calculations for a particular flowsheet. Depending on what a
specific flowsheet requires, a Fluid Package may also contain
other information such as reactions and interaction
parameters.
All commands accessed via the toolbar are also available as
menu items.
 Figure 3.6
Aspen HYSYS displays the current Environment and Mode in
the upper right corner of the property view. Whenever you
begin a new case, you are automatically placed in the Basis
Environment, where you can define your property package
and components.
New Case Icon3-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-8 Steady State Simulation
ww
ThSelecting Components
Now that you have chosen the property package to be used in
the simulation, your next task is to select the components.
1. On the Components tab of the Simulation Basis Manager
property view, click the Add button in the Component Lists
group. The Component List property view appears.
Each component can appear in three forms, corresponding
to the three radio buttons that appear above the component
list.
Based on the selected radio button, Aspen HYSYS locates
the component(s) that best matches the information you
type in the Match field.
 Figure 3.7
Feature Description
Sim Name The name appearing within the simulation.
Full Name/Synonym IUPAC name (or similar), and synonyms for many
components.
Formula The chemical formula of the component. This is
useful when you are unsure of the library name of
a component, but know its formula.3-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-9
ww
ThIn this tutorial you will use propylene oxide, propylene
glycol, and H2O. First, you will add propylene oxide to
the component list.
2. Ensure the Sim Name radio button is selected and the
Show Synonyms checkbox is selected.
3. In the Match field, start typing propyleneoxide, as one
word. Aspen HYSYS filters the list as you type, displaying
only those components that match your input.
4. When propylene oxide is selected in the list, add it to the
Selected Components List by doing one of the following:
• Press the ENTER key.
• Click the Add Pure button.
• Double-click on PropyleneOxide.
 Figure 3.83-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-10 Steady State Simulation
ww
ThThe component now appears in the Selected Components
list.
Another method for finding components is to use the View
Filters to display only those components belonging to
certain families.
Next, you will add Propylene Glycol to the component list
using the filter.
5. Ensure the Match field is empty by pressing ALT M and then
the DELETE key.
6. Click the View Filters button. The Filters property view
appears.
7. Select the Use Filter checkbox to activate the filter
checkboxes.
8. Since Propylene Glycol is an alcohol, click the Alcohols
checkbox.
 Figure 3.93-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-11
ww
Th9. In the Match field, begin typing propyleneglycol, as one
word. Aspen HYSYS filters as you type, displaying only the
alcohols that match your input.
10.When Propylene Glycol is selected in the list, press the
ENTER key to add it to the Selected Components list.
Finally, you will add the component H2O.
11. In the Filter property view, clear the Alcohols checkbox by
clicking on it.
12. Ensure the Match field is empty by pressing ALT M and then
the DELETE key
13.H2O does not fit into any of the standard families, so click
on the Miscellaneous checkbox.
14.Scroll down the filtered list until H2O is visible, then double-
click on H2O to add it to the Selected Components list.
 Figure 3.103-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-12 Steady State Simulation
ww
Th15.The final component list appears below.
Viewing Component Properties
To view the properties of one or more components, select the
component(s) and click the View Component button. Aspen
HYSYS opens the property view(s) for the component(s) you
select.
 Figure 3.11
A component
can be removed
from the
Selected
Components
list by selecting
the component
and clicking the
Remove
button or the
DELETE key.3-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-13
ww
Th1. Click on 12-C3diol in the Selected Components list.
2. Click the View Component button. The property view for
the component appears.
The Component property view provides you with complete
access to the pure component information for viewing only.
You cannot modify any parameters for a library component,
however, Aspen HYSYS allows you to clone a library
component into a Hypothetical component, which can then
be modified as desired.
3. Close the individual component property view, then close the
Component List property view to return to the Simulation
Basis Manager.
Creating a Fluid Package
1. Click the Fluid Pkgs tab of the Simulation Basis Manager.
The Simulation Basis Manager allows you to create,
modify, and otherwise manipulate Fluid Packages in your
simulation case. Most of the time, as with this example, you
will require only one Fluid Package for your entire
simulation.
 Figure 3.12
Refer to Chapter 3 -
Hypotheticals in the
Aspen HYSYS
Simulation Basis guide
for more information on
cloning library
components.3-13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-14 Steady State Simulation
ww
Th2. Click the Add button. The Fluid Package property view
appears.
The Fluid Package property view allows you to supply all the
information required to completely define the Fluid Package.
In this tutorial you will use the following tabs: Set Up,
Binary Coeffs (Binary Coefficients), and Rxns (Reactions).
You will select the Property Package on the Set Up tab. The
currently selected property package is . There are a
number of ways to select the desired base property package,
in this case UNIQUAC.
3. Do one of the following:
• Begin typing UNIQUAC, and Aspen HYSYS finds the
match to your input.
 Figure 3.13
Aspen HYSYS has created a Fluid Package with the default
name Basis-1. You can change the name of this fluid package
by typing a new name in the Name cell at the bottom of the
property view.3-14
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-15
ww
Th• Use the vertical scroll bar to move down the list until
UNIQUAC becomes visible, then click on it.
The Property Pkg indicator bar at the bottom of the
property view now indicates UNIQUAC is the current
property package for this Fluid Package.
Alternatively, you can select the Activity Models radio
button in the Property Package Filter group, producing a
list of only those property packages which are Activity
Models.
 Figure 3.14
 Figure 3.153-15
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-16 Steady State Simulation
ww
ThUNIQUAC appears in the filtered list, as shown in the figure
below.
In the Component List Selection drop-down list, Aspen
HYSYS filters to the library components to include only those
appropriate for the selected Property Package. In this case,
Component List - 1 is selected as it is the only list you have
created.
Providing Binary Coefficients
The next task in defining the Fluid Package is providing the
binary interaction parameters.
1. Click the Binary Coeffs tab of the Fluid Package property
view.
 Figure 3.16
 Figure 3.173-16
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-17
ww
ThIn the Activity Model Interaction Parameters group, the Aij
interaction table appears by default. Aspen HYSYS
automatically inserts the coefficients for any component
pairs for which library data is available. You can change any
of the values provided by Aspen HYSYS if you have data of
your own.
In this case, the only unknown coefficients in the table are
for the 12C3Oxide/12-C3diol pair. You can enter these
values if you have available data, however, for this example,
you will use one of Aspen HYSYS' built-in estimation
methods instead.
Next, you will use the UNIFAC VLE estimation method to
estimate the unknown pair.
2. In the Coeff Estimation group, ensure the UNIFAC VLE
radio button is selected.
3. Click the Unknowns Only button. Aspen HYSYS provides
values for the unknown pair. The final Activity Model
Interaction Parameters table for the Aij coefficients appears
below.
4. To view the Bij coefficient table, select the Bij radio button.
For this example, all the Bij coefficients will be left at the
default value of zero.
 Figure 3.183-17
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-18 Steady State Simulation
ww
Th3.2.4 Defining the Reaction
1. Return to the Simulation Basis Manager property view by
clicking on its title bar, or by clicking the Home View icon.
2. Click the Reactions tab. This tab allows you to define all the
reactions for the flowsheet.
The reaction between water and propylene oxide to produce
propylene glycol is as follows:
Selecting the Reaction Components
The first task in defining the reaction is choosing the
components that will be participating in the reaction. In this
tutorial, all the components that were selected in the Fluid
Package are participating in the reaction, so you do not have to
 Figure 3.19

(3.1)
These steps will be followed in defining our reaction:
1. Create and define a Kinetic
Reaction.
2. Create a Reaction Set containing
the reaction.
3. Activate the Reaction set to make
it available for use in the
flowsheet.
Home View Icon
H2O C3H6O+ C3H8O2→3-18
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-19
ww
Thmodify this list. For a more complicated system, however, you
would add or remove components from the list.
To add or remove a component, click the Add Comps button.
The Component List property view appears.
Creating the Reaction
Once the reaction components have been chosen, the next task
is to create the reaction.
1. In the Reactions group, click the Add Rxn button.
The Reactions property view appears.
2. In the list, select the Kinetic reaction type, then click the
Add Reaction button.
The Kinetic Reaction property view appears, opened to the
Stoichiometry tab.
 Figure 3.20
 Figure 3.21
Refer to the Providing
Binary Coefficients
section in Section 3.2.3
- Building the
Simulation for more
information.3-19
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-20 Steady State Simulation
ww
ThOn the Stoichiometry tab, you can specify which of the Rxn
Components are involved in the particular reaction as well as
the stoichiometry and the reaction order.
3. In the Component column, click in the cell labeled **Add
Comp**.
4. Select Water as a reaction component by doing one of the
following:
• Open the drop-down list and select H2O from the list of
available reaction components.
• Type H2O. Aspen HYSYS filters as you type, searching for
the component which matches your input. When H2O is
selected, press the ENTER key to add it to the
Component list.
5. Repeat this procedure to add 12C3Oxide and 12-C3diol to
the reaction table.
The next task is to enter the stoichiometric information. A
negative stoichiometric coefficient indicates that the
component is consumed in the reaction, while a positive
coefficient indicates the component is produced.
6. In the Stoich Coeff column, click in the  cell
corresponding to H2O.
7. Type -1 and press the enter key.
Often you will have more than one reaction occurring in your
simulation case. On the Stoichiometry tab of each reaction,
select only the Rxn Components participating in that
reaction.3-20
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-21
ww
Th8. Enter the coefficients for the remaining components as
shown in the property view below:
Once the stoichiometric coefficients are supplied, the
Balance Error cell will show 0 (zero), indicating that the
reaction is mass balanced. Aspen HYSYS will also calculate
and display the heat of reaction in the Reaction Heat cell.
In this case, the Reaction Heat is negative, indicating that
the reaction produces heat (exothermic).
Aspen HYSYS provides default values for the Forward
Order and Reverse Order based on the reaction
stoichiometry. The kinetic data for this Tutorial is based on
an excess of water, so the kinetics are first order in
Propylene Oxide only.
 Figure 3.223-21
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-22 Steady State Simulation
ww
Th9. In the Fwd Order cell for H2O, change the value to 0 to
reflect the excess of water. The Stoichiometry tab is now
completely defined and appears as shown below.
The next task is to define the reaction basis.
10. In the Kinetic Reaction property view, click the Basis tab.
11. In the Basis cell, accept the default value of Molar Concn.
12.Click in the Base Component cell. By default, Aspen HYSYS
has chosen the first component listed on the Stoichiometry
tab, in this case H2O, as the base component.
13.Change the base component to Propylene Oxide by doing
one of the following:
• Open the drop-down list of components and select
12C3Oxide.
• Begin typing 12C3Oxide, and Aspen HYSYS filters as you
type. When 12C3Oxide is selected, press the ENTER
key.
 Figure 3.23
Notice that the default
values for the Forward
Order and Reverse
Order appear in red,
indicating that they are
suggested by Aspen
HYSYS. When you enter
the new value for H2O,
it will be blue, indicating
that you have specified
it.3-22
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-23
ww
Th14. In the Rxn Phase cell, select CombinedLiquid from the
drop-down list. The completed Basis tab appears below.
The Min. Temperature, Max. Temperature, Basis Units,
and Rate Units are acceptable at their default values.
15.Click the Parameters tab. On this tab you provide the
Arrhenius parameters for the kinetic reaction. In this case,
there is no Reverse Reaction occurring, so you only need
to supply the Forward Reaction parameters.
16. In the Forward Reaction A cell, enter 1.7e13.
17. In the Forward Reaction E cell (activation energy), enter
3.24e4 (Btu/lbmole).
The status indicator at the bottom of the Kinetic Reaction
property view changes from Not Ready to Ready,
indicating that the reaction is completely defined. The final
 Figure 3.24
You can have the same reaction occurring in different phases
with different kinetics and have both calculated in the same
REACTOR.3-23
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-24 Steady State Simulation
ww
ThParameters tab appears below.
18.Close both the Kinetic Reaction property view and the
Reactions property view.
19.Click the Home View icon to ensure the Simulation Basis
Manager property view is active. On the Reactions tab, the
new reaction, Rxn-1, now appears in the Reactions group.
The next task is to create a reaction set that will contain the
new reaction. In the Reaction Sets list, Aspen HYSYS
provides the Global Rxn Set (Global Reaction Set) which
contains all of the reactions you have defined. In this
tutorial, since there is only one REACTOR, the default Global
Rxn Set could be attached to it, however, for illustration
 Figure 3.25
 Figure 3.26
Home View Icon3-24
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-25
ww
Thpurposes, a new reaction set will be created.
Creating a Reaction Set
Reaction Sets provide a convenient way of grouping related
reactions. For example, consider a flowsheet in which a total of
five reactions are taking place. In one REACTOR operation, only
three of the reactions are occurring (one main reaction and two
side reactions). You can group the three reactions into a
Reaction Set, then attach the set to the appropriate REACTOR
unit operation.
1. In the Reaction Sets group, click the Add Set button. The
Reaction Set property view appears with the default name
Set-1.
2. In the Active List, click in the cell labeled .
3. Open the drop-down list and select Rxn-1.
The drop-down list contains all reactions in the Global
Reaction Set. Currently, Rxn-1 is the only reaction defined,
so it is the only available selection.
A checkbox labeled OK automatically appears next to the
reaction in the Active List.
The reaction set status bar changes from Not Ready to
The same reaction(s) can be in multiple Reaction Sets.
 Figure 3.273-25
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-26 Steady State Simulation
ww
ThReady, indicating that the new reaction set is complete.
4. Close the Reaction Set property view to return to the
Simulation Basis Manager. The new reaction set named
Set-1 now appears in the Reaction Sets group.
Making the Reaction Set Available to
the Fluid Package
The final task is to make the set available to the Fluid Package,
which also makes it available in the flowsheet.
1. Click on Set-1 in the Reaction Sets group on the Reactions
tab.
2. Click the Add to FP button.
 Figure 3.283-26
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-27
ww
ThThe Add 'Set-1' view appears.
3. Select Basis-1, then click the Add Set to Fluid Package
button.
 Figure 3.29
 Figure 3.30
This property view prompts you to
select the Fluid Package to which you
would like to add the reaction set. In
this example, there is only one Fluid
Package, Basis-1.3-27
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-28 Steady State Simulation
ww
Th4. Click the Fluid Pkgs tab to view a summary of the
completed Fluid Package.
The list of Current Fluid Packages displays the new Fluid
Package, Basis-1, showing the number of components (NC)
and property package (PP). The new Fluid Package is
assigned by default to the Main Simulation, as shown in the
Flowsheet - Fluid Pkg Associations group. Now that the
Basis is defined, you can install streams and operations in
the Simulation environment (also referred to as the Parent
Simulation environment or Main Simulation environment).
3.2.5 Entering the Simulation
Environment
To leave the Basis environment and enter the Simulation
environment, do one of the following:
• Click the Enter Simulation Environment button on the
Simulation Basis Manager.
• Click the Enter Simulation Environment icon on the
toolbar.
When you enter the Simulation environment, the initial property
view that appears is dependent on your current preference
setting for the Initial Build Home View. Three initial property
 Figure 3.31
Enter Simulation
Environment Icon3-28
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-29
ww
Thviews are available, namely the PFD, Workbook and Summary.
Any or all of these can be displayed at any time, however, when
you first enter the Simulation environment, only one is
displayed. For this tutorial, the initial home property view is the
Workbook (Aspen HYSYS default setting).
There are several things to note about the Main Simulation
environment.
• In the upper right corner, the Environment has changed
from Basis to Case (Main).
 Figure 3.323-29
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-30 Steady State Simulation
ww
Th• A number of new items are now available on the Menu
and Toolbar, and the Workbook and Object Palette are
open on the Desktop. These two latter objects are
described below.
Before proceeding any further to install streams or unit
operations, save your case.
1. Do one of the following:
• Click the Save icon on the toolbar.
• From the File menu, select Save.
• Press CTRL S.
If this is the first time you have saved your case, the Save
Simulation Case As property view appears. By default, the
File Path is the Cases sub-directory in your Aspen HYSYS
directory.
2. In the File Name cell type a name for the case, for example
GLYCOL. You do not have to enter the.hsc extension;
Aspen HYSYS automatically adds it for you.
3. Once you have entered a file name, press the ENTER key or
the OK button.
Aspen HYSYS will now save the case under the name you
have given it when you Save in the future.
The Save As property view will not appear again unless you
choose to give it a new name using the Save As command.
Features  Description
Workbook A multiple-tab property view containing information about
the objects (streams and unit operations) in the simulation
case.
By default, the Workbook has four tabs, namely Material
Streams, Compositions, Energy Streams and Unit
Ops. You can edit the Workbook by adding or deleting
tabs and changing the information displayed on any tab.
Object
Palette
A floating palette of buttons that can be used to add
streams and unit operations.
You can toggle the palette open or closed by pressing F4,
or by choosing Open/Close Object Palette from the
Flowsheet menu.
If you enter a name that already exists in the current
directory, Aspen HYSYS will ask you for confirmation before
over-writing the existing file.
Save Icon3-30
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-31
ww
Th3.2.6 Using the Workbook
Installing the Feed Streams
In general, the first task you perform when you enter the
Simulation environment is to install one or more feed streams.
In this section, you will install feed streams using the Workbook.
1. Click the Workbook icon on the toolbar to make the
Workbook active.
2. On the Material Streams tab, click in the **New** cell in
the Name row.
3. Type the new stream name Prop Oxide, then press ENTER.
Aspen HYSYS automatically creates the new stream.
When you pressed ENTER after typing in the stream name,
Aspen HYSYS automatically advanced the active cell down
one cell, to Vapour Fraction.
Next you will define the feed conditions for temperature and
pressure, in this case 75°F and 1.1 atm.
4. Click in the Temperature cell for Prop Oxide.
Aspen HYSYS accepts blank spaces within a stream or
operation name.
 Figure 3.33
Workbook Icon3-31
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-32 Steady State Simulation
ww
Th5. Type 75 in the Temperature cell. In the Unit drop-down
list, Aspen HYSYS displays the default units for temperature,
in this case F.
6. Since this is the correct unit, press ENTER. Aspen HYSYS
accepts the temperature.
7. Click in the Pressure cell for Prop Oxide.
If you know the stream pressure in another unit besides the
default of psia, Aspen HYSYS will accept your input in any
one of a number of different units and automatically convert
to the default for you. For example, you know the pressure
of Prop Oxide is 1.1 atm.
8. Type 1.1.
 Figure 3.343-32
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-33
ww
Th9. Press the SPACE BAR or click on . Begin typing ‘atm’.
Aspen HYSYS will match your input to locate the unit of your
choice.
10.Once atm is selected in the list, press the ENTER key, and
Aspen HYSYS accepts the pressure and automatically
converts to the default unit, psia.
Alternatively, you can specify the unit simply by selecting it
from the unit drop-down list.
11.Click in the Molar Flow cell for Prop Oxide, enter 150
lbmole/hr, then press ENTER.
 Figure 3.353-33
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-34 Steady State Simulation
ww
ThProviding Compositional Input
Now that the stream conditions have been specified, your next
task is to input the composition.
1. In the Workbook, double-click the Molar Flow cell of the
Prop Oxide stream.
The Input Composition for Stream property view appears.
This property view allows you to complete the compositional
input.
The Input Composition for Stream property view is Modal,
indicated by the thick border and the absence of the
Minimize/Maximize buttons in the upper right corner.
When a Modal property view is visible, you will not be able to
move outside the property view until you finish with it, by
clicking either the Cancel or OK button.
 Figure 3.363-34
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-35
ww
ThThe following table lists and explains the features available
to you on the Input Composition for Stream property view.
2. In the Composition Basis group, ensure that the Mole
Fractions radio button is selected.
3. Click on the input cell for the first component, 12C3Oxide.
This stream is 100% propylene oxide.
4. Type 1 for the mole fraction, then press ENTER.
In this case, 12C3Oxide is the only component in the
stream.
Features Description
Composition
Basis Radio
Buttons
You can input the stream composition in some
fractional basis other than Mole Fraction, or by
component flows, by selecting the appropriate radio
button before providing your input.
Normalizing The Normalizing feature is useful when you know the
relative ratios of components; for example, 2 parts
N2, 2 parts CO2, 120 parts C1, etc. Rather than
manually converting these ratios to fractions summing
to one, simply enter the individual numbers of parts
and click the Normalize button. Aspen HYSYS
computes the individual fractions to total 1.0.
Normalizing is also useful when you have a stream
consisting of only a few components. Instead of
specifying zero fractions (or flows) for the other
components, simply enter the fractions (or the actual
flows) for the non-zero components, leaving the
others . Click the Normalize button, and
Aspen HYSYS forces the other component fractions to
zero.
Calculation
status/colour
As you input the composition, the component fractions
(or flows) initially appear in red, indicating the final
composition is unknown. These values become blue
when the stream composition is calculated.
Three scenarios result in the stream composition being
calculated:
• Input the fractions of all components, including
any zero components, such that their total is
exactly 1.0000. Click the OK button.
• Input the fractions (totalling 1.000), flows or
relative number of parts of all non-zero
components. Click the Normalize button, then
click the OK button.
• Input the flows or relative number of parts of all
components, including any zero components,
then click the OK button.
The colours mentioned above are the default colours;
yours may appear differently depending on your
settings on the Colours page of the Session
Preferences.3-35
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-36 Steady State Simulation
ww
Th5. Click the Normalize button to force the other values to
zero. The composition is now defined for this stream.
6. Click the OK button. Aspen HYSYS accepts the composition.
The stream specification is now complete, so Aspen HYSYS
will flash it at the conditions given to determine the
remaining properties.
The values you specified are a different colour (blue) than
the calculated values (black).
 Figure 3.37
 Figure 3.38
If you want to delete a stream, click on the Name cell for the
stream, then press DELETE. Aspen HYSYS asks for
confirmation of your action.3-36
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-37
ww
ThAdding Another Stream
Next, you will use an alternative method for adding a stream.
1. To add the second feed stream, do any one of the following:
• Press F11.
• From the Flowsheet menu, select Add Stream.
• Double-click the Material Stream icon on the Object
Palette.
• Click the Material Stream icon on the Object Palette,
then click the Palette's Add Object button.
A new stream appears in the Workbook and is named
according to the Auto Naming setting in your Session
Preferences settings. The default setting names new
material streams with numbers, starting at 1 (and energy
streams starting at Q-100).
When you create the new stream, the stream’s property
view also appears, displaying the Conditions page of the
Worksheet tab.
2. In the Stream Name cell, change the name to Water
Feed.
3. In the Temperature cell, enter 75°F.
These parameters are in default units, so there is no need to
change the units.
Material
Stream Icon
Add Object
Icon3-37
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-38 Steady State Simulation
ww
Th4. In the Pressure cell, enter 16.17 psia.
5. Select the Composition page to enter the compositional
input for the new feed stream.
6. Click the Edit button near the bottom of the Composition
page. The Input Composition for Stream property view
appears.
 Figure 3.39
 Figure 3.403-38
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-39
ww
ThFor the current Composition Basis setting, you want to
enter the stream composition on a mass flow basis.
7. In the Composition Basis group, change the basis to Mass
Flows by selecting the appropriate radio button, or by
pressing ALT A.
8. In the CompMassFlow cell for H2O, type 11,000 (lb/hr),
then press ENTER.
9. Since this stream has no other components, click the OK
button. The other component mass flows are forced to zero.
Aspen HYSYS performs a flash calculation to determine the
unknown properties of Water Feed, and the status bar
 Figure 3.41
 Figure 3.423-39
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-40 Steady State Simulation
ww
Thdisplays a green OK message. Use the horizontal scroll bar in
the table to view the compositions of each phase.
The compositions currently appear in Mass Flow, but you can
change this by clicking the Basis button and choosing
another Composition Basis radio button.
10.Click the Conditions page to view the calculated stream
properties. You can display the properties of all phases by
resizing the property view
11. Place the cursor over the right border of the property view.
The cursor changes to a double-ended sizing arrow.
 Figure 3.43
Sizing Arrow Icon3-40
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-41
ww
Th12.With the sizing arrow visible, click and drag to the right until
the horizontal scroll bar disappears, making the entire table
visible.
In this case, the aqueous phase is identical to the overall
phase.
13.Close the Water Feed property view to return to the
Workbook.
Installing Unit Operations
Now that the feed streams are known, your next task is to
install the necessary unit operations for producing the glycol.
 Figure 3.44
New or updated information is automatically and instantly
transferred among all locations in Aspen HYSYS.3-41
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-42 Steady State Simulation
ww
ThInstalling the Mixer
The first operation is a Mixer, used to combine the two feed
streams. As with most commands in Aspen HYSYS, installing an
operation can be accomplished in a number of ways. One
method is through the Unit Ops tab of the Workbook.
1. Click the Workbook icon to ensure the Workbook is active.
2. Click the Unit Ops tab of the Workbook.
3. Click the Add UnitOp button. The UnitOps property view
appears, listing all available unit operations.
When you click the Add button or press ENTER inside this
property view, Aspen HYSYS adds the operation that is
currently selected.
4. Select Mixer by doing one of the following:
• Start typing mixer.
• Scroll down the list using the vertical scroll bar, then
select Mixer.
You can also filter the list by selecting the Piping Equipment
radio button in the Categories group, then use one of the
above methods to install the operation.
To add an operation, you can double-clicking on a listed
operation.
5. With Mixer selected, click the Add button, or press ENTER.
 Figure 3.45
Workbook Icon3-42
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-43
ww
ThThe property view for the Mixer appears.
The unit operation property view contains all the information
required to define the operation, organized into tabs and
pages. The Design, Rating, Worksheet, and Dynamics
tabs appear in the property view for most operations.
Property views for more complex operations contain more
tabs. Aspen HYSYS has provided the default name MIX-100
for the Mixer.
Many operations, like the Mixer, accept multiple feed
streams. Whenever you see a table like the one in the Inlets
group, the operation will accept multiple stream connections
at that location. When the Inlets table is active, you can
access a drop-down list of available streams.
Next, you will complete the Connections page for the Mixer.
6. In the Inlets table, click in the <> cell. The status
indicator at the bottom of the property view indicates that
the operation needs a feed stream.
 Figure 3.46
The default naming scheme for unit operations can be
changed in your Session Preferences.3-43
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-44 Steady State Simulation
ww
Th7. Open the drop-down list of inlets by clicking on the down
arrow icon  or by pressing the F2 key then the DOWN
arrow key.
8. Select Prop Oxide from the drop-down list. The Prop Oxide
stream appears in the Inlets table, and <>
automatically moves down to a new empty cell.
Alternatively, you can connect the stream by typing the
exact stream name in the <> cell, then pressing
ENTER.
9. In the Inlets table, click the new empty <> cell
and select Water Feed from the list. The status indicator now
displays ‘Requires a product stream’.
10.Move to the Outlet field by pressing TAB, or by clicking in
the cell.
 Figure 3.473-44
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-45
ww
Th11.Type Mixer Out in the cell, then press ENTER. Aspen HYSYS
recognizes that there is no existing stream with this name,
so it creates the new stream.
The status indicator displays a green OK, indicating that the
operation and attached streams are completely calculated.
The Connections page is now complete.
12.Click the Parameters page.
13. In the Automatic Pressure Assignment group, keep the
default setting of Set Outlet to Lowest Inlet.
 Figure 3.48
 Figure 3.493-45
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-46 Steady State Simulation
ww
Th14.Click the Worksheet tab in the MIX-100 property view to
view the calculated outlet stream. This tab is a condensed
Workbook tab displaying only those streams attached to the
operation.
Aspen HYSYS has calculated the outlet stream by combining
the two inlets and flashing the mixture at the lowest
pressure of the inlet streams. In this case, both inlets have
the same pressure (16.17 psia), so the outlet stream is set
to 16.17 psia.
15.Close the MIX-100 property view and UnitOps property view
to return to the Workbook.
16. The new operation appears in the table of the Workbook
Unit Ops tab.
 Figure 3.50
 Figure 3.513-46
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-47
ww
ThThe table shows the operation Name, Object Type, the
attached streams (Inlet and Outlet), whether it is Ignored,
and its Calc. Level. When you click the View UnitOp button,
the property view for the currently selected operation
appears. Alternatively, by double-clicking on any cell (except
Inlet or Outlet) associated with the operation, will also open
its property view.
You can also open a stream property view directly from the
Workbook Unit Ops tab. When any of the cells Name,
Object Type, Ignored or Calc. Level are selected, the gray
box at the bottom of the property view displays all the
streams attached to the current operation. Currently, the
Name cell for MIX-100 has focus, so the box displays the
three streams attached to this operation.
For example, to open the property view for the Prop Oxide
stream attached to the Mixer, do one of the following:
• Double-click on Prop Oxide in the box at the bottom of
the property view.
• Double-click on the Inlets cell for MIX-100. The property
view for the first listed feed stream, in this case Prop
Oxide, appears.
Workbook Features
Before installing the remaining operations, you will examine a
number of Workbook features that allow you to access
information quickly and change how information is displayed.
Accessing Unit Operations from the
Workbook
While you can easily access the property view for a unit
operation from the Unit Ops tab of the Workbook, you can also
access operations from the Material Streams, Compositions, and
Energy Streams tabs.
When your current location is a Workbook streams tab, the gray
box at the bottom of the Workbook property view displays the
operations to which the current stream is attached. 3-47
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-48 Steady State Simulation
ww
ThFor example, click on any cell associated with the stream Prop
Oxide. The field displays the name of the mixer operation, MIX-
100.
If the stream Prop Oxide was also attached to another unit
operation, both unit operations would be listed in the field.
Adding a Tab to the Workbook
When the Workbook is active, the Workbook item appears in
the Aspen HYSYS menu bar. This item allows you to customize
the Workbook.
Next you will create a new Workbook tab that displays only
stream pressure, temperature, and flow.
1. Do one of the following:
• From the Workbook menu item, select Setup.
• Object inspect (right-click) the Material Streams tab in
the Workbook, then select Setup from the menu that
appears.
Any utilities attached to the stream with focus in the
Workbook are also displayed in (and are accessible from)
this field.
 Figure 3.52
You can access the
property view for the
Mixer, double-click
on its name in the
field.3-48
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-49
ww
ThThe Workbook Setup property view appears.
The four existing tabs are listed in the Workbook Tabs
area. When you add a new tab, it will be inserted before the
highlighted tab (currently Material Streams). You will insert
the new tab between the Materials Streams tab and the
Compositions tab.
2. In the Workbook Tabs list, select Compositions, then click
the Add button. The New Object Type property view
appears.
3. Click the Plus icon  beside Stream to expand the branch.
 Figure 3.53
 Figure 3.543-49
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-50 Steady State Simulation
ww
Th4. Select Material Stream, then click the OK button. You
return to the Setup property view and the new tab, Material
Streams 1, appears after the existing Material Streams
tab.
5. In the Object group, click in the Name field and change the
name for the new tab to P,T,Flow to better describe the tab
contents.
The next task is to customize the tab by removing the
variables that are irrelevant.
6. In the Variables table, select the first variable, Vapour
Fraction.
7. Press and hold the CTRL key.
8. Select the following variables: Mass Flow, Heat Flow, and
Molar Enthalpy.
9. Release the CTRL key.
 Figure 3.553-50
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-51
ww
Th10.Click the Delete button beside the table to remove the
selected variables from this Workbook tab only. The
finished Setup appears in the figure below.
If you want to remove variables from another tab, you must
edit each tab individually.
11.Close the Setup property view. The new tab appears in the
Workbook.
12.Save the case.
 Figure 3.56
 Figure 3.573-51
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-52 Steady State Simulation
ww
Th3.2.7 Installing Equipment on
the PFD
Besides the Workbook, the PFD is the other main property view
in Aspen HYSYS you will use to build the simulation.
1. To open the PFD, click the PFD icon on the toolbar. The PFD
item appears in the Aspen HYSYS menu bar whenever the
PFD has focus.
When you open the PFD property view, it appears similar to
the one shown below.
As a graphical representation of your flowsheet, the PFD shows
the connections among all streams and operations, also known
as objects. Each object is represented by a symbol, also known
as an icon. A stream icon is an arrow pointing in the direction of
flow, while an operation icon is a graphic representing the actual
physical operation. The object name, also known as a label,
appears near each icon.
The PFD shown above has been rearranged by moving the Prop
Oxide feed stream icon up slightly so it does not overlap the
Water Feed stream icon. To move an icon, simply click and
drag it to a new location. You can click and drag either the icon
(arrow) itself, or the label (stream name), as these two items
are grouped together.
 Figure 3.58
PFD Icon
Like any other
non-modal
property view,
the PFD
property view
can be re-sized
by clicking and
dragging
anywhere on the
outside border.3-52
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-53
ww
ThOther functions that can be performed while the PFD is active
include the following:
• Access commands and features through the PFD toolbar.
• Open the property view for an object by double-clicking
its icon.
• Move an object by clicking and dragging it to the new
location.
• Access “fly-by” summary information for an object by
placing the cursor over it.
• Size an object by clicking the Size icon, selecting the
object, then clicking and dragging the sizing "handles"
that appear.
• Display the Object Inspection menu for an object by
placing the cursor over it and right-clicking. This menu
provides access to a number of commands associated
with the particular object.
• Zoom in and out, or display the entire flowsheet in the
PFD window by clicking the zoom buttons at the bottom
left of the PFD property view.
Some of these functions will be illustrated in this tutorial.
Calculation Status
Aspen HYSYS uses colour-coding to indicate calculation status
for objects, both in the object property views, and in the
flowsheet. If you recall, the status bar indicator at the bottom of
a property view for a stream or operation indicates the current
state of the object.
 Figure 3.59
Example of a fly-by information:
Icon Name Icon Name
Zoom Out 25% Zoom In 25%
Display Entire PFD
Size icon
For more information on
manipulating PFD, refer to
the Aspen HYSYS User
Guide.3-53
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-54 Steady State Simulation
ww
ThThe following table lists and describes the three colour status:
When you are in the PFD, the streams and operations are
colour-coded to indicate their calculation status. If the
conditions of an attached stream for an operation were not
entirely known, the operation would have a yellow outline
indicating its current status. For the Mixer, all streams are
defined, so it has no yellow outline.
Another colour scheme is used to indicate the status of streams.
For material streams, a dark blue icon indicates the stream has
been flashed and is entirely known.
A light blue icon indicates the stream cannot be flashed until
some additional information is supplied.
Similarly, a dark red icon is for an energy stream with a known
duty, while a purple icon indicates an unknown duty.
Indicator Status  Description
Red Status A major piece of defining information is missing from
the object. For example, a feed or product stream is
not attached to a Separator. The status indicator is red
and an appropriate warning message is displayed.
Yellow Status All major defining information is present, but the
stream or operation has not been solved because one
or more degrees of freedom is present.
For example, a Cooler whose outlet stream
temperature is unknown. The status indicator is yellow
and an appropriate warning message is displayed.
Green Status The stream or operation is completely defined and
solved. The status indicator is green and an OK
message is displayed.
The above status colours are the Aspen HYSYS default
colours. You can change the colours in the Session
Preferences.
Notice that the icons for all streams installed to this point
are dark blue.3-54
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-55
ww
ThInstalling the Reactor
Next, you will install a continuously-stirred-tank reactor
operation (CSTR). You can install streams or operations by
dropping them from the Object Palette onto the PFD.
1. Open the Object Palette by pressing F4.
2. Find a empty space in the PFD to add the CSTR to the right
of the Mixer. If necessary scroll to the right using the
horizontal scroll bar on the PFD property view.
3. In the Object Palette, click the CSTR icon.
4. Position the cursor in the PFD to the right of the Mixer Out
stream. The cursor changes to a special cursor with a plus
(+) symbol attached to it. The symbol indicates the location
of the operation icon.
5. Click to “drop” the Reactor onto the PFD. Aspen HYSYS
creates a new Reactor with a default name, CSTR-100. The
Reactor has red status (colour), indicating that it requires
feed and product streams.
 Figure 3.60

CSTR Icon3-55
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-56 Steady State Simulation
ww
ThAttaching Streams to the Reactor
1. Click the Attach Mode icon on the PFD toolbar to enter
Attach mode.
2. Position the cursor over the right end of the Mixer Out
stream icon. A small white box appears at the cursor tip with
a pop-up description ‘Out’, indicating that the stream outlet
is available for connection.
3. With the pop-up ‘Out’ visible, click and hold the mouse
button. The transparent box becomes solid black, indicating
that you are beginning a connection.
4. Move the cursor toward the left (inlet) side of the CSTR-100
icon. A line appears between the Mixer Out stream icon and
the cursor, and multiple connection points (blue) appear at
the Reactor inlet.
The Attach Mode button stays active until you click it again
to return to Move mode.
When you are in Attach mode, you will not be able to move
objects in the PFD.
You can temporarily toggle between Attach and Move mode
by holding down the CTRL key.
 Figure 3.61
Multiple connection points appear on the Reactor object
because the reactor accepts multiple feed streams.
Attach Mode Icon3-56
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-57
ww
Th5. Place the cursor near a connection point until a solid white
box appears at the cursor tip, indicating an acceptable end
point for the connection.
6. Release the mouse button, and the connection is made
between the stream and the CSTR-100 inlet.
7. Position the cursor over top right-hand corner of the CSTR-
100 icon. The white box and the pop-up ‘Vapour Product’
appear.
8. With the pop-up visible, left-click and hold. The white box
again becomes solid black.
9. Move the cursor to the right of the CSTR-100. A stream icon
appears with a trailing line attached to the CSTR-100 outlet.
The stream icon indicates that a new stream will be created
when you complete the next step.
10.With the stream icon visible, release the left mouse button.
Aspen HYSYS creates a new stream with the default name 1.
 Figure 3.62
If you make an incorrect connection, break the connection and try
again. To break a connection:
1. Click the Break Connection icon on the PFD toolbar.
2. Place the cursor over the stream line you want to break.
The cursor shows a checkmark, indicating an available connection to
break.
3. Click once to break the connection.
 Figure 3.63
Break Connection Icon3-57
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-58 Steady State Simulation
ww
Th11. Place the cursor over the bottom right connection point on
the reactor labeled ‘Liquid Product’, then click and drag to
the right to create the reactor’s liquid product stream. The
new stream is given the default name 2.
12. Place the cursor over the bottom left connection point on the
reactor labeled ‘Energy Stream’, then click and drag down
and to the left to create the reactor’s energy stream. The
new stream is automatically named Q-100.
The reactor still displays a red warning status, indicating
that all necessary connections have been made, but the
attached streams are not entirely known.
13.Click the Attach Mode icon again to return to Move mode.
14.Double-click the stream icon 1 to open its property view.
15. In the Stream Name cell, enter the new name Reactor
Vent, then close the property view.
16.Double-click the stream 2 icon. Rename this stream Reactor
Prods, then close the property view.
17.Double-click the Q-100 icon, rename it Coolant, then close
the property view.
The reactor outlet and energy streams are unknown at this
point, so they are light blue and purple, respectively.
Completing the Reactor
Specifications
1. Double-click the CSTR-100 icon to open its property view.
2. Click the Design tab, then select the Connections page (if
required). The names of the Inlet, Outlet, and Energy
streams that were attached before appear in the appropriate
cells.
 Figure 3.643-58
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-59
ww
Th3. In the Name cell, change the operation name to Reactor.
4. Select the Parameters page. For now, the Delta P and the
Volume parameters are acceptable at the default values.
5. Select the Cooling radio button. This reaction is exothermic
(produces heat), so cooling is required.
6. Click the Reactions tab. Next you will attach the Reaction
Set that you created in the Basis Environment.
 Figure 3.65
 Figure 3.663-59
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-60 Steady State Simulation
ww
Th7. From the Reaction Set drop-down list, select Set-1. The
completed Reactions tab appears below.
The next task is to specify the Vessel Parameters. In this
Tutorial, the reactor has a volume of 280 ft3 and is 85% full.
8. Click the Dynamics tab, then select the Specs page.
9. In the Model Details group, click in the Vessel Volume cell.
Type 280 (ft3), then press ENTER.
10. In the Liq Volume Percent cell, type 85, then press
ENTER.
 Figure 3.673-60
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-61
ww
ThAspen HYSYS automatically calculates the Liquid Volume in
the vessel (280 ft3 x 85% full = 238 ft3), displayed on the
Parameters page of the Design tab.
11.Click on the Worksheet tab.
At this point, the Reactor product streams and the energy
stream Coolant are unknown because the Reactor has one
degree of freedom. At this point, either the outlet stream
temperature or the cooling duty can be specified.
 Figure 3.68
 Figure 3.693-61
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-62 Steady State Simulation
ww
ThFor this example, you will specify the outlet temperature.
Initially the Reactor is assumed to be operating at
isothermal conditions, therefore the outlet temperature is
equivalent to the feed temperature, 75°F.
12. In the Reactor Prods column, click in the Temperature cell.
Type 75, then press ENTER. Aspen HYSYS solves the
Reactor.
There is no phase change in the Reactor under isothermal
conditions since the flow of the vapour product stream
Reactor Vent is zero. In addition, the required cooling duty
has been calculated and is represented by the Heat Flow of
the Coolant stream. The next step is to examine the Reactor
conversion as a function of temperature.
 Figure 3.703-62
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-63
ww
Th13.Click the Reactions tab, then select the Results page. The
conversion appears in the Reactor Results Summary table.
Under the current conditions, the Actual Percent Conversion
(Act.% Cnv.) in the Reactor is 40.3%. You will adjust the
Reactor temperature until the conversion is in the 85-95%
range.
14.Click the Worksheet tab.
15. In the Reactor Prods column, change the Temperature to
100°F.
16.Return to the Reactions tab to check the conversion, which
has increased to 72.28% as shown below.
17.Return to the Worksheet tab, and change the
Temperature of Reactor Prods to 140°F.
 Figure 3.71
 Figure 3.723-63
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-64 Steady State Simulation
ww
Th18.Click the Reactions tab again and check the conversion.
The conversion at 140°F is approximately 95%, which is
acceptable.
19.Close the Reactor property view.
Installing the Column
Aspen HYSYS has a number of pre-built column templates that
you can install and customize by changing attached stream
names, number of stages, and default specifications. For this
example, a Distillation Column will be installed.
1. Before installing the column, click the Tools menu and
select Preferences.
2. On the Simulation tab, click on the Options page and
ensure that the Use Input Experts checkbox is selected,
then close the property view.
3. Double-click the Distillation Column icon on the Object
Palette.
 Figure 3.73
Distillation Column Icon3-64
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-65
ww
ThThe first page of the Input Expert appears.
The Input Expert is a logical sequence of input property
views that guide you through the initial installation of a
Column. Complete the steps to ensure that you have
provided the minimum amount of information required to
define the column.
The Input Expert is a Modal property view, indicated by the
absence of the Maximize/Minimize icons. You cannot exit or
move outside the Expert until you supply the necessary
information, or click the Cancel button.
4. For this example, 10 theoretical stages are used, so leave
the # Stages at its default value.
When you install a column using a pre-built template, Aspen
HYSYS supplies certain default information, such as the
number of stages. The # Stages field contains 10 (default
number of stages).
5. In the Inlet Streams table, click in the <> cell.
 Figure 3.74
These stages are theoretical stages, as the Aspen HYSYS
default stage efficiency is one.
The Condenser and Reboiler are considered separate from
the other stages, and are not included in the Num of Stages
field.3-65
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-66 Steady State Simulation
ww
Th6. From the drop-down list of available inlet streams, select
Reactor Prods as the feed stream to the column. Aspen
HYSYS supplies a default feed location in the middle of the
Tray Section (TS), in this case stage 5 (indicated by 5_Main
TS).
7. In the Condenser group, ensure the Partial radio button is
selected, as the column will have both Vapour and Liquid
Overhead Outlets.
8. In the Column Name field, change the name to Tower.
9. In the Condenser Energy Stream field, type CondDuty,
then press ENTER.
10. In the top Ovhd Outlets field, type OvhdVap, then press
ENTER.
In the bottom Ovhd Outlets field, type RecyProds, then
press ENTER.
11. In the Reboiler Energy Stream field, type RebDuty, then
press ENTER.
12. In the Bottoms Liquid Outlet field, type Glycol, then press
ENTER.
When you are finished, the Next button becomes active,
indicating sufficient information has been supplied to
advance to the next page of the Input Expert.
The first page of the Input Expert should appear as shown in
the following figure.
 Figure 3.753-66
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-67
ww
Th13.Click the Next button to advance to the Pressure Profile
page.
14. In the Condenser Pressure field, enter 15 psia.
15. In the Reboiler Pressure field, enter 17 psia.
Leave the Condenser Pressure Drop at its default value of
zero.
16.Click the Next button to advance to the Optional
Estimates page. For this example, no estimates are
required.
Although Aspen HYSYS does not require estimates to
produce a converged column, you should provide estimates
for columns that are difficult to converge.
17.Click the Next button to advance to the fourth and final
page of the Input Expert. This page allows you to supply
values for the default column specifications that Aspen
HYSYS has created.
In general, a Distillation Column has three default
specifications. The overhead Vapour Rate and Reflux
Ratio will be used as active specifications, and later you will
create a glycol purity specification to exhaust the third
degree of freedom. The third default specification, overhead
Liquid Rate, will not be used.
18. In the Vapour Rate field, enter 0 lbmole/hr.
 Figure 3.763-67
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-68 Steady State Simulation
ww
ThThe Flow Basis applies to the Vapour Rate, so leave it at
the default of Molar.
19. In the Reflux Ratio field, enter 1.0.
20.Click the Done button. The Column property view appears.
21.On the Design tab, select the Monitor page.
 Figure 3.77
 Figure 3.783-68
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-69
ww
ThThe Monitor page displays the status of your column as it is
being calculated, updating information with each iteration.
You can also change specification values, and activate or
deactivate specifications used by the Column solver directly
from the Monitor page.
Adding a Column Specification
The current Degrees of Freedom is zero, indicating the column is
ready to be run, however, the Distillate Rate (Overhead Liquid
Rate for which no value was provided in the Input Expert) is
currently an Active specification with a Specified Value of
. For this example, you will specify a water mole
fraction of 0.005 in the Glycol product stream.
1. Since it is not desirable to use this specification, clear the
Active checkbox for the Distillate Rate. The Degrees of
Freedom increases to 1, indicating that another active
specification is required.
2. On the Design tab, select the Specs page.
3. In the Column Specifications group, click the Add button.
The Add Specs property view appears.
4. Select Column Component Fraction as the Specification
Type.
5. Click the Add Spec(s) button. The Comp Frac Spec property
view appears.
6. In the Name cell, change the name to H2O Fraction.
 Figure 3.793-69
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-70 Steady State Simulation
ww
Th7. In the Stage cell, select Reboiler from the drop-down list.
8. In the Spec Value cell, enter 0.005 as the liquid mole
fraction specification value.
9. In the Components list, click in the first cell labeled
<>, then select H2O from the drop-down list
of available components.
10.Close this property view to return to the Column property
view. The new specification appears in the Column
Specifications list on the Specs page.
11.Return to the Monitor page, where the new specification
appears at the bottom of the Specifications list.
 Figure 3.80
 Figure 3.813-70
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-71
ww
Th12.Click the Group Active button to bring the new specification
to the top of the list, directly under the other Active
specifications.
The Degrees of Freedom has returned to zero, so the
column is ready to be calculated.
 Figure 3.82
If you want to view the entire Specifications table, re-size
the property view by clicking and dragging its bottom
border.
Aspen HYSYS automatically made the new specification
Active when you created it.3-71
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-72 Steady State Simulation
ww
ThRunning the Column
1. Click the Run button to begin calculations, and the
information displayed on the page is updated with each
iteration. The column converges quickly, in five iterations.
The converged temperature profile appears in the upper
right corner of the property view.
2. Select the Press or Flows radio button to view the pressure
or flow profiles.
 Figure 3.833-72
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-73
ww
Th3. To access a more detailed stage summary, click the
Performance tab, then select the Column Profiles page.
Accessing the Column Sub-flowsheet
When considering the column, you might want to focus only on
the column sub-flowsheet. You can do this by entering the
column environment.
1. Click the Column Environment button at the bottom of the
property view. While inside the column environment, you
can do the following:
• View the column sub-flowsheet PFD by clicking the PFD
icon.
• View a Workbook of the column sub-flowsheet objects by
clicking the Workbook icon.
• Access the "inside" column property view by clicking the
Column Runner icon. This property view is essentially
the same as the "outside", or Main Flowsheet, property
view of the column.
 Figure 3.84
PFD icon
Workbook icon
Column Runner icon3-73
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-74 Steady State Simulation
ww
ThThe column sub-flowsheet PFD and Workbook appear in
the following figures.
2. When you are finished in the column environment, return to
the Main Flowsheet by clicking the Enter Parent
Simulation Environment icon.
 Figure 3.85
 Figure 3.86
Enter Parent Simulation
Environment Icon3-74
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-75
ww
Th3. Open the PFD for the Main Flowsheet and select Auto
Position All from the PFD menu. Aspen HYSYS arranges
your PFD in a logical manner.
Moving Objects and Labels in a PFD
The PFD below has been customized by moving some of the
stream icons. To move an icon, simply click and drag it to the
new location.
You can also move a stream or operation label (name).
1. Right-click on the label you want to move.
2. From the menu that appears, select Move/Size Label. A
box appears around the label.
3. Click and drag the label to a new location, or use the arrow
keys to move it.
 Figure 3.873-75
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-76 Steady State Simulation
ww
Th3.2.8 Viewing Results
1. Click the Workbook icon to access the calculated results for
the Main Flowsheet.
The Material Streams tab and Compositions tab of the
Workbook appears below.
 Figure 3.88
Workbook icon3-76
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-77
ww
ThUsing the Object Navigator
If you want to view the calculated properties of a particular
stream or operation, you can use the Object Navigator to
quickly access the property view for any stream or unit
operation at any time during the simulation.
1. To open the Navigator, do one of the following:
• Click the Object Navigator icon.
• Press F3.
• From the Flowsheet menu, select Find Object.
• Double-click on any blank space on the Aspen HYSYS
Desktop.
The Object Navigator property view appears.
The UnitOps radio button in the Filter group is currently
selected, so only the Unit Operations appear in the list of
objects.
2. To open a property view, select the operation in the list, then
click the View button or double-click on the operation name.
3. You can also search for an object by clicking the Find button.
4. When the Find Object property view appears, enter the
object name, then click the OK button. Aspen HYSYS opens
the property view for the object you specified.
You can start or end the search string with an asterisk (*),
which acts as a wildcard character. This lets you find
 Figure 3.89
You can control which objects appear by selecting a different
Filter radio button. For example, to list all streams and unit
operations, select the All button.
Object Navigator Icon3-77
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-78 Steady State Simulation
ww
Thmultiple objects with one search.
For example, searching for VLV* will open the property view
for all objects with VLV at the beginning of their name.
Using the Databook
The Aspen HYSYS Databook provides you with a convenient way
to examine your flowsheet in more detail. You can use the
Databook to monitor key variables under a variety of process
scenarios, and view the results in a tabular or graphical format.
1. Before opening the Databook, close the Object Navigator
and any property views you might have opened using the
Navigator.
2. To open the Databook, do one of the following:
• Press CTRL D.
• From the Tools menu, select Databook.
The Databook property view appears.
The first task is to add key variables to the Databook. For this
example, the effects of the Reactor temperature on the
Reactor cooling duty and Glycol production rate will be
examined.
 Figure 3.90
To edit existing variables/objects in the Databook:
1. Select the Object you want to edit. 2. Click the Edit button.3-78
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-79
ww
Th3. On the Variables tab, click the Insert button. The Variable
Navigator appears.
4. In the Object Filter group, select the UnitOps radio button.
The Object list is filtered to show unit operations only.
5. In the Object list, select Reactor. The variables available for
the Reactor object appear in the Variable list.
6. In the Variable list, select Vessel Temperature. Vessel
Temperature appears in the Variable Description field. You
can edit the default variable description.
The Variable Navigator is used extensively in Aspen HYSYS
for locating and selecting variables. The Navigator operates
in a left-to-right manner—the selected Flowsheet determines
the Object list, the chosen Object dictates the Variable list,
and the selected Variable determines whether any Variable
Specifics are available.
 Figure 3.913-79
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-80 Steady State Simulation
ww
Th7. In the Variable Description field, rename the variable
Reactor Temp, then click the OK button. The variable now
appears in the Databook.
8. To add the next variable, click the Insert button. The
Variable Navigator appears.
9. In the Object Filter group, select the Streams radio button.
The Object list is filtered to show streams only.
10. In the Object list, select Coolant in the Object list. The
variables available for this stream appear in the Variable list.
11. In the Variable list, select Heat Flow.
 Figure 3.92
 Figure 3.933-80
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-81
ww
Th12. In the Variable Description field, change the description to
Cooling Duty, then click the Add button. The variable now
appears in the Databook and the Variable Navigator
property view remains open.
13. In the Object list, select Glycol. In the Variable list, select
Liq Vol Flow@Std Cond. Change the Variable
Description for this variable to Glycol Production, then
click the Add button.
14.Click the Close button to return to the Databook property
view. The completed Variables tab of the Databook
appears below.
Now that the key variables have been added to the
Databook, the next task is to create a data table in which to
display these variables.
15.Click the Process Data Tables tab.
 Figure 3.943-81
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-82 Steady State Simulation
ww
Th16. In the Available Process Data Tables group, click the Add
button. Aspen HYSYS creates a new table with the default
name ProcData1.
The three variables that you added to the Databook appear
in the table on this tab.
17. In the Process Data Table field, change the name to Key
Variables.
18. In the Show column, activate each variable by selecting on
the corresponding checkbox.
19.Click the View button to view the new data table.
 Figure 3.95
 Figure 3.96
 Figure 3.973-82
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-83
ww
ThThis table will be accessed again later to demonstrate how
its results are updated whenever a flowsheet change is
made.
20. For now, click the Minimize icon  in the upper right corner
of the Key Variables Data property view. Aspen HYSYS
reduces the property view to an icon and places it at the
bottom of the Desktop.
Before you make changes to the flowsheet, you will record
the current values of the key variables. Instead of manually
recording the variables, you can use the Data Recorder to
automatically record them for you.
21.Click the Data Recorder tab in the Databook.
When using the Data Recorder, you first create a Scenario
containing one or more of the key variables, then record the
variables in their current state.
22. In the Available Scenarios group, click the Add button.
Aspen HYSYS creates a new scenario with the default name
Scenario 1.
 Figure 3.983-83
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-84 Steady State Simulation
ww
Th23. In the Data Recorder Data Section group, activate each
variable by selecting on the corresponding Include
checkbox.
24.Click the Record button to record the variables in their
current state. The New Solved State property view appears,
prompting you for the name of the new state.
25. In the Name for New State field, change the name to
Base Case, then click OK. You return to the Databook.
26. In the Available Display group, select the Table radio
button, then click the View button. The Data Recorder
property view appears, showing the values of the key
variables in their current state.
 Figure 3.99
 Figure 3.1003-84
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-85
ww
ThNow you can make the necessary flowsheet changes and
these current values remain as a permanent record in the
Data Recorder unless you choose to erase them.
27.Click the Minimize icon  on the Data Recorder property
view.
28.Click the Restore Up icon  on the Key Variables Data
title bar to restore the property view to its regular size.
Next, you will change the temperature of stream Reactor
Prods (which determines the Reactor temperature), then
view the changes in the process data table.
29.Click the Object Navigator icon in the toolbar.
30. In the Filter group, select the Streams radio button.
31. In the Streams list, select Reactor Prods, then click the
View button. The Reactor Prods property view appears.
32. Ensure you are on the Worksheet tab, Conditions page of
the property view.
33.Arrange the Reactor Prods and Key Variables Data property
views so you can see them both.
Currently, the Reactor temperature is 140°F. The key
variables will be checked at 180°F.
Object Navigator Icon
 Figure 3.1013-85
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-86 Steady State Simulation
ww
Th34. In the Reactor Prods property view, change the value in the
Temperature cell to 180. Aspen HYSYS automatically
recalculates the flowsheet. The new results appears below.
As a result of the change, the required cooling duty
decreased and the glycol production rate increased.
35.Click the Close button on the Reactor Prods stream
property view to return to the Databook. You can now
record the key variables in their new state.
36.Click on the Data Recorder tab in the Databook.
37.Click the Record button. The New Solved State property
view appears.
38. In the Name for New State field, change the name to
180F Reactor, then click the OK button.
 Figure 3.1023-86
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-87
ww
Th39. In the Available Display group, click the View button. The
Data Recorder appears, displaying the new values of the
variables.
40.Close the Data Recorder property view, then the Databook
property view, and finally the Key Variables Data property
view.
This completes the Aspen HYSYS Chemicals Steady State
Simulation tutorial. If there are any aspects of this case that
you would like to explore further, feel free to continue
working on this simulation on your own.
Further Study
For other chemical case examples, see the Applications section.
Applications beginning with “C” explore some of the types of
chemical simulations that can be built using Aspen HYSYS.
 Figure 3.1033-87
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-88 Dynamic Simulation
ww
Th3.3 Dynamic Simulation
In this tutorial, the dynamic capabilities of Aspen HYSYS will be
incorporated into a basic steady state chemicals model. In the
steady state simulation, a continuously-stirred tank reactor
(CSTR) converted propylene oxide and water into propylene
glycol. The reactor products were then fed into a distillation
tower where the glycol product was recovered in the tower
bottoms.
The dynamic simulation will take the steady state CSTR
simulation case and convert it into dynamic mode. If you have
not built the simulation for the steady state simulation, you can
open the pre-built case included with your Aspen HYSYS
package.
A flowsheet of the completed dynamic simulation is shown in the
figure below.
This tutorial follows these basic steps for setting up a dynamic
simulation case:
1. Obtain a simplified steady state model to be converted to
A completed dynamic case has been pre-built and is located
in the file DynTUTOR3.hsc in your Aspen HYSYS\Samples
directory.
 Figure 3.1043-88
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-89
ww
Thdynamic mode.
2. Use the Dynamic Assistant to set pressure-flow
specifications, modify the flowsheet topology, and size the
equipment.
3. Modify the Reactor vent stream to account for reverse flow
conditions.
4. Set up temperature and level controllers around and in the
Reactor vessel.
5. Set up the Databook. Make changes to key variables in the
process and observe the dynamic behaviour of the model.
Only the CSTR reactor will be converted to dynamic mode. The
Column operation will be deleted from the simulation flowsheet.
The Dynamics Assistant will be used to make pressure-flow
specifications, modify the flowsheet topology, and size pieces of
equipment in the simulation flowsheet. This is only one method
of preparing a steady state case for dynamic mode. It is also
possible to set your own pressure-flow specifications and size
the equipment without the aid of the Dynamic Assistant.
3.3.1 Simplifying the Steady
State Flowsheet
The distillation column in the Chemicals Tutorial will be deleted
in this section.
1. Open the pre-built case file TUTOR3.hsc located in your
Aspen HYSYS\Samples directory (if you are not continuing
from the Steady State Simulation section of this tutorial).
2. From the Tools menu, select Preferences.
3. Click the Variables tab, then select the Units page.
4. In the Available Unit Sets group, select Field. Close the
Session Preferences property view.
5. From the File menu, select Save As.
Save the case as DynTUT3-1.hsc.3-89
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-90 Dynamic Simulation
ww
Th6. Delete all material streams and unit operations downstream
of the Reactor Prods stream. The following 6 items should be
deleted:
When you delete a stream, unit or logical operation from the
flowsheet, Aspen HYSYS will ask you to confirm the deletion.
To delete the object, click the Yes button. If not, click the
No button.
7. The steady state simulation case should solve with the
deletion of the above items. The PFD for the dynamic tutorial
should appear as shown below.
Before entering dynamics, the pressure specification on the
Water Feed stream should be removed so that the MIX-100
unit operation can calculate its pressure based on the Prop
Oxide stream specification.
8. Double-click the Water Feed stream icon to open its property
view.
9. On the Conditions page of the Worksheet tab, click in the
Pressure cell, then press DELETE.
10.Close the Water Feed stream property view.
11.Double-click the MIX-100 icon to open its property view.
12.Click the Design tab, then select the Parameters page.
13. In the Automatic Pressure Assignment group, select the
Equalize All radio button. Aspen HYSYS solves for the
stream and mixer operation.
14.Close the mixer property view.
Material Streams Energy Streams Unit Operations
• Ovhd Vap
• RecyProds
• Glycol
• CondDuty
• RebDuty
Tower
 Figure 3.1053-90
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-91
ww
Th15.Save the case.
3.3.2 Using the Dynamics
Assistant
The Dynamics Assistant makes recommendations as to how the
flowsheet topology should change and what pressure-flow
specifications are required in order to run a case in dynamic
mode. In addition, it automatically sets the sizing parameters of
the equipment in the simulation flowsheet. Not all the
suggestions the Dynamics Assistant offers need to be followed.
The Dynamics Assistant will be used to do the following:
• Add Pressure Flow specifications to the simulation case.
• Add Valves to the Boundary Feed and Product streams.
• Size the Valve, Vessel, and Heat Exchange operations.
For this tutorial, the Session Preferences will be set so that the
Dynamics Assistant will not manipulate the dynamic
specifications.
1. Open the Tools menu and select Preferences. The Session
Preferences property view appears.
2. Click the Simulation tab, then select the Dynamics page.
 Figure 3.1063-91
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-92 Dynamic Simulation
ww
Th3. Ensure that the Set dynamic stream specifications in
the background checkbox is cleared.
4. Close the Session Preferences property view, then close all
open property views on the Aspen HYSYS desktop except for
the PFD property view.
Next, you will initiate the Dynamics Assistant to evaluate the
specifications required to run in dynamic simulation.
5. Click the Dynamics Assistant icon. Browse through each
tab in the Dynamic Assistant property view to inspect the
recommendations.
All recommendations in the Dynamic Assistant will be
implemented by default unless you deactivate them. You can
choose which recommendations will be executed by the
Dynamic Assistant by selecting or clearing the OK
checkboxes beside each recommendation.
 Figure 3.107
 Figure 3.108
Dynamic Assistant
icon
An Active recommendation will
be implemented by the Dynamic
Assistant.
An Inactive recommendation will
not be implemented by the
Dynamic Assistant.3-92
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-93
ww
Th6. Click the Streams tab. The Streams tab contains a list of
recommendations regarding the setting or removing of
pressure-flow specifications in the flowsheet.
7. For each page in the Streams tab, activate or deactivate the
following recommendations.
The Dynamics Assistant will insert valves on all the boundary
flow streams except the Reactor Vent stream. This
recommendation was deactivated since it is assumed that
the CSTR reactor is exposed to the open air. Therefore, the
pressure of the reactor is constant. A constant pressure can
be modeled in the CSTR reactor by setting the Reactor Vent
stream with a pressure specification. A valve should not be
inserted on this stream.
 Figure 3.109
Page Recommendation Stream OK Checkbox
Pressure
Specs
Remove Pressure
Specifications
Prop Oxide Select
Flow Specs Remove Flow
Specifications
Prop Oxide Select
Water Feed Select
Insert Valves Insert Valves Prop Oxide Select
Reactor Prods Select
Reactor Vent Clear
Water Feed Select3-93
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-94 Dynamic Simulation
ww
Th8. Click the Make Changes button once only. All the active
suggestions in the Dynamics Assistant are implemented.
Close the Dynamics Assistant property view.
9. Switch to Dynamic mode by pressing the Dynamic Mode
icon. When asked if you want to resolve the dynamics
assistant items before moving into dynamics, click the No
button.
Since the suggestion to insert a valve on the Reactor Vent
stream was deactivated, you must set a pressure
specification on this stream.
10.Double-click the Reactor Vent stream icon in the PFD. The
property view appears.
11.Click the Dynamics tab, then select the Specs page.
12. In the Pressure Specification group, select the Active
checkbox to activate the specification.
13.Close the Reactor Vent stream property view.
14. The PFD for the dynamic tutorial (before the addition of the
controllers) should look like the following figure.
15.Save the case as DynTUT3-2.hsc.
In order for the CSTR to operate in steady state and dynamic
mode, the vessel must be specified with a volume. Since the
Dynamic Assistant detected that a volume was already
specified for the CSTR reactor, it did not attempt to size it.
 Figure 3.110
Dynamic Mode
Icon3-94
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-95
ww
Th3.3.3 Modeling a CSTR Open
to the Atmosphere
The CSTR reactor is open to the atmosphere and the liquid level
of the reactor can change in dynamic mode. This means that the
vapour space in the liquid reactor also varies with the changing
liquid level. In order to model this effect, the Reactor Vent
stream was set with a constant pressure specification. However,
one additional modification to the Reactor Vent stream is
required.
Since the liquid level in the CSTR can move up and down,
regular and reverse flow can be expected in the Reactor Vent
stream. When vapour exits the reactor vessel (regular flow), the
composition of the Reactor Vent stream is calculated from the
existing vapour in the vessel. When vapour enters the vessel
(reverse flow), the composition of the vapour stream from the
atmosphere must be defined by the Product Block attached to
the Reactor Vent stream. It is therefore necessary to specify the
Product Block composition.
The original steady state Chemicals tutorial used a Fluid
Package which did not include any inert gases. Therefore, it is
now necessary to return to the Simulation Basis Manager and
add the required components to the Fluid Package.
1. Click the Enter Basis Environment icon. The Simulation
Basis Manager property view appears.
The Simulation Basis Manager allows you to create, modify,
and otherwise manipulate Fluid Packages in the simulation
case.
Enter Basis Environment
icon3-95
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-96 Dynamic Simulation
ww
Th2. Click the Fluid Pkgs tab. In the Current Fluid Packages
group, the Fluid Package associated with the Chemical
Tutorial appears.
3. In the Current Fluid Packages group, select the fluid
package, then click the View button. The Fluid Package:
Basis-1 property view appears.
 Figure 3.111
 Figure 3.1123-96
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-97
ww
Th4. Click the Set Up tab. In the Component List Selection group,
click the View button. The Component List property view
appears.
5. In the Components Available in the Component Library
group, select the Full Name/Synonym radio button.
6. In the Match field, start typing Nitrogen. Aspen HYSYS
filters the component list to match your input.
7. When Nitrogen is selected in the list, press the ENTER key.
Nitrogen is added to the Selected Components list. Close the
Component List property view.
8. Close the Fluid Package: Basis-1 property view.
9. In the Simulation Basis Manager property view, click on the
Return to Simulation Environment button.
10.On the PFD, double-click the Reactor Vent stream icon to
open its property view.
 Figure 3.1133-97
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-98 Dynamic Simulation
ww
Th11.Click the Product Block button or the View Downstream
Operation icon. The ProductBlock property view appears.
12.Click the Composition tab.
13. In the Compositions table, specify the composition of the
reverse flow stream as follows:
14.Click the Conditions tab.
15. In the Flow Reversal Conditions group, select the
Temperature radio button.
 Figure 3.114
Component Mole Fraction
12C3Oxide 0.0
12-C3diol 0.0
H2O 0.0
Nitrogen 1.0
View Downstream
Operation icon3-98
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-99
ww
Th16. In the field beside the Temperature radio button, enter 77oF.
These stream conditions will be used to flash the pure
nitrogen stream when the Reactor Vent flow reverses.
17.Close the ProductBlock_Reactor Vent property view.
18.Close the Reactor Vent stream property view.
19.Save the case as DynTUT3-3.hsc.
3.3.4 Adding Controller
Operations
In this section you will identify and implement key control loops
using PID Controller logical operations. Although these
controllers are not required to run in dynamic mode, they will
increase the realism of the model and provide more stability.
 Figure 3.1153-99
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-100 Dynamic Simulation
ww
ThLevel Control
First you will install a level controller to control the liquid level in
the CSTR Reactor operation.
1. Press F4 to access the Object Palette, if required.
2. In the Object Palette, click the Control Ops icon. A sub-
palette appears.
3. In the sub-palette, click the PID Controller icon. The cursor
changes to include a frame and a + sign.
4. In the PFD, click near the Reactor icon. The IC-100 icon
appears. This controller will serve as the Reactor level
controller.
5. Double-click the IC-100 icon. The controller’s property view
appears.
6. In the Connections tab, click in the Name field and change
the name to Reactor LC.
7. In the Process Variable Source group, click the Select PV
button. The Select Input PV property view appears.
8. In the Object group list, select Reactor.
 Figure 3.116
Control Ops icon
PID Controller icon3-100
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-101
ww
Th9. In the Variable list, select Liquid Percent Level.
10.Click the OK button.
11. In the Output Target Object group, click the Select OP
button. The Select OP Object property view appears.
12. In the Object list, select VLV-Reactor Prods.
13. In the Variable list, select Percentage open, then click the
OK button.
14. In the Reactor LC property view, click the Parameters tab,
then select the Configuration page.
15.On this page, enter the following information:
16.Click the Face Plate button at the bottom of the property
view. The Reactor LC face plate property view appears.
17. From the drop-down list, select Auto to change the controller
mode.
18.Double-click in the PV value field, type 85, then press
ENTER.
 Figure 3.117
In this cell... Enter...
Action Direct
Kc 2
Ti 10 minutes
PV Minimum 0%
PV Maximum 100%3-101
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-102 Dynamic Simulation
ww
Th19.Close the Reactor LC face plate property view, then close the
Reactor LC property view.
Flow Control
Next you will add flow controllers to the feed streams in the
process.
1. The Control Ops sub-palette should still be open. If it isn’t,
click the Control Ops icon in the Object Palette.
2. In the sub-palette, click the PID Controller icon.
3. In the PFD, click above the Prop Oxide stream icon. The IC-
100 icon appears. This controller will serve as the Prop Oxide
flow controller.
4. Double-click the IC-100 icon to open its property view.
5. Specify the following details:
6. Click the Face Plate button. Change the controller mode to
Auto, and input a set point of 8712 lb/hr.
7. Close the PropOxide FC face plate property view and
property view.
8. In the Object sub-palette, click the PID Controller icon.
9. In the PFD, click below the Water Feed stream icon. The
controller icon appears. This controller will serve as the
Water Feed flow controller.
Tab [Page] In this cell... Enter...
Connections Name PropOxide FC
Process Variable Source Prop Oxide, Mass Flow
Output Target Object VLV-Prop Oxide,
Percentage open
Parameters
[Configuration]
Action Reverse
Kc 0.1
Ti 5 minutes
PV Minimum 0 lb/hr
PV Maximum 18,000 lb/hr
Control Ops icon
PID Controller icon3-102
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-103
ww
Th10.Double-click the controller icon, then specify the following
details:
11.Click the Face Plate button. Change the controller mode to
Auto and input a set point of 11,000 lb/hr.
12.Close the WaterFeed FC face plate property view and
property view.
Temperature Control
Next you will install temperature controller to control the
temperature of the CSTR reactor. The control will be
implemented using an energy utility stream.
1. In the Object sub-palette, click the PID Controller icon,
then click in the PFD above and to the left of the Reactor
icon.
The controller icon appears. This controller will serve as the
Reactor temperature controller.
2. Double-click the controller icon, then specify the following
details.
Tab [Page] In this cell... Enter...
Connections Name WaterFeed FC
Process Variable Source Water Feed, Mass Flow
Output Target Object VLV-Water Feed
Parameters
[Configuration]
Action Reverse
Kc 0.1
Ti 5 minutes
PV Minimum 0 lb/hr
PV Maximum 22,000 lb/hr
Tab [Page] In this cell... Enter...
Connections Name Reactor TC
Process Variable Source Reactor, Vessel
Temperature
Output Target Object Coolant3-103
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-104 Dynamic Simulation
ww
Th3. Click the Control Valve button. The FCV for Coolant
property view appears.
4. In the Duty Source group, select the Direct Q radio button.
5. In the Direct Q group table, enter the following information
6. Close the FCV for Coolant property view.
7. Click the Face Plate button. Change the controller mode to
Auto and input a set point of 140oF.
8. Close the Reactor TC face plate property view and property
view.
9. Save the case as DynTUT3-4.hsc.
10. The integrator can be run at this point. Click the Integrator
Active icon in the toolbar.
11.When you are given the option to run the dynamic assistant
first before running the integrator, click the No button.
Parameters
[Configuration]
Action Direct
Kc 1.75
Ti 5 minutes
PV Minimum 70oF
PV Maximum 300oF
 Figure 3.118
In this cell... Enter...
Minimum Available 0 Btu/hr
Maximum Available 1 x 107 Btu/hr
Tab [Page] In this cell... Enter...
Integrator icons
Green=Active
Red=Holding3-104
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-105
ww
ThWhen the integrator is initially run, Aspen HYSYS will detect
that the Reactor does not have a vapour phase at the
specified process conditions. You have the option to select
either the default, which is to Increase Temperature, or
choose 100% Liquid in the Reactor.

12.Select the default setting, which is Increase Temperature.
13. Let the integrator run for a while, then click the Integrator
Holding icon to stop the Integrator.
At this point you can make changes to key variables in the
process then observe the changes in the dynamic behaviour
of the model.
Next you will monitor important variables in dynamics using
strip charts.
3.3.5 Monitoring in Dynamics
Now that the model is ready to run in dynamic mode, you will
create a strip chart to monitor the general trends of key
variables.
Add all of the variables that you would like to manipulate or
model. Include feed and energy streams that you want to
modify in the dynamic simulation.
1. Open the Databook by using the hot key combination CTRL
D. The following is a general procedure to install strip charts
in Aspen HYSYS.
 Figure 3.119
Integrator Holding icon3-105
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-106 Dynamic Simulation
ww
Th
2. On the Variables tab, click on the Insert button. The
Variable Navigator appears.
Select the Flowsheet, Object, and Variable for any of the
suggested variables. For Reactor Prods also select the
Variable Specifics indicated.
 Figure 3.120
 Figure 3.1213-106
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Chemicals Tutorial 3-107
ww
ThSee the tables below for a list of suggested variables:
3. Click on the OK button to return to the Databook. The
variable will now appear on the Variables tab.
4. Repeat the procedure to add all remaining variables to the
Databook.
5. Click the Strip Charts tab in the Databook property view.
6. Click the Add button. Aspen HYSYS will create a new strip
chart with the default name DataLogger1.
7. In the Logger Name field, change the name to Key
Variables1.
Variables to Manipulate
Object Variable
Prop Oxide Mass Flow
Water Feed Mass Flow
Variables to Monitor
Object Variable Variable Specifics
Reactor Vessel Temperature
Reactor Prods Comp Molar Flow 12C3Oxide
Reactor Liquid Percent Level
 Figure 3.1223-107
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-108 Dynamic Simulation
ww
Th8. Click the Active checkbox for each of the variables that you
would like to monitor. Keep the number of variables per
Strip Chart to four or fewer, for easier viewing.
9. If required, add more strip charts.
You can change the configuration of each strip chart by
clicking the Setup button.
10.Click the Strip Chart button to view each strip chart.
To view a legend for the Strip Chart variables, right-click
inside the Strip Chart property view and select Legend from
the menu.
You can also maximize/resize the Strip Chart property views
to see the details.
11.Click the Start Integrator icon and observe as the variables
line out. If you see a warning regarding the Dynamics
Assistant, click the No button.
When you are finished, click the Integrator Holding icon to
stop the integrator.
12.At this point you can manipulate various variables within the
design and observe the response of other variables.
 Figure 3.123
Start Integrator icon
Integrator Holding icon3-108
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Applications B-1
ww
ThB  Aspen HYSYS
Applications
This section contains examples that illustrate many of the
features in Aspen HYSYS. The applications include aspects of
Conceptual Design, Steady State modeling, and Optimization.
All aspects are not illustrated in every example, so the areas of
interest in each application are highlighted in the sections
below.
The Aspen HYSYS Applications describe, in general terms, how
to completely model particular processes using various features
of Aspen HYSYS—detailed methods of constructing the models
are not provided. If you require detailed descriptions on how to
construct models in Aspen HYSYS, see the comprehensive
Tutorial section of this guide.
The examples in the Applications section provide a broad range
of problems related to various segments of industry and are
organized as follows.
Gas Processing
G1 Acid Gas Sweetening with DEA – Steady
State Modeling, Optional Amines Package
A sour natural gas stream is stripped of H2S and CO2 in a
Contactor (absorber) tower. The rich DEA (diethanolamine) is
regenerated in a Stripping tower and the lean DEA is recycled
back to the Contactor. To solve this example, you must have the
Amines property package, which is an optional property
package. A spreadsheet is used to calculate various loadings
Contact your Aspentech
agent for more
information, or e-mail us
at info@hyprotech.com.B-1
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
B-2
ww
Thand verify that they are within an acceptable range.
Refining
R1 Atmospheric Crude Tower – Steady State
Modeling, Oil Characterization
A preheated (450°F) light crude (29 API) is processed in an
atmospheric fractionation tower to produce naphtha, kerosene,
diesel, atmospheric gas oil (AGO) and atmospheric residue
products. A complete oil characterization procedure is part of
this example application.
R2 Sour Water Stripper – Steady State
Modeling, Sour Thermo Options, Case Study
Sour water is fed to a distillation tower for NH3 and H2S
removal. The use of the Sour Peng Robinson (Sour_PR) is
highlighted. Aspen HYSYS's built-in Case Study tool is used to
examine the effects of varying column feed temperatures.
Petrochemicals
P1 Propane/Propylene Splitter – Steady
State Modeling, Column Sub-flowsheet
The individual Stripper tower and Rectifier tower components of
a propane/propylene splitter system are modeled. Two separate
towers in the same Column sub-flowsheet are used in this
The Amines Property Package is an optional property
package. It is not included in the base version of Aspen
HYSYS. B-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Applications B-3
ww
Thexample to illustrate the simultaneous solution power of Aspen
HYSYS's Column sub-flowsheet.
Chemicals
C1 Ethanol Plant – Steady State Modeling
An ethanol production process is modeled right from the
fermentor outlet through to the production of low grade and
high grade (azeotropic) ethanol products.
C2 Synthesis Gas Production – Steady State
Modeling, Reaction Manager, Reactors
Synthesis gas (H2/N2 on a 3:1 basis) is the necessary feedstock
for an ammonia plant. The traditional process for creating
synthesis gas is explored in this example. Air, steam, and
natural gas are fed to a series of reactors, which produces a
stoichiomtrically correct product. Extensive use of Aspen
HYSYS's Reaction Manager is illustrated as four individual
reactions are grouped into three reaction sets that are used in
five different reactors. This example also demonstrates the use
of an Adjust operation to control a reactor outlet temperature.
The case is then converted to a dynamics simulation by adding
valves and assigning pressure flow specifications on the
boundary streams. Reactors are sized using the actual gas flow
and the residence time. A spreadsheet operation imports the
H2/N2 molar ratio to a ratio controller, controlling the Air
flowrate. Temperature controllers are used to achieve the
reactors setpoint by manipulating the duty streams.B-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
B-4
ww
ThAspen HYSYS Extensibility
X1 Case Linking – Steady State Modeling
This case explores the use of the User Unit Operation to link two
Aspen HYSYS simulation cases such that the changes made to
the first case are automatically and transparently propagated to
the second case. Within each User Unit Op, two Visual Basic
macros are used. The Initialize() macro sets the field names
for the various stream feed and product connections and
created two text user variables. The Execute() macro uses the
GetObject method to open the target link case and then it
attempts to locate the material stream, in the target case,
named by the Initialize() macro.B-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Acid Gas Sweetening with DEA G1-1
ww
ThG1 Acid Gas Sweetening
with DEAG1-1
G1.1  Process Description ..................................................................... 2
G1.2  Setup ........................................................................................... 4
G1.3  Steady State Simulation............................................................... 4
G1.3.1  Installing the DEA CONTACTOR ................................................ 5
G1.3.2  Regenerating the DEA............................................................. 9
G1.4  Simulation Analysis ................................................................... 15
G1.5  Calculating Lean & Rich Loadings .............................................. 15
G1.6  Dynamic Simulation................................................................... 17
G1.6.1  Converting from Steady State................................................ 18
G1.6.2  Adding a Control Scheme ...................................................... 28
G1.6.3  Preparing Dynamic Simulation ............................................... 33
G1.7  References................................................................................. 34
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
G1-2 Process Description
ww
ThG1.1 Process Description
In this example, a typical acid gas treating facility is simulated.
A water-saturated natural gas stream is fed to an amine
contactor. For this example, Diethanolamine (DEA) at a strength
of 28 wt% in water is used as the absorbing medium. The
contactor consists of 20 real stages. The rich amine is flashed
from the contactor pressure of 1000 psia to 90 psia to release
most of the absorbed hydrocarbon gas before it enters the lean/
rich amine exchanger. In the lean/rich exchanger, the rich amine
is heated to a regenerator feed temperature of 200°F. The
regenerator also consists of 20 real stages. Acid gas is rejected
from the regenerator at 120°F, while the lean amine is produced
at approximately 255°F. The lean amine is cooled and recycled
back to the contactor.
Recommended amine strength ranges:
 Figure G1.1
Lean Amine Strength in Water
Amine Wt%
MEA 15-20
DEA 25-35G1-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Acid Gas Sweetening with DEA G1-3
ww
ThThere are three basic steps used in modeling this process:
1. Setup. The component list includes C1 through C7 as well
as N2, CO2, H2S, H2O and DEA.
2. Steady State Simulation. The case will consist of an
absorber scrubbing the inlet gas using a DEA solution, which
will be regenerated in a distillation column. Sweet gas will
leave the top of the absorber, whereas the rich amine stream
from the bottom will be sent to a regenerator column. An
analysis on both the SWEET GAS and the ACID GAS will be
performed to satisfy the specified criterion.
3. Dynamics Simulation. The steady state solution will be
used to size all the unit operations and tray sections. An
appropriate control strategy will be implemented and the key
variables will be displayed.
TEA, MDEA 35-50
DGA 45-65
Lean Amine Strength in Water
 Figure G1.2  Figure G1.3G1-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
G1-4 Setup
ww
ThG1.2 Setup
1. In the Session Preferences property view, clone the Field
unit set.
2. Change the default units for the Liquid Volume Flow to
USGPM for the cloned unit set.
3. In the Component List property view, select the following
components: N2, CO2, H2S, C1, C2, C3, i-C4, n-C4, i-C5,
n-C5, C6, C7, H2O, and DEAmine.
4. In the Fluid Package property view, select the following
property package: Amines.
The Amines property package is required to run this
example problem. This is a D.B. Robinson proprietary
property package that predicts the behaviour of amine-
hydrocarbon-water systems.
5. Use the Li-Mather/Non-Ideal Thermodynamic model.
G1.3 Steady State
Simulation
There are two main steps for setting up this case in steady
state:
1. Installing the DEA Contractor. A 20 stage absorber
column will be used to scrub the SOUR GAS stream with DEA
solution (DEA TO CONT).
The SWEET GAS will leave the tower from the top whereas
the pollutant rich liquid will be flashed before entering the
REGENERATOR.
The Amines property package has a limit temperature range.
So during the construction of the simulation/flowsheet,
some streams will appear yellow in colour. A warning
property view will also appear to warn you that the stream
has exceeded the temperature range.
For this application, you can ignore these warnings.G1-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Acid Gas Sweetening with DEA G1-5
ww
Th2. Regenerating the DEA. The liquid stream from the
absorber will be regenerated in a 18 tray distillation column
with a condenser and reboiler. The ACID GAS will be rejected
from the top and the regenerated DEA will be send back to
the DEA CONTACTOR.
G1.3.1 Installing the DEA
CONTACTOR
Before the amine contactor can be solved, an estimate of the
lean amine feed (DEA TO CONT) and the inlet gas stream (SOUR
GAS) must be provided. The DEA TO CONT stream will be
updated once the recycle operation is installed and has
converged.
Add Feed Streams
Define the following material streams:
DEA TO CONT material stream
In this cell... Enter...
Name DEA TO CONT
Temperature 95 F
Pressure 995 psia
Std Ideal Liq Vol Flow 190 USGPM
CO2 Mass Frac. 0.0018
Water Mass Frac. 0.7187
DEA Mass Frac. 0.2795
DEA to Cont uses Mass fractions; Sour Gas uses Mole
fractions.
SOUR GAS material stream
In this cell... Enter...
Name SOUR GAS
Temperature 86.0000 F
Pressure 1000.0000 psia
Molar Flow 25 MMSCFDG1-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
G1-6 Steady State Simulation
ww
ThAdd a Separator
Any free water carried with the gas is first removed in a
separator operation (V-100). Add and define the following
separator operation:
Add an Absorber Column
The Amines property package requires that real trays be
modeled in the contactor and regenerator operations, but in
order to simulate this, component specific efficiencies are
required for H2S and CO2 on a tray by tray basis. These
proprietary efficiency calculations are provided in the column as
part of the Amines package. Tray dimensions must be supplied
to enable this feature.
N2 Mole Frac. 0.0016
CO2 Mole Frac. 0.0413
H2S Mole Frac. 0.0172
C1 Mole Frac. 0.8692
C2 Mole Frac. 0.0393
C3 Mole Frac. 0.0093
iC4 Mole Frac. 0.0026
nC4 Mole Frac. 0.0029
iC5 Mole Frac. 0.0014
nC5 Mole Frac. 0.0012
nC6 Mole Frac. 0.0018
nC7 Mole Frac. 0.0072
H2O Mole Frac. 0.005
DEAmine Mole Frac. 0.000
Separator [V-100]
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlets SOUR GAS
Vapour Outlet GAS TO CONTACTOR
Liquid Outlet FWKO
Design [Parameters] Pressure drop 0 psi
SOUR GAS material streamG1-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Acid Gas Sweetening with DEA G1-7
ww
ThBefore installing the column, ensure that the Use Input
Experts checkbox is selected (from the Session Preferences
property view, Simulation tab, Options page).
1. Install an Absorber column operation with the specifications
shown below.
Using the above information, the component specific tray
efficiencies can be calculated.
2. Run the Column.
3. Once it has converged, click the Parameters tab and select
the Efficiencies page.
Absorber Column [DEA CONTACTOR]
Page In this cell... Enter...
Connections No. of Stages 20
Top Stage Inlet DEA TO CONT
Bottom Stage Inlet GAS TO CONTACTOR
Ovhd Vapour Outlet SWEET GAS
Bottoms Liquid Outlet RICH DEA
Pressure Profile Top 995 psia
Bottom 1000 psia
Temperature
Estimates
Top Temperature 100 F
Bottom Temperature 160 FG1-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
G1-8 Steady State Simulation
ww
Th4. Click the Component radio button and note the efficiency
values for CO2 and H2S on each tray. Aspen HYSYS provides
an estimate of the component tray efficiencies but allows
you to specify the individual efficiencies if required.
Next, add a valve and another separator.
Add a Valve
The stream Rich DEA from the absorber is directed to valve VLV-
100, where the pressure is reduced to 90 psia; close to the
regenerator operating pressure.
 Figure G1.4
Valve [VLV-100]
Tab [Page] In the cell... Enter...
Design
[Connections]
Inlet RICH DEA
Outlet DEA TO FLASH TK
Worksheet
[Conditions]
Pressure (DEA TO FLASH TK) 90 psiaG1-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Acid Gas Sweetening with DEA G1-9
ww
ThAdd a Separator
Gases that are flashed off from the RICH DEA stream are
removed using the rich amine flash tank (FLASH TK) which is
modeled using a Separator operation.
G1.3.2 Regenerating the DEA
Add a Heat Exchanger
The stream RICH TO L/R is heated to 200°F (REGEN FEED) in
the lean/rich exchanger (E-100) prior to entering the
regenerator, which is represented by a distillation column. Heat
is supplied to release the acid gas components from the amine
solution, thereby permitting the DEA to be recycled back to the
contactor for reuse.
The heat exchanger is defined below.
Separator [FLASH TK]
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlet DEA TO FLASH TK
Vapour Outlet FLASH VAP
Liquid Outlet RICH TO L/R
Heat Exchanger [E-100]
Tab [Page] In this cell... Enter...
Design
[Connections]
Tube Side Inlet RICH TO L/R
Tube Side Outlet REGEN FEED
Shell Side Inlet REGEN BTTMS
Shell Side Outlet LEAN FROM L/R
Design
[Parameters]
Tubeside Delta P 10 psi
Shellside Delta P 10 psi
Rating [Sizing] Tube Passes per Shell 1
Worksheet
[Conditions]
Temperature (REGEN FEED) 200 FG1-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
G1-10 Steady State Simulation
ww
ThAdd a Distillation Column
The amine regenerator is modeled as a distillation column with
20 real stages - 18 stages in the Tray Section plus a Reboiler
and Condenser.
1. Add a distillation column, configured as shown in the
following table.
For this tower, the component efficiencies will be fixed at
0.80 for H2S and 0.15 for CO2. The efficiencies of the
condenser and reboiler must remain at 1.0, so enter the
efficiencies for stages 1-18 only.
2. Select the Component radio button in the Efficiency Type
group (Parameters tab, Efficiencies page), then click the
Reset H2S CO2 button.
3. Type the new efficiencies into the matrix.
4. Specify a Damping Factor of 0.40 (Parameters tab,
Solver page) to provide a faster, more stable convergence.
Distillation Column [Regenerator]
Page In this cell... Enter...
Connections No. of Stages 18
Inlet Streams (Stage) REGEN FEED (4)
Condenser Type Full Reflux
Ovhd Vapour ACID GAS
Bottoms Liquid REGEN BTTMS
Reboiler Energy Stream RBLR Q
Condenser Energy Stream COND Q
Pressure Profile Condenser Pressure 27.5 psia
Cond Pressure Drop 2.5 psi
Reboiler Pres. 31.5 psia
Distillation Column [Regenerator]
Tab [Page] In this cell... Enter...
Parameters
[Efficiencies]
Condenser 1.0
Reboiler 1.0
1_TS to 18_TS CO2 0.15
1_TS to 18_TS H2S 0.80
Parameters [Solver] Damping Factor 0.40G1-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Acid Gas Sweetening with DEA G1-11
ww
Th5. Add two new column specifications, Column Temperature
(called TTop) and Column Duty (called Reboiler Duty).
6. Set the default specifications as shown below.
7. Delete the Reflux Rate and REGEN Bttms Rate
specifications from the Column Specification list in the
Column property view.
8. Set the T Top and Reboiler Duty specifications to Active;
the Reflux Ratio and Ovhd Vap Rate specifications should be
set as Estimates only.
The reboiler duty is based on the guidelines provided below,
which should provide an acceptable H2S and CO2 loading in
the lean amine.
Water make-up is necessary, since water will be lost in the
absorber and regenerator overhead streams.
Regenerator Specifications
Tab [Page] In this cell... Enter...
Design [Specs] Name
Stage
Spec Value
T Top
Condenser
179.6 F
Name
Energy Stream
Spec Value
Reboiler Duty
RBLR Q@COL2
1.356e7 BTU/hr
Name
Stage
Flow Basis
Spec Value
Reflux Ratio
Condenser
Molar
0.5
Name
Draw
Flow Basis
Spec Value
Ovhd Vap Rate
ACID GAS@COL2
Molar
2.0 MMSCFD
Recommended Steam Rates lb Steam / USGAL Lean Amine
(based on 1000 BTU / lb Steam)
Primary Amine (e.g., MEA) 0.80
Secondary Amine (e.g., DEA) 1.00
Tertiary Amine (e.g., MDEA) 1.20
DGA 1.30G1-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
G1-12 Steady State Simulation
ww
Th9. Install a Mixer operation to combine the lean amine from the
regenerator with the MAKEUP H2O stream. These streams
mix at the same pressure.
10.Define the composition of MAKEUP H2O as all water, and
specify a temperature of 70°F and pressure of 21.5 psia. The
flow rate of the total lean amine stream will be defined at the
outlet of the mixer, and Aspen HYSYS will calculate the
required flow of makeup water.
11.Set the overall circulation rate of the amine solution by
specifying a Standard Ideal Liquid Volume Flow of 190
USGPM in stream DEA TO COOL. Aspen HYSYS will back-
calculate the flow rate of makeup water required.
When you have finished specifying the DEA TO COOL stream
you will receive a warning message stating that the
temperature of the Makeup H2O stream exceeds the range
of the property package and the stream will turn yellow.
Since there is no DEA present in this stream, the warning
can be ignored without negatively affecting the results of
this case.
Mixer [MIX-100]
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlets MAKEUP H2O
LEAN FROM L/R
Outlet DEA TO COOL
Design
[Parameters]
Automatic Pressure Assignment Set Outlet to
Lowest Inlet
Worksheet
[Conditions]
Temperature (MAKEUP H2O)  70 F
Pressure (MAKEUP H2O) 21.5 psia
Std Liq Vol Flow
(DEA to Cool)
190.5 USGPM
Worksheet
[Composition]
H2O Mass Frac.
(MAKEUP H2O)
1.0G1-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Acid Gas Sweetening with DEA G1-13
ww
ThAdd a Cooler
Add a cooler and define it as indicated below. Cooler E-101 cools
the lean DEA on its way to the main pump.
The Cooler operation will remain unconverged until the Set
operation has been installed.
Add a Pump
Add a pump and define it as indicated below. Pump P-100
transfers the regenerated DEA to the Contactor.
The Pump operation will remain unconverged until the Set
operation has been installed.
Cooler [E-101]
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlet DEA TO COOL
Outlet DEA TO PUMP
Energy Stream COOLER Q
Design [Parameters] Delta P 5 psi
Pump [P-100]
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlet DEA TO PUMP
Outlet DEA TO RECY
Energy PUMP Q
Worksheet
[Conditions]
Temperature [F] (DEA TO RECY) 95°FG1-13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
G1-14 Steady State Simulation
ww
ThAdd a Set Operation
Install a Set operation (SET-1) to maintain the pressure of
stream DEA TO RECY at 5 psi lower than the pressure of the gas
feed to the absorber.
Add a Recycle Operation
A Recycle operation is installed with the fully defined stream
DEA TO RECY as the inlet and DEA TO CONT as the outlet. The
lean amine stream, which was originally estimated, will be
replaced with the new, calculated lean amine stream and the
contactor and regenerator will be run until the recycle loop
converges.
To ensure an accurate solution, reduce the sensitivities for flow
and composition as indicated below.
Set [SET-1]
Tab [Page] In this cell... Enter...
Connections Target DEA TO RECY
Target Variable Pressure
Source GAS TO CONTACTOR
Parameters Multiplier 1
Offset -5
Recycle [RCY-1]
Tab [Page] In this cell... Enter...
Connections Inlet DEA TO RECY
Outlet DEA TO CONT
Parameters
[Variables]
Flow 1.0
Composition 0.1G1-14
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Acid Gas Sweetening with DEA G1-15
ww
ThG1.4 Simulation Analysis
The incoming sour gas contains 4.1% CO2 and 1.7% H2S. For
an inlet gas flow rate of 25 MMSCFD, a circulating solution of
approximately 28 wt.% DEA in water removes virtually all of the
H2S and most of the CO2. A typical pipeline specification for the
sweet gas is no more than 2.0 vol.% CO2 and 4 ppm (volume)
H2S. If you look at the property view of the Sweet Gas stream
you will see the sweet gas produced easily meets these criteria.
G1.5 Calculating Lean &
Rich Loadings
Concentrations of acid gas components in an amine stream are
typically expressed in terms of amine loading—defined as moles
of the particular acid gas divided by moles of the circulating
amine. The Spreadsheet in Aspen HYSYS is well-suited for this
calculation. Not only can the loading be directly calculated and
displayed, but it can be incorporated into the simulation to
provide a “control point” for optimizing the amine simulation.
Also for convenience, the CO2 and H2S volume compositions for
the Sweet Gas stream are calculated.G1-15
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
G1-16 Calculating Lean & Rich Loadings
ww
ThThe following variables are used for the loading calculations.
The following formulas will produce the desired calculations.
 Figure G1.5
 Figure G1.6G1-16
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Acid Gas Sweetening with DEA G1-17
ww
ThThe acid gas loadings can be compared to values recommended
by D.B. Robinson as shown below.
G1.6 Dynamic Simulation
In the second part of the application, the steady state case will
be converted into dynamics.
 Figure G1.7
Maximum Acid Gas Loadings (moles acid gas/mole of amine)
CO2 H2S
MEA, DGA 0.5 0.35
DEA 0.45 0.30
TEA, MDEA 0.30 0.20
The Amines property package used in this application has a
limit temperature range. So when a stream exceeds the
temperature range, a warning property view will appear and
the stream becomes yellow in colour.
For this application, you can ignore this warning.G1-17
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
G1-18 Dynamic Simulation
ww
ThThe general steps that will be used to navigate through this
detailed procedure are as follows:
1. Converting from Steady State. To prepare the case for
dynamic simulation, valves will be installed to define
pressure flow relations and PF specifications will be added to
selected streams. The tray sizing utility will be implemented
for sizing tray sections; all other unit operations will be
sized.
2. Adding Controllers. In this step, appropriate controllers
will be installed and defined manually.
3. Preparing the Dynamics Simulation. In the last step, the
Databook will be set up. Changes will be made to key
variables in the process and the dynamic behaviour of the
model will be observed.
G1.6.1 Converting from
Steady State
Changing the PFD
A few changes will have to be made to the PFD in order to
operate in Dynamic mode.
1. Delete the Set-1 unit operation.
2. Set the pressure of the DEA TO RECY stream to 995 psia.
3. Install a Recycle operation between the REGEN BTTMS
stream and the E-100 exchanger.
Icon Description
Use the Break Connection icon to break the connection
between streams and unit operations.
Use the Attach Mode icon to reconnect unit operations and
streams.
Recycle RCY-2
Page In this cell... Enter...
Connections Inlet REGEN BTTMS
Outlet REGEN BTTMS TO L/RG1-18
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Acid Gas Sweetening with DEA G1-19
ww
Th4. Delete the Std. Ideal Liq Vol Flow value in stream DEA TO
COOL.
5. Specify the Std. Ideal Liq. Vol. Flow in stream MAKEUP H2O
at 2.195 USGPM.
6. Delete MIX-100 and replace it with a tank, V-101. Name the
vapour outlet from the tank Nitrogen Blanket.
7. Change the Heat Exchanger model of the E-100 exchanger
from Exchanger Design (End Point) to Dynamic Rating.
Delete the temperature of the REGEN FEED stream, since it
will be calculated by the exchanger. Use the following table
to set the new specifications for the exchanger.
Add Pumps
Two pumps are added because Dynamics mode performs rating
calculations that consider pressure differences and flow
resistance. To accommodate this, you need to add equipment
that significantly impacts the pressure and drives flow.
Add the following pumps to define the pressure flow relation.
The Recycle operation only functions in Steady State mode.
Its sole purpose in this case is to provide a suitable solution
before entering Dynamic mode.
Heat Exchanger E-100
Tab [Page] In this cell... Enter...
Design
[Connections]
Shell Side Inlet REGEN BTTMS TO L/R
Design
[Parameters]
Heat Exchanger Model Dynamic Rating
Rating
[Parameters]
Model Basic
Overall UA 100270 Btu/F-hr
Pump Name P-101
Tab [Page] In this cell... Enter...
Design
[Connection]
Inlet RICH TO PUMP
Outlet RICH TO VALVE
Energy Q-100G1-19
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
G1-20 Dynamic Simulation
ww
ThAdd Valves
1. Add the following valves to define the pressure flow relation.

Design
[Parameters]
Duty 3739.72 Btu/hr
Comments Add this pump between the separator FLASH TK and
the stream RICH to L/R.
Pump Name P-102
Tab [Page] In this cell... Enter...
Design
[Connection]
Inlet REGEN BTTMS
Outlet REGEN BTTMS TO VALVE
Energy Q-101
Design
[Parameters]
Power 1.972e5 Btu/hr
Comments Add this pump between the stream REGEN BTTMS and
the recycle RCY-2.
Valve Name VLV-FWKO
Tab [Page] In this cell... Enter...
Design
[Connection]
Inlet FWKO
Outlet FWKO-1
Worksheet
[Conditions]
Pressure (FWKO-1) 986.5 psia
Rating [Sizing] Valve Opening 50%
VLV-Flash Vap
Tab [Page] In this cell... Enter...
Design
[Connection]
Inlet FLASH VAP
Outlet FLASH VAP-1
Worksheet
[Conditions]
Pressure (Flash Vap-1) 89.99 psia
Rating [Sizing] Valve Opening 50%
Valve Name VLV-101
Tab [Page] In this cell... Enter...
Design
[Connection]
Inlet RICH TO VALVE
Outlet RICH TO L/R
Pump Name P-101
Tab [Page] In this cell... Enter...G1-20
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Acid Gas Sweetening with DEA G1-21
ww
ThDesign
[Parameters]
Delta P 5.8 psi
Rating [Sizing] Valve Opening 50%
Comments Add this valve between the pump P-101 and the
stream RICH TO L/R.
VLV-102
Tab [Page] In this cell... Enter...
Design
[Connection]
Inlet REGEN BTTMS TO VALVE
Outlet REGEN BTTMS-2
Design
[Parameters]
Delta P 13.53 psi
Rating [Sizing] Valve Opening 50%
Comments Add this valve between the stream REGEN BTTMS TO
VALVE and the recycle RCY-2.
VLV-103
Tab [Page] In this cell... Enter...
Design
[Connection]
Feed DEA TO VALVE
Product DEA TO COOL
Design
[Parameters]
Delta P 1 psi
Rating [Sizing] Valve Opening 50%
Comments Add this valve between V-101 and the stream DEA TO
COOL.
VLV-100@COL1
Tab [Page] In this cell... Enter...
Design
[Connection]
Feed 1@COL1
Product SWEET GAS@COL1
Design
[Parameters]
Delta P 1 psi
Rating [Sizing] Valve Opening 50%
Comments Add this valve between the vapour outlet of the
absorber DEA Contactor and the stream SWEET GAS in
the absorber sub-flowsheet.
Valve Name VLV-100@COL2
Tab [Page] In this cell... Enter...
Design
[Connection]
Feed 2@COL2
Product ACID GAS@COL2
Design
[Parameters]
Delta P 1 psiG1-21
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
G1-22 Dynamic Simulation
ww
ThBefore proceeding any further, ensure that the case is
completely solved.
For the Regenerator, you may need to click the Reset button
before clicking the Run button to get the distillation column
to solve.
2. Open the valves property view and move to the Sizing page
of the Rating tab.
3. Select the User Input radio button and specify the Valve
Opening as indicated.
4. Click the Size Valve button.
5. Repeat for all valves in the simulation.
Adding Pressure Flow Specifications
In order to run the integrator successfully, the degrees of
freedom for the flowsheet must be reduced to zero by setting
the pressure-flow specifications. Normally, you would make one
pressure-flow specification per flowsheet boundary stream,
however, there are exceptions to the rule.
One extra pressure flow specification is required for the
condenser attached to the column Regenerator. This rule applies
only if there are no pieces of equipment attached to the reflux
stream downstream of the condenser. Without other pieces of
the equipment (i.e., pumps, coolers, valves) to define the
pressure flow relation of these streams, they must be specified
with a flow specification.
1. In the Main flowsheet, add the following pressure-flow
Rating [Sizing] Valve Opening 50%
Comments Add this valve between the vapour outlet of the
distillation column REGENERATOR and the stream
ACID GAS in the Regenerator Column sub-flowsheet.
For more information
regarding Pressure-Flow
specifications in Column
unit operations see
Chapter 2 - Column
Operations in the Aspen
HYSYS Operations
Guide.G1-22
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Acid Gas Sweetening with DEA G1-23
ww
Thspecifications to the boundary streams.
The pressure-flow specification can be activated in the
Dynamics tab on the Specs page by selecting the Active
checkbox. The steady state pressure-flow values should be
used as a specification.
2. Ensure the PF Relation checkbox for all the valves is
selected (Dynamics tab, Specs page).
3. Select the Efficiency and Power checkboxes for pumps
(you may have to clear the Pressure Rise checkbox).
4. On the E-100 property view, click the Calculate K’s button
(Dynamics tab, Specs page).
5. Clear the Delta P checkbox and select the k checkbox for
both the Shell and Tube sides of E-100.
6. Also on the cooler E-101 property view, set the pressure flow
option instead of the pressure drop by selecting the Overall
k Value checkbox and clearing the Pressure Drop
checkbox.
Equipment Sizing
In preparation for dynamic operation, both column tray sections
and the surrounding equipment must be sized. In steady state
simulation, the column pressure drop is user specified. In
dynamics, it is calculated using dynamic hydraulic calculations.
Complications will arise in the transition from steady state to
Material Stream
Pressure
Specification
Flow
Specification
Value
SOUR GAS Inactive Molar Flow 25 MMSCFD
FWKO-1 Active Inactive 986.5 psia
FLASH VAP-1 Active Inactive 89.99 psia
MAKEUP H2O Inactive Ideal Liq Vol Flow 2.195 USGPM
SWEET GAS Active Inactive 994 psia
ACID GAS Active Inactive 26.5 psia
REFLUX@COL2 Inactive Mass Flow 2983 lb/hr
Nitrogen Blanket Active Inactive 21.5 psia
DEA TO RECY Inactive Inactive
DEA TO FLASH
TK
Inactive InactiveG1-23
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
G1-24 Dynamic Simulation
ww
Thdynamics if the steady state pressure profile across the column
is very different from that calculated by the Dynamic Pressure-
Flow solver.
Column Tray Sizing
1. From the Tools menu, select Utilities. Add a Tray Sizing
utility to size the DEA Contactor tray section.
2. Click the Select TS button. The Select Tray Section property
view appears.
3. From the Flowsheet list, select DEA Contactor.
4. From the Object list, select TS-1.
5. Click the Auto Section button to calculate the tray section
dimension. Accept all the defaults.
6. Select the Trayed radio button in the Section Results group
(Performance tab, Results page).
7. Confirm the following tray section parameters for Section_1.
8. Calculate the Actual Weir Length using the Weir Length
divided by the number of flow paths for the vapour.
9. Open the DEA Contactor column property view.
10.Click the Rating tab, then select the Tray Sections page.
11. Enter the tray section parameters for TS-1 obtained from the
tray sizing utility.
12.Size the Regenerator tray section following the same
procedure described above for the DEA Contactor. The Auto
Section function may create two tray sections; ensure that
Variable Value
Section Diameter 3.5 ft
Weir Height 2 in
Tray Spacing 24 in
Weir Length 34.81 in
Number of Flow Paths 1
Variable Value
Actual Weir Length (Weir Length/1) 34.81 inG1-24
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Acid Gas Sweetening with DEA G1-25
ww
Ththe column is sized with only one tray section for all trays.
Delete the section that does not match the specifications
below.
13.Confirm the following tray section parameters for Main TS in
the Regenerator:
14. In the Regenerator column property view, click the Rating
tab, then select the Tray Sections page.
15.Enter the Section Diameter value shown above.
Vessel Sizing
The Condenser and Reboiler operations in the Regenerator
column sub-flowsheet require proper sizing before they can
operate effectively in Dynamics mode. The volumes of these
vessel operations are determined using a 10 minute liquid
residence time.
1. Open the Regenerator property view, then enter the Column
Environment.
2. Open the Condenser property view.
3. Click the Worksheet tab, then select the Conditions page.
4. Confirm the following Std Ideal Liquid Volumetric Flow.
5. Calculate the vessel volume as follows, assuming a 50%
liquid level residence volume.
Variable Value
Section Diameter 3.5 ft
Weir Height 2 in
Tray Spacing 24 in
Total Weir Length 33.75 in
Number of Flow Paths 1
Actual Weir Length 33.75 in
Stream Std Ideal Liquid Volume Flow
Reflux 5.975 USGPM
(G1.1)Vessel Volume Total Liquid Exit Flow Residence Time⋅
0.5
------------------------------------------------------------------------------------------------------------=G1-25
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
G1-26 Dynamic Simulation
ww
Th6. Click the Dynamics tab, then select the Specs page.
7. In the Model Details group, specify the vessel volume as
15.97 ft3 (as calculated with the above formula).
8. Specify the Level Calculator as a Horizontal cylinder.
9. Open the Reboiler property view.
10.Click the Worksheet tab, then select the Conditions page.
Confirm the following Std Ideal Liquid Volume Flow.
11.Calculate the vessel volume using Equation (G1.1) and
assuming a 50% liquid level residence time.
12.Click the Dynamics tab, then select the Specs page.
13. In the Model Details group, specify the vessel volume as 641
ft3 and the Level Calculator as a Horizontal cylinder.
Separator Sizing
The vapour flow rate through V-100 is large as compared to the
liquid flow rate, therefore Separator V-100 is sized according to
the terminal vapour velocity (Vertical Cylinder).
1. Use a residence time of 5 min and a 50% liquid level to size
the separator FLASH TK.
2. Confirm the Std Ideal Liquid Volume flow in the table below
and enter the vessel volume.
3. Click the Rating tab, then select the Sizing page. Select the
Vertical orientation radio button for the separator.
Stream Std Ideal Liquid Volume Flow
To Reboiler 239.7 bbl/day
Separator Name FLASH TK
Tab [Page] In this cell... Enter...
Worksheet
[Conditions]
Std Liq Vol Flow (RICH TO
PUMP)
498.27 USGPM
Rating [Sizing] Volume 660 ft3
V-100
Tab [Page] In this cell... Enter...
Rating [Sizing] Diameter 5.94 ft
Height 29.7 ftG1-26
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Acid Gas Sweetening with DEA G1-27
ww
ThTank Sizing
The tank V-101 will be sized with a 10 minute liquid residence
time and a 75% liquid level. Confirm the volumetric flow rate of
the exit stream and specify the vessel volume (Rating tab,
Sizing page).
Heat Exchanger Sizing
The Shell and Tube heat exchanger E-100 will be sized with a 10
minute residence time for both the shell and the tube side (enter
respective sizes on the Rating tab, Parameters page).
A 10 minute liquid residence time will also be used for sizing the
cooler E-101 (Dynamics tab, Specs page).
Tank V-101
Tab [Page] In this cell... Enter...
Worksheet
[Conditions]
LiqVol Flow (DEA TO VALVE) 194.4 USGPM
Rating [Sizing] Volume 346.4 ft3
Design [Parameters] Liquid Level 75%
Heat Exchanger E-100
Tube Side Sizing
Worksheet
[Conditions]
Std Ideal Liq Vol Flow (RICH TO
L/R)
498.27 USGPM
Rating
[Parameters]
Volume 666 ft3
Shell Side Sizing
Worksheet
[Conditions]
Std Ideal Liq Vol Flow (REGEN
BTTMS TO L/R)
691.3 USGPM
Rating
[Parameters]
Volume 925.2 ft3
Cooler E-101
Tab [Page] In this cell... Enter...
Worksheet
[Conditions]
Std Ideal Liq Vol Flow (DEA
TO COOL)
194.4 USGPM
Dynamics
[Specs]
Volume 259.8 ft3G1-27
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
G1-28 Dynamic Simulation
ww
ThRunning the Integrator
1. Switch to the Dynamic mode by clicking the Dynamic Mode
button. Click No when asked if you want the Dynamics
Assistant to help you resolve items in Steady State before
switching to Dynamic mode.
2. Open the Product Block for stream Nitrogen Blanket.
3. Ensure that the radio button for temperature is selected, and
the value is specified as 70°F.
4. Click the Composition tab and set the composition to
100% Nitrogen.
5. Return to the Conditions tab, and press the Export
Conditions to Stream button.
6. Open the Integrator property view and change the Step
Size to 0.2 sec on the General tab.
7. Click the Options tab and make sure that the Singularity
analysis before running checkbox is selected.
8. Run the integrator for 2 minutes to ensure that the degrees
of freedom for pressure flow specification is zero and all the
vessels are sized. Select Non-Equilibrium Vapour when
asked how you want to initialize V-101.
G1.6.2 Adding a Control
Scheme
The following Controllers will be used in the Dynamics model:
• Level
• Temperature
• Pressure
• FlowG1-28
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Acid Gas Sweetening with DEA G1-29
ww
ThLevel Controllers
Level Controller Name V100-LC
Tab [Page] In this cell... Enter...
Connections Process Object V-100
Process Variable Liquid Percent Level
Output Variable VLV-FWKO
Parameters
[Configuration]
PVmin 0%
PVmax 100%
Action Direct
Mode Auto
SP 50%
Kc 2
Ti 2
FLASH TK-LC
Tab [Page] In this cell... Enter...
Connections Process Object FLASH TK
Process Variable Liquid Percent Level
Output Variable VLV-101
Parameters
[Configuration]
PVmin 0%
PVmax 100%
Action Direct
Mode Auto
SP 50%
Kc 2
Ti 2
Level Controller Name LIC-100
Tab [Page] In this cell... Enter...
Connections Process Object V-101
Process Variable Liquid Percent Level
Output Variable MAKEUP H2O
To size the Control Valve for the MAKEUPH2O stream, select the
Control Valve button.
FCV for MAKEUP H2O Flow Type Mass Flow
Min Available 0.0 lb/hr
Max Available 1200 lb/hrG1-29
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
G1-30 Dynamic Simulation
ww
ThParameters
[Configuration]
PVmin 0%
PVmax 100%
Action Reverse
Mode Auto
SP 50%
Kc 2
Ti 2
Reb-LC@COL2
Tab [Page] In this cell... Enter...
Connections Process Object Reboiler@COL2
Process Variable Liquid Percent Level
Output Variable VLV-102@Main
Parameters
[Configuration]
PVmin 0%
PVmax 100%
Action Direct
Mode Auto
SP 50%
Kc 2
Ti 2
Level Controller Name Cond-LC@COL2
Tab [Page] In this cell... Enter...
Connections Process Object Condenser@ COL2
Process Variable Liquid Percent Level
Output Variable Reflux
To size the Control Valve for the Reflux stream, select the Control
Valve button.
FCV for Reflux Flow Type Mass Flow
Min Available 0.0 lb/hr
Max Available 5512 lb/hr
Parameters
[Configuration]
PVmin 0%
PVmax 100%
Action Direct
Mode Auto
SP 50%
Kc 1
Ti 2
Level Controller Name LIC-100
Tab [Page] In this cell... Enter...G1-30
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Acid Gas Sweetening with DEA G1-31
ww
ThTemperature Controllers
Temperature Controller
Name
TIC-100
Tab [Page] In this cell... Enter...
Connections Process Object DEA TO PUMP
Process Variable Temperature
Output Variable COOLER Q
To size the Control Valve for the Cooler Duty stream, select the
Control Valve button. To filter high frequency disturbances, click the
Parameter tab, select the PV Conditioning page, and change the First
Order Time Constant from 15 to 50.
FCV for COOLER Q Duty Source Direct Q
Min Available 0.0 Btu/hr
Max Available 2.4e7 Btu/hr
Parameters [Configuration] PVmin 32 F
PVmax 122 F
Action Direct
Mode Auto
SP 91 F
Kc 10
Ti 10
TIC-103@COL2
Tab [Page] In this cell... Enter...
Connections Process Object Main TS
Process Variable Stage Temperature
Variable Specifics 18_Main TS
Output Variable RBLR Q
To size the Control Valve for the Reboiler Duty stream, select the
Control Valve button.
FCV for RBLR Q Flow Type Direct Q
Min Available 0 Btu/hr
Max Available 1.9e7 Btu/hr
Parameters [Configuration] PVmin 176 F
PVmax 302 F
Action Reverse
Mode Auto
SP 255°F
Kc 2
Ti 5G1-31
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
G1-32 Dynamic Simulation
ww
ThPressure Controllers
Pressure Controller Name PIC-100@COL1
Tab [Page] In this cell... Enter...
Connections Process Object TS-1@COL1
Process Variable Top Stage Pressure
Output Variable VLV-100@COL1
Parameters [Configuration] PVmin 950 psia
PVmax 1050 psia
Action Direct
Mode Auto
SP 995 psia
Kc 2
Ti 2
PIC-100@COL2
Tab [Page] In this cell... Enter...
Connections Process Object Condenser @COL2
Process Variable Vessel Pressure
Output Variable VLV-100@COL2
Parameters [Configuration] PVmin 0 psia
PVmax 50 psia
Action Direct
Mode Auto
SP 31 psia
Kc 2
Ti 2G1-32
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Acid Gas Sweetening with DEA G1-33
ww
ThFlow Controller
G1.6.3 Preparing Dynamic
Simulation
Now that the case is ready to run in Dynamic mode, the next
step is installing a strip chart to monitor the general trends of
key variables.
Monitoring in Dynamics
You may use several variables in the same chart. If you have a
large number of variables that you would like to track, use
several Strip Charts rather than use all of the variables on one
chart. You may use the same variable in more than one Strip
Chart.
For this simulation case, use the Databook (CTRL D) to set up
two strip charts as defined below:
• StripChart1 - Contactor
Flow Controller Name RECY-FC
Tab [Page] In this cell... Enter...
Connections Process Object DEA TO CONT
Process Variable Mass Flow
Output Variable VLV-103
Parameters
[Configuration]
PVmin 0 lb/hr
PVmax 220460 lb/hr
Action Reverse
Mode Auto
SP 97700 lb/hr
Kc 0.5
Ti 0.20
Flowsheet Object Variable
Case DEA TO CONT Mass Flow
Case GAS TO CONTACTOR Mass FlowG1-33
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
G1-34 References
ww
Th• StripChart2 - Regenerator
1. Start the Integrator and allow the variables to line out.
If you get an initial numerical error after you start the
integrator, start the integrator again. In the Session
Preferences property view (Simulation tab, Errors group),
you can direct these errors to the trace window and have the
simulation continue regardless.
After a few minutes the integrator will stop and an error
message will appear in the trace window.
2. From the Simulation menu, select Equation Summary
View.
3. Click the Uncoverged tab and click the Update Sorted List
button.
The top equation refers to pump P-102. If you examine this
pump in the PFD you will see that it is fully on, but its
downstream valve has been completely shut by a controller.
As an advanced exercise, you can refine the control scheme
to address this issue.
G1.7 References
Gerunda, Arthur. How to Size Liquid-Vapour Separators
Chemical Engineering, Vol. 88, No. 9, McGraw-Hill, New York,
(1981).
Case SWEET GAS Mass Flow
Case RICH DEA Mass Flow
Case SWEET GAS Pressure
Flowsheet Object Variable
Case REGEN FEED Mass Flow
Case ACID GAS Mass Flow
Case REGEN BTTMS Mass Flow
Case ACID GAS Pressure
Flowsheet Object VariableG1-34
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Atmospheric Crude Tower R1-1
ww
ThR1 Atmospheric Crude
TowerR1-1
R1.1  Process Description ..................................................................... 2
R1.2  Setup ........................................................................................... 5
R1.3  Steady State Simulation............................................................... 8
R1.3.1  Simulate the Pre-Fractionation Train.......................................... 9
R1.3.2  Install Atmospheric Crude Fractionator .................................... 11
R1.4  Results....................................................................................... 16
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
R1-2 Process Description
ww
ThR1.1 Process Description
After passing through a preheat train, 100,000 barrel/day of
29.32o API crude is fed into a pre-flash separator operating at
450o F and 75 psia. The vapour from this separator bypasses the
crude furnace and is re-mixed with the hot (650o F) pre-flash
liquids leaving the furnace. The combined stream is then fed to
the atmospheric crude column.
 Figure R1.1R1-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Atmospheric Crude Tower R1-3
ww
ThThe column operates with a total condenser, three coupled side
strippers, and three pump around circuits.
A naphtha product is produced overhead, a kerosene product is
produced from the first side stripper, a diesel product is
produced from the second side stripper, and an atmospheric gas
oil (AGO) is produced from the third side stripper. Both the AGO
side stripper and the diesel side stripper are ‘steam stripped’,
while the kerosene side stripper has a reboiler.
The following Assay data is used to characterize the oil for this
example:
 Figure R1.2
Assay Liq Volume % Boiling Temperature (°F)
0.0 15.0
4.5 90.0
9.0 165.0
14.5 240.0
20.0 310.0
30.0 435.0R1-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
R1-4 Process Description
ww
ThThere are two basic steps in this process simulation:
1. Setup. The component list must include C1 to C4 light ends
components as well as the hypocomponents that will be used
to represent the C5+ portion of the crude oil. The Oil
Characterization procedure in Aspen HYSYS will be used to
convert the laboratory data into petroleum
hypocomponents.
2. Steady State Simulation. This case will be modeled using
a Pre-Fractionation Train consisting of a Separator and
Heater. The Outlet stream will then fed to an Atmospheric
Crude Fractionator. The results will be displayed. Dynamic
Simulation - The steady state solution will be used to size
all the unit operations and tray section. An appropriate
control strategy will be implemented and the key variables
will be displayed on a strip chart.
40.0 524.0
50.0 620.0
60.0 740.0
70.0 885.0
76.0 969.0
80.0 1015.0
85.0 1050.0
Bulk Properties
Standard Density 29.32o API
Light Ends Liq Volume %
Methane 0.0065
Ethane 0.0225
Propane 0.3200
i-Butane 0.2400
n-Butane 0.8200
H2O 0.0000
Any other library components required for the overall
simulation (for example, H2O) should be selected as well.
Assay Liq Volume % Boiling Temperature (°F)R1-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Atmospheric Crude Tower R1-5
ww
ThR1.2 Setup
1. In the Session Preferences property view, set the unit set to
Field units.
2. In the Component List property view, select the following
components: methane, ethane, propane, i-butane, n-
butane, and water.
3. In the Fluid Package property view, define a fluid package
with Peng-Robinson as the property package.
Oil Characterization
Click the Oil Environment icon to enter the Oil Characterization
Environment, using the fluid package you just created. Three
steps are required for characterizing the oil:
1. Define the Assay.
2. Create the Blend.
3. Install Oil in the Flowsheet.
Define the Assay
1. On the Assay page of the Oil Characterization property view,
click the Add button. This will create a new assay, and you
will see the Assay property view.
2. Change the Bulk Properties setting to Used.
3. Complete the Input data for the Bulk Properties as shown
below:
4. Since the TBP data is supplied, select TBP from the Assay
Data Type drop-down list.
 Figure R1.3

Oil Environment iconR1-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
R1-6 Setup
ww
Th5. Select Liquid Volume% from the Assay Basis drop-down
list.
6. Click the Edit Assay button and enter the data as follows.
7. In the Assay Definition group, click the Light Ends drop-
down list and select Input Composition.
8. In the Input Data group, click the Light Ends radio button.
9. Enter the light ends data as follows.
 Figure R1.4
 Figure R1.5R1-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Atmospheric Crude Tower R1-7
ww
Th10.Upon completion of characterizing the assay, select the
Calculate button. Aspen HYSYS will calculate the Working
Curves, which can be viewed on the Working Curve tab.
You can scroll through this table to view all 50 points of the
Working Curve.
11.Close the Assay property view.
Create the Blend (Cut the Oil)
1. Click the Cut/Blend tab (Oil Characterization property view)
and click the Add button. The Blend: Blend-1 view appears.
2. Click the Data tab, then select the Assay you created in the
Available Assays column.
3. Click the Add button. Aspen HYSYS will transfer that Assay
to the Oil Flow Information table.
As a guideline, each Outlet stream from the crude column
should contain a minimum of 5 hypocomponents where the
composition is greater than 1.0%. Therefore, a total of 30
components should fulfil this requirement.
4. From the Cut Option Selection drop-down list, select User
Points, then specify the Number of Cuts at 30. Aspen
HYSYS will calculate the hypocomponents.
 Figure R1.6R1-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
R1-8 Steady State Simulation
ww
Th5. Click the Tables tab to view the hypocomponents.
6. From the Table Type group drop-down list, select Molar
Compositions.
7. Close the Blend property view.
Install Oil in the Flowsheet
The final step is to install the oil in the flowsheet.
1. Click the Install Oil tab of the Oil Characterization property
view.
2. In the Stream Name cell, type Raw Crude. This is the
stream name where you would like to “install” the oil.
3. On the Oil Characterization property view, click Return to
Basis Environment button.
4. Click the Enter Simulation Environment button on the
Simulation Basis Manager property view to enter the Main
Environment. The Raw Crude stream has been installed.
R1.3 Steady State
Simulation
The following major steps will be taken to set up this case in
steady state:
1. Simulate the Pre-Fractionation Train. This determines
the feed to the atmospheric fractionator, and includes the
pre-flash separation, crude furnace, and mixer which
recombines the pre-flash vapour and furnace outlet stream.
2. Install the Atmospheric Crude Fractionator. Add the
column steam inlets to the flowsheet and install the crude
fractionator using the rigorous distillation column operation.R1-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Atmospheric Crude Tower R1-9
ww
ThR1.3.1 Simulate the Pre-
Fractionation Train
Inlet Stream
Specify the Inlet stream (Raw Crude) as shown below.
Because the composition has been transferred from the Oil
Characterization, the stream is automatically flashed.
Pre-Flash Operations
Install the Separator, Heater, and Mixer and provide the
information displayed below:
Stream [Raw Crude]
In this cell... Enter...
Temperature [F] 450.0°F
Pressure [psia] 75.0 psia
Std Ideal Liq Vol Flow [barrel/day] 100,000 barrel/day
Separator [PreFlash]
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlet Raw Crude
Vapour Outlet PreFlash Vap
Liquid Outlet PreFlash Liq
Heater [Crude Heater]
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlet PreFlash Liq
Outlet Hot Crude
Energy Crude Duty
Design [Parameters] Delta P 10.00 psi
Worksheet
[Conditions]
Temperature (Hot Crude) 650 °FR1-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
R1-10 Steady State Simulation
ww
ThThe calculated specifications for the Pre-Fractionation Atm Feed
stream appear below.
The Pre-Fractionation train is shown as follows:
Mixer [Mixer]
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlets Hot Crude, PreFlash Vap
Outlet Atm Feed
 Figure R1.7
 Figure R1.8R1-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Atmospheric Crude Tower R1-11
ww
ThR1.3.2 Install Atmospheric
Crude Fractionator
Steam and Trim Duty Streams
Before simulating the atmospheric crude tower, the steam feeds
and the energy stream (Q-Trim - representing the side
exchanger on stage 28) to the column must be defined.
The Q-Trim stream does not require any specifications, this will
be calculated by the Column.
Three steam streams are fed to various locations in the tower.
Specify the steam streams as shown below. Define the
composition for each as H2O = 1.0000.
These streams could be installed inside the Column Build
Environment as well. By taking this approach, you will need
to “attach” these streams to the Column Flowsheet so that
they can be used in the calculations.
Column
In this application, the Input Experts option have been turned
off, and the Column is being configured directly through the
Column property view.
An energy stream can be installed by selecting the
appropriate icon from the palette, or a material stream
converted to an energy stream on the Util page of the stream
property view.
Stream Name Temperature [F] Pressure [psia] Mass Flow [lb/hr]
Main Steam 375.00 150.00 7500.00
Diesel Steam 300.00 50.00 3000.00
AGO Steam 300.00 50.00 2500.00R1-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
R1-12 Steady State Simulation
ww
ThThe main column, Atms Tower, is represented by the following:
• Number of stages is 29 ideal stages (not including the
condenser).
• The overhead condenser operates at 19.7 psia and the
bottom stage at 32.7 psia.
• The condenser experiences a 9 psi pressure drop.
• The temperature estimates for the condenser, top stage,
and bottom stage are 100oF, 250oF and 600oF,
respectively.
• Condensed water is removed via a water draw from the
three-phase condenser.
Aspen HYSYS comes with a 3 Stripper Crude Column template.
A Refluxed Absorber template could also be used, but this would
add the procedure of installing Side Strippers and Pump
Arounds.
For this example, install the 3 Stripper Crude Column custom
template.
1. Select the Custom Column icon in the Object Palette, then
click the Read an Existing Column Template button. The
Available Column Templates finder property view appears.
2. In the Files of type drop-down list, select Column
Templates (*.col).
3. From the list, select the 3sscrude.col template file, then
click the Open button.
The 3sscrude.col template installed 40 trays, 29 in the Main
Tray section, 3 trays in each of the 3 Side Strippers (1
reboiled and 2 steam stripped), a reboiler, and a condenser.
Custom Column iconR1-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Atmospheric Crude Tower R1-13
ww
Th4. In the Column Property view, connect the Inlet and Outlet
streams to the column sub-flowsheet as shown (Design tab,
Connections page).
5. Modify the Draw and Return stages of the Pump Arounds and
Side Strippers on the corresponding page of the SideOps
tab.
 Figure R1.9
 Figure R1.10R1-13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
R1-14 Steady State Simulation
ww
Th6. In the Atmos Tower Column property view, specify the
column information below.
Field units are used for column preferences.
Specifications
On the Monitor page of the Design tab, make the following
changes and input the values into the default set of
specifications supplied with the pre-built 3-Side Stripper
Column.
1. Change all the Pump Around delta T specifications to a
Duty specification.
2. Delete the Kero SS BoilUp Ratio and the Residue Rate
specs.
Open the specification property view by clicking the View
button, then click Delete to delete the specification.
3. Specify the Reflux Ratio spec to have a value of 1. Clear
the Reflux Ratio Active checkbox and make it an Estimate
only.
4. Change the following default specifications by selecting the
specification in the table and clicking the View button.
Change the Flow Basis to Std Ideal Volume before entering
values.
Column [Atms Tower]
Tab [Page] In this cell... Enter...
Parameters
[Profiles]
Condenser Pressure 19.7 psia
29_Main TS Pressure 32.7 psia
Condenser Temperature 100°F
1_Main TS Temperature 250°F
29_Main TS Temperature 600°F
Specification Flow Basis Spec Type Spec Value
Kero_SS Prod Flow Volume 9300 barrel/day
Diesel_SS Prod Flow Volume 1.925e+04 barrel/day
AGO_SS Prod Flow Volume 4500 barrel/day
PA_1_Rate(Pa) Volume 5.000e+04 barrel/day
PA_1_Duty(Pa) Duty -5.500e+07 Btu/hrR1-14
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Atmospheric Crude Tower R1-15
ww
Th5. On the Specs page of the Design tab, add the following new
specifications by clicking the Add button in Column
Specifications group.
The final specification table will appear as shown below:
6. Once you have provided all of the specifications, run the
column.
PA_2_Rate(Pa) Volume 3.000e+04 barrel/day
PA_2_Duty(Pa) Duty -3.500e+07 Btu/hr
PA_3_Rate(Pa) Volume 3.000e+04 barrel/day
PA_3_Duty(Pa) Duty -3.500e+07 Btu/hr
Naptha Prod Rate Volume 2.300e+04 barrel/day
Specification Type Variable (Field) Value
Column Liquid Flow Name Overflash Spec
Stages 27_Main TS
Flow Basis Std Ideal Vol
Spec Value 3500.00 barrel/day
Column Duty Name Kero Reb Duty
Energy Stream Kero_SS_Energy @Col1
Spec Value 7.5e+6 Btu/hr
Column Vapour Flow Name Vap Prod Flow
Stage Condenser
Flow Basis Molar
Spec Value 0.00 lbmole/hr
 Figure R1.11
Specification Flow Basis Spec Type Spec ValueR1-15
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
R1-16 Results
ww
ThR1.4 Results
Workbook Case (Main)
The material stream results for the Workbook Case[Main]
appear below.
 Figure R1.12R1-16
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Atmospheric Crude Tower R1-17
ww
ThWorkbook Case (Atms Tower)
The material stream results for the Workbook Case [Atms
Tower] appear below.
 Figure R1.13R1-17
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
R1-18 Results
ww
ThR1-18
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Sour Water Stripper R2-1
ww
ThR2 Sour Water StripperR2-1
R2.1  Process Description ..................................................................... 2
R2.2  Setup ........................................................................................... 4
R2.3  Steady State Simulation............................................................... 4
R2.3.1  Installing the SW Stripper........................................................ 5
R2.4  Results......................................................................................... 7
R2.5  Case Study................................................................................... 9
R2.5.1  Results ............................................................................... 11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
R2-2 Process Description
ww
ThR2.1 Process Description
The sour water stripper configuration shown in the above PFD is
a common unit in refineries. It processes sour water that comes
from a variety of sources including hydrotreaters, reformers,
hydrocrackers, and crude units. The sour water is often stored in
crude tanks, thereby eliminating the need for special vapour
recovery systems.
 Figure R2.1
To see this case completely solved, see your Aspen
HYSYS\Samples\ directory and open the R-2.hsc file.R2-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Sour Water Stripper R2-3
ww
ThA sour water stripper either uses the direct application of
stripping steam (usually low quality, low pressure) or a steam-
fired reboiler as a heat source.
The intent is to drive as much H2S and NH3 overhead in the
stripper as possible. The sizing of a sour water stripper is very
important since its capacity must equal or exceed the normal
production rates of sour water from multiple sources in the
refinery. Often, refiners find their strippers undersized due to a
lack of allowance for handling large amounts of sour water,
which can result from upset conditions (like start-up and
shutdown). Consequently, there is often a backlog of sour water
waiting to be processed in the stripper. With the increasing
importance of environmental restrictions, the sour water
stripper plays a greater role in the overall pollution reduction
program of refiners.
The Sour Water feed stream goes through a feed/effluent
exchanger where it recovers heat from the tower bottoms
stream (Stripper Bottoms). This new stream (Stripper Feed)
enters on tray 3 of an 8 tray distillation tower with a reboiler and
a total reflux condenser. A quality specification of 10 ppm wt.
ammonia on the tower bottoms (Stripper Bottoms) is specified.
The tower bottoms, Stripper Bottoms, exchanges heat with the
incoming feed and exits as Effluent.
 Figure R2.2R2-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
R2-4 Setup
ww
ThThere are two basic steps in this process simulation:
1. Setup. This case uses the Sour Peng-Robinson package and
the following components: H2S, NH3 and H2O.
2. Steady State Simulation. The case will consist of an 8
stage stripper, used to separate H2S and NH3, and a heat
exchanger to minimize heat loss.
R2.2 Setup
1. In the Session Preferences property view, set the unit set to
Field units.
2. In the Component List property view, select the following
components: H2S, NH3 and H2O.
3. In the Fluid Package property view, select the Sour Peng-
Robinson property package.
Sour Peng-Robinson combines the PR equation of state and
Wilson’s API-Sour model for handling sour water systems.
R2.3 Steady State
Simulation
The following general steps will be taken to setup this case in
steady state:
1. Installing the SW Stripper. An 8 stage distillation column
will be used to strip the sour components from the feed
stream. The liquid leaving the bottom of the column heats
the incoming feed stream in a heat exchanger.
2. Case Study. A case study will be performed to obtain steady
state solutions for a range of stripper feed temperatures.R2-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Sour Water Stripper R2-5
ww
ThR2.3.1 Installing the SW
Stripper
Feed Stream
Specify the feed stream as shown below.
Operations
1. Install and specify the Heat Exchanger as shown below.
2. Install a Distillation Column. This column will have both a
reboiler and an overhead condenser.
Material Stream [SourH2O Feed]
In this cell... Enter...
Temperature 100°F
Pressure 40 psia
Std Ideal Liq Vol Flow 50,000 barrel/day
Comp Mass Frac [H2S] 0.0070
Comp Mass Frac [NH3] 0.0050
Comp Mass Frac [H2O] 0.9880
Heat Exchanger [Feed Bottoms]
Tab[Page] In this cell... Enter...
Design
[Connections]
Tube Side Inlet Sour H2O Feed
Tube Side Outlet Stripper Feed
Shell Side Inlet Stripper Bottoms
Shell Side Outlet Effluent
Design
[Parameters]
Heat Exchanger Model Exchanger Design
(Weighted)
Tube Side Pressure Drop 10 psi
Shell Side Pressure Drop 10 psi
Worksheet
[Conditions]
Temperature (Stripper
Feed)
200°FR2-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
R2-6 Steady State Simulation
ww
Th3. Define the Column configuration as shown below.
If messages appear regarding loading an older case or
installing property sets, click the OK button. They will not
affect the case.
4. In the Column property view, click the Design tab, then
select the Monitor page.
In the present configuration, the column has two degrees of
freedom. For this example, the two specifications used will
be a quality specification and a reflux ratio.
5. Modify the existing specification based on the information
below:
6. Add a Component Fraction specification, and enter the
following information in the Comp Frac Spec property view:
Column [SW Stripper]
Page In this cell... Enter...
Connections No. of Stages 8
Inlet Stream Stripper Feed
Inlet Stage 3
Condenser Type Full Reflux
Ovhd Vapour Off Gas
Bottoms Liquid Stripper Bottoms
Reboiler Energy Stream Q-Reb
Condenser Energy Steam Q-Cond
Pressure Profile Condenser Pressure 28.7 psia
Reboiler Pressure 32.7 psia
Column [SW Stripper]
Tab [Page] Variable Spec Modify
Design [Specs] Ovhd Vap Rate Active = clear
Reflux Ratio Active = selected
Spec Value = 10 Molar
Tab In this cell... Enter...
Parameters Name NH3 Mass Frac (Reboiler)
Stage Reboiler
Spec Value 0.000010
Component AmmoniaR2-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Sour Water Stripper R2-7
ww
ThTo add a new specification, click the Add Specs button.
7. Click the Parameters tab, then select the Solver page.
Change the Fixed Damping Factor to 0.4.
A damping factor will speed up tower convergence and
reduce the effects of any oscillations in the calculations (the
default value is 1.0).
8. Run the column to calculate the values by clicking the Run
button.
R2.4 Results
Workbook Case (Main)
Materials Streams Tab
Summary Active Selected
Reflux Ratio
Spec Value
Active
10 Molar
 Figure R2.3
Tab In this cell... Enter...
For more information on
which damping factor is
recommended for
different systems, refer to
Chapter 2 - Column
Operations of the
Aspen HYSYS R2-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
R2-8 Results
ww
ThCompositions Tab
Energy Streams Tab
 Figure R2.4
 Figure R2.5R2-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Sour Water Stripper R2-9
ww
ThR2.5 Case Study
The simulation can be run for a range of Stripper Feed
temperatures (e.g., 190°F through 210°F in 5 degree
increments) by changing the temperature specified for Stripper
Feed in the worksheet.
You can automate these changes by using the Case Studies
feature in the DataBook.
1. Open the DataBook property view (Tools menu).
2. On the Variables tab, enter the variables as shown below.
3. Click the Case Studies tab.
4. In the Available Case Studies group, click the Add button to
create Case Study 1.
Flowsheet Object Variables Variables Description
Case Q-Cond Heat Flow Cooling Water
Q-Reb Heat Flow Steam
Stripper Feed Temperature Temperature
Feed Bottoms UA UA
T-100
SW Stripper
Main TS Stage Liq Net Mass
Flow (2__Main TS)
Liq MF Tray 2
Main TS Stage Liq Net Mass
Flow (7__Main TS)
Liq MF Tray 7
Main TS Stage Vap Net Mass
Flow (2__Main TS)
Vap MF Tray 2
Main TS Stage Vap Net Mass
Flow (7__Main TS)
Vap MF Tray 7R2-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
R2-10 Case Study
ww
Th5. Select the checkboxes under the Independent and
Dependent variable columns as shown below.
To automate the study, the Dependent Variable range and
Step Size must be given.
6. Click the View button to access the Case Studies Setup
property view. Define the range and step size for the
Stripper Feed Temperature as shown below.
Temperature values are given in °F.
7. To begin the Study, click the Start button.
8. Click the Results button to view the variables. If the results
are in graphical form, click the Table radio button on the
Case Studies property view.
 Figure R2.6
 Figure R2.7R2-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Sour Water Stripper R2-11
ww
ThR2.5.1 Results
The results of this study appear below.
 Figure R2.8R2-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
R2-12 Case Study
ww
ThR2-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Propylene/Propane Splitter P1-1
ww
ThP1 Propylene/Propane
Splitter P1-1
P1.1  Process Description ..................................................................... 2
P1.2  Setup ........................................................................................... 4
P1.3  Steady State Simulation............................................................... 4
P1.3.1  Starting the Simulation ........................................................... 4
P1.3.2  Adding the Stripper (Reboiled Absorber) .................................... 6
P1.3.3  Adding the Rectifier (Refluxed Absorber).................................... 7
P1.3.4  Adding the Specifications......................................................... 8
P1.4  Results......................................................................................... 9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
P1-2 Process Description
ww
ThP1.1 Process Description
A propylene-propane splitter is generally an easy column to
converge. The critical factor in producing good results, however,
is not the ease of solution, but the accurate prediction of the
relative volatility of the two key components. Special
consideration was given to these components, and others, in
developing the binary interaction coefficients for the Peng
Robinson and Soave Redlich Kwong Equations of State to ensure
that these methods correctly model this system.
 Figure P1.1P1-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Propylene/Propane Splitter P1-3
ww
ThThese splitters have many stages and are often built as two
separate columns. This simulation will contain two Columns, a
Stripper, and a Rectifier. The Stripper is modeled as a Reboiled
Absorber and contains 94 theoretical stages. The Rectifier is a
Refluxed Absorber containing 89 theoretical stages. The Stripper
contains two feed streams, one is the known stream, FEED, and
the other is the bottoms from the Rectifier. Propane is recovered
from the Stripper bottoms (95%) and Propene is taken off the
top of the Rectifier (99%).
There are two basic steps in this process simulation:
1. Setup. The Soave Redlich Kwong (SRK) property package
will be used and the component list includes Propane and
Propene.
2. Steady State Simulation. The case will consist of a column
divided into two tray sections: a Refluxed Absorber as a
Rectifier and a Reboiled Absorber as a Stripper.
 Figure P1.2P1-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
P1-4 Setup
ww
ThP1.2 Setup
1. In the Session Preferences property view, set the unit set to
Field units.
2. In the Component List property view, select the following
two components: Propane and Propene.
It may be easier to search by chemical formula (C3H8 and
C3H6), as the entire list is quite extensive.
3. In the Fluid Package property view, select the Soave
Redlich Kwong (SRK) equation of state (EOS) as the
property method for this case.
Ensure that the selected component you just created
appears in the Component List Selection drop-down list.
P1.3 Steady State
Simulation
The case will be setup in steady state using the Custom Column
option. Both the Rectifier and Stripper columns will be built in
the same column environment.
P1.3.1 Starting the Simulation
Defining the Feed Stream
In the Main Simulation environment, define the conditions and
compositions of the Feed stream as shown in the following table.
Material Stream [Feed]
In this cell... Enter...
Name Feed
Vapour Frac 1.0
Pressure 300 psia
Molar Flow 1350 lbmole/hrP1-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Propylene/Propane Splitter P1-5
ww
ThInstalling the Column
1. Click the Custom Column icon on the Object Palette. The
Custom Column feature will be used to build both columns in
a single column environment.
2. Click the Start with a Blank Flowsheeet button. The
column appears in the PFD.
3. Double-click the column in the PFD to open the Column
property view.
4. Click the Design tab and select the Connections page.
5. In the Inlet Streams group, enter stream Feed as an
External Feed Stream, making this stream accessible to the
Template Environment.
6. Enter the Column Environment by clicking the Column
Environment button at the bottom of the Column property
view.
For this example, you will need a Total Condenser, Reboiler and
two Tray Sections. A Tray Section and a Condenser will be used
for the Refluxed Absorber (Rectifier), a Reboiler and another
Tray Section will be used for the Reboiled Absorber (Stripper).
The overhead product from the Stripper will serve as the feed to
the Rectifier, and the bottoms product from the Rectifier
provides a second feed to the Stripper, entering at Stage 1.
Comp Mole Frac [Propane] 0.4
Comp Mole Frac [Propene] 0.6
Material Stream [Feed]
In this cell... Enter...P1-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
P1-6 Steady State Simulation
ww
ThP1.3.2 Adding the Stripper
(Reboiled Absorber)
Install the Reboiled Absorber before the Reboiler. This column
has 94 ideal stages and a Reboiler.
Ensure that you are within the Column Environment. The PFD
property view and the Column Object Palette should be visible
(as shown on the left).
Installing the Tray Section
For this Column a new Tray Section has to be installed.
1. Double-click the Tray Section icon on the Column Object
Palette. The tray section appears in the PFD and the Tray
Section property view appears.
2. Supply the following information.
3. Close the Tray Section property view.
Tray Section [Stripper]
Tab [Page] In this cell... Enter...
Design
[Connections]
Column Name Stripper
Liquid Inlet Rect Out
Vapour Inlet Boilup
Vapour Outlet To Rect
Liquid Outlet To Reboiler
Optional Feed Streams Feed (Stage 47)
Design
[Parameters]
Number of Trays 94
Comments Define the Number of Trays on the
Parameters page first.
Design
[Pressures]
Tray 1 290 psia
Tray 94 300 psia
Column Object Palette
Tray Section iconP1-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Propylene/Propane Splitter P1-7
ww
ThInstalling the Reboiler
The Reboiler for the Absorber must be installed with the Stripper
Column.
1. Double-click the Reboiler icon on the Column Object
Palette. The Reboiler appears in the PFD and the Reboiler
property view appears.
2. Enter the following information.
P1.3.3 Adding the Rectifier
(Refluxed Absorber)
Next, you will install the Rectifier. This column has 89 ideal
stages and a Total Condenser.
Installing the Tray Section
Install a new Tray Section for the Absorber.
1. Double-click the Tray Section icon on the Object Palette.
2. In the Tray Section property view, supply the parameters as
shown below.
Reboiler [Reboiler]
Tab [Page] In this cell... Enter...
Design
[Connections]
Name Reboiler
Boilup Boilup
Inlets To Reboiler
Bottoms Outlet Propane
Energy Reboiler Duty
Tray Section [Rectifier]
Tab [Page] In this cell... Enter...
Design
[Connections]
Name Rectifier
Liquid Inlet Reflux
Vapour Inlet To Rect
Vapour Outlet To Condenser
Liquid Outlet Rect Out
Reboiler icon
Tray Section iconP1-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
P1-8 Steady State Simulation
ww
Th3. Close the Tray Section property view.
Installing the Total Condenser
A Total Condenser is required for the column.
1. Double-click the Total Condenser icon in the Object
Palette. The condenser icon appears in the PFD, and the
condenser property view appears.
2. Supply the following information.
P1.3.4 Adding the
Specifications
Two specifications are required for this column.
• Flow of the Rectifier Distillate (Propene) is 775 lbmole/hr.
• Rectifier Top Stage Reflux Ratio is 16.
1. Return to the Parent environment and ensure the Column
property view is visible.
2. Click the Design tab and select Monitor page.
3. Add a Column Draw Rate and Column Reflux Ratio
specifications.
To add a specification, click the Add Spec button.
Design
[Parameters]
Number of Trays 89
Design
[Pressures]
Tray 1 280 psia
Tray 89 290 psia
Total Condenser [Condenser]
Tab [Page] In this cell... Enter...
Design
[Connections]
Name Condenser
Inlets To Condenser
Distillate Propene
Reflux Reflux
Energy Condenser Duty
Tray Section [Rectifier]
Tab [Page] In this cell... Enter...
Total Condenser iconP1-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Propylene/Propane Splitter P1-9
ww
Th4. Enter the following information for the appropriate
specification:
If the column has not converged at this point, ensure the
Run Column Solver icon is active.
P1.4 Results
Go to the Workbook of the Column:T-100 column environment
to check the following results.
• Material Streams Tab
Column Draw Rate
Tab In this cell... Enter...
Parameters Draw Propene
Flow Basis Molar
Spec Value 775 lbmole/hr.
Column Reflux Ratio
Tab In this cell... Enter...
Parameter Stage Condenser
Flow Basis Molar
Spec Value 16.4
 Figure P1.3
Run Column Solver icon
(green)
Hold Column Solver icon
(red)P1-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
P1-10 Results
ww
Th• Compositions Tab
• Energy Streams Tab
 Figure P1.4
 Figure P1.5P1-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Ethanol Plant C1-1
ww
ThC1 Ethanol PlantC1-1
C1.1  Process Description ..................................................................... 2
C1.2  Setup ........................................................................................... 5
C1.3  Steady State Simulation............................................................... 5
C1.3.1  Adding Streams ..................................................................... 5
C1.3.2  Installing Equipment............................................................... 6
C1.3.3  Draw Stream Location........................................................... 12
C1.4  Results....................................................................................... 13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C1-2 Process Description
ww
ThC1.1 Process Description
Typically, an ethanol fermentation process produces mainly
Ethanol plus small quantities of several by-products: methanol,
1-propanol, 2-propanol, 1-butanol, 3-methyl-1-butanol, 2-
pentanol, acetic acid, and CO2.
Ethanol and Water form an azeotropic mixture at 1 atm.
Therefore, with simple distillation, the ethanol and water
mixture can only be concentrated up to the azeotropic
concentration.
 Figure C1.1
To see this case completely solved, see your Aspen
HYSYS\Samples\ directory and open the C-2.hsc file.C1-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Ethanol Plant C1-3
ww
ThThe CO2 produced in the fermentation vessel carries some
ethanol. This CO2 stream is washed with water in a vessel (CO2
Wash) to recover the Ethanol, which is recycled to the
fermentor.
The Ethanol rich product stream from the fermentor is sent to a
concentration (Conc) tower. An absorber with a side vapour
draw can be used to represent this tower.
The top vapour is fed to a light purification tower (Lights) where
most of the remaining CO2 and some light alcohols are vented.
The bottom product of this light tower is fed to the Rectifier.
 Figure C1.2
 Figure C1.3C1-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C1-4 Process Description
ww
ThThe side vapour draw from the Concentrator is the main feed for
the Rectifier. The Rectifier is operated as a conventional
distillation tower. The product of this tower is taken from Stage
2 so to have an azeotropic ethanol product with a lesser
methanol contamination. Methanol concentrates towards the top
stages, so a small distillate draw is provided at the condenser.
Also, a small vent for CO2 is provided at the condenser.
Another factor of interest is the concentration of heavy alcohols
in the interior of the Rectifier. These alcohols are normally
referred to as Fusel oils, and a small side liquid draw is provided
in the Rectifier to recover these components.
 Figure C1.4
Fusel oils are a mixture of propanols, butanols, and
pentanols that have a potential value superior to that of
ethanol. Accumulation of fusel oils in the Rectification Tower
can cause the formation of a second liquid phase and
subsequent deterioration of performance for these trays, so
small side liquid draws of fusel oils are installed on the
rectifier to avoid this problem.C1-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Ethanol Plant C1-5
ww
ThThere are two general steps in this process simulation:
1. Setup. The NRTL property package and the UNIFAC VLE
estimation method will be used for this case. The
Components list includes Ethanol, H2O, CO2, Methanol,
Acetic Acid, 1- Propanol, 2-Propanol, 1-Butanol, 3-M-1-C4ol,
2-Pentanol and Glycerol.
2. Steady State Simulation. This case will use a separator,
two absorbers, a refluxed absorber and a distillation column.
C1.2 Setup
1. In the Session Preferences property view, set the unit set to
SI.
2. In the Component List property view, select the following
components: Ethanol, H2O, CO2, Methanol, Acetic Acid,
1- Propanol, 2-Propanol, 1-Butanol, 3-M-1-C4ol, 2-
Pentanol, and Glycerol.
3. In the Fluid Package property view, select NRTL as the
property package.
4. On the Binary Coeffs tab of the Fluid Package property
view, select the UNIFAC VLE radio button and click the
Unknowns Only button to estimate the missing interaction
parameters.
C1.3 Steady State
Simulation
C1.3.1 Adding Streams
Enter the Simulation environment and add the material streams
defined below.
Name Wash H2O FromFerm Steam A
In this cell... Enter... Enter... Enter...
Temperature [C] 25 30 140
Pressure [kPa] 101.3250 101.3250 101.3250
Molar Flow [kgmole/hr] 130 2400C1-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C1-6 Steady State Simulation
ww
ThC1.3.2 Installing Equipment
CO2 Vent Separator
The CO2Vent Separator separates the products from the
fermentor. The bottom liquid of the separator is sent to the
distillation section of the plant (Concentrator Tower), while the
overhead vapour goes to the CO2Wash Tower.
Install a Separator and make the connections shown below.
Mass Flow [kg/hr] 11000
Comp Mole Frac [Ethanol] 0.0000 0.0269 0.0000
Comp Mole Frac [H2O] 1.0000 0.9464 1.0000
Comp Mole Frac [CO2] 0.0000 0.0266 0.0000
Comp Mole Frac [Methanol] 0.0000 2.693e-05 0.0000
Comp Mole Frac [Acetic Acid] 0.0000 3.326e-06 0.0000
Comp Mole Frac [1-Propanol] 0.0000 9.077e-06 0.0000
Comp Mole Frac [2-Propanol] 0.0000 9.096e-06 0.0000
Comp Mole Frac [1-Butanol] 0.0000 6.578e-06 0.0000
Comp Mole Frac [3-M-1-C4ol] 0.0000 2.148e-05 0.0000
Comp Mole Frac [2-Pentanol] 0.0000 5.426e-06 0.0000
Comp Mole Frac [Glycerol] 0.0000 6.64e-06 0.0000
Once you have entered the Mole Fractions for the stream
FromFerm, the Mole Fractions will not add up to 1.00. Click
the Normalize button and the total Mole Fraction will equal
1.00.
SEPARATOR [CO2 Vent]
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlets FromFerm
Vapour Outlet To CO2Wash
Liquid Outlet Beer
Name Wash H2O FromFerm Steam AC1-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Ethanol Plant C1-7
ww
ThCO2 Wash Tower
Water is used to strip any Ethanol entrained in the off gas
mixture, thus producing an overhead of essentially pure CO2.
The bottom product from the tower is recycled to the Fermentor,
however, the recycle is not a concern in this example.
1. Before installing the column, select Preferences from the
Aspen HYSYS Tools menu.
2. On the Options page of the Simulation tab, ensure that
the Use Input Experts checkbox is selected, then close the
property view.
3. Install the CO2 Wash Tower as a simple Absorber.
4. Click the Run button in the Column property view to
calculate the CO2 Wash Tower product streams.
Absorber [CO2WASH]
Tab [Page] In this cell... Enter...
Connections No. of Stages 10
Top Stage Inlet Wash H2O
Bottom Stage Inlet To CO2Wash
Ovhd Vapour CO2 Stream
Bottoms Liquid To fermentor
Pressure
Profile
Top Stage 101.325 kPa
Bottom Stage 101.325 kPaC1-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C1-8 Steady State Simulation
ww
ThConcentrator
1. Install the Concentrator as an Absorber with a side vapour
draw.
2. Create and define the following specifications to fully specify
the column.
You might have to deactivate the default Rect Feed Rate
specification to converge the column.
3. Click the Run button in the Column property view to
calculate the Concentrator product streams.
Absorber [CONC]
Tab [Page] In this cell... Enter...
Connections No. of Stages 17
Top Stage Inlet Beer
Bottom Stage Inlet Steam A
Ovhd Vapour To Light
Bottoms Liquid Stillage A
Side Draw Vapour Rect Feed (Stage 6)
Pressure Profile Condenser 101.325 kPa
Reboiler 101.325 kPa
Temperature
Estimates
Condenser Temperature 90°C
Reboiler Temperature 110°C
Specifications
Tab [Page] In this cell... Enter...
Design [Specs] Comp Recovery
Draw
SpecValue
Component
Active
Rect Feed
0.95
Ethanol
Draw Rate 1
Draw
Flow Basis
Spec Value
Estimate
Rect Feed
Mass
5000 kg/h
Draw Rate 2
Draw
Flow Basis
Spec Value
Estimate
To_Light
Molar
1000 kgmole/hC1-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Ethanol Plant C1-9
ww
ThLights
1. Add the Lights Tower purification tower, modeled as a
Refluxed Absorber, and define as indicated below.
2. Delete the default Btms Prod Rate and Reflux Rate
specifications from the Column Specification group.
3. Add the following new column specifications (Design tab,
Specs page).
Refluxed Absorber [Lights]
Tab [Page] In this cell... Enter...
Connections No. of Stages 5
Bottom Inlet Streams To Light
Condenser Type Partial
Ovhd Vapour Light Vent
Ovhd Liquid 2ndEtOH
Bottoms Liquid To Rect
Cond. Energy CondDuty
Pressure Profile Condenser Pressure 101.325 kPa
Reboiler Pressure 101.325 kPa
Specifications
Tab [Page] In this cell... Enter...
Design [Specs] Vap Prod Rate
Draw
Flow Basis
Spec Value
Active
Light_Vent
Molar
1.6 kgmole/hr
Comp Fraction
Stage
Flow Basis
Phase
Spec Value
Component
Active
Condenser
Mass Fraction
Liquid
0.88
Ethanol
Reflux Ratio
Stage
Flow Basis
Spec Value
Estimate
Condenser
Molar
5.00
Distillate Rate
Draw
Flow Basis
Spec Value
Estimate
2ndEtOH
Molar
2.10 kgmole/hrC1-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C1-10 Steady State Simulation
ww
Th4. If required, click the Run button in the Column property
view to calculate the Light Tower product streams.
Rectifier
The primary product from a plant such as this would be the
azeotropic mixture of ethanol and water. The Rectifier serves to
concentrate the water/ethanol mixture to near azeotropic
composition. The Rectifier is operated as a conventional
distillation tower. It contains a partial condenser as well as a
reboiler.
1. Add the Rectifier column, modeled as a distillation tower, and
define it using the following information.
2. Delete the default Btms Prod Rate and Reflux Rate
specifications before adding the new specifications. Delete
all specifications that do not appear in the following table.
Column [RECT]
Tab [Page] In this cell... Enter...
Connections No. of Stages 29
Inlet Streams [Stage] To Rect [19],
Rect_Feed [22]
Condenser Type Partial
Ovhd Vapour Rect Vap
Ovhd Liquid Rect Dist
Bottoms Liquid Stillage B
Reboiler Energy Rect RebQ
Condenser Energy Rect CondQ
Side Draw Liquid [Stage] 1st Prod [2], Fusel [20]
Pressure Profile Condenser Pressure 101.325 kPa
Reboiler Pressure 101.325 kPa
Temperature
Estimates
Condenser 79°C
Reboiler 100°CC1-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Ethanol Plant C1-11
ww
Th3. Define the following specifications (Design tab, Specs
page). Also, set the damping factor to accelerate the
convergence.
4. Click the Run button to solve the column.
Specifications
Tab [Page] In this cell... Enter...
Design [Specs] Reflux Ratio
Stage
Flow Basis
Spec Value
Active
Condenser
Molar
7100
Ovhd Vap Rate
Draw
Flow Basis
Spec Value
Active
Rect_Vap
Molar
0.100 kgmole/hr
Draw Rate
Draw
Flow Basis
Spec Value
Active
Rect _Dist
Mass
2.00 kg/hr
Comp Frac
Stage
Flow Basis
Phase
Spec Value
Component
Active
2_Main TS
Mass Fraction
Liquid
0.95
Ethanol
Fusel Draw Rate
Draw
Flow Basis
Spec Value
Active
Fusel
Mass
3.00 kg/hr
1stProd Draw Rate
Draw
Flow Basis
Spec Value
Estimate
1stProd
Molar
68.00 kgmole/hr
Parameters [Solver] Damping Factor
Fixed
0.25
Azeotrope Check ONC1-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C1-12 Steady State Simulation
ww
ThC1.3.3 Draw Stream Location
The side liquid draw, Fusel, is added at stage 20. To determine if
this is an appropriate stage to recover the heavy alcohols, view
the stage-by-stage composition profile.
1. To examine this information, click the Parameters tab in
the Column property view.
2. Select the Estimates page. In this property view you can
see the Composition Estimates of each tray.
3. To view the 1-Propanol composition on Tray 20, scroll
through the group until you can see Tray 20 and the 1-
Propanol component.
Stage 20 has a high concentration of 1-Propanol (which has
the greatest concentration among the heavy alcohols).
Therefore, we have selected the appropriate stage for the
Fusel draw.
 Figure C1.5C1-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Ethanol Plant C1-13
ww
ThC1.4 Results
Workbook Case (Main)
• Material Streams Tab
 Figure C1.6C1-13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C1-14 Results
ww
Th• Compositions Tab
• Energy Streams Tab
 Figure C1.7
 Figure C1.8C1-14
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Synthesis Gas Production C2-1
ww
ThC2 Synthesis Gas
ProductionC2-1
C2.1  Process Description ..................................................................... 2
C2.2  Setup ........................................................................................... 4
C2.3  Steady State Simulation............................................................... 7
C2.3.1  Building the Flowsheet ............................................................ 8
C2.3.2  Installing Adjust Operations ................................................... 12
C2.4  Results....................................................................................... 14
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C2-2 Process Description
ww
ThC2.1 Process Description
The production of synthesis gas is an important part of the
overall process of synthesizing ammonia. The conversion of
natural gas into the feed for the ammonia plant is modeled
using three conversion reactions and an equilibrium reaction. To
facilitate the production of ammonia, the molar ratio of
hydrogen to nitrogen in the synthesis gas is controlled near 3:1.
This ratio represents the stoichiometric amounts of the
reactants in the ammonia process.
In a typical synthesis gas process, four reactors are needed.
This model requires five reactors since the conversion and
equilibrium reactions cannot be placed in the same reaction set
and thus cannot be placed in the same reactor. The Combustor
is separated into a conversion reactor and an equilibrium
reactor.
 Figure C2.1C2-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Synthesis Gas Production C2-3
ww
ThDesulfurized natural gas is the source of hydrogen in this
example, which is reformed in a conversion reactor (Reformer)
when combined with steam. Air is added to the second reactor
at a controlled flow rate such that the desired ratio of H2:N2 in
the synthesis gas is attained.
The oxygen from the air is consumed in an exothermic
combustion reaction while the inert nitrogen passes through the
system. The addition of steam serves the dual purpose of
maintaining the reactor temperature and ensuring that the
excess methane from the natural gas stream is consumed. In
the last two reactors, the water-gas shift equilibrium reaction
takes place as the temperature of the stream is successively
lowered.
There are two general steps in this process simulation:
1. Setup. In this step the Fluid package, Reaction sets and
Reaction components are selected. The Reaction Component
list includes CH4, H2O, CO, CO2, H2, N2 and O2.
2. Steady State Simulation. The case will be built in steady
state with the following key unit ops:
• Reformer. A conversion reactor in which most of the
methane is reacted with steam to produce hydrogen,
carbon monoxide and carbon dioxide.
• Combustor. A second conversion reactor, which takes
the product of the Reformer, an Air stream and a Comb.
Steam stream as the feeds to the reactor.
• Shift Reactors. A series of equilibrium reactors in which
the water gas shift reaction occurs.C2-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C2-4 Setup
ww
ThC2.2 Setup
1. In the Session Preferences property view, select Field unit
set for this application.
2. In the Component List property view, select the following
components: methane, water, carbon monoxide, carbon
dioxide, hydrogen, nitrogen, and oxygen.
3. In the Fluid Package property view, select the following
property package Peng-Robinson.
4. Go to the Rxns tab, and add the Global Rxn Set to the
current reaction sets.
Defining the Reactions
In this application, there are three conversion reactions and one
equilibrium reaction.
Conversion Reactions
The reforming reactions are as follows:
The combustion reaction is as follows:
Equilibrium Reaction
The water-gas shift reaction is as follows:
(C2.1)
(C2.2)
(C2.3)
(C2.4)
Refer to Chapter 5 -
Reactions in the Aspen
HYSYS Simulation
Basis guide for more
information about how to
define reactions and
reaction sets.
CH4 H2O+ CO 3H2+→
CH4 2H2O+ CO2 4H2+→
CH4 2O2+ CO2 2H2O+→
CO H2O+ CO2 H2+↔C2-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Synthesis Gas Production C2-5
ww
ThTo define the reaction:
1. In the Simulation Basis Manager property view, go to the
Reactions tab.
The reaction components are attached based on the
associated fluid package and are listed in the Rxn
Components group.
2. Add the two reforming reactions using the following data:
The Rxn Components group only shows the components
associated with the Fluid Package(s).
To add or edit components, select the Add Comps button.
The new components will automatically be added to any fluid
package that uses the reaction.
Reaction [Rxn-1]
Property View Type Conversion
Tab In this cell... Enter...
Stoichiometry Component (Stoich.
Coeff.)
Methane (-1)
Water (-1)
CO (1)
Hydrogen (3)
Basis Base Component Methane
Rxn Phase VaporPhase
Conversion 40% (Co)
Comments CH4 + H2O  CO + 3H2
Reaction [Rxn-2]
Property View Type Conversion
Tab In this cell... Enter...
Stoichiometry Component (Stoich.
Coeff.)
Methane (-1)
Water (-2)
CO2 (1)
Hydrogen (4)
Basis Base Component Methane
Rxn Phase VaporPhase
Conversion 30% (Co)
Comments CH4 + 2H2O  CO2 + 4H2C2-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C2-6 Setup
ww
Th3. Add the combustion reaction using the following data:
Aspen HYSYS contains a library of equilibrium reactions. To
add the equilibrium reaction:
4. On the Reactions property view, select Equilibrium and
click the Add Reaction button.
5. In the Equilibrium Reaction property view, go to the Library
tab, select CO + H2O = CO2 + H2, and click the Add
Library Rxn button.
Aspen HYSYS provides the equilibrium data and all other
pertinent information for the reaction.
Defining Reaction Sets
In Aspen HYSYS, each reactor operation may have only one
reaction set attached to it, however, a reaction may appear in
multiple reaction sets. In this case, you only have to provide
three reaction sets for all five reactors.
1. On the Reactions tab of the Simulation Basis Manager
property view, click the Add Set button to add new reaction
sets. Define the following reactions sets:
Reaction [Rxn-3]
Property View Type Conversion
Tab In this cell... Enter...
Stoichiometry Component (Stoich.
Coeff.)
Methane (-1)
Oxygen (-2)
CO2 (1)
Water (2)
Basis Base Component Methane
Rxn Phase VaporPhase
Conversion 100%
Comments CH4 + 2O2  CO2 + 2H2O
Reaction Set Name Active Reactions
Reformer Rxn Set Rxn-1, Rxn-2
Combustor Rxn Set Rxn-1, Rxn-2, Rxn-3
Shift Rxn Set Rxn-4C2-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Synthesis Gas Production C2-7
ww
ThIn the table of reaction sets, RXN-1 and RXN-2 appear in
both the first and second reaction sets.
To attach the reaction sets to the Fluid Package:
2. On the Reactions tab of the Simulation Basis Manager,
select a Reaction Set and click the Add to FP button.
3. In the Add property view, select a fluid package from the list
and click the Add Set to Fluid Package button. Repeat the
procedure for the other two reaction sets.
C2.3 Steady State
Simulation
Installing Streams
Here you will define the two feed streams to the first reactor
(Natural Gas and Reformer Steam). The Comb. Steam stream
and the Air stream will also be defined. The pressures of the
steam and air streams will be specified later using SET
operations. Install and define the streams as indicated.
Name Natural Gas Reformer Steam Air Comb. Steam
Temperature[F] 700.0 475.0 60.0 475.0
Pressure [psia] 500.0
Molar Flow [lbmole/hr] 200.0 520.0 200.0** 300.0**
Comp Mole Frac [CH4] 1.0000 0.0000 0.0000 0.0000
Comp Mole Frac [H2O] 0.0000 1.0000 0.0000 1.0000
Comp Mole Frac [CO] 0.0000 0.0000 0.0000 0.0000
Comp Mole Frac [CO2] 0.0000 0.0000 0.0000 0.0000
Comp Mole Frac [H2] 0.0000 0.0000 0.0000 0.0000
Comp Mole Frac [N2] 0.0000 0.0000 0.7900 0.0000
Comp Mole Frac [O2] 0.0000 0.0000 0.2100 0.0000
COMMENTS: ** signifies initialized values; the molar flows of Air and Comb. Steam will be
manipulated by Adjust-2 and Adjust-1 respectively.C2-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C2-8 Steady State Simulation
ww
ThC2.3.1 Building the Flowsheet
Set Operations
Install the following Set operations to specify the pressures of
the steam and air streams. Install these before installing the
Reformer so the reactor is calculated when you install it.
An alternative method for setting the steam and air
pressures is to import the Natural Gas pressure to a
Spreadsheet, copy the value for each of the other streams
and export the copied values to the streams.
Set [SET-1]
Tab In this cell... Enter...
Connections Target Object Reformer Steam
Target Variable Pressure
Source Object Natural Gas
Parameters Multiplier 1
Offset 0
Set [SET-2]
Tab In this cell... Enter...
Connections Target Object Comb. Steam
Target Variable Pressure
Source Object Natural Gas
Parameters Multiplier 1
Offset 0
Set [SET-3]
Tab In This Cell... Enter
Connections Target Object Air
Target Variable Pressure
Source Object Natural Gas
Parameters Multiplier 1
Offset 0C2-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Synthesis Gas Production C2-9
ww
ThInstalling the Reformer
The Reformer is a conversion reactor in which most of the
methane is reacted with steam to produce hydrogen, carbon
monoxide, and carbon dioxide. The outlet gas will also contain
the unreacted methane and excess water vapour from the
steam. The overall conversion of the two reactions in the
Reformer is 70%. Rxn-1, which produces carbon monoxide and
hydrogen, has a conversion of 40%, while Rxn-2 has a
conversion rate of 30%.
The two reforming reactions are endothermic, so heat must be
supplied to the reactor to maintain the reactor temperature.
Specify the temperature of the outlet stream, Combustor Feed,
at 1700 °F, so that Aspen HYSYS will calculate the required
duty.
Install the reactor and define it as indicated below.
Conversion Reactor [Reformer]
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlets Natural Gas
Reformer Steam
Vapour Outlet Combustor Feed
Liquid Outlet Reformer Liq
Energy Reformer Q
Design [Parameters] Optional Heat Transfer Heating
Worksheet
[Conditions]
Combustor Feed
Temperature
1700 °F
Reactions [Details] Reaction Set Reformer Rxn Set
Comments CH4 + H2O  CO + 3H2
CH4 + 2H2O  CO2 + 4H2C2-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C2-10 Steady State Simulation
ww
ThInstalling the Combustor
The Combustor is the second conversion reactor. The feed
streams for the Combustor include the Reformer product, Air
stream and Comb. Steam streams. The air stream is the source
of the nitrogen for the required H2:N2 ratio in the synthesis end
product. The oxygen in the air is consumed in the combustion of
methane. Any remaining methane in the Combustor is
eliminated by this reaction.
Aspen HYSYS automatically ranks the three reactions in the
Combustor Rxn Set. Since H2O is a reactant in the combustion
reaction (Rxn-1) and is a product in the two reforming reactions
(Rxn-2 and Rxn-3), Aspen HYSYS provides a lower rank for the
combustion reaction. An equal rank is given to the reforming
reactions. With this ranking, the combustion reaction proceeds
until its specified conversion is met or a limiting reactant is
depleted. The reforming reactions then proceed based on the
remaining methane.
Install the Combustor and define it as indicated below.
This reactor is adiabatic, so there is no energy stream and
you do not have to specify the outlet temperature.
Conversion Reactor [Combustor]
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlets Combustor Feed
Air
Comb. Steam
Vapour Outlet Mid Combust
Liquid Outlet Mid Liq
Reactions
[Details]
Reaction Set Combustor Rxn Set
Rxn-1 Conversion 35%
Rxn-2 Conversion 65%
Rxn-3 Conversion 100%
Comments CH4 + H2O  CO + 3H2
CH4 + 2H2O  CO2 + 4H2
CH4 + 2O2   CO2 + 2H2OC2-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Synthesis Gas Production C2-11
ww
ThShift Reactors
The three shift reactors are all equilibrium reactors within which
the water-gas shift reaction occurs. In the Combustor Shift
reactor, the equilibrium shift reaction takes place and would
occur with the reactions in the Combustor. A separate reactor
must be used in the model because equilibrium and conversion
reactions cannot be combined within a reaction set.
Install the following three equilibrium reactors as shown below:
Reactions of equal ranking can have an overall specified
conversion between 0% and 100%.
Equilibrium Reactor [Combustor Shift]
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlets Mid Combust
Vapour Outlet Shift1 Feed
Liquid Outlet Mid Com Liq
Reactions [Details] Reaction Set Shift Rxn Set
Comments Reaction: CO + H2O  CO2 + H2
Equilibrium Reactor [Shift Reactor 1]
Tab [Page] In this cell... Enter...
Design [Connections] Inlets Shift1 Feed
Vapour Outlet Shift2 Feed
Liquid Outlet Shift1 Liq
Energy Shift1 Q
Design [Parameters] Optional Heat Transfer Cooling
Worksheet [Conditions] Shift2 Feed Temperature 850°F
Reactions [Details] Reaction Set Shift Rxn Set
Comments Reaction: CO + H2O  CO2 + H2
Equilibrium Reactor [Shift Reactor 2]
Tab [Page] In this cell... Enter...
Design
[Connections]
Feeds Shift2 Feed
Vapour Outlet Synthesis Gas
Liquid Outlet Shift2 Liq
Energy Shift2 QC2-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C2-12 Steady State Simulation
ww
ThC2.3.2 Installing Adjust
Operations
Steam flow Rate
To control the temperature of the combustion reaction, the flow
rate of steam to the Combustor is adjusted. Since the
Combustor is modeled as two separate reactors, the
temperature of the equilibrium reactor (Combustor Shift) is
targeted.
An ADJUST operation is used to manipulate the Comb. Steam
flow rate to maintain the Combustor Shift temperature at
1700°F.
The same Adjust could be accomplished by selecting the
temperature of the stream Shift1 Feed.
Design [Parameters] Optional Heat Transfer Cooling
Worksheet
[Conditions]
Synthesis Gas Temperature 750°F
Reactions [Details] Reaction Set Shift Rxn Set
Comments Reaction: CO + H2O  CO2 + H2
Adjust [ADJ-1]
Tab In this cell... Enter...
Connections Adjusted Object Comb. Steam
Adjusted Variable Molar Flow
Target Object Combustor Shift
Target Variable Vessel Temp.
Spec. Target Value 1700°F
Parameters Method Secant
Tolerance 0.1°F
Step Size 50 lbmole/hr
Maximum Iterations 25
Equilibrium Reactor [Shift Reactor 2]
Tab [Page] In this cell... Enter...C2-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Synthesis Gas Production C2-13
ww
ThClick the Start button to begin the Adjust operation.
Air Flow Rate
To control the H2:N2 molar ratio in the Synthesis Gas stream,
calculate the ratio in a Spreadsheet and then use an Adjust
operation. The Synthesis Gas should have an H2:N2 molar ratio
slightly greater than 3:1. Prior to entering the ammonia plant,
hydrogen is used to rid the synthesis gas of any remaining CO
and CO2.
1. Create a Spreadsheet and change the Spreadsheet Name to
SSRatio. Import the following variables:
• Synthesis Gas, Comp. Molar Flow, Hydrogen
• Synthesis Gas, Comp. Molar Flow, Nitrogen
2. Assign the Hydrogen value to cell B1, and the Nitrogen value
to cell B2.
3. In cell B4, calculate the H2:N2 ratio using the following
formula:
+B1[cell that contains flow of H2]/B2[cell that contains flow of N2]
The Spreadsheet tab of the Spreadsheet property view
should appear similar to the following.
4. Click the Parameters tab and define the Variable name for
the B4 cell as H2:N2 Ratio.
 Figure C2.2C2-13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C2-14 Results
ww
Th5. Install the Adjust operation as shown below.
6. Click the Start button to begin the Adjust operation.
The Secant method is used for both Adjust operations even
though each adjusted variable will have an effect on the
other operation's target variable. The close proximity of the
logical operations in the flowsheet increases the possibility of
cycling behaviour if the Simultaneous method is used.
Therefore, it is advantageous to attempt to iterate on one
Adjust and then solve the other.
C2.4 Results
Go to the Workbook in the main simulation environment to
check the calculated results.
• Energy Streams Tab
Adjust [ADJ-2]
Tab In this cell... Enter...
Connections Adjusted Variable Air Molar Flow
Target Variable SSRatio, B4: H2:N2 Ratio
Spec. Target Value 3.05
Parameters Method Secant
Tolerance 0.005 lbmole/hr
Step Size 39.68 lbmole/hr
Maximum Iterations 20
 Figure C2.3C2-14
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Synthesis Gas Production C2-15
ww
Th• Material Streams Tab
• Compositions Tab
 Figure C2.4
 Figure C2.5C2-15
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C2-16 Results
ww
ThC2-16
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Case Linking X1-1
ww
ThX1 Case LinkingX1-1
X1.1  Process Description ..................................................................... 2
X1.2  Building Flowsheet 1.................................................................... 4
X1.2.1  Setup ................................................................................... 4
X1.2.2  Installing Streams .................................................................. 4
X1.2.3  Installing Unit Operations ........................................................ 5
X1.3  Building Flowsheet 2.................................................................... 7
X1.3.1  Setup ................................................................................... 7
X1.3.2  Installing Unit Operations ........................................................ 8
X1.4  Creating a User Unit Operation .................................................. 10
X1.4.1  Initializing the User Unit Op ................................................... 11
X1.4.2  Operation Execution.............................................................. 13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
X1-2 Process Description
ww
ThX1.1 Process Description
This example uses the User Unit Operation to link two Aspen
HYSYS cases together such that changes made to the first case
(LinkCase1) are automatically and transparently propagated to
the second (LinkCase2). This application demonstrates a
method for copying the contents of a stream from one case to
another automatically.
The User Unit Op is pre-configured with Visual Basic™ code.
Inside the User Unit Op you will define two subroutines:
• Initialize() macro. The Initialize() macro sets the field
names for the various stream feed and product
connections and creates the following two text user
variables:
- LinkCase contains the path and file name of the
target case to be linked. If the variable contains no
value, the Initialize() code will set it to be the path to
the currently open case and the file name
LinkCase2.hsc.
- LinkStream names a stream in the second case that
will have the T, P, Flow and composition copied to it
from the User Unit Op’s feed stream. The target case
and stream may optionally be changed explicitly from
the Variables page of the User Unit Op.
 Figure X1.1X1-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Case Linking X1-3
ww
Th• Execute() macro. The Execute() macro uses the
GetObject method to open the target link case, which will
initially be hidden. It then attempts to locate the material
stream named by the LinkStream variable in the target
case. If a stream is attached to the Feeds1 nozzle of the
User Unit Op, the stream conditions and compositions
are then copied between the streams.
Also, the definition of User Unit Op usually involves the
definition of three macros:
• Initialize()
• Execute()
• StatusQuery()
For this example, the StatusQuery() macro is commented-
out to avoid the overhead of having that macro called.
Removing the StatusQuery() code entirely would accomplish
the same thing, but it is highly recommended that
StatusQuery() be implemented to provide valuable user
feedback. This implementation is left as an exercise for the
user.
All the stream names are in lower case.
The use of the DuplicateFluid method to copy the stream
parameters requires identical property packages in both
simulation cases. The example code instead uses a technique
of explicitly copying T and P and then searches for
components by name in order to copy their molar flow.
Components that are not available in the target case are
ignored.X1-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
X1-4 Building Flowsheet 1
ww
ThX1.2 Building Flowsheet 1
X1.2.1 Setup
1. In the Session Preferences property view, set the unit set to
SI.
2. In the Component List property view, select the following
components: C1, C2, C3, and i-C4.
3. In the Fluid Package property view, define a Peng Robinson
Stryjek Vera (PRSV) property package.
X1.2.2 Installing Streams
Specify streams feed and cold_liq2 as shown.
Stream Name feed cold_liq2
In this cell... Enter... Enter...
Temperature [C] 11 -98
Pressure [kPa] 5066 152
Molar Flow [kgmole/h] 100 7.5
Comp Mole Frac [C1] 0.5333 0.0388
Comp Mole Frac [C2] 0.2667 0.4667
Comp Mole Frac [C3] 0.1333 0.3883
Comp Mole Frac [i-C4] 0.0667 0.1062X1-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Case Linking X1-5
ww
ThX1.2.3 Installing Unit
Operations
Enter the Simulation Environment and add the following unit
operations to the flowsheet.
Add Separators
Separator Name V-100
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlet feed
Vapour Outlet feed_vap
Liquid Outlet feed_liq
Design [Parameters] Delta P 0 kPa
Separator V-101
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlet precooled
Vapour Outlet cooled_vap
Liquid Outlet cooled_liq
Design [Parameters] Delta P 0 kPa
Separator V-102
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlet expanded
Vapour Outlet cold_vap
Liquid Outlet cold_liq
Design [Parameters] Delta P 0 kPaX1-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
X1-6 Building Flowsheet 1
ww
ThAdd a Heat Exchanger
Add an Expander

Add a Compressor

Heat Exchanger Name E-100
Tab [Page] In this cell... Enter...
Design [Connections] Tube Side Inlet feed_vap
Tube Side Outlet precooled
Shell Side Inlet cold_liq2
Shell Side Outlet rich gas
Design [Parameters] Heat Exchanger Model Exchanger Design
(End Point)
Heat Leak/Loss none
Tube Side Delta P 15 kPa
Shell Side Delta P 15 kPa
UA 4000 KJ/C-h
Rating [Sizing] First Tube Pass Flow Counter
Expander Name K-100
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlet cooled_vap
Outlet expanded
Energy shaft work
Design
[Parameters]
Efficiency (Adiabatic) 75%
Worksheet
[Conditions]
Pressure (stream: expanded) 152 kPa
Compressor Name K-101
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlet cold_vap
Outlet compressed
Energy shaft work
Design [Parameters] Efficiency (Adia) 75%X1-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Case Linking X1-7
ww
ThAdd a Recycle Operation
The case should converge immediately.
Save the case as LinkCase1.hsc.
X1.3 Building Flowsheet 2
X1.3.1 Setup
Now you will create the target case for the linked case.
1. In the Session Preferences property view, set the unit set to
SI.
2. In the Component List property view, select the following
components: C1, C2, C3, i-C4, and H2O.
3. In the Fluid Package property view, define a Peng Robinson
Stryjek Vera (PRSV) property package.
Recycle RCY-1
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlet cold_liq
Outlet cold_liq2X1-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
X1-8 Building Flowsheet 2
ww
ThX1.3.2 Installing Unit
Operations
Enter the Simulation Environment and enter the following unit
operations.
Add Compressors
Add Heat Exchangers
Compressor Name K-100
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlet compressed
Outlet hot33atm
Energy q1
Design [Parameters] Efficiency (Adia) 75%
Worksheet
[Conditions]
Pressure (stream: hot33atm) 3344.725 kPa
K-101
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlet cool33atm
Outlet hot100atm
Energy q2
Design [Parameters] Efficiency (Adia) 75%
Worksheet
[Conditions]
Pressure (stream: hot100atm) 10150 kPa
Heat Exchanger Name E-100
Tab [Page] In this cell... Enter...
Design [Connections] Tube Side Inlet hot33atm
Tube Side Outlet cool33atm
Shell Side Inlet wtr1
Shell Side Outlet wtr1bX1-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Case Linking X1-9
ww
ThAdd a Tee
Once you have completed specifying this flowsheet, save the
case as LinkCase2.hsc and close it.
Design [Parameters] Heat Exchanger Model Exchanger Design (End
Point)
Tube Side Delta P 15 kPa
Shell Side Delta P 15 kPa
Calculate Ft Factor Clear
Rating [Sizing] First Tube Pass Flow Direction Counter
Worksheet [Conditions] Temperature (stream: cool33atm) 17°C
Temperature (stream: wtr1b) 25°C
Heat Exchanger E-101
Tab [Page] In this cell... Enter...
Design [Connections] Tube Side Inlet hot100atm
Tube Side Outlet sales
Shell Side Inlet wtr2
Shell Side Outlet wtr2b
Design [Parameters] Heat Exchanger Model Exchanger Design (End
Point)
Tube Side Delta P 15 kPa
Shell Side Delta P 15 kPa
Calculate Ft Factor Clear
Rating [Sizing] First Tube Pass Flow Direction Counter
Worksheet
[Conditions]
Temperature (stream: sales) 20°C
Temperature
(stream: wtr2b)
25°C
Heat Exchanger Name E-100
Tab [Page] In this cell... Enter...
Tee T-100
Tab [Page] In this cell... Enter...
Design
[Connections]
Inlet cooling water
Outlet wtr2, wtr1
Worksheet
[Conditions]
Temperature (stream: cooling water) 11°C
Pressure (stream: cooling water) 202.6 kPa
Worksheet
[Composition]
H2O (stream: cooling water) 1.0000X1-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
X1-10 Creating a User Unit Operation
ww
ThX1.4 Creating a User Unit
Operation
Now that both cases have been created, you can create the link
between them.
1. Open LinkCase1.hsc.
2. Add a User Unit Op to the flowsheet. When you add a Unit
Op, Aspen HYSYS asks you for the type. Click the Create
Type button, then type Case Linking in the input field and
click the OK button.
Next you will define the User Unit Op. Defining the User Unit
Op involves writing two different subroutines.
• Initialize. Defines material and energy feed/product
streams and creates user variables.
• Execute. Opens the target case, finds the target stream
and copies the stream conditions from the main case.
3. In the User Unit Op property view, Design tab, select the
Code page.
4. Click the Edit button. The Edit Existing Code property view
appears.X1-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Case Linking X1-11
ww
ThX1.4.1  Initializing the User
Unit Op
The following table contains a listing of the code required to
implement this operation, along with a brief description of what
the code means. Partitions placed in the code are made only to
clearly associate the relevant code with the explanation. Also,
indentations made in the code are common with standard
programming practices.
Code Explanation
Sub Initialize () Signifies the Start of the initialization
subroutine. You do not have to add it as it
should already be there.
On Error GoTo Catch
' Preparing the interface
ActiveObject.Feeds1Name = "Feed"
ActiveObject.Products1Name = "Unused
Prod1"
ActiveObject.Feeds2Name = "Unused Feed2"
ActiveObject.Products2Name = "Unused
Prod2"
If an error occurs during the execution of this
subroutine, go to the line designated ‘Catch’.
Sets the names that will be associated with
the energy and material (primary and
secondary) inlet and exit connections.
ActiveObject.Feeds2Active = False
ActiveObject.Products2Active = False
ActiveObject.EnergyFeedsActive = False
ActiveObject.EnergyProductsActive = False
Deactivates the secondary inlet and exit
connections as well as the energy inlet and
exit connections. After the initialization
subroutine has been successfully
implemented, the checkboxes associated with
the secondary material connections and
energy connections should be deactivated as
shown in the figure above.
' Adding user variables
Dim LinkCase As Object ' This UV will hold
the Linked case name
Set LinkCase =
ActiveObject.CreateUserVariable("LinkCas
e", "LinkCase", uvtText, utcNull,0)
Creates a text user variables called LinkCase.
This will appear on the Variables page of the
Design tab along with the current values. This
variable holds the path and name of the
linked case.X1-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
X1-12 Creating a User Unit Operation
ww
Th1. Once this code is entered, press the OK button to close the
Edit Existing Code property view.
2. On the Code page of the Design tab, click the Initialize
button.
3. Select the Connections page of the Design tab. It should
contain their new designations.
4. Select the Variables page. The LinkCase should contain the
case LinkCase2, including the path. The LinkStream variable
should contain ‘feed’.
5. Select the Connections page. If the feed drop-down list is
empty, the value of LinkStream variable (Variables page)
should be ‘feed’.
Dim LinkStream As Object ' This UV will
hold the Linked stream name
Set LinkStream =
ActiveObject.CreateUserVariable("LinkStr
eam", "LinkStream", uvtText, utcNull,0)
Creates a text user variables called
LinkStream. This will appear on the
Variables page of the Design tab along with
the current values. This variable holds the
name of the stream to link to.
LinkCase.Variable.Value =
ActiveObject.SimulationCase.Path &
"LinkCase2.hsc"
This sets the linked case path to be the same
as the current case and sets the name to
‘LinkCase2.hsc’.
Dim myFeeds As Object
Set myFeeds = ActiveObject.Feeds1
Declares the ‘myFeeds’ variable and sets it to
the feed streams collection of the operation.
' Check if a stream name is already
defined
If Not LinkStream.Variable.IsKnown Then
Checks if a linked stream name is already
defined.
If myFeeds.Count > 0 Then
LinkStream.Variable.Value =
myFeeds.Item(0).name
If a feed stream is connected to the unit
operation, use that stream name as the linked
stream name.
else
LinkStream.Variable.Value = "feed"
end if
end if
If no stream is connected as feed, use the
default listed stream name of ‘feed’.
Exit Sub
Catch:
MsgBox "Initialize Error"
End Sub Signifies the end of the initialization
subroutine. This line does not need to be
added.
Code ExplanationX1-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Case Linking X1-13
ww
ThX1.4.2 Operation Execution
1. Enter the following code in the Execution code section of the
Edit Existing Code property view:
Code Explanation
Sub Execute () Signifies the Start of the operation execution
subroutine. You do not have to add this line
as it should already be there.
On Error Goto EarlyGrave If an error occurs during the execution of this
subroutine, go to the line of code designated
‘EarlyGrave’.
Dim Status As String
Dim LinkCase As Object
Set LinkCase =
ActiveObject.GetUserVariable("LinkCase")
Dim LinkStream As Object ' This UV will
hold the Linked stream name
Set LinkStream =
ActiveObject.GetUserVariable("LinkStream
")
Connects the variables LinkCase and
LinkStream to their corresponding user
variables.
Dim myFeeds As Object
Set myFeeds = ActiveObject.Feeds1
if myFeeds.Count <>1 Then
Exit Sub
end if
If the number of streams specified in the Feed
list is not 1 then exit the subroutine.
Dim Case2 As Object
Set Case2 =
GetObject(LinkCase.Variable.Value)
Creates a reference to the LinkCase user
variable called Case2.
Dim Case2FS As Object
Set Case2FS = Case2.Flowsheet
Creates a reference to the flowsheet inside
Case2 (LinkCase) called Case2FS.
Dim Case1FS As Object
Set Case1FS = ActiveObject.Flowsheet
Creates a reference to the current flowsheet
called Case1FS.
Dim Case2Strm As Object
Set Case2Strm =
Case2FS.MaterialStreams.Item(CStr(LinkSt
ream.Variable.Value))
Creates a reference to a stream in the other
case. The stream’s name is the value of the
user variable LinkStream.
Dim Case1Strm As Object
Set Case1Strm = myFeeds.Item(0)
Creates a reference to stream currently in the
primary feed list.
Case2Strm.TemperatureValue =
Case1Strm.TemperatureValue
Case2Strm.PressureValue =
Case1Strm.PressureValue
Sets the Temperature and Pressure values of
Case2Strm to those of Case1Strm. X1-13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
X1-14 Creating a User Unit Operation
ww
Th2. When you are finished entering the code, activate the
property view by selecting the ‘compressed’ stream as the
Feed on the Connections page of the Design tab.
3. Go to the Variables page to ensure that the LinkStream
stream name is also ‘compressed’.
Dim Case1CMFs As Variant
Case1CMFs =
Case1Strm.ComponentMolarFlowValue
Creates an array containing the molar flow of
Case1Strm. Note that Set was not used so
changes made to Case1CMFs will not affect
Case1Strm.
Dim Case2CMFs As Variant
Case2CMFs =
Case2Strm.ComponentMolarFlowValue
Creates an array containing the molar flow of
Case2Strm. Note that Set was not used so
changes made to Case2CMFs will not affect
Case2Strm.
On Error GoTo NoComp
Dim Comp As Object
i = 0
For Each Comp In
Case2FS.FluidPackage.Components
Case2CMFs(i) = 0.0
CompName = Comp.name
n =
Case1FS.FluidPackage.Components.index(Co
mpName)
Case2CMFs(i) = Case1CMFs(n)
NoComp:
i = i +1
Next Comp
For every component i in the Case2FS, you
set the molar flow of component i in the
Case2CMFs array to the flow of the same
component in Case1CMFs array.
On Error GoTo EarlyGrave
Case2Strm.ComponentMolarFlowValue =
Case2CMFs
This passes the value of Case2CMFs to the
Case2Strm.
ActiveObject.SolveComplete Signifies the Unit Operation has solved. It is
used to minimize the number of times the
User Unit Op’s Execute() is called.
Exit Sub
EarlyGrave:
MsgBox "Execute Error"
End Sub Signifies the end of the initialization
subroutine. This line does not need to be
added.
Code Explanation
The Unit Op will not appear ‘solved’ on the flowsheet, even
though it is. This is because Aspen HYSYS expects it to have
a fully defined product stream.X1-14
