The document is forAspen HYSYS      Simulation Basis    EMail:cadserv21@hotmail.com
 study only,if tort to your rights,please inform us,we will delete
www.c

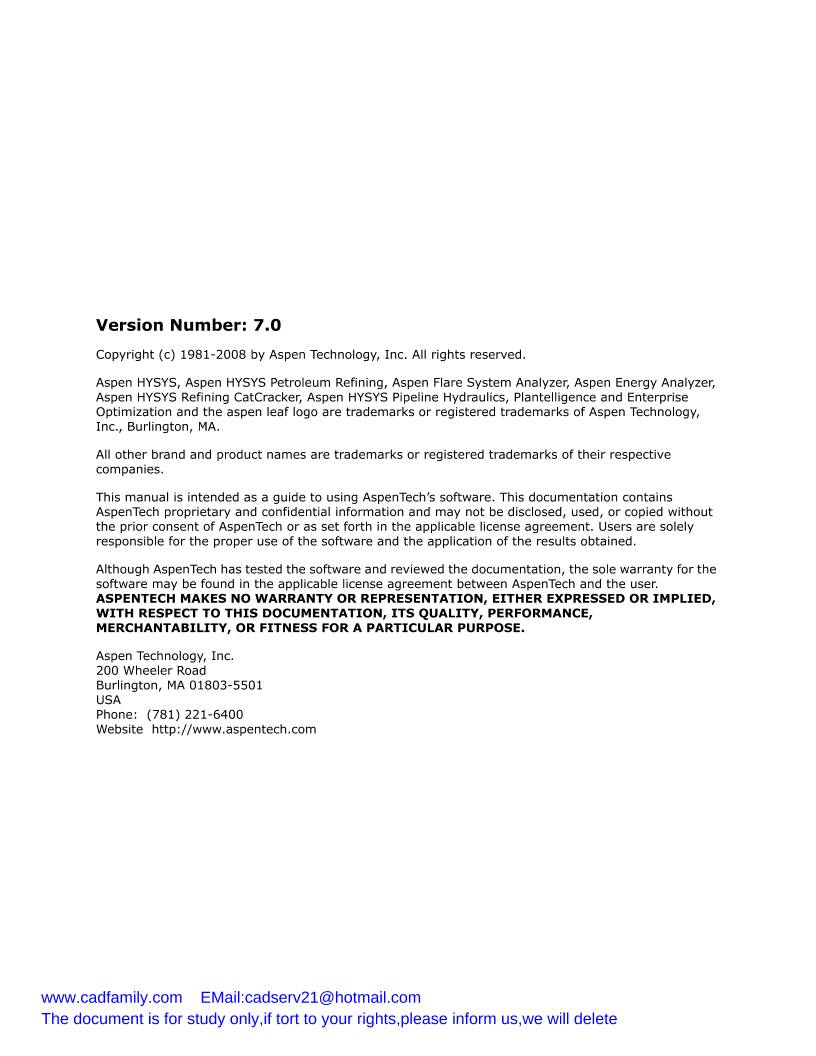

The doVersion Number: 7.0
Copyright (c) 1981-2008 by Aspen Technology, Inc. All rights reserved.
Aspen HYSYS, Aspen HYSYS Petroleum Refining, Aspen Flare System Analyzer, Aspen Energy Analyzer,
Aspen HYSYS Refining CatCracker, Aspen HYSYS Pipeline Hydraulics, Plantelligence and Enterprise
Optimization and the aspen leaf logo are trademarks or registered trademarks of Aspen Technology,
Inc., Burlington, MA.
All other brand and product names are trademarks or registered trademarks of their respective
companies.
This manual is intended as a guide to using AspenTech’s software. This documentation contains
AspenTech proprietary and confidential information and may not be disclosed, used, or copied without
the prior consent of AspenTech or as set forth in the applicable license agreement. Users are solely
responsible for the proper use of the software and the application of the results obtained.
Although AspenTech has tested the software and reviewed the documentation, the sole warranty for the
software may be found in the applicable license agreement between AspenTech and the user.
ASPENTECH MAKES NO WARRANTY OR REPRESENTATION, EITHER EXPRESSED OR IMPLIED,
WITH RESPECT TO THIS DOCUMENTATION, ITS QUALITY, PERFORMANCE,
MERCHANTABILITY, OR FITNESS FOR A PARTICULAR PURPOSE.
Aspen Technology, Inc.
200 Wheeler Road
Burlington, MA 01803-5501
USA
Phone:  (781) 221-6400
Website  http://www.aspentech.comadfamily.com    EMail:cadserv21@hotmail.com
cument is for study only,if tort to your rights,please inform us,we will delete
www.c
The doadfamily.com    EMail:cadserv21@hotmail.com
cument is for study only,if tort to your rights,please inform us,we will delete
 v
ww

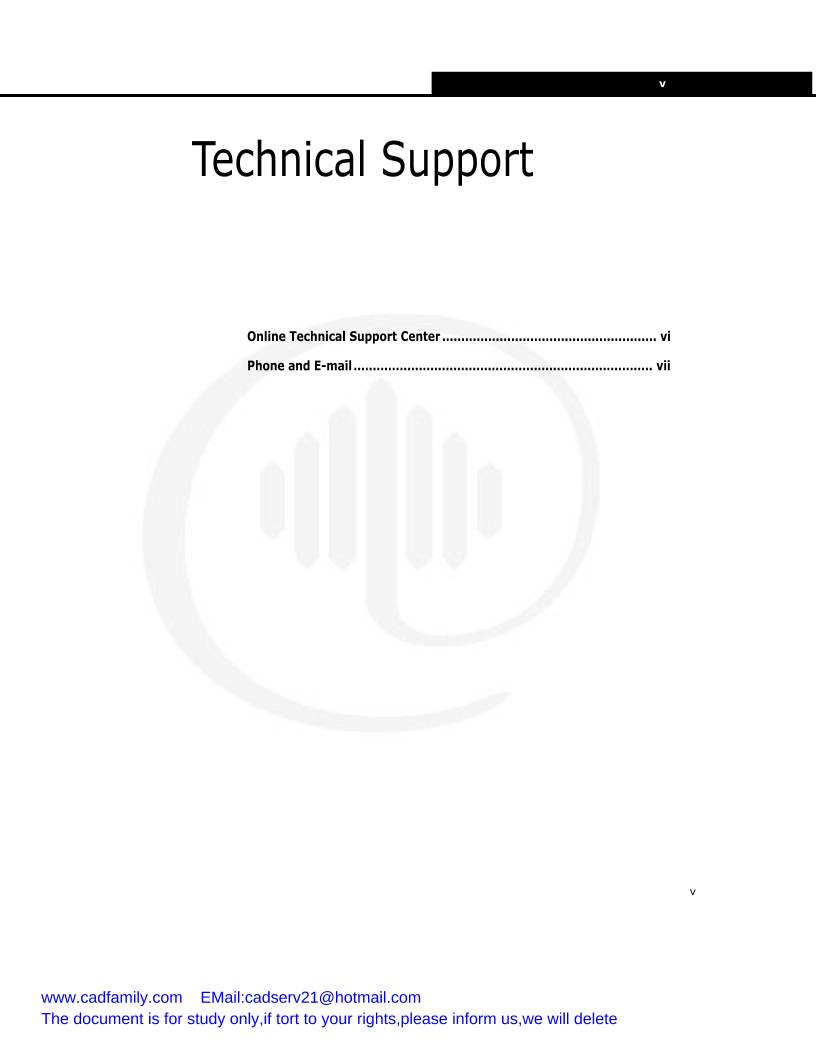

ThTechnical Supportv
  Online Technical Support Center ........................................................ vi
  Phone and E-mail .............................................................................. vii
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
 vi
ww

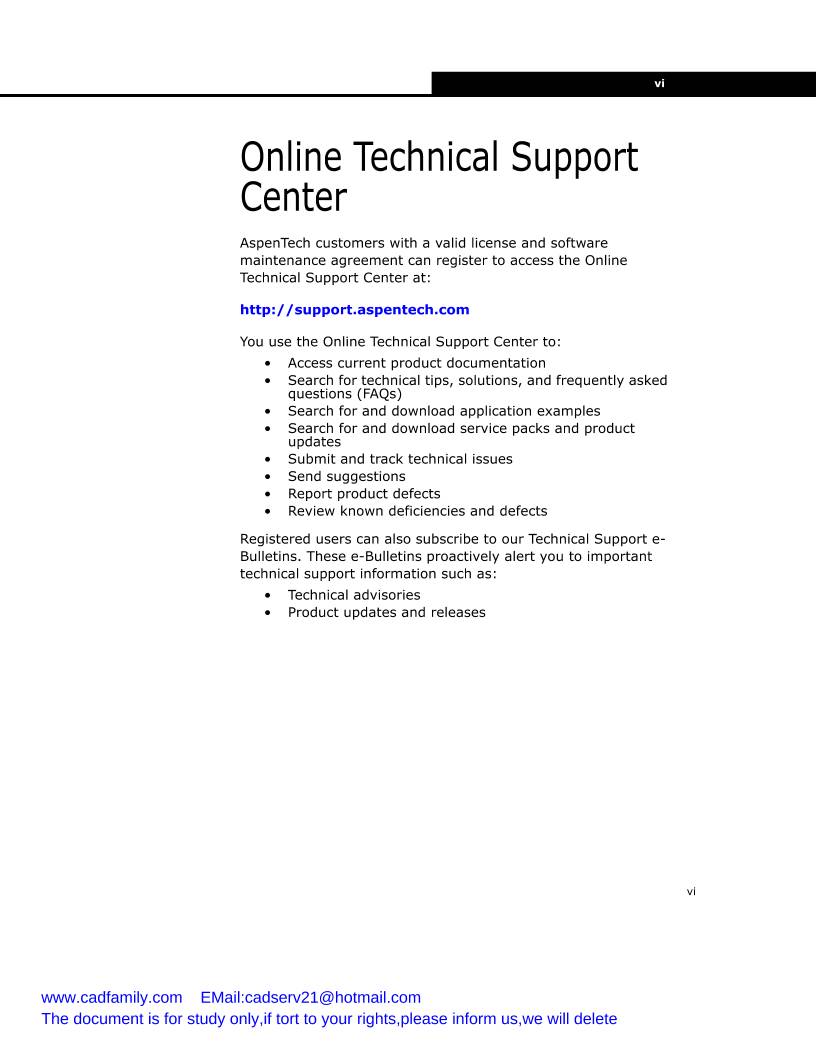

ThOnline Technical Support
Center
AspenTech customers with a valid license and software
maintenance agreement can register to access the Online
Technical Support Center at:
http://support.aspentech.com
You use the Online Technical Support Center to:
• Access current product documentation
• Search for technical tips, solutions, and frequently asked
questions (FAQs)
• Search for and download application examples
• Search for and download service packs and product
updates
• Submit and track technical issues
• Send suggestions
• Report product defects
• Review known deficiencies and defects
Registered users can also subscribe to our Technical Support e-
Bulletins. These e-Bulletins proactively alert you to important
technical support information such as:
• Technical advisories
• Product updates and releasesvi
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
 vii
ww
ThPhone and E-mail
Customer support is also available by phone, fax, and e-mail for
customers who have a current support contract for their
product(s). Toll-free charges are listed where available;
otherwise local and international rates apply.
For the most up-to-date phone listings, please see the Online
Technical Support Center at:
http://support.aspentech.comvii
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
 viii
ww
Thviii
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
www.c
The doTable of Contents
Technical Support..................................................... v
Online Technical Support Center ............................vi
Phone and E-mail................................................ vii
Aspen HYSYS Thermodynamics .............................. vii
1  Components .........................................................1-1
1.1 Introduction .................................................... 1-2
1.2 Component List Property View ........................... 1-4
2  Fluid Package .......................................................2-1
2.1 Introduction .................................................... 2-2
2.2 Fluid Packages Tab........................................... 2-3
2.3 Adding a Fluid Package - Example ...................... 2-5
2.4 Aspen HYSYS Fluid Package Property View........... 2-7
2.5 COMThermo Property View ...............................2-95
2.6 References ...................................................2-121
3  Hypotheticals .......................................................3-1
3.1 Introduction .................................................... 3-3
3.2 Hypo Manager ................................................. 3-4
3.3 Adding a Hypothetical - Example ........................ 3-5
3.4 Creating a Hypo Group ....................................3-13
3.5 Hypothetical Component Property View ..............3-26
3.6 Solid Hypotheticals..........................................3-36
3.7 Cloning Library Components .............................3-42
3.8 Hypo Controls.................................................3-44
3.9 References .....................................................3-45
4  Aspen HYSYS Oil Manager ....................................4-1
4.1 Introduction .................................................... 4-3
4.2 Oil Characterization .......................................... 4-4ix
adfamily.com    EMail:cadserv21@hotmail.com
cument is for study only,if tort to your rights,please inform us,we will delete
www.c
The do4.3 Petroleum Fluids Characterization Procedure ........ 4-9
4.4 Oil Characterization Property View.....................4-14
4.5 Characterizing Assays ......................................4-17
4.6 Hypocomponent Generation..............................4-59
4.7 User Property .................................................4-76
4.8 Correlations & Installation ................................4-81
4.9 TBP Assay - Example .......................................4-88
4.10 Sulfur Curve - Example ..................................4-107
4.11 References ...................................................4-115
5  Reactions .............................................................5-1
5.1 Introduction .................................................... 5-2
5.2 Reaction Component Selection ........................... 5-3
5.3 Reactions........................................................ 5-6
5.4 Reaction Sets .................................................5-36
5.5 Generalized Procedure .....................................5-46
5.6 Reactions - Example ........................................5-48
6  Component Maps ..................................................6-1
6.1 Introduction .................................................... 6-2
6.2 Component Maps Tab ....................................... 6-2
6.3 Component Map Property View........................... 6-4
7  User Properties ....................................................7-1
7.1 Introduction .................................................... 7-2
7.2 User Properties Tab .......................................... 7-3
7.3 User Property Property View .............................. 7-5
A  Property Methods & Calculations..........................A-1
A.1 Introduction .................................................... A-3
A.2 Selecting Property Methods ............................... A-4
A.3 Property Methods ........................................... A-10
A.4 Enthalpy & Entropy Departure Calculations ........ A-56
A.5 Physical & Transport Properties ........................ A-64
A.6 Volumetric Flow Rate Calculations .................... A-74
A.7 Flash Calculations .......................................... A-81
A.8 References .................................................... A-91x
adfamily.com    EMail:cadserv21@hotmail.com
cument is for study only,if tort to your rights,please inform us,we will delete
www.c
The doB  Oil Methods & Correlations ...................................B-1
B.1 Introduction .................................................... B-2
B.2 Characterization Method.................................... B-2
B.3 References .................................................... B-11
C  Amines Property Package.....................................C-1
C.1 Amines Property Package .................................. C-2
C.2 Non-Equilibrium Stage Model ............................. C-5
C.3 Stage Efficiency ............................................... C-7
C.4 Equilibrium Solubility ........................................ C-9
C.5 Phase Enthalpy .............................................. C-19
C.6 Simulation of Amine Plant Flowsheets ............... C-20
C.7 Program Limitations ....................................... C-24
C.8 References .................................................... C-25
D  Glycol Property Package.......................................D-1
D.1 Introduction ....................................................D-2
D.2 Pure Component Vapor Pressure ........................D-4
D.3 Mixing Rules....................................................D-4
D.4 Phase Equilibrium Prediction ............................ D-12
D.5 Enthalpy/Entropy Calculations.......................... D-13
D.6 References .................................................... D-13
 Index.................................................................... I-1xi
adfamily.com    EMail:cadserv21@hotmail.com
cument is for study only,if tort to your rights,please inform us,we will delete
xii
www.cadfamily.com    EMail:cadserv21@hotmail.com
The document is for study only,if tort to your rights,please inform us,we will delete
 vii
ww
ThAspen HYSYS
Thermodynamics
To comprehend why Aspen HYSYS is such a powerful
engineering simulation tool, you need look no further than its
strong thermodynamic foundation. The inherent flexibility
contributed through its design, combined with the unparalleled
accuracy and robustness provided by its property package
calculations leads to the representation of a more realistic
model.
Not only can you use a wide variety of internal property
packages, you can use tabular capabilities to override specific
property calculations for more accuracy over a narrow range or
use the functionality provided through ActiveX to interact with
externally constructed property packages. Through the use of
Extensibility, you can extend Aspen HYSYS so that it uses
property packages that you created within the Aspen HYSYS
environment.
The built-in property packages provide accurate
thermodynamic, physical, and transport property predictions for
hydrocarbon, non-hydrocarbon, petrochemical, and chemical
fluids.
The Thermodynamics development group at AspenTech has
evaluated experimental data from the world’s most respected
sources. Using this experimental data, a database containing in
excess of 1500 components and over 16,000 fitted binaries has
been created. If a library component cannot be found within the
database, a comprehensive selection of estimation methods is
available for creating fully defined hypothetical components.
Aspen HYSYS also contains a powerful regression package that
may be used in conjunction with its tabular capabilities.
Experimental pure component data, which Aspen HYSYS
provides for over 1,000 components, can be used as input to the
regression package. Alternatively, you can supplement the vii
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
viii
ww
Thexisting data or supply a complete set of your own data.
The regression package fits the input data to one of the
numerous mathematical expressions available in Aspen HYSYS.
This allows you to obtain simulation results for specific
thermophysical properties that closely match your experimental
data.
As new technology becomes available to the market place,
AspenTech welcomes the changes. Aspen HYSYS was designed
with the foresight that software technology is ever-changing and
that a software product must reflect these changes. Aspen
HYSYS has incorporated COMThermo which is an advanced
thermodynamic calculation framework based on Microsofts COM
(Component Object Model) technology. The COMThermo
framework is fully componentized which makes it possible to
develop independent, extensible, customizable, and
encapsulated thermodynamic calculation modules. It acts like a
thermodynamic calculation server which allows users to utilize,
supplement, or replace any of its components.
The framework also encompasses a wide variety of property
calculations, flash methods, databases, etc. The calculation
methods cover all of the thermodynamic calculation packages in
Aspen HYSYS. In future releases of Aspen HYSYS, the old Aspen
HYSYS thermodynamic engine will gradually be replaced by
COMThermo.
Simulation Basis Manager
One of the important concepts upon which Aspen HYSYS is
based is that of environments. The Basis Environment allows
you to input or access information within the Simulation Basis
Manager while the other areas of Aspen HYSYS are put on hold.
This helps to maintain peak efficiency by avoiding unnecessary
flowsheet calculations. Once you return to the Build
Environment, all changes that were made in the Basis
Environment take effect at the same time. Conversely, all
thermodynamic data is fixed and is not changed as
manipulations to the flowsheet take place in the Build viii
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
 ix
ww
ThEnvironment.
Use the Hot Key CTRL B to re-enter the Basis Environment
from any Environment.ix
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
x
ww
ThAnother advantage of the Simulation Basis Environment is the
assurance that all the basic thermodynamic requirements are
provided before a simulation case is built. The minimum
information required before leaving the Simulation Basis
Manager is as follows:
• At least one installed fluid package with an attached
Property Package.
• At least one component in the fluid package.
• A fluid package specified as the Default fluid package.
This is automatically done by Aspen HYSYS after the first
fluid package is installed.
The Simulation Basis Manager can be accessed at any stage
during the development of a simulation case. When a New Case
is created, the first property view that appears is the Simulation
Basis Manager. You can also return to the Basis Environment
from the Main or Sub-Flowsheet Environment at any time to
make changes to the thermodynamic information.
You can create as many fluid packages as you like in the
Simulation Basis Manager. This functionality makes it possible
for each flowsheet in the case to be associated with an individual
fluid package, thus allowing it to have its own particular
property package and set of components. The Default fluid
package is assigned to each new Sub-Flowsheet that is created
while in the Build Environment. If a different fluid package is
desired, you can re-enter the Basis Environment to perform the
required change.
Provided that changes are made in the Basis Environment,
Aspen HYSYS displays a message box each time you re-enter
the Main Build Environment.
 Figure 1.1x
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
 xi
ww
ThThis provides a means of leaving Aspen HYSYS in HOLDING
mode so that you can perform complimentary changes (for
example, new stream compositions or column specifications) to
the flowsheet prior to the Basis modifications taking effect.
The Simulation Basis Manager property view allows you to
create and manipulate fluid packages in the simulation.
Whenever you create a New Case, Aspen HYSYS opens to the
Components tab of the Simulation Basis Manager.
The tabs available on the Simulation Basis Manager property
view are described in the table below:
If Aspen HYSYS is left in HOLDING mode, calculations can be
activated by clicking the Solver Active icon in the Toolbar.
 Figure 1.2
Tab Description
Components Allows access to a component list which is associated
with a fluid package. When adding a new component
list or editing a current list, the Component List
property view opens. This property view is designed to
simplify adding components to the case.
Fluid Pkgs Allows you to create and manipulate all fluid packages
for the simulation case. Also, you can assign a fluid
package to each flowsheet that exists within the case
and select a Default fluid package, which is
automatically used for all new flowsheets.
Solver Active icon
For more information,
refer to the section on
the Simulation Basis
Manager in the Aspen
HYSYS User Guide.xi
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
xii
ww
ThHypotheticals Allows individual Hypotheticals and Hypothetical
Groups to be defined for installation into any fluid
package.
Oil Manager Allows access to the Oil Environment where you can
input assay data, cut/blend an oil and define pseudo
components for installation in any existing fluid
package.
Reactions Allows you to install reaction components, create
reactions, create reaction sets, attach reactions to
reaction sets and attach reaction sets to any existing
fluid package.
Component Maps Allows you to specify composition across fluid package
(sub-flowsheet) boundaries.
User Properties Create and make user properties available to any fluid
package.
The Enter Simulation Environment button can be accessed
from any of the tabs on the Simulation Basis Manager
property view.
Tab Descriptionxii
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Components 1-1
ww
Th1  Components1-1
1.1  Introduction................................................................................... 2
1.2  Component List Property View....................................................... 4
1.2.1  Adding Library Components ....................................................... 5
1.2.2  Selecting Library Components.................................................... 8
1.2.3  Manipulating the Selected Components List................................ 14
1.2.4  Adding Electrolyte Components ................................................ 26
1.2.5  Adding Hypothetical Components ............................................. 28
1.2.6  Adding Components from Existing Component Lists .................... 30
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-2 Introduction
ww
Th1.1 Introduction
The Components Manager provides a location where sets of
chemical components being modeled may be created, retrieved
and manipulated. These component sets are stored in the form
of Component Lists which may be a collection of library pure
components or Hypothetical components. The Components
Manager is accessed by selecting the Components tab from the
Simulation Basis Manager.
The Components Manager always contains a Master Component
List that cannot be deleted. The Master Component List contains
every component available from “all” component lists. If you
add components to any other Component List, they are
automatically added to the Master Component List. Also, if you
delete a component from the master, it is deleted from any
other Component List that is using it.
When working with the Fluid Package Manager, components are
associated with Fluid Packages through Component Lists. A
Component List must be selected for each Fluid Package
created.
 Figure 1.1
For further details
regarding to the use of
Component Lists with
Fluid Packages, see
Chapter 2 - Fluid
Package.1-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Components 1-3
ww
ThThe Components tab of the Simulation Basis Manager property
view contains six buttons which allow you to organize all
component lists for the current case. Each button is described in
the following table:
You cannot associate the Master Component List to a fluid
package. Add a component list and associate it to a fluid
package.
Button Description
View Opens the Component List property view for the selected
Component List. From this property view, you can add,
modify, or remove individual components from the current
list.
Add Allows you to add a new Component List into the case.
When clicked, the Component List property view appears
and components associated with the case may be added.
New components may be added to the component list by
highlighting the component list name and clicking the View
button.
Delete Allows you to delete a Component List from the case. No
warning message is provided before deleting a list and a
deleted Component List cannot be recovered.
Copy Makes a copy of the selected (highlighted) Component List.
The copied version is identical to the original, except for the
name. This command may be useful for modifying
Component Lists while keeping the original list intact.
Import Allows you to import a pre-defined Component List from a
disk. When the Import button is selected, the location
dialog window for the component list file appears.
Component Lists have a file extension of (*.cml).
Export Allows you to export the selected Component Lists (*.cml)
to disk. The exported list file can be retrieved in another
case by using the Import function detailed above.
Refresh Allows you to reload component data from the database.
For example, if you have a case from a previous version,
the data is updated from the older version to the latest
version.
Re-Import Updates the properties and parameters of an imported list
if the properties have changed after they were imported
into the case.1-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-4 Component List Property View
ww
Th1.2 Component List
Property View
When adding or viewing an existing Component List from the
Components tab of the Simulation Basis Manager property view,
the Component List property view is opened.
The Component List property view is designed to simplify adding
components to a Component List. Access is provided to all
Library components within Aspen HYSYS, which include the
traditional components, electrolytes, defined Hypotheticals, and
other existing lists. The property view consists of the following
tabs:
• The Selected tab allows you to add components and
view their properties. The Components page varies
according to the tree browser selection in the Add
Component group.
 Figure 1.2
The Name cell displays the name of
the component list being viewed.
The Add Component tree browser allows you to
filter through alternative component lists.1-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Components 1-5
ww
Th• The Component by Type tab displays all components
selected for the component list by its particular type
(traditional, electrolytes, hypotheticals, etc.) as shown
below.
1.2.1 Adding Library
Components
The Component List property view shown previously is
encountered when you are adding Library components to a
Component List. Use the tree browser in the Add Components
group to filter the library components for each group listed.
The Selected tab has three main groups:
• Add Component
• Selected Components
• Components Available in the Component Library
Each group is described separately in the following sections.
 Figure 1.31-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-6 Component List Property View
ww
ThAdd Component Group
The Add Component group contains a tree browser that enables
you to filter components by type. Selecting components from
the component tree browser determines the type of components
that are displayed in the Components Available in Component
Library group. A different property view appears depending on
whether you are adding Traditional, Electrolytes, Hypothetical,
or Other components.
Selected Components Group
The Selected Components group shows the list of components
that have been added.
The various functions that allow you to manipulate the list of
selected components are listed in the following table:
 Figure 1.4
Object Description
Selected
Component List
Contains all the currently installed components for a
particular component list.
Add Pure Adds the highlighted component(s) from the
Components Available group to the Selected
Component List.
Substitute Swaps the highlighted selected components with the
highlighted available component.
Remove Comp Deletes the highlighted component from the Selected
Component List.
Add Component tree
browser1-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Components 1-7
ww
ThComponents Available in the
Component Library Group
The Components Available in the Component Library group
displays library components depending on the filtered method
used.
Sort List Accesses the Move Components property view, where
you can change the order of the selected component
list.
View Comp Accesses the selected component’s identification
property view.
When substituting components, Aspen HYSYS replaces the
component throughout the case (i.e., all specifications for
the old component are transferred to the new component).
However, the substitution function does not automatically
handle components that are part of a Reaction.
 Figure 1.5
Object Description1-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-8 Component List Property View
ww
ThThe group has several features designed to make the selection
of components as efficient and convenient as possible.
1.2.2 Selecting Library
Components
As mentioned previously, library components are selected from
the Components Available in the Component Library group, and
placed in the Selected Components group. There are many ways
in which you can select components for a component list. Once
you become familiar with the available methods for component
selection, you can select the procedure that you find most
convenient.
The process of adding components from the component library
to the Selected Components list can be divided into three sub-
processes. By visualizing the process of component selection in
this way, you are made aware of all the available possibilities
Object Description
Match As you type in this cell, Aspen HYSYS filters the
component list to locate the component that best
matches your current input. This depends on the radio
button selected.
View Filter
button
This button opens the Filters floating property view
which contains a range of property packages and
component filtering options to assist in your
component selection process.
SimName\
FullName
Synonym\
Formula
These three radio buttons determine the context of
your input in the Match cell.
Show Synonyms When this checkbox is selected Aspen HYSYS includes
known synonyms for each component in the list.
Cluster This checkbox is available only when the Show
Synonyms checkbox is selected. By selecting the
Cluster checkbox, all synonyms are indented and
listed below the component name. Otherwise, the
synonyms are listed alphabetically throughout the list.
Whenever a component(s) is highlighted in the Available
List, click the Add Pure button to move it to the Selected
Component List.
For further details, refer
to Filter Options for
Traditional
Components.1-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Components 1-9
ww
Thoffered by Aspen HYSYS. You can then adopt the most logical
and efficient approach to use each time you build a case.
For component addition to the component list, the following
methods are recommended:
1. Filter the library list.
2. Select the desired component(s).
3. Transfer the component(s) to the Selected Components list.
Filtering the Component List for
Traditional Components
A recommended practice for component selection is the use of
the available tools which Aspen HYSYS provides for filtering the
component library. This narrows the selection range and allows
you to apply one of the various methods for transferring the
selection(s) to the Selected Components list.
Filtering options for electrolytes and hypotheticals are different
and available in Section 1.2.4 - Adding Electrolyte
Components and Section 1.2.5 - Adding Hypothetical
Components, respectively.
There are four tools available for filtering the list in the
Components Available in the Component Library group. The
filtering tools can be used independently or in combination and
are described in the table below:
Filtering Tool Description
Property Package &
Family Type Filters
Filters the list according to your selection of
property package and/or component families.
Show Synonyms Component synonyms appear alphabetically
throughout the list when this checkbox is selected.
Cluster The Cluster checkbox is available only when the
Show Synonyms checkbox is selected and
Match input field is empty. By selecting the
Cluster checkbox, all synonyms are indented and
listed below the component name.
Match This input cell allows type-matching of the
component simulation name, full name, synonym
or formula.
Refer to previous Filter
Options for Traditional
Components for further
details.1-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-10 Component List Property View
ww
ThWhen trying to Match a component, Aspen HYSYS searches the
component column in the list for whichever radio button is
selected:
By using the Match input cell, you can access any component
within the Aspen HYSYS library that is accessible under the
currently selected Property Package. You can make the Match
field active by selecting it or by using the ALT M hot key.
The Match input cell accepts keyboard input, and is used by
Aspen HYSYS to locate the component in the current list which
best matches your input. The first character of the filtered
component names must agree with first character of the listed
component name. Subsequent characters in the Match cell must
appear somewhere in each listed component name. Other than
the first character, any number of unmatched characters can
appear within the names of the listed components.
Radio Button Description
SimName This option matches the text entered into the Match input
to the name used within the simulation.
Full Name/
Synonym
This option may match the components full name or a
synonym of the SimName. It is typically a longer name.
Formula Use this option when you are not sure of the library name,
but know the formula of the component.1-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Components 1-11
ww
ThIf the component you want to add is Water, type H2 in the Match
cell. Aspen HYSYS filters the list of available Library Components
to only those that match your current input string. The first
component in the list, H2, is an exact match of your current
input and therefore, is highlighted. Notice that H2O is available
in the list even though you have entered only H2.
Since Hydrogen is not the component of choice, you can
continue to reduce the list of available library component
options by typing in the character O after the H2 in the Match
cell.
 Figure 1.61-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-12 Component List Property View
ww
ThFilter Options for Traditional
Components
The floating Filter property view is accessed by clicking the
View Filters button from Component List property view. It
allows access to the Property Package filter and Family Type
filter options.
The Property Package Filter group filters components based on
their compatibility with the selected property package. Once a
property package is selected, the Recommended Only checkbox
works as follows:
• If the Recommended Only checkbox is selected, Aspen
HYSYS only displays (in the component library list)
components that are recommended with the chosen
property package.
• If the Recommended Only checkbox remains un-
selected, all the components in the Aspen HYSYS library
are displayed in the component library list. An ‘x’ is
shown beside each component that Aspen HYSYS does
not recommend for the selected property package,
however, you may still select these components if you
want.
The Family Type Filter group allows Aspen HYSYS to filter the list
of available components to only those belonging to a specific
family. The Use Filter checkbox, when selected, toggles the
Family Type Filter options On and Off. By default, all checkboxes
in the Family Filter group are cleared. You can identify which
families should be included in the list of available components by
selecting the desired checkbox(es). The All button selects all
checkboxes, and the Invert button toggles the status of each
checkbox individually. For example, if you select all of the
checkboxes, and then want to quickly clear them, simply click
the Invert button. If you only had the Hydrocarbons and the
Solids options activated and you clicked the Invert button,
these two options are deactivated and the remaining options are
The Property Package Filter is only a component selection
filtering tool and does not associate a Fluid Package with the
component list (this is accomplished within the Fluid
Package Manager). 1-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Components 1-13
ww
Thactivated.1-13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-14 Component List Property View
ww
ThSelecting the Component(s)
After the list of Library Components are filtered, you can see the
desired component among the displayed components. Use one
of the following available methods to highlight the component(s)
of choice described in the following table:
Whenever the list of components is filtered, the highlight is
placed on the first component in the reduced list. If you use the
keyboard commands to access the list of components, you may
have to move the highlight if the first component is not desired.
To move through the Components Available in the Component
Library group, use one of the following methods:
Transferring the Component(s)
After the Library Component list is filtered and the desired
component(s) highlighted, transfer the selection(s) to the
Selected Components list. Use one of the following methods:
• Click the Add Pure button
• Press the ENTER key
• Double-click on the highlighted item. This option only
works for a single component selection.
Selection Method Description
Mouse Place the cursor over the desired component and press
the primary mouse button.
Keyboard Use the TAB key or SHIFT TAB combination to move
the active location into the list of components.
Method Description
Arrow Keys Move the highlight up or down one line in the
component list.
Page Up/Page
Down
Use these keyboard keys to move through the list an
entire page at a time.
Home/End The HOME key moves to the start of the list and the
END key moves to the end of the list.
Scroll Bar With the mouse, use the scroll bar to navigate through
the list.1-14
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Components 1-15
ww
ThThe methods are the same whether you are adding traditional
components, electrolytes, hypotheticals, or other components.
1.2.3 Manipulating the
Selected Components List
After adding the components to the Selected Components list,
you can substitute, remove, sort, and view components. These
methods apply to traditional library components, electrolytes,
hypotheticals, and other components.
To demonstrate the manipulation functions, the Selected
Components group shown below is used for reference purposes.
Removing Selected Components
You can remove any component(s) from the Selected
Components list by the following steps:
1. Highlight the component(s) you want to delete.
2. Click the Remove button, or press the DELETE key.
For Library components, Aspen HYSYS removes the
component(s) from the Selected Components list and places
back in the Components Available in the Component Library list.
Since Hypothetical components are shared among Fluid
 Figure 1.7
Refer to Chapter 3 -
Hypotheticals for
detailed information on
Hypothetical
components.1-15
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-16 Component List Property View
ww
ThPackages, there is no actual transfer between the lists. (i.e., The
Hypo always appears in the Available group, even when it is
listed in the selected Components list.)
Substituting Components
When substituting components, Aspen HYSYS replaces the
component throughout the case (i.e., all specifications for the
old component are transferred to the new component).
However, the substitution function does not automatically
handle components which are part of a Reaction.
You can substitute a component in the selected Component List
with one in the Components Available in the Component Library
list by using the following procedure:
1. From the selected Component List, highlight the component
you want to remove.
2. In the Available Component list, highlight the component to
be substituted.
3. Click the Substitute button.
4. The removed component is returned to the Available
Component list and the substituted component is placed in
the Selected Component List.
You can only substitute one component at a time. Even
though Aspen HYSYS allows you to highlight multiple
components, the substitution only involves the first
highlighted component.1-16
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Components 1-17
ww
ThSorting a Component List
When there are components in the Selected Components group
you can use the Sort List button to rearrange the component
order.
Using the property view shown in Figure 1.8, the sorting
procedure is illustrated below:
1. Click the Sort List button, and the Move Components
property view appears.
2. From the Component(s) to Move group, select the
component you want to move. In this example, Methane is
selected.
3. From the Insert Before group, highlight the component
before which Methane is to be inserted. In this case,
Propane is highlighted.
4. Click the Move button to complete the move. Methane is
inserted before Propane in the component list, and Ethane is
forced to the top of the list, followed by Methane, Propane,
and n-Butane.
You can select and highlight multiple components for
moving.
5. When you have completed the sorting, click the Close
button to return to the Components tab.
 Figure 1.81-17
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-18 Component List Property View
ww
ThViewing Components
Once a component is added to the Selected Components list, the
View Component button becomes active. The View
Component button accesses the Pure Component property
view allowing you to view and edit properties of the specified
component.
The property views are different and are specific to the type of
component selected. Pure library components and hypothetical
components share the first type of property view. The difference
between the two is that you cannot “directly” modify the
properties in the pure components Property View, whereas, in
the hypotheticals you can. The Edit Properties feature allows
you to edit pure component and solid properties.
The second property view is shared by pure component solids
and hypothetical solids. Again you cannot “directly” modify the
pure component solid properties, whereas, hypotheticals can be
edited directly.
The electrolytes property view is the same as the edit properties
feature for library components. Although, the electrolyte
properties are set by OLI systems and cannot be modified like
traditional components.
Each property view consists of five tabs. Throughout the tabs
the information is displayed in red, blue and black. Values
displayed in red are estimated by Aspen HYSYS. Values
displayed in blue are user supplied. Black values represent
calculated values or information that is provided by Aspen
HYSYS.
You can also examine the property view for any component
in the Selected Component List by double-clicking on the
component.
For more information on
hypotheticals, refer to
Chapter 3 -
Hypotheticals.
For more information on
electrolytes, refer to
Section 1.2.4 - Adding
Electrolyte Components.1-18
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Components 1-19
ww
ThPure Component Property View
In this example, Methane and Carbon are used by clicking the
View Component button, which opens the following traditional
pure component and Solid pure component property views,
respectively:
ID Tab
The ID tab is the first tab in the property view. The black values
in the Component Identification group represent information
that is provided by Aspen HYSYS. The User ID Tags are used to
identify your component by a user specified tag number. You
can assign multiple tag numbers to each component.
 Figure 1.9
You can also view a component by right-clicking on the
component and selecting View command from the object
inspect menu.1-19
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-20 Component List Property View
ww
ThCritical Tab & Props Tab
The Critical Tab displays Base and Critical Properties. The
properties for pure components are supplied by Aspen HYSYS
and are read-only. However, you can edit these properties using
the Edit Properties button.
The Component Property view for solid components does not
have critical properties and therefore does not require the
Critical tab. An alternate tab called the Props tab which displays
default values for Solid properties and Coal Analysis is included.
These properties can also be edited using the Edit Properties
button.
Point Tab
Additional Point properties are given by Aspen HYSYS for the
Thermodynamic and Physical Props and the Property Package
Molecular Props. The pure component properties differ from the
solid properties.
The solid properties depend only on the Heat of Formation and
Combustion. These properties may be altered by selecting Point
properties in the Edit Properties property view.
TDep Tab
The temperature Dependent Properties for pure components are
shown in this tab. Aspen HYSYS provides the minimum
temperature, maximum temperature and coefficients for each of
the three calculation methods.
The difference between pure components and solid pure
components is that solids do not participate in VLE calculations.
Their vapour pressure information is, by default, set to zero.
However, since solid components do affect Heat Balances, the
Specific Heat information is used. The properties may be edited
by selecting the Edit Properties button.1-20
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Components 1-21
ww
ThUserProp & PSD Tabs
The UserProp tab displays user specified properties. User
properties must be specified on the UserProperty tab in the
Simulation Basis Manager property view. Once a user property
is specified there, you can view and edit UserProp on this
component property view.
The PSD tab displays the particle size distribution for solids. It
allows the user to specify PSDs and calculate various mean and
modal diameters for the entered PSD.
To edit a PSD, click the Edit Properties button to open the
Editing Properties for Component property view, select Type
radio button in the Sort By group, and select Particle Size
Distribution from the tree browser. The options available for edit
the PSD appears on the right side of the Editing Properties for
Component property view.
 Figure 1.10
See Chapter 7 - User
Properties for more
information.1-21
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-22 Component List Property View
ww
ThA PSD can be specified in three ways:
The input information required for each Input PSD are as
follows:
The user has the choice between using the User-Defined
Discrete or one of the statistical distribution methods. The
statistical methods (Log Probability & Rosin-Rammler) may be
preferred over the discrete method if any of the following
occurs:
• A number of particle size measurement devices give the
distribution as a statistical fit.
• Certain physical process tend to give rise to distributions
that are described well by a statistical distribution. For
example, processes involving high shear (e.g. crushing
Input PSD Group Description
User-Defined
Discrete
Allows the user to enter particle diameter vs
distribution values over the range of the distribution.
To enter the distribution, Select the Edit Discrete
PSD button. The entered distribution can be a
Composition Basis with mass percent or number
percent data and can be InSize, cumulative Undersize
or cumulative Oversize as an Input Basis. Once a
discretized PSD is entered, the user can have other
types of PSD fitted to it. These fits are displayed in the
Fit Type group. The selected fit can be changed by
regenerating the fit at any time.
Log-probability Is a two-parameter statistical representation which
allows the user to specify the mean and standard
deviation of the PSD.
Rosin-Rammler Is a two-parameter statistical representation which
allows the user to specify the Rosin-Rammler model
diameter and spread parameter of the PSD.
Input PSD Group Input Information Required
User-Defined
Discrete
The PSD requires PSD name, basis, particle density
and number of points to use in fitted PSDs. The
distribution requires particle diameters (including
minimum diameter) and either InSize, Undersize or
Oversize distribution points.
Log-probability The PSD requires PSD name, basis, particle density
and number of points to use in generating the PSD.
The distribution requires mean diameter and standard
deviation.
Rosin-Rammler The PSD requires PSD name, basis, particle density
and number of points to use in generating the PSD.
The distribution requires modal diameter and spread
parameter.1-22
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Components 1-23
ww
Thof coal, atomization of liquids in a two-fluid nozzle) tend
to give size distributions that can be readily described by
a Rosin-Rammler distribution.
• By using a statistical distribution, it is easier to extend
the distribution to lower and higher size ranges. For
many design processes involving size distributions, it is
the values of the distribution at these 'tails' that have
most influence when trying to optimize the design.
Therefore, the accuracy with which these 'tails' can be
described is important.
The Fit Type group for the User-Defined Discrete Input allows
users to fit a distribution to the entered discrete data. The fitting
improves the accuracy of any calculations made by it.
• It increases the number of discrete steps over which a
size distribution can be described. The more steps, mean
smaller steps which means more accuracy when
interpolating, etc.
• It provides more data at the extremes (‘tails’) of the
distribution, again improving accuracy.
The fit type used is based on which provides the closest fit to the
data. The fitting alogorithm displays a dialog with six fits to the
data. The AutoFit selects one fit for the data automatically, and
the NoFit does not fit the data. The Standard and Probability fit
types are lagrangian interpolations on the entered data, but one
works on the raw data while one works on a probability
transformation of the data. That is, the distribution values are
transformed to the linear equivalents used in plotting against a
probability axis.
The other two fits are a log-probability and a Rosin-Rammler
distribution. For these two fits, the value of R2 (the fit
coefficient) is given and the closer this is to 1 the better the fit.
Ultimately, it is up to the user to choose the best fit and is often
based on the visual appearance of the fitted distibutions
compared to the entered one. One limitation to PSD is that the
particle diameters cannot be specified as sieve mesh sizes.1-23
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-24 Component List Property View
ww
ThEdit Properties
The Edit Properties button allows the user the flexibility of
viewing and modifying properties for traditional and hypothetical
components. Electrolyte component properties are specified by
OLI Systems which may only be viewed. The Edit Properties
property view can be accessed on three different levels and are
shown below:
• Component level. Double-click on any component or
right-click and select View in the object inspect menu.
Click the Edit Properties button.
• Fluid Package level. Click the Edit Properties button on
the Fluid Package property view.
• Stream level. Select a stream which is not a product
stream. Click the Edit Properties button on the
Composition page.
The Component level Edit Properties property view is shown
below for methane.
 Figure 1.111-24
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Components 1-25
ww
ThThe properties can be sorted using the Sort By group on any
level.
The edit Properties feature is flexible in that it allows you to edit
properties on the component, fluid package, or stream levels.
The component level is the highest and allows you to edit
properties throughout your case. Any changes at this level
correspond to a global change to all fluid packages using the
particular component. The initial value stored at this level for
any given component is considered the 'default' property value.
At the component level, the reset options are described below.
The second level is the fluid package level which allows you to
edit properties specific to a fluid package. This allows the
flexibility of having different property values for different fluid
packages throughout the case. Any changes at this level
corresponds to a change for any flowsheet using this fluid
package.
Sort By Description
Property Name Sort through properties by Property Name.
Group Sort through properties by Groups. This includes
Thermo, Prop Pkg, Physical, Cold, Solid, etc.
Type Sort through Point, Curve, Distribute, PSD, and
Hydrate properties.
Modify Status Sort through properties which are modified in the
specific Component, Fluid Pkg, or Stream.
Component Level Reset Description
Reset selected property
to library default
Resets the selected property to the library or
original default value for this component. This
button is active only if a component is
modified on the component level.
Reset all properties to
library default
Resets all properties to library or original
default values for this component. This button
is active only if a component is modified on
the component level.
Reset selected property
for all users of this
component
Clears local changes to the selected property
for all users of this component. Users are
defined by changes in the Fluid pkg and
stream levels.
Reset all properties for
all users of this
component
Clears local changes to all properties for all
users of this component. Users are defined by
changes in the Fluid pkg and stream levels.1-25
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-26 Component List Property View
ww
ThThe reset options for the fluid pkg level are described below:
The stream level allows you to edit properties specific to input
streams of the case. Changes made at this level enable one to
modify a particular component's property for a particular
stream. This allows the flexibility of properties to dynamically
change across the flowsheet.
The reset options are listed below and are active if you modify a
property value at the stream level.
The properties for the stream are accessible from the stream
level editor. However, only the feed stream properties are
modifiable.
Keep in mind that any property vector changes at the Stream
level supercede changes at the fluid package level. For example,
if a stream is trying to access a particular component's 'Point'
property value and the property vector is contained in the
stream's local property slate, the local value is used. If the
property vector does not exist locally, then it calls up to the fluid
package's property state for the particular property vector and
Fluid Pkg Level Reset Description
Reset selected prop
vector to
components default
Clears the selected property vector within this fluid
package and resets it to the component level
value.
Reset all props to
components default
Clears all changed property vectors within this
fluid package and resets them to the component
level values.
Reset selected
property for all users
of this fp
Clears local changes to selected property vector
for all users of this fluid package. The user is
defined as the stream level property selected,
which is overwritten with current fluid package
value.
Reset all properties
for all users of this fp
Clears local changes to all properties for all users
of this fluid package. The users are defined as the
stream level properties, which are overwritten
with current fluid package values.
Stream Level Reset Description
Reset Selected Prop
Vector to FP Default
Clears selected property vector and reset it to the
fluid package level value for this stream.
Reset All Props to FP
Default
Clears all changed property vectors and reset
them to the fluid package values for this stream.1-26
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Components 1-27
ww
Thuses this value if it exists. If the property vector does not exist
at the fluid package level, then the initial Component level value
is used.
1.2.4 Adding Electrolyte
Components
Electrolytes can be added to the component list in the
Component List property view. In the Add Component group of
the Selected tab, select the Electrolyte page located as the
subgroup of the Components configuration.
The property view is filled with information on electrolytes as
shown below.
OLI Alliance Suite for Aspen HYSYS and OLI Analyzer must
be installed in order for the Electrolyte page to appear.
 Figure 1.121-27
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-28 Component List Property View
ww
ThThe methods for adding, substituting, removing, and sorting
components are common for all components on the selected
tab. The filtering options for Electrolytes which are described in
the following table:
You can select or provide additional electrolyte component
databases to simulate special aqueous-based chemical systems.
Aspen HYSYS supports three special databases: GEOCHEM,
LOWTEMP, and REDOX.
You can access those special databases by clicking on the
Additional Database button, and select the desired special
databases from the Special Databank group in the
OLI_Electrolyte Additional Database property view. The use of
GEOCHEM, LOWTEMP, and REDOX databases must combine
with the choice of Full Databank. You can also supply your own
OLI private databank to suit the need of your simulation case.
To get a comprehensive list of the Full, and GEOCHEM database
components, refer to:
• Appendix A.1 - List of Full HYSYS OLI Interface
Database, of the Aspen HYSYS OLI Interface
Reference Guide.
• Appendix B.1 - List of HYSYS OLI Interface
GEOCHEM Database, of the Aspen HYSYS OLI
Interface Reference Guide.
Filter Description
Match This input cell allows type-matching of the component
simulation name, full name / synonym, or formula based on
the ratio button selected.
None No electrolyte components exist or match your selection in
the property view. You need to acquire an additional license
to view the electrolyte database.
Full The full database contains thousands of species in water
based on the OLI system database.
Limited This database contains approximately 1,000 components
which are of most interest to process industries.
Refer to Filtering the
Component List for
Traditional
Components for
additional information on
using the Match field to
filter the component list
for traditional
components.
Refer to the following
sections in the Aspen
HYSYS OLI Interface
Reference Guide for
more information on the
OLI databases:
• Section 1.8.1 - Full
Database
• Section 1.8.2 -
Limited Database
• Section 1.8.3 -
Special Databases
• Section 1.8.4 -
Private User
Databases - OLI
Data Service1-28
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Components 1-29
ww
Th1.2.5 Adding Hypothetical
Components
Hypotheticals can be added to a component list through the
Components List property view. In the Add Components group
of the Selected tab, select the Hypothetical branch from the
tree browser. The Components List property view is filled with
information appropriate to the addition of Hypothetical
components.
Some of the features from the Selected tab are common to both
the selection of Hypotheticals and Library components. Items
specific to Hypotheticals are described in the following table:
Refer to Section 3.5 -
Hypothetical
Component Property
View for details on the
various Component
property view tabs.
 Figure 1.13
Object Description
Add Group Adds all the Hypothetical components in the Selected
selection in the Hypo Group list current to the current
component list.
Add Hypo Adds the currently selected Hypothetical in the Hypo
Component list to the Current Component List.
Hypo Group Displays all the Hypo Groups available to the current
component list.
Refer to Chapter 3 -
Hypotheticals for more
detailed information to
Add and modify
Hypothetical components.1-29
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-30 Component List Property View
ww
ThHypo
Components
Displays all the Hypothetical components contained in
the currently selected Hypo Group.
Hypo Manager Accesses the Hypotheticals tab of the Simulation Basis
Manager, from which you can create, view, or edit
Hypotheticals.
Quick Create a
Hypo Comp
A short-cut for creating a regular Hypothetical
component and adds it to the currently selected Hypo
Group and opens its property view.
Quick Create a
Solid Hypo
component
A short-cut for creating a solid Hypothetical component
and adds it to the currently selected Hypo Group and
opens its property view.
While you can add Hypos to a Component List from the
Selected tab, this is merely a short-cut. To access all features
during the creation of Hypotheticals and Hypothetical
groups, you should access the Hypotheticals tab of the
Simulation Basis Manager.
Object Description1-30
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Components 1-31
ww
Th1.2.6 Adding Components
from Existing Component
Lists
Components can be added from other component lists by using
the Other List option. In the Add Components group, select the
Other list. The Components tab is redrawn with information
appropriate to accessing components from alternate component
lists.
The Existing Components group displays a list of all available
component lists loaded into the current case. Highlighting a
component list name displays its associated group of
components in the Components in Selected Component List.
To transfer a component from an existing component list, simply
highlight the component name in the list and click the Add
button. The highlighted component is added to the Selected
Components list.
 Figure 1.141-31
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
1-32 Component List Property View
ww
Th1-32
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-1
ww
Th2  Fluid Package2-1
2.1  Introduction................................................................................... 2
2.2  Fluid Packages Tab ........................................................................ 3
2.3  Adding a Fluid Package - Example.................................................. 5
2.4  HYSYS Fluid Package Property View .............................................. 7
2.4.1  Set Up Tab .............................................................................. 8
2.4.2  Parameters Tab ...................................................................... 25
2.4.3  Binary Coefficients Tab............................................................ 51
2.4.4  Stability Test Tab.................................................................... 62
2.4.5  Phase Order Tab..................................................................... 66
2.4.6  Reactions Tab ........................................................................ 68
2.4.7  Tabular Tab............................................................................ 69
2.4.8  Notes Tab.............................................................................. 94
2.5  COMThermo Property View .......................................................... 95
2.5.1  Set Up Tab ............................................................................ 96
2.5.2  Parameters Tab .....................................................................109
2.5.3  Binary Coefficients Tab...........................................................111
2.5.4  Stability Test Tab...................................................................116
2.5.6  Reactions Tab .......................................................................120
2.5.8  Notes Tab.............................................................................120
2.6  References................................................................................. 121
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-2 Introduction
ww
Th2.1 Introduction
In Aspen HYSYS, all necessary information pertaining to pure
component flash and physical property calculations is contained
within the Fluid Package. This approach allows you to define all
the required information inside a single entity. The four key
advantages to this approach are:
• All associated information is defined in a single location,
allowing for easy creation and modification of the
information.
• Fluid Packages can be exported and imported as
completely defined packages for use in any simulation.
• Fluid Packages can be cloned, which simplifies the task of
making small changes to a complex Fluid Package.
• Multiple Fluid Packages can be used in the same
simulation; however, they are all defined inside the
common Simulation Basis Manager.
In this chapter, all information concerning the fluid package is
covered. This includes the basic procedure for creating a fluid
package by using both traditional Aspen HYSYS and COMThermo
thermodynamics. Finally, information on the Fluid Package
property view is provided for each of the following tabs:
• Set Up
• Parameters
• Binary Coefficients
• Stability Test
• Phase Order
• Reactions (Rxns)
• Tabular
• Notes
It should be noted that individual components are not added
within the Fluid Package Manager. Instead, component selection
is handled independently in the Basis Manager through the
Components tab. The Components Manager provides a general
location where sets of chemical components being modeled may
be retrieved and manipulated.
Refer to Chapter 1 -
Components for further
details on the
Components Manager.2-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-3
ww
Th2.2 Fluid Packages Tab
The second tab of the Simulation Basis Manager property view is
the Fluid Packages (Fluid Pkgs) tab. When you create a New
Case, Aspen HYSYS displays the Fluid Pkgs tab, as shown below:
In the Current Fluid Packages group, you can organize all Fluid
Packages for the current case.
The following table lists and describes each button:
 Figure 2.1
You must define at least one fluid package prior to entering
the Simulation Environment.
When a New Case is created, only the Add and Import
buttons are available.
Button Description
View This is only active when a fluid package exists in the
case. It allows you access the property view for the
selected fluid package.
Add Allows you to install a new fluid package into the case.
Refer to Section 2.4 -
HYSYS Fluid Package
Property View for
details on what
information you can edit
by clicking the View
button.2-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-4 Fluid Packages Tab
ww
ThThe Flowsheet - Fluid Pkg Associations group lists each
Flowsheet in the current simulation along with its associated
Fluid Package. You can change the associations between
Flowsheets and which Fluid Pkg To Use in this location. You can
also specify a default fluid package by selecting a package in the
Default Fluid Pkg drop-down list. Aspen HYSYS automatically
assigns the Default Fluid Package to each unit operation,
SubFlowsheet or columns using the default fluid package in the
simulation.
Selecting an alternative fluid package from the Basis Manager
property view allows you to transition or switch between fluid
pkgs anywhere in the flowsheet with the addition of the stream
cutter object.
The Fluid Pkg for New Sub-FlowSheets group allows you to
select the default fluid package that is associated to a
subflowsheet, when the subflowsheet is created.
• Use Default Fluid Pkg radio button associates the
default fluid package of the entire simulation case to the
subflowsheet.
• Use Parent’s Fluid Pkg radio button associates the
default fluid package of the parent flowsheet to the
subflowsheet.
Delete Allows you to delete a fluid package from the case. When
you delete a fluid package, Aspen HYSYS displays a
warning, and asks you to verify that you want to delete
the package. You must have at least one fluid package
for your case at all times.
Copy Makes a copy of the selected fluid package. Everything is
identical in this copied version, except the name. This is a
useful tool for modifying fluid packages.
Import Allows you to import a pre-defined fluid package from
disk. Fluid packages have the file extension *.fpk.
Export Allows you to export the selected fluid package (*.fpk)
to disk. The exported fluid package can be retrieved into
another case, by using its Import function.
Changing the default package only changes those fluid pkgs
that are currently set to use the default fluid package. That
is, any operation or stream which is not set to the default
fluid package is not modified.
Button Description
For details concerning
the importing and
exporting functionality,
refer to Section 7.23.7
- Exporting/
Importing Workbook
Tabs in the Aspen
HYSYS User Guide.
Refer to Chapter 5 -
Logical Operations in the
Aspen HYSYS
Operations Guide for
detailed information on the
stream cutter object and
fluid package transitioning.2-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-5
ww
Th2.3 Adding a Fluid Package
- Example
When you click the Add button from the Simulation Basis
Manager property view, Aspen HYSYS opens the Fluid Package
property view to the Set Up tab. The Fluid Package property
view is based on the traditional Aspen HYSYS Thermodynamics.
The order of the tabs in the Fluid Package property view are tied
to the sequence of defining a Fluid Package using Aspen HYSYS
thermodynamics.
• On the Set Up tab, select a Property Package for the case
from the Property Package Selection group. You can filter
the list of Property Packages by selecting a radio button
in the Property Package Filter group. You must also select
a Component List for the case from the Component List
Selection group. Component Lists are built in the
Simulation Basis Manager and may contain library,
hypothetical, and electrolyte components.
• Depending on the Property Package selected, you may
need to specify additional information, such as the
Enthalpy and Vapour Model, Poynting Correction factor,
etc.
• Depending on the Property Package selected, you may
need to supply additional information based on the
selected components. This is done on the Parameters
tab.
 Figure 2.2
A complete description of
each page of the Fluid
Package property view is
given in Section 2.4 -
HYSYS Fluid Package
Property View.
For further details relating
to Component Lists and
component selection,
refer to Chapter 1 -
Components.2-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-6 Adding a Fluid Package - Example
ww
Th• If necessary, specify the binary coefficients on the Binary
Coeffs tab. As an alternative to supplying binaries, you
may want to have estimates made for the selected
components.
• If necessary, instruct Aspen HYSYS how to perform
Phase Stability tests as part of the flash calculations on
the Stab Test tab.
• Define any reactions and reaction sets for the fluid
package or access the Reaction Manager on the Rxns
tab.
• On the Tabular tab, you can access the Tabular Package
for the equation based representation of targeted
properties.
• The final tab on the Fluid Package property view is the
Notes tab, where you can supply descriptive notes for the
new Fluid Package.
If you select the COMThermo package from the Property
Package Selection list, Aspen HYSYS opens the COMThermo
Setup view. On the COMThermo Setup view, you can chose
Model cases for the vapor and liquid phases. Depending on the
model selected, you can specify additional information. For
example, in the Model Options group, select the calculation
methods for Enthalpy and Entropy and Cp, using the drop-down
list.
 Figure 2.3
Refer to Chapter 5 -
Reactions for
information on the
Reaction Manager.2-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-7
ww
ThSelecting the COMThermo package makes a few changes in the
Fluid Package property view tabs:
• Depending on the Model selected, you might need to
supply additional information based on the selected
components on the Parameters tab.
• If necessary, specify the binary coefficients on the Binary
Coeff tab. As an alternative to supplying binaries, you
can have estimates made for the selected components.
• If necessary, instruct Aspen HYSYS-COMThermo how to
perform Phase Stability tests as part of the flash
calculations on the Stab Test tab.
2.4 Aspen HYSYS Fluid
Package Property View
The Fluid Package property view consists of eight tabs and is
based on the traditional Aspen HYSYS thermodynamics. All the
information pertaining to the particular Fluid Package is on these
tabs.
 Figure 2.4
Removes the Fluid
Package from the
case. You must
confirm that you want
to delete the Fluid
Package
You can input a name
for the Fluid Package
in this field.
The selected base
Property Package type is
shown in this status bar.2-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-8 Aspen HYSYS Fluid Package
ww
Th2.4.1 Set Up Tab
The Set Up tab is the first tab of the Fluid Package property
view.
When you create a new Fluid Package, the Fluid Package
property view appears as shown in the above figure.
The Set Up tab contains the Property Package Selection,
Component List Selection, Property Package Filter, and Launch
Property Wizard button. The Property Wizard offers you a guide
to help you choose the appropriate property package in Aspen
HYSYS based on your process.
After a Property Package has been selected, additional
information and options might be displayed to the right of the
Property Package Selection group. The information that is
displayed is dependent on the selected Property Package.
The following sections provide an overview of the various
Property Packages, as well as details on the various groups that
appear on the Set Up tab.
 Figure 2.5
Refer to Section 2.5 -
COMThermo Property
View for more
information on Advanced
Thermodynamics group.
Additional information is displayed in
this space depending on the Property
Package selection.
Select a Component List here. It is not recommended
to use the Master Component List.
Select a property package
for the fluid package using
the property package filter.2-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-9
ww
ThProperty Package Selection Group
In the Property Package Selection group, you have access to the
list of all the Property Package/Property Methods available in
Aspen HYSYS and to the Property Package Filter group.
The Property Package Filter allows you to filter the list of
available property methods, based on the following criteria:
Equations of State (EOS)
For oil, gas, and petrochemical applications, the Peng-Robinson
Equation of State is generally the recommended property
package. Enhancements to this equation of state enable its
accuracy for a variety of systems over a wide range of
conditions. It rigorously solves most single-phase, two-phase,
and three-phase systems with a high degree of efficiency and
reliability.
 Figure 2.6
Filter Description
All Types All the Property Packages appear in the list.
EOSs Only Equations of State appear in the list.
Activity Models Only Liquid Activity Models appear in the list.
Chao Seader
Models
Only Chao Seader based Semi Empirical methods
are displayed.
Vapour Pressure
Models
Vapour pressure K-value models are shown in the
list.
Miscellaneous Models that do not fit into any of the above 4
categories (i.e., excluding All) are displayed.
For more detailed
information about the
property packages
available in Aspen HYSYS,
refer to Appendix A -
Property Methods &
Calculations.2-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-10 Aspen HYSYS Fluid Package
ww
ThAll equation of state methods and their specific applications are
described below:
EOS Description
BWRS This model is commonly used for compression
applications and studies. It is specifically used for gas
phase components that handle the complex
thermodynamics that occur during compression and is
useful in both upstream and downstream industries.
GCEOS This model allows you to define and implement your own
generalized cubic equation of state including mixing rules
and volume translation.
Glycol PPkg Glycol property package contains the TST (Twu-Sim-
Tassone) equation of state to determine the phase
behaviour more accurately and consistently for the TEG-
water mixture.
Kabadi Danner This model is a modification of the original SRK equation
of state, enhanced to improve the vapour-liquid-liquid
equilibria calculations for water-hydrocarbon systems,
particularly in dilute regions.
Lee-Kesler
Plocker
This model is the most accurate general method for non-
polar substances and mixtures.
MBWR This is a modified version of the original Benedict/Webb/
Rubin equation. This 32-term equation of state model is
applicable for only a specific set of components and
operating conditions.
Peng-Robinson This model is ideal for VLE calculations as well as
calculating liquid densities for hydrocarbon systems.
Several enhancements to the original PR model were
made to extend its range of applicability and to improve
its predictions for some non-ideal systems. However, in
situations where highly non-ideal systems are
encountered, the use of Activity Models is recommended.
PR-Twu This model is based on Peng-Robinson and incorporates
the Twu EoS Alpha function for improved vapor pressure
prediction of all Aspen HYSYS library components.
PRSV This is a two-fold modification of the PR equation of state
that extends the application of the original PR method for
moderately non-ideal systems.
Sour PR Combines the PR equation of state and Wilson's API-Sour
Model for handling sour water systems.
Sour SRK Combines the Soave Redlich Kwong and Wilson's API-
Sour Model.
SRK In many cases it provides comparable results to PR, but
its range of application is significantly more limited. This
method is not as reliable for non-ideal systems.
SRK-Twu This model is based on SRK and incorporates the Twu
EoS Alpha function for improved vapor pressure
prediction of all Aspen HYSYS library components.
For more information on
the package see
Appendix D - Glycol
Property Package.2-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-11
ww
ThActivity Models
Although Equation of State models have proven to be very
reliable in predicting the properties of most hydrocarbon based
fluids over a wide range of operating conditions, their
application is limited to primarily non-polar or slightly polar
components. Highly non-ideal systems are best modeled using
Activity Models.
The following Activity Model Property Packages are available:
Twu-Sim-
Tassone
This model uses a new volume function for improved
liquid molar volume predictions for mid range and heavy
hydrocarbons and incorporates the Twu EoS Alpha
function for improved vapor pressure prediction of all
Aspen HYSYS library components.
Zudkevitch
Joffee
Modification of the Redlich Kwong equation of state. This
model has been enhanced for better prediction of
vapour-liquid equilibria for hydrocarbon systems, and
systems containing Hydrogen.
Activity Model Description
Chien Null Provides a consistent framework for applying existing
Activity Models on a binary by binary basis. It allows you
to select the best Activity Model for each pair in your
case.
Extended NRTL This variation of the NRTL model allows you to input
values for the Aij, Bij, Cij, Alp1ij and Alp2ij parameters
used in defining the component activity coefficients.
Apply this model to systems:
• with a wide boiling point range between
components.
• where you require simultaneous solution of VLE and
LLE, and there exists a wide boiling point range or
concentration range between components.
General NRTL This variation of the NRTL model allows you to select the
equation format for equation parameters:  and .
Apply this model to systems:
• with a wide boiling point range between
components.
• where you require simultaneous solution of VLE and
LLE, and there exists a wide boiling point or
concentration range between components.
Margules This was the first Gibbs excess energy representation
developed. The equation does not have any theoretical
basis, but is useful for quick estimates and data
interpolation.
EOS Description
τ α2-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-12 Aspen HYSYS Fluid Package
ww
ThChao Seader & Grayson Streed Models
The Chao Seader and Grayson Streed methods are older, semi-
empirical methods. The Grayson Streed correlation is an
extension of the Chao Seader method with special emphasis on
hydrogen. Only the equilibrium data produced by these
correlations is used by Aspen HYSYS. The Lee-Kesler method is
used for liquid and vapour enthalpies and entropies.
NRTL This is an extension of the Wilson equation. It uses
statistical mechanics and the liquid cell theory to
represent the liquid structure. It is capable of
representing VLE, LLE, and VLLE phase behaviour.
UNIQUAC Uses statistical mechanics and the quasi-chemical theory
of Guggenheim to represent the liquid structure. The
equation is capable of representing LLE, VLE, and VLLE
with accuracy comparable to the NRTL equation, but
without the need for a non-randomness factor.
 van Laar This equation fits many systems quite well, particularly
for LLE component distributions. It can be used for
systems that exhibit positive or negative deviations from
Raoult's Law, however, it cannot predict maxima or
minima in the activity coefficient. Therefore it generally
performs poorly for systems with halogenated
hydrocarbons and alcohols.
Wilson First activity coefficient equation to use the local
composition model to derive the Gibbs Excess energy
expression. It offers a thermodynamically consistent
approach to predicting multi-component behaviour from
regressed binary equilibrium data. However the Wilson
model cannot be used for systems with two liquid
phases.
Model Description
Chao Seader Use this method for heavy hydrocarbons, where the
pressure is less than 10342 kPa (1500 psia), and
temperatures range between -17.78 and 260°C (0-500°F).
Grayson
Streed
Recommended for simulating heavy hydrocarbon systems
with a high hydrogen content.
Activity Model Description2-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-13
ww
ThVapour Pressure Models
Vapour Pressure K-value models may be used for ideal mixtures
at low pressures. Ideal mixtures include hydrocarbon systems
and mixtures such as ketones and alcohols, where the liquid
phase behaviour is approximately ideal. The models may also be
used as first approximations for non-ideal systems. The
following vapour pressure models are available:
Miscellaneous Types
The Miscellaneous group contains Property Packages that are
unique and do not fit into the groups previously mentioned.
Models Description
Antoine This model is applicable for low pressure systems that
behave ideally.
Braun K10 This model is strictly applicable to heavy hydrocarbon
systems at low pressures. The model employs the Braun
convergence pressure method, where, given the normal
boiling point of a component, the K-value is calculated at
system temperature and 10 psia (68.95 kPa).
Esso Tabular This model is strictly applicable to hydrocarbon systems at
low pressures. The model employs a modification of the
Maxwell-Bonnel vapour pressure model.
Property Package Description
Amine Pkg Contains thermodynamic models developed by
D.B. Robinson & Associates for their proprietary
amine plant simulator, AMSIM v. 7.0 plus some
enhancements from v. 7.1 for BTX absorption. You
can use this property package for amine plant
simulations with Aspen HYSYS.
Amines is an optional Property Package. Contact
your AspenTech representative for further
information.
ASME Steam Restricted to a single component, namely H2O.
Uses the ASME 1967 Steam Tables.
Clean Fuels Pkg Designed specifically for systems of thiols and
hydrocarbons.
For more information on
the Amines package see
Appendix C - Amines
Property Package.2-13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-14 Aspen HYSYS Fluid Package
ww
ThAdditional Property Package Options
Depending on the Property Package you have selected,
additional information and options might be displayed on the
right side of the Set Up tab. Note that not all EOSs or Activity
models include the specifications indicated.
DBR Amine Package Similar to the Amine Pkg, but independently coded
and maintained by DBR; can be updated anytime
AMSIM thermo features and capabilities are
updated. Features include advanced solving and
flowsheet-composing capabilities through Aspen
HYSYS, physical solvent simulation capability by
DEPG, and improved thermodynamic model
predictions based on newly available experimental
data.
Infochem Multiflash Contains comprehensive library of thermodynamic
and transport property models, a physical
preoperty databank, methods for characterizing
and matching the properties of petroleum fluids,
and multiphase flashes capable of handling any
combination of phases. This package requires a
Aspen HYSYS Upstream license.
NBS Steam Restricted to a single component, namely H2O.
Utilizes the NBS 1984 Steam Tables.
Neotec BlackOil Uses methods developed by Neotechnology
Consultants, Ltd. and can be used when oil and
gas data is limited. This package requires an
Aspen HYSYS Upstream license.
OLI_Electrolyte Developed by OLI Systems Inc. and used for
predicting the equilibrium properties of a chemical
system including phase and reactions in a water
solution.
Property Packages Specifications and Options
Equation of States EOS Enthalpy Method Specification (for most
EOS, this option is located on the Parameters
tab)
Activity Models Activity Model Specifications
Amine Pkg Amine Options:
• Thermodynamic Models for Aqueous Amine
Solutions
• Vapour Phase Model
OLI_Electrolyte OLI_Electrolyte Options:
• Initialize and View Electrolytes
• Phase and Solid options
Property Package Description
For more information on
Infochem Multiflash,
refer to the Aspen
HYSYS Upstream
Option Guide.
For more information on
Neotec Black Oil, refer
to the Aspen HYSYS
Upstream Option
Guide.
For more information on
OLI_Electrolyte, refer to
the Aspen HYSYS OLI
Interface Reference
Guide.2-14
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-15
ww
ThEOS Enthalpy Method Specification
The Lee-Kesler Plocker (LKP) and Zudkevitch Joffee (ZJ)
property packages both use the Lee-Kesler enthalpy method.
You cannot change the enthalpy method for either of these
Equations of State. With any other Equation of State, you have a
choice for the enthalpy method:
Activity Model Specifications
The Activity Model Specification group appears for each activity
model. There are three specification items within this group as
shown in the following figure.
Activity Models only perform calculations for the liquid phase,
thus, you are required to specify the method to be used for
solving the vapour phase. The first field in the Activity Model
Specifications group allows you to select an appropriate Vapour
Model for your fluid package.
Enthalpy Method Description
Equation of State With this radio button selection, the enthalpy method
contained within the Equation of State is used.
Lee-Kesler The Lee-Kesler method is used for the calculation of
enthalpies.
This option results in a combined Property Package,
employing the appropriate equation of state for
vapour-liquid equilibrium calculations and the Lee-
Kesler equation for the calculation of enthalpies and
entropies.
This method yields comparable results to Aspen
HYSYS' standard equations of state and has identical
ranges of applicability.
Lee-Kesler enthalpies may be slightly more accurate
for heavy hydrocarbon systems, but require more
computer resources because a separate model must be
solved.
 Figure 2.72-15
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-16 Aspen HYSYS Fluid Package
ww
ThThe list of vapour phase models are accessed through the drop-
down list and are described below.
The second field in the Activity Model Specifications group is the
UNIFAC Estimation Temp. This temperature is used to estimate
interaction parameters using the UNIFAC method. By default,
the temperature is 25°C, although better results are achieved if
you select a temperature that is closer to your anticipated
operating conditions.
The third field in this group is a checkbox for the Poynting
Correction. This checkbox toggles the Poynting correction factor,
which by default, is selected. The correction factor is only
available for vapour phase models. The correction factor uses
each component's molar volume (liquid phase) in the calculation
of the overall compressibility factor.
Models Description
Ideal The Aspen HYSYS default. It is applied for cases in which
you are operating at low or moderate pressures.
RK The generalized Redlich Kwong cubic equation of state is
based on reduced temperature and reduced pressure, and is
generally applicable to all gases.
Virial Enables you to better model the vapour phase fugacities of
systems that display strong vapour phase interactions.
Typically this occurs in systems containing carboxylic acids,
or other compounds that have the tendency to form stable
hydrogen bonds in the vapour phase.
PR Uses the Peng Robinson EOS to model the vapour phase.
Use this option for all situations to which PR is applicable.
SRK Uses the Soave Redlich Kwong EOS to model the vapour
phase. Use this option for all situations to which SRK is
applicable.2-16
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-17
ww
ThAmine Options
The following Amine options are available when the Amine pkg
is selected.
The Thermodynamic Models for Aqueous Amine Solutions group
contains radio buttons that enable you to select between the
Kent-Eisenberg and Li-Mather models.
The Vapour Phase Model group contains radio buttons that
enable you to select between Ideal and Non-Ideal models.
DBR Amine Options
When the DBR Amine Package is selected, Aspen HYSYS will
prompt you to launch DBR Amine.
 Figure 2.8
 Figure 2.9
Refer to the Appendix
C.4 - Equilibrium
Solubility for detailed
information on each
thermodynamic model.2-17
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-18 Aspen HYSYS Fluid Package
ww
ThClick the Launch DBRAmine button and the Model Selection
dialog box will display. This dialog box allows you to choose
Kent-Eisenberg, Li-Mather, or Physical Solvent.
After the Model Selection is chosen and the DRB Amine dialog
box is closed, the COMThermo Setup displays.
DBRAmine and DBRAmineFlash are automatically selected in the
Model Selection group for both vapor and liquid phases. Using
DBRAmineFlash with the DBRAmine allows for better handling of
the flash calculations of amine or DEPG cases.
The Model options group shows each property and what
calculation method is used for that property.
 Figure 2.10
 Figure 2.112-18
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-19
ww
ThOLI_Electrolyte Options
If the OLI_Electrolyte property package is selected for the fluid
package, the following electrolyte options appear on the right
side of the property view.
After selecting electrolyte components for a component list from
the database, a electrolyte system is established.
The Initialize Electrolytes Environment button is used for
the following:
• Generating a group of additional components based on
the selected components and the setting in Phase Option
and Solid Option below.
• Generating a corresponding Chemistry model for
thermodynamic calculation.
The View Electrolyte Reaction in Trace Window button is
active when the Electrolytes Environment is initialized. It allows
you to view what reaction(s) are involved in the Thermo flash
calculation in the trace window.
Phase Option Group
The Phase Option includes the following four phases: vapour,
organic, solid, and aqueous. The checkboxes allow you to select
the material phases that are considered during the flash
calculation.
• The vapour, organic, and solid phases may be included or
excluded from calculations.
 Figure 2.12
Refer to the Aspen
HYSYS OLI Interface
Reference Guide for
detailed information on
electrolytes.2-19
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-20 Aspen HYSYS Fluid Package
ww
Th• The aqueous phase must be included in all electrolyte
simulations and is not accessible.
By default, the vapour and solid phases are selected with the
organic phase cleared.
The flexibility of selecting different phase combinations and the
procedure for phase mixing used by the flash calculation is
described in the following table:
Solid Option Group
The Solid Option group contains two checkboxes and the
Selected Solid button.
• Aspen HYSYS allows you to exclude all solids in your case
by selecting the Exclude All Solids checkbox.
• You can exclude solid components individually when the
solid phase is included, by disabling solid components
that are not of interest in the simulation.
To do this, you must invoke Initialize Electrolytes
Environment option first, and then click the Selected
Solid button. When you click the button, you can select
any component that you want to be included or excluded
in all of the Electrolyte streams from the case. When the
solid components are excluded, you have to re-initialize
the Electrolytes Environment.
Phases Included Description of the Flash Action
Vapour and Solid Generates vapour and solid phases when they exist. If
an organic phase appears, it is included in the vapour
phase.
Organic and
Solid
Generates the organic and solid phase when they exist.
If a vapour phase appears, it is included in the organic
phase.
Vapour and
Organic
Generates the vapour and organic phase when they
exist. If a solid phase appears, it is included in the
aqueous phase.
Vapour only Generates the vapour phase when it exists. If an
organic phase appears, it will be included in the vapour
phase and if a solid phase appears, it is included in the
aqueous phase.
Organic Only Generates the organic phase when it exists. If a vapour
phase appears, it will be included in the organic phase
and if a solid phase appears, it is included in the
aqueous phase.
Solid Only An electrolyte case with no organic or vapour phase is
impossible and is not be accepted.
Refer to Section 1.6.6 -
Disabling Solid
Components in the
Aspen HYSYS OLI
Interface Reference
Guide for more
information on including
and excluding solids.2-20
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-21
ww
Th• If you select the All Scaling Tendency checkbox, all
solids are excluded from the case. The Scaling Tendency
Index is still calculated in the flash calculation.
Redox Options Group
The Redox Options group contains features that enable you to
access the REDOX database. The REDOX database supports
calculations involving the reduction and oxidation of pure metals
and alloys to simulate the corrosion process in aqueous system.
• The Included checkbox enables you to toggle between
including or ignoring the selected REDOX sub-system for
the active property package.
• The Redox Subsystem Selection... button enables you
to access the Redox Sub-Systems property view. This
property view enables you to select the REDOX sub-
system you want to apply to the property package.
 Figure 2.13
By default, OLI REDOX selects the redox subsystems that
contain metals of engineering importance. This default is
motivated by corrosion applications, for which redox
transformations of engineering metals are important.
Refer to Section 1.6.7 -
Scaling Tendencies of
the Aspen HYSYS OLI
Interface Reference
Guide for more
information.
Refer to REDOX section
from Section 1.8.3 -
Special Databases in
the Aspen HYSYS OLI
Interface Reference
Guide for more
information.2-21
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-22 Aspen HYSYS Fluid Package
ww
ThComponent List Selection Group
You must also select a Component List to associate with the
current Fluid Package from the Component List Selection drop-
down list.
Component Lists are stored outside of the Fluid Package
Manager in the Components Manager and may contain
traditional, hypothetical, and electrolyte components.
Aspen HYSYS provides a warning message when you attempt to
associate a Component List containing incompatible and/or not
recommended components, with your property package.
Also, if you switch between property packages, and any
components are incompatible or not recommended for use with
the current property package, a property view appears
providing further options (see the following Warning Messages
section).
Warning Messages
There are two different warning property views that you may
encounter while modifying a Fluid Package. These situations
arise when a Component List is installed into the Fluid Package
and you want to select a new property package. Some
components from the selected Component List may either not
be recommended or are incompatible with the new property
package selection.
 Figure 2.14
It is not recommended for users to attach the Master
Component List to any Fluid Package. If only the master list
exists, by default a cloned version of the Master Component
List is created (called Component List -1). This list is
selected initially when a new Fluid Package is created.2-22
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-23
ww
ThThe first property view involves the use of Non-Recommended
components. In Aspen HYSYS, you can select components that
are not recommended for use with the current property
package.
If you try to switch to another property package for which the
components are not recommended, the following property view
appears:
The objects from the Components Not Recommended for
Property Package property view are described below:
 Figure 2.15
Object Description
Not
Recommended
The non-recommended components are listed in this
group.
Desired Prop Pkg This field initially displays the Property Package for
which the listed components are Not Recommended.
This field is also a drop-down list of all available
Property Packages so you may make an alternate
selection without returning to the Fluid Package
property view.
Action This group box contains two radio buttons:
• Delete Components. This removes incompatible
components from the Fluid Package.
• Keep Components. This keeps the components
in the Fluid Package.
OK Accepts the Desired Prop Pkg with the appropriate
Action.
Cancel Return to the Prop Pkg tab without making changes.2-23
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-24 Aspen HYSYS Fluid Package
ww
ThThe second dialog involves the use of Incompatible components.
If you try to switch to a property package for which the
components are incompatible, the following property view
appears:
The Objects from the Components Incompatible with Property
Package property view are described below:
 Figure 2.16
Object Description
Incompatible
Components
The incompatible components are listed in this group.
Desired Prop Pkg This field initially displays the Property Package for
which the listed components are Incompatible.
This field is also a drop-down list of all available
Property Packages so you may make an alternate
selection without returning to the Fluid Package
property view.
OK This button accepts the Desired Prop Pkg with the
appropriate Action (i.e., delete the incompatible
components).
Cancel Press this button to keep the current Property Package2-24
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-25
ww
Th2.4.2 Parameters Tab
The information and options displayed on the Parameters tab is
dependent on the Property Package selection. Some Property
Packages have nothing on the Parameters tab, while others
display additional information required. Those Property
Packages which have information on the Parameters tab are
mentioned in this section.
If a value is estimated by Aspen HYSYS, it is indicated in red and
can be modified.
GCEOS (Generalized Cubic EOS)
The Generalized Cubic Equation of State (GCEOS) is an
alternative to the standard equation of state property packages.
It allows you to define and customize the cubic equation to your
own specifications.
 Figure 2.172-25
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-26 Aspen HYSYS Fluid Package
ww
ThGeneralized Cubic Equation of State
To gain an understanding of how to specify the GCEOS property
package Parameters tab, you must first consider the general
cubic equation of state form:
where:
(2.1)
OR
(2.2)
(2.3)
(2.4)
(2.5)
P RT
v b–
----------- a T( )
v2 ubv wb2+ +
------------------------------------–=
Z3 C1Z2 C2Z C3+ + + 0=
C1 Bu B– 1–=
C2 B2w B2u– Bu– A+=
C3 B3w B2w AB+ +( )–=
Z Pv
RT
------=
A
amixP
R2T 2
--------------=2-26
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-27
ww
ThMRij = the mixing rule
To calculate the values of bi and ac, the cubic equation,
Equation (2.12), is solved to find a value for .
The value of ai in Equation (2.9) requires you to use the
(2.6)
(2.7)
(2.8)
(2.9)
(2.10)
(2.11)
(2.12)
B
bmixP
RT
--------------=
amix xixj ai T( )aj T( ) MRij×∑∑=
bmix xibi∑=
ai T( ) acα=
ac
3 u w–( )ξ2+
3 u 1–( )ξ+
-------------------------------- uξ+⎝ ⎠
⎛ ⎞ RTcVc=
bi ξVc=
u w u+( ) w–[ ]ξ3 3 w u+( )ξ2 3ξ 1–+ + 0=
ξ
α
2-27
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-28 Aspen HYSYS Fluid Package
ww
Thterm.
 in turn is made up of the  term.The parameter  is a
polynomial equation containing five parameters: .
The parameter  is also represented by a polynomial equation
consisting of 4 parameters (A, B, C and D).
The Parameters tab for the GCEOS consists of three group
boxes:
• GCEOS Pure Component Parameters
• GCEOS Parameters
• Initialize EOS
GCEOS Pure Component Parameters Group
This group allows you to define  by specifying the values of
.
To specify the value of , select the kappa0 radio button and a
property view similar to the one shown in Figure 2.18 should
appear. The group consists of a matrix containing 4 parameters
of Equation (2.15): A, B, C, and D for each component
(2.13)
(2.14)
(2.15)
α T( ) 1 κ 1 TR
0.5–( )+[ ]
2
=
α κ κ
κ0 κ1 κ2 κ3 κ4 κ5,,,,,
κ0
κ κ0 κ1 κ2 κ3TR–( ) 1 TR
κ4–( )+[ ] 1 TR
0.5+( ) 0.7 TR–( ) T
κ5××+=
κ0 A Bω Cω2 Dω3+ + +=
α
κ0 to κ5
κ02-28
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-29
ww
Thselected in the Fluid Package.
 Figure 2.182-29
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-30 Aspen HYSYS Fluid Package
ww
ThTo specify the remaining kappa parameters (in other words,
), select the kappa1-5 radio button. A new matrix
appears in the GCEOS Pure Component Parameters group.
This matrix allows you to specify the  values for each
component in the Fluid Package.
Volume Translation
The GCEOS allows for volume translation correction to provide a
better calculation of liquid volume by the cubic equations of
state. The correction is simply a translation along the volume
axis, which results in a better calculation of liquid volume
without affecting the VLE calculations. Mathematically, this
volume shift is represented as:
 Figure 2.19
(2.16)
(2.17)
κ0 to κ5
κ
ṽ v xici
i 1=
n
∑+=
b̃ b xici
i 1=
n
∑+=2-30
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-31
ww
Thwhere:
= translated volume
 = is the translated cubic equation of state parameter
ci = the pure component translated volume
xi = the mole fraction of component i in the liquid phase.
The resulting equation of state appears as shown in Equations
(2.4), (2.5) and (2.6) with b and v replaced with the
translated values (  and ).
To specify the value of the pure component correction volume,
ci, select the Vol. Translation radio button. A property view
similar to the one shown in Figure 2.20 will appear.
The GCEOS Pure Components Parameters group now contains a
matrix containing the volume correction constants for each
component currently selected. The matrix should initially be
empty. You can enter your own values into this matrix or click
the Estimate button and have Aspen HYSYS estimate values for
you. ci is estimated by matching liquid volume at normal boiling
point temperature with that of the liquid volume obtained from
an independent method (COSTALD).
Aspen HYSYS only estimates the correction volume constant for
those components whose cells have no value (i.e., they contain
0.000). If you specify one value in the matrix and click the
 Figure 2.20
ṽ
b̃
ṽ b̃2-31
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-32 Aspen HYSYS Fluid Package
ww
ThEstimate button, you are only estimating those empty cells.
GCEOS Parameters Group
The GCEOS Parameters group allows you to specify the u and w
parameters found in Equations (2.3) to (2.15).
The following table lists the u and w values for some common
equations of state:
Equation Status Bar
The GCEOS Parameter group also contains the Equation Status
Bar. It tells you the status of the equation definition. There are
two possible messages and are described as follows:
To estimate a cell containing a previously entered value,
select the cell, delete the current value and click the
Estimate button.
EOS u w
van der Waals 0 0
Redlich-Kwong 1 0
Peng-Robinson 2 -1
Message Description
This message appears if poor values are chosen for u
and w.
If the values selected for u and w are suitable this
message appears. 2-32
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-33
ww
ThInitialize EOS
The Initialize EOS drop-down list allows you to initialize GCEOS
Parameters tab with the default values associated with the
selected Equation of State.
The four options available are as follows:
• van der Waals Equation
• SRK Equation
• PR Equation
• PRSV Equation
Glycol Property Package
The following options appear on the Parameters tab when the
Glycol property package is selected:
• Enthalpy
• Density
• Use Water Gas kij2-33
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-34 Aspen HYSYS Fluid Package
ww
ThEnthalpy
The Peng-Robinson package offers two options for Enthalpy,
Density
The two options for Density are Use EOS Density and
COSTALD (default).
COSTALD
When COSTALD is selected, the Smooth Liquid Density
checkbox will appear in the Parameters area. This checkbox is
selected as the default.
In previous versions to Aspen HYSYS 3.0, these property
packages used the Costald liquid density model. This method
was only applied when the reduced temperature (Tr) was less
than unity. When the reduced temperature exceeded unity, it
switched to the EOS liquid density. Hence, at Tr=1 there is a
sharp change (discontinuity) in the liquid density causing
problems especially in dynamics mode.
Enthalpy Method Description
Equation of State The enthalpy method contained within the Equation of
State is used.
Lee-Kesler Lee-Kesler method is used for calculating enthalpy,
resulting in a combined Property Package, employing
the appropriate equation of state for vapour-liquid
equilibrium calculations and the Lee-Kesler equation
for the calculation of enthalpies and entropies.
This method yields comparable results to the Aspen
HYSYS standard equations of state and has identical
ranges of applicability.
Lee-Kesler enthalpies may be slightly more accurate
for heavy hydrocarbon systems, but require more
computer resources because a separate model must be
solved.2-34
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-35
ww
ThFor older cases including HYSIM cases, the density smoothing
option is not selected. This means that liquid densities in cases
using the smoothing option may differ from those cases in the
past.
By default, new cases have COSTALD and the Smoothing
Liquid Density option selected, so that Aspen HYSYS
interpolates the liquid densities from Tr=0.95 to Tr=1.0, giving
a smooth transition. It should be noted that the densities differ
if the option is not selected.
If both the Use EOS Density and Smooth Liquid Density boxes
are not selected, the behaviour and results are the same as
before (previous to Aspen HYSYS 3.0) and can cause problems
as discussed earlier.
Kabadi Danner
The Kabadi Danner Property Package uses Group Parameters
that are automatically calculated by Aspen HYSYS. The values
are generated from Twu's method.
Costald typically gives better liquid densities and smoothing
near Tr=1 is common.
 Figure 2.212-35
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-36 Aspen HYSYS Fluid Package
ww
ThPeng-Robinson
The following options appear on the Parameters tab when the
Peng-Robinson package is selected:
• Enthalpy
• Density
• Modify H2 Tc and Pc
• Indexed Viscosity
• Peng-Robinson Options
 Figure 2.222-36
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-37
ww
ThEnthalpy
The Peng-Robinson package offers two options for Enthalpy,
Density
The two options for Density are Use EOS Density and
COSTALD (default).
COSTALD
When COSTALD is selected, two options appear on the
Parameters tab:
• Smooth Liquid Density
• Pressure Correction
The Smooth Liquid Density checkbox is selected as the
default.
In previous versions to Aspen HYSYS 3.0, these property
packages used the Costald liquid density model. This method
was only applied when the reduced temperature (Tr) was less
than unity. When the reduced temperature exceeded unity, it
switched to the EOS liquid density. Hence, at Tr=1 there is a
sharp change (discontinuity) in the liquid density causing
problems especially in dynamics mode.
Enthalpy Method Description
Equation of State The enthalpy method contained within the Equation of
State is used.
Lee-Kesler Lee-Kesler method is used for calculating enthalpy,
resulting in a combined Property Package, employing
the appropriate equation of state for vapour-liquid
equilibrium calculations and the Lee-Kesler equation
for the calculation of enthalpies and entropies.
This method yields comparable results to the Aspen
HYSYS standard equations of state and has identical
ranges of applicability.
Lee-Kesler enthalpies may be slightly more accurate
for heavy hydrocarbon systems, but require more
computer resources because a separate model must be
solved.2-37
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-38 Aspen HYSYS Fluid Package
ww
ThFor older cases including HYSIM cases, the density smoothing
option is not selected. This means that liquid densities in cases
using the smoothing option may differ from those cases in the
past.
By default, new cases have COSTALD and the Smoothing
Liquid Density option selected, so that Aspen HYSYS
interpolates the liquid densities from Tr=0.95 to Tr=1.0, giving
a smooth transition. The densities differ if the option is not
selected.
If both the Use EOS Density and Smooth Liquid Density boxes
are not selected, the behaviour and results are the same as
before (previous to Aspen HYSYS 3.0) and can cause problems
as discussed earlier.
The Pressure Correction drop down menu offers two options:
• Chueh-Prausnitz’s Equation
• Tait’s Equation
The Chueh-Prausnitz equation is:
where:
 = molar density
Vs = saturated molar volume at T by COSTALD model
B = functions of (P, Ps, T, , Tc, Pc)
P = systems pressure
Ps = saturated pressure at T
n = constant
Costald typically gives better liquid densities and smoothing
near Tr=1 is common.
(2.18)ρ 1 Vs⁄( ) 1 B+( )n=
ρ
ω
2-38
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-39
ww
ThTait’s equation is
Vs  = the saturated volume at T by COSTALD model
P = the system pressure
Ps  = the saturated pressure at T
C and B  are funtions of (T, , Tc, Pc)
EOS Density and Volume Translation
When Use EOS Density is selected, Volume Translation
information appears in the Parameters area. Volume Translation
is a widely used empirical method to improve the accuracy of
the liquid density calculated by the EOS.
The matrix contains the volume correction constants for each
component currently selected. The default value for each
component is zero. You can enter your own values into this
matrix, or you can click the Estimate Vol. Trans. button and
have Aspen HYSYS estimate all the missing values for you.
Aspen HYSYS offers two methods of estimating the volume
translation parameter: COSTALD (default) and RACKETT. The
RACKETT model incorporates temperature dependence, whereas
the COSTALD model includes both temperature and pressure
dependence.
(2.19)V Vs 1 C B P+
B Ps+
---------------⎝ ⎠
⎛ ⎞ln–=
ω
2-39
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-40 Aspen HYSYS Fluid Package
ww
ThFor COSTALD, the liquid volume model is:
where:
 and  are functions of  for
The mixing rules for COSTALD are:
where:
The RACKETT model calculates liquid molar volume as a
function of temperature.
The equation for the RACKETT model is:
(2.20)
(2.21)
(2.22)
(2.23)
(2.24)
(2.25)
Vmsat VmCTDVmR 0, 1 ωVmR δ,–( )=
VmR 0, VmR δ, Tr 0.25 T< r 1.0≤2-40
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-41
ww
Thwhere:
R = the universal gas constant
Tc = the critical  temperature,
Pc = the critical pressure
Zm
RA = the RACKETT parameter,
Vcm = the critical molar volume,
The binary interaction parameter kij is estimated automatically
using the following equation:
(2.26)
Tc
Pc
----- xi
Tci
Pci
------
i
∑=
xiVci
i
∑
Tr
T
Tc
----=2-41
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-42 Aspen HYSYS Fluid Package
ww
ThModify H2 Tc and PC
When Modify H2 Tc and PC is selected, the critical
temperature and pressure of hydrogen is modified as a function
of temperature. This feature produces better results for
simulation systems containing hydrogen.
Indexed Viscosity
The Indexed Viscosity option enables you to toggle between two
methods/rules used to calculate the blended liquid viscosity.
When you select Indexed Viscosity, the Viscosity Index
Parameters property view that is associated to the active fluid
package appears.
In the Viscosity Index Parameters group, you specify the value
for each of the three parameters used in the linearized viscosity
calculation. The equation below the table displays how each
parameter is used in the Twu and Bulls (1981)2 calculation.
Theory
Viscosity cannot be blended linearly, so a methodology is
adopted that substitutes a function of the measured viscosity
that is approximately linear with temperature. A linearized
equation for viscosity is given by Twu and Bulls (1981)2:
Description
Aspen HYSYS
Viscosity
Provides an estimate of the apparent liquid viscosity of
an immiscible hydrocarbon liquid-aqueous mixture
using only the viscosity and the volume fraction of the
hydrocarbon phase
Indexed
Viscosity
Uses a linearized viscosity equation from Twu and Bulls
(2.27)
For more information on
viscosity mixing rules,
refer to Indexed
Viscosity Mixing Rule in
Section 2.4.1 - Set Up
Tab
10 10log(( ) v 0.7+( ) )log m 10T b+log=2-42
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-43
ww
Thwhere:
T = absolute temperature °R
v = kinematic viscosity in cSt
The above equation can be simplified to the following
expression:
where:
a = constant at a fixed temperature
v = kinematic viscosity in cSt
c = adjustable parameter
b = constant
This expression is linearly blended for the mixture. From there,
the kinematic viscosity is calculated.
Pure Component
Aspen HYSYS calculates the viscosity of a pure compound based
on the component class designation as well as the phase in
which the component is present as well as a temperature range:
Each viscosity model is based on the corresponding states
principle. A complete description of the corresponding stages
NBS model used for viscosity prediction used by Ely and Hanely
is given in the NBS publication3. This model was modified to
eliminate the iterative procedure for calculating the system
shape factors. The generalized Leech-Leland shape factor
models have been replaced by component specific models.
Although the modified NBS models handles most hydrocarbons
(2.28)
System Vapor Liquid
Light HCs (NBP<155F) Modified Ely and Hanley Ely and Hanely
Heavy HCs Modified Ely and Hanley Twu
Modified Letsou-Stiel Modified Ely and Hanely Modified Letsou-Stiel
a 10 10log(( ) v c+( ) )log b+2-43
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-44 Aspen HYSYS Fluid Package
ww
Thwell, the Twu method is known to do a better job of predicting
the viscosity of heavy hydrocarbon liquids. The Twu model is
also based on the corresponding states principle and uses a
viscosity correlation for n-alkanes as its reference fluid instead
of methane.
Experimental viscosity curves can be supplied via hypothetical
properties or user data in Aspen HYSYS directly by mapping the
library component as a hypothetical.
Peng-Robinson Options
The Peng-Robinson package has two options.
PR-Twu
Parameter tab options for the PR-Twu package are essentially
the same as for the Peng-Robinson package with the following
exceptions:
• Modify H2 Tc and Pc option is not available
• User Water Gas Kij option is available
• No Volume Translation options are available if Use EOS
Density is selected
Estimations for viscosity can be further improved over
internal estimation routines by supplying the experimental
viscosity for a hypothetical component.
Option Description
Aspen
HYSYS
The Aspen HYSYSPR EOS is similar to the PR EOS with several
enhancements to the original PR equation. It extends its range
of applicability and better represents the VLE of complex
systems.
Standard This is the standard Peng Robinson (1976) equation of state, a
modification of the RK equation to better represent the VLE of
natural gas systems accurately.
For more information on
property packages, refer
to Appendix A.3.1 -
Equations of State.2-44
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-45
ww
ThPeng-Robinson Stryjek Vera (PRSV)
In the Options grouping, PRSV offers two option for calculating
enthalpy.
In the Parameters grouping, PRSV uses an empirical factor,
Kappa, for fitting pure component vapour pressures.
Sour PR and Sour SRK
Parameter tab options for the Sour PR and Sour SRK packages
are essentially the same as for the Peng-Robinson package, with
the following exceptions:
• The Peng-Robinson Option is not available
• No Volume Translation options are available if Use EOS
Density is selected
Enthalpy Method Description
Equation of State The enthalpy method contained within the Equation of
State is used.
Lee-Kesler The Lee-Kesler method is used for the calculation of
enthalpies.
This option results in a combined Property Package,
employing the appropriate equation of state for
vapour-liquid equilibrium calculations and the Lee-
Kesler equation for the calculation of enthalpies and
entropies.
This method yields comparable results to the Aspen
HYSYS standard equations of state and has identical
ranges of applicability.
Lee-Kesler enthalpies may be slightly more accurate
for heavy hydrocarbon systems, but require more
computer resources because a separate model must be
solved.
 Figure 2.232-45
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-46 Aspen HYSYS Fluid Package
ww
ThSRK
Parameter tab options for the Sour PR, Sour SRK, and SRK
packages are essentially the same as for the Peng-Robinson
package, with the exception that the Peng-Robinson Option is
not available.
SRK-Twu and Twu-Sim-Tassone
Parameter tab options for the SRK-Twu and Twu-Sim-Tassone
packages are essentially the same as for the SRK package with
the following exceptions:
• Modify H2 Tc and Pc option is not available
• Use Water Gas Kij option is available
• No Volume Translation options are available if Use EOS
Density is selected
Zudkevitch Joffee
This Property Package uses a b zero Parameter. Aspen HYSYS
sets the b zero parameter of the ZJ equation to be zero.
 Figure 2.242-46
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-47
ww
ThChien Null
The Chien Null model provides a consistent framework for
applying different activity models on a binary by binary basis.
On the Parameters tab, you can specify the Activity Model to be
used for each component pair, as well as two additional pure
component parameters required by the model.
The two groups on the Parameters tab for the Chien Null
property package are:
• Chien Null Component Parameters
• Chien Null Binary Component Parameters
Component Parameters
Values for the Solubility and Molar Volume are displayed for
each library component and estimated for hypotheticals.
The Molar Volume parameter is used by the Regular Solution
portion of the Chien Null equation. The Regular Solution is an
Activity Model choice for Binary pair computations.
 Figure 2.252-47
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-48 Aspen HYSYS Fluid Package
ww
ThBinary Component Parameters
All of the components in the case, including hypotheticals, are
listed in the matrix. You can view the details for the liquid and
vapour phase calculations by selecting the appropriate radio
button:
• Liq Activity Models
• Virial Coefficients
By selecting the Liq Activity Models radio button, you can specify
the Activity Model that Aspen HYSYS uses for the calculation of
each binary. The matrix displays the default property package
method selected by Aspen HYSYS for each binary pair.
The choices are accessed by highlighting the drop-down list in
each cell. If Henry's Law is applicable to a component pair,
Aspen HYSYS selects this as the default property method. When
Henry's Law is selected by Aspen HYSYS, you cannot modify the
model for the binary pair.
In the previous property view, NRTL was selected as the default
property package for all binary pairs. You can use the default
selections, or you can set the property package for each binary
pair. Remember that the selected method appears in both cells
representing the binary. Aspen HYSYS may filter the list of
options according to the components involved in the binary pair.
 Figure 2.26
The Property Packages available in the drop-down list are:
• None Required
• Henry
• van Laar
• Margules
• NRTL
• Scatchard
• Reg Soln
• General2-48
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-49
ww
ThBy selecting the Virial Coefficients radio button, you can view
and edit the virial coefficients for each binary. Values are only
shown in this table when the Virial Vapour model is selected on
the Set Up tab. You can use the default values suggested by
Aspen HYSYS or edit these values. Virial coefficients for the pure
species are shown along the diagonal of the matrix table, while
cross coefficients, which are mixture properties between
components, are those not along the diagonal.
Wilson
The Molar Volume for each library component is displayed, as
well as those values estimated for hypotheticals.
Chao Seader & Grayson Streed
The Chao Seader and Grayson Streed models also use a Molar
Volume term. Values for Solubility, Molar Volume, and
Acentricity are displayed for library components. The
parameters are estimated for hypotheticals.
 Figure 2.27
 Figure 2.282-49
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-50 Aspen HYSYS Fluid Package
ww
ThAntoine
Aspen HYSYS uses a six term Antoine expression, with a fixed F
term. For library components, the minimum and maximum
temperature and the coefficients (A through F) are displayed for
each component. The values for Hypothetical components are
estimated.
Benedict-Webb-Rubin-Starling
(BWRS)
The Benedict-Webb-Rubin-Starling property package uses 11
pure-component parameters.
 Figure 2.29
The BWRS pure-component parameters are:
• B0
• A0
• C0
• gamma
• b
• a
• alpha
• c
• D0
• d
• E02-50
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-51
ww
ThFor 15 compounds, the pure-component parameters are built-in
to the property package and stored in the database. For other
compounds, these parameters are automatically calculated
using Tc, Vc, and acentric factor by Aspen HYSYS. The values
are generated from Han-Sterling correlations.
2.4.3 Binary Coefficients Tab
The Binary Coefficients (Binary Coeffs) tab contains a matrix
table which lists the interaction parameters for each component
pair. Depending on the property method selected, different
estimation methods may be available and a different property
view may be shown. You have the option of overwriting any
library value.
The cells with unknown interaction parameters contain dashes (-
--). When you exit the Basis Manager, unknown interaction
parameters are set to zero.
For all matrices on the Binary Coeffs tab, the horizontal
components across the top of the matrix table represent the "i"
component and the vertical components represent the "j"
component.
Compounds with Built-in parameters are:
• Methane
• Ethane
• Propane
• I-Butane
• n-Butane
• I-Pentane
• n-Pentane
• n-Hexane
• n-Heptane
• n-Octane
• Ethylene
• Propylenen
• N2
• CO2
• H2S
Note: The Binary Cooeffs tab for the Glycol Property package
contains a page for both EOS and Activity Model Interaction
Parameters.2-51
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-52 Aspen HYSYS Fluid Package
ww
ThGeneralized Cubic Equation of State
Interaction Parameters
When GCEOS is the selected property package on the Set Up
tab, the Binary Coeffs tab appears as shown below.
The GCEOS property package allows you to select mixing
methods used to calculate the equation of state parameter, aij.
Aspen HYSYS assumes the following general mixing rule:
where:
MRij = the mixing rule parameter.
 Figure 2.30
(2.29)aij aiajMRij=2-52
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-53
ww
ThThere are seven methods to choose for MRij:
Equation
(2.30)
(2.31)
(2.32)
(2.33)
where:
(2.34)
MRij T( ) 1 Aij BijT CijT
2
+ +–( )=
MRij T( ) 1 Aij BijT Cij T⁄+ +–( )=
MRij T( ) 1 xi Aij BijT CijT
2
+ +( )– xj Aji BjiT CjiT
2
+ +( )–=
MRij T( ) 1 xi Aij BijT Cij T⁄+ +( )– xj Aji BjiT Cji T⁄+ +( )–=
MRij T( ) 1
kij kji×( )
xikij xjkji+
--------------------------–=
kij Aij BijT CijT
2+ +=2-53
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-54 Aspen HYSYS Fluid Package
ww
ThEach mixing rule allows for the specification of three
parameters: Aij, Bij, and Cij, except for the Wong Sandler mixing
rule which has the Aij and Bij parameter and also requires you to
provide NRTL binary coefficients.
The parameters are available through the three radio buttons in
the upper left corner of the tab: Aij, Bij, and Cij/NRTL. By
selecting a certain parameter’s radio button you may view the
associated parameter matrix table.
Wong Sandler Mixing Rule
The Wong Sandler1 mixing rule is a density independent mixing
rule in which the equation of state parameters amix and bmix of
any cubic equation of state are determined by simultaneously
solving:
where:
(2.35)
Wong Sandler Mixing Rule - Refer to Wong Sandler Mixing Rule
section for more information.
When selecting the Cij/NRTL radio button you are specifying
the Cij parameter unless you are using the Wong Sandler
mixing rule. In this case you are specifying NRTL binary
coefficients used to calculate the Helmholtz energy.
Equation
MRij T( ) 1
kij kji×( )
xikij xjkji+
--------------------------–=
kij Aij BijT
Cij
T
------+ +=2-54
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-55
ww
Th• the excess Helmholtz energy at infinite pressure.
• the exact quadratic composition dependence of the
second virial coefficient.
To demonstrate this model, consider the relationship between
the second viral coefficient B(T) and the equation of state
parameters a and b:
Consider the quadratic composition dependence of the second
virial coefficient as:
Substitute B with the relationship in Equation (2.36):
To satisfy the requirements of Equation (2.38), the
relationship for amix and bmix are:
with:
(2.36)
(2.37)
(2.38)
(2.39)
(2.40)
B T( ) b a
RT
------–=
Bm T( ) xixjBij T( )
j
∑
i
∑=
bmix
amix
RT
----------– xixj b a
RT
------–⎝ ⎠
⎛ ⎞
i jj
∑
i
∑=
bmix
xixj b a
RT
------–⎝ ⎠
⎛ ⎞
i jj
∑
i
∑
1 F x( )
RT
----------–
------------------------------------------------=
amix bmixF x( )=2-55
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-56 Aspen HYSYS Fluid Package
ww
Thwhere:
F(x) = is an arbirtrary function
The cross second virial coefficient of Equation (2.8) can be
related to those of pure components by the following
relationship:
The Helmholtz free energy departure function is the difference
between the molar Helmholtz free energy of pure species i and
the ideal gas at constant P and T.
The expression for Ae is derived using lattice models and
therefore assumes that there are no free sites on the lattice.
This assumption can be approximated to the assumption that
there is no free volume. Thus for the equation of state:
bmix can be approximated by the following:
(2.41)
(2.42)
(2.43)
(2.44)
b a
RT
------–⎝ ⎠
⎛ ⎞
ij
bi
ai
RT
------–⎝ ⎠
⎛ ⎞ bj
aj
RT
------–⎝ ⎠
⎛ ⎞+
2
---------------------------------------------------- 1 Aij– BijT–( )=
Ai T P,( ) Ai
IG T P,( )– P vd
v ∞=
vi
∫–
⎝ ⎠
⎜ ⎟
⎜ ⎟
⎛ ⎞ RT
v
------ vd
v ∞=
RT
P
------
∫–
⎝ ⎠
⎜ ⎟
⎜ ⎟
⎜ ⎟
⎛ ⎞
–=
viP ∞→
lim bi=
vmixP ∞→
lim bmix=
bmix
xixj b a
RT
------–⎝ ⎠
⎛ ⎞
ijj
∑
i
∑
1
A∞
e x( )
RT
--------------
⎝ ⎠
⎜ ⎟
⎛ ⎞
xi
ai
biRT
-----------⎝ ⎠
⎛ ⎞
i
∑–+
-----------------------------------------------------------------=2-56
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-57
ww
Ththerefore amix is:
and F(x) is:
The Helmholtz free energy, , is calculated using the NRTL
model. You are required to supply the binary coefficient values
on the parameters matrix when the Cij/NRTL radio button is
selected.
(2.45)
(2.46)
 term is equal to 0.3.
amix
bmix
---------- xi
ai
bi
--- A∞
e x( )–
i
∑=
F x( ) xi
ai
bi
--- A∞
e x( )–
i
∑=
A∞
e x( )
α
2-57
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-58 Aspen HYSYS Fluid Package
ww
ThEquation of State Interaction
Parameter
The Equation of State Interaction Parameters group for a
selected EOS property package is displayed on the Binary Coeffs
tab..
The numbers displayed in the table are initially calculated by
Aspen HYSYS, but you can modify them. All known binary
interaction parameters are displayed, with unknowns displayed
as dashes (---). You have the option of overwriting any library
value.
 Figure 2.31
This information applies to the following Property Packages:
• Kabadi Danner
• Lee-Kesler Plocker
• Glycol
• PR
• PRSV
• Soave Redlich Kwong, SRK
• Sour PR
• Sour SRK
• Zudkevitch Joffee
• BWRS
These two radio buttons only
appear for the PR and SRK based
Equations of State.
This is equivalent to no Kij2-58
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-59
ww
ThFor all Equation of State parameters (except PRSV), Kij = Kji, so
when you change the value of one of these, both cells of the pair
automatically update with the same value. In many cases, the
library interaction parameters for PRSV do have Kij = Kji, but
Aspen HYSYS does not force this if you modify one parameter in
a binary pair.
If you are using PR or SRK (or one of the Sour options), two
radio buttons are displayed at the bottom of the tab.
Activity Model Interaction
Parameters
The Activity Model Interaction Parameters group, as displayed
on the Binary Coeffs tab when an Activity Model is the selected
property package, is shown in the figure below.
Radio Button Description
Estimate HC-HC/
Set Non HC-HC
to 0.0
This radio button is the default selection. Aspen HYSYS
provides the estimates for the interaction parameters
in the table, setting all non-hydrocarbon pairs to 0.
Set All to 0.0 When this is selected, Aspen HYSYS sets all interaction
parameter values in the table to 0.0.
 Figure 2.32
The numbering and naming of the radio buttons selections
vary according to the selected Activity Model.2-59
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-60 Aspen HYSYS Fluid Package
ww
ThThe interaction parameters for each binary pair are displayed;
unknown values will show as dashes (---). You can overwrite
any value or use one of the estimation methods. The estimation
methods are described in the following section.
To display a different coefficient matrix (i.e., Bij), select the
appropriate radio button.
Estimation Methods
When using Activity Models, Aspen HYSYS provides three
interaction parameter estimation methods. Select the
estimation method by selecting one of the following radio
buttons and then invoke the estimation by selecting one of the
available buttons:
This information applies to the following property packages:
• Chien Null
• Extended NRTL
• General NRTL
• Glycol
• Margules
• NRTL
• UNIQUAC
• Wilson
You may reset the binary parameters to their original library
values by clicking the Reset Params button.
Button Description
 UNIFAC
VLE
Aspen HYSYS calculates parameters using the UNIFAC VLE
model.
UNIFAC
LLE
Aspen HYSYS calculates all parameters using the UNIFAC LLE
model.
Immiscible The three buttons used for the UNIFAC estimations are
replaced by the following:
• Row in Clm Pair. Use this button to estimate the
parameters such that the row component (j) is
immiscible in the column component (i).
• Clm in Row Pair. Use this button to estimate
parameters such that the column components (j) are
immiscible in the row components (i).
• All in Row. Use this button to estimate parameters
such that both components are mutually immiscible.
Alphaij = Alphaji, but Aij  Aji.≠2-60
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-61
ww
ThIf you have selected either the UNIFAC VLE or UNIFAC LLE
estimation method, you can apply it in one of the following
ways, by selecting the appropriate button:
Since the Wilson equation does not handle three phase
systems, the Coeff Estimation group does not show the
UNIFAC LLE or Immiscible radio buttons when this property
package is used.
UNIFAC estimations are by default performed at 25°C, unless
you change this value on the Set Up tab.
Button Description
Individual
Pair
This button is only visible when UNIFAC VLE is selected. It
calculates the parameters for the selected component pair,
Aij and Aji. The existing values in the matrix are
overwritten.
Unknowns
Only
If you delete the contents of cells or if Aspen HYSYS does
not provide defaults values, you can use this option and
have Aspen HYSYS calculate the activity parameters for all
the unknown pairs.
You may reset the binary parameters to their original library
values by clicking the Reset Params button.
All Binaries Recalculates all the binaries in the matrix. If you had
changed some of the original Aspen HYSYS values, you can
use this to have Aspen HYSYS re-estimate the entire
matrix.2-61
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-62 Aspen HYSYS Fluid Package
ww
Th2.4.4 Stability Test Tab
The stability test can be thought of as introducing a "droplet" of
nucleus into the fluid. The droplet then either grows into a
distinctive phase or is dissolved in the fluid.
For multi-phase fluids, there exist multiple false calculated
solutions. A false solution exists when convergence occurs for a
lower number of phases than exists in the fluid. For example,
with a three-phase fluid, there is the correct three-phase
solution, at least three false two-phase solutions and multiple
false single-phase solutions. A major problem in converging the
flash calculation is arriving at the right solution without a prior
knowledge of the number of equilibrium phases.
The Stability Test allows you to instruct Aspen HYSYS on how to
perform phase stability calculations in the Flowsheet. If you
encounter situations where a flash calculation fails or you are
suspicious about results, you can use this option to approach
the solution using a different route.
The strategy used in Aspen HYSYS is as follows: unless there is
strong evidence for three phases, Aspen HYSYS first performs a
two-phase flash. The resulting phases are then tested for their
stability.
 Figure 2.332-62
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-63
ww
ThDynamic Mode Flash Options Group
Aspen HYSYS enables you to modify the flash calculation
methods to be used. There are three setting options available:
If the IOFlash option is selected, the Pressure Flow Solver group
on the Dynamics page of the Preferences options allows the
flash to be solved simultaneously with heat transfer equations.
The option can result in a further significant speed increase, but
should only be used if the case is stable using IO.
Flash Option Description
Try IOFlash
first
This activates an alternative optimized Inside-Out flash
algorithm that may provide a significant speed
improvement in many cases. It is aimed at dynamics
mode, but operates in steady state mode as well. The flash
can handle rigorous three phase calculations using the
Stability Test Parameters settings, although it is not tested
as well as the default flash algorithms and does not work
with all property packages. If you experience problems
that are flash related, try selecting or deselecting the
option. For maximum speed in two phase systems, you can
also set the Maximum Phases Allowed for the fluid package
to two in the Stability Test Parameters group, or set the
Method to none to disable the test.
If the IOFlash fails, Aspen HYSYS will immediately go to
method selected in the Secant Flash Options group.
The remaining options are for the dynamic mode secant flash
options.
Flash3 This is the default secant flash algorithm used in dynamics
mode. It is fast, but does not perform rigorous phase
stability tests based on the option set in the Stability Test
Parameters group. Hence, it may not always detect a
second liquid phase when it is present.
Multi Phase This is a secant flash algorithm that performs phase
stability testing according to the settings in the Stability
Test Parameters group. This option is typically slower than
the flash3 option. It can be used when multiple liquid
phases are important or in rare cases where using the
flash3 option results in instabilities due to the second liquid
phase not being detected consistently.
Use Multi
Phase
Estimates
The checkbox becomes available when you select Multi
Phase as the Secant Flash Option. If the case consist of
three phases, estimates are passed to the flash which
speeds up some flashes.
COMThermo is not optimized for dynamics mode and may
result in performance issues if used in dynamics mode.

2-63
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-64 Aspen HYSYS Fluid Package
ww
ThIf a dynamics case has more than one liquid phase (or if a single
liquid phase is aqueous or a hydrocarbon), it is recommended
that you use the Phase Sorting Method for the fluid package on
the Section 2.4.5 - Phase Order Tab. By default, phases are
sorted on density and phase types. If the phase type changes,
instabilities may result. The Phase Sorting Methods allow you to
clearly define the order in which phases should be defined so
that they are consistent.
Stability Test Parameters Group
You can specify the maximum number of phases allowed (2 or
3) in the Maximum Phases Allowed input cell. If this value is set
to 2, the stability test quits after 2-phase flashes. Occasionally,
you may still get 3 phases, as the flash may attempt to start
directly with the 3-phase flash.
The Stability scheme used is that proposed by Michelson. In the
Method group, you can select the method for performing the
stability test calculations by selecting one of the following radio
buttons:
Radio Button Description
None No stability test is performed.
Low Uses a default set of Phases/Components to Initiate the
Stability Test. This method includes the Deleted phases (if
they exist), the Wilson's Equation initial guess and the
Water component (if it exists) in the fluid.
Medium In addition to the options used for the Low method, this
method also includes the Average of Existing phase, the
Ideal Gas phase and the heaviest and lightest components
in the fluid.
All All available Phases and Components are used to initiate
the test.2-64
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-65
ww
ThPhases to Initiate Test
There are four choices listed within the Phase(s) to Initiate Test
group. These checkboxes are selected according to the radio
button selection in the Method group. If you change the status
of any option, the radio button in the Method group is
automatically set to User.
If any one of these initiating nuclei (initial guesses) forms a
distinctive phase, the existing fluid is unstable and this nucleus
provides the initial guess for the three-phase flash. If none of
these initial guesses shows additional phases, it can only be said
that the fluid is likely to be stable.
One limitation with the stability test is the fact that it relies on
the property package chosen rather than physical reality. At
best, it is as accurate as the property package. For instance, the
NRTL package is known to be ill-behaved in the sense that it
could actually predict numerous equilibrium phases that do not
exist in reality. Thus, turning on all initial guesses for NRTL may
not be a good idea.
User Allows you to activate any combination of checkboxes in
the Phase(s) to Initiate Test and Comp(s) to Initiate Test
groups. If you make changes when a default Method radio
button (i.e., Low, Medium) is selected, the method will be
changed to User automatically.
HYSIM Flash This is the flash method used in HYSIM. If this choice is
selected, Aspen HYSYS will use the same flash routines as
in HYSIM and no stability test will be performed. This option
allows comparison of results between HYSIM and Aspen
HYSYS. This stability option is not recommended for
dynamics mode. Use the default flash3 option with the
stability parameter set to none.
Checkboxes Description
Deleted If a phase is removed during the 2-phase flash, a droplet of
the deleted fluid is re-introduced.
Average of
Existing
The existing equilibrium fluids are mixed in equal portions;
a droplet of that fluid is introduced.
Ideal Gas A small amount of ideal gas is introduced.
Wilson's
Equation
A hypothetical fluid is created using the Wilson's K-value
and is used to initiate the stability test.
Radio Button Description2-65
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-66 Aspen HYSYS Fluid Package
ww
ThTemperature Limits
The temperature limits are intended to be used in dynamics
mode and are set to stop the flash when the limits are attained.
If the limits are reached, then dynamics will extrapolate
thereafter. The limits avoid potential problems with some
property packages at low temperatures and during severe
process upsets where you would get numerical errors and heat
exchanger convergence problems.
Components to Initiate Test
When a droplet of nucleus is introduced into the fluid, the
droplet either grows into a distinctive phase or is dissolved in
the fluid. Another obvious choice for the droplet composition is
one of the existing pure components. For example, if the fluid
contains hexane, methanol and water, one could try introducing
a droplet of hexane, a droplet of methanol or a droplet of water.
The choices for the pure component droplets are listed in the
Comp(s) to Initiate Test group.
2.4.5 Phase Order Tab
The Phase order feature is intended for dynamics. Aspen HYSYS
dynamics always uses three phases for streams and fluids in the
stream property view. For each unit operation, dynamics also
assumes that the same material is in the same phase slot for all
of the connected streams. The order of the first phase is always
vapour and the second phase is liquid. The third phase may be
aqueous or it can be a second liquid phase.
By default, Aspen HYSYS sorts these phases based on their Type
(liquid or aqueous) and Phase Density. However, subtle changes
to the stream properties may change the order. Stream
properties displayed as a liquid phase in one instance may be
displayed as an aqueous phase in another. For example, inside a
tray section the composition of a phase may change so that
instead of being aqueous it is a liquid phase. The phase moves
to a different slot in the fluid. This can cause disturbances in
Refer to Section 12.2 -
Material Stream
Property View of the
Aspen HYSYS
Operations Guide for
more information on
stream properties.2-66
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-67
ww
Thdynamics mode.
The Phase Sorting Method includes two options and is shown
below.
Use Phase Type and Density
This option can cause instabilities in dynamics. In practice if
small spikes are identified and an examination of the flowsheet
reveals that some material appears in different phase slots in
different parts of the flowsheet (where the spikes originate)
than the user specified option is recommended.
Use User Specified Primary
Components
The Use User Specified Primary Components option displays the
Select Primary Phase Components group that allows you to
specify which components should be in phase slot 1 and which
components should be in phase slot 2. These checks are used to
determine the phase order wherever the fluid package in
question is used.
 Figure 2.34
This option changes the order of phases in steady state as
well. Although in steady state many of the calculations
depend on the phase type and not the order, and hence
should not have any significant impact. 2-67
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-68 Aspen HYSYS Fluid Package
ww
ThIf there is only one non-vapour phase present and the mole
fractions of the primary component adds up to more than the
specified threshold, it is considered to belong in phase slot 1 and
of type “liquid 1”. Otherwise the ratio of primary component for
the two choices is examined.
This option is recommended when:
• a simulation is performed and it has more than one liquid
phase.
• the densities of the two liquid phases may be close.
• one or more phases is close to being labelled either
aqueous or liquid.
2.4.6 Reactions Tab
Within the Basis Environment, all reactions are defined through
the Reaction Manager (Reactions tab of the Simulation Basis
Manager). On the Rxns tab of the Fluid Package property view,
you are limited to attaching/detaching reaction sets.
Changing this option does not resolve the case or
immediately update the affected streams. The changes occur
while the integrator is running, which minimizes
disturbances.
 Figure 2.35
See Chapter 5 -
Reactions for more
information.2-68
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-69
ww
ThThe objects for the Rxns tab within the Fluid Package property
view are described below.
2.4.7 Tabular Tab
The Tabular Package can regress the experimental data for
select thermophysical properties such that a fit is obtained for a
chosen mathematical expression. The Tabular Package is utilized
in conjunction with one of the Aspen HYSYS property methods.
Your targeted properties are then calculated as replacements for
whatever procedure the associated property method would have
used.
Although the Tabular Package can be used for calculating every
property for all components in the case, it is best used for
matching a specific aspect of your process. A typical example
would be in the calculation of viscosities for chemical systems,
where the Tabular Package will often provide better results than
the Activity Models.
Object Description
Current
Reactions Sets
This lists all the currently loaded reactions set in this
Fluid Package.
Associated
Reactions
There are two Associated Reactions list boxes. Both
boxes displays all the reactions associated with the
respective selected Reaction Set.
Add Set This button attaches the highlighted Available Reaction
Set to the Fluid Package and displays it in the Current
Reactions Sets group.
Remove This button removes the highlighted Current Reaction
Set from the Fluid Package.
Available
Reactions Sets
This list-box displays all the Available Reactions Sets in
the case.
Simultaneous
Basis Mgr
Click this button to access the Reaction Manager.2-69
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-70 Aspen HYSYS Fluid Package
ww
ThTabular Package calculations are based on mathematical
expressions that represent the pure component property as a
function of temperature. The values of the property for each
component at the process temperature are then combined,
using the stream composition and mixing rule that you specify.
The Tabular provides access to a comprehensive regression
package. This allows you to supply experimental data for your
components and have Aspen HYSYS regress the data to a
selected expression. Essentially, an unlimited number of
expressions are available to represent your property data. There
are 32 basic equation shapes, 32 Y term shapes, 29 X term
shapes, as well as Y and X power functions. The Tabular
provides plotting capabilities to examine how well the selected
expression predicts the property. You are not restricted to the
use of a single expression for each property. Each component
can be represented using the best expression.
You may not need to supply experimental data to use the
Tabular. If you have access to a mathematical representation for
a component/property pair, you can simply select the correct
equation shape and supply the coefficients directly. Further,
Aspen HYSYS provides a data base for nearly 1,000 library
components, so you can use this information directly within the
Tabular without supplying any data whatsoever.
Aspen HYSYS contains a default library containing data for
over 1,000 components.
Whenever experimental data is supplied, it is retained in the
memory by Aspen HYSYS and stored in the case.2-70
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-71
ww
ThIn addition, Aspen HYSYS can directly access the information in
the PPDS database for use in the Tabular. This database is
similar to that provided with Aspen HYSYS in that the properties
for the components are represented using a mathematical
expression.
Requirements for Using the Tabular
There are only two requirements on the usage of the Tabular
package. First, most properties require that all components in
the case have their property value calculated by the Tabular.
Second, enthalpy calculations require that the Tabular be used
for both the liquid and vapour phase calculations. Similarly, you
may use only one enthalpy type property for each phase. For
example, liquid enthalpy and liquid heat capacity cannot both be
selected. An extension to this occurs when the latent heat
property is selected. When this property is activated, only one
enthalpy type property or one heat capacity property may be
selected.
The PPDS database is an optional tabular feature. Contact
your Hyprotech representative for further information.
The Heat of Mixing property can be applied in one of two
manners. For Activity Models that do not have Heat of Mixing
calculations built in, this allows you to supply data or have
the coefficients estimated, and have Heats of Mixing applied
throughout the flowsheet. Equations of State do account for
Heat of Mixing in their enthalpy calculations, however, in
certain instances predict the value incorrectly. You can use
this route to apply a correction factor to the Equation of
State.
In the cases where the Equation of State is predicting too
high a value, implementing a negative Heat of Mixing can
correct this.2-71
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-72 Aspen HYSYS Fluid Package
ww
ThLimits in the Tabular Option
In enthalpy extrapolation, if the upper temperature limit (Tmax)
is less than the critical temperature (Tc) Aspen HYSYS Tabular
option continues to extrapolate the data based on the original
curve up to the critical point. At this point, an internal
extrapolation method is used to calculate the liquid enthalpy.
Due to the internal extrapolation method, there may be a huge
discontinuity and poor extrapolation results from Tmax to Tc. The
poor calculated values cause problem with the PH flash
calculation.
There are two methods to avoid this problem:
• Increase the Tmax value of the original enthalpy curve.
However, as mentioned above the curve itself does not
extend above Tmax very well and produces poor results.
You will have to be responsible for changing the curve
shape to extrapolate in a better manner.
• User the Enthalpy Model Tr Limit option. This option
allows you to control the starting temperature at which
the extrapolation method is implemented. So instead of
Tc, the extrapolation will start at a certain Tr (the default
value is 0, which tells Aspen HYSYS to use the default
method) typically 0.7 to 0.99.
Extrapolating accurate/adequate data is important, especially
for enthalpy values approaching the critical point, as the values
can change in odd manner and may require special
extrapolation.
If you are not using PPDS mixing rules (PPDS extrapolation
methods) Aspen HYSYS supplies a very simple extrapolation
based on constant Cp calculated from the original tabular
enthalpy curve. This method keeps everything monotonically
increasing through the critical point and into the dense phase.2-72
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-73
ww
ThUsing the Tabular Package
When using the Tabular package a general sequence of steps is
shown below:
1. Enable the Configuration and Notes pages (under the
Options branch) by selecting the Enable Tabular
Properties check box.
2. Select the Basis for Tabular Enthalpy by clicking the
appropriate radio button on the Configuration page.
3. Select the checkboxes for the desired target properties from
the All Properties, Physical, and Thermodynamic pages
in the Options branch.
 Figure 2.36
To view all pages under the Options branch, use the Plus icon
 to expand the tree browser.2-73
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-74 Aspen HYSYS Fluid Package
ww
ThThe All Properties page is shown below.
As properties are added, the Information branch also
becomes expandible. To expand the branches in the tree
browser, click the Plus icon  that appears in front of a
branch.
Expanding the Information branch displays all of the active
target properties selected on the pages under the Options
branch. If the Heat of Mixing property is activated on the All
Properties or Thermodynamics page, a new expandible
branch for Heat of Mixing appears in the Tabular Package
group.
4. If you have the PPDS database, select the check box for the
database.
5. Once a target property is selected on one of the three pages
under the Options branch, you can select the Mixing Basis
by using the drop-down list.
The Parameter value may also be changed on this page.
 Figure 2.372-74
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-75
ww
Th6. To view the existing library information, you must first select
the desired page from the expandible Information branch.
Click the desired property from the tree browser.
7. To plot the existing library information, click the Cmp Plots
button. Click a component using the drop-down list in the
Curve Selection group to change the components being
plotted. The variables, Enthalpy vs. Temperature are plotted
from the Variables group and shown in the figure below.
 Figure 2.38
 Figure 2.392-75
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-76 Aspen HYSYS Fluid Package
ww
Th8. Return to the Information page of the property by closing
the plot property view. To view the PropCurve property view
for a selected component, highlight a value in the column of
the desired component and click the Cmp Prop Detail
button.
9. Set the Equation Form and supply data. You can view this
same format of data for library components.
The Tabular tab of the fluid package property view contains a
tree browser which controls the options displayed in the tab. The
options depend on the branches selected in the tree browser,
these branches are:
• Configuration
• Options
• Information
• Heat of Mixing (appears only when Heat of Mixing is
activated in the Options)
• Notes
 Figure 2.402-76
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-77
ww
ThConfiguration Branch
The Configuration page consists of two groups, the Global
Tabular Calculation Options, and the Basis for Tab. Enthalpy
(ideal gas).
Global Tabular Calculation Behaviour Group
The Global Tabular Calculation Behaviour Group contains two
checkbox options:
 Figure 2.41
Checkbox Description
Enable
Calculation
of Active
Properties
If this is activated, all the selected Active Properties are
calculated via the Tabular Package. If this check box is
cleared, all properties are calculated by the Property
Package. This provides a master switch to enable/disable
the Tabular Package while retaining the Active Property
selections.
Enable
Tabular
Properties
Toggles the Tabular Properties on or off. If the check box is
toggled off, no other pages are available and none of the
previously inputted data is stored.
Selecting the Enable Tabular Properties check box
activates the Options, Information, and Notes branch.2-77
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-78 Aspen HYSYS Fluid Package
ww
Th Basis for Tabular Enthalpies
This group becomes active after the Enable Tabular Properties
checkbox is clicked. It allows you to select between the enthalpy
basis for tabular calculations:
• H = 0 K, ideal vapour (HYSIM basis)
• H = Heat of formation at 25 °C, ideal vapour
Options Branch
You can target a property through the three sub-branches
available in the Options branch.
The difference between the Enable Calculation of Active
Properties and the Enable Tabular Properties checkboxes:
The Enable Calculation of Active Properties check box
toggles between the properties regressed from the data
supplied on the Tabular tab and the default values calculated
by the Property Package. While clearing the checkbox
returns to the default Property Package values, the tab
retains all inputted data for the active property selections.
The Enable Tabular Properties checkbox makes the other
pages active for specification. Clearing this checkbox purges
the tab of any tabular property data it might have previously
contained.
 Figure 2.422-78
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-79
ww
ThTo expand the branch, click the Plus icon  in front of the
Options label in the Tabular Package group. This displays the All
Properties, Physical, and Thermodynamics pages. Each one
of these pages consists of a five column matrix table.
Property Type
The All Properties page consists of seventeen properties which
include both the Physical and Thermodynamic properties. These
properties have then been subdivided into two groups and
displayed again on either the Physical or Thermodynamics
page. These properties are listed in the table below, along with
the subgroup that they belong to:
• K-value (V/L1) [Thermodynamic]
• K-value (V/L2) [Thermodynamic]
• K-value (L1/L2) [Thermodynamic]
• Enthalpy(L) [Thermodynamic]
• Enthalpy(V) [Thermodynamic]
• Latent Heat [Thermodynamic]
• Heat Capacity(L) [Thermodynamic]
• Heat Capacity(V) [Thermodynamic]
• Heat of Mixing [Thermodynamic]
• Viscosity (L) [Physical]
• Viscosity (V) [Physical]
• Thermal Cond (L) [Physical]
• Thermal Cond (V) [Physical]
• Surface Tension [Physical]
• Density (L) [Physical]
• Entropy(L) [Thermodynamic]
• Entropy(V) [Thermodynamic]
Use Aspen HYSYS/Use PPDS
The checkboxes in the Use Aspen HYSYS and Use PPDS columns
allow you to select between the Hyprotech and the PPDS
libraries. Depending on the property type selected, the PPDS
library may not be available. When the PPDS library is available,
the checkbox changes from light grey to white.2-79
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-80 Aspen HYSYS Fluid Package
ww
ThComposition Basis
The Composition Basis allows you to select the Basis (mole,
mass, or liq volume) on which the mixing rule is applied. When
you select a property type the Composition Basis becomes
active for that property. The available options can be accessed
from the drop-down list within the cell of each property
selected.
The default mixing rule which is applied when calculating the
overall property is shown in the following form:
Mixing Parameter
The last column in the matrix table is the Mixing Parameter. This
allows you to specify the coefficient (f) to use for the mixing rule
calculations. Notice that the default value is 1.00. The value that
Aspen HYSYS uses as the default is dependent on the property
selected. For instance, if you select Liquid Viscosity as the
property type, Aspen HYSYS uses 0.33 as the default for the
Mixing Parameter.
If you are using the PPDS database, you can modify the mixing
rule parameters for any property with the exception of the
vapour viscosity and vapour thermal conductivity. The
parameters for these properties are set internally to the
appropriate PPDS mixing rule.
The PPDS database is an optional tabular feature. Contact
your Hyprotech representative for further information.
(2.47)Propertymix xiPropertyi
f
i
∑
1
f
--
=
2-80
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-81
ww
ThInformation Branch
After properties are activated on one of the three pages in the
Options branch, the property appears in the Information branch.
This branch can be expanded by clicking the Plus icon  in
front of the Information label in the Tabular Package group.
A component may be targeted by clicking in any cell in the
component’s column. For example, if Propane was the
component of interest, click in any cell in the third column. Once
the component is targeted, select the Cmp Prop Detail button to
access the PropCurve property view. Most of the information
contained in the PropCurve property view is displayed on the
Information pages and can also be changed there.
 Figure 2.43
The Heat of Mixing property does not create a page in the
Information branch. Instead it will create a unique branch in
the Tabular Package group.
See Supplying Tabular
Data for further
information on the
PropCurve property view. 2-81
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-82 Aspen HYSYS Fluid Package
ww
ThCmp Plots Button
The Cmp Plot button accesses the plot of Temperature vs. the
selected Property Type. The Variables group shows the property
used for the X and Y axis (Enthalpy in this case).
Aspen HYSYS can only plot four curves at a time. The Curve
Selection group lists the components which are plotted on the
graph. The default is to plot the first four components in the
component list. You can replace the default components in the
Curve Selection group with other components by using the
drop-down list in each cell.
Select the component you want to add to the Curve Selection
group. The new component replaces the previously selected
component in the Curve Selection group, and Aspen HYSYS
redraws the graph, displaying the data of the new component.
Aspen HYSYS uses the current expressions to plot the graphs,
either from the Aspen HYSYS library or your supplied regressed
data.
 Figure 2.44
Object inspect the plot area to access the Graph Control
property view.
Refer to Section 10.4 -
Graph Control of the
Aspen HYSYS User
Guide for more
information.2-82
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-83
ww
ThHeat of Mixing Branch
When the Heat of Mixing property is activated on either the All
Properties or the Thermodynamic page in the Options
branch, a new branch gets added to the root of the tree browser
in the Tabular Properties group. This branch can be expanded by
clicking the Plus icon  in front of the Heat of Mixing label in
the Tabular Package group. The pages in the branch correspond
to the components in the fluid package.
Heat of Mixing Page
This page is only visible when Heat of Mixing is selected on the
All Properties or Thermodynamic pages. It consists of the
following objects:
 Figure 2.45
Object Description
UNIFAC VLE Aspen HYSYS uses the UNIFAC VLE estimation method to
calculate the binary coefficients. This overwrites any
existing coefficients.
UNIFAC LLE Same as UNIFAC VLE, except the LLE estimation methods
are used.
Temperature The reference temperature at which the UNIFAC
parameters are calculated.2-83
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-84 Aspen HYSYS Fluid Package
ww
ThComposition Pages
The Composition pages in the Heat of Mixing branch are very
similar to the pages contained in the Information branch. Click
the View Details button to access a modified PropCurve
property view.
The only difference is that there is no Coeff tab. Most of the
information contained in the PropCurve property view is
displayed on the Information pages, where it can be modified.
Notes Page
Any comments regarding the tabular data or the simulation in
general may be displayed here.
 Figure 2.46
See Supplying Tabular
Data for further
information on the
PropCurve property view. 2-84
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-85
ww
ThSupplying Tabular Data
When you have specified the flowsheet properties for which you
want to use the Tabular Package, you can change the data
Aspen HYSYS uses in calculating the properties. Aspen HYSYS
contains a data file with regressed coefficients and the
associated equation shape, for most components.
To illustrate the method of supplying data, use Methane as a
component and Liquid Enthalpy as the Property. From the
Enthalpy (L) Tabular Package group, select the Methane cell as
the component and click the Cmp. Prop. Detail button.
The Variables tab of the PropCurve property view is displayed as
shown below:
If Heat of Mixing is used, you can access the Prop Curve by
selecting the component and then click the View Details
button. Although it should be noted that this property view
does not include the Coeffs tab.
 Figure 2.472-85
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-86 Aspen HYSYS Fluid Package
ww
ThThe PropCurve property view contains the following tabs:
Variables Tab
The Variables tab is the first tab of the PropCurve property view.
It contains four groups, X-Variable, Y-Variable, Q-Variable, and
Equation Form. The Variables tab is shown in the previous
figure.
X-Variable Group
This group contains information relating to the X-Variable and is
described below.
Tab Description
Variables Specify the equation shapes and power functions for the
property.
Coeff Displays the current coefficients for the selected equation.
Table Current tabular data for the property (library or user
supplied).
Plots Plots of the property using the tabular data and the
regressed equation.
Notes User supplied descriptive notes for the regression.
Cells Description
X Since all properties are measured versus Temperature, this
cell always shows Temperature when using the Tabular
Package.
Unit Displays the units for the temperature values. You cannot
change the units here. The Aspen HYSYS internal units for
Temperature, K, are always used.
Shape This is the shape of the X variable. The choices for the X
Shape can be accessed using the drop-down list in the cell.
There are 29 available shapes. Use the scroll bar to move
through the list. In this case, the shape selected is Xvar:x.
This means that the X variables in the equation are equal to
X, which represents temperature. If LogX:log10(x) is
selected as the X Shape, then the X variables in the
equation are replaced by log10(x).
 Shape Norm This is a numerical value used in some of the X Shapes. In
the drop-down list for X Shape, notice that the second
choice is Xreduced:x/norm. The x/norm term, where norm
= 190.70, replaces the X variable in the equation. You can
change the numerical value for Norm in the cell.2-86
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-87
ww
ThY-Variable Group
This group contains all information relating to the Y-Variable.
Exponent Allows you to apply a power term to the X term, for
example, X0.5.
Eqn
Minimum
Defines the minimum boundary for the X variable. When a
flowsheet calculation for the property is outside the range,
Aspen HYSYS uses an internal method for extrapolation of
the curve. This method is dependent on the Property being
used. See the Equation Form section.
Eqn
Maximum
Defines the maximum boundary for the X variable. When a
flowsheet calculation for the property is outside the range,
Aspen HYSYS uses an internal method for extrapolation of
the curve. This method is dependent on the Property being
used. See the Equation Form section.
Cells Description
Y This is the property chosen for Tabular calculations.
Unit Displays the units for the Y variable. You cannot change the
units here, it must be done through the Basis Manager
(Preferences option).
Shape This is the shape of the Y variable. The choices for the Y Shape
are available using the drop-down list within the cell. There
are 32 shapes selected. Use the scroll bar to move through the
list. In this case, the shape chosen is Yvar:y. This means that
the Y variables in the equation are equal to Y, which represents
enthalpy. If LogY:log10(y) is chosen as the Y Shape, then the
Y variables in the equation are replaced by log10(y).
Shape
Norm
This is a numerical value used in some of the Y Shapes. In the
drop-down list for Y Shape, notice that the second choice is
Yreduced:y/norm. The Y variable in the equation is replaced
by the y/norm value. This numerical value can be changed
within the cell.
Exponent Allows you to apply a power term to the Y term, for example,
Y0.5.
Cells Description2-87
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-88 Aspen HYSYS Fluid Package
ww
ThQ-Variable Group
This group contains all information relating to the Q Variable.
This Variable is used in some of the X and Y Variable equations.
Coefficients Group
This group is only visible in the Heat of Mixing page when it is an
active property.
The Coefficients group contains the coefficient values either
obtained from the Aspen HYSYS database, or regressed from
data supplied in the Table tab.
Equation Form
Depending on which property you have selected, Aspen HYSYS
selects a default Equation Shape. You have the option of using
this equation or an alternative one. You can select a different
equation from the drop-down list associated with this cell. The
drop-down list contains 33 available equations to choose from.
Cell Description
Q Represents the Q variable which is always Pressure.
Unit Displays the units for the Q Variable, which are always the
default internal units of pressure, kPa.
Default This is the default numerical value given to the Q Variable
which can be modified within the cell.
 Figure 2.482-88
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-89
ww
ThWhen Aspen HYSYS cannot regress the data to produce
equation coefficients for the selected equation shape, the
message Non-Regressable appears on the right of the drop-
down list. You can still use the equation shape, but you have to
manually input the coefficients.
Coeff Tab
This tab displays the current coefficients for the specified
equation. Notice that this property view also contains the
Equation Form group, allowing you to change the equation from
this tab.
 Figure 2.49
 Figure 2.50
Some equation shapes only allow you to supply coefficients
directly. You are informed if the equation shape cannot have
tabular data regressed to it.
The X, Y, and Q variables and their units are displayed for
reference only. They can not be modified.2-89
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-90 Aspen HYSYS Fluid Package
ww
ThThe Coefficients group contains the coefficient values either
obtained from the Aspen HYSYS database, or regressed from
data supplied in the Table tab.
The checkboxes supplied next to each coefficient value allow you
to instruct Aspen HYSYS not to regress certain coefficients, they
will remain at the fixed value (default or user supplied) during
regression.
Table Tab
You can supply your tabular data before or after selecting the
Equation Shape. To enter data, select the Table tab.
 Figure 2.51
 Figure 2.522-90
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-91
ww
ThIf the component is from the Aspen HYSYS library, 20 points are
generated between the current Min and Max temperatures. If
you need to supply data, click the Clear Data button. You can
also add your data to the Aspen HYSYS default data and have it
included in the regression.
Supplying Data
If you are going to supply data, select the unit cell under the X
and Y variable columns and press any key to open the drop-
down list. From the list you can change to the appropriate units
for your data.
The procedure for supplying data is as follows:
1. Select the appropriate units for your data.
2. Clear the existing data with the Clear Data button, or move
to the location that you want to overwrite.
3. Supply your data.
Coefficients calculated using the deleted data are still
present on the Coeff tab until the Regress button is clicked.
4. Supply Net Weight Factors if desired.
Q-Column
This column contains the Pressure variable. The presence of this
extra variable helps in providing better regression for the data.
As with the X and Y variables, the units for pressure can be
changed to any of the units available in the drop-down list.
Wt Factor
You can apply weighting to individual data points. When the
regression is performed, the points with higher weighting factors
are treated preferentially, ensuring the best fit through that
region.
To delete a particular data point, highlight the data point and
press the DELETE key.2-91
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-92 Aspen HYSYS Fluid Package
ww
ThRegressing the Data
After you have provided the data, you need to update the
equation coefficients. Click the Regress button to have Aspen
HYSYS regress your data, generating the coefficients based on
the current shapes. If you then change any of the equation
shapes, the data you supplied is regressed again. You can re-
enter the regression package and select a new shape to have
your data regressed.
Data Retention
Whenever experimental data is supplied, it is retained by Aspen
HYSYS in memory and is stored in the case. At a later date, you
can come back into the Tabular Package and modify data for the
Property, and Aspen HYSYS regresses the data once again.
Plot Tab
To examine how the current equations and coefficients
represent the property, select the Plots tab to view the plot.
 Figure 2.53
Use the Plot button on the Tabular tab to display up to four
component curves on the same graph.2-92
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-93
ww
ThOnly the selected component (in this case Methane) is
displayed. The plot contains two curves, one plotted with the
regressed equation and the other with the Table values. If the
Tabular values supplied on the Table tab are in different units,
they are still plotted here using the Aspen HYSYS internal units.
This provides a means for gauging the accuracy of the
regression. In this example, the two curves overlap each other,
such that it appears to only show one curve.
Besides displaying the component curve, this property view also
displays the number of points used in determining the tabular
equation (in this case 20). As well, the x-Axis group displays the
Min (91.7) and Max (169) x-values on the curve.
You can change the Min and Max x-axis values and have Aspen
HYSYS extend the curve appropriately. Place the cursor in the
Min cell and type in a new value. For example, type 70. This
replaces 91.7, and Aspen HYSYS extends the curve to include
this value. Similarly, you can change the Max value, and have
Aspen HYSYS extend the curve to include this new value. Type
180 to replace the Max value of 169.00.
The new curve is shown below.
 Figure 2.542-93
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-94 Aspen HYSYS Fluid Package
ww
ThNotes Page
The Notes page is used for supplying a description to associate
with the Tabular Data just entered.
When you have finished providing all necessary data, close the
PropCurve property view and return to the Tabular tab of the
Fluid Package property view. You can now continue to supply
data for the other components, if you want. The properties that
you have specified to be calculated with the Tabular package
carry through into the Flowsheet.
2.4.8 Notes Tab
The Notes tab allows you to provide documentation that is
stored with the Fluid Package. When you export a Fluid Package,
any Notes associated with it are also exported. When you want
to import a Fluid Package at a later date, the Notes tab allows
you to view information about the Fluid Package.
To review all notes within
the fluid package, refer to
Section 7.19 - Notes
Manager of the Aspen
HYSYS User Guide.2-94
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-95
ww
Th2.5 COMThermo Property
View
The Fluid Package COMThermo property view can be accessed
by selecting COMThermo Pkg in the Property Package Selection
list on the Set Up tab of the Fluid Package property view. Like
the basic Fluid Package property view, the property view for
COMThermo consists of eight tabs and is based on the
COMThermo thermodynamics framework. These tabs include
information pertaining to the particular fluid package selected
for the case.
When you create a new fluid package and select the
COMThermo from the list, the COMThermo Setup view appears.
 Figure 2.552-95
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-96 COMThermo Property View
ww
Th2.5.1 Set Up Tab
When the COMThermo Package is selected from the Property
Package selection list, the COMThermo Setup link appears in the
right hand side of the property view.
COMThermo Setup Window
The COMThermo Setup window automatically appears when you
select the COMThermo Property package from the Property
Package Selection list. This window displays
• Model Selection
• Model Phase
• Model Options
• Extended Setup
• Advanced Thermodynamics
After a Model is selected in this window, Properties and Method
options are displayed in the Model Options group. The properties
and methods that are displayed are dependent on the selected
Model.
 Figure 2.56
Information on Property and
calculation Methods depending on
the Model selected. Use the drop-
down list to select alternative
calculation methods.
Select the
Vapor or Liquid
Model Phase
using the radio
buttons.
Additional Information on the Model selected.
Select a flash calculation
method here. The buttons
below are used to setup the
extended custom property
package and extended flash.
Select a
property model
for the vapor
and liquid
phase.2-96
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-97
ww
ThThe following sections provide an overview of the various
models.
Model Selection
In the Model Selection group, you have access to the list of
default property models that are available in Aspen HYSYS-
COMThermo. The availability of the models depends on the
Vapour or Liquid Model Phase selected for your system. Using
the radio buttons, the models are filtered for vapor and liquid
models. A model for the vapor and liquid phase is required and
displayed in the Property Pkg status bar.
* Described in the following sections.
Equations of State
Equations of state are used to model the behaviour of single-,
two-, and three-phase systems. For oil, gas, and petrochemical
applications, the Peng Robinson Equation of State is generally
the recommended property model. It rigorously solves most
single-, two-, and three-phase systems with a high degree of
efficiency and reliability.
Object Description
Vapor Phase The Vapor Phase contains a list of Equations of State*
used to model the vapor phase in the Model Selection
Group.
Liquid Phase The Liquid Phase contains a list of the various Equations
of State*, Activity Models*, and semi-empirical methods
(Chao Seader & Grayson Streed) to characterize the
liquid phase of a chemical system.
To create or add property packages and properties, refer to
the COMThermo online help in the development kit.
For detailed information
on COMThermo Models
that are available in
Aspen HYSYS, refer to the
Aspen COMThermo
Reference Guide.
Refer to the Aspen
COMThermo Reference
Guide for more detailed
information on the
available Equations of
State.2-97
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-98 COMThermo Property View
ww
ThEnhancements to this equation of state (Aspen HYSYSPR)
enable it to be accurate for a variety of systems over a wide
range of conditions. The equation of state methods and their
specific applications are described below:
EOS Description Available for
Ideal Gas PV=nRT can be used to model the Vapor Phase but
is only suggested for ideal systems under
moderate conditions.
Vapor Phase only
PR
Peng-
Robinson
This model is ideal for VLE calculations as well as
calculating liquid densities for hydrocarbon
systems. However, in situations where highly non-
ideal systems are encountered, the use of Activity
models is recommended.
Vapor and Liquid
Phase
Aspen
HYSYSPR
The Aspen HYSYSPR EOS is similar to the PR EOS
with several enhancements to the original PR
equation. It extends the range of applicability and
better represents the VLE of complex systems.
Vapor and Liquid
Phase
PRSV
Peng-
Robinson
Stryjek-Vera
This is a two-fold modification of the PR equation
of state that extends the application of the original
PR method for moderately non-ideal systems. It
provides a better pure component vapor pressure
prediction as well as a more flexible mixing rule
than Peng robinson.
Vapor and Liquid
Phase
SRK
Soave-
Redlich-
Kwong
In many cases it provides comparable results to
PR, but its range of application is significantly
more limited. This method is not as reliable for
non-ideal systems.
Vapor and Liquid
Phase
KD
Kabadi
Danner
This model is a modification of the original SRK
equation of state, enhanced to improve the vapor-
liquid-liquid equilibrium calculations for water-
hydrocarbon systems, particularly in dilute
regions.
Vapor and Liquid
Phase
Lee-Kesler-
Plocker
This model is the most accurate general method
for non-polar substances and mixtures.
Vapor and Liquid
Phase
Redlich-
Kwong
The Redlich-Kwong equation generally provides
results similar to Peng-Robinson. Several
enhancements are made to the PR as described
above which make it the preferred equation of
state.
Vapor Phase only
Sour Peng-
Robinson
Combines the PR equation of state and Wilson's
API-Sour Model for handling sour water systems.
Vapor and Liquid
Phase2-98
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-99
ww
ThActivity Models
Although Equation of State models have proven to be reliable in
predicting the properties of most hydrocarbon based fluids over
a wide range of operating conditions, their application is limited
to primarily non-polar or slightly polar components. Non-ideal
systems at low to moderate pressure are best modeled using
Activity Models. Activity models only perform calculations for the
liquid phase. This requires you to specify a calculation method
for the modeling of the vapor phase.
The following Activity Models are available for modelling the
liquid phase of a system:
Virial This model enables you to better model vapor
phase fugacities of systems displaying strong
vapor phase interactions. Typically this occurs in
systems containing carboxylic acids, or
compounds that have the tendency to form stable
hydrogen bonds in the vapor phase. In these
cases, the fugacity coefficient shows large
deviations from ideality, even at low or moderate
pressures.
Vapor only
Zudkevitch-
Joffee
This is a modification of the Redlich Kwong
equation of state, which reproduces the pure
component vapor pressures as predicted by the
Antoine vapor pressure equation. This model is
enhanced for better prediction of vapor-liquid
equilibrium for hydrocarbon systems, and systems
containing Hydrogen.
Vapor and Liquid
Phase
Model Description
Ideal Solution Assumes the volume change due to mixing is zero. This
model is more commonly used for solutions comprised
of molecules not too different in size and of the same
chemical nature.
Regular
Solution
This model eliminates the excess entropy when a
solution is mixed at constant temperature and volume.
The model is recommended for non-polar components in
which the molecules do not differ greatly in size. By the
attraction of intermolecular forces, the excess Gibbs
energy may be determined.
NRTL This is an extension of the Wilson equation. It uses
statistical mechanics and the liquid cell theory to
represent the liquid structure. It is capable of
representing VLE, LLE, and VLLE phase behaviour.
EOS Description Available for
Refer to the Aspen
COMThermo Reference
Guide for more detailed
information on the
available Activity models.2-99
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-100 COMThermo Property View
ww
ThGeneral NRTL This variation of the NRTL model uses five parameters
and is more flexible then the NRTL model. The following
equation format is used for the equation parameters
( ):
Apply this model to systems:
• with a wide boiling point range between
components.
• where you require simultaneous solution of VLE
and LLE, and there exists a wide boiling point or
concentration range between components.
UNIQUAC Uses statistical mechanics and the quasi-chemical
theory of Guggenheim to represent the liquid structure.
The equation is capable of representing LLE, VLE, and
VLLE with accuracy comparable to the NRTL equation,
but without the need for a non-randomness factor.
Wilson First activity coefficient equation to use the local
composition model to derive the Gibbs Excess energy
expression. It offers a thermodynamically consistent
approach to predicting multi-component behaviour from
regressed binary equilibrium data. However the Wilson
model cannot be used for systems with two liquid
phases.
Chien-Null Provides consistent framework for applying existing
Activity Models on a binary by binary basis. It allows you
to select the best Activity Model for each pair in your
case.
Margules This was the first Gibbs excess energy representation
developed. The equation does not have any theoretical
basis, but is useful for quick estimates and data
interpolation.
Van Laar This equation fits many systems quite well, particularly
for LLE component distributions. It can be used for
systems that exhibit positive or negative deviations from
Raoult’s Law; however, it cannot predict maxima or
minima in the activity coefficient. Therefore it generally
performs poorly for systems with halogenated
hydrocarbons and alcohols.
UNIFAC VLE/
LLE
Both UNIFAC VLE and UNIFAC LLE use the solution of
atomic groups model in which existing phase equilibrium
data for individual atomic groups is used to predict the
phase equilibria of system of groups for which there is
no data. The group data is stored in specially developed
interaction parameter matrices for both VLE and LLE
property packages.
Model Description
τ and α
τi j Aij
Bij
T
------
Cij
T2
------ FijT Gij Tln+ + + +=
αij α1ij α2i jT+=2-100
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-101
ww
ThVapor Pressure Models
Vapor pressure K-value models may be used for ideal mixtures
at low pressures. Ideal mixtures include hydrocarbon systems
and mixtures such as ketones and alcohols, where the liquid
phase behaviour is approximately ideal. The Vapour Pressure
models may also be used as a first approximation for non-ideal
systems.
Chao Seader & Grayson Streed Models
The Chao Seader and Grayson Streed methods are older, semi-
empirical methods. The Grayson Streed correlation is an
extension of the Chao Seader method with special emphasis on
hydrogen. Only the equilibrium data produced by these
correlations is used by Aspen HYSYS. The Lee-Kesler method is
used for liquid and vapor enthalpies and entropies.
Extended Property Package & Extended Flash
The Extended Property Package model allows the user to
incorporate existing external property packages with minimum
modifications to them. You may setup a number of different
Models Description
Antoine This model is applicable for low pressure systems that
behave ideally.
Braun K10 This model is strictly applicable to heavy hydrocarbon
systems at low pressures. The model employs the Braun
convergence pressure method, where, given the normal
boiling point of a component, the K-value is calculated at
system temperature and 10 psia (68.95 kPa).
Esso Tabular This model is strictly applicable to hydrocarbon systems
at low pressures. The model employs a modification of
the Maxwell-Bonnel vapor pressure model.
Model Description
Chao Seader Use this method for heavy hydrocarbons, where the
pressure is less than 10342 kPa (1500 psia), and
temperatures range between -17.78 and 260 °C (0-500
°F).
Grayson Streed Recommended for simulating heavy hydrocarbon
systems with a high hydrogen content.2-101
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-102 COMThermo Property View
ww
Thproperty packages using extended methods, which perform
different thermodynamic calculations, handle different
databases for pure compound properties and/or interaction
parameters.
Unlike default COMThermo methods, which are stateless,
Extended Property Packages can keep and carry state
information. State information refers to data such as pure
compound and mixture information. In the implementation of an
Extended Property Package, the calls between different property
calculation routines can be made directly without a need to use
COM interfaces. You can mix and match Extended Property
methods with COMThermo default property calculation methods.
This can be set up in the XML model file.
To set up an Extended Property Package two XML model files are
required, one for vapor phase and one for liquid phase. Both
XML model files must contain the same package name. When
selecting an extended package for calculations, the same
extended package must be selected for both vapor and liquid
phase.
The Extended PropPkg Setup button is accessed by selecting the
appropriate extended package for both the vapor and liquid
model phases. The Extended PropPkg property view is shown
below for an example package with ExtPkg as the name of the
The COMThermo online help is located in the COMThermo DK
(development kit). You need to setup the COMThermo DK
from the installation disk.
To set up an Extended Property Package for calculations, you
must select the same extended package for both the vapor
and liquid phases.
Refer to Extended
Property Packages and
Flash section in the
Aspen COMThermo
Programmers Guide for
detailed information on
how to add extended flash
and extended property
packages.2-102
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-103
ww
ThXML model file.
The Extended Property Package Setup includes a description of
the package and the setup files. The Add button allows you to
browse Setup files for the Extended Property package. The On
View button allows you to see and configure the associated
property views of your selected extended method.
The Extended Flash model provides the user with the capability
to use custom flash calculation methods. COMThermo also
allows the user to mix and match different flash methods. For
example, the user can implement a PV (pressure-vapor fraction)
flash in an Extended Flash package and use the existing
COMThermo PT flash (pressure-temperature). The flash option
can be setup through the Flash Family, which is located in the
Model and Flash XML section of the COMThermo online help.
A Extended Flash also requires a flash XML model file to setup
the flash family name. The Extended Flash Setup button is
accessed by selecting the appropriate XML model filename. The
Extended Flash Setup property view is shown below for an
example flash with ExtendedFlash as the name of the XML
model file.
 Figure 2.57
FIF2-103
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-104 COMThermo Property View
ww
ThExtended Property Package and Extended Flash can be used
together or separately.
Model Options
When you have selected a Model, additional property and option
methods are displayed in the Model Options group on the right
side of the COMThermo Setup window. This information is
directly related to the Model and phase selected.
The Model options group shows each property and what
calculation method is used for that property.
 Figure 2.58
A model must be selected for both the vapor and liquid
phases.2-104
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-105
ww
ThFor example, the Peng-Robinson Model Options for the vapor
phase are shown below:
The Enthalpy property uses the Peng-Robinson Enthalpy
calculation method. The method options which are displayed in
red have alternative calculation methods. By placing your cursor
on the drop-down list, you have a choice to select the Lee-Kesler
calculation method for Enthalpy.
The Entropy and Cp properties may also be altered to use the
Lee-Kesler calculation methods for the Peng-Robinson EOS. If
the property method is altered, it appears in blue. The
information in black are default methods for Aspen HYSYS-
COMThermo. Methods are added in the XML file and then can be
seen in the method group for the property selected. Refer to the
Wizards & Add-Ins section of the COMThermo online help
located in the COMThermo Development Kit to help in adding
new properties, property packages, and flash.
 Figure 2.59
 Figure 2.602-105
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-106 COMThermo Property View
ww
ThEOS Enthalpy, Entropy & Cp Method Specification
With most of the Equations of States, you may have two or
three alternative calculation methods for enthalpy, entropy, and
Cp. The property calculation methods that are available include:
the EOS selected, and the Lee-Kesler method.
Once the vapor phase is selected, the liquid phase needs to
defined.
Activity Model Specifications
The Activity Models perform calculations for the liquid phase
only. Once a Liquid phase model is selected, the model options
group is filled with property methods. The UNIQUAC activity
model options are shown below.
With most of the activity models, you have a choice for the
calculation method for the standard Ln Fugacity Poynting
Correction. By default, the ideal standard Ln Fugacity is set
without the Poynting correction and may be changed using the
Methods Description
Equation of
State
With this selection, the enthalpy, entropy, and Cp
calculation methods contained within the Equation of
State are used.
Lee-Kesler The Lee-Kesler method may be used for the calculation of
enthalpies, entropies and Cp values. This option results in
a combined Property Model, employing the appropriate
equation of state for vapor-liquid equilibrium calculations
and the Lee-Kesler equation for the calculation of
enthalpies and entropies. This method yields comparable
results to Aspen HYSYS standard equations of state and
has identical ranges of applicability.
Lee-Kesler enthalpies may be slightly more accurate for
heavy hydrocarbon systems, but require more computer
resources because a separate model must be solved.
 Figure 2.612-106
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-107
ww
Thdrop-down list. The Poynting factor uses each component’s
molar volume (liquid phase) in the calculation of the overall
compressibility factor.
Advanced Thermodynamics
The Advanced Thermodynamics group, located on the lower
right-side of the COMThermo Setup window, allows you to
model the fluid package based on the COMThermo framework.
The Advanced Thermodynamics group contains the following
buttons:
• Import. Allows you to import an existing COMThermo
property package.
• Export. Allows you to export a COMThermo based
property package.
• Regression. Allows you to export the fluid package
directly into COMThermo Workbench where the fluid
package can be manipulated by a broad selection of
estimation methods and data regression. Once the
regression is complete in the COMThermo Workbench,
the regressed fluid package can be imported back to
Aspen HYSYS.
To aid you in adding customized properties to the model
options group.
 Figure 2.62
The imported/exported COMThermo Property package can
be used in Aspen HYSYS, DISTIL, and COMThermo
Workbench.
You must have the Conceptual Engineering Suite installed
with COMThermo Workbench licensing in order to apply the
Regression feature in Aspen HYSYS.
Refer to Wizards & Add-
Ins section of the Aspen
COMThermo Reference
Guide.
Refer to the
Thermodynamics
Workbench guide of the
Conceptual Engineering
Suite for more
information on
COMThermo Workbench.2-107
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-108 COMThermo Property View
ww
ThWhen you click the Regression button the following property
view appears:
 Figure 2.63
Regression Description
Start Regression This button is similar to exporting a fluid package. It
allows you to select a file to be opened up in
COMThermo Workbench for regression analysis.
Load Regression This button is similar to importing a fluid package. A
menu of existing packages appear, allowing you to
retrieve information from a previously regressed
package.
Writing Fluid
Package
A status indicator to indicate that a new fluid package
is being generated.
Starting
COMThermo
Workbench
A status indicator to indicate that COMThermo
Workbench is starting after the fluid package is
generated.
The regressed fluid package is saved with *.ctf extension
along with two default tag files, cc.XML, and pm.XML. You
must have all three files saved in the same directory to
access the regressed fluid package.2-108
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-109
ww
ThComponent List Selection
You must select a Component List to associate with the current
Fluid Package from the Component List Selection drop-down list
on the Set Up tab. Component Lists are stored outside of the
Fluid Package Manager in the Components Manager and may
contain library, hypothetical, and electrolyte components. To
view the Component List property view, click on the View
button.
2.5.2 Parameters Tab
The information and options displayed on the Parameters tab is
dependent on the selection of the Property Model. Property
models which require additional parameters are displayed here,
while others are not. For example, the Chein-Null activity model
requires parameters to specify alternative models for binary
interaction parameters. The Chien-Null property package is
mentioned in this section.
Chien Null
The Chien Null model provides a consistent framework for
applying different activity models on a binary by binary basis.
On the Parameters tab, you can specify alternative activity
models to be used for each component pair.
It is not recommended for users to attach the Master
Component List to any Fluid Package. If only the master list
exists, by default a cloned version of the Master Component
List is created (called Component List -1). This list is
selected initially when a new Fluid Package is created.2-109
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-110 COMThermo Property View
ww
ThBinary Component Parameters
To view the Chein-Null activity models table, CN must be
selected as the liquid phase model and the IP Model Name on
the binary coefficients tab. All components in the case, including
hypotheticals are listed in the table as shown below:
The table displays the default property methods provided by
COMThermo for each binary pair. The methods are accessed by
highlighting a cell and opening the drop-down list. From the list
you can specify an Activity Model that COMThermo uses for the
calculation of each binary. If Henry's Law is applicable to a
component pair, COMThermo selects this as the default property
method. When Henry's Law is selected by Aspen HYSYS, you
cannot modify the model for the binary pair.
By default, the Henry and NRTL activity models are selected for
the binary pairs in the above property view. You may use the
default selections, or set the property package for each binary
pair. Remember that the selected method appears in both cells
representing that binary.
 Figure 2.64
The Activity Models available in the drop-down list are:
• None Required
• Henry
• van Laar
• Margules
• NRTL
• Scatchard
• Reg Soln
• General2-110
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-111
ww
ThCOMThermo may filter the list of options according to the
components involved in the binary pair.
2.5.3 Binary Coefficients Tab
The Binary Coefficients (Binary Coeffs) tab contains a table
which lists the interaction parameters for each component pair.
Depending on the property method selected, different
estimation methods are available and therefore a different
property view may be displayed.
All known binary interaction parameters are shown and the
unknown interaction parameters are displayed with dashes (---
). When you exit the Basis Manager, unknown interaction
parameters are set to zero. You have the option of overwriting
any library interaction parameter values.
For all tables on the Binary Coeffs tab, the horizontal
components across the top of the table represent the "i"
component and the vertical components represent the "j"
component.2-111
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-112 COMThermo Property View
ww
ThEquation of State Interaction
Parameter (IP)
When you select an EOS model using the IP Model Name drop-
down list, the Interaction Parameter model information is
displayed on the Binary Coeffs tab as shown in the figure below.
The property view contains a table of cells commonly referred to
as the Matrix Pane displaying binary interaction coefficients. The
top of the property view contains the IP Model Name and
Coefficients drop-down lists.
 Figure 2.65
This information applies to the following Property Models:
• Kabadi Danner
• Lee-Kesler Plocker
• PR
• PRSV
• Soave Redlich Kwong, SRK
• Sour PR
• Virial
• Zudkevitch Joffee
These two radio buttons only appear for the
PR and SRK based Equations of State.
This is equivalent
to no Kij2-112
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-113
ww
ThThe drop-down lists determine which binary iteration
coefficients are shown in the table:
The list of options for both the Model Name and Coefficients are
dependent on the property model (EOS and Activity) selected
for the vapor and liquid phase. For example, if you select the
Virial EOS as the vapor model, it appears in the IP Model Name
drop-down list. You can view and/or edit the virial coefficients
for each binary. The following IP model list represents the vapor
(Virial) and liquid models (Chien-Null) chosen for the example.
Values are only shown in the matrix when the Virial Vapor Phase
model is selected on the Set Up tab. You can use the default
values suggested by Aspen HYSYS or edit these values. Virial
coefficients for the pure species are shown along the diagonal of
the matrix, while cross coefficients, which are mixture
properties between components, are those not along the
diagonal.
Drop-Down List Description
IP Model Name This drop-down list shows all of the binary interaction
coefficient matrices associated with the property
package selected. Ordinarily there is one, two, or three
binary interaction coefficient matrices per property
package. Equations of state typically have one matrix,
and activity coefficient models typically have two IP
matrices, one for ordinary condensable components
and the other for non-condensible components The
selected Model is displayed in the Matrix Pane.
Coefficients This drop-down list shows the type of binary
interaction coefficients that are displayed in the Matrix
Pane. The naming convention for each binary
interaction coefficient type is A1i,j, A2i,j, and so on.
This resembles the "aij", "bij" form where i and j are
the column and row in the binary interaction coefficient
matrix, respectively.
Reset COM
Parameters
This button resets all binary interaction coefficients in
the matrix pane to the original Aspen HYSYS estimated
parameters.
Matrix Pane contains a list of the binary interaction
coefficients for all binary component pairs in the Fluid
Package. The naming convention is as follows:
• i  column
• j  row
=
=
2-113
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-114 COMThermo Property View
ww
ThThe numbers that appear in the table are initially calculated by
Aspen HYSYS and are modifiable. All known binary interaction
parameters are displayed, with unknowns displayed as dashes
(---). You have the option of overwriting any library value.
For all Equation of State parameters (except PRSV), Kij = Kji. If
the value is modified for one of the parameters, both cells of the
pair automatically update with the same value. In many cases,
the library interaction parameters for PRSV do have Kij = Kji, but
Aspen HYSYS does not force this if you modify one parameter in
a binary pair.
If you are using PR, SRK or the PR Sour EOS, two radio buttons
appear below the Interaction parameters table.
Radio Button Description
Estimate HC-HC/
Set Non HC-HC to
0.0
This radio button is the default selection. Aspen
HYSYS provides the estimates for the interaction
parameters in the table, setting all non-hydrocarbon
pairs to 0.
Set All to 0.0 When this is selected, Aspen HYSYS sets all
interaction parameter values in the table to 0.0.2-114
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-115
ww
ThActivity Model Interaction
Parameters
The IP activity model displayed in the IP Model drop-down list is
the corresponding liquid phase model selected on the Set Up
tab. When you select an Activity Model in the IP Model Name
list, the Interaction Parameter model information is displayed on
the Binary Coeffs tab, as shown in the figure below.
The activity models display the appropriate set of Coefficients
for each component pair. For example, Chien-Null allows for 3
sets of coefficients for each component pair, where (A1i,j = ai,j,
A2i,j = bi,j and A3i,j = ci,j).
 Figure 2.66
This information applies to the following liquid property models:
• Chien Null
• General NRTL
• Margules
• NRTL
• UNIQUAC
• van Laar
• Wilson
 Figure 2.67
Refer to the Aspen
COMThermo Reference
Guide for more
information.2-115
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-116 COMThermo Property View
ww
ThThe interaction parameters for each binary pair are displayed;
unknown values show as dashes (---). You can overwrite any
value.
To display a different coefficient matrix pane (i.e., Bij = A2i,j),
select the appropriate coefficient using the drop-down list.
2.5.4 Stability Test Tab
The StabTest tab allows you to control how phase stability and
flash calculations are performed. If you encounter situations
where the flash fails or you are suspicious about the results, you
can use this option to approach the solution using a different
scheme.
For multi-phase fluids, there exist multiple false calculated
solutions. A false solution exists when convergence occurs for a
lower number of phases than exists in the fluid. For example,
with a three-phase fluid, there is the correct three-phase
solution, at least three false two-phase solutions and multiple
false single-phase solutions. A major problem in converging the
flash calculation is arriving at the right solution without a prior
knowledge of the number of equilibrium phases.
Aspen HYSYS initially performs a two-phase flash, unless there
is strong evidence for three phases. The resulting phases are
then tested for their stability.
You may reset the binary parameters to their original library
values by clicking the Reset COM Parameters button.
COMThermo is not optimized for dynamics mode and may
result in performance issues if used in dynamics mode.2-116
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-117
ww
ThThe StabTest property view is shown in the figure below.
Flash Settings
The following options are available in the Flash Settings table:
 Figure 2.68
Flash Settings Description of Setting
MaximumNo.
Iterations
You can set the maximum number of iterations executed
in the flash calculations. The algorithm terminates after it
reaches the maximum number of iterations.
Absolute
Tolerance
This is the convergence tolerance of the governing flash
equilibrium equations. If the equilibrium equation error is
less than the Absolute Tolerance, the flash algorithm is
assumed to have converged.
Relative
Tolerance
In addition to the above condition, if the change in the
error between iterations is less than the Relative
Tolerance, the flash is assumed to have converged.
Ignore
Composition
This is used to detect convergence to the trivial solution
(where the compositions in the two phases are identical).
If the differences in the compositions of the two phases
are all less than the Trivial Composition Tolerance, the
result is assumed to be trivial.
To avoid discarding azeotropic results, the
compressibility (Z) factors for the two phases are
computed and compared in the case where the two
phases involved are modelled using the same Property
Methods (Equation of State Methods).2-117
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-118 COMThermo Property View
ww
ThStability Test Parameters
The Stability Test Parameters group is described in the following
sections.
Maximum Phases Allowed
You can specify the maximum number of phases allowed. If the
maximum is set to 2, the stability test terminates after a 2-
phase flash. Occasionally, you may still get three phases, as the
algorithm may attempt to start directly with the 3-phase flash.
Note that if the true solution has two phases and the maximum
phases allowed is set to two, there is still no guarantee that the
correct solution is reached. For instance, for binary mixtures
around the azeotropic point, the correct solution may be liquid-
liquid equilibrium, but the algorithm may incorrectly converge to
vapor-liquid equilibrium.
The Stability scheme used is proposed by Michelson(1980a). In
the Method group, you can choose the method for performing
the stability test calculations by selecting one of the radio
buttons:
Radio Button Description
None No stability test is performed.
Low Uses a default set of Phases/Components to Initiate the
Stability Test. The following methods are used: Deleted
Phase, Wilson’s Equation and Component Initiation
(Water). Only the water component (if it is part of your
Fluid Package) is "introduced".
Medium In addition to those methods used for the Low method,
the Average of Existing and Ideal Gas methods are also
included. As well, the heaviest and the lightest
components in the fluid are "introduced" using the
Component Initiation method.
All All Phase Initiation methods are utilized, and all
components are introduced using the Component
Initiation method.2-118
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-119
ww
ThSecant Method Flash Setting
The Secant Method Flash Setting group is shown below.
The settings that are available for the Secant Method Flash are
shown in the following table.
Phase Mole Fraction Tolerance
The phase fraction tolerance is used whenever a vapor fraction
is given along with a temperature or pressure for the secant
method flash. Aspen HYSYS guesses a temperature or pressure
depending on which variable is required and predicts a new
vapor fraction. The calculation terminates when the vapor
fraction is within the tolerance range and the flash is converged.
 Figure 2.69
Temperature &
Pressure Settings
Description
Default The default or initial value.
low_bound The lower or minimum bound for the secant
method search.
up_bound The upper or maximum bound for the secant
method search.
maxInc The maximum increment or initial step size for the
secant temperature search. The logarithm of
pressure is used as the primary variable for the
pressure search, thus an initial pressure multiplier
is used as the pressure increment.
tolerance The tolerance during the secant temperature and
pressure search. It is used mainly by the backup
flashes.2-119
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-120 COMThermo Property View
ww
ThEnthalpy Tolerance
Different combinations may be used to flash. If the enthalpy is
given, Aspen HYSYS guesses a temperature or pressure
depending on which one is required and predicts a new enthalpy
until the flash is converged within the tolerance specified.
Entropy Tolerance
Different combinations may be used to flash. If the entropy is
given, Aspen HYSYS guesses a temperature or pressure
depending on which one is required and predicts a new entropy
until the flash is converged within the tolerance specified.
2.5.5 Phase Order Tab
The COMThermo Phase Order tab is the same as the traditional
Aspen HYSYS property view. See Section 2.4.5 - Phase Order
Tab.
2.5.6 Reactions Tab
The COMThermo Rxns tab is the same as the traditional Aspen
HYSYS property view. See Section 2.4.6 - Reactions Tab.
2.5.7 Tabular Tab
The COMThermo Tabular tab is the same as the traditional
Aspen HYSYS property view. See Section 2.4.7 - Tabular Tab.
2.5.8 Notes Tab
See traditional Aspen HYSYS thermodynamics Section 2.4.8 -
Notes Tab.2-120
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Fluid Package 2-121
ww
Th2.6 References
 1 Wong, D. S. H., Sandler, S. I., “A Theoretically Correct Mixing Rule for
Cubic Equations of State”, A.I.Ch.E. Journal, 38, No. 5, p.671
(1992)
 2 Twu, H.C. and Bulls, J.W., "Viscosity Blending Tested", Hydrocarbon
Processing, April 1981.
 3 Ely, J.F. and Hanley, H.J.M., "A Computer Program for the Prediction
of Viscosity and Thermal Conductivity in Hydrocarbon Mixtures",
NBS Technical Note 1039.2-121
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
2-122 References
ww
Th2-122
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-1
ww
Th3  Hypotheticalsw.cadfamily.com    EMa
e document is for study 3.1  Introduction................................................................................... 3
3.2  Hypo Manager................................................................................ 4
3.3  Adding a Hypothetical - Example ................................................... 5
3.3.1  Creating the Ethanol Hypo......................................................... 6
3.3.2  Hypo/Library Component Comparison ....................................... 11
3.4  Creating a Hypo Group................................................................. 13
3.4.1  Hypo Group Property View....................................................... 13
3.4.2  Supplying Basic Information .................................................... 17
3.4.3  UNIFAC Structure ................................................................... 23
3.5  Hypothetical Component Property View....................................... 26
3.5.1  ID Tab .................................................................................. 28
3.5.2  Critical Tab ............................................................................ 29
3.5.3  Point Tab............................................................................... 30
3.5.4  TDep Tab .............................................................................. 32
3.6  Solid Hypotheticals ...................................................................... 36
3.6.1  ID Tab .................................................................................. 36
3.6.2  Props Tab .............................................................................. 37
3.6.3  Point Tab............................................................................... 39
3.6.4  TDep Tab .............................................................................. 40
3.6.5  PSD Tab ................................................................................ 41
3.7  Cloning Library Components ........................................................ 42
3.7.1  Converting a Library Component to a Hypo ................................ 433-1
il:cadserv21@hotmail.com
only,if tort to your rights,please inform us,we will delete
3-2 Hypotheticals
www.cadfamily.com    EMa
The document is for study 3.8  Hypo Controls ...............................................................................44
3.8.1  Viewing Groups ......................................................................44
3.8.2  Moving Hypos.........................................................................45
3.9  References....................................................................................453-2
il:cadserv21@hotmail.com
only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-3
ww
Th3.1 Introduction
Aspen HYSYS allows you to create non-library or Hypothetical
components from the Hypo Manager. Hypothetical components
can be pure components, defined mixtures, undefined mixtures,
or solids. You can also convert/clone Aspen HYSYS library
components into Hypotheticals, which allow you to modify the
library values.
The Hypo Manager is located on the Hypotheticals tab of the
Simulation Basis Manager. It can also be accessed via the Hypo
manager button from the Components tab under hypothetical
components.
A wide selection of estimation methods are provided for the
various Hypo groups (hydrocarbons, alcohols, etc.) to ensure
the best representation of behaviour for the Hypothetical
component in the simulation. In addition, methods are provided
for estimating the interaction binaries between hypotheticals
and library components. You can also use Hypotheticals with the
Tabular Package, as well as in Reactions.
In Aspen HYSYS, Hypothetical components exist independent of
the Fluid Package. When a Hypothetical is created, it is placed in
a Hypo Group. From the Hypo Manager, you can create new
Hypo Groups and move Hypothetical components within the
Hypo Groups. Hypo Groups can also be imported and exported,
thus making them available to any simulation case.
Since Hypothetical components are not exclusively associated
with a particular Fluid Package, it is possible for multiple Fluid
Packages to share Hypotheticals. In other words, you only need
to create a Hypothetical once, and it can be used in any Fluid
Package throughout the case.3-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-4 Hypo Manager
ww
Th3.2 Hypo Manager
By selecting the Hypotheticals tab from the Simulation Basis
Manager, the following property view appears:
The left side of the property view is the Hypothetical Groups
group.
The lists all the Hypothetical groups currently installed in the
simulation. The available commands for this group (accessed
using the associated buttons) are as follows:
 Figure 3.1
You can Import and Export Hypothetical groups, allowing
you to use defined hypotheticals in any future simulation
Hypothetical groups and individual hypothetical components
can be installed in more than one Fluid Package.
Button Description
View Accesses the Hypo Group property view for the selected
group.
Add Adds a Hypothetical Group to the present case.
Delete Deletes the selected Hypothetical Group from the case.3-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-5
ww
ThThe right side of the property view displays the Hypothetical
Quick Reference group. This group includes all Hypotheticals
currently installed in the Basis Environment (Hypo Name
column) along with their associated Hypo Groups (Group Name
column). The available buttons within this group are described
below:
3.3 Adding a Hypothetical
- Example
In this example, a hypothetical Ethanol component is defined,
and the results to the library Ethanol component using the
Wilson property package are compared. The ethanol
hypothetical component is defined as having a boiling point of
78.25 °C and a specific gravity of 0.789.
Translocate Searches through all of the hypothetical components in the
case and if there are duplicates Aspen HYSYS replaces
them and puts all the duplicates in a separate Hypo group
which then can be deleted.
This is intended for use when large cases have had large
numbers of templates/fluid packages imported and there
are lots of repeated hypotheticals in the case.
Import Imports a Hypothetical Group from disk.
Export Exports the selected Hypothetical Group and saves it to a
file, so that it can be retrieved at a later time.
Button Description
View Hypo Access the property view for the highlighted Hypothetical.
View Group Access the Hypo Group property view for the highlighted
Hypothetical.
Move Hypos Move Hypotheticals from one Hypo Group to another.
Clone Comps Use a copy of a selected library components as the basis for
defining a Hypothetical.
Button Description3-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-6 Adding a Hypothetical - Example
ww
Th3.3.1 Creating the Ethanol
Hypo
To create a ethanol hypo, follow the steps outlined below:
1. Open a new case in Aspen HYSYS.
2. Select Tools | Preferences in the menu bar to open the
Session Preferences property view.
3. In the Session Preferences property view, click the
Variables tab and select the Units page.
4. Select SI as the units for this example case.
5. In the Simulation Basis Manager property view, select the
Hypotheticals tab.
6. From the Hypothetical Groups group, click the Add button to
create a new Hypothetical Group. Aspen HYSYS
automatically names this group HypoGroup1. You can
change the name later, if desired.
When you add a new Hypothetical Group, Aspen HYSYS
automatically opens the Hypo Group property view, where
you add and define the Hypothetical component(s) for the
group.
You must install a Hypothetical Group before you can install
a Hypo component.3-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-7
ww
Th7. On the Hypo Group property view, enter HypoAlcohol as
the new Group Name.
Notice that the Aspen HYSYS default in the Component
Class list is Hydrocarbon.
8. In the Component Class drop-down list, select Alcohol.
9. Now, install a Hypothetical component. From the Individual
Hypo Controls group, click the Add Hypo button. This adds
a Hypothetical component and automatically names it
Hypo20000*.
10. Enter a new name for this component by selecting the Name
cell typing HypoEtoh.
11. In the NBP cell, enter the normal boiling point of the
component as 78.25°C.
12. The specific gravity for the hypothetical component is 0.789.
In the Liq Density cell, enter 0.789 and select the
SG_H2O60api units. A liquid density of 787.41 kg/m3 is
calculated by Aspen HYSYS.
 Figure 3.2
 Figure 3.33-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-8 Adding a Hypothetical - Example
ww
Th13.Although Aspen HYSYS could estimate the unknown
properties for HypoEtoh with only the NBP and Liquid
Density, more accurate results are obtained if the
component structure is supplied. Click the UNIFAC button to
access the UNIFAC Component Builder.
14. The chemical formula of ethanol is C2H5OH, and it is
comprised of the groups CH3, CH2, and OH. Highlight CH3
in the Available UNIFAC Groups list. It is the first
selection in the list.
15.Click the Add Group(s) button.
Notice that a “1” is displayed under Sub Group in the
UNIFAC Structure group. By default, Aspen HYSYS assigns
the value “1” to the How Many cell. The number is valid,
since this is the number of CH3 groups required. The
number of Free Bonds has increased to 1 with the addition of
the CH3 Sub Group.
16. To add the CH2 group, highlight it in the Available UNIFAC
Groups list (it is the second in the list) and click the Add
Group(s) button. Again, only 1 Sub Group is required, so
the default is acceptable.
 Figure 3.43-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-9
ww
Th17.Since the OH group is not immediately visible in the list of
Available UNIFAC Groups, a different approach is taken.
In the UNIFAC Structure input field, type OH at the end of
the existing structure (CH3CH2) and press ENTER.
Once the UNIFAC Structure is complete, Aspen HYSYS
calculates the UNIFAC Base and Critical Properties.
18.Click the Close icon  to close the property view and return
to the Hypo Group property view.
Aspen HYSYS can now use the existing information (NBP,
Liquid Density and UNIFAC structure) to estimate the
remaining properties for the Hypothetical component.
 Figure 3.5
Notice that the Incomplete status message is replaced with
Complete when there are 0 Free Bonds.
Property Estimation
Methods are explained in
Section 3.4.2 -
Supplying Basic
Information.3-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-10 Adding a Hypothetical - Example
ww
Th19.We will now examine the Estimation Method that Aspen
HYSYS uses. Click the Estimation Methods button to
access the Property Estimation property view.
If you want, you can change the estimation method for any
property. In this example, all properties use the Default
Method.
20.Click the Close icon  to return to the Hypo Group property
view.
21.Click the Estimate Unknown Props button and Aspen
HYSYS uses the currently specified methods to estimate the
unknown properties for the component. The molecular
weight for the hypothetical is the same as the molecular
weight for ethanol, 46.07, since the UNIFAC structure is
used for the Hypo component.
 Figure 3.6
 Figure 3.7
Remember that specified values are displayed in blue, and
Aspen HYSYS estimated values are displayed in red.3-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-11
ww
Th22.You can examine all properties for the Hypo through its
property view. Double-click on the Hypothetical component
name, HypoEtoh, to access the Component property view.
23.Click the Close icon  to return to the Hypo Group property
view.
24.Click the Close icon  and Aspen HYSYS returns you to the
Hypotheticals tab of the Simulation Basis Manager. The
Ethanol Hypothetical has is created.
3.3.2 Hypo/Library Component
Comparison
To conclude, compare the ethanol hypothetical to the ethanol
library component. Go to the Simulation Basis Manager:
1. On the Fluid Pkgs tab, click the Add button to install the
new Fluid Package.
2. On the Set Up tab, select Wilson as the Property Package
and close the fluid package property view.
3. Move to the Components tab and add Ethanol to the
Selected Component List by highlighting the Components
page in the Add Component group.
 Figure 3.8
For further information
regarding the Property
View, refer to Section
3.5 - Hypothetical
Component Property
View.3-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-12 Adding a Hypothetical - Example
ww
Th4. From the Available Hypo Components group, highlight the
HypoEtoh* component and click the Add Hypo button from
the Hypothetical page.
5. Move to the Binary Coeffs tab in the fluid package property
view and click the Unknowns Only button in the Coeff
Estimation group.
6. Close the Fluid Package property view.
7. Click the Enter Simulation Environment button to enter
the Main Environment.
8. In the Workbook, create the stream Pure. Enter a vapour
fraction of 0 and a pressure of 1 atm for the stream on the
Material Streams tab of the workbook. Move to the
Compositions tab an enter 1 for the mole fraction of Ethanol,
and 0 for HypoEtoh*.
9. Now create a second stream, Hypo. Enter a vapour fraction
of 0 and a pressure of 1 atm for the stream. The mole
fraction of HypoEtoh* is 1, and that for Ethanol is 0.
When you have specified these two streams, Aspen HYSYS
calculates the bubble point temperature for each stream.
The Conditions tab of the property view for each stream is
shown below.
 Figure 3.93-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-13
ww
Th3.4 Creating a Hypo Group
When defining a hypothetical, there is no set procedure. The
following is a suggested sequence in which you can follow:
1. Create the Hypo Group.
2. Select the Component Class for the Hypo Group.
3. Set the Estimation Methods for the Group (optional).
4. Install the Hypotheticals.
5. Supply all information that you have for the Hypo.
6. Supply a UNIFAC structure for the Hypo (optional).
7. Estimate the Properties for the Hypo.
3.4.1 Hypo Group Property
View
As mentioned in the Hypothetical example, you add a Hypo
Group by clicking the Add button from the Hypotheticals tab of
the Simulation Basis Manager. This opens the Hypo Group
property view, which contains two groups (Hypo Group Controls
and Individual Hypo Controls), and a table of estimated or
known property values.
 Figure 3.10
For more information,
refer to Section 3.4.1 -
Hypo Group Property
View.
For more information,
refer to Section 3.4.2 -
Supplying Basic
Information.
For more information,
refer to Section 3.4.3 -
UNIFAC Structure.3-13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-14 Creating a Hypo Group
ww
ThHypo Group Controls
The Hypo group contains the following options:
Option Description
Group Name Displays the current name for the Hypothetical Group.
Aspen HYSYS provides a default name, but you can change
this to a more descriptive name. Individual Hypothetical
components must reside inside of a Hypothetical group.
Component
Class
Every component in a Hypo Group must be of a common
Component Class. The options are accessed using the drop-
down list attached to the input cell. There is a wide
selection of available Classes, which allows for better
estimation of the component properties. Aspen HYSYS, by
default, selects the Component Class to be Hydrocarbon.
Prior to installing any components, select the Component
Class.
Estimation
Methods
Access the Property Estimation property view, from which
you can select an estimation method for each property. The
selected estimation methods apply to all Hypotheticals in
the Hypo Group.
Estimate
Unknown
Props
This button estimates the unknown properties for all
Hypothetical components within the Hypo Group, using the
methods chosen on the Property Estimation property view.
Clone Library
Comps
Aspen HYSYS allows you to convert library components into
hypothetical components. For more information, refer to
Section 3.7 - Cloning Library Components.
Notes Allows you to supply Notes and Descriptions for the
Hypothetical Group. This is useful when exporting Hypo
groups, because when you import them later, the
description appears along with the Hypo group name.
For the Component Class, there are varying levels of
specificity. For example, under Alcohol, you can specify sub-
classes of alcohols, such as Aliphatic, Aromatic, Cyclo and
Poly. Using a stricter degree of component type assists
Aspen HYSYS in choosing appropriate estimation methods;
however, it forces all components to be calculated using the
same method. If you want to mix component classes (i.e.,
both Aliphatic and Aromatic inside the same Hypo Group),
select the more general Component Class of Alcohol.
For more information,
refer to Section 3.4.2 -
Supplying Basic
Information.3-14
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-15
ww
ThIndividual Hypo Controls
The Individual Hypo Controls group at the bottom of the Hypo
Group property view contains buttons for manipulating the
Hypotheticals within the Hypo Group and two radio buttons for
switching between Base Properties and Vapour Pressure data.
The table displayed in the middle section of the Hypo Group
property view, displays either the Base Properties or the Vapour
Pressure properties, depending on which radio button is
selected. You can add a new Hypo component in either the Base
Properties or Vapour Pressure property view.
Button Description
View Displays the Property View for the highlighted hypothetical
component.
The View button will not be available unless a hypothetical
is present in the case.
Add Hypo Automatically adds a new hypothetical component to the
group. Aspen HYSYS places the new Hypo in the table, and
names it according to the default naming convention (set in
the Session Preferences).
Add Solid Automatically adds a new solid hypothetical component to
the group. Aspen HYSYS places the new Hypo in the table,
and names it according to the default naming convention
(set in the Session Preferences).
Delete Deletes the highlighted hypothetical component from the
case. After deleting a Hypo it cannot be recovered.
The Delete button will not be available unless a
hypothetical is present in the case.
UNIFAC Opens the UNIFAC Component Builder, from which you can
provide the UNIFAC Structure for the highlighted
hypothetical component.
The UNIFAC button will not be available unless a
hypothetical is present in the case. 3-15
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-16 Creating a Hypo Group
ww
ThBase Properties
The Base Properties for each Hypothetical are shown on the
Hypo Group property view when the Base Properties radio
button is selected.
The table lists each Hypothetical along with the following Base
Properties:
 Figure 3.11
These properties are the same as those shown on the Critical
tab of the Hypo component property view.
Base Property Description
NBP Normal boiling point
MW Molecular weight
Liq Density Liquid density
Tc Critical temperature
Pc Critical pressure
Vc Critical volume
Acentricity Acentric factor
Individual Base Properties are supplied by selecting the
appropriate cell. Use the drop-down list to select the units
within the cell. 3-16
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-17
ww
ThVapour Pressure Properties
The Vapour Pressure table displays the temperature range and
Antoine Coefficients for the hypothetical components. Also
shown are the pressure and temperature units on which the
equation is based and the form of the equation.
The values shown on this property view are also available on the
TDep tab of the individual Hypo property view.
Use the horizontal scroll bar to view Coeff E and Coeff F.
3.4.2 Supplying Basic
Information
Before Aspen HYSYS can estimate the properties for a
hypothetical, some information about the Hypo must be
provided. For the estimation, you must supply a minimum
amount of information and select the estimation methods to be
used.
 Figure 3.123-17
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-18 Creating a Hypo Group
ww
ThMinimum Information Required
If the hypothetical component is defined as a hydrocarbon, the
appropriate default correlations can be used to calculate its
critical properties or any other missing information. Its
interaction parameters are also calculated by Aspen HYSYS
based on the estimated critical properties. For Aspen HYSYS to
estimate the component's critical properties, a minimum
amount of information must be supplied, as shown in the
following table.
Estimation Methods
Prior to installing any Hypotheticals into a Hypo group, examine
the Estimation Methods which Aspen HYSYS uses to calculate
the unknown properties for a hypothetical component. You can
specify a estimation method for each property. Click the
Estimation Methods button on the Hypo Group property view.
Normal Boiling Point Minimum Required Information
<  700 °F (370 °C) Boiling Point
> 700 °F (370 °C) Boiling Point and Liquid Density
Unknown API & Molecular Weight
The more information you can supply, the more accurate the
estimations are.
 Figure 3.133-18
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-19
ww
ThThe Estimation Methods that you choose for the Hypo Group
apply to all Hypotheticals in that group.
There are three groups in the Property Estimation property view
and are described below:
Group Description View
Property to Set
Methods For
This group lists all the available
properties. From the list, choose the
property for which you want to set the
Estimation Method. Use the scroll bar to
move through the list. Initially, Aspen
HYSYS sets all the properties to the
Default Method.
Estimation
Method For
Selected
Property
This drop-down list displays all the
available estimation methods for the
highlighted property. Depending on the
property, the drop-down list differs. The
list shown here is a partial display of
estimation methods for Critical
Temperature.
Variables
Affected by this
Estimate
This group lists all the variables that are
affected by the selected estimation
method. The list changes depending on
the property selected. For example, when
you select an estimation method for
Critical Temperature, you are not only
affecting the critical temperature, but
also the properties which use critical
temperature in their estimation or
calculation.3-19
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-20 Creating a Hypo Group
ww
ThThe following table individually lists each Property, its Default
Method, its Available Estimation Methods and the Variables
Affected by estimating the Property. It is understood that each
property can have Do Not Estimate selected as its Estimation
Method, so this option does not appear in the Available Methods
list.
Property Default Method Available Methods Variables Affected
Critical
Temperature
• if ρLIQ > 1067 kg/m3 or
NBP > 800 K, Lee-
Kesler is used
• if NBP < 548.16 K and
ρLIQ<850 kg/m3,
Bergman is used
• all other cases, Cavett
is used
Aspen, Bergman, Cavett,
Chen Hu, Eaton Porter,
Edmister, Group
Contribution, Lee Kesler,
Mathur, Meissner Redding,
Nokay, Riazi Dauber, Roess,
PennState, Standing, Twu
• Critical
Temperature
• Standard Liquid
Density
• COSTALD
Variables
• Viscosity Thetas
Critical
Pressure
• if ρLIQ > 1067 kg/m3 or
NBP > 800 K, Lee-
Kesler is used
• if NBP < 548.16 K and
ρLIQ <850 kg/m3,
Bergman is used
• all other cases, Cavett
is used
Aspen, Bergman, Cavett,
Edmister, Group
Contribution, Lee Kesler,
Lydersen, Mathur,
PennState, Riazi Daubert,
Rowe, Standing, Twu
• Critical Pressure
• Standard Liquid
Density
• COSTALD
Variables
• Viscosity Thetas
Critical
Volume
• Pitzer Group Contribution, Pitzer,
Twu
• Critical Volume
• Standard Liquid
Density
• COSTALD
Variables
• Viscosity Thetas
Acentricity • for Hydrocarbon, Lee-
Kesler is used
• all other cases, Pitzer
is used
Bergman, Edmister, Lee
Kesler, Pitzer, Pitzer Curl,
Robinson Peng, Twu
• w
• ωGs
• Standard Liquid
Density
• COSTALD
Variables
• Viscosity Thetas
Molecular
Weight
• if NBP < 155 °F,
Bergman is used
• all other cases, Lee-
Kesler is used
API, Aspen, Aspen Leastq,
Bergman, Hariu Sage, Katz
Firoozabadi, Katz Nokay,
Lee Kesler, PennState, Riazi
Daubert, Robinson Peng,
Twu, Whitson
• Molecular Weight
Normal
Boiling Point
• Hyprotech proprietary
method
• Normal Boiling
Point
• Viscosity Thetas
Vapour
Pressure
• for Hydrocarbon, Lee-
Kesler is used
• all other cases, Riedel
is used
Gomez Thodos, Lee Kesler • Antoine
Coefficient
• PRSV_kappa3-20
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-21
ww
ThLiquid
Density
• Yen-Woods Bergman, BergmanPNA,
Chueh Prausnitz, Gunn
Yamada, Hariu Sage, Katz
Firuzabadi, Lee Kesler, Twu,
Whitson, Yarborough, Yen
Woods
• Standard liquid
Density
• COSTALD
Variables
Ideal Gas
Enthalpy
• Cavett Cavett, Fallon Watson,
Group Contribution, Lee
Kesler, Modified Lee Kesler,
• Ideal H Coefficient
Heat of
Formation
• for chemical structure
defined in UNIFAC
groups, Joback is
used
• all other cases, this
formula is used:
Group Contribution • Heat of Formation
• Heat of
Combustion
Ideal Gas
Gibbs Energy
• Hyprotech proprietary
method
Group Contribution • Gibbs Coefficient
Heat of
Vapourizatio
n
• Two Reference Fluid
(using benzene and
carbazole)
Chen, Pitzer, Riedel, Two
Reference1, Vetere
• Cavett Variables
Liquid
Viscosity
• for non-Hydorcarbon
or NBP < 270 K
Letsou Stiel is used
• for Hydorcarbon and
NBP < 335 K, NBS
viscosity is used
• all other cases, Twu is
used
Hyprotech Proprietary,
Letsou Stiel
• Viscosity Thetas
Surface
Tension
• Brock Bird Brock Bird, Gray, Hakin,
Sprow Prausnitz
• Tabular Variables
Radius of
Gyration
• Hyprotech proprietary
method
Default Only • Critical
Temperature
• Critical Pressure
• Normal Boiling
Point
• Molecular Weight
• Standard Liquid
Density
Property Default Method Available Methods Variables Affected
Hform octane( ) MW⋅
MW octane( )
-------------------------------------------------3-21
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-22 Creating a Hypo Group
ww
ThIn defining Hypothetical components, there are some properties
for which you cannot select the estimation method. Aspen
HYSYS determines the proper method based on information you
have provided. The following table lists these properties and
their respective default methods:
Property Default Estimation Method
Liquid Enthalpy • The previously calculated Liquid Heat
Capacity is used.
Vapour Enthalpy • Liquid Enthalpy + Enthalpy of Vapourization
Chao Seader Molar
Volume
• If Tc > 300 K, Molar Volume from
COSTALD @ 25 °C and 1 atm is used
• all other cases, ρLIQ @ 60 °F is used
Chao Seader
Acentricity
• component acentric factor is used
Chao Seader
Solubility Parameter
• If Tc > 300K, Watson type Enthalpy of
Vaporization is used
• all other cases, values of 5.0 are used
Cavett Parameter • Two Reference Fluid1 method (using
benzene and carbazole)
Dipole Moment • No estimation method available, sets value
equal to zero.
Enthalpy of
Combustion
• No estimation method available, sets value to
.
COSTALD
Characteristic
Volume
• If NBP < 155 °F, Bergman is used
• all other cases, Katz-Firoozabadi is used
Liquid Viscosity
Coefficients A and B
• For non-Hydrocarbon or NBP < 270 K,
Letsou Stiel is used
• for Hydrocarbon and NBP < 335 K, NBS
viscosity is used
• all other cases, Twu is used.
Vapour Viscosity • Chung
PRSV Kappa1 • Vapour Pressure from Antoine’s
Equation
Kfactor1 • Vapour Pressure from Antoine’s
Equation3-22
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-23
ww
Th3.4.3 UNIFAC Structure
Most of the estimation methods require a UNIFAC structure for
some aspect of the estimation. It may be that either the
property itself, or some other property that is affected by the
estimation procedure requires the chemical structure.
The UNIFAC structure is supplied through the UNIFAC
Component Builder. This can either be accessed by clicking the
UNIFAC button in the Hypo Group property view, or by clicking
the Structure Builder button on the ID tab of the Hypothetical
component property view. Whichever route is taken, the
following property view appears:
The UNIFAC Component Builder property view is made up of the
following objects:
 Figure 3.14
Objects Description
UNIFAC Structure
Group
Displays the Type and Number of Sub Groups in
the UNIFAC Structure.
This group makes reference to both the UNIFAC
Structure group (the table of cells) and the
UNIFAC Structure entry field.
Add Group(s) Adds the currently selected Sub Group from the
Available UNIFAC Groups list box to the UNIFAC
Structure group.
Delete Group Deletes the currently selected Sub Group in the
UNIFAC Structure group.3-23
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-24 Creating a Hypo Group
ww
ThThe procedure for supplying the UNIFAC structure is to highlight
the Sub Group(s) in the Available UNIFAC Groups column and
select the Add Group(s) button. Additional sub groups can be
accessed in the list by using the Scroll Bar.
As you add sub groups, Aspen HYSYS displays the number of
Free Bonds available. This is zero when the UNIFAC structure is
complete. When you have supplied enough groups to satisfy the
bond structure, the status message changes to Complete (with
a green background).
As you specify groups, the UNIFAC Calculated Base Properties
and UNIFAC Calculated Critical Properties are automatically
updated based on the new structure.
Free Bonds Displays the number of free bonds available in the
present UNIFAC Structure. This is 0 when the
structure is complete.
Status Bar This bar is found in the centre of the property
view. It indicates the present status of the UNIFAC
Structure. You see either Incomplete in red,
Complete in green, or Multi-Molecules in yellow.
Available UNIFAC
Groups
Contains all the available UNIFAC component sub
groups.
UNIFAC Structure
field
Displays the chemical structure of the molecule
you are building.
UNIFAC Calculated
Base Properties
Displays properties such as Molecular Weight, the
UNQUAC R parameter, and the UNIQUAC Q
parameter for a UNIFAC Structure with at least 1
sub group.
UNIFAC Calculated
Critical Properties
Displays the critical properties for a UNIFAC
Structure with at least 1 sub group.
Objects Description3-24
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-25
ww
ThThere are three methods available for adding Sub Groups to the
UNIFAC Structure:
Aspen HYSYS automatically calculates Base Properties and
Critical Properties using the currently supplied structure.
Sub Group Description
Highlighting
the Sub
Group
The list of Available UNIFAC Groups displays all the sub
groups. Notice that CH3 is the first selection in this list. You
can use the scroll bars to move through the list until you
find the group you need. When you find the correct Sub
Group, highlight it, and click the Add Group(s) button.
The sub group now appears in the UNIFAC Structure group.
You can highlight more than one sub group, and add all at
the same time.
Using the
Sub Group
Number
Each sub group has a number associated with it. If you
know the number for the sub group you want to add to the
UNIFAC Structure, move the active location to the Sub
Group column of the UNIFAC Structure group. Enter the
number of the Sub Group. Aspen HYSYS does not
automatically fill in the number of sub groups. Move the
active location to the How Many column and type in the
number of sub groups required.
Notice the difference between the UNIFAC Structure group
(the table of cells) and the UNIFAC Structure entry field.
Typing in the
UNIFAC
Structure
input field
Notice the UNIFAC Structure input field near the bottom of
the property view. Any sub groups already installed are
listed here. Place the cursor after the last group, and type
in the group to install. For example, if we want to add an
OH group, type in OH. When you type the sub group in this
box, Aspen HYSYS automatically adds it to the UNIFAC
Structure group.
You can add multiples of a Sub Group in the UNIFAC
Structure box. Type the number of Sub Groups and the Sub
Group name, separated by a space. For example, type 3 CH2
to add three CH2 groups to the UNIFAC structure. NOTE: You
cannot add Sub Groups in this way to an existing UNIFAC
structure.3-25
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-26 Hypothetical Component Property
ww
Th3.5 Hypothetical
Component Property
View
Hypotheticals, like library components, have their own property
view. Once inside, you can add or modify information, or
examine the results of the estimations.
You can access the property view for the Hypo component from
different property views:
View Method of Accessing Hypo
Simulation Basis
Manager,
Hypotheticals Tab
All the hypothetical components are displayed in
the Hypothetical Quick Reference group. You can
either double-click on the component name, or
highlight it and click the View Hypo button.
Hypo Group All the hypothetical components in the Hypo Group
you have chosen to view, are displayed. Either
double-click on the Hypo component you want to
view, or highlight it and click the View button.
Simulation Basis
Manager,
Components Tab
After adding a hypothetical to the Selected
Component List group, highlight it and click the
View Component button or object inspect its
name and select View.3-26
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-27
ww
ThThe Hypothetical property view is made up of five tabs and are
shown below. Some of the tabs have radio buttons for switching
between the various properties. When a different radio button is
selected, Aspen HYSYS redraws the property view with the
information appropriate to the item.
After you have entered adequate estimation parameters, you
can click the Estimate Unknown Properties button to
complete the hypothetical estimation. The Edit Properties
button allows you to edit properties within the hypocomponent
at the component level. The Edit Visc Curve button allows you
to recalculate the viscosity coefficients based on the
temperature and dynamic viscosity data provided by the user.
Throughout the tabs of the property view, information is
displayed in red, blue, and black. Values displayed in red are
estimated by Aspen HYSYS and values displayed in blue are user
supplied. Black values represent calculated values or
information that you cannot modify (in other words, Family/
Class on the ID tab).
 Figure 3.15
Refer to Edit Properties
in Section 1.2.3 -
Manipulating the
Selected Components
List for more information.3-27
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-28 Hypothetical Component Property
ww
Th3.5.1 ID Tab
The ID tab is the first tab in the Hypo property view. If it is the
first time you are entering a Property View, Aspen HYSYS places
you on this tab.
You can supply values directly for any of the component
properties, or overwrite values estimated by Aspen HYSYS.
If you change a specified value, all properties previously
estimated using that specification are forgotten. Click the
Estimate Unknown Props button to have the properties
recalculated.
 Figure 3.16
If a Structure is
already entered,
it is displayed
here. You can
also enter the
Structure
directly into this
cell.
Use this button
to access the
UNIFAC
Component
Builder and
supply the
structure of the
Hypo.3-28
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-29
ww
Th3.5.2 Critical Tab
The Critical tab of the property view displays the base and
critical properties. This is the same information displayed on the
Hypo Group when the Base Properties radio button is selected.
You can supply or change the Base Properties on this tab. The
property views, shown in Figure 3.17, display the Critical tab
before and after the Estimate Unknown Props button is clicked.
Notice that since the Normal Boiling Point was less that 370 °C,
only the Molecular Weight value was required for this
estimation.
 Figure 3.17
For more information on
the Minimum
Information required for
Property Estimation see
Section 3.4.2 -
Supplying Basic
Information3-29
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-30 Hypothetical Component Property
ww
Th3.5.3 Point Tab
The Point tab displays Additional Point Properties for the
hypothetical. There are two radio buttons on the property view,
which allow you to toggle between two tables of information are
the:
• Thermodynamic and Physical Properties
• Property Package Molecular Properties
Thermodynamic & Physical
Properties
This property view displays the Thermodynamic and Physical
properties for the Hypo. Aspen HYSYS estimates these values,
based on the base property data entered and the selected
estimation methods.
Notice that the Heat of Comb field is . This indicates
that Aspen HYSYS cannot estimate this value with the given
information. Aspen HYSYS allows you to input a value for this
property.
 Figure 3.183-30
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-31
ww
ThThe viscosity coefficients of A and B are first estimated by Aspen
HYSYS based on the initial specifications from the Hypo Group
property view. If you want to calculate these coefficients, you
can override the estimation by clicking the Edit Visc Curve
button. This allows you to enter a set of data points of
temperature versus dynamic viscosity.
There are three buttons available in the Edit Viscosity Curve
property view:
Aspen HYSYS will recalculate the values of the viscosity
coefficients based on the data points you just entered. The
values of the viscosity coefficients A and B will then change from
red to black indicating that they are calculated values.
 Figure 3.19
Buttons Descriptions
OK Allows Aspen HYSYS to accept the data to perform the
calculations.
Delete Clears all the data points in the data table and closes the
property view automatically.
Cancel Cancels the operation and exit the property view. The data
points you entered will not be used in the calculations but
these points will be saved in the data table without being
cleared so you can make modification later. 3-31
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-32 Hypothetical Component Property
ww
ThProperty Package Molecular Props
This property view displays the Molecular properties for the
Hypo. The values estimated are dependent on the selected
estimation method for each property.
Some of the fields in this property view are . This
indicates that Aspen HYSYS cannot estimate these values with
the information given. However, you can specify values for
these properties.
3.5.4 TDep Tab
The TDep tab displays Temperature Dependent Properties for
the hypothetical. There are three radio buttons on the property
view, which allow you to toggle between the three different
displays of information. The property views available are:
• Vapour Enthalpy
• Gibbs Free Energy
• Vapour Pressure
 Figure 3.203-32
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-33
ww
ThVapour Enthalpy
The Vapour Enthalpy calculation is performed on a Mass Basis.
The reference point for the equation is an ideal gas at 0 K. The
units for Mass Vapour Enthalpy and Temperature are kJ/kg and
degrees Kelvin, respectively.
When required, the Vapour Enthalpy equation is integrated by
Aspen HYSYS to calculate entropy. Note that if enthalpy
coefficients are entered, a constant of integration, g, should be
supplied along with the other coefficients. Specify this value in
the g coefficient field.
Notice that Aspen HYSYS has estimated the Minimum and
Maximum Temperatures.
Below the temperature range are values for the Vapour Enthalpy
equation coefficients (from a to g). Aspen HYSYS estimates the
coefficients, but you may change any of the values.
 Figure 3.213-33
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-34 Hypothetical Component Property
ww
ThVapour Pressure
The Vapour Pressure is calculated using the Modified Antoine
equation. Aspen HYSYS estimates the Minimum and Maximum
Temperature values based on the supplied properties and
estimation methods.
The units used for Pressure and Temperature are kPa, and
degrees Kelvin, respectively.
The bottom section of this property view displays the values for
each of the Antoine equation coefficients (from a to f). Aspen
HYSYS estimates the coefficients, however you can modify these
values.
 Figure 3.223-34
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-35
ww
ThGibbs Free Energy
The Gibbs Free Energy calculation uses Enthalpy as its property
type and is performed on a Molar Basis. The basis for the
equation is ideal gas at 25 °C. Aspen HYSYS estimates the
Minimum and Maximum Temperature values.
The units for Molar Enthalpy and Temperature are kJ/kg mole
and degrees Kelvin, respectively.
The bottom section of the property view displays the values for
each of the Gibbs Free Energy equation coefficients (from a to
c).
Aspen HYSYS estimates the Gibbs Free Energy coefficients if you
supply the UNIFAC structure and enter the Ideal Gas Gibbs Free
Energy at 25 °C in the a coefficient cell.
 Figure 3.233-35
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-36 Solid Hypotheticals
ww
Th3.6 Solid Hypotheticals
Solid Hypotheticals can be added to any Hypo Group, regardless
of the Group Type. In the Individual Hypo Controls group of the
Hypo Group property view, click the Add Solid button.
When you install a solid hypo, you notice that the Base
Properties cells on the Hypo Group property view are displayed
as .
3.6.1 ID Tab
To define the Solid Hypo, access its property view by
highlighting the component name on the Hypo Group property
view and clicking the View button.
The ID tab of the Solid Component property view is the same as
that for other Hypo components except that the User Props tab
is replaced by the PSD tab. Note that in this case, the Family/
Class is Alcohol. The Class type has no effect on the values
calculated for the solid component.
Solids do not take part in VLE calculations, but they do have
an effect on heat balance calculations.3-36
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-37
ww
Th3.6.2 Props Tab
The Props tab displays the basic properties of the component in
two groups:
• Solid Properties where bulk properties are entered
• Coal Analysis where data can be entered on a possible
Coal Analysis
 Figure 3.243-37
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-38 Solid Hypotheticals
ww
ThSolid Properties
The minimum information that must be supplied includes the
Molecular Weight and the Density. The appropriate units can
also be specified within the cell as shown below.
The other Solid Properties are described below:
Coal Analysis
You can also provide the results of a Coal Analysis on a
percentage basis for the listed components.
 Figure 3.25
Solid Property Description
Diameter Particle diameter, if not supplied this defaults to 1 mm
when the remaining properties are estimated.
Sphericity Value between zero and one, with one being perfectly
spherical.
Area/Unit
Volume
Measure of the surface area of the particle as a
function of the particle volume.3-38
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-39
ww
Th3.6.3 Point Tab
The only information on the Point tab that is relevant to the
Solid is the Heat of Combustion and Heat of Formation.
This information is only required if you plan on using a Solid
component as part of a reaction.
 Figure 3.263-39
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-40 Solid Hypotheticals
ww
Th3.6.4 TDep Tab
Since Solid Hypos do not participate in VLE calculations, their
vapour pressure information is, by default, set to zero. However,
since solid components do affect Heat Balances, the Specific
Heat information can either be estimated by Aspen HYSYS, or
supplied.
 Figure 3.27
While other Hypotheticals use the Ideal Gas Enthalpy
coefficients, solids use the Specific Heat Capacity.3-40
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-41
ww
Th3.6.5 PSD Tab
The PSD tab displays the particle size distribution for solids. It
allows you to specify PSD’s and calculate various mean and
modal diameters for the entered PSD. The PSD tab is shown
below.
Refer to Section 1.2.3 - Manipulating the Selected
Components List and see UserProp & PSD Tabs for more
information on Particle Size Distribution.
 Figure 3.283-41
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-42 Cloning Library Components
ww
Th3.7 Cloning Library
Components
You can convert Aspen HYSYS library components into
Hypotheticals through the Clone Library Comps button on the
Hypo Group property view. When you click this button, the
Convert Library Comps to Hypothetical Comps property view is
displayed. Any of the library components present in the current
Fluid Package can be converted to a Hypothetical.
This property view is made up of two sections, the Source
Components group and the Hypo Groups.
 Figure 3.29
By using the Add New Hypo Group button, you do not have to
return to the Simulation Basis Manager to create a Hypo
Group.
Object Description
Component Lists Allows you to select the component list that contains the
library component you want to clone.
Available Library
Comps
Selects the component you want to convert into a
hypothetical.
Replace ALL
Instances
If you want to replace the library component with the Hypo
in every Fluid Package that contains the library component,
select this checkbox. If you only want to replace the library
components in the highlighted Fluid Package, do not select
the checkbox.3-42
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-43
ww
Th3.7.1 Converting a Library
Component to a Hypo
When converting a library component to a Hypo, follow the
procedure outlined below. Figure 3.29 is used as a reference.
1. Select the Component List which contains the target library
component. In this case, Component List - 1 is the
selected component list.
2. From the Available Library Comps group, select the
component to clone. In this case, 1-Propanol is selected.
3. Select the Target Hypo Group, where the new Hypo is to
be placed. HypoAlcohol is selected.
4. Decide if you want to replace all instances of the source
component (1-Propanol) with the new Hypo. Select the
Replace All Instances checkbox to do this. In Figure 3.29
the checkbox is selected.
5. To complete the conversion, click the Convert to Hypo(s)
button.
6. The new Hypo appears in the Hypo Components group, and
has an asterisk (1-Propanol*) after its name, signifying
that it is a hypothetical.
7. Close the property view to return to the Hypo Group
property view.
Hypo Group Selects the Hypothetical Group in which you want the
converted library component placed.
Hypo
Components
Displays all the hypothetical components present in the
selected hypothetical group. When a library component is
converted into a hypothetical, it is listed here.
Object Description3-43
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-44 Hypo Controls
ww
Th3.8 Hypo Controls
The manipulation commands for hypotheticals are contained on
the Hypotheticals tab of the Simulation Basis Manager. The Hypo
Controls are the buttons contained within the Hypothetical Quick
Reference group as shown below:
3.8.1 Viewing Groups
Notice that the Hypothetical Quick Reference group displays the
names of hypothetical groups and components. The components
are listed in the Hypo Name column and the group to which each
component belongs is listed in the Group Name column.
From the Group Name column, select the Group that you want
to view, and click the View Group button. Aspen HYSYS
displays the Hypo Group property view for that Hypo Group. All
the Hypo components that are part of the group appear on this
property view.
 Figure 3.303-44
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Hypotheticals 3-45
ww
Th3.8.2 Moving Hypos
When hypothetical components are created in Aspen HYSYS,
they are created within a Hypo Group, and become part of the
group. After adding a hypothetical component to a certain
group, you may want to move it to another existing group. You
can accomplish this through the Hypo Controls. From the
Hypothetical Quick Reference group, click the Move Hypo
button. This produces the following property view:
Follow this procedure to move a Hypo to a different Hypo Group:
1. From the Hypo Components group, select the Hypo that you
want to move.
2. Select the Target Hypo Group to which the Hypo is being
moved.
3. Click the Switch to Group button, which becomes available
when a selection is made in both the Hypo Components
group and Target Hypo Group.
4. When you are finished moving groups, close the property
view and return to the Hypotheticals tab of the Simulation
Basis Manager.
3.9 References
 1 Reid, R.C., Prausnitz, J.M., Poling, B.E., The Properties of Gases &
Liquids, 4th edition, McGraw-Hill, 1987.
 Figure 3.31
By clicking the Add New Hypo Group button, Aspen HYSYS
allows you to add a new Hypo Group while this property view
has focus.3-45
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
3-46 References
ww
Th3-46
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-1
ww
Th4  Aspen HYSYS Oil
Managerw.cadfamily.com    EMa
e document is for study 4.1  Introduction................................................................................... 3
4.2  Oil Characterization ....................................................................... 4
4.2.1  Laboratory Data ....................................................................... 4
4.2.2  Conventional Distillation Data .................................................... 5
4.2.3  Data Reporting Basis ................................................................ 7
4.2.4  Physical Property Assay Data ..................................................... 7
4.2.5  Property Curve Basis ................................................................ 9
4.2.6  Common Laboratory Data Corrections ......................................... 9
4.2.7  Default Correlations................................................................ 10
4.3  Petroleum Fluids Characterization Procedure .............................. 10
4.3.1  Initialization .......................................................................... 10
4.3.2  Step One - Characterize Assay ................................................. 13
4.3.3  Step Two - Generate Hypocomponents ...................................... 13
4.3.4  Step Three - Install Oil............................................................ 14
4.3.5  User Property ........................................................................ 14
4.3.6  Correlations........................................................................... 14
4.4  Oil Characterization Property View .............................................. 15
4.5  Characterizing Assays.................................................................. 18
4.5.1  Input Data Tab....................................................................... 23
4.5.2  Calculation Defaults Tab .......................................................... 53
4.5.3  Working Curves Tab................................................................ 56
4.5.4  Plots Tab ............................................................................... 57
4.5.5  Correlations Tab ..................................................................... 58
4.5.6  User Curves Tab..................................................................... 60
4.5.7  Notes Tab.............................................................................. 614-1
il:cadserv21@hotmail.com
only,if tort to your rights,please inform us,we will delete
4-2 Aspen HYSYS Oil Manager
www.cadfamily.com    EMa
The document is for study 4.6  Hypocomponent Generation .........................................................62
4.6.1  Data Tab................................................................................63
4.6.2  Correlations Tab......................................................................71
4.6.3  Tables Tab..............................................................................73
4.6.4  Property Plot Tab ....................................................................74
4.6.5  Distribution Plot Tab ................................................................76
4.6.6  Composite Plot Tab..................................................................77
4.6.7  Plot Summary Tab...................................................................78
4.6.8  Notes Tab ..............................................................................79
4.7  User Property ...............................................................................79
4.7.1  User Property Tab ...................................................................80
4.7.2  User Property Property View.....................................................81
4.8  Correlations & Installation............................................................85
4.8.1  Correlation Tab .......................................................................85
4.8.2  Correlation Set Property View ...................................................86
4.8.3  Install Oil Tab .........................................................................92
4.9  TBP Assay - Example ....................................................................93
4.9.1  Initialization ...........................................................................95
4.9.2  Step 1 - Input Assay Data ........................................................97
4.9.3  Step 2 - Cut Assay into Hypocomponents .................................106
4.9.4  Step 3 - Transfer Information to Flowsheet ...............................109
4.9.5  Fluid Package Association.......................................................111
4.10  Sulfur Curve - Example .............................................................112
4.10.1  Fluid Package .....................................................................112
4.10.2  Install a User Property .........................................................113
4.10.3  Install the Assay .................................................................114
4.10.4  Create the Blend .................................................................117
4.10.5  Results ..............................................................................118
4.11  References................................................................................1204-2
il:cadserv21@hotmail.com
only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-3
ww
Th4.1 Introduction
The Oil Characterization environment can be accessed from the
Oil Manager tab of the Simulation Basis manager or by clicking
the Oil Environment icon on the toolbar. To enter the Oil
Characterization environment, at least one fluid package must
exist in the case. Hypothetical (pseudo) components must be
compatible with the property method being used by the fluid
package.
Also on the Oil Manager tab, you can view all flowsheets that
exist in the current case and the fluid package associated with
each. All hypocomponents that are defined within the Oil
Characterization environment are assigned to a Hypo group and
installed in an associated fluid package. Since Light End
calculations for an oil require information from the property
method being used by the associated fluid package, the
hypocomponent cannot be shared among different fluid
packages as regular hypothetical components can. However,
you can still use the same hypocomponent in the non-associated
fluid packages by adding them as hypotheticals, via the Add
Hypo or Add Group button on the Selected tab of the
Component List property view.
The Oil Characterization environment provides a location where
the characteristics of a petroleum fluid can be represented by
using discrete hypothetical components. Physical, critical,
thermodynamic and transport properties are determined for
each hypothetical component using correlations that you select.
The fully defined hypocomponent can then be installed in a
stream and used in any flowsheet.
Aspen HYSYS defines the hypocomponent by using assay data
which you provide. The features available for the input of assay
data minimize the time required for data entry. For instance,
defined assays can be cloned, imported and exported. Exported
assays can be used in other fluid packages or in other cases
altogether.
Some of the features exclusive to the oil environment include:
• Providing laboratory assay data
Oil Environment icon
Refer to Chapter 3 -
Hypotheticals for
more information on
hypo controls.4-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-4 Oil Characterization
ww
Th• Cutting a single assay
• Blending multiple assays
• Assigning a user property to hypocomponents
• Selecting correlation sets to determine properties
• Installing hypocomponent into a stream
• Viewing tables and plots for your input and for the
characterized fluid
4.2 Oil Characterization
The petroleum characterization method in Aspen HYSYS
converts your laboratory assay analyses of condensates, crude
oils, petroleum cuts, and coal-tar liquids into a series of discrete
hypothetical components. These petroleum hypocomponents
provide the basis for the property package to predict the
remaining thermodynamic and transport properties necessary
for fluid modeling.
Aspen HYSYS produces a complete set of physical and critical
properties for the petroleum hypocomponent with a minimal
amount of information. However, the more information you can
supply about the fluid, the more accurate these properties are,
and the better Aspen HYSYS predicts the fluid's actual
behaviour.
4.2.1 Laboratory Data
Accurate volatility characteristics are vital when representing a
petroleum fluid in your process simulation. Aspen HYSYS
accepts five standard laboratory analytical assay procedures:
• True boiling point distillation (TBP)
• ASTM D86 and ASTM D1160 distillations (Separately or
Combined)
• ASTM D2887 simulated distillation
• Equilibrium flash vapourization (EFV)
• Chromatographic analysis4-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-5
ww
ThThe characterization procedure performs its calculations based
on an internally calculated TBP curve. If you supply an ASTM or
EFV distillation curve, it is converted to a TBP curve using
standard methods described in the API Data Book. If you do not
supply any distillation data, then an average TBP distillation
curve is generated for you based on the overall molecular
weight, density, and Watson (UOP) K factor of your fluid.
4.2.2 Conventional Distillation
Data
The five primary types of assay data accepted by the Petroleum
Characterization Procedure in Aspen HYSYS are listed here and
explained in the following sections.
• True Boiling Point analysis
• ASTM D86 and 1186 Distillations
• ASTM D2887
• Equilibrium Flash Vaporization
• Chromatrographic analysis
True Boiling Point (TBP) Analysis
A TBP analysis is performed using a multi-stage batch
fractionation apparatus operated at relatively high reflux ratios
(15 - 100 theoretical stages with reflux ratios of 5 to 1 or
greater). TBP distillations conducted at either atmospheric or
vacuum conditions are accepted by the characterization
procedure.
The Watson (UOP) K factor is an approximate index of
paraffinicity, with high values corresponding to high degrees
of saturation:
where the mean average boiling point is in degrees Rankine.
K Mean Avg. BP( )
1
3
--
sp gr 60F / 60F
-----------------------------------------=4-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-6 Oil Characterization
ww
ThThe petroleum fluid's bubble point is a multi-component
equilibrium condition such that there is an incipient vapour
phase forming. This would, in effect, be a single-stage of
fractionation as opposed to the highly refluxed operation of a
TBP analysis.
ASTM D86 and D1160 Distillations
ASTM D86 and ASTM D1160 distillations also employ batch
fractionation apparatus, but they are conducted using non-
refluxed Engler flasks. Two standard ASTM distillations are
supported: ASTM D86, used for light to medium petroleum
fluids, and ASTM D1160, carried out at varying vacuum
conditions and used for heavier petroleum fluids. For ASTM D86
distillation, Aspen HYSYS can correct for barometric pressure or
cracking effects.
ASTM D2887
ASTM D2887 is a simulated distillation curve generated from
chromatographic data. The resulting boiling point curve is
reported on a weight percent basis.
Equilibrium Flash Vaporization
An EFV curve is generated by a series of experiments conducted
at constant pressure (1 atm). The results relate the temperature
versus volume percent of liquid distilled, where the total vapour
is in equilibrium with the unvaporized liquid.
The initial boiling point (IBP) of a TBP curve does not
correspond to the bubble point temperature of the petroleum
fluid at atmospheric pressure.4-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-7
ww
ThChromatographic Analysis
A Chromatographic analysis is a simulated distillation performed
by passing a small amount of totally vaporized sample through a
packed gas chromatograph column. The relative amounts of the
sample that appear in each standard "chromatographic"
hydrocarbon group (paraffinic, aromatic and naphthaline
groups, ranging from C6 to C30) are then detected and
reported.
4.2.3 Data Reporting Basis
All of the distillation analyzes described above are reported
using one of the following fractional bases (assay basis):
• Liquid volume percent or liquid volume fractions
• Mole percent or mole fractions
• Mass percent or mass fractions
Aspen HYSYS accepts TBP and Chromatographic analyzes in any
one of the three standard bases. However, due to the form of
the API Data Book conversion curves, EFV, ASTM D86 and ASTM
D1160 distillations must be supplied on a liquid volume basis,
and ASTM D2887 are only reported on a weight basis.
4.2.4 Physical Property Assay
Data
As you supply more information to Aspen HYSYS, the accuracy
of the Petroleum Characterization increases. Supplying any or
all of bulk molecular weight, bulk density or bulk Watson (UOP)
K factor increases the accuracy of your hypocomponent
properties. Appropriately, if you supply laboratory curves for
molecular weight, density and/or viscosity, the accuracy
increases further.
Refer to Appendix B -
Oil Methods &
Correlations for
information on the
correlations used in the
Oil Environment.4-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-8 Oil Characterization
ww
ThIf you cannot supply property curve data, Aspen HYSYS
generates internal curves using the available information. This
information is applied using correlations. You can change the
default set of property correlations as required.4-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-9
ww
Th4.2.5 Property Curve Basis
Physical property analyzes are normally reported by a
laboratory using one of the following two conventions:
• An Independent assay basis where the property assay
volume fractions do not correspond on a one-to-one
basis with the distillation assay fractions.
• A Dependent assay basis, where a common set of assay
fractions are utilized for both the distillation curve and
the physical property curves.
Physical properties are average values for the given range, and
hence are midpoint values. Distillation data reports the
temperature when the last drop of liquid boils off for a given
assay range; therefore distillation is an endpoint property. Since
all dependent input property curves are reported on the same
endpoint basis as the distillation curve, they are converted by
Aspen HYSYS to a midpoint basis. Independent property curves
are not altered in any manner before being used in the
characterization, since they are already defined on a midpoint
basis.
4.2.6 Common Laboratory
Data Corrections
With ASTM D86 data, correction procedures are available to
modify the laboratory results for both barometric pressure and
thermal cracking effects, which result in the degradation of the
sample at high distillation temperatures. These corrections are
sometimes performed by the laboratory. If the corrections have
not already been applied, the Characterization procedure has
options available to apply the necessary corrections before
commencing calculations.4-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-10 Petroleum Fluids Characterization
ww
Th4.2.7 Default Correlations
When you begin a petroleum characterization session, Aspen
HYSYS already has a set of default correlations for generating
physical and critical properties of the hypocomponent. You may
change any of the correlations at any time.
4.3 Petroleum Fluids
Characterization
Procedure
4.3.1 Initialization
Before entering the Oil Characterization environment, you are
required to create a fluid package with a specified Property
Package at the very minimum. The Associated Property Package
must be able to handle hypothetical components (i.e., a Steam
Package is not allowed).
If you want to use library components to represent the Light
Ends portion of your assay, it is best to select the components
prior to entering the Oil Characterization environment (if you
forget to do this, you can return later to the Components tab
and select the components).
Refer to Section 4.8.2 -
Correlation Set
Property View for a
listing of available
correlations or Appendix
B - Oil Methods &
Correlations for a
description of each
correlation.4-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-11
ww
ThThe Oil Manager tab of the Basis Manager property view is
shown below:
The Associated Fluid Package for the Oil serves two primary
functions:
• Provides the light end components.
• Identifies to which Fluid Package the Hypo group (oil) is
being installed.
When you install the oil into a stream, Aspen HYSYS always
places this stream in the main flowsheet. For this reason, the
associated Fluid Package must be the fluid package used by the
main flowsheet.
If you want to install the hypocomponent into a subflowsheet,
this must be done on the Components tab of the Sub-Flowsheet
fluid package (Hypothetical page, Add Group or Add Hypo
button). If the sub-flowsheet uses the same fluid package as the
main flowsheet, then this action is not necessary, as the
hypocomponent is added to the fluid package once an oil stream
is installed.
 Figure 4.1
The fluid package that is used in the Oil Characterization
environment is displayed in the Associated Fluid Package
drop-down list on the Oil Manager tab of the Simulation
Basis Manager property view.4-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-12 Petroleum Fluids Characterization
ww
ThIf you are going to transfer an oil stream between flowsheets
with different fluid packages, ensure that the hypocomponent is
installed in each flowsheet fluid package.
If you have not defined the same components in each fluid
package, Aspen HYSYS will transfer only the compositions for
those components that are available, and will normalizes the
remaining compositions.
The fluid package that is used in the Oil Characterization
environment can be selected from the Associated Fluid Package
drop-down list. To enter the Oil environment, select the Enter
Oil Environment button as shown in Figure 4.1, or select the Oil
Environment button from the toolbar. The following figure
illustrates the make-up of a typical oil:
 Figure 4.2
OIL
(blend)
Assay 1
Assay 3
Bulk
Properties
Boiling Point
Curve
Property Curves
Dependent/
Independent
• Molecular Weight
• Mass Density
• Watson (UOP) K
• Viscosity
• TBP
• ASTM D86
• ASTM D1160
• ASTM D86-D1160
• ASTM D2887
• EFV
•  Chromatograph
• Molecular Weight
• Mass Density
• Viscosity
Assay 24-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-13
ww
ThAn Oil or Blend is comprised of any number of Assays. Each
individual Assay contains specific information with respect to the
Bulk Properties, Boiling Point Curve and Property Curves. For
the Bulk Properties, you may supply Molecular Weight, Mass
Density, Watson (UOP) K factor, and/or Viscosity. You can
provide the Boiling Point curve in any one of the formats
displayed in the Figure 4.2. During calculations, Aspen HYSYS
automatically converts all curves to a TBP basis. You also have
the option of supplying Molecular Weight, Mass Density, and/or
Viscosity curves.
There are three general steps you must follow when creating an
oil:
1. characterize assay
2. generate hypocomponent
3. install oil in flowsheet
4.3.2 Step One - Characterize
Assay
Enter the petroleum assay data into Aspen HYSYS via the Assay
tab of the Oil Characterization property view. Aspen HYSYS uses
the supplied Assay data to generate internal TBP, molecular
weight, density and viscosity curves, referred to as Working
Curves.
4.3.3 Step Two - Generate
Hypocomponents
Hypocomponents are generated from the Working Curves via
the Cut/Blend tab of the Oil Characterization property view.
It is a good idea to open the Trace Window before you start
the characterization, since it displays important information
during Oil Characterization calculations.
Refer to Section 4.5 -
Characterizing Assays
for more details.4-13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-14 Petroleum Fluids Characterization
ww
ThThis process is explained in Appendix B - Oil Methods &
Correlations. See Section 4.6 - Hypocomponent
Generation for the procedure.
4.3.4 Step Three - Install Oil
Once the Blend is characterized satisfactorily, install
hypocomponent into your Aspen HYSYS case via the Install Oil
tab of the Oil Characterization property view. You can install the
oil as a defined stream by providing a Stream name. The
hypocomponent is also added to a distinct Hypo group and to
the associated fluid package.
4.3.5 User Property
In addition to the three basic steps required to characterize an
oil in Aspen HYSYS, user properties can be added, modified,
deleted, or cloned. User Properties can be created from the Oil
Manger or in the Basis Environment. A user property is any
property that can be calculated on the basis of composition.
4.3.6 Correlations
Correlations can be selected via the Correlation tab of the Oil
Characterization property view. Aspen HYSYS allows you to
select from a wide variety of correlations used in both the
determination of working curves and in the generation of
hypocomponent.
All of the information used in generating your
hypocomponent is stored with the case. This includes:
Assays and their associated Options, Property Curves and
Bulk Properties, User Properties, the Correlations used for
generating the pseudo-components, the Constituent oils
(with flow rates) for blends, and the flowsheet stream in
which each oil was installed. This information is available the
next time you open the case.
Refer to Section 4.8.3 -
Install Oil Tab for more
details.
Refer to Section 4.7 -
User Property for more
information.
Refer to Section 4.8.1 -
Correlation Tab for
more information.4-14
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-15
ww
Th4.4 Oil Characterization
Property View
When you enter the Oil Characterization environment, the
following property view appears:
This property view is the Oil Characterization environment.
There are five tabs which represent the main areas of the
environment and are described below:
 Figure 4.3
Tab Description
Assay Add, edit, delete, clone, import or export Assays (see
Section 4.5 - Characterizing Assays).
Cut/Blend Add, edit, delete or clone Blends (see Section 4.6 -
Hypocomponent Generation).
User
Property
Add, edit, delete or clone User Properties (see Section 4.7
- User Property).
Correlation Add, edit, delete or clone Correlation Sets (see Section
Section 4.8.1 - Correlation Tab).
Install Oil Install hypocomponent into a stream in a Aspen HYSYS
case (see Section 4.8.3 - Install Oil Tab).4-15
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-16 Oil Characterization Property View
ww
ThThe Clear All, Calculate All, and Oil Output Settings... buttons
are available on any tab of the Oil Characterization property
view.
• If you select the Calculate All button, Aspen HYSYS
calculates all Assays and Blends. This option is useful if
you have several Assays and/or Blends and you want to
see the global effect of a change in the correlation.
• If you select the Clear All button, Aspen HYSYS displays
the following warning:
If you want to delete all Oil Characterization information
select Yes.
• Selecting the Oil Output Settings... button results in
the Oil Output Settings property view.
Oil Output Settings Property View
On this property view, you can set the initial boiling point (IBP)
and final boiling point (FBP) cut points on a liquid volume, mole
or mass percentage basis. These values are used to determine
the initial and final boiling temperatures of the TBP working
curve. The default values are 1% for the IBP and 98% for the
FBP.
 Figure 4.4
 Figure 4.54-16
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-17
ww
ThIf for example, an IBP value of 1% is specified, the initial boiling
point becomes the weighted average boiling temperature of all
components that boil off in the first volume percent. The final
boiling point is determined in a similar manner. If 98% is used
for the FBP, the final boiling temperature becomes the weighted
average boiling temperature of all the components that boil off
in the last 2 volume percent. The ends of the curve are
'stretched' to fill the assay range of 0 to 100%.
On the Oil Output Settings property view, you can select the
default ASTM D86 Interconversion Method TBP conversion type
from the Default D86 Curve Type drop-down list:
• API 19741
• API 19872
• API 19943
• Edmister-Okamoto 19594
You can also select the ASTM D2887 Interconversion method
from the following:
• API 19875
• API 1994 Indirect6
• API 1994 Direct7
The Oil Output Settings are saved along with your simulation
case. They can be accessed either within the Oil manager or
through the Simulation menu bar option in the Main Simulation
environment.
Changing the IBP and FBP in the Oil Output Settings will affect
the following calculations:
• Blend Properties Table and Plots
• Boiling Point Utility
• Cold Properties Utility
• Column specs (Cut Point, Gap Cut Point, Flash Point, RON
Point)
• Column Profiles
When IBP and FBP changes are made, all necessary calculations
are automatically performed.
Oil Input settings are accessed through the Session
Preferences property view.4-17
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-18 Characterizing Assays
ww
Th4.5 Characterizing Assays
The Assay tab of the Oil Characterization property view is shown
below:
The Available Assays are listed in the left portion of the property
view. The following Assay manipulation buttons are available:
The ASTM D86 and ASTM D2887 interconversion methods do
not affect column specifications, since each related
columnspec has its own independent setting. If you want to
change the column specifications, click the Change
Interconversion Methods for Existing Column Specs button.
Aspen HYSYS asks you to confirm that you want to globally
impose these changes.
 Figure 4.6
C
Button Description
View Edit the currently highlighted Assay.
Add Create a new Assay.
Delete Erase the currently highlighted Assay.
Aspen HYSYS does not prompt for confirmation when
deleting an assay, so be careful when you are using this
command. However, Aspen HYSYS does not delete an
assay that is being used by a blend.
Refer to Section 4.9 -
TBP Assay - Example
for characterizing
assays.4-18
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-19
ww
ThFor a highlighted Assay, you can edit the name in the Name field
and provide a description in the Description textbox found in
Assay Information group.
To create a new assay or edit an existing assay you can click the
Add or View button, respectively. This opens the Assay
property view for the new or existing assay.
Importing PIMS in .csv Format
You can import a PIMS-generated assay file in .csv format to the
Oil Environment. Since many commercial assay generator tools
convert their assay format to PIMS' .csv format, Aspen HYSYS
can now import assays from these other sources via this format.
Aspen HYSYS does not support detailed petroleum properties -
such as Sulphur, RON etc., so these properties from PIMS assay
are stored as user curves.
If you are importing a PIMS Assay, follow the additional steps
described in the next section.
PIMS Assay Import Additional Steps
If you are importing PIMS assay, there are more steps to follow:
1. After selecting the PIMS file, the Import PIMS Data property
view appears.
All the data shown initially in the table of the Import PIMS
Data property view are default values not related to the csv
file previously selected.
To map the PIMS variable data to the RefSYS variable data,
you must browse to and select the PIMS String Table.
Clone Create a new Assay with the same properties as the
currently highlighted Assay. Aspen HYSYS immediately
opens a new Assay view.
Import Import a previously saved assay file in .oil format or a PIMS
generated assay file in .csv format.
Export Save an assay to disk so that it can be used in other cases.
Imported and Exported assays have a filename form *.oil.
Button Description4-19
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-20 Characterizing Assays
ww
Th2. In the Import PIMS Data property view, click Import Data
String.
3. Select the PIMS String Table file (*.sdb extension) to map
the PIMS variable tag with RefSYS variable tag and click
Open. (The default name and location for the data string file
is: \[install location]\paks\PIMSAssay.sdb)
The PIMS String Table file (*.sdb) consists of 3 sections:
• The Property Tag section, where the text used to for the
PIMS petroleum property variables is mapped to the text
of the RefSYS property description.
Below is a sample of the PIMS tag (left) and associated
RefSYS tag (right):
- ISPG =  "Standard Liquid Density"
- IFVT =  "Boiling Temperature"
- VBAL =  "Volume Fraction"
- IMWT =  "Molecular Weight"
- IACD =  "Acidity"
• The Component Tag section, where the text used to
represent PIMS components is mapped to the text of the
RefSYS components:
Below is a sample of the PIMS tag (left) and associated
RefSYS tag (right):
- NC1 =  "Methane"
- NC2 =  "Ethane"
- NC3 =  "Propane"
- IC4 =  "I-Butane"
- NC4 =  "N-Butane"
- IC5 =  "I-Pentane"
• The Unit Tag section. The Unit Tag section is optional. It
maps PIMS unit abbreviations to RefSYS units if the PIMS
Assay was stored using unit syntax other than that which
RefSYS recognizes.
You can add this section by appending a line for each
“foreign” unit in the following format:
UNIT_{PIMS property tag} = "{unit name}"
for example:
UNIT_IFVT = "C"
means the PIMS property tag "IFVT" has units in C
(Celcius).4-20
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-21
ww
Th4. Click the Import PIMS Data button.
RefSYS reads in all the data from the assay table using the
mapping instructions from the string table, and populates
the list in the Import PIMS Data property view.
When the Oil Input Preferences button under the Assay
Information group is selected, the Session Preferences property
view opens to the Oil Input tab. From here you can set the input
defaults for your case.
When a new case is created, the methods specified in the Oil
Input settings initialize the Oil Output settings. However, any
changes made afterwards to either settings group are
independent.
Assay Property View
The Assay property view is shown below:
 Figure 4.7
The appearance of the Assay property view depends on how
you define the assay in the Assay Definition group and which
radio button is selected in the Input Data group.4-21
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-22 Characterizing Assays
ww
ThThe Assay property view consists of seven tabs, which are
described below:
There are four objects found at the bottom of the property view
and are described below:
The following sections outline each of the tabs contained within
the Assay view (accessed via the View or Add button).
Tab Description
Input Data Allows you to define and specify the Assay.
Calculation
Defaults
Allows you to set the calculation methods and
extrapolation methods for the assay and assay
property curves.
Working Curves Displays a table of Assay Working curves.
Plots Allows you to view any of the input assay curves in
graphical form.
Correlations Allows you to edit the individual property conversion
methods used.
User Curves Allows you to attach available user properties to the
assay.
Notes Allows you to attach relevant comments to the assay.
Object Description
Name You can provide the name of the Assay in the Name cell
(maximum 12 characters).
Assay Status The status bar is displayed at the bottom of the screen:
• Assay Was Not Calculated. You have not provided
enough Assay information to determine a solution (or
you have enough information and have not clicked the
Calculate button).
• Assay Was Calculated. You have provided Assay
information, clicked the Calculate button, and
obtained a solution.
• An Error Was Found During Calculation. The Trace
Window usually shows a description of the type of
Error.
Calculate Select this button to calculate the Assay.
Delete Select this buttons to delete the current Assay.
There is no confirmation when you delete an assay, unless
it is being used by a blend, in which case you cannot delete
it.4-22
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-23
ww
Th4.5.1 Input Data Tab
The minimum amount of information that Aspen HYSYS requires
to characterize a petroleum fluid is either:
• a laboratory distillation curve
• two of the following three bulk properties: Molecular
Weight, Density, or Watson (UOP) K factor.
However, any additional information such as distillation curves,
bulk properties and/or property curves, should be entered if
possible. With more supplied information, Aspen HYSYS
produces a more accurate final characterization of your oil.
The Watson (UOP) K factor is an approximate index of
paraffinicity, with high values corresponding to high degrees
of saturation:
where the mean average boiling point is in degrees Rankine.
When you open the Assay view to the Input Data tab, all that
is displayed is the Assay Data Type and Bulk Properties drop-
downs. New input fields are added as you specify the
information for your oil.
K Mean Avg. BP3
sp gr 60F / 60F
--------------------------------------=4-23
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-24 Characterizing Assays
ww
ThThe Input Data tab is shown below:
The Input Data tab is split into two groups: the Assay Definition
and Input Data groups. The Assay Definition group is where the
assay type and use of property curve, light ends data and bulk
properties are defined. The Input Data group is where the
distillation, property curve, light ends and property data is
actually inputted.
 Figure 4.8
Specify which
individual Input
Data curves are to
be included.
Depending on the specifications made in the
Assay Definition group. These radio buttons
become visible. Each radio button makes a
different entry field visible.
The layout of Input Data
group depends largely on
the settings you choose in
this group.
Options related to
the Assay Data
Type are
displayed in this
area.
The entry fields displayed in this table depend on which
radio button is selected.
For each of the three property curves, Molecular Weight,
Density and Viscosity, you have the following options: Not
Used, Dependent, or Independent. If you switch the status
to Not Used after you have entered assay data, all your data
for that property curve is lost when you return your selection
to Dependent or Independent.4-24
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-25
ww
ThLight Ends Handling & Bulk Fitting
If you have a light-ends analysis along with light-ends free input
curves and total bulk properties or light-ends free bulk
properties you can use the Aspen HYSYS oil manager to
combine the light-ends analysis with the light-ends free input
curves to match the specified bulk properties. This functionality
is clearly seen in the case of chromatographic input, where you
may want to input the light-ends along with the C6+ as the
chromatographic data groups. Because of the nature of the
analysis, the chromatographic data is light-ends free.
Light Ends Analysis Versus Calculated TBP
Curve
Ideally, for the light-ends free distillation input curve, the TBP at
0% should coincide with the highest NBP in the light-ends
components with non-zero compositions, see Case B in Figure
4.9. However, due to imperfect input data or extrapolation, the
calculated TBP at 0% may be lower than the top NBP for light
ends (Case A in Figure 4.9) or higher than the top NBP for light
ends (Case C in Figure 4.9). To avoid overlapping or
discontinuity, these two cases must be properly handled.4-25
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-26 Characterizing Assays
ww
ThIn Case A, the highest temperature of the non-zero component
in light ends is above the TBP at 0%. In this case, we need to
eliminate the points having TBP lower than the top light-ends
temperature. After the elimination, the remaining portion of the
light-ends free TBP curve are re-scaled to 100%, and then a
new set of standard 51 points calculation tables are regenerated
from the remaining portion of the corresponding curves.
In Case C, the top light-ends temperature is below the TBP at
0%. Since the extrapolation may not be accurate, more trust is
put on the light-ends analysis and hence assign the top light-
ends temperature as the TBP at 0%. To avoid a sudden jump in
the distillation curve, the first 20% of the distillation curve is
also smoothed.
 Figure 4.94-26
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-27
ww
ThCurve Partition for Bulk Property Fitting
To allow piece-wise fitting for a bulk property, a property curve
is divided into three sections: head, main, and tail. The ending
% of the head section and beginning % of the tail section can be
specified. Each section can have an independent adjusting
weight factor as shown in the figure below.
For piecewise bulk property fitting there are two concerns to be
addressed. First, since each section can have an independent
adjusting weight factor, there may be a discontinuity at the
boundary of the two sections. Second, how to ensure relatively
fast convergence with uneven adjustment of the property
concerned. For the first concern, discontinuity is avoided by
using linear interpolation between two sections. For the second
concern, the weight factor is normalized first and then the
following equation is used to calculate the new point property
value from the old point property value:
where:
New[i] = the new property value at point i
Wt[i] = the normalized weight factor at point i
Ratio = the calculated uniform adjusting ratio
Old[i] = the old property value at point i
 Figure 4.10
(4.1)New i[ ] 1 Wt i[ ] Ratio 1–( )×+[ ] Old i[ ]×=4-27
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-28 Characterizing Assays
ww
ThAspen HYSYS allows you to specify if a given curve contains
light-ends contributions, set if a specified bulk property contains
light-ends and partition a property curve so that some sections
can be adjusted more than others.
The Light Ends Handling & Bulk Fitting Options property view is
accessed by clicking the Light Ends Handling & Bulk Fitting
Options button.
The light ends handling and bulk fitting options are described
below:
The last five columns are used for piece-wise bulk property
fitting. When fitting a given bulk property value the internal
calculation curve, either based on the input curve or calculated
from a correlation, is divided into three sections. Each of the
three sections can be independently adjusted.
 Figure 4.11
Column Description
Input Curve Displays all the possible input curves, including user
property curves.
Curve Incl L.E. Specifies if the corresponding input curve includes light
ends. If an input curve is not used, the corresponding
checkboxes are grayed out.
Bulk Value Specifies the bulk value for the corresponding input
curve.
Bulk Value Incl
L.E.
Specifies if a given bulk value contains the
contributions of light ends. If no light end compositions
are given these checkboxes are grayed out.4-28
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-29
ww
ThWhen fitting a given bulk value, at least one section must be
adjustable. Therefore, at least one section must have a non-
zero percentage range and a non-zero adjusting weight factor.
Since the adjusting weight factors are relative, it is the weight
factor ratios among the three sections that matter.
The Apply smart bulk fitting on molecular weight and
mass density checkbox allows you to achieve the best bulk
fitting on mass density and molecular weight input curves. If the
checkbox is selected, the mass density and molecular weight
rows are disabled and the values appear in black.
In situations when either a full light ends analysis is not
available or you do not want to identify part of the analyzed
light ends components (in other words, only partial light ends
analysis data is available), Aspen HYSYS can generate
overlapping hypothetical components to compensate the
missing portion of the light ends, making the output stream
matching both the partial light ends input and the other input
curves. To activate this option, select the Allow Partial Light
Ends Input checkbox. Once selected, Aspen HYSYS identifies
the need and generate the needed hypothetical components to
compensate the missing portions of the light ends, leading to a
much better fit between the generated curves and the input
curves.
Column Description
Head% Specifies the ending percent for the head section on
the input basis.
Head Adj Wt Specifies the corresponding relative bulk fit adjusting
weight factor from 0 to 10, where 0 means no
adjusting at all.
Main% Specifies the ending percent for the main section of the
input basis.
Main Adj Wt Specifies the corresponding relative bulk fit adjusting
weight factor from 0 to 10, where 0 means no
adjusting at all.
Tail Adj Wt Specifies the corresponding relative bulk fit adjusting
weight factor from 0 to 10, where 0 means no
adjusting at all.4-29
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-30 Characterizing Assays
ww
ThIf the input for either molecular weight or mass density curves is
less than 95% on a user defined basis, only the extrapolated tail
is adjusted to match the user specified bulk value. If the input is
more than or equal to 95% on the user defined basis, the entire
curve will be adjusted to match the bulk value specified.
The user input data is the most reliable data available, and
hence should not be adjusted to match the bulk value as long as
there is enough extrapolated data to adjust.
When only the tail is adjusted, it is ensured that the upper end
point is no lower than the linear extrapolation of the last two
points. This means that in most cases, the extrapolated portion
of the curve is concave, i.e., the curvature is positive. If the bulk
value is given such that the extrapolated values are below the
linear extrapolation values, the whole curve is adjusted and the
following warning message is displayed: “Curve is normalized
due to the inconsistency between the supplied curve and bulk
data.”
If the upper limit value is reached when adjusting the molecular
weight or density curve and the specified bulk value is still not
matched, no adjustment is made and the following message
appears: “No exact match, upper limit reached”. For molecular
weight, the upper limit value is ten times that of the bulk value.
For mass density, the upper limit is three times that of the bulk
value.
If a bulk molecular weight or mass density is given without a
corresponding input curve, the whole calculated curve will be
adjusted.
The 95% input is an artificial dividing line to decide if only the
tail is adjusted or the whole curve is adjusted. If the user input
curve crosses the dividing line, there is a chance to have a
sudden change in the behaviour. If this occurs, you can
overcome the problem by manually setting the bulking fitting
options without using the smart option. To achieve similar
results manually, you can set the Head Adj Wt and Main Adj Wt
to zero, set the Main % to the desired tail starting percent, and
leave the Tail Adj Wt to its default value of 1.0. 4-30
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-31
ww
ThBulk Properties Definition
These bulk properties are optional except when distillation data
is not available (you have selected None as the Data Type). If
you do not supply any distillation data, you must supply two of
the three initial bulk properties (Molecular Weight, Mass Density
or Watson (UOP) K factor) for Aspen HYSYS to create a "typical"
TBP curve. This TBP curve is generated based on a Whitson
molar distribution model.
If you are supplying property curves and you supply a bulk
molecular weight, density, or Watson K factor, Aspen HYSYS
smoothes and adjusts the corresponding curves to match the
supplied bulk properties. This procedure is performed whether
you supply property curves or they were internally generated by
Aspen HYSYS.
Assay Definition Group
The Assay Definition group contains only one object involved in
the specification of Bulk Properties: the Bulk Properties drop-
down. The Bulk Properties drop-down list has two options:
Option Description
Used If an Assay Data Type is not selected, the Input Data group
displays the Bulk Prop table along with the Molecular
Weight of lightest component field. However, if an Assay
Data Type is selected, a Bulk Props radio button appears in
the Input Data group. When this radio button is active the
Bulk Prop table is displayed.
Not Used No bulk properties are considered in the oil characterization
calculations.4-31
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-32 Characterizing Assays
ww
ThInput Data Group
The Input Data group that appears when Used is selected for
bulk properties is shown in the figure below:
It consists of two objects: the Bulk Properties table and
Molecular Weight of lightest component field.
The Bulk Properties table has several fields:
 Figure 4.12
The Molecular Weight of lightest component field is only
visible when the Assay Data Type selected is None.
Bulk Properties Description
Molecular
Weight
The Molecular Weight must be greater than 16.
Standard Density The mass density must be between 250 and 2,000 kg/
m3 (units can be mass density, API, or specific gravity,
chosen from the drop-down list).4-32
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-33
ww
ThDefining Assay Types
Assay Definition Group
To define Assay types, select a type in the Assay Definition
group using the drop-down list.
Watson (UOP) K
factor
This factor must be between 8 (highly aromatic or
naphthenic) and 15 (highly paraffinic). Only field units
are used here.
The Watson (UOP) K factor is an approximate index of
paraffinicity, with high values corresponding to high
degrees of saturation:
where:
Mean Avg. BP = the mean average boiling point
is in degrees Rankine.
Bulk Viscosities The bulk viscosity type and the temperature at two
reference points.
 Figure 4.13
Bulk Properties Description
K Mean Avg. BP3
sp gr 60F / 60F
--------------------------------------=4-33
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-34 Characterizing Assays
ww
ThAssay types that are available are described in the table below:
Assay Type Description
TBP True boiling point distillation data at atmospheric pressure.
Once you have selected this option, the TBP Distillation
Conditions group is displayed.
The default distillation conditions are atmospheric,
however, you can enable Vacuum Distillation for sub-
atmospheric conditions by selecting the Vacuum radio
button. The default pressure in this case is 10 mmHg
(ASTM standard). When you supply sub-atmospheric data,
it is automatically corrected from vacuum to atmospheric
conditions using procedure 5A1.13 (without K-correction)
from the API Data Book.
ASTM D86 Standard ASTM D86 distillation data at atmospheric
pressure.
You must provide data on a liquid volume basis.
You can specify the ASTM D86/TBP Interconversion Method
(API 19741, API 19872, API 19943 or Edmister-Okamoto
19594) on the Calculation Defaults tab. With the ASTM D86
Assay type you can also correct for thermal cracking as well
as for elevation.
ASTM D1160 ASTM D1160 distillation data. After you have selected this
option, the ASTM D1160 Distillation Conditions group is
displayed. By default, the Vacuum radio button is selected
and the Vacuum Distillation Pressure is set to 10 mmHg
(ASTM standard). When ASTM D1160 Vacuum data is
supplied, Aspen HYSYS will first convert it to TBP vacuum
data, and then convert this to TBP data at 760 mmHg using
procedure 5A1.13 of the API Data Book.
You must provide data on a liquid volume basis.
ASTM D86-
D1160
This is the combination of the ASTM D86-D1160 data types.
The options for ASTM D86 and ASTM D1160 are similar to
the descriptions above. You must provide data on a liquid
volume basis.
ASTM D2887 Simulation distillation analysis from chromatographic data,
reported only on a weight percent basis at atmospheric
pressure. On the Calculation Defaults tab, you have the
choice of conversion method (API 19875, API 1994
Indirect6, API 1994 Direct7).
Chromatogra
ph
A gas chromatograph analysis of a small sample of
completely vaporized oil, analyzed for paraffin, aromatic
and naphthenic hydrocarbon groups from C6 to C30.
Chromatographic analyses may be entered on a mole,
mass, or liquid volume basis. With this option, you enter
Light Ends, Bulk and Chromatographic analysis data.
Refer to
Chromatographic
Assay Input for more
information.4-34
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-35
ww
ThInput Data Group
The Input Data group displayed when the Distillation radio
button is selected depends on the Assay type you have selected
in the Assay Definition group.
Distillation Data
For Assay Type options TBP, ASTM D86, ASTM D1160, ASTM
D2887 and EFV, the procedure for entering boiling temperature
information is essentially the same - you are required to enter at
least five pairs of Assay Percents and boiling Temperatures. The
Distillation input table is exactly the same for each of these
options.
EFV Equilibrium flash vaporization curve; this involves a series
of experiments at constant atmospheric pressure, where
the total vapour is in equilibrium with the unvaporized
liquid.
None No distillation data is available; Aspen HYSYS generates a
TBP curve from bulk property data. With this option, you
only enter bulk data.
The conversion procedure from various assay types to a TBP
curve is based on Figure 3-0.3 of the API Data Book.
You can view and edit the assay boiling Temperature input
table by selecting the Distillation radio button and clicking
the Edit Assay button.
Assay Type Description4-35
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-36 Characterizing Assays
ww
ThFor the ASTM D86-D1160 characterization procedure, you are
required to enter boiling temperature information for both the
ASTM D86 and ASTM D1160 data types. This procedure
averages the ASTM D86 curve and ASTM D1160 curve in the
area where they overlap.
 Figure 4.144-36
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-37
ww
ThFor example, in the combined ASTM D86-D1160 input form
shown on the figure below, the last recorded ASTM D86 assay
point is at 30 vol%, and the first reported ASTM D1160 data
point is at 10 vol%.
Therefore, the resulting TBP curve will represent the average of
the two curves between 10 vol% and 30 vol%. Each curve must
contain a minimum of 5 data points.
Chromatographic Assay Input
This distillation option allows you to enter a standard laboratory
chromatographic analysis directly. The only required input is the
assay fraction for each chromatographic hydrocarbon group in
the paraffin, aromatic, and naphthenic families. The required
minimum of five points can be any combination of points from
the three PNA groups. The normal boiling point of each
hydrocarbon group is displayed in the PNA tables.
Chromatographic analyses may be entered on either a mole,
mass, or liquid volume basis, with the best results obtained
when the input fractions are on a mole fraction basis.
 Figure 4.154-37
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-38 Characterizing Assays
ww
ThA typical C6+ liquids chromatographic analysis is shown in the
chromatographic input form below.
Chromatographic analyses are typically performed after the light
ends of the original sample are removed. If you have a Light
Ends analysis in this case, refer to Light Ends Handling &
Bulk Fitting for details.
Assay Input - No Distillation Data Available
When a distillation analysis is not available, Aspen HYSYS
generates a typical TBP curve based on supplied bulk properties
(molecular weight, mass density, and Watson (UOP) K factor).
You have the option of specifying the molecular weight of the
lightest component in the mixture, which may help in generating
more accurate TBP curves for heavy petroleum fluids.
 Figure 4.16
You may also supply bulk
property data (see Bulk
Properties in Section
4.5.1 - Input Data Tab
for details).4-38
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-39
ww
Th
Although accurate enough for heat balance applications, caution
should be exercised when the Whitson option is used to produce
hypocomponent for fractionation calculations. This method
realistically supplies accuracy sufficient only for preliminary
sizing calculations.
For condensate with only bulk data available for the C7+
fraction, experience has shown a considerable increase in
accuracy by representing the fraction with several
hypocomponent as opposed to a single hypothetical component
with the bulk properties.
Refer to Bulk Properties Definition (earlier in this Section) for
details on entering bulk property data, particularly in regards to
Bulk Viscosities.
Aspen HYSYS uses the Whitson Molar Distribution model that
requires at least two of the three bulk properties (not
including bulk viscosities) to produce an average TBP
distribution.
 Figure 4.174-39
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-40 Characterizing Assays
ww
ThGeneral Guidelines
Some general guidelines are provided below:
• There is no limit to the number of assay data points that
you may enter for TBP, ASTM D86, ASTM D1160, ASTM
D86-D1160 ASTM D2887 or EFV analyses. Data points
may be input in any order, as Aspen HYSYS
automatically sorts your input data.
• Aspen HYSYS requires a minimum of 5 data points for all
assays. Depending on the shape of the input curve,
intermediate values for Aspen HYSYS' internal TBP
working curve are interpolated using either a third or
fourth order LaGrange polynomial fit. The points outside
your data are extrapolated using the extrapolation
method which you select on Calculation Defaults tab:
Least Squares, Lagrange or Probability.
• Each time you change the Basis or Extrapolation method,
the Assay needs to be recalculated.
• TBP, EFV, and Chromatographic laboratory assay values
may be entered on a liquid volume, mole or weight basis.
Liquid volume is the default basis for TBP and EFV input,
and mole is the default basis for Chromatographic input.
Due to the form of the conversion curves in the API Data
Book, you must supply your ASTM D86 and ASTM D1160
distillation data on a liquid volume basis. ASTM D2887 is
only reported on a weight percent basis.
• If you are editing an assay, redefining the Basis does not
alter your supplied assay values. For example, consider
an assay curve with 10, 30, 50, 70 and 90 liquid volume
percent points. If you change the Basis to mass percent,
the assay percents and temperature are not changed.
The temperature you supplied for 10% liquid volume is
retained for 10% mass.
Aspen HYSYS generates all of its physical and critical
properties from an internally generated TBP curve at
atmospheric conditions. Regardless of what type of assay
data you provide, Aspen HYSYS always converts it to an
internal TBP curve for the characterization procedure. The
internal TBP curve is not stored with the assay.4-40
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-41
ww
ThLight Ends Definition
Light Ends are defined as pure components with low boiling
points. Components in the boiling range of C2 to n-C5 are most
commonly of interest. Generally, it is preferred that the portion
of the oil's distillation assay below the boiling point of n-C5 be
replaced with discrete pure components (library or
hypothetical). This should always yield more accurate results
than using hypocomponent to represent the Light Ends portion.
Assay Definition Group
Aspen HYSYS provides three options to account for Light Ends,
which are as follows:
Option Description
Ignore Aspen HYSYS characterizes the Light Ends portion of your
sample as hypocomponents. This is the least accurate
method and as such, is not recommended.
Auto
Calculate
Select this when you do not have a separate Light Ends
analysis but you want the low boiling portion of your assay
represented by pure components. Aspen HYSYS only uses
the pure components you selected in the fluid package.
Input
Composition
Select this when you have a separate Light Ends assay and
your petroleum assay was prepared with the light ends in
the sample. Aspen HYSYS provides a form listing the pure
components you selected in the fluid package. Input your
data on a non-cumulative basis.
To correctly employ the Auto Calculate or Input Composition
options, you should either pick library components, or define
hypothetical components to represent the Light Ends before
entering the Oil Characterization environment. If you have
selected the Auto Calculate method without specifying light
ends, Aspen HYSYS calculates the oil using only
hypocomponent, just as if you had selected Ignore. If you
selected Input Composition, there are no light end
components for which you can supply compositions. You can
go back to the Fluid Package property view at any time and
define your light components.4-41
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-42 Characterizing Assays
ww
ThThe following sections provide a detailed explanation of Light
Ends, how the laboratory may account for them, how they are
reported and how Aspen HYSYS utilizes this information. It is
recommended that you read this information to ensure that you
are selecting the right options for your assay.
Laboratory Assay Preparation
During TBP and ASTM laboratory distillations, loss of some of
the Light Ends components from the sample frequently occurs.
To provide increased accuracy, a separate Light Ends assay
analyzed using chromatographic techniques may be reported.
Regardless of whether a separate light ends analysis was
provided, your overall assay is either Light Ends Included or
Light Ends Free. The way in which your sample was analyzed
affects both the results and the method you should use to input
the information for your characterization.
Light Ends Portion Included in Assay
In this case, your assay data was obtained with the light ends
components in the sample; i.e., the assay is for the whole
sample. The IBP temperature for your assay is lower than the
boiling point of the heaviest pure light end component. This
corresponds to an IBP approximately equal to the weighted
average boiling point of the first 1% of the overall sample. For
example, if the lightest component is propane and it makes up
more than 1% of the total sample, the IBP of the assay is
approximately -45°F (the normal boiling temperature of
propane).4-42
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-43
ww
ThIf the Light Ends were included in your overall assay, there are
two possibilities:
Assay is Light Ends Free
Your assay data was analyzed with the Light Ends components
removed from the sample, or the assay was already adjusted for
the Light Ends components. The IBP temperature for your assay
is higher than the boiling point of the heaviest pure light end
component - typically your assay is for the C6+ fraction only and
the IBP temperature is somewhat above 95°F (36°C).
If your distillation data is light-ends free and you have separate
light-ends analysis data, you can use Aspen HYSYS oil
characterization to combine the two. The advantage of doing
this is that the bulk properties, if available, will be fitted and
matched accurately. To do the combining, you need to input the
distillation data and light ends data as usual and then click the
Light Ends Handling & Bulk Fitting Options button
accessible from Input Data or User Curves tab. In the Light-
Ends Handling & Bulk Fitting Options property view, clear the
Curve Incl L.E. checkbox for distillation. If you have bulk
properties to fit, you need to indicate if the bulk values include
light ends by selecting or clearing the Bulk Value Incl L.E.
checkboxes.
Option Description
Light Ends
Analysis
Supplied
If you know that light ends are included in your assay,
select the Input Composition option from the Light
Ends group, and enter the composition data directly
into the Light Ends composition property view.
No Light Ends
Analysis
Available
If you do not have a laboratory analysis for the light
ends portion of your assay, then you should use the
Auto Calculate option. Aspen HYSYS represents the
light ends portion of your assay as discrete pure
components, automatically assigning an appropriate
assay percentage to each. If you do not do this (you
select Ignore), Aspen HYSYS represents the Light Ends
portion of the assay as petroleum hypocomponent.4-43
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-44 Characterizing Assays
ww
ThInput Data Group
When you have selected Input Composition as the Light Ends
option and you select the Light Ends radio button in the Input
Data group, the following property view appears.
There are three objects associated with the Light Ends Input and
are described below:
 Figure 4.18
Object Description
Light Ends Basis Allows you to select the basis for the Light Ends
analysis on a mole, mass, or liquid volume basis. The
way in which you enter the rest of the light ends data
depends on whether you select a percent or flow basis:
• Percent. Enter the percent compositions for the
Light Ends on a non-cumulative basis. Aspen
HYSYS calculates the total Light Ends percentage
by summing all of the Light Ends assay data. If
the sum of the light ends assay values is equal to
100 (you have submitted normalized data), you
must enter the Percent of light ends in the Assay.
This value must be on the same basis as the
distillation data.
If the sum of the light ends is equal to 1.0000,
Aspen HYSYS assumes that you have entered
fractional data (rather than percent), and you are
required to enter the Percent of light ends in the
Assay.
• Flow. Enter the flows for each component, as
well as the percent of light ends in the assay.4-44
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-45
ww
ThAuto Calculate Light Ends
The Auto Calculate extraction procedure internally plots the
boiling points of the defined Light Ends components on the TBP
working curve and determine their compositions by
interpolation. Aspen HYSYS adjusts the total Light Ends fraction
such that the boiling point of the heaviest Light End is at the
centroid volume of the last Light Ends component. The results of
this calculation are displayed in Light Ends Composition matrix.
If a fluid package contains a large number of hydrocarbons,
especially heavy ones, Aspen HYSYS may allocate a very large
portion of the assay input to light ends, leading to undesired
results. The checkboxes under the Use column allows you to
decide which components are used in the light ends auto
allocation. This option gives you more control on the light ends
to be used, and allows the use of any fluid package to be
associated with the oil manager, even with very heavy
hydrocarbons.
Light Ends
Composition
matrix
The matrix consists of the three fields:
• Light Ends. Displays all pure components or
hypotheticals you selected in the associated fluid
package.
• Composition. The composition value of the
associated component is either entered (when
Light Ends drop-down is set to Input
Composition) or automatically calculated (when
the Light Ends drop-down is set to Automatically
Calculated)
• NBP. The Normal Boiling Point of the associated
component or hypothetical.
Percent of lights
ends in Assay
The total percentage of light ends in the Assay. If the
Light Ends Basis selected is percentage (i.e.,
LiquidVolume%, Mole% or Mass%), then this is
automatically calculated. If the Basis selected is flow
based (i.e., Liquid Flow, Mole Flow or Mass Flow), you
are required to provide this value.
Object Description
Refer to Appendix B -
Oil Methods &
Correlations for a
graphical representation
of the Auto Calculate
Light Ends removal
procedure.4-45
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-46 Characterizing Assays
ww
ThUnlike when setting the Input Composition, the matrix is not
editable.
Physical Property Curves
Specification
Physical property analyzes are normally reported from the
laboratory using one of the following two conventions:
• An Independent assay basis, where a common set of
assay fractions is not used for both the distillation curve
and physical property curve.
• A Dependent assay basis, where a common set of assay
fractions is used for both the distillation curve and the
physical property curves.
Physical properties are average values for the given range, and
hence are midpoint values. Distillation data reports the
temperature when the last drop of liquid boils off for a given
assay range, and therefore distillation is an endpoint property.
Since all dependent input property curves are reported on the
same endpoint basis as the distillation curve, they are converted
by Aspen HYSYS to a midpoint basis. Independent property
curves are not altered in any manner as they are already
defined on a midpoint basis.
 Figure 4.194-46
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-47
ww
ThAs with distillation curves, there is no limit to the number of
data points you provide. The order in which you input the points
is not important, as Aspen HYSYS sorts the input data. A
minimum of five data points is required to define a property
curve in Aspen HYSYS. It is not necessary that each property
curve point have a corresponding distillation value.
If a bulk molecular weight or mass density is going to be
supplied, then the corresponding Molecular Weight or Density
working curve generated from your input is smoothed to ensure
a match. If you do not enter bulk properties, then they are
calculated from the unsmoothed working curves.
Assay Definition Group
Each property curve type (i.e., Molecular Wt., Density and
Viscosity) has its own drop-down list in the Assay Definition
group.
Entering the 0 vol% point of a dependent curve contributes
to defining the shape of the initial portion of the curve, but
has no physical meaning since it is a midpoint property
curve.
 Figure 4.204-47
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-48 Characterizing Assays
ww
ThEach drop-down list contains the same three options and are
described below:
Input Data Group
Defining Molecular Weight and Density property curves as either
Independent or Dependent adds the corresponding radio button
to the Input Data group. However, defining a Viscosity property
curve as Independent or Dependent, Aspen HYSYS accepts
viscosities for assay values at two specified temperatures, with
the default temperatures being 100 and 210°F. Selecting the
Molecular Wt., Density, Viscosity1, or Viscosity2 radio
buttons brings up the objects associated with the specification of
the respective property curve.
To enter the property curve data, simply select the radio button
for the property curve you want to input and click the Edit Assay
button.
Option Description
Not Used No property data is considered in the assay calculation.
Dependent A common set of assay fractions is used for both the
distillation curve and the physical property curves.
Independent A common set of assay fractions is not used for both the
distillation curve and physical property curve.4-48
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-49
ww
ThMolecular Wt. Curve
An example of a Molecular Weight assay is shown below:
The assay data is entered into the Assay Input Table property
view which is opened when the Edit Assay button is selected.
The form of this property view is the same regardless of whether
you have specified Independent or Dependent data. However, if
you specified Dependent data, the Assay Percents that you
defined for the distillation data are automatically entered in the
table.
Depending on the shape of the curve, intermediate values for
Aspen HYSYS' internal working curve are interpolated using
either a third or fourth order Lagrange polynomial fit of your
input curve, while points outside your data are extrapolated.
You can select the extrapolation method for the fit of your input
curve on the Calculation Defaults tab: Least Squares, Lagrange
or Probability.
 Figure 4.21
In Dependent Curves, making a change to an Assay Percent
value automatically changes this value in all other
Dependent curves (including the Boiling Point curve).4-49
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-50 Characterizing Assays
ww
ThDensity Curve
An example of a Density assay is shown below:
The assay data is entered into the Assay Input Table property
view which is opened when the Edit Assay button is selected.
The form of this property view is the same regardless of whether
you have specified Independent or Dependent data. However, if
you specified Dependent data, the Assay Percents that you
defined for the distillation data are automatically entered in the
table.
Depending on the shape of the curve, intermediate values for
Aspen HYSYS' internal working curve are interpolated using
either a third or fourth order Lagrange polynomial fit of your
input curve, while points outside your data are extrapolated.
You may select the extrapolation method for the fit of your input
curve on the Calculation Defaults tab: Least Squares, Lagrange
(default) or Probability.
 Figure 4.224-50
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-51
ww
ThViscosity Curves
Aspen HYSYS accepts viscosities for assay data at two specified
temperatures and therefore provides two radio buttons,
Viscosity1 and Viscosity2, in the Input Data group.
You can input data for one or both of the viscosity curves. Each
radio button brings up identical sets of objects, specific to assay
data at the designated temperature. Temperatures are entered
in the Temperature field with default values being 100 and
210°F. This implies that you have determined the viscosity at
100 or 210°F for each of your assay portions (10%, 20%, etc.).
In the Viscosity Curves group box, you can specify which curve
(or both) you want to use by selecting the appropriate radio
button.
The Assay Input Table property view, which is opened when the
Edit Assay button is selected, is filled in with the assay data. The
form of this property view is the same regardless of whether you
have specified Independent or Dependent data. However, if you
specified Dependent data, the Assay Percents that you defined
for the distillation data are automatically entered in the table.
 Figure 4.234-51
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-52 Characterizing Assays
ww
ThYou may also define the viscosity unit  type. The Units Type can
be one of the following:
Depending on the shape of the curve, intermediate values for
Aspen HYSYS' internal working curve are interpolated using
either a third or fourth order Lagrange polynomial fit of your
input curve, while points outside your data are extrapolated.
You may select the extrapolation method for the fit of your input
curve on the Calculation Defaults tab: Least Squares, Lagrange
or Probability.
The defaults for a new assay may be modified by clicking the Oil
Input Preferences… button on the Assay tab of the Oil
Characterization property view. The same property view may
also be accessed from the Simulation environment by the
following sequence:
1. Select Tools-Preferences command from the menu bar.
2. On the Session Preferences property view, go to the Oil
Input tab.
3. Select the Assay Options page.
Unit Type Description
Dynamic Conventional viscosity units (e.g., - cP)
Kinematic Ratio of a fluid's viscosity to its density (e.g.,- stoke, m2/s)4-52
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-53
ww
Th4.5.2 Calculation Defaults Tab
The Calculation Defaults tab is shown below:
The internal TBP curve is not stored with the assay. The
Calculation Defaults tab contains three main groups:
• Conversion Methods
• Corrections for Raw Lab Data
• Extrapolation Methods
Conversion Methods Group
Aspen HYSYS generates all of its physical and critical properties
from an internally generated TBP curve at atmospheric
conditions. Regardless of what type of assay data you provide,
Aspen HYSYS always converts it to an internal TBP curve for the
characterization procedure. For ASTM D86 and ASTM D2887
assays types, you may specify the inter-conversion or
conversion methods used in the Conversion Methods group.
 Figure 4.244-53
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-54 Characterizing Assays
ww
ThThe group consists of the following two drop-down lists:
Corrections for Raw Lab Data Group
In this group, two correction methods are available for
previously uncorrected laboratory data:
Field Description
D86-TBP
(Interconversion)
There are four interconversion methods available:
• API 19741
• API 19872
• API 19943
• Edminster Okamoto 19594
D2887-TBP
(Interconversion)
There are three interconversion methods
available:
• API 19875
• API 1994 Indirect6
• API 1994 Direct7
Correction Description
Apply Lab
Barometric
Pressure
Correction
ASTM D86 data that is generated above sea level
conditions must be corrected for barometric pressure.
If this is not done by the laboratory, select the Yes
radio button from the subgroup and Aspen HYSYS
performs the necessary corrections. Enter the ambient
laboratory barometric pressure in the Lab Barometric
Pressure field and Aspen HYSYS corrects your ASTM
distillation data to 1atm before applying the API Data
Book conversions for ASTM D86 to TBP distillation.
Apply ASTM D86
API Cracking
Correction
API no longer recommends using this correction:
The ASTM cracking correction is designed to correct for
the effects of thermal cracking that occur during the
laboratory distillation. If this is not done by the
laboratory, select the Yes radio button, and Aspen
HYSYS performs the necessary corrections. This
correction is only applied to ASTM D86 temperatures
greater than 485°F (250°C).
The API cracking correction should not be applied to
ASTM D86 distillations that extend beyond 900°F
(500°C), due to the exponential nature of the
correction.4-54
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-55
ww
ThExtrapolation Methods Group
Aspen HYSYS allows you to choose the extrapolation method
used for the different Assays (i.e., Distillation and the Molecular
Weight, Density and Viscosity property curves). There are three
methods available:
This group also allows you to specify which end of the curve to
apply the extrapolation method. There are three choices
available:
• Upper end
• Lower end
• Both ends
Extrapolation
Method
Uses
Lagrange For assays representing cuts (i.e., naphtha) or assays
for properties other than Boiling Temperature.
Least Squares The Least Squares method is a lower order Lagrange
method. For this method, the last five input points are
used to fit a second order polynomial. If the curvature
is negative, a straight line is fit.
Probability Use the Probability extrapolation method in cases
when your Boiling Temperature assay represents a full
range crude and the data is relatively flat. For
instance, the data in the distillation range of your
assay (i.e., 10% to 70%) may be relatively constant.
Instead of linearly extending the curve to the IBP and
FBP, the Probability method only considers the steep
rise from the FBP.
Te
m
p
er
at
u
re
Assay%
Known Part
of Curve
Extrapolated
Part 4-55
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-56 Characterizing Assays
ww
Th4.5.3 Working Curves Tab
The third tab of the Assay view is the Working Curves tab.
After the Assay is calculated, you can view the Assay Working
Curves:
Recall that the working curves are interpolated using either a
third or fourth order Lagrange polynomial fit of your input curve,
while the method used to extrapolate points outside your data
depends on the type of curve (Mass Density, Viscosity,
Molecular Weight). You select the method for the fit of your
input curve: Least Squares, Lagrange or Probability.
Aspen HYSYS always uses 50 points in the calculation of the
working curves, but the molar distribution varies depending on
the data you provide. In cases where there is a region with a
steep gradient, Aspen HYSYS moves more points to that region,
but still uses 50 points.
 Figure 4.254-56
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-57
ww
Th4.5.4 Plots Tab
Following the Working Curves tab is the Plots tab, on which you
can view any of the input data curves in a graphical format.
The Property drop-down list, shown above, displays the options
available for the y-axis of the plot. The Distillation option shows
the boiling temperature input according to the Assay Type
chosen (i.e., TBP, ASTM D86, etc.). The x-axis displays the
Assay% on a basis consistent with the format of your input.
An example of a distillation boiling point curve is shown in the
figure below. All of the entered data point pairs and the
interpolated values are drawn on the plot.
 Figure 4.26
 Figure 4.27
The User Property option is
only available if a User
Property is created and a
User Curve is defined in the
Assay.4-57
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-58 Characterizing Assays
ww
ThTo make changes to the appearance of the plot, object inspect
the plot area. From the menu that appears, select Graph
Control.
4.5.5 Correlations Tab
The Correlations tab of the Assay property view is shown below:
The correlations tab consists of the following objects:
 Figure 4.28
Object Description
Selected
Correlation
Set
By default, this is Default Set (if you have changed the
name of the default set, that name is displayed). You can
select another correlation set from the Selected drop-down
list, but first you must define one on the Correlation tab of
the Oil Characterization property view.
You can define new correlations sets via the Correlation
tab, accessible from the main Oil Characterization property
view.
Low and
High End
Temperature
This is the range for which the Correlations are applied. If
you split the range, then more than one temperature range
is displayed.
You can edit the temperature of defined splits for custom
Correlation Sets on this tab.
MW The MW correlation is displayed. You cannot change the
correlation in this property view; this can be done from the
Correlation tab accessible from the main Oil
Characterization property view or by clicking the Edit
button.
You can change only the name of the default set. If you
want to change any correlations, you must create a new
correlation set.
For details on the various
Graph Control options,
refer to Section 10.4 -
Graph Control of the
Aspen HYSYS User
Guide.
Refer to Section 4.8.1 -
Correlation Tab for
more information. 4-58
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-59
ww
ThOnly the molecular weight and specific gravity correlations are
required in the calculation of the working curves. The critical
pressure, critical temperature, acentricity, and ideal enthalpy
correlations are also displayed on the Assay property view, as
these are applicable only in the calculation of the
hypocomponent properties.
If you supply molecular weight or density curves, then their
respective correlations are not required. You do not have a
choice of correlations for calculating the viscosity curves.
 SG The specific gravity (density) correlation is displayed. You
cannot change the correlation in this property view; this
can be done from the Correlation tab accessible from the
main Oil Characterization property view or by clicking the
Edit button.
Tc, Pc, Acc.
Factor, Ideal
H
The critical temperature, critical pressure, acentricity and
Ideal Enthalpy correlations are displayed. You cannot
change correlations on this tab; this can be done in the
Correlation property view accessible from the main Oil
Characterization property view. To edit the Selected
Correlation Set from this tab, click the Edit button. This
takes you to the Correlation property view.
Although a Correlation set contains methods for all
properties, the Correlation tab, as seen on the Assay and
Blend property views, displays only the properties
appropriate to that step in the Characterization process.
Object Description4-59
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-60 Characterizing Assays
ww
Th4.5.6 User Curves Tab
The User Curves tab of the Assay property view is shown below:
The available and selected User Properties are displayed in the
left portion of the property view. User Properties are defined on
the User Property tab of the Oil Characterization property view.
There are two elements to a User Curve:
• The definition of how the property value is calculated for
a stream (mixing rule).
• The assay/property value information that is supplied for
a given assay.
The property definition (see Section 4.7 - User Property for
details) is common to all assays.
After a User Property is defined, you can add it to the Assay by
highlighting it and selecting the Add button. To remove a User
Property from the current Assay, highlight it and select the
Remove button. Double-clicking on a User Property name in the
selection list opens the User Property property view as described
in Section 4.7.2 - User Property Property View.
 Figure 4.29
See Light Ends
Handling & Bulk Fitting
for details on the Light
Ends Handling & Bulk
Fitting Options button.4-60
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-61
ww
ThAfter adding a User Property, you can edit the User Curve Data:
4.5.7 Notes Tab
Aspen HYSYS provides a tab where you can enter a description
of the Assay for your own future reference. This can also be
accessed through the notes manager.
User Curve Data Description
Table Type This is either Dependent or Independent. If you select
Dependent, the Assay Percents are automatically set to
the values you specified for the Boiling Temperature
assay (Input Data tab).
If the table type is Dependent and you change the
assay percents on this tab, this also changes the assay
percents in the Distillation boiling temperature matrix
and for any other dependent curve.
Bulk Value Specify a Bulk Value. If you do not want to supply a
bulk value for the user property, ensure that this cell
reads  by placing the cursor in that cell and
pressing the DELETE key.
Extrapolation
Method
This field allows you to choose the extrapolation
method used for the selected user property in the
current assay. The available choices are:
• Least Squares
• Lagrange
• Probability
Apply To This field allows you to choose which end of the curve
to apply the extrapolation method to. There are three
choices available:
• Upper end
• Lower end
• Both ends
User Property
Table
Provide the Assay percents and User Property Values in
this table. At least five pairs of data are required.4-61
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-62 Hypocomponent Generation
ww
Th4.6 Hypocomponent
Generation
The Cut/Blend tab of the Oil Characterization property view is
shown below:
The Available Blends are listed in the left portion of the property
view. The following Blend manipulation buttons are available:
 Figure 4.30
For a highlighted Blend, you can edit the name and provide a
description in the Blend Information group.
Button Description
View Edit the currently highlighted Blend.
Add Create a new Blend.
Delete Erase the currently highlighted Blend. Aspen HYSYS does
not prompt for confirmation when deleting a Blend, so be
careful when you are using this command.
Clone Create a new Blend with the same properties as the
currently highlighted Blend. Aspen HYSYS immediately
opens a new Blend property view.4-62
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-63
ww
ThAs described in the Oil Characterization property view section,
the general buttons at the bottom of the property view are:
• The Clear All button is used to delete all Oil
Characterization information.
• The Calculate All button re-calculates all Assay and
Blend information.
• The Oil Output Settings... button allows you to change
IBP, FBP, ASTM D86, and ASTM D2887 interconversion
methods for output related calculations.
In the following sections, each tab of the Blend property view
(accessed through the View or Add buttons) is described.
4.6.1 Data Tab
The Cut/Blend characterization in Aspen HYSYS splits internal
working curves for one or more assays into hypocomponents.
Once your assay information is entered through the Assay view,
you must Add a Blend and transfer at least one Assay to the Oil
Flow Information table to split the TBP working curve(s) into
discrete hypocomponent. The first tab of the Blend property
view is shown below:
 Figure 4.31
All Boiling Point information supplied in an assay is
converted to TBP format.4-63
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-64 Hypocomponent Generation
ww
ThAssay Selection
A list of the available Assays is shown in the left portion of the
property view. You can choose an assay by highlighting it and
clicking the Add button. It is removed from the Available Assays
list and added to the Oil Flow Information table, which displays
the following information:
You can remove an Assay from the Oil Flow Information table by
highlighting it and selecting the Remove button.
Oil Flow
Information
Description
Oil The name of the Assay is displayed in this column. There is
no limitation to the number of assays that can be included
in a single blend or to the number of blends that can
contain a given assay. Each blend is treated as a single oil
and does not share hypocomponent with other blends or
oils.
Flow Units You can select the Flow Basis (Mole, Mass or Liquid
Volume) here.
If you have several Assays, it is not necessary that they
have the same Flow Basis.
Flow Rate Enter the flow rate; you can use any units (with the same
basis); they are converted to the default.
You are allowed to define a flowsheet stream for each
constituent assay in a blend.
To view an Assay, double-click on the Assay name, either in
the Available Assays list, or in the Oil column of the Oil Flow
Information table.4-64
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-65
ww
ThBulk Data
The Bulk Data button becomes available when more than one
assay is present in the Oil Flow Information table.
Aspen HYSYS allows you to provide the following bulk data for a
blend on the Bulk Values property view:
• Molecular Weight
• Mass Density
• Watson (UOP) K
• Viscosities at 2 temperatures
The Bulk Data feature is particularly useful for supplying the
bulk viscosities of the blend, if they are known.
Cut Ranges
You have three choices for the Cut Option Selection:
These methods are described in detail later in this section.
 Figure 4.32
Cut Options Description
Auto Cut Aspen HYSYS cuts the assay based on internal values.
User Ranges You specify the boiling point ranges and number of cuts per
range.
User Points You specify only how many hypocomponent you require.
Aspen HYSYS proportions the cuts according to an internal
weighting scheme.4-65
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-66 Hypocomponent Generation
ww
ThYou can specify as many components as you want, within the
limitations of the available memory. Whether specified or
calculated internally, each cut point is integrated to determine
the average (centroid) boiling point. The centroid is always
determined using Aspen HYSYS' internally generated TBP curve
on a weight basis.
Although the external procedure for blending assays is almost
identical with that for cutting a single assay, Aspen HYSYS'
internal procedure is somewhat different. After Aspen HYSYS
has converted each assay to a TBP vs. weight percent curve, all
of the individual curves are combined to produce a single
composite TBP curve. This composite curve is then used as if it
were associated with a single assay; hypocomponents are
generated based on your instructions.
These hypocomponents are now common to the blended oil and
all the constituent oils. For each of the constituent oils, Aspen
HYSYS back calculates the compositions that correspond to
these hypocomponents.
When you re-cut an oil, Aspen HYSYS will automatically
update the associated flowsheet streams with the new
hypocomponents when you leave the Basis Environment.
Caution should be exercised when blending some
combinations of analyses. An inherent advantage, as well as
limitation, of blending is that all constituent oils share a
common set of hypocomponent and therefore physical
property characteristics. Any analyses that have large
overlapping TBP curves and very different physical property
curves should not be blended (for example, hydrocracker
recycles and feedstocks have similar TBPs but very different
gravity curves). The physical properties of components for
overlapping areas represent an average that may not
represent either of the constituent assays.4-66
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-67
ww
ThThis procedure is recommended whenever recombining product
oils or fractions to produce a single inlet stream, for example in
generating a feed for an FCCU main fractionator from analyzes
of the product streams. The major advantage to blending is that
fewer hypocomponents are used to represent a given feed
because duplicate components for overlapping TBP curves are
eliminated.
A second advantage is that the composite TBP curve tends to
smooth the end portions of the individual assay curves where
they may not be as accurate as the middle portions of the
curves.
Recommended Boiling Point Widths
The following table is a guideline for determining the number of
splits for each boiling point range. These are based upon typical
refinery operations and should provide sufficient accuracy for
most applications. You may want to increase the number of
splits for ranges where more detailed fractionation is required.
Regardless of your input data, it is recommended that you limit
your upper boiling range to 1650°F (900°C). All of the critical
property correlations are based on specific gravity and normal
boiling points and thus, NBPs above this limit may produce
erroneous results. The critical pressure correlations control this
limit. There is no loss in accuracy by lumping the heavy ends
because incremental changes in solubility of lighter components
are negligible and this range is generally not be fractionated.
Aspen HYSYS allows you to assign the overall blend
composition and/or individual assay compositions to
streams via the Install Oil tab (Section 4.8.3 - Install Oil
Tab).
Cutpoint Range Boiling Point Width Cuts/100°F
IBP to 800°F (425°C) 25°F (15°C) per cut 4
800°F to 1200°F (650°C) 50°F (30°C) per cut 2
1200°F to 1650°F (900°C) 100°F (55°C) per cut 14-67
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-68 Hypocomponent Generation
ww
ThAuto Cut
If you select the AutoCut option, Aspen HYSYS performs the
cutting automatically. Aspen HYSYS uses the boiling point width
guidelines, as shown previously:
User Points
If you select User Points from the Cut Option Selection drop-
down list, Aspen HYSYS performs the cutting process depending
on the number of cuts you specify. Enter the total number of
cuts you want to use for the oil in the appropriate field. All splits
are based upon TBP temperature, independent of the source or
type of assay data. Aspen HYSYS proportions the cuts according
to the following table:
The internal weighting produces more hypocomponents per
100°F range at the lower boiling point end of the assay. For
example, given a TBP temperature range of 100°F to 1400°F
and 38 components requested, Aspen HYSYS produces 28
components for the first range, eight components for the second
range and two components for the last range:
(800 - 100) / 100 * 4 = 28
(1200 - 800) / 100 * 2 = 8
Range Cuts
100 - 800°F 28
800 - 1200°F 8
1200 - 1600°F 4
Cutpoint Range Internal Weighting
IBP - 800°F (425°C) 4 per 100°F
800°F - 1200°F (650°C) 2 per 100°F
1200°F to FBP 1 per 100°F 4-68
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-69
ww
Th(1400 - 1200) / 100 * 1 = 2
User Ranges
If you want to define cutpoint ranges and specify the number of
hypocomponent in each range, select User Ranges and Aspen
HYSYS displays the Ranges Selection information as shown in
the figure below.
The IBP and FBP are shown above and these values correspond
to the initial boiling point and the final boiling point of Aspen
HYSYS' internal TBP working curve. At this point all light ends
are removed (if requested) and the IBP presented is on a light
ends free basis.
The IBP and FBP of the internal TBP curve used for the column
operation's cutpoint specifications and the boiling point tables
are determined in this manner. If the first or last
hypocomponent has a volume fraction larger than that defined
by the endpoints for the IBP or FBP respectively, the TBP curve
is extrapolated using a spline fit.
You may supply the Initial Cut Point; however, if this field is left
blank, Aspen HYSYS uses the IBP. Aspen HYSYS combines the
material boiling between the IBP and the initial cutpoint
temperature with the material from the first cut to produce the
first component. This component has an NBP centroid
approximately half way between these boundaries.
 Figure 4.33
Refer to the Boiling
Ranges Section 4.4 - Oil
Characterization
Property View for
definitions of the IBP and
FBP.4-69
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-70 Hypocomponent Generation
ww
ThThe next parameters that you must supply are the upper
cutpoint temperature and the number of cuts for the first
cutpoint range. As shown in Figure 4.33, the upper cutpoint
temperature for the first range also corresponds to the lower
boiling point of the second cutpoint range, so it does not have to
be re-entered. After the first cut range is defined, only the upper
cutpoint temperature and the number of cuts need to be
supplied for the remaining ranges. If the final cutpoint
temperature is not equal to or greater than the FBP, Aspen
HYSYS combines the material between the FBP and the last cut
temperature with the material in the last component.
For example, assume that the IBP and FBP are 40 and 1050°F
respectively, the initial cut temperature is 100, the upper limit
for the first cut is 500 degrees, and the number of cuts in the
first range is eight.
Since the boiling width for each component in the first cut range
is 50°F (i.e., [500-100]/8), the first component's NBP is at the
centroid volume of the 40 to 150 cut, in this case approximately
95°F. The remaining components have NBP values of
approximately 175, 225, 275, 325, 375, 425 and 475°F. The
upper temperature for the second range is 1,000 and the
number of cuts is equal to 5. Since the FBP is 1050, the material
in the boiling range from 1,000 to 1,050 is included with the last
component.4-70
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-71
ww
Th4.6.2 Correlations Tab
The Correlations tab of the Blend property view is shown in the
figure below:
The Correlations tab consists of the following objects:
 Figure 4.34
As in the Assay Oil characterization, you can only change the
name of the default set. If you want to change any
correlations, you must create a new correlation set.
Object Description
Selected
Correlation
Set
By default, this is Default Set (if you have changed the
name of the default set, that name is displayed). You can
select another correlation set from the Selected drop-down
list, but first you must define one on the Correlation tab of
the Oil Characterization property view.
You can define new correlations sets via the Correlation
tab, accessible from the main Oil Characterization property
view. See Section 4.8.1 - Correlation Tab.
Low and
High End
Temperature
This is the range for which the Correlations are applied. If
you split the range, then more than one temperature range
is displayed.
You can edit the temperature of defined splits for custom
Correlation Sets on this tab.4-71
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-72 Hypocomponent Generation
ww
ThThe critical pressure, critical temperature, acentricity and ideal
enthalpy correlations are required in the Blend calculation (or
more specifically, in the calculation of hypocomponent
properties). In the calculation of hypocomponent properties, the
molecular weight and specific gravity (and viscosity) are
estimated from their respective working curves.
MW The MW correlation is displayed. You cannot change the
correlation in this property view; this can be done from the
Correlation tab accessible from the main Oil
Characterization property view or by clicking the Edit
button.
You can change only the name of the default set. If you
want to change any correlations, you must create a new
correlation set.
 SG The specific gravity (density) correlation is displayed. You
cannot change the correlation in this property view; this
can be done from the Correlation tab accessible from the
main Oil Characterization property view or by clicking the
Edit button.
Tc, Pc, Acc.
Factor, Ideal
H
The critical temperature, critical pressure, acentricity and
Ideal Enthalpy correlations are displayed. You cannot
change correlations on this tab; this can be done in the
Correlation property view accessible from the main Oil
Characterization property view. To edit the Selected
Correlation Set from this tab, click the Edit button. This
takes you to the Correlation property view.
Object Description4-72
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-73
ww
Th4.6.3 Tables Tab
After calculating a Blend, you can examine various property and
flow summaries for the generated hypocomponent that
represent a calculated oil.
From the Table Type drop-down list, you can select any one of
the following:
 Figure 4.35
Table Type Description
Component
Properties
With this Table Type selection, you can select one of the two radio
buttons in the Table Control group:
• Main Properties. Provides the normal boiling point, molecular
weight, density and viscosity information for each individual
component in the oil.
• Other Properties. Provides the critical temperature, critical
pressure, acentric factor, and Watson K factor for each
individual hypocomponent.
Component
Breakdown
Provides individual liquid volume%, cumulative liquid volume%,
volume flows, mass flows and mole flows, for the input light ends
and each hypocomponent in the oil.
Molar
Compositions
Provides the molar fraction of each light end component and each
hypocomponent in the oil.4-73
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-74 Hypocomponent Generation
ww
Th4.6.4 Property Plot Tab
Aspen HYSYS can plot various properties versus liquid volume,
mole or mass percent distilled. The x-axis choice is made from
the Basis drop-down list. Any of the following options may be
plotted on the y-axis by making a selection from the Property
drop-down list:
• Distillation. A table appears in which you can select
which boiling point curves to examine. Select the
checkbox of each curve you want displayed. The options
include: TBP, ASTM D86, D86(Crack Reduced), ASTM
D1160(Vac), ASTM D1160(Atm) and ASTM D2887.
• Molecular Weight
• Density
• Viscosities at 100 and 210°F (or the input temperature)
• Critical Temperature
• Critical Pressure
• Acentric Factor
Oil Properties For this selection, you can select the Basis (liquid volume, molar or
mass) in the Table Control group box. There are also three radio
buttons, each producing a different table:
• Distillation. Provides TBP, ASTM D86, D86 Crack Reduced,
ASTM D1160 (Vac), ASTM D1160 (Atm), and ASTM D2887
temperature ranges for the oil.
• Other Properties. Provides critical temperature, critical
pressure, acentric factor, molecular weight, density and
viscosity ranges for the oil.
• User Properties. Provides all user property ranges for the oil.
Oil Distributions Provides tabular information on how your assay would be roughly
distributed in a fractionation column. Examine the End
Temperatures of the various ranges as well as the Cut Distributions.
You can select the basis for the Cut Distribution Fractions (Liquid
Volume, Molar, Mass) in the Table Control group. The radio buttons
provide the option of standard fractionation cuts or user defined
cuts:
• Straight Run. Lists crude column cuts: Off gas, LSR Naphtha,
Naphtha, Kerosene, Light Diesel, Heavy Diesel, Atmos Gas Oil
and Residue.
• Cycle Oil. Lists Cat Cracker cycle oils: Off Gas, LC Naphtha, HC
Naphtha, LCGO, ICGO, HCGO, Residue 1 and Residue 2.
• Vacuum Oil. Lists vacuum column cuts: Off Gas, LVGO, HVGO
and 5 VAC Residue ranges.
• User Custom. Allows for the definition of customized
temperature ranges. If changes are made to the information in
any of the standard fractionation cuts, the radio button will
automatically switch to User Custom.
Table Type Description4-74
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-75
ww
Th• User Property. A table appears to allow you the choice of
which user property to plot.
Click the Clone and shelf this plot button to store the current
plot. Aspen HYSYS automatically names the plot with the
following format: 'the name of the active blend'-'number of plots
created'. For instance, the first plot created for Blend-1 would be
named Blend-1-0, and any subsequent plots would have the
number after the dash incrementally increased.
To edit plot labels, you must clone the plot using the Clone and
shelf this plot button. The BlendPlot appears and is stored in the
Plot Summary tab.
An example of a TBP curve on a liquid volume basis for an oil is
shown below.
Plot labels can not be modified within the Property Plot tab
Blend property view.
 Figure 4.36
Refer to the Section
4.6.7 - Plot Summary
Tab section for
information concerning
the Plot Summary tab.4-75
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-76 Hypocomponent Generation
ww
Th4.6.5 Distribution Plot Tab
Aspen HYSYS can also plot a distribution bar chart so you can
study how your assay would be roughly distributed in a
fractionation column. Straight Run, Cycle Oil, Vacuum Oil and
User Custom TBP cutpoints are available distribution options, as
shown by the radio buttons in the Cut Input Information group.
You can choose the Basis for the Cut Distribution Fractions
(Liquid Volume, Molar, Mass) in the Plot Control group.
Click the Clone and shelf this plot button to store the current
plot. Aspen HYSYS automatically names the plot with the
following format: ‘the name of the active blend'-'number of plots
created'.
For example, the first plot created for Blend-1 is named Blend-
1-0, and any subsequent plots would have the number after the
dash incrementally increased. All stored plots are listed on the
Plot Summary tab.
 Figure 4.37
Refer to the Section
4.6.7 - Plot Summary
Tab for information
concerning the Plot
Summary tab.4-76
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-77
ww
ThTo edit plot labels, you must clone the plot using the Clone and
shelf this plot button. The BlendPlot appears and is stored in the
Plot Summary tab.
If changes are made to the names or end temperatures in any
of the standard fractionation cuts, the radio button
automatically switches to User Custom.
An example distribution plot is shown in the following figure.
4.6.6 Composite Plot Tab
The Composite Plot tab allows you to visually check the match
between the input assay data and the calculated property
curves. The choice for the graphical comparison is made from
the Property drop-down list:
• Distillation
• Molecular Weight
• Density
• Viscosity
• User Property
Plot labels can not be modified within the Distribution tab
Blend property view.
 Figure 4.384-77
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-78 Hypocomponent Generation
ww
ThClick the Clone and shelf this plot button to store the current
plot. Aspen HYSYS automatically names the plot with the
following format: 'the name of the active blend'-'number of plots
created'.
For example, the first plot created for Blend-1 is named Blend-
1-0, and any subsequent plots have the number after the dash
incrementally increased. All stored plots are listed on the Plot
Summary tab.
To edit plot labels, you must clone the plot using the Clone and
shelf this plot button. The BlendPlot appears and is stored in
the Plot Summary tab.
An example molecular weight curve comparison is shown in the
following figure.
The calculated molecular weight lies above the input curve
(instead of over-laying it) because the calculated curve has
been shifted to match an input bulk MW.
Plot labels can not be modified within the Composite tab
Blend property view.
 Figure 4.39
Refer to the Section
4.6.7 - Plot Summary
Tab for information
concerning the Plot
Summary tab.4-78
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-79
ww
Th4.6.7 Plot Summary Tab
On this tab, you can view the list of stored plots for the current
blend. From the Created Plots group you can access any stored
plots or remove plots from the list. The list of created plots are
generated from the Property, Distribution, and Composite Plots
tabs and shown on the left.
Access a plot by double-clicking on its name or by right-clicking
its name and selecting View from the object inspect menu.
From the BlendPlot property view, you can edit plot labels by
right-clicking and selecting the graph control option. This
method of modifying plots is preferable, since you can plot what
you want and that there is a single location for viewing them.
The cloned plots are independent, thus the labels can be
modified and are not overwritten. The plotted data for the
cloned plots is also updated as the blend changes.
Click the Remove button to remove a selected plot from the
list. Only one plot can be removed from the list at a time.
4.6.8 Notes Tab
Aspen HYSYS provides a tab where you can enter a description
of the Blend for your own future reference.
There is no confirmation message when you click the
Remove button.4-79
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-80 User Property
ww
Th4.7 User Property
A User Property is any property that can be defined and
subsequently calculated on the basis of compositions. Examples
for oils include R.O.N. and Sulfur content. During the
characterization process, all hypocomponents are assigned an
appropriate property value. Aspen HYSYS then calculates the
value of the property for any flowsheet stream. This enables
User Properties to be used as Column specifications.
After User Properties are installed, you can then supply assay
information as for Viscosity, Density or Molecular Weight
Curves.
Refer to Section 4.5.6 -
User Curves Tab for an
explanation of attaching
User Properties to
existing Assays.4-80
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-81
ww
Th4.7.1 User Property Tab
The User Property tab of the Oil Characterization property view
is shown below:
The Available User Properties are listed in the left portion of the
property view. The following User Property manipulation buttons
are available:
The general buttons at the bottom of the property view are:
• The Clear All button is used to delete all Oil
Characterization Information.
• The Calculate All button re-calculates all Assay and
Blend information.
 Figure 4.40
Button Description
View Edit the currently highlighted User Property.
 Add Create a new User Property (see the following section,
User Property Property View).
Delete Erase the currently highlighted User Property. Aspen HYSYS
does not prompt for confirmation when deleting a User
Property.
Clone Create a new User Property with the same properties as the
currently highlighted User Property. Aspen HYSYS
immediately opens a new User Property property view.4-81
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-82 User Property
ww
Th• The Oil Output Settings... button allows you to change
IBP, FBP, ASTM D86, and ASTM D2887 interconversion
methods for output related calculations.
For a highlighted User Property, you can edit the name and
provide a description.
4.7.2 User Property Property
View
When you first open this property view, the Name field has
focus. The name of the User Property must be 12 characters or
less.
 Figure 4.41
Refer to Chapter 7 -
User Properties for
detailed information on
User Properties.4-82
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-83
ww
ThEquation Parameters
The following options are available for the Basic user prop
definition group:
Parameter Description
Mixing Basis You have the following options: Mole Fraction, Mass
Fraction, Liquid Volume Fraction, Mole Flow, Mass
Flow, and Liquid Volume Flow.
All calculations are performed using compositions in
Aspen HYSYS internal units. If you have specified a
flow basis (molar, mass or liquid volume flow), Aspen
HYSYS uses the composition as calculated in internal
units for that basis. For example, a User Property with
a Mixing Basis specified as molar flow is always
calculated using compositions in kg mole/s, regardless
of what the current default units are.
The choice of Mixing Basis applies only to the basis
that is used for calculating the property in a stream.
You supply the property curve information on the same
basis as the Boiling Point Curve for your assay.4-83
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-84 User Property
ww
ThMixing Rule  Select from one of three mixing rules:
where:
Pmix = total user property value
P(i) = input property value for component
x(i) = component fraction or flow, depending on
the chosen Mixing Basis
f1, f2 = specified constants
Mixing
Parameters
The mixing parameters f1 and f2 are 1.00 by default.
You may supply any value for these parameters.
Unit Type This option allows you to select the variable type for
the user property. For example, if you have a
temperature user property, select temperature in the
unit type using the drop-down list.
Parameter Description
Refer to Chapter 7 -
User Properties for
more detail on the Mixing
Rules.
Pmix( )f 1 f 2 x i( )P i( )f 1( )
i 1=
N
∑=
Pmix( )f 1 f 2 x i( ) P i( )( )f 1ln( )
i 1=
N
∑=
f1 Pmix• 10
f2 Pmix•
+
x i( ) f1 P i( )• 10f2 P i( )•+( )
i 1=
N
∑
=
4-84
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-85
ww
ThComponent User Property Values
If you want, you may provide a Property value for all of the
Light End components you defined in the Property Package. This
is used when calculating the property value for each
hypocomponent (removing that portion of the property curve
attributable to the Light Ends components).
On this property view, you do not provide property curve
information. The purpose of this property view is to instruct
Aspen HYSYS how the User Property should be calculated in all
flowsheet streams. Whenever the value of a User Property is
requested for a stream, Aspen HYSYS uses the composition in
the specified basis, and calculate the property value using your
mixing rule and parameters.
Notes Tab
Aspen HYSYS provides a tab where you can enter a description
of the User Properties for your own future reference.
Once you have calculated a Blend which includes an Assay
with your User Property information, the value of the User
Property for each hypocomponent is displayed in the
Component User Property Values group.4-85
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-86 Correlations & Installation
ww
Th4.8 Correlations &
Installation
4.8.1 Correlation Tab
Aspen HYSYS allows you to choose from a wide variety of
correlations to determine the properties of the generated
hypocomponent. From the Correlation tab of the Oil
Characterization property view, you can create customized
Correlation Sets.
The Available Correlation Sets are listed on the left side of the
property view. The following Correlation manipulation buttons
are available:
 Figure 4.42
Buttons Description
View Edit the currently highlighted Correlation Set.
Add Create a new Correlation Set (see the following section,
Correlation Set Property View).
Correlation sets can also
be viewed through the
Assay tab -
Correlations and Cut/
Blend tab -
Correlations tab.4-86
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-87
ww
ThFor a highlighted Correlation Set, you can edit the name and
provide a description.
The general buttons at the bottom of the property view are:
• The Clear All button is used to delete all Oil
Characterization Information.
• The Calculate All button re-calculates all Assay and
Blend information.
• The Oil Output Settings... button allows you to change
IBP, FBP, ASTM D86, and ASTM D2887 interconversion
methods for output related calculations.
4.8.2 Correlation Set Property
View
When you create or edit a Correlation Set, the following
property view appears:
Delete Erase the currently highlighted Correlation Set. Aspen
HYSYS does not prompt for confirmation when deleting a
Correlation Set.
Clone Create a new Correlation Set with the same properties as
the currently highlighted Correlation Set. Aspen HYSYS
immediately opens a new Correlation Set property view.
 Figure 4.43
Buttons Description
Refer to Section 4.8.2 -
Correlation Set
Property View, for more
information4-87
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-88 Correlations & Installation
ww
ThWhen you first open this property view, the Name field has
focus. The name of the Correlation Set must be 12 characters or
less.
Correlations and Range Control
Changes to the Molecular Weight or Specific Gravity correlations
are applied to the curve (Assay), while the critical temperature,
critical pressure, acentric factor and heat capacity correlations
apply to the Blend's hypocomponent properties. Changes to the
Assay correlations have no effect when you have supplied a
property curve (e.g., Molecular Weight); they only apply in the
situation where Aspen HYSYS is estimating the properties.
• The Working Curves are calculated from the Assay data,
incorporating the Molecular Weight and Specific Gravity
correlations.
• The Hypocomponents are generated based on your cut
option selections.
• Finally, the hypocomponent properties are generated:
• The NBP, molecular weight, density and viscosity are
determined from the Working curves.
• The remaining properties are calculated, incorporating
the critical temperature, critical pressure, acentric factor
and heat capacity correlations.
To change a correlation, position the cursor in the appropriate
column and select a new correlation from the drop-down list.
You cannot change the correlations or range for the Default
Correlation Set. If you want to specify different correlations
or temperature ranges, you must create a new Correlation
Set.4-88
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-89
ww
ThThe table below shows the Aspen HYSYS defaults and available
options for these properties.
Property
Default
Correlation
Optional Correlations
MW Twu • Lee-Kesler
• Aspen
• Penn State
• Katz-Firoozabadi
• Hariu-Sage
• API
• Robinson-Peng
• Whitson
• Riazi-Daubert
• Bergman
• Katz-Nokay
• Modified Kesler-
Lee
• Aspen least-
squares
• Twu
Pc Lee-Kesler • Rowe
• Standing
• Lyderson
• Penn State
• Mathur
• Twu
• Cavett
• Riazi-Daubert
• Edmister
• Bergman
• Aspen
Tc Lee-Kesler • Rowe
• Standing
• Nokay
• Penn State
• Mathur
• Spencer-Daubert
• Chen-Hu
• Meissner-Redding
• Cavett
• Riazi-Daubert
• Edmister
• Bergman
• Aspen
• Roess
• Eaton-Porter
• Twu
SG Constant Watson
K
• Bergman
• Yarborough
• Lee-Kesler
• Bergman-PNA
• Hariu-Sage
• Katz-Firoozabadi
Ideal
Enthalpy
Lee-Kesler • Cavett
• Fallon-Watson
• Modified Lee-
Kesler
Acentric
Factor
Lee-Kesler • Edmister
• Robinson Peng
• Bergman
The Riazi-Daubert correlation has been modified by Whitson.
The Standing correlation has been modified by Mathews-
Roland-Katz. The default correlations are typically the best
for normal hydrocarbon systems. An upper limit of 1250°F
(675°C) is suggested for the heaviest component. Although
the equations have been modified to extend beyond this
range, some caution should be exercised when using them
for very heavy systems. Highly aromatic systems may show
better results with the Aspen correlations.
Detailed discussions
including the range of
applicability for the
correlations is found in
Appendix B - Oil
Methods &
Correlations.4-89
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-90 Correlations & Installation
ww
ThYou have the choice of changing a property correlation over the
entire range, or making a certain correlation valid for a
particular boiling point range only. To split correlations over
several boiling ranges click the Add New Range button and the
following property view appears.
Enter the temperature where you want to make the split into the
New Temp cell (in this case 400°C), and select the Split Range
button. The temperature is placed in the correlation set, and the
Correlation table is split as shown below:
You can now specify correlations in these two ranges.
• You can add more splits.
 Figure 4.44
 Figure 4.454-90
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-91
ww
Th• You can also delete a split (merge range) by selecting
the Remove Range button as shown in Figure 4.45.
Highlighting the appropriate temperature in the Temperature
Range list and selecting the Merge Temp Range button removes
or merges the temperature range. When you merge a range,
any correlations you chose for that range is forgotten.

Assay & Blend Association
The different components of the Assay and Blend Association
group are described below:
When you merge a range, you delete the correlations for the
range whose Low End Temperature is equal to the range
temperature you are merging.
Any changes to the correlations for an Input Assay results in
first the assay being recalculated, followed by any blend
which uses that assay. For an existing oil, it will be
automatically recalculated/re-cut using the new
correlations, and the new components are installed in the
flowsheet.
Object Description
New Assays/Blends If you select this checkbox, all new Assays and
Blends that are created use this Correlation Set.
Available Assays/
Available Blends
These radio buttons toggle between Assay or
Blend information.
Assay/Blend Table This table lists all Assays or Blends with their
associated Correlation Sets, depending on which
radio button is selected. You can select the Use
this Set checkbox to associate the current
Correlation Set with that Assay or Blend.
You can also select the Correlation Set for a
specific Assay on the Correlation tab of that Assay
view.4-91
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-92 Correlations & Installation
ww
ThNotes Tab
Aspen HYSYS provides a tab where you can enter a description
of the Correlations for your own future reference.4-92
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-93
ww
Th4.8.3 Install Oil Tab
The Install Oil tab of the Oil Characterization property view is
shown below:
You may install a calculated Blend into your Aspen HYSYS case;
it appears in the Oil Name column of the table. Simply provide a
Stream name for that Blend, and ensure that the Install
checkbox is selected. You may use an existing stream name, or
create a new one. If you do not provide a name or you cleared
the Install checkbox(es), the hypocomponent is not attached to
the fluid package. You can install an oil to a specific
subflowsheet in your case by specifying this in the Flow Sheet
column.
 Figure 4.46
If you want to install the hypocomponent into a non-
Associated Fluid Package, Add the Oil Hypo group from the
Components tab of that Fluid Package property view.4-93
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-94 TBP Assay - Example
ww
ThEach installed Oil appears in the component list as a series of
hypocomponents named NBP[1] ***, NBP[2] ***, with the 1
representing the first oil installed, 2 the second, etc.; and ***
the average boiling point of the individual Oil components.
Aspen HYSYS also assigns the Light Ends composition, if
present, in the flowsheet stream.
When a Blend is installed in a stream, the relative flow rate of
each constituent Assay is defined within the Oil Characterization
and cannot be changed. However, if you install each of the
constituent Assays (represented by Blends with a single Assay)
into their own flowsheet stream, various combinations can be
examined using Mixer or Mole Balance operations. The flow and
composition for each constituent oil is transferred to your
designated flowsheet streams. The flow rate of any specified Oil
stream (as opposed to the constituents of a Blend) can be
changed at any time by re-specifying the stream rate in the
flowsheet section.
4.9 TBP Assay - Example
In this example, a crude oil with a TBP assay curve extending
from 100°F to 1410°F is characterized. Associated with this TBP
assay are:
• A dependent molecular weight curve
• An independent API gravity curve
• Two independent viscosity curves, one at 100°F and the
other at 210°F
• The bulk molecular weight and bulk API gravity
• A liquid volume Light Ends assay for the crude oil
It is desired to split the assay into 38 hypocomponents, with
25°F cuts between 100 and 800°F, 50°F cuts between 800 and
1200°F, and the remaining portion of the crude assay into two
components.
For Blends that contain more than one Assay - each
individual Assay is automatically displayed in the Oil Install
Information table.4-94
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-95
ww
ThThe following assay information is available:
Bulk Crude Properties
MW 300
API Gravity 48.75
Light Ends Liquid Volume%
Propane 0.0
i-Butane 0.19
n-Butane 0.11
i-Pentane 0.37
n-Pentane 0.46
TBP Distillation Assay
Liquid Volume% Temperature (F) Molecular Weight
0.0 80.0 68.0
10.0 255.0 119.0
20.0 349.0 150.0
30.0 430.0 182.0
40.0 527.0 225.0
50.0 635.0 282.0
60.0 751.0 350.0
70.0 915.0 456.0
80.0 1095.0 585.0
90.0 1277.0 713.0
98.0 1410.0 838.0
Dependent property curves have values at the same
distillation percentage as the Boiling Temperature assay, but
does not need to have values at every percentage.
API Gravity Assay
Liq Vol% Distilled API Gravity
13.0 63.28
33.0 54.86
57.0 45.91
74.0 38.21
91.0 26.014-95
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-96 TBP Assay - Example
ww
Th4.9.1 Initialization
Before you can start the actual characterization process, you
must:
1. Begin a new Aspen HYSYS case.
2. Select an appropriate property package.
3. Add any non-oil components, including the Light Ends that
are to be used in the characterization process, to the
component list.
In this case, use the Peng-Robinson equation of state, and
select the following components: C3, i-C4, n-C4, i-C5, and n-C5.
After you have selected the Light End components, click the Oil
Environment icon on the toolbar to enter the Oil
Characterization environment.
Prior to the input of assay data, a customized Unit Set is created
such that the default units used by Aspen HYSYS correspond to
the assay data units. Create a customized unit set by cloning the
Field unit set. Select API as the new unit for both Mass Density
and Standard Density and leave all other Field default units as
they are.
You can view a display of important messages related to the
progress of the characterization in the Trace Window. If you
want, open the Trace Window at the bottom of the Desktop.
Viscosity Assay
Liq Vol% Distilled Visc. (cP) 100°F Visc. (cP) 210°F
10.0 0.20 0.10
30.0 0.75 0.30
50.0 4.20 0.80
70.0 39.00 7.50
90.0 600.00 122.30
Refer to Chapter 2 -
Fluid Package for
details on installing a
fluid package.
Oil Environment icon
Refer to the Section
12.3.1 - Units Page of
the Aspen HYSYS User
Guide for details on
creating a customized
unit set.
For more information
concerning the Trace
Window, refer to Section
1.3 - Object Status &
Trace Windows of the
Aspen HYSYS User
Guide.4-96
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-97
ww
ThThe main property view in the Oil Environment is the Oil
Characterization property view, as shown below:
The tabs are organized according to the general procedure
followed in the characterization of an oil. Completing the
characterization requires the following three steps:
1. Access the Assay view by selecting the Add button on the
Assay tab of the Oil Characterization property view. Input
all of the assay data on the Input Data tab of the Assay
view and click the Calculate button.
2. Access the Cut/Blend property view (which also gives you
cutting options) by selecting the Add button on the Cut/
Blend tab of the Oil Characterization property view. Cut the
assay into the required number of hypocomponent using the
cut points outlined previously.
3. Install the calculated oil from the Oil Environment into the
flowsheet by accessing the Install Oil tab of the Oil
Characterization property view.
Although you can access the User Property tab and the
Correlation tab from the Oil Characterization property view,
neither of these tabs are used in this example.
 Figure 4.474-97
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-98 TBP Assay - Example
ww
Th4.9.2 Step 1 - Input Assay
Data
On the Assay tab of the Oil Characterization property view,
select the Add button. This opens the Assay view and places the
active location in the Name cell of the Input Data tab. For this
example, change the name of the Assay to Example. The Assay
tab is shown below.
The first time you enter this property view, it is blank, except for
the Bulk Properties field and the Assay Data Type field.
 Figure 4.48
The layout of this property view depends on:
1. Which Data Type you have selected. This mainly affects what Data Type
options are available (Distillation, Light Ends, etc.)
2. Which Input Data radio button you have selected. When you specify that
you have Independent or Dependent Molecular Weight, Density or
Viscosity data, a new radio button is added to the property view. In this
property view, the TBP Data Type is selected and the Distillation radio
button is selected.4-98
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-99
ww
ThDefining the Assay
The Input Data tab is split into two groups: Assay Definition and
Input Data. As its name implies, the Assay Definition group is
where the properties of the assay are defined. Since bulk
property data is provided, select Used from the Bulk Properties
drop-down list. The bulk properties appears in the Input Data
group. Next from the Assay Data Type drop-down list, select
TBP. The Bulk Props and Distillation radio buttons are now
visible.
Light ends can be Auto Calculated by Aspen HYSYS, however
since you are provided with the light ends data, select Input
Compositions from the Light Ends drop-down list.
Now, set the Molecular Weight, Density and Viscosity curve
options in each of the respective drop-down lists. The Molecular
Weight curve is Dependent, the Density curve is Independent,
and the Viscosity curves are also Independent. As you specify
these options, radio buttons corresponding to each curve are
added to the Input Data group box. Now that the Assay is
sufficiently defined, you can begin entering assay data.
Specifying Assay Data
Specification of the Assay occurs in the Input Data group. The
field and options visible inside the group are dependent on
which radio button is selected in the Input Data group.
Aspen HYSYS calculates internal working curves using the
supplied property curve data. For each property curve, you can
select the method used for the Extrapolation of the working
curve. The Extrapolation method for each working curve is
specified in the Curve Fitting Methods group of the Calculation
Defaults tab.4-99
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-100 TBP Assay - Example
ww
ThBulk Props
Select the Bulk Props radio button. Input a Bulk Molecular
Weight (300) and Bulk Mass Density (48.75 API_60) as shown
in the figure below.
No bulk viscosity information is available, so leave the Viscosity
cells blank. It is not necessary to delete the Viscosity
Temperatures as these are ignored if you do not provide bulk
viscosities.
Light Ends
Next, select the Light Ends radio button. The Input Data group
displays a Light Ends Basis drop-down list and a Light Ends
Composition table. From the drop-down list, select LiquidVolume
as the Light Ends Basis and enter the Light Ends composition as
shown below:
 Figure 4.49
 Figure 4.504-100
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-101
ww
ThDistillation
Select the Distillation radio button to view the TBP Distillation
assay. To enter the data, click the Edit Assay button. The Assay
Input Table property view appears and enter the following assay
data:
Molecular Weight
Select the Molecular Weight radio button to view the Molecular
Weight data.
 Figure 4.51
As you enter values into the table, the cursor automatically
moves down after each entry, making it easier to supply all
values in each column.
Since the Molecular Weight assay is Dependent, the Assay
Percentage values that you entered for the Boiling Point
Temperature assay are automatically displayed.4-101
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-102 TBP Assay - Example
ww
ThYou need only enter the Molecular Weights as shown below:
Density
Select the Density radio button to view (or edit) the Density
assay. The default density units are displayed, in this case API.
The completed API gravity curve input is shown below:
 Figure 4.52
 Figure 4.534-102
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-103
ww
ThViscosity
Select the Viscosity1 and Viscosity2 radio buttons to view (or
edit) the Viscosity assays. When either of these buttons are
selected, an additional input box is displayed, which allows you
to supply the viscosity temperatures. Make sure the Use Both
radio button is selected in the Viscosity Curves group box. The
required viscosity input is shown below:
 Figure 4.54
Ensure that the Viscosity Units Type is Dynamic, and that the
two temperatures entered are 100°F and 210°F.4-103
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-104 TBP Assay - Example
ww
ThCalculating the Assay
After entering all of the data, go to the Calculation Defaults tab.
The extrapolation methods displayed in the Curve Fitting
Methods group.
The default extrapolation methods for the working curves are
adequate for this assay. To begin the calculation of the assay,
press the Calculate button. The status message at the bottom of
the Assay view shows the message Assay Was Calculated.
 Figure 4.554-104
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-105
ww
ThAfter the Assay is calculated, the working curves are displayed
on the Working Curves tab.
The working curves for the normal boiling point, molecular
weight, mass density and viscosity are regressed from your
input curves. Aspen HYSYS uses 50 points in the calculation of
the working curves, but the molar distribution varies depending
on the data you provide. Aspen HYSYS moves more points to a
region with a steep gradient. The calculation of the Blend is
based on these working curves.
You can examine graphical representations of your assay data
on the Plots tab. Open the Property drop-down list and select
the curve that you would like to view. The default plot is the
Boiling Point Temperature (Distillation) curve. Because input
data for the boiling temperature, molecular weight, density and
viscosity were provided, all of these options are shown in the
drop-down list.
 Figure 4.56
The options available in the Property drop-down list
correspond to the property curve data specified on the Input
Data tab. If only bulk data is provided, there are no plots
available.
Refer to Section 4.5 -
Characterizing Assays
for information on the
characterization
procedure, working curves
and extrapolation
methods.4-105
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-106 TBP Assay - Example
ww
Th Figure 4.57
If multiple assays are
blended, repeat the steps
outlined in Section 4.9.2
- Step 1 - Input Assay
Data.4-106
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-107
ww
Th4.9.3 Step 2 - Cut Assay into
Hypocomponents
You can now cut the Assay into individual hypocomponents. On
the Cut/Blend tab of the Oil Characterization property view,
select the Add button. This takes you to the Blend property view
with the list of available assays.
From the Available Assays group, select Example and click the
Add button. This adds the Assay to the Oil Flow Information
table, and a Blend (Cut) is automatically calculated.
The Blend is calculated because the default Cut Option, Auto
Cut, appears as soon as a Blend is added. Since the Cut Option
was not changed prior to the addition of the Available Assay to
the Blend, Aspen HYSYS realizes enough information is available
to cut the oil and the calculations occur automatically.
 Figure 4.58
If you have only one Assay, it is not necessary to enter a
Flow Rate in the Oil Flow Information table.4-107
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-108 TBP Assay - Example
ww
ThInstead of using the default Cut Option, the cut points are
defined. From the Cut Option drop-down list, select User
Ranges. Enter a Starting Cut Point Temperature of 100°F and fill
out the Cut Point table as shown on the left. Click the Submit
button to calculate the Blend.
The results of the calculation can be viewed on the Tables tab of
the Blend property view. The default Table Type is the
Component Properties table with the Main Properties radio
button selected in the Table Control group.
 Figure 4.59
 Figure 4.604-108
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-109
ww
ThFrom the drop-down list, you can also view a Component
Breakdown, Molar Compositions, Oil Properties, and Oil
Distributions.
All of the data that is found on the Tables tab can be viewed
graphically from the following three tabs:
• Property Plot
• Distribution Plot
• Composite Plot
On the Distribution Plot tab, select Liquid Volume fraction from
the Basis drop-down list. The following plot is displayed:
 Figure 4.61
 Figure 4.62
Refer to Section 4.6.3 -
Tables Tab for details
on the information
available on the Tables
tab.4-109
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-110 TBP Assay - Example
ww
ThThe Cut Distribution Plot, as shown above, displays the volume
fraction of the oil that would be recovered in various products.
This graph is particularly useful in providing estimates for
distillation products.
4.9.4 Step 3 - Transfer
Information to Flowsheet
The final step of the characterization is to transfer the
hypocomponent information into the flowsheet.
On the Install Oil tab of the Oil Characterization property view,
enter the Stream Name Example Oil, to which the oil
composition is being transferred.
Aspen HYSYS assigns the composition of your calculated Oil and
Light Ends into this stream, completing the characterization
procedure. Also, the hypocomponent is placed into a Hypo group
named Blend1 and installed in the fluid package. When you
leave the Oil Characterization environment, you are placed in
the Basis environment. It is here that you can examine
individual hypothetical components that make-up your oil.
 Figure 4.63
Refer to the tab
subsections in Section
4.6 - Hypocomponent
Generation for
information on the
available plots.4-110
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-111
ww
ThEnter the Simulation Environment and move to the Workbook to
view the stream you just created. The Compositions page
displaying the stream Example Oil is shown below.
If you decide that some of the hypocomponent parameters need
to be recalculated, you can return to the Oil Environment at any
time to make changes. To edit an Assay, highlight it on the
Assay tab of the Oil Characterization property view, and click
the Edit button. If you want to see the effect of using a different
correlations on your oil, you can access this information on the
Correlation tab of the Oil Characterization property view.
 Figure 4.644-111
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-112 TBP Assay - Example
ww
Th4.9.5 Fluid Package
Association
In the example shown in Figure 4.65, there is only one fluid
package for the flowsheet. Specifying the stream name
(Example Oil) not only creates the stream in the flowsheet, but
adds the Hypo group (which contains all of the individual
hypocomponents) to the fluid package.
When there are multiple fluid packages in the simulation, you
can specify the one with which the Oil is to be associated
(accessed through the Oil Manager tab of the Simulation Basis
Manager property view). This serves two functions: first, it
identifies which pure components are available for a light ends
analysis, and second, it identifies the fluid package to which the
Hypo group is being installed.
If you do not want to associate the oil to the fluid package, clear
the appropriate Associate checkbox.
 Figure 4.65
In this case, the Oil is Associated with Fluid Package Basis-14-112
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-113
ww
Th4.10 Sulfur Curve -
Example
The User Property option in the Oil Characterization
environment allows you to supply a property curve and have
Aspen HYSYS characterize it with an Assay. Each
hypocomponent is assigned a property value when the Blend is
characterized. You can specify the basis upon which the
property should be calculated (mole, mass or liquid volume, and
flows or fractions), as well as which mixing rule should be used.
In this example, a TBP curve with an associated Sulfur Curve is
installed. There is no Light Ends analysis available, so the Auto
Calculate Light Ends option is used.
4.10.1 Fluid Package
Prior to entering the Oil Characterization environment, create a
Fluid Package with Peng-Robinson as the property method and
C1, C2, C3, i-C4, and n-C4 as the components. The choice of the
Light Ends components is influenced by the Sulfur Curve data
(refer to Section 4.10.3 - Install the Assay section).4-113
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-114 Sulfur Curve - Example
ww
Th4.10.2 Install a User Property
Enter the Oil Environment by clicking the Oil Environment icon
on the toolbar. To supply a User Curve for an assay, you must
first add a User Property. On the User Property tab of the Oil
Characterization property view, select Add to access the User
Property property view as shown below.
The default options are used for the Equation Parameters except
for the Mixing Basis field. Sulfur is quoted on a w/w basis so,
select Mass Fraction from the drop-down list. Aspen HYSYS
automatically names and numbers the User Properties. You can
provide a descriptive Name for the property, such as Sulfur.
 Figure 4.66
You can also add a User Property via the User Property tab in
the Simulation Basis Manager.
Oil Environment icon4-114
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-115
ww
ThAspen HYSYS gives you the option of providing a Component
User Property Value for each Light End component. If, for
example, this was a Heating Value Property, you would supply
each component value at this point. These components do not
have a “Sulfur value", so they can be left at 0.
4.10.3 Install the Assay
Create an Assay by clicking the Add button on the Assay tab of
the Oil Characterization property view. Select TBP as the Assay
Data Type, specify a Liquid Volume% as the Assay Basis, and
leave the TBP Distillation Conditions group at the default
settings.
Since no Light Ends analysis is provided, select the Auto
Calculate from the Light Ends drop-down list. The Auto Calculate
procedure replaces the portion of the TBP curve which is
covered by the Boiling Point range of the Light Ends
components. In this way, the initial boiling point of the TBP
working curve is slightly higher than the normal boiling point of
the heaviest Light End component.
The TBP curve starts at -25°C. Taking this information into
account, Light End components with boiling points that lie within
the first two percent of the TBP assay were chosen. In this way,
the benefits of the Auto Calculate procedure are gained without
losing a significant portion of our property curve.
There is no Molecular Weight, Density, or Viscosity data, so you
can leave the curve options as Not Used. On the Calculation
Defaults tab, the extrapolation method for the Distillation curve
can be left at its default, Probability. There are no bulk
properties for the assay. Provide the boiling temperature data,
as tabulated below:
TBP Data
Assay% Temp (C) Assay% Temp (C) Assay% Temp (C)
0.02 -25 20.73 180 71.43 500
0.03 -20 24.06 200 73.86 520
0.05 -10 27.55 220 76.22 5404-115
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-116 Sulfur Curve - Example
ww
ThThe Assay view with the TBP Data is shown below:
0.31  0 30.93 240 78.46 560
0.52  10 34.32 260 80.57 580
0.55  20 37.83 280 82.55 600
1.25  30 41.21 300 84.41 620
2.53  40 44.51 320 86.16 640
2.93  50 48.01 340 87.79 660
3.78  60 51.33 360 89.32 680
4.69  70 54.58 380 90.67 700
5.67  80 57.73 400 93.48 750
7.94 100 60.65 420 95.74 800
10.69 120 63.39 440 98.78 900
13.84 140 66.16 460
17.28 160 68.90 480
 Figure 4.67
TBP Data
Assay% Temp (C) Assay% Temp (C) Assay% Temp (C)4-116
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-117
ww
ThSulfur Curve
On the User Curves tab of the Assay property view, select the
Available User Property Sulfur and click the Add button. In the
User Curve Data group, select Independent as the Table Type
and ensure that the Bulk Value cell displays . Click the
Edit button and enter the Sulfur Curve Data shown below in the
Assay Input Table.
After this data is entered, click the Calculate button found at the
bottom of the Assay property view.
Sulfur Curve Data
Assay% Sulfur Value Assay% Sulfur Value
0.90 0.032 54.08 2.733
7.38 0.026 55.85 2.691
11.48 0.020 57.17 2.669
16.42 0.083 60.00 2.670
22.40 0.094 64.47 2.806
26.68 0.212 68.40 3.085
31.78 0.616 72.09 3.481
36.95 1.122 75.66 3.912
42.04 1.693 78.99 4.300
47.14 2.354 82.05 4.656
48.84 2.629 84.85 4.984
50.52 2.786 87.38 5.286
52.22 2.796 90.33 5.6464-117
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-118 Sulfur Curve - Example
ww
Th4.10.4 Create the Blend
A Blend is created using the Auto Cut option. On the Cut\Blend
tab of the Oil Characterization property view, select the Add
button. On the Data tab of the Blend property view, highlight
Assay-1 from the list of Available Assays and click the Add
button. The assay is now added to the Oil Flow Information
table. The Blend is immediately calculated, as the default Cut
Option is Auto Cut.
 Figure 4.684-118
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-119
ww
Th4.10.5 Results
Finally, the user property is defined and needs to be installed.
On the Install Oil tab of the Oil Characterization property view,
specify the Stream Name as Example Oil to which the oil
composition is transferred.
Aspen HYSYS assigns the composition of your calculated Oil and
Light Ends into this stream, completing the characterization
procedure for the User Property.
 Figure 4.694-119
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-120 Sulfur Curve - Example
ww
ThYou can return to the User Property tab of the Oil
Characterization property view and click the View button to
display the Sulfur User Property property view.
In the Component User Property Values group, the Property
Value is calculated for all the hypocomponents for the blend.
You can scroll through the table to view the Property Value for
each hypocomponent.
 Figure 4.704-120
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Aspen HYSYS Oil Manager 4-121
ww
ThFrom the Composite Plot tab of the Blend property view, you can
view a plot of the Calculated and Inputted values for the User
Property. Select User Property from the Property drop-down
list and select the Sulfur checkbox to view the following figure.
4.11 References
 1 Figure 3A1.1, Chapter 3, API Technical Data Book, Fourth Edition
(1980).
 2 Procedure 3A1.1, Chapter 3, API Technical Data Book, Fifth Edition
(1987).
 3 Procedure 3A1.1, Chapter 3, API Technical Data Book, Sixth Edition
(1994).
 4 Edmister, W.C., and Okamoto, K.K., “Applied Hydrocarbon
Thermodynamics, Part 12: Equilibrium Flash Vaporization
Correlations for Petroleum Fractions”, Petroleum Refiner, August,
1959, p. 117.
 5 Procedure 3A3.1, Chapter 3, API Technical Data Book, Fifth Edition
(1987).
 6 Procedure 3A3.2, Chapter 3, API Technical Data Book, Sixth Edition
(1994).
 7 Procedure 3A3.1, Chapter 3, API Technical Data Book, Sixth Edition
(1994).
 Figure 4.714-121
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
4-122 References
ww
Th4-122
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-1
ww
Th5  Reactions5-1
5.1  Introduction................................................................................... 2
5.2  Reaction Component Selection....................................................... 3
5.2.1  Adding Components from Basis Manager ..................................... 4
5.2.2  Selections Within the Reaction Manager ...................................... 4
5.2.3  Library Reaction Components..................................................... 5
5.3  Reactions ....................................................................................... 6
5.3.1  Manipulating Reactions ............................................................. 7
5.3.2  Conversion Reaction ................................................................. 8
5.3.3  Equilibrium Reaction ............................................................... 13
5.3.4  Kinetic Reaction ..................................................................... 20
5.3.5  Heterogeneous Catalytic Reaction............................................. 26
5.3.6  Simple Rate Reaction.............................................................. 33
5.4  Reaction Sets ............................................................................... 36
5.4.1  Manipulating Reaction Sets ...................................................... 37
5.4.2  Reaction Set Property View...................................................... 38
5.4.3  Exporting/Importing a Reaction Set .......................................... 44
5.4.4  Adding a Reaction Set to a Fluid Package................................... 45
5.4.5  Reactions in the Build Environment........................................... 45
5.5  Generalized Procedure................................................................. 46
5.6  Reactions - Example..................................................................... 48
5.6.1  Add Components to the Reaction Manager ................................. 48
5.6.2  Create a Reaction................................................................... 48
5.6.3  Add the Reaction to a Reaction Set ........................................... 49
5.6.4  Attach the Reaction Set to a Fluid Package................................. 50
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-2 Introduction
ww
Th5.1 Introduction
Reactions within Aspen HYSYS are defined inside the Reaction
Manager. The Reaction Manager, which is located on the
Reactions tab of the Simulation Basis Manager, provides a
location from which you can define an unlimited number of
reactions and attach combinations of these reactions in Reaction
Sets. The Reaction Sets are then attached to Unit Operations in
the Flowsheet.
The Reaction Manager is a versatile, time-saving feature that
allows you to do the following:
• Create a new list of components for the Reactions or
simply use the fluid package components.
• Add, Edit, Copy, or Delete Reactions and Reaction Sets.
• Attach Reactions to various Reaction Sets or attach
Reaction Sets to multiple Fluid Packages, thus
eliminating repetitive procedures.
• Import and Export Reaction Sets.
 Figure 5.15-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-3
ww
Th5.2 Reaction Component
Selection
On the Reactions tab of the Simulation Basis Manager, there are
three main groups which are described below:
Each of the main groups within the Reaction Manager are
examined in more detail. In this section, the Rxn Components
group is described. The features in the Reactions group and
Reaction Sets group are detailed in subsequent sections.
There are three distinct ways in which components can be made
accessible to Reactions in the Reaction Manager:
• You can add components on the Component tab of the
Simulation Basis Manager. The components are added to
the component list and are available in the Rxn
Components group to be attached to the Reaction Set.
These components are also included in the fluid package
depending on the component list selected for the
package.
• You can install components directly in the Reaction
Manager without adding them to a specific component
list by clicking the Add Comps button. The Component
List property view appears and you can add reaction
components for the reaction. These components appear
automatically in the master component list, but not in
the component list selected for the fluid package.
When a Reaction Set (containing a Reaction which uses
the new components) is attached to a fluid package, the
components which are not present in the fluid package
are automatically transferred.
• You can select an Equilibrium Reaction from the Library
tab of the Equilibrium Reactor property view. All
components used in the reaction are automatically
installed in the Reaction Manager. Once the Reaction Set
Group Description
Rxn
Components
Displays all components available to the Reaction Manager
and the Add Comps button.
Reactions Displays a list of the defined reactions and four buttons
available to help define reactions.
Reaction
Sets
Displays the defined reactions sets, the associated fluid
packages and several buttons that help to define reaction
sets and attach them to fluid packages.
Refer to Chapter 1 -
Components for more
information on adding
components.
Refer to Section 5.4 -
Reaction Sets for details
on attaching a fluid
package.5-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-4 Reaction Component Selection
ww
Th(containing the Library reaction) is attached to a fluid
package, the components are automatically transferred
to the fluid package.
5.2.1 Adding Components
from Basis Manager
With this method of component selection, components are
selected on the Components tab from the Simulation Basis
Manager. Add a component list by clicking the Add button. From
the Component List property view, select the components which
are required for the reaction. This is similar to adding
components to a component list for a particular fluid package or
case. All components that are selected are displayed and
available in the Rxn Components group of the Reaction Manager.
5.2.2 Selections Within the
Reaction Manager
Components can be made available prior to the creation of
Reactions by directly selecting them within the Reaction
Manager. By selecting the components within the Reaction
Manager, you are not required to transfer component
information from the fluid package. The components appear in
the Master Component list, but not in the component list. Once
a Reaction Set is attached to a fluid package, Aspen HYSYS
automatically transfers all of the components contained within
the Reaction(s) to the fluid package.
The components listed in the Selected Reaction Components
group are available to any Reaction that you create.
Hypocomponents created using the Oil Manager can be used
in Reactions. They are listed as Associated Components if
they are installed in a fluid package.
At least one fluid package must exist before components can
be transferred from the Reaction Manager.
Refer to Chapter 4 -
HYSYS Oil Manager for
details on
hypocomponent.5-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-5
ww
ThThe following procedure demonstrates the steps required when
beginning with a new case:
1. Create a new case by clicking the New Case icon on the
toolbar.
2. On the Fluid Pkgs tab of the Simulation Basis Manager, click
the Add button. A new fluid package is created and its
property view opens. Close the Fluid Package property view.
3. Move to the Reactions tab. Click the Add Comps button in
the Rxn Components group and the Component List property
view is displayed.
4. Select either traditional or hypothetical components. The
procedure for selecting components is similar to the
selection of components for the fluid package.
5. Return to the Reaction Manager to create the Reaction(s)
and install the Reaction(s) within a Reaction Set.
6. Attach the Reaction Set to the fluid package created in Step
#2.
7. All components used in the Reaction(s) that are contained
within the Reaction Set are now available in the fluid
package.
5.2.3 Library Reaction
Components
When a Library Equilibrium Reaction is selected, all of its
constituent components are automatically added to the Reaction
Manager. You can then use the components in the Rxn
Components group of the Reaction Manager to define other
reactions. Library reactions can be installed prior to the addition
of components to the case. You are not required to add
components using the Component List property view or Reaction
Manager.
To add a Library reaction, do the following:
1. From the Reaction Manager, click the Add Rxn button in the
Reactions group.
2. Highlight Equilibrium from the Reactions property view and
click the Add Reaction button.
New Case icon
See Section 5.3 -
Reactions, and Section
5.4 - Reaction Sets for
details.
See Section 5.4.4 -
Adding a Reaction Set
to a Fluid Package for
details.5-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-6 Reactions
ww
Th3. Move to the Library tab of the Equilibrium Reaction property
view and select a reaction from the Library Equilibrium Rxns
group.
4. Click the Add Library Rxn button. All library information
concerning the reaction is transferred to the various tabs of
the Equilibrium Reaction property view. The components
used by the reaction are now shown in the Rxn Components
group of the Reaction Manager.
5.3 Reactions
In Aspen HYSYS, a default reaction set, the Global Rxn Set, is
present in every simulation. All compatible reactions that are
added to the case are automatically included in this set. A
Reaction can be attached to a different set, but it also remains
in the Global Rxn Set unless you remove it. To create a
Reaction, click the Add Rxn button from the Reaction Manager.
The following table describes the five types of Reactions that can
be modeled in Aspen HYSYS:
 Figure 5.2
Reaction Type Requirements
Conversion Requires the stoichiometry of all the reactions and the
conversion of a base component in the reaction.
Equilibrium Requires the stoichiometry of all the reactions. The
term Ln(K) may be calculated using one of several
different methods, as explained later. The reaction
order for each component is determined from the
stoichiometric coefficients.
Refer to Section 5.4 -
Reaction Sets for
information on Reaction
Sets.5-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-7
ww
ThEach of the reaction types require that you supply the
stoichiometry. To assist with this task, the Balance Error tracks
the molecular weight and supplied stoichiometry. If the reaction
equation is balanced, this error is equal to zero. If you have
provided all of the stoichiometric coefficients except one, you
may select the Balance button to have Aspen HYSYS determine
the missing stoichiometric coefficient.
Reactions can be on a phase specific basis. The Reaction is
applied only to the components present in that phase. This
allows different rate equations for the vapour and liquid phase in
same reactor operation.
5.3.1 Manipulating Reactions
From the Reaction Manager, you can use the four buttons in the
Reactions group to manipulate reactions. The buttons are
described below:
Heterogeneous
Catalytic
Requires the kinetics terms of the Kinetic reaction as
well as the Activation Energy, Frequency Factor, and
Component Exponent terms of the Adsorption kinetics.
Kinetic Requires the stoichiometry of all the reactions, as well
as the Activation Energy and Frequency Factor in the
Arrhenius equation for forward and reverse (optional)
reactions. The forward and reverse orders of reaction
for each component can be specified.
Simple Rate Requires the stoichiometry of all the reactions, as well
as the Activation Energy and Frequency Factor in the
Arrhenius equation for the forward reaction. The
Equilibrium Expression constants are required for the
reverse reaction.
Button Command
View Rxn Accesses the property view of the highlighted reaction.
Add Rxn Accesses the Reactions property view, from which you
select a Reaction type.
Delete Rxn Removes the highlighted reaction(s) from the Reaction
Manager.
Copy Rxn When selected, the Copy Reactions property view appears
where you can select an alternate Reaction Type for the
reaction or duplicate the highlighted reaction.
Reaction Type Requirements5-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-8 Reactions
ww
Th5.3.2 Conversion Reaction
The Conversion Reaction requires the Stoichiometric Coefficients
for each component and the specified Conversion of a base
reactant. The compositions of unknown streams can be
calculated when the Conversion is known.
Consider the following Conversion reaction:
where:
a, b, c, d = the respective stoichiometric coefficients of the
reactants (A and B) and products (C and D)
A = the base reactant
B = the base reactant not in a limiting quantity
In general, the reaction components obey the following reaction
stoichiometry:
When you right-click a reaction in the Reactions group, you
can select View or Delete from the object inspect menu.
By default, conversion reactions are calculated
simultaneously. However you can specify sequential
reactions using the Ranking feature.
(5.1)
(5.2)
Refer to Section 5.4 -
Reaction Sets for more
information.
A b
a
--B c
a
--C d
a
--D+→+
NA NAo
1 XA–( )=
NB NBo
b
a
--N
Ao
X
A
–=
NC NCo
c
a
-- NAo
XA( )+=
ND NDo
d
a
-- NAo
XA( )+=5-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-9
ww
Thwhere:
N* = the final moles of component * (*= A, B, C and D)
N*o = the initial moles of component *
XA = the conversion of the base component A
The moles of a reactant available for conversion in a given
reaction include any amount produced by other reactions, as
well as the amount of that component in the inlet stream(s). An
exception to this occurs when the reactions are specified as
sequential.
When you have supplied all of the required information for
the Conversion Reaction, the status bar (at the bottom right
corner) will change from Not Ready to Ready.5-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-10 Reactions
ww
ThStoichiometry Tab
The Stoichiometry tab of a conversion reaction is shown in
thefollowing figure:
For each Conversion reaction, you must supply the following
information:
 Figure 5.3
Input Field Information Required
Reaction Name A default name is provided which may be changed. The
previous property view shows the name as Rxn-1.
Components The components to be reacted. A minimum of two
components are required. You must specify a minimum
of one reactant and one product for each reaction you
include. Use the drop-down list to access the available
components. The Molecular Weight of each component
is automatically displayed.
Stoichiometric
Coefficient
Necessary for every component in the reaction. The
Stoichiometric Coefficient is negative for a reactant
and positive for a product. You may specify the
coefficient for an inert component as 0, which, for the
Conversion reaction, is the same as not including the
component in the table. The Stoichiometric Coefficient
does not have to be an integer; fractional coefficients
are acceptable.
The Reaction Heat value is calculated and displayed
below the Balance Error. A positive value indicates that
the reaction is endothermic.5-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-11
ww
ThBasis Tab
The Basis tab of a conversion reaction is shown in the figure
below:
On the Basis tab, you must supply the following information:
 Figure 5.4
Required Input Description
Base Component Only a component that is consumed in the reaction (a
reactant) may be specified as the Base Component
(i.e., a reaction product or an inert component is not a
valid choice). You can use the same component as the
Base Component for a number of reactions, and it is
quite acceptable for the Base Component of one
reaction to be a product of another reaction.
You have to add the components to the reaction before
the Base Component can be specified.5-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-12 Reactions
ww
ThRxn Phase The phase for which the specified conversions apply.
Different kinetics for different phases can be modeled
in the same reactor. Possible choices for the Reaction
Phase are:
• Overall. Reaction occurs in all Phases.
• Vapour Phase. Reaction occurs only in the
Vapour Phase.
• Liquid Phase. Reaction occurs only in the Light
Liquid Phase.
• Aqueous Phase. Reaction occurs only in the
Heavy Liquid Phase.
• Combined Liquid. Reaction occurs in all Liquid
Phases.
Conversion
Function
Parameters
Conversion percentage can be defined as a function of
reaction temperature according to the following
equation:
This is the percentage of the Base Component
consumed in this reaction. The value of Conv.(%)
calculated from the equation is always limited within
the range of 0.0 and 100%.
The actual conversion of any reaction is limited to the
lesser of the specified conversion of the base
component or complete consumption of a limiting
reactant.
Reactions of equal ranking cannot exceed an overall
conversion of 100%.
Sequential Reactions may be modelled in one reactor
by specifying the sequential order of solution.
To define a constant value for conversion percentage, enter
a conversion (%) value for Co only. Negative values for C1
and C2 means that the conversion drops with increased
temperature and vice versa.
Required Input Description
Conv Co C1 T C2 T2⋅+⋅+=
See Reaction Rank, in
Section 5.4 - Reaction
Sets.5-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-13
ww
Th5.3.3 Equilibrium Reaction
The Equilibrium Reaction computes the conversion for any
number of simultaneous or sequential reactions with the
reaction equilibrium parameters and stoichiometric constants
you provide.
The Equilibrium constant can be expressed as follows:
where:
K = Equilibrium constant
[BASE]ej = Basis for component j at equilibrium
vj = Stoichiometric coefficient for the jth component
Nc = Number of components
The equilibrium constant ln(K) may be considered fixed, or
calculated as a function of temperature based on a number of
constants:
where:
Alternatively, you may supply tabular data (equilibrium constant
versus temperature), and Aspen HYSYS automatically calculates
(5.3)
This equation is only valid when BASE (i.e., concentration) is
at equilibrium composition.
(5.4)
K BASE[ ]ej
( )
vj
j 1=
Nc
∏=
Ln Keq( ) a b+=
a A B
T
--- C T( )ln⋅ D T⋅+ + +=
b E T2 F T3 G T4 H T5⋅+⋅+⋅+⋅=5-13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-14 Reactions
ww
Ththe equilibrium parameters for you. Ln(K) may also be
determined from the Gibbs Free Energy.
Stoichiometry Tab
The Stoichiometry tab for a equilibrium reaction is shown in the
figure below:
For each reaction, you must supply the following information:
When you have supplied all of the required information for
the Equilibrium Reaction, the status bar (at the bottom right
corner) changes from Not Ready to Ready.
 Figure 5.5
Input Required Description
Reaction Name A default name is provided, which may be changed by
simply selecting the field and entering a new name.
Components A minimum of two components is necessary. You must
specify a minimum of one reactant and one product for
each reaction you include. The Molecular Weight of
each component is automatically displayed.
Stoichiometric
Coefficient
For every component in this reaction. The
Stoichiometric Coefficient is negative for a reactant
and positive for a product. You may specify the
coefficient for an inert component as 0. The
Stoichiometric Coefficient need not be an integer;
fractional coefficients are acceptable.5-14
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-15
ww
ThBasis Tab
The Basis tab for an equilibrium reaction contains two groups,
the Basis and the Keq Source, which are shown in the figure:
The Basis group requires the following information:
The Keq Source group contains four radio buttons and a
checkbox.
• By selecting the appropriate radio button, you can select
one of four options as the Keq Source for the equilibrium
reaction.
• If the Auto Detect checkbox is selected, Aspen HYSYS
automatically changes the Keq Source, depending on the
Keq information you provide. For example, if you enter a
fixed equilibrium constant, the Fixed Keq radio button is
 Figure 5.6
Input Required Description
Basis From the drop-down list in the cell, select the Basis for
the reaction. For example, select Partial Pressure or
Activity as the basis.
Reaction Phase The possible choices for the Reaction Phase, accessed
from the drop-down list, are the Vapour and Liquid
Phases.
Minimum
Temperature
and Maximum
Temperature
Enter the minimum and maximum temperatures for
which the reaction expressions are valid. If the
temperature does not stay within the specified bounds,
a warning message alerts you.
Basis Units Enter the appropriate units for the Basis, or make a
selection from the drop-down list.5-15
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-16 Reactions
ww
Thautomatically selected. If you later add data to the Table
tab, the Keq vs. T Table radio button is automatically
selected.
Keq Tab
Depending on which option was selected in the Keq Source
group (from the Basis tab), the Keq tab will display the
appropriate information.
The following table outlines each of the Keq source options and
the respective information on the Keq tab.
Option Description View on Keq Tab
Ln(Keq)
equation
Ln(Keq), assumed to be a function of temperature
only, is determined from the following equation:
where:
A, B, C, D, E, F, G, H = the constants defined
on the Keq tab.
Gibbs
Free
Energy
The equilibrium constant is determined from the
default Aspen HYSYS pure component Gibbs Free
Energy (G) database and correlation.
The correlation and database values are valid/
accurate for a temperature (T) range of 25°C to
426.85°C.
If a wider range of G-T correlation is required, the
user can clone the library component and input
the components Gibbs Free Energy correlation to
temperatures beyond the default temperature
limit.
Ln Keq( ) a b+=
a A B
T
--- C T( )ln⋅ D T⋅+ + +=
b E T2 F T3 G T4 H T5⋅+⋅+⋅+⋅=5-16
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-17
ww
ThApproach Tab
Under certain process conditions, an equilibrium reaction may
not, actually reach equilibrium. The Equilibrium reaction set
uses two types of approach, Fractional and Temperature, to
simulate this type of situation. You may select either one or both
types of approaches for use in the simulation.
Fixed K In this case, the equilibrium constant Keq is
considered to be fixed, and is thus independent of
temperature. You may specify either Keq or
Ln(Keq) on the Keq tab. Select the Log Basis
checkbox to specify the equilibrium constant in the
form Ln(Keq).
K vs. T
Table
On the Keq tab, you can provide temperature and
equilibrium constant data. Aspen HYSYS estimates
the equilibrium constant from the pairs of data
which you provide and interpolates when
necessary. For each pair of data that you provide
Aspen HYSYS calculates a constant in the Ln(K)
equation. If you provide at least 4 pairs of data, all
four constants A, B, C and D are estimated.
The constants may be changed even after they are
estimated from the pairs of data you provide,
simply by entering a new value in the appropriate
cell. If you later want to revert to the estimated
value, simply delete the number in the appropriate
cell, and it is recalculated.
The term R2 gives an indication of the error or
accuracy of the Ln(K) equation. It is equal to the
regression sum of squares divided by the total
sum of squares, and is equal to one when the
equation fits the data perfectly.
You can also provide the maximum (T Hi) and
minimum (T Lo) temperatures applicable to the
Ln(K) relation. The constants are always
calculated based on the temperature range you
provide. If you provide values in the K Table which
are outside the temperature range, the calculation
of the constants is not affected.
Option Description View on Keq Tab5-17
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-18 Reactions
ww
ThThe Approach tab contains two groups, the Fractional Approach
and Temperature Approach.
Both the Fractional Approach and Temperature Approach
methods can be used to simulate an Equilibrium reaction that is
a departure from equilibrium.
For the Temperature Approach method, the Aspen HYSYS
reaction solver will take into account the heat of reaction
according to the equations listed. The direction of non-
equilibrium departure depends on whether the reaction is
endothermic or exothermic.
The Fractional Approach method is an alternative to the
Temperature Approach method and is defined according to the
following equation:
Equation (5.5) could be interpreted as defining the “actual”
reaction extent of the equilibrium as only a percentage of the
equilibrium reaction extent of the reaction. In the solver, the
value of Approach % is limited between 0 and 100%.
 Figure 5.7
Temperature Approach is not relevant for a fixed Keq source
and thus the group does not appear when Fixed Keq is
selected from the Basis tab.
(5.5)Feed Product– Approach% Feed Product–( )equilibrium⋅=5-18
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-19
ww
ThLibrary Tab
The Library tab allows you to add pre-defined reactions from the
Aspen HYSYS Library. The components for the selected Library
reaction are automatically transferred to the Rxn Components
group of the Reaction Manager.
When you select a reaction, all data for the reaction, including
the stoichiometry, basis, and Ln(K) parameters, are transferred
into the appropriate location on the Equilibrium Reaction
property view. To access a library reaction, highlight it from the
Library Equilibrium Rxns group and click the Add Library Rxn
button.
 Figure 5.8
When K Table contains data input, the library reaction
selection will be blocked. You must click the Erase Table
button on the Keq tab and before you can add a library
reaction.5-19
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-20 Reactions
ww
Th5.3.4 Kinetic Reaction
To define a Kinetic Reaction, it is necessary to specify the
forward Arrhenius Parameters (the reverse is optional), the
stoichiometric coefficients for each component, and the forward
(and reverse) reaction orders. An iterative calculation occurs,
that requires the Solver to make initial estimates of the outlet
compositions. With these estimates, the rate of reaction is
determined. A mole balance is then performed as a check on the
rate of reaction. If convergence is not attained, new estimates
are made and the next iteration is executed.
Equation (5.6) relates the rate of reaction rA with the reaction
rate constants and the basis (e.g. - concentration). Equation
(5.7) is a mole balance on the unit operation; for steady state
solutions, the right side is equal to zero.
(5.6)
(5.7)
When you have supplied all of the required information for
the Kinetic Reaction, the status bar (at the bottom right
corner) changes from Not Ready to Ready.
rA k f BASIS( ) k' f ' BASIS( )⋅–⋅=
FAo FA– rA VdV
∫+
dNA
dt
---------=5-20
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-21
ww
ThStoichiometry Tab
When the Kinetic Reaction is selected, the following property
view is displayed:
For each reaction, you must supply the following information:
 Figure 5.9
Input Required Description
Reaction Name A default name is provided, which may be changed at
any time.
Components You must specify a minimum of one reactant and one
product for each reaction you include. Access the
available components using the drop-down list. The
Molecular Weight of each Component is automatically
displayed.5-21
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-22 Reactions
ww
ThThermodynamic Consistency
Crucial to the specification of the reverse reaction equation is
maintaining thermodynamic consistency so that the equilibrium
rate expression retains the form of Equation (5.3). Failure to
do so may produce erroneous results from Aspen HYSYS.
Consider the previously mentioned reaction:
with the forward kinetics following the relationship:
Stoichiometric
Coefficient
Necessary for every component in the reaction. The
Stoichiometric Coefficient is negative for a reactant
and positive for a product. The Stoichiometric
Coefficient need not be an integer; fractional
coefficients are acceptable. You may specify the
coefficient for an inert component as 0, which in most
cases is the same as not including the component in
the list. However, you must include components that
have an overall stoichiometric coefficient of zero and a
non-zero order of reaction (i.e., a component that
might play the role of a catalyst). The Kinetic Reaction,
which allows you to specify the Stoichiometric
Coefficient and the order of reaction, makes it possible
to correctly model this situation.
Forward and
Reverse Orders
These are reaction orders. Aspen HYSYS initially fixes
the orders of reaction according to the corresponding
stoichiometric coefficient. These may be modified by
directly entering the new value into the appropriate
cell. For instance, in the following reaction:
the kinetic rate law is
When the stoichiometric coefficients are entered for
the reaction, Aspen HYSYS sets the forward orders of
reaction for CO and Cl2 at 1. Simply enter 1.5 into the
Forward Order cell for Cl2 to correctly model the
reaction order.
(5.8)
Input Required Description
CO Cl2+ COCl2→
rCO k CO[ ] Cl2[ ]3 2⁄=
CO Cl2 COCl2↔+
rateforward kf CO[ ] Cl2[ ] 3 2⁄=5-22
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-23
ww
ThNow suppose you want to add the reverse kinetic reaction. Since
the forward reaction is already known, the order of the reverse
reaction has to be derived in order to maintain thermodynamic
consistency. Suppose a generic kinetic relationship is chosen:
where:
 = the unknown values of the order of the three
components
Equilibrium is defined as the moment when:
The equilibrium constant K is then equal to:
To maintain the form of the equilibrium equation seen in
Equation (5.3), K is also equal to:
Now combining the two relationships for K found in Equation
(5.10) and Equation (5.11):
To maintain thermodynamic consistency:  must be 0,  must
be 0.5 and  must be equal to 1.
(5.9)
(5.10)
(5.11)
(5.12)
ratebackward kr CO[ ]α Cl2[ ]β COCl2[ ]γ=
α β γ, ,
rateforward ratebackward– 0=
K
kf
kr
----
CO[ ]α Cl2[ ]β COCl2[ ]γ
CO[ ] Cl2[ ]3 2⁄
---------------------------------------------------------= =
K
COCl2[ ]
CO[ ] Cl2[ ]
--------------------------=
CO[ ]α Cl2[ ]β COCl2[ ]γ
CO[ ] Cl2[ ]3 2⁄
---------------------------------------------------------
COCl2[ ]
CO[ ] Cl2[ ]
--------------------------=
α β
γ
5-23
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-24 Reactions
ww
ThBasis Tab
The Basis tab for a kinetic reaction is shown below:
On the Basis tab, the following parameters may be specified:
 Figure 5.10
Input Required Description
Basis View the drop-down list in the cell to select the Basis
for the reaction. If, for instance, the rate equation is a
function of the partial pressures, select Partial Pressure
as the Basis.
Base Component Only a component that is consumed in the reaction (a
reactant) may be specified as the Base Component
(i.e., a reaction product or an inert component is not a
valid choice). You can use the same component as the
Base Component for a number of reactions, and it is
quite acceptable for the Base Component of one
reaction to be a product of another reaction.
Reaction Phase The phase for which the kinetic rate equations apply.
Different kinetic rate equations for different phases can
be modeled in the same reactor. Possible choices for
the Reaction Phase, available in the drop-down list,
are: Overall, Vapour Phase, Liquid Phase, Aqueous
Phase, and Combined Liquid.
Minimum
Temperature and
Maximum
Temperature
Enter the minimum and maximum temperatures for
which the forward and reverse reaction Arrhenius
equations are valid. If the temperature does not
remain within these bounds, a warning message alerts
you during the simulation.
Basis Units Enter the appropriate units for the Basis, or make a
selection from the drop-down list.
Rate Units Enter the appropriate units for the rate of reaction, or
make a selection from the drop-down list.5-24
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-25
ww
ThParameters Tab
On the Parameters tab, you may specify the forward and reverse
parameters for the Arrhenius equations. These parameters are
used in the calculation of the forward and reverse reaction
constants.
The reaction rate constants are a function of temperature
according to the following extended form of the Arrhenius
equation:
where:
k = forward reaction rate constant
k' = reverse reaction rate constant
 Figure 5.11
(5.13)
(5.14)
A, E, , are the Arrhenius Parameters for the forward
reaction. A', E', and  are the Arrhenius Parameters for the
reverse reaction.
Information for the reverse reaction is not required.
k A E
RT( )
-----------–
⎩ ⎭
⎨ ⎬
⎧ ⎫
Tβ⋅exp⋅=
k' A' E′
RT
------–
⎩ ⎭
⎨ ⎬
⎧ ⎫
Tβ′⋅exp⋅=
β
β′5-25
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-26 Reactions
ww
ThA = forward reaction Frequency Factor
A' = reverse reaction Frequency Factor
E = forward reaction Activation Energy
E' = reverse reaction Activation Energy
 = forward extended reaction rate constant
 = reverse extended reaction rate constant
R = Ideal Gas Constant (value and units dependent on the
units chosen for Molar Enthalpy and Temperature)
T = Absolute Temperature
5.3.5 Heterogeneous Catalytic
Reaction
Aspen HYSYS provides a heterogeneous catalytic reaction
kinetics model to describe the rate of catalytic reactions
involving solid catalyst. The rate equation is expressed in the
general form according to Yang and Hougen (1950):
Since these types of reactions involve surface reaction together
with adsorption (and desorption) of reactants and products, the
resulting rate expression will be strongly mechanism dependent.
Consider the following the simple reaction:
If the Arrhenius coefficient, A is equal to zero, there is no
reaction. If Arrhenius coefficients E and  are zero, the rate
constant is considered to be fixed at a value of A for all
temperatures.
(5.15)
β
β′
β
r– kinetic term( ) potential term( )
adsorption term( )
-----------------------------------------------------------------------=
aA bB cP→+5-26
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-27
ww
ThDepending on the reaction mechanism, its reaction rate
expression (ignoring reverse rate of reaction) could be:
where:
K* = the adsorption rate constant for component *
k+ = the forward reaction rate constant
k = reaction rate constant for oxidation of hydrocarbon
k* = reaction rate constant for surface re-oxidation
Aspen HYSYS has provided a general form, as follows, to allow
user to build in the form of rate expression they want to use.
where:
kf and kr = the Rate Constants of the forward and reverse
kinetic rate expressions
K = the absorption rate constant
M = number of absorbed reactants and products plus
absorbed inert species
Langmuir-
Hinshelwood Model
(5.16)
Eley-Rideal Model (5.17)
Mars-van Krevelen
Model (5.18)
(5.19)
r
k+KAKBCACB
1 KACA KBCB KPCP+ + +( )2
------------------------------------------------------------------------=
r
k+KBCACB
1 KBCB KPCP+ +( )
-------------------------------------------------=
r
kCA
1 a b⁄( ) k k∗⁄( )CACB
n–+
----------------------------------------------------------=
r
kf Ci
αi
i 1=
Reactants
∏ kr Cj
βj
j 1=
Products
∏–
1 Kk Cg
γkg
g 1=
M
∏
⎩ ⎭
⎪ ⎪
⎨ ⎬
⎪ ⎪
⎧ ⎫
k 1=
M
∑+
⎝ ⎠
⎜ ⎟
⎜ ⎟
⎜ ⎟
⎛ ⎞ n
-------------------------------------------------------------------=5-27
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-28 Reactions
ww
ThThe rate constants kf, kr and Kk are all in Arrhenius form. You
are required to prove the Arrhenius parameters (pre-
exponential factor A and activation energy E) for each of these
constants.
You may have to group constants, for example in Equation
(5.16), kf = k+ KAKB. You must take care in inputting the
correct values of the Arrhenius equation. Also note that no
default values are given for these constants.
The Heterogeneous Catalytic Reaction option can be used in
both CSTR and PFR reactor unit operations. A typical Reaction
Set may include multiple instances of the Heterogeneous
Catalytic Reaction.
Stoichiometry Tab
When the Heterogeneous Catalytic Reaction is selected, the
following property view appears:
 Figure 5.125-28
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-29
ww
ThFor each catalytic reaction, you must supply the following
information:
Basis Tab
The Basis tab for a catalytic reaction is shown below:
Input Required Description
Reaction Name A default name is provided, which may be changed.
Components You must specify a minimum of one reactant and one
product for each reaction you include. Open the drop-
down list in the cell to access all of the available
components. The Molecular Weight of each component
is automatically displayed.
Stoichiometric
Coefficient
Necessary for every component in this reaction. The
Stoichiometric Coefficient is negative for a reactant
and positive for a product. The Stoichiometric
Coefficient need not be an integer; fractional
coefficients are acceptable. You may specify the
coefficient for an inert component as 0, which in this
case is the same as not including the component in the
list.
 Figure 5.135-29
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-30 Reactions
ww
ThOn the Basis tab, the following parameters may be specified:
Input Required Description
Basis Open the drop-down list in the cell to select the Basis
for the reaction. For example, select Partial Pressure or
Molar Concentration as the basis.
Base Component Only a component that is consumed in the reaction (a
reactant) may be specified as the Base Component
(i.e., a reaction product or an inert component is not a
valid choice). You can use the same component as the
Base Component for a number of reactions, and it is
acceptable for the Base Component of one reaction to
be a product of another reaction.
Reaction Phase The phase for which the kinetics apply. Different
kinetics for different phases can be modeled in the
same reactor. Possible choices for the Reaction Phase
(available in the drop-down list) are Overall, Vapour
Phase, Liquid Phase, Aqueous Phase, and Combined
Liquid.
Minimum
Temperature and
Maximum
Temperature
Enter the minimum and maximum temperatures for
which the forward and reverse reaction Arrhenius
equations are valid. If the temperature does not
remain in these bounds, a warning message alerts you
during the simulation.
Basis Units Enter the appropriate units for the Basis, or make a
selection from the drop-down list.
Rate Units Enter the appropriate units for the rate of reaction, or
make a selection from the drop-down list.5-30
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-31
ww
ThNumerator Tab
The Numerator tab is specified in much the same way as you
would specify a typical Aspen HYSYS Kinetic Reaction. The
Numerator tab is shown below:
You must supply the forward and reverse parameters of the
extended Arrhenius equation. The forward and reverse reaction
rate constants are calculated from these values. In addition to
the rate constants, you must also specify the reaction order of
the various components for both the forward and reverse
reactions. This is done by selecting the Components field of the
Reaction Order cell matrix, and selecting the appropriate
component from the drop-down list and entering values for the
Forward and/or Reverse orders.
When specifying Forward and Reverse relationships it is
important to maintain thermodynamic consistency. For more
information on thermodynamic consistency see Section 5.3.4 -
Kinetic Reaction, Thermodynamic Consistency.
 Figure 5.14
For more information on
Kinetic reaction
specifications see Section
5.3.4 - Kinetic
Reaction.5-31
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-32 Reactions
ww
ThDenominator Tab
The Denominator tab for a catalytic reaction is shown in the
following figure:
The Denominator tab contains the Component Exponents matrix
in which each row represents a denominator term. The A and E
columns are for the pre-exponential factor and the activation
energy, respectively for the adsorption term (K).
The remaining columns are used to specify the exponents ( )
of the absorbed components (Cg). In order to add a term to the
denominator of the kinetic expression, you must activate the
row of the matrix containing the  message and add the
relevant equation parameter values. The Delete Term button is
provided to delete the selected row (or corresponding term) in
the matrix. The overall exponent term n is specified in the
Denominator Exponent field.
 Figure 5.15
(5.20)1 Kk Cg
γkg
g 1=
M
∏
⎩ ⎭
⎪ ⎪
⎨ ⎬
⎪ ⎪
⎧ ⎫
k 1=
M
∑+
⎝ ⎠
⎜ ⎟
⎜ ⎟
⎜ ⎟
⎛ ⎞ n
γkg5-32
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-33
ww
Th5.3.6 Simple Rate Reaction
The Simple Rate Reaction is also similar to the Kinetic Reaction,
except that the reverse reaction rate expression is derived from
equilibrium data.
Stoichiometry Tab
When the Simple Rate Reaction is selected the following
property view appears.
For each reaction, supply the following information:
When you have supplied all of the required information for
the Simple Rate Reaction, the status bar (at the bottom right
corner) will change from Not Ready to Ready.
 Figure 5.16
Field Description
Reaction Name A default name is provided, which may be changed.
Components You must specify a minimum of one reactant and one product for
each reaction you include. Open the drop-down list in the cell to
access all of the available components. The Molecular Weight of
each component is automatically displayed.
Stoichiometric
Coefficient
Necessary for every component in this reaction. The Stoichiometric
Coefficient is negative for a reactant and positive for a product. The
Stoichiometric Coefficient need not be an integer; fractional
coefficients are acceptable. You may specify the coefficient for an
inert component as 0, which in this case is the same as not including
the component in the list.5-33
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-34 Reactions
ww
ThBasis Tab
The Basis tab for the simple rate reaction is shown below:
On the Basis tab, the following parameters may be specified:
 Figure 5.17
Parameter Description
Basis Open the drop-down list in the cell to select the Basis
for the reaction. For example, select Partial Pressure or
Molar Concentration as the basis.
Base Component Only a component that is consumed in the reaction (a
reactant) may be specified as the Base Component
(i.e., a reaction product or an inert component is not a
valid choice). You can use the same component as the
Base Component for a number of reactions, and it is
acceptable for the Base Component of one reaction to
be a product of another reaction.
Reaction Phase The phase for which the kinetics apply. Different
kinetics for different phases can be modeled in the
same reactor. Possible choices for the Reaction Phase,
available in the drop-down list, are Overall, Vapour
Phase, Liquid Phase, Aqueous Phase and Combined
Liquid.
Minimum
Temperature and
Maximum
Temperature
Enter the minimum and maximum temperatures for
which the forward and reverse reaction Arrhenius
equations are valid. If the temperature does not
remain in these bounds, a warning message alerts you
during the simulation.
Basis Units Enter the appropriate units for the Basis, or make a
selection from the drop-down list.
Rate Units Enter the appropriate units for the rate of reaction, or
make a selection from the drop-down list.5-34
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-35
ww
ThParameters Tab
The Parameters tab for the rate reaction is shown below:
The forward reaction rate constants are a function of
temperature according to the following extended form of the
Arrhenius equation:
where:
k = forward reaction rate constant
A = forward reaction Frequency Factor
E = forward reaction Activation Energy
 = forward extended reaction rate constant
R = Ideal Gas Constant
T = Absolute Temperature
 Figure 5.18
(5.21)
If Arrhenius coefficient A is equal to zero, there is no
reaction. If Arrhenius coefficients E and  are equal to zero,
the rate constant is considered to be fixed at a value of A for
all temperatures.
k A E
RT
------– Tβ⋅exp⋅=
β
β
5-35
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-36 Reaction Sets
ww
ThThe reverse equilibrium constant K' is considered to be a
function of temperature only:
where:
A', B', C', D' = the reverse equilibrium constants
You must supply at least one of the four reverse equilibrium
constants.
5.4 Reaction Sets
All Reaction Sets created within the Reaction Manager become
available for attachment to your reactor operations in the
flowsheet. Reaction Sets may contain more than one reaction.
There is limited flexibility for the mixing of reaction types within
a Reaction Set. You can have Equilibrium and Kinetic reactions
within a single Reaction Set, but you must have a distinct
Reaction Set for conversion reactions.
Aspen HYSYS provides the Global Rxn Set, which contains all
compatible reactions that you have defined in the case. If you
only add Kinetic and Equilibrium reactions, or exclusively
Conversion reactions to the case, all reactions are active within
the Global Rxn Set. However, if you add an incompatible mix of
reactions (i.e., Conversion and Kinetic), only the type of
reactions that are compatible with the first installed reaction are
active in the Global Rxn Set.
The same reaction can be active in multiple reaction sets. A new
set can be added from the Reaction Manager by selecting the
Add Set button.
(5.22)
If only one type of reaction is used, all reactions are active in
the Global Rxn Set, thereby eliminating the need to explicitly
define a new Reaction Set.
K′ln A′ B′
T
---- C′ T( )ln D′T+ + +=5-36
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-37
ww
Th5.4.1 Manipulating Reaction
Sets
All Reaction Set manipulations are conducted in the Reaction
Sets group of the Reactions tab of the Basis Manager. The
following buttons are available in the Reaction Sets group to
manipulate reaction sets:
Button Description
View Set Displays the property view for the highlighted reaction set.
Add Set Adds a reaction set to the list of reaction sets and opens its
property view.
Delete Set Removes the highlighted reaction set(s) from the Reaction
Manager. You must confirm your action to delete a reaction
set.
Copy Set Duplicates the highlighted reaction set(s).
Import Set Opens a reaction set from disk into the current case.
Export Set Saves a reaction set to disk for use in another case.
Add to FP Accesses the Add 'Reaction Set Name' view, from which
you attach the highlighted reaction set(s) to a fluid
package. This button is available only when a Reaction Set
is highlighted in the Reaction Sets group.
When you right-click a Reaction Set in the Reaction Sets
group, you can select View or Delete from the object inspect
menu.5-37
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-38 Reaction Sets
ww
Th5.4.2 Reaction Set Property
View
When you add a new set, or view an existing one, the Reaction
Set property view appears as shown below.
The following table describes the features contained within this
property view.
 Figure 5.19
Feature Description
Name A default Reaction Set name is provided, which can be
changed.
Set Type Aspen HYSYS determines the Set Type from the reaction
types in the Active List. This field cannot be modified. The
Reaction Set types are Conversion, Kinetic, Equilibrium,
and Mixed. A Mixed Set Type corresponds to a Reaction Set
containing both Kinetic and Equilibrium reactions.5-38
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-39
ww
ThSolver
Method
The Solver method is available when dealing with Kinetic
reaction sets. Several Solver Methods are available from
the drop-down list and explained below:
• Default. The Reaction Solver attempts to calculate
the solution using Newton's Method. If this is not
successful, it then uses the Rate Iterated and Rate
Integrated Methods. For most cases, it is best to use
the Default Solver Method.
• Newton's Method. This method usually converges
quickly by taking the derivative of the function using
the current estimates, and uses these results to obtain
new estimates.
• Rate Iterated. This method is a partial Newton's
method, and assumes that the off-diagonal elements
of the Jacobian matrix are equal to zero. The Rate
Iterated Method works well when there is very little
interaction between reactions.
• Rate Integrated. This method integrates the
reaction equations until all time derivatives are zero.
The Rate Integrated method is stable, but slow.
• Auto Selected. Same as Default.
Active List Reactions may be added to the Active List by positioning
the cursor in the Active List column and selecting an
existing Reaction from the drop-down list. You may also
type the name of an existing reaction directly in the cell
that shows .
You can open the property view for any reaction in the
Active List by highlighting it and clicking the View Active
button. Alternatively, you may double-click on the reaction
to view it.
A reaction in the Active List may be transferred to the
Inactive List simply by selecting the reaction and clicking
the Make Inactive button.
Inactive List Existing reactions may be added to the Inactive List by
positioning the cursor in the Inactive List column and
selecting a Reaction from the drop-down list.
You can access the property view for any reaction in the
Inactive List by highlighting it and clicking the View
Inactive button. You may also double-click on the reaction
to view it.
A reaction in the Inactive List may be transferred to the
Active List by selecting the reaction and clicking the Make
Active button. If this reaction is not independent of other
reactions in the Active List, an error message is displayed,
and the reaction remains in the Inactive List.
You cannot have two versions of the same reaction with
different rate constants in the Active List.
Operations
Attached
All operations to which the Reaction Set is attached are
listed in this column.
Feature Description5-39
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-40 Reaction Sets
ww
ThAdvanced Features
By clicking the Advanced button, you can view the Advanced
reaction options.
Within the Volume Continuation Parameters group, the following
options are available:
 Figure 5.20
Object Description
Volume
Continuation
For most cases, it is not necessary to select this option.
In situations where convergence is not easily attained
(e.g., high reaction rates), select the Volume
Continuation checkbox to enable Aspen HYSYS to
more easily reach a solution. For Volume Continuation
calculations, Aspen HYSYS “ramps” the volume starting
from the initial volume fraction to the final volume
fraction in the specified number of steps. For each
successive step, the previous solution is used as the
initial estimate for the next step.
Initial Volume
Fraction
The default value is 1.0000e-06. This is the Volume
Fraction at the start of the calculations.
Number of Steps The default value is 10. If the solution does not
converge, increase this value and re-run the
simulation.
Current Parm
Value
This field displays the current parameter value.
Current Step
Number
This field displays the current step number.5-40
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-41
ww
ThThe parameters within the Initial Estimate Generation
Parameters group are generally used with Reactions that have a
high degree of interaction. You can also use these parameters to
give some assistance in obtaining the final solution when the
reactor operation fails to converge or when you have a large
number of components and reactions. The parameters are
described in the following table:
The Reaction Solver Option group allows you to set the number
of iterations and the tolerance level. The option depends on the
boundary condition of the reactor operation which is using the
reaction set. For example, when a reactor operation is used to
determine the outlet temperature, the number of iterations and
tolerance level are used in the reaction solver to search for a
solution.
Trace Level Provides a trace output of the calculations in the Trace
Window. The trace level value corresponds to the level
of detail that you see in the Trace Window. You are
limited to the values 0, 1, 2, or 3.
Prev Solution as
Estimates
It is necessary to make an initial estimate of the outlet
compositions to obtain the proper solution. Select this
checkbox if you want to use the previous solution as
the initial estimate. This does not apply to the
conversion reaction, since the specified conversion
determines the outlet compositions.
Use Iso and Adia
Temp as Adia Est
If you calculate a heat flow given a specific
temperature, and then use this heat flow as a spec
(deleting the temperature specification), Aspen HYSYS
uses the previously calculated temperature as an
estimate for the Adiabatic calculation.
Parameter Description
Damping
Factor
Default is 1.0, indicating that there is no damping. You can
change this value. With a lower the damping factor, Aspen
HYSYS uses smaller steps (slower and more stable) in
converging towards the solution.
Tolerance This is the tolerance set for the Estimate Generation. By
default, this is set to 0.001. You are able to change this
value.
Maximum
Iterations
Maximum number of iterations Aspen HYSYS uses. There is
no default value, and so you can set whatever value is
desired.
Object Description5-41
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-42 Reaction Sets
ww
ThReaction Rank
The Ranking button is visible only when the Reaction Set type is
Conversion. This option automatically handles most situations
where reactions are sequential:
allowing the three reactions to be modeled in a single reactor.
In this case the Rank would be:
However in situations where there are competing reactions:
you can use the Ranking factor to specify which conversion
value should be applied first. For example, if Rxn-4 was ranked
first, the specified conversion for Rxn-5 would only be applied to
the amount of component B remaining after Rxn-4 had run to its
specified conversion.
Option Description
Max Numb of
Iteration
Controls the maximum number of iterations specified
before the reaction solver stops searching for a solution. By
default, the value is 200.
Tolerance The specified tolerance level is the relative error between
the energy balance equation and the calculated value by
the reaction solver in the iteration. By default, the value is
0.00001.
A B→
Rxn 1–
B C→
Rxn 2–
C D→
Rxn 3–
A B 1→
B C 2→
C D 3→
A B+ C→
Rxn 4–
B D+ E→
Rxn 5–5-42
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-43
ww
Th
To specify the Ranking, you must do so from the Reaction Ranks
property view, which contains the following fields:
 Figure 5.21
Aspen HYSYS assigns default ranks to multiple conversion
reactions by examining the reactants and products. For
example, you may have a reaction set containing the
following:
1.CH4+H2O  CO+3H2
2.CH4+2H2O  CO2+4H2
3.CH4+2O2  CO2+2H2O
Aspen HYSYS notices that a product of Reaction 3, H2O, is
used as a reactant in both Reactions 1 and 2. Since H2O may
not be available until Reaction 3 has occurred, it is assigned
a rank of 0 and the other reactions are each given the default
Rank of 1. The feed composition is not taken into account, as
Reaction Ranks are assigned prior to entering the Build
Environment.
Object Description
Reaction This column shows all of the reactions to be ranked.
Rank Shows the rank for each reaction, which is an integer value.
The minimum value is 0 and the maximum is equal to the
number of Reactions ranked. Thus, when ranking three
sequential reactions, you may rank them 0-1-2 or 1-2-3;
both methods give the same results. You may override the
default values through the input of new values in the
appropriate cells.
You can set two or more reactions to have the same Rank;
for instance, the ranks for Rxn-1 and Rxn-2 may be 1, and
the rank for Rxn-3 may be 2.
User
Specified
If you specify the Rank of the reaction, this checkbox is
selected.
→
→
→
5-43
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-44 Reaction Sets
ww
ThThe buttons along the bottom of the Reaction Ranks property
view have the following functions:
5.4.3 Exporting/Importing a
Reaction Set
After a Reaction Set is customized with reactions, it can be
exported to a file. The same Reaction Set can then be used in
another simulation case by importing the file and attaching it to
a fluid package. Highlight a Reaction Set in the Reaction Sets
group of the Reaction Manager and click the Export Set button.
Select a file path (the default is usually satisfactory) and enter a
filename with the extension *.rst. Click the Save button to
export the reaction set to a file.
The Import Set button allows you to introduce an exported
Reaction Set into a simulation case. Choose the Reaction Set file
(with the extension *.rst) from the list and select the Open
button. If the file is not listed in the File Name field, an alternate
File Path may be needed.
Button Description
Cancel Closes the property view without accepting any changes
that were made.
Reset Resets the Reaction Ranks to the internal default.
Accept Closes the property view, accepting the changes that were
made.
 Figure 5.225-44
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-45
ww
Th5.4.4 Adding a Reaction Set to
a Fluid Package
To make a Reaction Set available inside the flowsheet, attach it
to the fluid package which is associated with the flowsheet.
Highlight a reaction set in the Reaction Sets group of the
Reaction Manager and click the Add to FP button. The Add
'Reaction Set Name' view appears, where you can highlight a
fluid package and click the Add Set to Fluid Package button.
5.4.5 Reactions in the Build
Environment
When you are inside the Main or Column Environment you can
access the Reaction Package property view without having to
return to the fluid package. Under Flowsheet in the Main Menu,
select Reaction Package.
When a Reaction Set is attached to a unit operation, you can
access the Reaction Set property view or the property view(s)
for the associated Reaction(s) directly from the property view of
the operation. Some of the unit operations that support
reactions include the Reactor operation (conversion, equilibrium,
or kinetic), the PFR, the Separator, and the Column.
 Figure 5.23
Refer to Section 5.3 -
Reaction Package of the
Aspen HYSYS User
Guide for more details.
Refer to the Aspen
HYSYS Operation
Guide for more
information on the
individual unit operations.5-45
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-46 Generalized Procedure
ww
Th5.5 Generalized Procedure
The following procedure outlines the basic steps for creating a
reaction, creating a reaction set, adding the reaction to the
reaction set and then making the set available to the flowsheet.
Refer to the Reaction Package property view, shown in Figure
5.1, as you follow the procedure:
1. Select Reaction Package under Flowsheet in the menu
bar.
2. On the Reaction Package property view, click the Add Rxn
button to create a new Reaction.
3. A Reactions property view appears, from which you must
select the type of reaction to create. Select a reaction type
and click the Add Reaction button.
4. The property view for the reaction type you selected is
displayed. Complete the input for the reaction until Ready
appears as the status message. You can close the Reaction
property view, if desired.
 Figure 5.245-46
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-47
ww
Th5. On the Reaction Package property view, click the New Set
button to create a Reaction Set. The Reaction Set property
view appears.
6. If desired, change the Name of the Reaction Set to better
identify it.
7. To attach the newly created reaction to the Reaction Set,
place the cursor in the  cell of the Active List
column. Open the drop-down list in the cell and select a
reaction. The reaction becomes attached to the Reaction Set,
as indicated by the selected checkbox in the OK column.
8. Click the Close button on the Reaction Set property view.
9. In the Available Reaction Sets group of the Reaction
Package property view, highlight the name of the newly
created Reaction Set. Notice that the attached reaction is
listed in the Associated Reactions group.
10.Click the Add Set button to make the Reaction Set, and thus
the Reaction, available to unit operations in the flowsheet.
The new Reaction Set is displayed in the Current Reaction
Sets group.
 Figure 5.255-47
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-48 Reactions - Example
ww
Th5.6 Reactions - Example
The following procedure demonstrates the minimum steps
required for:
• The addition of components to the Reaction Manager.
• The creation of a reaction.
• The addition of the reaction to a reaction set.
• The attachment of the reaction set to a fluid package.
5.6.1 Add Components to the
Reaction Manager
For this example, it is assumed that a New Case is created and a
fluid package is installed.
1. Within the fluid package, the Peng Robinson property
package is selected.
2. Within the component list, the following set of components
are selected: H2O, CO, CO2, H2, O2, and CH4.
3. Go to the Reactions tab of the Simulation Basis Manager.
The selected components are present in the Rxn
Components group.
5.6.2 Create a Reaction
1. To install a reaction, click the Add Rxn button.
2. From the Reactions property view, highlight the Conversion
reaction type and click the Add Reaction button. The
Conversion Reaction property view appears.
3. On the Stoichiometry tab, select the first row of the
Component column in the Stoichiometry Info table.
4. Select Methane from the drop-down list. The Mole Weight
column automatically provides the molar weight of methane.
5. In the Stoich Coeff field, enter -3 (i.e., 3 moles of methane
is consumed).
Refer to Section 2.4 -
HYSYS Fluid Package
Property View for
details on installing a fluid
package.
Refer to Section 5.3 -
Reactions for
information concerning
reaction types and the
addition of reactions.5-48
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-49
ww
Th6. Now define the rest of the Stoichiometry tab as shown in the
figure below and click the Balance button.
7. Go to the Basis tab and set Methane as the Base
Component and Conversion to 60%. The status bar at the
bottom of the property view now shows a Ready status.
Close the property view.
5.6.3 Add the Reaction to a
Reaction Set
By default, the Global Rxn Set is present within the Reaction
Sets group when you first display the Reaction Manager.
However, for this procedure, a new Reaction Set is created:
1. Click the Add Set button. Aspen HYSYS provides the name
Set-1 and opens the Reaction Set property view.
2. To attach the newly created Reaction to the Reaction Set,
place the cursor in the  cell under Active List.
3. Open the drop-down list and select the name of the Reaction
(Rxn-1). The Set Type corresponds to the type of Reaction
which you have added to the Reaction Set.
 Figure 5.26
Refer to Section 5.4 -
Reaction Sets for details
concerning Reactions
Sets.5-49
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-50 Reactions - Example
ww
ThThe status is now Ready.
4. Close the property view to return to the Reaction Manager.
5.6.4 Attach the Reaction Set
to a Fluid Package
1. To attach the reaction set to the fluid package, highlight Set-
1 in the Reaction Sets group and click the Add to FP button.
When a Reaction Set is attached to a Fluid Package, it
becomes available to unit operations within the Flowsheet
using that particular Fluid Package.
2. The Add 'Set-1' property view appears, from which you
highlight a fluid package and click the Add Set to Fluid
Package button.
 Figure 5.27
 Figure 5.285-50
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Reactions 5-51
ww
Th3. Close the property view. Notice that the name of the fluid
package appears in the Assoc. Fluid Pkgs group when the
Reaction Set is highlighted in the Reaction Sets group.5-51
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
5-52 Reactions - Example
ww
Th5-52
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Component Maps 6-1
ww
Th6  Component Maps6-1
6.1  Introduction................................................................................... 2
6.2  Component Maps Tab..................................................................... 2
6.2.1  Component Mapping Group ....................................................... 3
6.2.2  Collections Group ..................................................................... 3
6.2.3  Maps for Collection Group.......................................................... 3
6.3  Component Map Property View ...................................................... 4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
6-2 Introduction
ww
Th6.1 Introduction
On the Component Maps tab of the Simulation Basis Manager,
you can map fluid component composition across fluid package
boundaries. Composition values for individual components from
one fluid package can be mapped to a different component in an
alternate fluid package. This is usually done when dealing with
hypothetical oil components.
Two previously defined fluid packages are required to perform a
component mapping which is defined as a collection. One fluid
package becomes the target component set and the other
becomes the source component set. Mapping is performed using
a matrix of source and target components. The transfer basis
can be performed on a mole, mass, or liquid volume basis.
6.2 Component Maps Tab
The Component Maps tab of the Simulation Basis Manager is
shown below.
 Figure 6.16-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Component Maps 6-3
ww
Th6.2.1 Component Mapping
Group
The Component Mapping group defines the source and target
fluid packages to be mapped. Once two distinct fluid packages
are selected, the Create Collection button creates a collection in
the Collections group.
6.2.2 Collections Group
The Collections group lists all the component mapping
collections currently available. You can change the collection
name by selecting the name you want to edit and typing in the
new name.
6.2.3 Maps for Collection
Group
The Maps for Collection group allows you to manage your
Component Maps for each collection. The Collection drop-down
list lets you select the collection maps that you want to add,
edit, or delete. A default collection map is added to this list and
cannot be deleted. To add a Component Map based on the
currently selected collection, click the Add button. To view a
Component Map, select it from the list and click the View
button. Both the Add and View buttons open the Component
Map Property view. To delete a Component Map, select the map
from the list and click the Delete button.6-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
6-4 Component Map Property View
ww
Th6.3 Component Map
Property View
Each time a Component Map is created or viewed via the
Component Maps tab of the Simulation Basis Manager, the
Component Map property view opens as shown below:
The Component Map property view allows you to map the
source components to the target components in the component
matrix. Within the matrix, you can map all Specifiable (in red)
component mapping values. The following table describes all of
the options found in this property view.
 Figure 6.2
Object Description
Name Displays the name of the component map. The name
can be modified within the cell.
View Options The View Options group provides you with three
options in which to view the component matrix.
• View All. Displays all of the source and target
components in the matrix.
• View Specifiable. Displays only the components
that require values.
• Transpose. Transposes the component matrix.6-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Component Maps 6-5
ww
ThComponent
Transfer Options
The Component Transfer Options group provides two
options.
• Unlock all Components. Unlocks all of the
component values, allowing you to specify your
own values.
• Transfer Like Hypotheticals. Automatically
maps like hypotheticals.
• Transfer Hypos by NBP. Automatically maps
hypos by NBP. This option is available when  the
Transfer Like Hypotheticals checkbox is
selected.
Transfer Basis The Transfer Basis group provides three options that
allow you to define the composition mapping basis:
• Mole
• Mass
• Liq Volume
Multiple Specify Allows you to specify a value to one or more
components at a time.
Clone from
another Map
Allows you to import values into the mapping matrix
from another map.
Clear All Removes all of the user defined information from the
matrix.
Normalize Normalizes the mapping matrix.
Object Description6-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
6-6 Component Map Property View
ww
Th6-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
User Properties 7-1
ww
Th7  User Properties7-1
7.1  Introduction................................................................................... 2
7.2  User Properties Tab ....................................................................... 3
7.2.1  Adding a User Property ............................................................. 4
7.3  User Property Property View.......................................................... 5
7.3.1  Data Tab ................................................................................. 5
7.3.2  Notes Tab................................................................................ 9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
7-2 Introduction
ww
Th7.1 Introduction
On the User Properties tab of the Simulation Basis Manager, you
can create an unlimited number of user properties for use in the
Build Environment. A User Property is any property that can be
defined and subsequently calculated on the basis of
composition.
When User Properties are specified, they are used globally
throughout the case. You can supply a User Property value for
each component. User properties can be modified for a specific
component, fluid package, or stream using the property editor.
Specifying a User Property is similar to supplying a value at the
component level in that it is globally available throughout the
case, unless it is specified otherwise. It is the initial user
property value for the component in the master component list.
By selecting the mixing basis and mixing equation, the total
User Property can be calculated.
After a User Property is defined, Aspen HYSYS is able to
calculate the value of the property for any flowsheet stream
through the User Property utility. User Properties can also be set
as Column specifications.
Refer to Edit Properties
from Section 1.2.3 -
Manipulating the
Selected Components
List for more
information on the
property editor.7-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
User Properties 7-3
ww
Th7.2 User Properties Tab
The User Properties tab of the Simulation Basis Manager is
shown below:
The available User Properties are listed in the User Properties
group. The following User Property manipulation buttons are
available:
In the User Property Parameters group, all information
pertaining to the highlighted property in the User Property group
is displayed. You can edit the User Property parameters directly
on the Simulation Basis property view or click the View button
for the User Property property view.
 Figure 7.1
Button Description
View Edit the currently highlighted User Property.
A User Property can also be added or viewed through the
Oil Characterization - User Property tab.
Add Create a new User Property.
Delete Erase the currently highlighted User Property. Aspen HYSYS
will not prompt for confirmation when deleting a User
Property, so be careful when you are using this command.
Refer to Section 7.3 -
User Property Property
View for descriptions of
the User Property
Parameters.7-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
7-4 User Properties Tab
ww
Th7.2.1 Adding a User Property
To add a user property, follow the steps below:
1. On the User Properties tab of the Simulation Basis Manager,
click the Add button. The User Property property view
appears.
2. Provide a descriptive Name for the user property on
Simulation Basis property view.
3. In the User Property Parameters group, select a Mixing
Basis using the drop-down list within the cell.
4. Select a Mixing Rule.
5. You can modify the two Mixing Parameters (F1 and F2) to
more accurately reflect your property formula.
6. Select a Unit Type from the filtered drop-down list.
7. Input initial property values for each component.7-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
User Properties 7-5
ww
Th7.3 User Property Property
View
Each time a User Property is created through the User Property
tab of the Simulation Basis Manager, the User Property property
view is displayed. The User Property property view has two tabs,
the Data tab and the Notes tab. All information regarding the
calculation of the User Property is specified on the Data tab.
7.3.1 Data Tab
On the Data tab, the Basic user prop definition, and the Initial
user property value groups are displayed.
 Figure 7.27-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
7-6 User Property Property View
ww
ThBasic User Property Definition Group
The following options are available for Process type properties:
Parameter Description
Mixing Basis You have the following options: Mole Fraction, Mass
Fraction,  and Liquid Volume Fraction.
All calculations are performed using compositions in
Aspen HYSYS internal units. If you have specified a flow
basis (molar, mass or liquid volume flow), Aspen HYSYS
uses the composition as calculated in internal units for
that basis.
For example, a User Property with a Mixing Basis
specified as molar flow is always calculated using
compositions in kg mole/s, regardless of what the current
default units are.
Mixing Rule Select from one of three mixing rules:
(7.1)
(7.2)
(7.3)
where:
Pmix = total user property value
P(i) = user property value for component
x(i) = component page value which should be a
dimensionless value (fraction)
Index = blended (total) index value
f1 and f2 are specified constants
Mixing
Parameters
The mixing parameters f1 and f2 are 1.00 by default. You
may supply any value for these parameters.
Unit Type This option allows you to select the variable type for the
user property.
For example, if you have a temperature user property,
select temperature in the unit type using the drop-down
list.
Pmix( )f 1 f 2 x i( )P i( )f 1( )
i 1=
N
∑=
Pmix( )f 1 f 2 x i( ) P i( )( )f 1ln( )
i 1=
N
∑=
Index x i( ) f 1 P i( )⋅ 10f 2 P i( )⋅+( )
i 1=
N
∑=7-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
User Properties 7-7
ww
ThMixing Rules
As listed previously, there are three mixing rules available when
you are defining a user property. Equation (7.1) and Equation
(7.2) are relatively straightforward. The index mixing rule,
Equation (7.3), is slightly more complex.
With the index mixing rule, Aspen HYSYS allows you to combine
properties that are not inherently linear. A property is made
linear through the use of the index equation.
Equation (7.3) can be simplified into the following equations:
You supply the individual component properties (Pi) and the
index equation parameters (i.e., f1 and f2). Using Equation
(7.4), Aspen HYSYS calculates an individual index value for
each supplied property value. The sum of the index values,
which is the blended index value, is then calculated using the
Mixing Basis you have selected (Equation (7.5)).
The blended index value is used in an iterative calculation to
produce the blended property value (P in Equation (7.6)). The
blended property value is the value which will be displayed in
the user property utility.
(7.4)
(7.5)
(7.6)
The form of your index equation must resemble the Aspen
HYSYS index equation such that you can supply the f1 and f2
parameters. Some common properties which can make use
of the Index equation include R.O.N., Pour Point and
Viscosity.
Indexi f 1 P i( )⋅ 10f 2 P i( )⋅+=
Index x i( ) Indexi⋅
i 1=
N
∑=
Index f1 P 10f 2 P⋅+⋅=7-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
7-8 User Property Property View
ww
ThInitial User Property Values for All
Components Group
The purpose of this property view is to instruct Aspen HYSYS
how the User Property should be initialized throughout the case.
Whenever the value of a User Property is requested by the User
Property utility or by the column specification, Aspen HYSYS
uses the composition in the specified basis, and calculate the
User Property value using your mixing rule and parameters.
The values for pure components are always used for the
property and are not overwritten by the synthesis. The values
for hypocomponents are only used if the synthesis of the
property can not be achieved. For example, if there are
insufficient number of data points. To specify a Property Value,
click on the Edit component user property values button.
Edit Component User Property
Values
This property view allows you to edit initial user property values
for components in the master component list.
 Figure 7.3
User Property values can
be assigned to
hypocomponent during
the characterization of an
oil. Refer to Section
7.2.1 - Adding a User
Property for more
information.
Refer to Chapter 14 -
Utilities of the Aspen
HYSYS Operations
Guide for more
information on the User
Property utility.
Refer to Chapter 2 -
Column Operations of
the Aspen HYSYS
Operations Guide for
information on the User
Property specification.7-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
User Properties 7-9
ww
ThOnce property values are entered or edited, click the Submit
button which allows all values to be modified at one time. The
changes are reflected on the User Property property view for
each component.
7.3.2 Notes Tab
Aspen HYSYS provides a tab where you can enter a description
of the User Properties for your own future reference.7-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
7-10 User Property Property View
ww
Th7-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-1
ww
ThA  Property Methods &
CalculationsA-1
A.1  Introduction .................................................................................. 3
A.2  Selecting Property Methods ........................................................... 4
A.3  Property Methods ........................................................................ 10
A.3.1  Equations of State.................................................................. 11
A.3.2  Activity Models ...................................................................... 23
A.3.3  Activity Model Vapour Phase Options......................................... 45
A.3.4  Semi-Empirical Methods.......................................................... 47
A.3.5  Vapour Pressure Property Packages .......................................... 48
A.3.6  Miscellaneous - Special Application Methods............................... 52
A.4  Enthalpy & Entropy Departure Calculations ................................. 56
A.4.1  Equations of State.................................................................. 56
A.4.2  Activity Models ...................................................................... 59
A.4.3  Lee-Kesler Option................................................................... 61
A.5  Physical & Transport Properties................................................... 64
A.5.1  Liquid Density........................................................................ 65
A.5.2  Vapour Density ...................................................................... 66
A.5.3  Viscosity ............................................................................... 66
A.5.4  Liquid Phase Mixing Rules for Viscosity...................................... 68
A.5.5  Thermal Conductivity.............................................................. 70
A.5.6  Surface Tension ..................................................................... 73
A.5.7  Heat Capacity ........................................................................ 74
A.6  Volumetric Flow Rate Calculations............................................... 74
A.6.1  Available Flow Rates ............................................................... 75
A.6.2  Liquid & Vapour Density Basis .................................................. 76
A.6.3  Formulation of Flow Rate Calculations ....................................... 78
A.6.4  Volumetric Flow Rates as Specifications..................................... 80
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-2 Property Methods & Calculations
A-2
A.7  Flash Calculations.........................................................................81
A.7.1  T-P Flash Calculation ...............................................................82
A.7.2  Vapour Fraction Flash ..............................................................83
A.7.3  Enthalpy Flash........................................................................85
A.7.4  Entropy Flash .........................................................................85
A.7.5  Electrolyte Flash .....................................................................85
A.7.6  Handling of Water ...................................................................86
A.7.7  Supercritical Handling..............................................................88
A.7.8  Solids....................................................................................89
A.7.9  Stream Information.................................................................90
A.8  References ...................................................................................91
www.cadfamily.com    EMail:cadserv21@hotmail.com
The document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-3
ww
ThA.1 Introduction
This appendix is organized such that the detailed calculations
that occur within the Simulation Basis Manager and within the
Flowsheet are explained in a logical manner.
• In the first section, an overview of property method
selection is presented. Various process systems and their
recommended property methods are listed.
• Detailed information is provided concerning each
individual property method available in Aspen HYSYS.
This section is further subdivided into equations of state,
activity models, Chao-Seader based semi-empirical
methods, vapour pressure models, and miscellaneous
methods.
• Following the detailed property method discussion is the
section concerning enthalpy and entropy departure
calculations. The enthalpy and entropy options available
within Aspen HYSYS are largely dependent upon your
choice of a property method.
• The physical and transport properties are covered in
detail. The methods used by Aspen HYSYS in calculating
liquid density, vapour density, viscosity, thermal
conductivity, and surface tension are listed.
• Aspen HYSYS handles volume flow calculations in a
unique way. To highlight the methods involved in
calculating volumes, a separate section is provided.
• The next section ties all of the previous information
together. Within Aspen HYSYS, the Flash calculation uses
the equations of the selected property method, as well as
the physical and transport property functions to
determine all property values for Flowsheet streams.
After a flash calculation is performed on an object, all of
its thermodynamic, physical and transport properties are
defined. The flash calculation in Aspen HYSYS does not
require initial guesses or the specification of flash type to
assist in its convergence.
• A list of References is included at the end of the
Appendix.A-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-4 Selecting Property Methods
ww
ThA.2 Selecting Property
Methods
The property packages available in Aspen HYSYS allow you to
predict properties of mixtures ranging from well defined light
hydrocarbon systems to complex oil mixtures and highly non-
ideal (non-electrolyte) chemical systems. Aspen HYSYS provides
options for:
• Enhanced equations of state (PR and PRSV) for rigorous
treatment of hydrocarbon systems
• Semi-empirical and vapour pressure models for the
heavier hydrocarbon systems
• Steam correlations for accurate steam property
predictions
• Activity coefficient models for chemical systems
All of these equations have their own inherent limitations and
you are encouraged to become more familiar with the
application of each equation.
The following table lists some typical systems and
recommended correlations. However, when in doubt of the
accuracy or application of one of the property packages, contact
AspenTech to receive additional validation material or our best
estimate of its accuracy.
Type of System Recommended Property Method
TEG Dehydration PR
Sour Water Sour PR
Cryogenic Gas Processing PR, PRSV, TST
Air Separation PR, PRSV, TST
Atm Crude Towers PR, PR Options, GS, TST
Vacuum Towers PR, PR Options, GS (<10 mm Hg),
Braun K10, Esso K, TST
Ethylene Towers Lee Kesler Plocker
High H2 Systems PR, ZJ, GS (see T/P limits), TST
Reservoir Systems PR, PR Options, TST
Steam Systems Steam Package, CS or GS
Hydrate Inhibition PR
Chemical systems Activity Models, PRSVA-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-5
ww
ThA.2.1 Activity Models
The Activity Model options in Aspen HYSYS are Chien Null,
Extended NRTL, General NRTL, Margules, NRTL, UNIQUAC, Van
Laar, and Wilson.
Activity Models, which handle highly non-ideal systems, are
much more empirical in nature when compared to the property
predictions in the hydrocarbon industry. Polar or non-ideal
chemical systems are traditionally handled using dual model
approaches. In this type of approach, an equation of state is
used for predicting the vapour fugacity coefficients and an
activity coefficient model is used for the liquid phase. Since the
experimental data for activity model parameters are fitted for a
specific range, these property methods cannot be used as
reliably for generalized application.
A.2.2 Chao Seader Models
The Chao Seader Model options in Aspen HYSYS are Chao
Seader and Grayson Streed.
The Chao Seader Models, though limited in scope, may be
preferred in some instances. For example, they are
recommended for problems containing mainly liquid or vapour
H2O because they include special correlations that accurately
represent the steam tables.
• The Chao Seader method can be used for light
hydrocarbon mixtures.
HF Alkylation PRSV, NRTL (Contact AspenTech)
TEG Dehydration with Aromatics PR (Contact AspenTech)
Hydrocarbon systems where H2O
solubility in HC is important
Kabadi Danner
Systems with select gases and light
hydrocarbons
MBWR
Type of System Recommended Property MethodA-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-6 Selecting Property Methods
ww
Th• The Grayson-Streed correlation is recommended for use
with systems having a high concentration of H2 because
of the special treatment given H2 in the development of
the model. This correlation may also be slightly more
accurate in the simulation of vacuum towers.
The Chao Seader and Grayson Streed packages can also be used
for three-phase flashes, but are restricted to the use of pure
H2O for the second liquid phase.
A.2.3 Equations of State (EOS)
The Equation of State (EOS) models include BWRS, GCEOS,
Glycol Package, Kabadi-Danner, Lee-Kesler-Plocker, MBWR,
Peng-Robinson, PR-Twu, PRSV, Sour PR, Sour SRK, SRK, SRK-
Twu, Twu-Sim-Tassone, and Zudkevitch-Joffee.
Peng-Robinson (PR)
For oil, gas, and petrochemical applications, the Peng-Robinson
EOS (PR) is generally the recommended property package.
Enhancements to this equation of state enable it to be accurate
for a variety of systems over a wide range of conditions. It
rigorously solves any single-, two-, or three-phase system with
a high degree of efficiency and reliability and is applicable over a
wide range of conditions, as shown in the following table.
The PR EOS is enhanced to yield accurate phase equilibrium
calculations for systems ranging from low-temperature
cryogenic systems to high-temperature, high-pressure reservoir
systems. The same EOS satisfactorily predicts component
distributions for heavy oil, aqueous glycol, and CH3OH systems.
Method Temp (°F) Temp (°C) Pressure (psia) Pressure (kPa)
PR > -456 > -271 < 15,000 < 100,000
The range of applicability in many cases is more indicative of
the availability of good data rather than on the actual
limitations.A-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-7
ww
ThThe PR EOS perform rigorous three-phase flash calculations for
aqueous systems containing H2O, CH3OH or glycols, as well as
systems containing other hydrocarbons or non-hydrocarbons in
the second liquid phase.
The PR can also be used for crude systems, which have
traditionally been modeled with dual model thermodynamic
packages (an activity model representing the liquid phase
behaviour, and an EOS or the ideal gas law for the vapour phase
properties). These earlier models are suspect for systems with
large amounts of light ends or when approaching critical
regions. Also, the dual model system leads to internal
inconsistencies. The proprietary enhancements to the PR
method allow it to correctly represent vacuum conditions and
heavy components (a problem with traditional EOS methods),
as well as handle the light ends and high-pressure systems.
Soave-Redlich-Kwong (SRK)
The Soave-Redlich-Kwong (SRK) equation also provides
comparable results to the PR in many cases. However, the SRK
range of application is significantly limited and it is not as
reliable for non-ideal systems. For example, it should not be
used for systems with CH3OH or glycols.
The SRK can also be used for crude systems, which have
traditionally been modeled with dual model thermodynamic
packages (an activity model representing the liquid phase
behaviour, and an equation of state or the ideal gas law for the
vapour phase properties). These earlier models are suspect for
systems with large amounts of light ends or when approaching
critical regions. Also, the dual model system leads to internal
inconsistencies. The proprietary enhancements to the SRK
method allow it to correctly represent vacuum conditions and
heavy components (a problem with traditional EOS methods),
as well as handle the light ends and high-pressure systems.
Method Temp (°F) Temp (°C) Pressure (psia) Pressure (kPa)
PR > -456 > -271 < 15,000 < 100,000
SRK > -225 > -143 <  5,000 < 35,000A-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-8 Selecting Property Methods
ww
ThAs an alternate, the PRSV EOS should also be considered. It can
handle the same systems as the PR equation with equivalent, or
better accuracy, plus it is more suitable for handling moderately
non-ideal systems.
Peng-Robinson Stryjek-Vera (PRSV)
The PRSV equation of state can handle the same systems as the
PR equation with equivalent, or better, accuracy. PRSV is also
more suitable for handling moderately non-ideal systems.
The advantage of the PRSV equation is that not only does it
have the potential to more accurately predict the phase
behaviour of hydrocarbon systems, particularly for systems
composed of dissimilar components, but it can also be extended
to handle non-ideal systems with accuracies that rival traditional
activity coefficient models. The only compromise is increased
computational time and the additional interaction parameter
that is required for the equation.
The PRSV equation of state performs rigorous three-phase flash
calculations for aqueous systems containing H2O, CH3OH, or
glycols, as well as systems containing other hydrocarbons or
non-hydrocarbons in the second liquid phase.
Twu-Sim-Tassone (TST)
The Twu-Sim-Tassone (TST) cubic equation of state (CEOS)
model is another alternative property package for crude
systems. TST uses the Twu alpha function and TST excess Gibbs
energy mixing rules for the accurate prediction of K-values. TST
also allows the EOS to describe both van der Waals fluids and
highly non-ideal mixtures in a consistent and unified framework.
TST is generalized as a linear function of acentric factor to allow
the extension of its use to lower reduced temperatures and
heavy hydrocarbons. The generalized EOS accurately represents
the vapour pressure over the entire range of temperatures for
both light and heavy hydrocarbons. Compared to SRK and PR,
the TST EOS predicts similar accuracy in the vapor-liquid A-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-9
ww
Thequilibria of highly non-ideal systems over a wide range of
temperature and pressure.
A.2.4 Vapour Pressure Models
The Vapour Pressure models include Antoine, Braun K10, and
Esso Tabular.
The Vapour Pressure models are designed to handle heavier
hydrocarbon systems at lower pressures. These equations are
traditionally applied for heavier hydrocarbon fractionation
systems and consequently provide a good means of comparison
against rigorous models. They should not be considered for VLE
predictions for systems operating at high pressures or systems
with significant quantities of light hydrocarbons.
A.2.5 Miscellaneous Types
Property packages that do not fit into the other categories are
listed as Miscellaneous Types. These models include Amine Pkg,
ASME Steam, Aspen Properties, DBR Amine Package, Infochem
Multiflash, NBS Steam, Neotec Black Oil, and OLI Electrolyte.
• Amine Pkg and DBR Amine Package are recommended
for simulating the removal of acid gases (hydrogen
sulphide and carbon dioxide) in natural gas plants and oil
refineries
• ASME Steam and NBS Steam are recommended for
steam systems.
• Neotec Black Oil is recommended for modeling the
behaviour of a petroleum fluid downstream of the well
and flowlines (systems where the liquid phase is a non-
volatile oil).
• Infochem Multiflash is recommended for modeling the
properties of gases, liquids, and solids (characterize and
match the properties of petroleum fluids, and multiphase
flashes capable of handling any combination of phases).
• OLI Electrolyte is recommended for aqueous electrolyte
systems.A-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-10 Property Methods
ww
ThA.3 Property Methods
Details of each individual property method available in Aspen
HYSYS are provided in this section, including equations of state,
activity models, Chao-Seader based empirical methods, vapour
pressure models, and miscellaneous methods.
The following table provides a summary of the available
methods of VLE and Enthalpy/Entropy calculation for each of the
Property Methods.
Property Method VLE Calculation
Enthalpy/Entropy
Calculation
Equations of State
PR PR PR
PR LK ENTH PR Lee-Kesler
SRK SRK SRK
SRK LK ENTH SRK Lee-Kesler
Kabadi Danner Kabadi Danner SRK
Lee Kesler Plocker Lee Kesler Plocker Lee Kesler
PRSV PRSV PRSV
PRSV LK PRSV Lee-Kesler
Sour PR PR & API-Sour PR
SOUR SRK SRK & API-Sour SRK
Zudkevitch-Joffee Zudkevitch-Joffee Lee-Kesler
Activity Models
Liquid
Chien Null Chien Null Cavett
Extended and General
NRTL
NRTL Cavett
Margules Margules Cavett
NRTL NRTL Cavett
UNIQUAC UNIQUAC Cavett
van Laar van Laar Cavett
Wilson Wilson Cavett
Vapour
Ideal Gas Ideal Ideal Gas
RK RK RK
Virial Virial Virial
Peng Robinson Peng Robinson Peng Robinson
SRK SRK SRK
Please refer to Section
A.4 - Enthalpy &
Entropy Departure
Calculations, for a
description of Enthalpy
and Entropy calculations.A-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-11
ww
ThA.3.1 Equations of State
Aspen HYSYS currently offers the following equations of state:
• Peng-Robinson14 (PR)
• Soave-Redlich-Kwong19 (SRK)
• Twu-Sim-Tassone (TST)
In addition, Aspen HYSYS offers several methods which are
modifications of these property packages, including PRSV,
Zudkevitch Joffee (ZJ), and Kabadi Danner (KD). Lee Kesler
Plocker12 (LKP) is an adaptation of the Lee Kesler equation for
mixtures, which itself was modified from the BWR equation. Of
these, the PR EOS supports the widest range of operating
conditions and the greatest variety of systems. The Peng-
Robinson and Soave-Redlich-Kwong EOSs generate all required
equilibrium and thermodynamic properties directly. Although the
forms of these EOS methods are common with other commercial
simulators, they have been significantly enhanced by AspenTech
to extend their range of applicability.
Semi-Empirical Models
Chao-Seader CS-RK Lee-Kesler
Grayson-Streed GS-RK Lee-Kesler
Vapour Pressure Models
Mod Antoine Mod Antoine-Ideal Gas Lee-Kesler
Braun K10 Braun K10-Ideal Gas Lee-Kesler
Esso K Esso-Ideal Gas Lee-Kesler
Miscellaneous - Special Application Methods
Amines Mod Kent Eisenberg
(L), PR (V)
Curve Fit
Steam Packages
ASME Steam ASME Steam Tables ASME Steam Tables
NBS Steam NBS/NRC Steam Tables NBS/NRC Steam Tables
MBWR Modified BWR Modified BWR
The properties predicted by the Aspen HYSYS PR and SRK
equations of state do not necessarily agree with those
predicted by the PR and SRK of other commercial simulators.
Property Method VLE Calculation
Enthalpy/Entropy
CalculationA-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-12 Property Methods
ww
ThThe Peng-Robinson property package options are PR, Sour PR,
and PRSV. Soave-Redlich-Kwong equation of state options are
the SRK, Sour SRK, KD, and ZJ.
PR & SRK
The PR and SRK packages contain enhanced binary interaction
parameters for all library hydrocarbon-hydrocarbon pairs (a
combination of fitted and generated interaction parameters), as
well as for most hydrocarbon-nonhydrocarbon binaries.
For non-library or hydrocarbon hypocomponent, HC-HC
interaction parameters are generated automatically by Aspen
HYSYS for improved VLE property predictions.
The PR EOS applies a functionality to some specific component-
component interaction parameters. Key components receiving
special treatment include He, H2, N2, CO2, H2S, H2O, CH3OH,
EG, DEG, and TEG. For further information on application of
equations of state for specific components, contact AspenTech.
The PR or SRK EOS should not be used for non-ideal
chemicals such as alcohols, acids, or other components. They
are more accurately handled by the Activity Models (highly
non-ideal) or the PRSV EOS (moderately non-ideal).A-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-13
ww
ThThe following page provides a comparison of the formulations
used in Aspen HYSYS for the PR and SRK equations of state.
Soave Redlich Kwong Peng Robinson

where:
b=

bi=
a=
ai=
aci=
=
mi=
When an acentric factor > 0.49 is present Aspen
HYSYS uses following corrected form:
A=
B=
P RT
V b–
------------ a
V V b+( )
---------------------–=
Z3 Z2– A B– B2–( )Z AB–+ 0=
P RT
V b–
------------ a
V V b+( ) b V b–( )+
------------------------------------------------–=
Z3 1 B–( )– Z2 A 2B– 3B2–( )Z AB B2– B3–( )–+ 0=
xibi
i 1=
N
∑ xibi
i 1=
N
∑
0.08664
RTci
Pci
---------- 0.077796
RTci
Pci
----------
xixj aiaj( )0.5 1 kij–( )
j 1=
N
∑
i 1=
N
∑ xixj aiaj( )0.5 1 kij–( )
j 1=
N
∑
i 1=
N
∑
aciαi aciαi
0.42747
RTci( )2
Pci
------------------ 0.457235
RTci( )2
Pci
------------------
αi
0.5 1 mi 1 Tri
0.5–( )+ 1 mi 1 Tri
0.5–( )+
0.48 1.574ωi 0.176ωi
2–+ 0.37464 1.54226ωi 0.26992ωi
2–+
0.379642 1.48503 0.164423 0.016666ωi–( )ωi–( )ωi+
aP
RT( )2
-------------- aP
RT( )2
--------------
bP
RT
------ bP
RT
------A-13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-14 Property Methods
ww
ThTwu-Sim-Tassone (TST)
The TST EOS model incorporates:
• Twu alpha function, which can accurately represent the
vapor pressure of pure components
• Advanced zero-pressure mixing rules, which can
accurately represent phase equilibria of complex non-
ideal systems
The required parameters for the Twu alpha function have been
determined for the components in the Aspen HYSYS database.
Binary interaction parameters for components typically
encountered in the TEG hydration process have also been
determined. Please refer to Section D.3.1 – TST Mixing Rules
for a more thorough description of the TST EOS and its mixing
rules.
Kabadi Danner (KD)
This KD10 model is a modification of the original SRK EOS,
enhanced to improve the vapour-liquid-liquid equilibria
calculations for H2O-hydrocarbon systems, particularly in the
dilute regions.
The model is an improvement over previous attempts which
were limited in the region of validity. The modification is based
on an asymmetric mixing rule, whereby the interaction in the
water phase (with its strong H2 bonding) is calculated based on
both the interaction between the hydrocarbons and the H2O,
and on the perturbation by hydrocarbon on the H2O-H2O
interaction (due to its structure).A-14
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-15
ww
ThLee Kesler Plöcker Equation
The Lee Kesler Plöcker equation is an accurate general method
for non-polar substances and mixtures.
Plöcker et al.3 applied the Lee Kesler equation to mixtures,
which itself was modified from the BWR equation.
The compressibility factors are determined as follows:
The Lee Kesler Plöcker equation does not use the COSTALD
correlation in computing liquid density. This may result in
differences when comparing results between equation of
states.
(A.1)
(A.2)
(A.3)
z z o( ) ω
ω r( )
--------- z r( ) z o( )–( )+=
z pv
RT
------
prvr
Tr
--------- z Tr vr Ak, ,( )= = =
z 1 B
vr
---- C
vr
2
---- D
vr
5
---- C4
Tr
3vr
2
---------- β γ
vr
2
----+ γ–
vr
2
-----exp+ + + +=A-15
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-16 Property Methods
ww
Thwhere:
Mixing rules for pseudocritical properties are as follows:
(A.4)
vr
pcv
RTc
---------=
C c1
c2
Tr
----–
c3
Tr
2
-----+=
ω o( ) 0=
B b1
b2
Tr
----–
b3
Tr
2
-----–
b4
Tr
3
-----–=
D d1
d2
Tr
----–=
ω r( ) 0.3978=
Tcm
1
Vcm
η
---------
⎝ ⎠
⎜ ⎟
⎛ ⎞
xixjvcij
j
∑
i
∑=
Tcij
Tci
Tcj
( )1 2⁄= Tcii
Tci
= Tcjj
Tcj
=
vcm
xixjvcij
j
∑
i
∑=
vcij
1
8
-- vci
1 3⁄ vcj
1 3⁄+( )
3
=
vci
zci
RTci
pci
----------=
zci
0.2905 0.085ωi–=A-16
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-17
ww
Thpcm
zcm
RTcm
vcm
-----------=
zcm
0.2905 0.085ωm–=
ωm xiωi
i
∑=A-17
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-18 Property Methods
ww
ThPeng-Robinson Stryjek-Vera
The Peng-Robinson Stryjek-Vera (PRSV) EOS is a two-fold
modification of the PR EOS that extends the application of the
original PR method for moderately non-ideal systems. It is
shown to match vapour pressures curves of pure components
and mixtures more accurately than the PR method, especially at
low vapour pressures.
It is successfully extended to handle non-ideal systems giving
results as good as those obtained using excess Gibbs energy
functions like the Wilson, NRTL, or UNIQUAC equations.
One of the proposed modifications to the PR equation of state by
Stryjek and Vera was an expanded alpha ( ) term that became
a function of acentricity and an empirical parameter ( ) used
for fitting pure component vapour pressures.
where:
 = characteristic pure component parameter
 = acentric factor
The  parameters  for a large number of compounds are stored in
the Aspen HYSYS database. These s are determined using the
equation in A.5  instead of the original PRSV equation. This equation
better fits the data over the entire T range because the experimental
vapor pressure data generally covers the entire range of the saturation
curve (generally from Tb up to the critical point: Tr = 1). If the original
PRSV equation is used, only vapor pressure data up to Tr = 0.7
have an effect on .
The adjustable ( ) term allows for a much closer fit of the pure
component vapour pressure curves. This term is regressed
(A.5)
α
κi
αi 1 κi 1 Tr
0.5–( )+[ ]
2
=
κi κ0i κ+ 1i 1 Tri
0.5+( ) 0.7 Tri
–( )=
κ0i 0.378893 1.4897153ωi 0.17131848ωi
2– 0.0196554ωi
3+ +=
κ1i
ωi
κ1 i
κ1i
κ1i
κ1iA-18
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-19
ww
Thagainst the pure component vapour pressure for all components
in Aspen HYSYS library.
For hypocomponents that are generated to represent oil
fractions, Aspen HYSYS automatically regresses the  term for
each hypocomponent against the Lee-Kesler vapour pressure
curves. For individual user-added hypothetical components,
terms can either be entered or they are automatically regressed
against the Lee-Kesler, Gomez-Thodos or Reidel correlations.
The second modification consists of a new set of mixing rules for
mixtures. Conventional mixing rules are used for the volume
and energy parameters in mixtures, but the mixing rule for the
cross term, aij, is modified to adopt a composition dependent
form. Although two different mixing rules were proposed in the
original paper, Aspen HYSYS has incorporated only the Margules
expression for the cross term.
where:
Although only a limited number of binary pairs are regressed for
this equation, our limited experience suggests that the PRSV
can be used to model moderately non-ideal systems such as
H2O-alcohol systems, some hydrocarbon-alcohol systems. You
can also model hydrocarbon systems with improved accuracy.
Also, due to PRSV's better vapour pressure predictions,
improved heat of vaporization predictions should be expected.
(A.6)
If kij =kji, the mixing rules reduce to the standard PR
equation of state.
Different values can be entered for each of the binary
interaction parameters.
κ1i
κ1i
aij aiiajj( )0.5 1.0 xikij– xjkji–( )=
kij kji≠A-19
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-20 Property Methods
ww
ThSour Water Options
Sour Water options in Aspen HYSYS take into account the
presence of caustic (NaOH) and carboxylic acids (such as formic
acid, acetic acid, acrylic acid, maleic acid, succinic acid, and
benzoic acid).  These components affect the chemical
equilibrium calculations to determine the concentration of ions
(such as OH-, H+, HS-), which are then used to compute pH and
solubility of CO2, H2S, and NH3.
The Sour option is available for both the PR and SRK equations
of state. The Sour PR option combines the PR equation of state
and Wilson's API-Sour Model for handling sour water systems,
while Sour SRK uses the SRK equation of state with the Wilson
model.
The Sour options use the appropriate equation of state for
calculating the fugacities of the vapour and liquid hydrocarbon
phases as well as the enthalpy for all three phases. The K-values
for the aqueous phase are calculated using Wilson's API-Sour
method. This option uses Wilson's model to account for the
ionization of the H2S, CO2, and NH3 in the aqueous water phase.
The aqueous model employs a modification of Van Krevelen's
original model with many of the key limitations removed. The K-
value of water is calculated using an empirical equation, which is
a function of temperature only. More details of the model are
available in the original API publication 955 titled "A New
Correlation of NH3, CO2, and H2S Volatility Data from Aqueous
Sour Water Systems."
The original model has the following ranges:
• Temperatures between 20°C (68°F) and 140°C (285°F)
• Pressures up to 50 psi
• Composition range of 1 ppm to about 30% weight of
dissolved ammonia, carboxylic acid, salts, and caustic
• pH range: 2 to 14
Use of either the PR or SRK equation of state to correct vapour
phase non idealities extends this range, but due to lack of
experimental data, exact ranges cannot be specified. The
acceptable pressure ranges for the Aspen HYSYS model vary
depending upon the concentration of the acid gases and H2O. A-20
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-21
ww
ThThe method performs well when the H2O partial pressure is
below 100 psi.
This option may be applied to sour water strippers, hydrotreater
loops, crude columns, or any process containing hydrocarbons,
acid gases, and H2O.
Zudkevitch Joffee
The Zudkevitch Joffee model is a modification of the Redlich
Kwong equation of state. This model is enhanced for better
prediction of vapour liquid equilibria for hydrocarbon systems,
and systems containing H2. The major advantage of this model
over the previous version of the RK equation is the improved
capability of predicting pure component equilibria, and the
simplification of the method for determining the required
coefficients for the equation.
Enthalpy calculations for this model are performed using the Lee
Kesler model.
EOS Enthalpy Calculation
With any the Equation of State options except ZJ and LKP, you
can specify whether the Enthalpy is calculated by either the
Equation of State method or the Lee Kesler method. The ZJ and
LKP must use the Lee Kesler method in Enthalpy calculations.
Selection of an enthalpy method is done by selecting radio
buttons in the Enthalpy Method group.
The flash calculation is much slower than the standard EOS,
because the method performs an ion balance for each K-
value calculation.
 Figure A.1A-21
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-22 Property Methods
ww
ThSelecting the Lee Kesler Enthalpy option results in a combined
property package employing the appropriate equation of state
(either PR or SRK) for vapour-liquid equilibrium calculations and
the Lee-Kesler equation for calculation of enthalpies and
entropies.
The LK method yields comparable results to Aspen HYSYS'
standard equations of state and has identical ranges of
applicability. As such, this option with PR has a slightly greater
range of applicability than with SRK.
Zero Kij Option
Aspen HYSYS automatically generates hydrocarbon-
hydrocarbon interaction parameters when values are unknown if
the Estimate HC-HC/Set Non HC-HC to 0.0 radio button is
selected.
The Set All to 0.0 radio button turns off the automatic
calculation of any estimated interaction coefficients between
hydrocarbons. All binary interaction parameters that are
obtained from the pure component library remain.
The Set All to 0.0 option may prove useful when trying to match
results from other commercial simulators which may not supply
interaction parameters for higher molecular weight
The Lee-Kesler enthalpies may be slightly more accurate for
heavy hydrocarbon systems, but require more computer
resources because a separate model must be solved.
This option is set on the Binary Coeffs tab of the Fluid
Package property view.
 Figure A.2
For information on the
differences between EOS
and LK methods, refer to
the Section A.4 -
Enthalpy & Entropy
Departure
Calculations.A-22
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-23
ww
Thhydrocarbons.
A.3.2 Activity Models
Although equation of state models have proven to be reliable in
predicting properties of most hydrocarbon based fluids over a
large range of operating conditions, their application is limited to
primarily non-polar or slightly polar components. Polar or non-
ideal chemical systems are traditionally handled using dual
model approaches. In this approach, an equation of state is
used for predicting the vapour fugacity coefficients (normally
ideal gas assumption or the Redlich Kwong, Peng-Robinson or
SRK equations of state, although a Virial equation of state is
available for specific applications) and an activity coefficient
model is used for the liquid phase. Although there is
considerable research being conducted to extend equation of
state applications into the chemical arena (e.g., the PRSV
equation), the state of the art of property predictions for
chemical systems is still governed mainly by Activity Models.
Activity Models are much more empirical in nature when
compared to the property predictions (equations of state)
typically used in the hydrocarbon industry. For example, they
cannot be used as reliably as the equations of state for
generalized application or extrapolating into untested operating
conditions. Their tuning parameters should be fitted against a
representative sample of experimental data and their
application should be limited to moderate pressures.
Consequently, more caution should be exercised when selecting
these models for your simulation.
Activity Models produce the best results when they are
applied in the operating region for which the interaction
parameters were regressed.A-23
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-24 Property Methods
ww
ThThe phase separation or equilibrium ratio Ki for component i,
defined in terms of the vapour phase fugacity coefficient and the
liquid phase activity coefficient is calculated from the following
expression:
where:
 = liquid phase activity coefficient of component i
fi° = standard state fugacity of component i
P = system pressure
 = vapour phase fugacity coefficient of component i
Although for ideal solutions the activity coefficient is unity, for
most chemical (non-ideal) systems this approximation is
incorrect. Dissimilar chemicals normally exhibit not only large
deviations from an ideal solution, but the deviation is also found
to be a strong function of the composition. To account for this
non-ideality, activity models were developed to predict the
activity coefficients of the components in the liquid phase. The
derived correlations were based on the excess Gibbs energy
function, which is defined as the observed Gibbs energy of a
mixture in excess of what it would be if the solution behaved
ideally, at the same temperature and pressure.
For a multi-component mixture consisting of ni moles of
component i, the total excess Gibbs free energy is represented
by the following expression:
where:
 = activity coefficient for component i
(A.7)
(A.8)
Ki
yi
xi
---=
γi fi°
Pφi
---------=
γi
φi
GE RT ni γiln( )∑=
γiA-24
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-25
ww
ThThe individual activity coefficients for any system can be
obtained from a derived expression for excess Gibbs energy
function coupled with the Gibbs-Duhem equation. The early
models (Margules, van Laar) provide an empirical
representation of the excess function that limits their
application. The newer models such as Wilson, NRTL and
UNIQUAC utilize the local composition concept and provide an
improvement in their general application and reliability. All of
these models involve the concept of binary interaction
parameters and require that they be fitted to experimental data.
Since the Margules and van Laar models are less complex than
the Wilson, NRTL and UNIQUAC models, they require less CPU
time for solving flash calculations. However, these are older and
more empirically based models and generally give poor results
for strongly non-ideal mixtures such as alcohol-hydrocarbon
systems, particularly for dilute regions. The Chien-Null model
provides the ability to incorporate the different activity models
within a consistent thermodynamic framework. Each binary can
be represented by the model which best predicts its behaviour.
The following table briefly summarizes recommended models for
different applications (for a more detailed review, refer to the
texts “The Properties of Gases & Liquids”17 and “Molecular
Thermodynamics of Fluid Phase Equilibria” 16).
A = Applicable; N/A = Not Applicable;? = Questionable; G = Good; LA = Limited Application
Vapour phase non-ideality can be taken into account for each
activity model by selecting the Redlich-Kwong, Peng-Robinson,
or SRK equations of state as the vapour phase model. When one
Application Margules van Laar Wilson NRTL UNIQUAC
Binary Systems A A A  A A
Multicomponent
Systems
LA LA A  A A
Azeotropic Systems A A A  A A
Liquid-Liquid Equilibria A A N/A  A A
Dilute Systems ? ? A A A
Self-Associating
Systems
? ? A A A
Polymers N/A N/A N/A N/A A
Extrapolation ? ? G G GA-25
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-26 Property Methods
ww
Thof the equations of state is used for the vapour phase, the
standard form of the Poynting correction factor is always used
for liquid phase correction. If dimerization occurs in the vapour
phase, the Virial equation of state should be selected as the
vapour phase model.
The binary parameters required for the activity models are
regressed based on the VLE data collected from DECHEMA,
Chemistry Data Series12. There are over 16,000 fitted binary
pairs in the Aspen HYSYS library. The structures of all library
components applicable for the UNIFAC VLE estimation are also
in the library. The Poynting correction for the liquid phase is
ignored if ideal solution behaviour is assumed.
If you are using the built-in binary parameters, the ideal gas
model should be used. All activity models, with the exception of
the Wilson equation, can automatically calculate three phases
given the correct set of energy parameters. The vapour
pressures used in the calculation of the standard state fugacity
are based on the pure component coefficients in Aspen HYSYS'
library using the modified form of the Antoine equation.
When your selected components exhibit dimerization in the
vapour phase, the Virial option should be selected as the vapour
phase model. Aspen HYSYS contains fitted parameters for many
carboxylic acids, and can estimate values from pure component
properties if the necessary parameters are not available.
All of the binary parameters in the Aspen HYSYS library are
regressed using an ideal gas model for the vapour phase.
Aspen HYSYS internally stored binary parameters are NOT
regressed against three phase equilibrium data.
Refer to Section A.3.3
- Activity Model
Vapour Phase Options
for a detailed description
of the Virial option.A-26
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-27
ww
ThGeneral Remarks
The dual model approach for solving chemical systems with
activity models cannot be used with the same degree of
flexibility and reliability that the equations of state can be used
for hydrocarbon systems. However, some checks can be devised
to ensure a good confidence level in property predictions:
• Check the property package selected for applicability for
the system considered and see how well it matches the
pure component vapour pressures. Although the
predicted pure component vapour pressures should
normally be acceptable, the parameters are fitted over a
large temperature range. Improved accuracies can be
attained by regressing the parameters over the desired
temperature range.
• The automatic UNIFAC generation of energy parameters
in Aspen HYSYS is a very useful tool and is available for
all activity models. However, it must be used with
caution. The standard fitted values in Aspen HYSYS likely
produce a better fit for the binary system than the
parameters generated by UNIFAC. As a general rule, use
the UNIFAC generated parameters only as a last resort.
• Always use experimental data to regress the energy
parameters when possible. The energy parameters in
Aspen HYSYS are regressed from experimental data,
however, improved fits are still possible by fitting the
parameters for the narrow operating ranges anticipated.
The regressed parameters are based on data taken at
atmospheric pressures. Exercise caution when
extrapolating to higher or lower pressure (vacuum)
applications.
• Check the accuracy of the model for azeotropic systems.
Additional fitting may be required to match the azeotrope
with acceptable accuracy. Check not only for the
temperature, but for the composition as well.
• If three phase behaviour is suspected, additional fitting
of the parameters may be required to reliably reproduce
the VLLE equilibrium conditions.
• An improvement in matching equilibrium data can be
attained by including a temperature dependency of the
energy parameters. However, depending on the validity
or range of fit, this can lead to misleading results when
extrapolating beyond the fitted temperature range.
By default, Aspen HYSYS regresses ONLY the aij parameters
while the bij parameters are set to zero, i.e., the aij term is
assumed to be temperature independent. A temperature
dependency can be incorporated by supplying a value for the bij A-27
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-28 Property Methods
ww
Thterm. The matrix for the bij values are displayed by selecting the
Bij radio button to switch matrices (note the zero or blank
entries for all the binary pairs).
When using the NRTL, General NRTL or Extended NRTL
equations, more than two matrices are available. In general, the
second matrix is the Bij matrix, and the third matrix is the
parameter where . Any component pair with an aij value
has an associated  value.
Immiscible
This option is included for modeling the solubility of solutes in
two coexisting liquid phases that are relatively immiscible with
one another, such as a H2O-hydrocarbon system. In this system,
the hydrocarbon components (solutes) are relatively insoluble in
the water phase (solvent) whereas the solubility of the H2O in
the hydrocarbon phase can become more significant. The limited
mutual solubility behaviour can be taken into account when
using any activity model with the exception of Wilson.
This feature can be implemented for any single component pair
by using the Immiscible radio button. Component i is insoluble
with component j, based on the highlighted cell location.
Alternatively, you can have all j components treated as insoluble
with component i. Aspen HYSYS replaces the standard binary
parameters with those regressed specifically for matching the
solubilities of the solutes in both phases.
The activities for the unknown binaries are generated at pre-
selected compositions and the supplied UNIFAC reference
temperature.
The Wilson equation does not support LLE equilibrium.
Both the aij and bij parameters are regressed with the
immiscible option.
αij
αij αji=
α
A-28
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-29
ww
ThThese parameters were regressed from the mutual solubility
data of n-C5, n-C6, n-C7, and n-C8 in H2O over a temperature
range of 313 K to 473 K.
The solubility of H2O in the hydrocarbon phase and the solubility
of the hydrocarbons in the water phase are calculated based on
the fitted binary parameters regressed from the solubility data
referenced above.
Chien-Null
The Chien Null model provides a consistent framework for
applying existing activity models on a binary by binary basis. In
this manner, the Chien Null model allows you to select the best
activity model for each pair in the case.
The Chien Null model allows three sets of coefficients for each
component pair, accessible through the A, B and C coefficient
matrices. Please refer to the following sections for an
explanation of the terms for each of the models.
Chien Null Form
The Chien-Null generalized multi-component equation can be
expressed as follows:
Each of the parameters in this equation are defined specifically
for each of the applicable activity methods.
(A.9)
2 Γi
Lln
Aj i,  xj
j
∑⎝ ⎠
⎜ ⎟
⎛ ⎞
Rj i,  xj
j
∑⎝ ⎠
⎜ ⎟
⎛ ⎞
Sj i,  xj
j
∑⎝ ⎠
⎜ ⎟
⎛ ⎞
Vj i,  xj
j
∑⎝ ⎠
⎜ ⎟
⎛ ⎞
------------------------------------------------------- xk
Aj k,   xj
j
∑⎝ ⎠
⎜ ⎟
⎛ ⎞
Rj k,   xj
j
∑⎝ ⎠
⎜ ⎟
⎛ ⎞
Sj k,  xj
j
∑⎝ ⎠
⎜ ⎟
⎛ ⎞
Vj k,  xj
j
∑⎝ ⎠
⎜ ⎟
⎛ ⎞
------------------------------------------------------------  ⋅
k
∑+=
Ai k,
Aj k,  xj
j
∑
----------------------
Ri k,
Rj k,  xj
j
∑
----------------------
Si k,
Sj k,  xj
j
∑
---------------------–
Vi k,
Vj k,  xj
j
∑
----------------------–+A-29
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-30 Property Methods
ww
ThDescription of Terms
The Regular Solution equation uses the following:
 is the solubility parameter in (cal/cm3)½ and vi
L is the
saturated liquid volume in cm3/mol calculated from:
The van Laar, Margules and Scatchard Hamer use the following:
For the van Laar, Margules and Scatchard Hamer equations:
where:
T = temperature unit must be in K
(A.10)
(A.11)
Ai j,
vi
L δi δj–( )2
RT
---------------------------= Ri j,
Ai j,
Aj i,
--------= Vi j, Ri j,= Si j, Ri j,=
δi
vi
L vω i, 5.7 3Tr i,+( )=
Model Ai,j Ri,j Si,j Vi,j
van Laar
Margules
Scatchard Hamer
γi j,
∞ln Ai j,
Aj i,
--------
Ri j, Ri j,
2 γi j,
∞ln
1
γi j,
∞ln
γj i,
∞ln
----------------
⎝ ⎠
⎜ ⎟
⎛ ⎞
+
-------------------------------
Ai j,
Aj i,
--------
1 1
2 γi j,
∞ln
1
γi j,
∞ln
γj i,
∞ln
----------------
⎝ ⎠
⎜ ⎟
⎛ ⎞
+
-------------------------------
Ai j,
Aj i,
-------- vi
∞
vj
∞
-----
vi
∞
vj
∞
-----
(A.12)γi j,
∞ln ai j,
bi j,
T
------- cijT+ +=A-30
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-31
ww
ThThe NRTL form for the Chien Null uses:
The expression for the  term under the Chien Null incorporates
the R term of Aspen HYSYS' NRTL into the values for aij and bij.
As such, the values initialized for NRTL under Chien Null are not
the same as for the regular NRTL. When you select NRTL for a
binary pair, aij is empty (essentially equivalent to the regular
NRTL bij term), bij is initialized and cij is the  term for the
original NRTL, and is assumed to be symmetric.
The General Chien Null equation is:
In all cases:
With the exception of the Regular Solution option, all models
can utilize six constants, ai,j, aj,i, bi,j, bj,i, ci,j and cj,i for each
component pair. For all models, if the constants are unknown
they can be estimated internally from the UNIFAC VLE or LLE
methods, the Insoluble option, or using Henry's Law coefficients
for appropriate components. For the general Chien Null model,
The Equation (A.12) is of a different form than the original
van Laar and Margules equations in Aspen HYSYS, which
uses an a + bT relationship. However, since Aspen HYSYS
only contains aij values, the difference should not cause
problems.
If you have regressed parameters using HYPROP for any of
the Activity Models supported under the Chien Null, they are
not read in.
(A.13)Ai j, 2τi j, Vi j,= Ri j, 1= Vi j, ci j,– τi j,( )exp= Si j, 1= τi j, ai j,
bi j,
T K( )
-----------+=
(A.14)
(A.15)
τ
α
Ai j, ai j,
bi j,
T K( )
-----------+= Ri j,
Ai j,
Aj i,
--------= Vi j, Ci j,= Si j, Ci j,=
Ai i, 0= Ri i, Si i, Vi i, 1= = =A-31
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-32 Property Methods
ww
Ththe cij's are assumed to be 1.
Extended & General NRTL
The Extended and General NRTL models are variations of the
NRTL model. More binary interaction parameters are used in
defining the component activity coefficients. You may apply
either model to systems:
• with a wide boiling point range between components.
• where you require simultaneous solution of VLE and LLE,
and there exists a wide boiling point range or
concentration range between components.
You can specify the format for the Equations of  and  to be
any of the following:
Options
where:
T = temperature in K
t = temperature in °C
τij αij
τij Aij
Bij
T
------
Cij
T2
------ FijT Gij T( )ln+ + + +=
αij Alp1i j Alp2ijT+=
τij
Aij
Bij
T
------+
RT
-------------------=
αi j Alp1ij=
τij Aij
Bij
T
------ FijT Gij T( )ln+ + +=
αij Alp1ij Alp2i jT+=
τij Aij Bijt
Cij
T
------+ +=
αij Alp1ij Alp2ijT+=
τij Aij
Bij
T
------+=
αi j Alp1ij=A-32
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-33
ww
ThDepending on which form of the equations that you have
selected, you are able to specify values for the different
component energy parameters. The General NRTL model
provides radio buttons on the Binary Coeffs tab which access the
matrices for the Aij, Bij, Cij, Fij, Gij, Alp1ij and Alp2ij energy
parameters.
The Extended NRTL model allows you to input values for the Aij,
Bij, Cij, Alp1ij and Alp2ij energy parameters by selecting the
appropriate radio button. You do not have a choice of equation
format for  and . The following is used:
where:
T = temperature in K
t = temperature in °C
Margules
The Margules equation was the first Gibbs excess energy
representation developed. The equation does not have any
theoretical basis, but is useful for quick estimates and data
interpolation. Aspen HYSYS has an extended multicomponent
Margules equation with up to four adjustable parameters per
binary.
The four adjustable parameters for the Margules equation in
Aspen HYSYS are the aij and aji (temperature independent) and
The equations options can be viewed in the Display Form
drop-down list on the Binary Coeffs tab of the Fluid Package
property view.
(A.16)
The equation should not be used for extrapolation beyond
the range over which the energy parameters are fitted.
τij αij
τij Aij Bijt
Cij
T
------+ +⎝ ⎠
⎛ ⎞=
αij Alp1i j Alp2i j+=A-33
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-34 Property Methods
ww
Ththe bij and bji terms (temperature dependent). The equation
uses parameter values stored in Aspen HYSYS or any user
supplied value for further fitting the equation to a given set of
data.
The Margules activity coefficient model is represented by the
following equation:
where:
 = activity coefficient of component i
xi = mole fraction of component i
Ai =
Bi =
T = temperature (K)
n = total number of components
aij = non-temperature dependent energy parameter between
components i and j
bij = temperature dependent energy parameter between
components i and j [1/K]
aji = non-temperature dependent energy parameter between
components j and i
bji = temperature dependent energy parameter between
components j and i [1/K]
NRTL
The NRTL (Non-Random-Two-Liquid) equation, proposed by
Renon and Prausnitz in 1968, is an extension of the original
Wilson equation. It uses statistical mechanics and the liquid cell
(A.17)γiln 1.0 xi–[ ]2 Ai 2xi Bi Ai–( )+[ ]=
γi
xj
aij bijT+( )
1.0 xi–( )
--------------------------
j 1=
n
∑
xj
aji bjiT+( )
1.0 xi–( )
--------------------------
j 1=
n
∑
A-34
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-35
ww
Ththeory to represent the liquid structure. These concepts,
combined with Wilson's local composition model, produce an
equation capable of representing VLE, LLE and VLLE phase
behaviour.
Like the Wilson equation, the NRTL is thermodynamically
consistent and can be applied to ternary and higher order
systems using parameters regressed from binary equilibrium
data. It has an accuracy comparable to the Wilson equation for
VLE systems.
The NRTL equation in Aspen HYSYS contains five adjustable
parameters (temperature dependent and independent) for
fitting per binary pair. The NRTL combines the advantages of the
Wilson and van Laar equations.
• Like the van Laar equation, NRTL is not extremely CPU
intensive and can represent LLE quite well.
• Unlike the van Laar equation, NRTL can be used for dilute
systems and hydrocarbon-alcohol mixtures, although it
may not be as good for alcohol-hydrocarbon systems as
the Wilson equation.
The NRTL equation in Aspen HYSYS has the following form:
where:
 = activity coefficient of component i
Gij =
 =
Due to the mathematical structure of the NRTL equation, it
can produce erroneous multiple miscibility gaps.
(A.18)γiln
τjixjGji
j 1=
n
∑
xkGki
k 1=
n
∑
---------------------------
xjGij
xkGkj
k 1=
n
∑
----------------------- τij
τmjxmGmj
m 1=
n
∑
xkGkj
k 1=
n
∑
-----------------------------------–
⎝ ⎠
⎜ ⎟
⎜ ⎟
⎜ ⎟
⎜ ⎟
⎜ ⎟
⎜ ⎟
⎛ ⎞
j 1=
n
∑+=
γi
τijαij–[ ]exp
τij
aij bijT+
RT
---------------------A-35
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-36 Property Methods
ww
Thxi = mole fraction of component i
T = temperature (K)
n = total number of components
aij = non-temperature dependent energy parameter between
components i and j (cal/gmol)
bij = temperature dependent energy parameter between
components i and j (cal/gmol-K)
 = NRTL non-randomness constant for binary interaction
note that  for all binaries
The five adjustable parameters for the NRTL equation in Aspen
HYSYS are the aij, aji, bij, bji, and  terms. The equation uses
parameter values stored in Aspen HYSYS or any user supplied
value for further fitting the equation to a given set of data.
UNIQUAC
The UNIQUAC (UNIversal QUAsi Chemical) equation proposed
by Abrams and Prausnitz in 1975 uses statistical mechanics and
the quasi-chemical theory of Guggenheim to represent the liquid
structure. The equation is capable of representing LLE, VLE and
VLLE with accuracy comparable to the NRTL equation, but
without the need for a non-randomness factor. The UNIQUAC
equation is significantly more detailed and sophisticated than
any of the other activity models. Its main advantage is that a
good representation of both VLE and LLE can be obtained for a
large range of non-electrolyte mixtures using only two
adjustable parameters per binary. The fitted parameters usually
exhibit a smaller temperature dependence which makes them
more valid for extrapolation purposes.
The UNIQUAC equation utilizes the concept of local composition
as proposed by Wilson. Since the primary concentration variable
is a surface fraction as opposed to a mole fraction, it is
applicable to systems containing molecules of very different
sizes and shape, such as polymer solutions. The UNIQUAC
equation can be applied to a wide range of mixtures containing
H2O, alcohols, nitriles, amines, esters, ketones, aldehydes,
halogenated hydrocarbons and hydrocarbons.
αij
αij αji=
αijA-36
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-37
ww
ThAspen HYSYS contains the following four-parameter extended
form of the UNIQUAC equation. The four adjustable parameters
for the UNIQUAC equation in Aspen HYSYS are the aij and aji
terms (temperature independent), and the bij and bji terms
(temperature dependent).
The equation uses parameter values stored in Aspen HYSYS or
any user supplied value for further fitting the equation to a
given set of data.
where:
 = activity coefficient of component i
xi = mole fraction of component i
T = temperature (K)
n = total number of components
Lj = 0.5Z(rj-qj)-rj+1
 =
 =
 =
(A.19)γiln
Φi
xi
-----⎝ ⎠
⎛ ⎞ln 0.5Zqi
θi
Φi
-----⎝ ⎠
⎛ ⎞ Li
Φi
xi
-----⎝ ⎠
⎛ ⎞ Ljxj qi 1.0 θjτji
j 1=
n
∑ln–
⎝ ⎠
⎜ ⎟
⎜ ⎟
⎛ ⎞
qi
θjτi j
θkτkj
k 1=
n
∑
----------------------
⎝ ⎠
⎜ ⎟
⎜ ⎟
⎜ ⎟
⎜ ⎟
⎜ ⎟
⎜ ⎟
⎛ ⎞
j 1=
n
∑–+
j 1=
n
∑–+ln+=
γi
θi
qixi
qjxj
j
∑
---------------
τij
aij bijT+
RT
---------------------–exp
Φi
rixi
rjxj
j
∑
---------------A-37
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-38 Property Methods
ww
ThZ = 10.0 co-ordination number
aij = non-temperature dependent energy parameter between
components i and j (cal/gmol)
bij = temperature dependent energy parameter between
components i and j (cal/gmol-K)
qi = van der Waals area parameter - Awi /(2.5e9)
Aw = van der Waals area
ri = van der Waals volume parameter - Vwi /(15.17)
Vw = van der Waals volume
Van Laar
The van Laar equation was the first Gibbs excess energy
representation with physical significance. The van Laar equation
in Aspen HYSYS is a modified form of that described in “Phase
Equilibrium in Process Design” by H.R. Null. This equation fits
many systems quite well, particularly for LLE component
distributions. It can be used for systems that exhibit positive or
negative deviations from Raoult's Law, however, it cannot
predict maxima or minima in the activity coefficient. Therefore,
it generally performs poorly for systems with halogenated
hydrocarbons and alcohols. Due to the empirical nature of the
equation, caution should be exercised in analyzing multi-
component systems. It also has a tendency to predict two liquid
phases when they do not exist.
The van Laar equation has some advantages over the other
activity models in that it requires less CPU time and can
represent limited miscibility as well as three phase equilibrium.
Aspen HYSYS uses the following extended, multi-component
form of the van Laar equation.
The van Laar equation also performs poorly for dilute
systems and cannot represent many common systems, such
as alcohol-hydrocarbon mixtures, with acceptable accuracy.
(A.20)γiln Ai 1.0 zi–[ ]2 1.0 Eizi+( )=A-38
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-39
ww
Thwhere:
 = activity coefficient of component i
xi = mole fraction of component i
Ai =
Bi =
Ei = -4.0 if Ai and Bi < 0.0, otherwise 0.0
zi =
T = temperature (K)
n = total number of components
aij = non-temperature dependent energy parameter between
components i and j
bij = temperature dependent energy parameter between
components i and j [1/K]
aji = non-temperature dependent energy parameter between
components j and i
bji = temperature dependent energy parameter between
components j and i [1/K]
The four adjustable parameters for the van Laar equation in
Aspen HYSYS are the aij, aji, bij, and bji terms. The equation will
use parameter values stored in Aspen HYSYS or any user
supplied value for further fitting the equation to a given set of
data.
Wilson
The Wilson equation, proposed by Grant M. Wilson in 1964, was
the first activity coefficient equation that used the local
composition model to derive the Gibbs Excess energy
expression. It offers a thermodynamically consistent approach
to predicting multi-component behaviour from regressed binary
γi
xj
aij bijT+( )
1.0 xi–( )
--------------------------
j 1=
n
∑
xj
aji bjiT+( )
1.0 xi–( )
--------------------------
j 1=
n
∑
Aixi
Aixi Bi 1.0 xi–( )+[ ]
------------------------------------------------A-39
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-40 Property Methods
ww
Thequilibrium data. Our experience also shows that the Wilson
equation can be extrapolated with reasonable confidence to
other operating regions with the same set of regressed energy
parameters.
Although the Wilson equation is more complex and requires
more CPU time than either the van Laar or Margules equations,
it can represent almost all non-ideal liquid solutions
satisfactorily except electrolytes and solutions exhibiting limited
miscibility (LLE or VLLE). It performs an excellent job of
predicting ternary equilibrium using parameters regressed from
binary data only.
The Wilson equation gives similar results as the Margules and
van Laar equations for weak non-ideal systems, but consistently
outperforms them for increasingly non-ideal systems.
The Wilson equation in Aspen HYSYS requires two to four
adjustable parameters per binary. The four adjustable
parameters for the Wilson equation in Aspen HYSYS are the aij
and aji (temperature independent) terms, and the bij and bji
terms (temperature dependent). Depending upon the available
information, the temperature dependent parameters may be set
to zero.
Although the Wilson equation contains terms for temperature
dependency, caution should be exercised when extrapolating.
The Wilson activity model in Aspen HYSYS has the following
The Wilson equation cannot be used for problems involving
liquid-liquid equilibrium.
Setting all four parameters to zero does not reduce the
binary to an ideal solution, but maintains a small effect due
to molecular size differences represented by the ratio of
molar volumes.A-40
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-41
ww
Thform:
where:
 = activity coefficient of component i
Aij =
xi = mole fraction of component i
T = temperature (K)
n = total number of components
aij = non-temperature dependent energy parameter between
components i and j (cal/gmol)
bij = temperature dependent energy parameter between
components i and j (cal/gmol-K)
Vi = molar volume of pure liquid component i in m3/kgmol
(litres/gmol)
The equation uses parameter values stored in Aspen HYSYS or
any user supplied value for further fitting the equation to a
given set of data.
(A.21)γiln 1.0 xjAij
xkAki
xjAkj
j 1=
n
∑
---------------------
k 1=
n
∑–
j 1=
n
∑ln–=
γi
Vj
Vi
----
aij bijT+( )
RT
--------------------------–expA-41
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-42 Property Methods
ww
ThHenry’s Law
Henry's Law cannot be selected explicitly as a property method
in Aspen HYSYS. However, Aspen HYSYS uses Henry's Law when
an activity model is selected and "non-condensable"
components are included within the component list.
Aspen HYSYS considers the following components "non-
condensable":
The extended Henry's Law equation in Aspen HYSYS is used to
model dilute solute/solvent interactions. "Non-condensable"
components are defined as those components that have critical
temperatures below the temperature of the system you are
modeling. The equation has the following form:
Component Simulation Name
CH4 Methane
C2H6 Ethane
C2H4 Ethylene
C2H2 Acetylene
H2 Hydrogen
He Helium
Ar Argon
N2 Nitrogen
O2 Oxygen
NO NO
H2S H2S
CO2 CO2
CO CO
(A.22)Hijln A B
T
--- C T( ) DT+ln+ +=A-42
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-43
ww
Thwhere:
i = solute or "non-condensable" component
j = solvent or condensable component
Hij = Henry's coefficient between i and j in kPa
A = A coefficient entered as aij in the parameter matrix
B = B coefficient entered as aji in the parameter matrix
C = C coefficient entered as bij in the parameter matrix
D = D coefficient entered as bji in the parameter matrix
T = temperature in degrees K
An example of the use of Henry's Law coefficients is illustrated
below. The NRTL activity model is selected as the property
method. There are three components in the Fluid Package, one
of which, ethane, is a "non-condensable" component. On the
Binary Coeffs tab of the Fluid Package property view, you can
view the Henry's Law coefficients for the interaction of ethane
and the other components.
By selecting the Aij radio button, you can view/edit the A and B
coefficients. Select the Bij radio button to enter or view the C
and D coefficients in the Henry's Law equation.A-43
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-44 Property Methods
ww
ThIf Aspen HYSYS does not contain pre-fitted Henry's Law
coefficients and Henry's Law data is not available, Aspen HYSYS
estimates the missing coefficients. To estimate a coefficient (A
or B in this case), select the Aij radio button, highlight a binary
pair and press the Individual Pair button. The coefficients are
regressed to fugacities calculated using the Chao-Seader/
Prausnitz-Shair correlations for standard state fugacity and
Regular Solution. To supply your own coefficients you must
enter them directly into the Aij and Bij matrices, as shown
previously.
No interaction between "non-condensable" component pairs is
taken into account in the VLE calculations.
 Figure A.3
Aspen HYSYS does
not contain a pre-
fitted Henry's Law
A coefficient for
the ethane/ethanol
pair. You can
estimate it or
provide your own
value.
Henry's
Law A
coefficient
for the
interaction
between C2
and H2O.
Normal binary
interaction
coefficient for
the H2O/
Ethanol pair.
C2 is a "non-condensable"
component. Henry's Law
is used for the interaction
between C2 and the other
components in the Fluid
Package.
Henry's Law B
coefficient for the
interaction
between C2 and
H2O.
Henry's Law D
coefficient for the
interaction between
C2 and H2O.
Henry's Law C
coefficient for
the interaction
between C2 and
H2O.A-44
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-45
ww
ThA.3.3 Activity Model Vapour
Phase Options
There are several models available for calculating the Vapour
Phase in conjunction with the selected liquid activity model. The
selection depends on specific considerations of your system.
However, in cases when you are operating at moderate
pressures (less than 5 atm), selecting Ideal Gas should be
satisfactory. The choices are described in the following sections.
Ideal
The ideal gas law is used to model the vapour phase. This model
is appropriate for low pressures and for a vapour phase with
little intermolecular interaction.
Peng Robinson, SRK, or RK
To model non-idealities in the vapour phase, the PR, SRK, or RK
options can be used in conjunction with an activity model. The
PR and SRK vapour phase models handle the same types of
situations as the PR and SRK equations of state.
When selecting one of these options (PR, SRK, or RK) as the
vapour phase model, you must ensure that the binary
interaction parameters used for the activity model remain
applicable with the selected vapour model. You must keep in
mind that all the binary parameters in the Aspen HYSYS Library
are regressed using the ideal gas vapour model.
For applications where you have compressors or turbines being
modeled within your Flowsheet, PR or SRK is superior to either
the RK or ideal vapour model. You obtain more accurate
horsepower values by using PR or SRK, as long as the light
components within your Flowsheet can be handled by the
selected vapour phase model (i.e., C2H4 or C3H6 are fine, but
alcohols are not modeled correctly).
For more information,
refer to Section A.3.1 -
Equations of State.A-45
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-46 Property Methods
ww
ThVirial
The Virial option enables you to better model vapour phase
fugacities of systems displaying strong vapour phase
interactions. Typically this occurs in systems containing
carboxylic acids or compounds that have the tendency to form
stable H2 bonds in the vapour phase. In these cases, the
fugacity coefficient shows large deviations from ideality, even at
low or moderate pressures.
Aspen HYSYS contains temperature dependent coefficients for
carboxylic acids. You can overwrite these by changing the
Association (ii) or Solvation (ij) coefficients from the default
values.13
If the virial coefficients need to be calculated, Aspen HYSYS
contains correlations using the following pure component
properties:
• critical temperature
• critical pressure
• dipole moment
• mean radius of gyration
• association parameter
• association parameter for each binary pair
Aspen HYSYS recommends you use the Virial option for
organic acid components (like formic acid, acetic acid,
propionic acid, butyric acid, and heptonic acid).
If one of the mentioned acid is present in the stream, the
entire mixture is treated using Chemical Theory of
dimerization. The degrees of dimerization for each
component is dependent on its association parameter as well
as the cross association with other components.A-46
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-47
ww
ThThis option is restricted to systems where the density is
moderate, typically less than one-half the critical density. The
Virial equation used is valid for the following range:
A.3.4 Semi-Empirical Methods
The Chao-Seader3 and Grayson-Streed6 methods are older,
semi-empirical methods. The GS correlation is an extension of
the CS method with special emphasis on H2. Only the
equilibrium results produced by these correlations is used by
Aspen HYSYS. The Lee-Kesler method is used for liquid and
vapour enthalpies and entropies as its results are shown to be
superior to those generated from the CS/GS correlations. This
method is also adopted by and recommended for use in the API
Technical Data Book.
The following table gives an approximate range of applicability
for these two methods, and under what conditions they are
applicable.
(A.23)
Method Temp (°F) Temp (°C) Press (psia) Press (kPa)
CS 0 to 500 -18 to 260 <1,500 <10,000
GS 0 to 800 -18 to 425 <3,000 <20,000
Conditions of Applicability
For all hydrocarbons (except
CH4):
• 0.50.5
P T
2
--
yiPci
i 1=
m
∑
yiTci
i 1=
m
∑
--------------------≤A-47
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-48 Property Methods
ww
ThThe GS correlation is recommended for simulating heavy
hydrocarbon systems with a high H2 content, such as
hydrotreating units. The GS correlation can also be used for
simulating topping units and heavy ends vacuum applications.
The vapour phase fugacity coefficients are calculated with the
Redlich Kwong equation of state. The pure liquid fugacity
coefficients are calculated using the principle of corresponding
states. Modified acentric factors are included in Aspen HYSYS'
GS library for most components. Special functions are
incorporated for the calculation of liquid phase fugacities for N2,
CO2 and H2S. These functions are restricted to hydrocarbon
mixtures with less than five percent of each of the above
components.
As with the Vapour Pressure models, H2O is treated using a
combination of the steam tables and the kerosene solubility
charts from the API Data Book. This method of handling H2O is
not very accurate for gas systems. Although three phase
calculations are performed for all systems, it is important to
note that the aqueous phase is always treated as pure H2O with
these correlations.
A.3.5 Vapour Pressure
Property Packages
Vapour pressure K value models may be used for ideal mixtures
at low pressures. This includes hydrocarbon systems such as
mixtures of ketones or alcohols where the liquid phase behaves
approximately ideal. The models may also be used for first
approximations for non-ideal systems.
The Lee-Kesler model is used for enthalpy and entropy
calculations for all vapour pressure models and all
components with the exception of H2O, which is treated
separately with the steam property correlation.
All three phase calculations are performed assuming the
aqueous phase is pure H2O and that H2O solubility in the
hydrocarbon phase can be described using the kerosene
solubility equation from the API Data Book (Figure 9A1.4).A-48
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-49
ww
ThVapour pressures used in the calculation of the standard state
fugacity are based on Aspen HYSYS' library coefficients and a
modified form of the Antoine equation. Vapour pressure
coefficients for hypocomponent may be entered or calculated
from either the Lee-Kesler correlation for hydrocarbons, the
Gomez-Thodos correlation for chemical compounds or the Reidel
equation.
The Vapour Pressure options include the Modified Antoine,
BraunK10, and EssoK packages.
Approximate ranges of application for each vapour pressure
model are given below:
Modified Antoine Vapour Pressure
Model
The modified Antoine equation assumes the form as set out in
the DIPPR data bank.
where:
A, B, C, D, E and F = fitted coefficients
Pvap = the pressure in kPa
T = the temperature in K
These coefficients are available for all Aspen HYSYS library
components. Vapour pressure coefficients for hypocomponent
Because all of the Vapour Pressure options assume an ideal
vapour phase, they are classified as Vapour Pressure Models.
Model Temperature Press (psia) Press (kPa)
Mod. Antoine <1.6 Tci <100 <700
BraunK10 0°F (-17.78°C) <1.6 Tci <100 <700
EssoK <1.6 Tci <100 <700
(A.24)Pvapln A B
T C+
------------- D T ETF+ln+ +=A-49
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-50 Property Methods
ww
Thmay be entered or calculated from either the Lee-Kesler
correlation for hydrocarbons, the Gomez-Thodos correlation for
chemical compounds, or the Reidel equation.
This model is applicable for low pressure systems that behave
ideally. For hydrocarbon components that you have not provided
vapour pressure coefficients for, the model converts the Lee-
Kesler vapour pressure model directly. As such, crude and
vacuum towers can be modeled with this equation.
When using this method for super-critical components, it is
recommended that the vapour pressure coefficients be replaced
with Henry's Law coefficients. Changing Vapour Pressure
coefficients can only be accomplished if your component is being
installed as a Hypothetical.
Braun K10 Model
The Braun K10 model is strictly applicable to heavy hydrocarbon
systems at low pressures. The model employs the Braun
convergence pressure method, where, given the normal boiling
point of a component, the K value is calculated at system
temperature and 10 psia. The K10 value is then corrected for
pressure using pressure correction charts. The K values for any
components that are not covered by the charts are calculated at
10 psia using the modified Antoine equation and corrected to
system conditions using the pressure correction charts.
Accuracy suffers with this model if there are large amounts of
acid gases or light hydrocarbons. All three phase calculations
assume that the aqueous phase is pure H2O and that H2O
solubility in the hydrocarbon phase can be described using the
kerosene solubility equation from the API Data Book (Figure
All enthalpy and entropy calculations are performed using
the Lee-Kesler model.A-50
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-51
ww
Th9A1.4).
Esso K Model
The Esso Tabular model is strictly applicable to hydrocarbon
systems at low pressures. The model employs a modification of
the Maxwell-Bonnel vapour pressure model in the following
format:
where:
Ai = fitted constants
Tb
i = normal boiling point corrected to K = 12
T = absolute temperature
K = Watson characterisation factor
For heavy hydrocarbon systems, the results are comparable to
the modified Antoine equation since no pressure correction is
applied. For non-hydrocarbon components, the K value is
calculated using the Antoine equation. Accuracy suffers if there
is a large amount of acid gases or light hydrocarbons. All three
phase calculations are performed assuming the aqueous phase
is pure H2O and that H2O solubility in the hydrocarbon phase
can be described using the kerosene solubility equation from the
The Lee-Kesler model is used for enthalpy and entropy
calculations for all components with the exception of H2O
which is treated with the steam tables.
(A.25)Pvaplog Aix
i
∑=
xi
Tb
i
T
----- 0.0002867Tb
i–
748.1 0.2145Tb
i–
-------------------------------------------=A-51
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-52 Property Methods
ww
ThAPI Data Book (Figure 9A1.4).
A.3.6 Miscellaneous - Special
Application Methods
Amines Property Package
The amines package contains the thermodynamic models
developed by D.B. Robinson & Associates for their proprietary
amine plant simulator, called AMSIM. Their amine property
package is available as an option with Aspen HYSYS giving you
access to a proven third party property package for reliable
amine plant simulation, while maintaining the ability to use
Aspen HYSYS' powerful flowsheeting capabilities.
The chemical and physical property data base is restricted to
amines and the following components:
The equilibrium acid gas solubility and kinetic parameters for the
aqueous alkanolamine solutions in contact with H2S and CO2 are
incorporated into their property package. The amines property
package is fitted to extensive experimental data gathered from
a combination of D.B. Robinson's in-house data, several
The Lee-Kesler model is used for enthalpy and entropy
calculations for all components with the exception of H2O
which is treated with the steam tables.
For the Amine property method, the vapour phase is
modeled using the PR model.
Component Class Specific Components
Acid Gases CO2, H2S, COS, CS2
Hydrocarbons CH4   C7H16
Olefins C2=, C3=
Mercaptans M-Mercaptan, E-Mercaptan
Non Hydrocarbons H2, N2, O2, CO, H2OA-52
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-53
ww
Thunpublished sources, and numerous technical references.
This method does not allow any hypotheticals.A-53
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-54 Property Methods
ww
ThThe following table gives the equilibrium solubility limitations
that should be observed when using this property package:
* The amine mixtures, DEA/MDEA and MEA/MDEA are assumed to be primarily MDEA, so
use the MDEA value for these mixtures.
The absorption of H2S and CO2 by aqueous alkanolamine
solutions involves exothermic reactions. The heat effects are an
important factor in amine treating processes and are properly
taken into account in the amines property package. Correlations
for the heats of solution are set up as a function of composition
and amine type. The correlations were generated from existing
published values or derived from solubility data using the Gibbs-
Helmholtz equation.
The amines package incorporates a specialized stage efficiency
model to permit simulation of columns on a real tray basis. The
stage efficiency model calculates H2S and CO2 component stage
efficiencies based on the tray dimensions given and the
calculated internal tower conditions for both absorbers and
strippers. The individual component stage efficiencies are a
function of pressure, temperature, phase compositions, flow
rates, physical properties, mechanical tray design and
dimensions as well as kinetic and mass transfer parameters.
Since kinetic and mass transfer effects are primarily responsible
for the H2S selectivity demonstrated by amine solutions, this
must be accounted for by non unity stage efficiencies.
Alkanolamine
Alkanolamine
Concentration (wt%)
Acid Gas Partial
Pressure (psia)
Temperature
(°F)
Monoethanolamine, MEA 0 - 30 0.00001 - 300 77 - 260
Diethanolamine, DEA 0 - 50 0.00001 - 300 77 - 260
Triethanolamine, TEA 0 - 50 0.00001 - 300 77 - 260
Methyldiethanolamine, MDEA* 0 - 50 0.00001 - 300 77 - 260
Diglycolamine, DGA 50 - 70 0.00001 - 300 77 - 260
DIsoPropanolAmine, DIsoA 0 - 40 0.00001 - 300 77 - 260
The data is not correlated for H2S and CO2 loadings greater
than 1.0 mole acid gas/mole alkanolamine.
See Chapter 2 - Column
Operations of the Aspen
HYSYS Operations
Guide for details on how
to specify or have Aspen
HYSYS calculate the stage A-54
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-55
ww
ThSteam Package
Aspen HYSYS includes two steam packages:
• ASME Steam
• NBS Steam
Both of these property packages are restricted to a single
component, namely H2O.
ASME Steam accesses the ASME 1967 steam tables. The
limitations of this steam package are the same as those of the
original ASME steam tables, i.e., pressures less than 15,000
psia and temperatures greater than 32°F (0°C) and less than
1,500°F.
The basic reference is the book “Thermodynamic and Transport
Properties of Steam” - The American Society of Mechanical
Engineers - Prepared by C.A. Meyer, R.B. McClintock, G.J.
Silvestri and R.C. Spencer Jr.11
Selecting NBS_Steam uses the NBS 1984 Steam Tables, which
reportedly has better calculations near the Critical Point.
MBWR
In Aspen HYSYS, a 32-term modified BWR equation of state is
used. The modified BWR may be written in the following form:
where:
(A.26)P RTρ NiXi
i 1=
32
∑+=
X1 ρ2T= X9 ρ3 T2⁄= X17 ρ8 T⁄= X25 ρ7F( ) T3⁄=
X2 ρ2T1 2⁄= X10 ρ4T= X18 ρ8 T2⁄= X26 ρ9F( ) T2⁄=
X3 ρ2= X11 ρ4= X19 ρ9 T2( )⁄= X27 ρ9F( ) T4⁄=A-55
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-56 Property Methods
ww
ThF = exp (-0.0056 r2)
The modified BWR is applicable only for the following pure
components:
X4 ρ2 T⁄= X12 ρ4 T⁄= X20 ρ3F( ) T2( )⁄= X28 ρ11F( ) T2⁄=
X5 ρ2 T2⁄= X13 ρ5= X21 ρ3F( ) T3( )⁄= X29 ρ11F( ) T3⁄=
X6 ρ3T= X14 ρ6 T⁄= X22 ρ5F( ) T2⁄= X30 ρ13F( ) T2⁄=
X7 ρ3= X15 ρ6 T2⁄= X23 ρ5F( ) T4⁄= X31 ρ13F( ) T3⁄=
X8 ρ3 T⁄= X16 ρ7 T⁄= X24 ρ7F( ) T2⁄= X32 ρ13F( ) T4⁄=
Component Temp (K) Temp (R) Max Press (MPa) Max Press (psia)
Ar 84 - 400 151.2 - 720 100 14,504
CH4 91 - 600 163.8 - 1,080 200 29,008
C2H4 104 - 400 187.2 - 720 40 5,802
C2H6 90 - 600 162. - 1,080 70 10,153
C3H8 85 - 600 153. - 1080 100 14,504
i-C4 114 - 600 205.2 - 1,080 35 5,076
n-C4 135 - 500 243. - 900 70 10,153
CO 68 - 1,000 122.4 - 1,800 30 4,351
CO2 217 - 1,000 390.6 - 1,800 100 14,504
D2 29 - 423 52.2 - 761.4 320 46,412
H2 14 - 400 25.2 - 720 120 17,405
o-H2 14 - 400 25.2 - 720 120 17,405
p-H2 14 - 400 25.2 - 720 120 17,405
He 0.8 - 1,500 1.4 - 2,700 200 29,008
N2 63 - 1,900 113.4 - 3,420 1,000 145,038
O2 54 - 400 97.2 - 720 120 17,405
Xe 161 - 1,300 289.8 - 2,340 100 14,504
The mixtures of different forms of H2 are also acceptable.
The range of use for these components is shown in the above
table.A-56
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-57
ww
ThA.4 Enthalpy & Entropy
Departure Calculations
The Enthalpy and Entropy calculations are performed rigorously
by Aspen HYSYS using the following exact thermodynamic
relations:
where:
Ideal Gas Enthalpy basis ( ) used by Aspen HYSYS is equal
to the ideal gas Enthalpy of Formation at 25°C
Ideal Gas Entropy basis ( ) used by Aspen HYSYS is equal
to the ideal gas Entropy of Formation at 25°C and 1
atm
With semi-empirical and vapour pressure models, a pure liquid
water phase is generated and the solubility of H2O in the
hydrocarbon phase is determined from the kerosene solubility
model.
A.4.1 Equations of State
For the Peng-Robinson Equation of State, the enthalpy and
entropy departure calculations use the following relations:
(A.27)
(A.28)
(A.29)
H H ID–
RT
------------------- Z 1– 1
RT
------ T T∂
∂P
⎝ ⎠
⎛ ⎞
V
P– Vd
∞
V
∫+=
S S°
ID–
RT
------------------ Zln P
P°
-----ln– 1
R
--
T∂
∂P
⎝ ⎠
⎛ ⎞
V
1
V
--– Vd
∞
V
∫+=
H ID
S°
ID
H H ID–
RT
------------------- Z 1– 1
21.5bRT
------------------- a T td
da– V 20.5 1+( )b+
V 20.5 1–( )b+
------------------------------------
⎝ ⎠
⎜ ⎟
⎛ ⎞
ln–=A-57
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-58 Enthalpy & Entropy Departure
ww
Thwhere:
Ideal Gas Enthalpy basis (HID) used by Aspen HYSYS changes
with temperature according to the coefficients on the
TDep tab for each individual component
For the SRK Equation of State:
A and B term definitions are provided below:
(A.30)
(A.31)
(A.32)
(A.33)
Peng-Robinson Soave-Redlich-Kwong
bi
ai
aci
mi
S S°
ID–
R
------------------ Z B–( )ln P
P°
-----ln– A
21.5bRT
------------------- T
a
--
td
da V 20.5 1+( )b+
V 20.5 1–( )b+
------------------------------------
⎝ ⎠
⎜ ⎟
⎛ ⎞
ln–=
a xixj aiaj( )0.5 1 kij–( )
j 1=
N
∑
i 1=
N
∑=
H H ID–
RT
------------------- Z 1– 1
bRT
---------- a Tda
dt
-----– 1 b
V
---+⎝ ⎠
⎛ ⎞ln–=
S S°
ID–
RT
------------------ Z b–( )ln P
P°
-----ln– A
B
-- T
a
-- da
dt
----- 1 B
Z
--+⎝ ⎠
⎛ ⎞ln+=
0.077796
RTci
Pci
---------- 0.08664
RTci
Pci
----------
aciαi aciαi
0.457235
RTci( )2
Pci
------------------ 0.42748
RTci( )2
Pci
------------------
αi 1 mi 1 Tri
0.5–( )+ 1 mi 1 Tri
0.5–( )+
0.37646 1.54226ωi 0.26992ωi
2–+ 0.48 1.574ωi 0.176ωi
2–+A-58
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-59
ww
Thwhere:
R = Ideal Gas constant
H = Enthalpy
S = Entropy
subscripts:
ID = Ideal Gas
o = reference state
PRSV
The PRSV equation of state is an extension of the Peng-
Robinson equation using an extension of the  expression as
shown below:
This results in the replacement of the  term in the definitions
of the A and B terms shown previously by the  term shown
above.
(A.34)
a xixj aiaj( )0.5 1 kij–( )
j 1=
N
∑
i 1=
N
∑=
κ
αi 1 κi 1 Tr
0.5–( )+[ ]
2
=
κi κ0i 1 Tri
0.5+( ) 0.7 Tri–( )=
κ0i 0.378893 1.4897153ωi 0.17131848ωi
2– 0.0196554ωi
3+ +=
αi
αiA-59
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-60 Enthalpy & Entropy Departure
ww
ThA.4.2 Activity Models
The Liquid enthalpy and entropy for Activity Models is based on
the Cavett Correlation as shown below:
for Tri < 1:
for Tri  1:
where:
a1, a2, a3 = functions of the Cavett parameter, fitted to
match one known heat of vaporization
The Gas enthalpies and entropies are dependent on the model
chosen to represent the vapour phase behaviour:
• Ideal Gas:
(A.35)
(A.36)
(A.37)
(A.38)
(A.39)
(A.40)
HL HID–
Tci
---------------------- max
Hi°Δ L sb( )
Tci
-------------------------
Hi°Δ L sb( )
Tci
-------------------------,
⎝ ⎠
⎜ ⎟
⎛ ⎞
=
≥
HL HID–
Tci
---------------------- max
Hi°Δ L sb( )
Tci
-------------------------
Hi°Δ L sp( )
Tci
-------------------------,
⎝ ⎠
⎜ ⎟
⎛ ⎞
=
Hi°Δ L sb( )
Tci
------------------------- a1 a2 1 Tri
–( )
1 a3 Tri
0.1–( )–
+=
Hi°Δ L sp( )
Tci
------------------------- max 0 b1 b2Tri
2 b3Tri
3 b4Tri
4 b5Tri
2+ + + +,( )=
H H ID=
S S°
ID Cv Td
T
------------
T1
T2
∫ R
V2
V1
-----ln+= =A-60
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-61
ww
Th• Redlich-Kwong:
• Virial Equation:
where:
B = second virial coefficient of the mixture
(A.41)
(A.42)
(A.43)
(A.44)
H HID–
RT
------------------- Z 1– 1.5
bRT
---------- 1 b
V
---+⎝ ⎠
⎛ ⎞ln–=
S S°
ID–
RT
------------------ Z b–( )ln P
P°
-----ln– A
2B
------ 1 B
Z
---+⎝ ⎠
⎛ ⎞ln+=
H HID–
RT
------------------- T
V B–
------------ dB
dt
------– Z 1–( )+=
S S°
ID–
R
------------------ RT
V B–
------------ dB
dT
------– R V
V B–
------------ln– R V
V°
-----ln+=A-61
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-62 Enthalpy & Entropy Departure
ww
ThA.4.3 Lee-Kesler Option
The Lee and Kesler method is an effort to extend the method
originally proposed by Pitzer to temperatures lower than 0.8 Tr.
Lee and Kesler expanded Pitzer's method expressing the
compressibility factor as:
where:
Z o = the compressibility factor of a simple fluid
Z r = the compressibility factor of a reference fluid
They chose the reduced form of the BWR equation of state to
represent both Z o and Z r:
where:
The constants in these equations were determined using
experimental compressibility and enthalpy data. Two sets of
constants, one for the simple fluid ( ) and one for the
reference fluid ( ) were determined.
(A.45)
(A.46)
The SRK and PR are
given in Section A.3.1
- Equations of State.
Z Z° ω
ωr
----- Zr Z°–( )+=
Z 1 B
Vr
----- C
Vr
2
----- D
Vr
5
----- D
Tr
3
Vr
3
----------- β γ
Vr
2
-----–
⎝ ⎠
⎜ ⎟
⎛ ⎞
e
γ
Vr
2
-----
⎝ ⎠
⎛ ⎞–
+ + + +=
Vr
VPc
RTc
---------=
B b1
b2
Tr
----–
b3
Tr
2
-----–
b4
Tr
4
-----–=
C c1
c2
Tr
----–
c3
Tr
3
-----+=
D d1
d2
Tr
----+=
ω° 0=
ωr 0.3978 n C8–,=A-62
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-63
ww
ThThe Enthalpy and Entropy departures are computed as follows:
For mixtures, the Critical Properties are defined as follows:
(A.47)
(A.48)
(A.49)
H HID–
RTc
------------------- Tr Z 1–
b2 2
b3
Tr
---- 3
b4
Tr
2
-----+ +
TrVr
------------------------------------–
c2 3
c3
Tr
2
-----–
2TrVr
2
--------------------–
d2
5TrVr
5
--------------– 3E+
⎩ ⎭
⎪ ⎪
⎪ ⎪
⎨ ⎬
⎪ ⎪
⎪ ⎪
⎧ ⎫
=
S S°
ID–
R
------------------ Zln P
P°
-----⎝ ⎠
⎛ ⎞ln–
b1
b3
Tr
2
----- 2
b4
Tr
3
-----+ +
Vr
---------------------------------–
c1 3
c3
Tr
2
-----–
2Vr
2
--------------------–
d1
5Vr
2
--------– 2E+=
E
c4
2Tr
3γ
----------- β 1 β 1 γ
Vr
2
-----+ +
⎝ ⎠
⎜ ⎟
⎛ ⎞
e
γ
Vr
----⎝ ⎠
⎛ ⎞–
–+
⎩ ⎭
⎪ ⎪
⎨ ⎬
⎪ ⎪
⎧ ⎫
=
ω xiωi
i 1=
N
∑=
zci
0.2905 0.0851ωi–=
Vci
Zci
RTci
Pci
-----------------=
Vc
1
8
-- xixj Vci
1
3
--
Vcj
1
3
--
+
⎝ ⎠
⎜ ⎟
⎛ ⎞
3
j 1=
N
∑
i 1=
N
∑=
Tc
1
8Vc
-------- xixj Vci
1
3
--
Vcj
1
3
--
+
⎝ ⎠
⎜ ⎟
⎛ ⎞
3
Tci
Tcj
( )0.5
j 1=
N
∑
i 1=
N
∑=
Pc 0.2905 0.085ω–( )
RTc
Vc
---------=A-63
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-64 Enthalpy & Entropy Departure
ww
ThFugacity Coefficient
The fugacity coefficient calculations for SRK and Peng Robinson
models is shown below.
Soave-Redlich-Kwong
Peng Robinson
(A.50)φiln Z Pb
RT
------–⎝ ⎠
⎛ ⎞ln– Z 1–( )
bi
b
--- a
bRT
---------- 1
a
-- 2ai
0.5 xjaj
0.5 1 kij–( )
j 1=
N
∑
⎝ ⎠
⎜ ⎟
⎜ ⎟
⎛ ⎞ bi
b
---– 1 b
V
---+⎝ ⎠
⎛ ⎞ln–+=
(A.51)φiln Z Pb
RT
------–⎝ ⎠
⎛ ⎞ln– Z 1–( )
bi
b
--- a
21.5bRT
------------------- 1
a
-- 2ai
0.5 xjaj
0.5 1 kij–( )
j 1=
N
∑
⎝ ⎠
⎜ ⎟
⎜ ⎟
⎛ ⎞ bi
b
---– V 20.5 1+( )b+
V 20.5 1–( )b–
------------------------------------ln–+=A-64
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-65
ww
ThA.5 Physical & Transport
Properties
The physical and transport properties that Aspen HYSYS
calculates for a given phase are viscosity, density, thermal
conductivity, and surface tension. The models used for the
transport property calculations are all pre-selected to yield the
best fit for the system under consideration. For example, the
corresponding states model proposed by Ely and Hanley is used
for viscosity predictions of light hydrocarbons (NBP<155), the
Twu methodology for heavier hydrocarbons, and a modification
of the Letsou-Stiel method for predicting the liquid viscosities of
non-ideal chemical systems.
 A complete description of the models used for the prediction of
the transport properties can be found in the references listed in
each sub-section. All these models are modified by Hyprotech to
improve the accuracy of the correlations.
In the case of multiphase streams, the transport properties for
the mixed phase are meaningless and are reported as
, although the single phase properties are known.
There is an exception with the pipe and heat exchanger
operations. For three-phase fluids, Aspen HYSYS uses empirical
mixing rules to determine the apparent properties for the
combined liquid phases.A-65
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-66 Physical & Transport Properties
ww
ThA.5.1 Liquid Density
Saturated liquid volumes are obtained using a corresponding
states equation developed by R. W. Hankinson and G. H.
Thompson7 which explicitly relates the liquid volume of a pure
component to its reduced temperature and a second parameter
termed the characteristic volume. This method is adopted as an
API standard. The pure compound parameters needed in the
corresponding states liquid density (COSTALD) calculations are
taken from the original tables published by Hankinson and
Thompson, and the API Data Book for components contained in
Aspen HYSYS' library.
The parameters for hypothetical components are based on the
API gravity and the generalized Lu equation. Although the
COSTALD method was developed for saturated liquid densities,
it can be applied to sub-cooled liquid densities, i.e., at pressures
greater than the vapour pressure, using the Chueh and
Prausnitz correction factor for compressed fluids. It is used to
predict the density for all systems whose pseudo-reduced
temperature is below 1.0. Above this temperature, the equation
of state compressibility factor calculates the liquid density.
Hypocomponents generated in the Oil Characterization
Environment have their densities either calculated from internal
correlations or generated from input curves. Given a bulk
density, the densities of the hypocomponent are adjusted:
The characteristic volume for each hypocomponent is calculated
using the adjusted densities and the physical properties. The
calculated characteristic volumes are then adjusted such that
the bulk density calculated from the COSTALD equation matches
the density calculated using the above equation. This ensures
that a given volume of fluid contains the same mass whether it
is calculated with the sum of the component densities or the
COSTALD equation.
(A.52)
ρbulk
1.0
xi
ρi°
------∑
-------------=A-66
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-67
ww
ThA.5.2 Vapour Density
The density for all vapour systems at a given temperature and
pressure is calculated using the compressibility factor given by
the equation of state or by the appropriate vapour phase model
for Activity Models.
A.5.3 Viscosity
Aspen HYSYS automatically selects the model best suited for
predicting the phase viscosities of the system under study. The
model selected is from one of the three available in Aspen
HYSYS: a modification of the NBS method (Ely and Hanley),
Twu's model, or a modification of the Letsou-Stiel correlation.
Aspen HYSYS selects the appropriate model using the following
criteria:
All of the models are based on corresponding states principles
and are modified for more reliable application. Internal
validation showed that these models yielded the most reliable
results for the chemical systems shown. Viscosity predictions for
light hydrocarbon liquid phases and vapour phases were found
to be handled more reliably by an in-house modification of the
original Ely and Hanley model, heavier hydrocarbon liquids were
more effectively handled by Twu's model, and chemical systems
were more accurately handled by an in-house modification of
the original Letsou-Stiel model.
Chemical System Vapour Phase Liquid Phase
Lt Hydrocarbons (NBP<155°F) Mod Ely & Hanley Mod Ely & Hanley
Hvy Hydrocarbons (NBP>155°F) Mod Ely & Hanley Twu
Non-Ideal Chemicals Mod Ely & Hanley Mod Letsou-StielA-67
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-68 Physical & Transport Properties
ww
ThA complete description of the original corresponding states
(NBS) model used for viscosity predictions is presented by Ely
and Hanley in their NBS publication. The original model is
modified to eliminate the iterative procedure for calculating the
system shape factors. The generalized Leech-Leland shape
factor models are replaced by component specific models. Aspen
HYSYS constructs a PVT map for each component using the
COSTALD for the liquid region. The shape factors are adjusted
such that the PVT map can be reproduced using the reference
fluid.
The shape factors for all the library components are already
regressed and included in the Pure Component Library.
Hypocomponent shape factors are regressed using estimated
viscosities. These viscosity estimations are functions of the
hypocomponent Base Properties and Critical Properties.
Hypocomponents generated in the Oil Characterization
Environment have the additional ability of having their shape
factors regressed to match kinematic or dynamic viscosity
assays.
The general model employs CH4 as a reference fluid and is
applicable to the entire range of non-polar fluid mixtures in the
hydrocarbon industry. Accuracy for highly aromatic or
naphthenic crudes is increased by supplying viscosity curves
when available, since the pure component property generators
were developed for average crude oils. The model also handles
H2O and acid gases as well as quantum gases.
Although the modified NBS model handles these systems very
well, the Twu method was found to do a better job of predicting
the viscosities of heavier hydrocarbon liquids. The Twu model16
is also based on corresponding states principles, but has
implemented a viscosity correlation for n-alkanes as its
reference fluid instead of CH4. A complete description of this
model is given in the paper entitled “Internally Consistent
Correlation for Predicting Liquid Viscosities of Petroleum
Fractions”21. A-68
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-69
ww
ThFor chemical systems the modified NBS model of Ely and Hanley
is used for predicting vapour phase viscosities, whereas a
modified form of the Letsou-Stiel model is used for predicting
the liquid viscosities. This method is also based on
corresponding states principles and was found to perform
satisfactorily for the components tested.
The shape factors contained in the Aspen HYSYS Pure
Component Library are fit to match experimental viscosity data
over a broad operating range. Although this yields good
viscosity predictions as an average over the entire range,
improved accuracy over a narrow operating range can be
achieved by using the Tabular features.
A.5.4 Liquid Phase Mixing
Rules for Viscosity
The estimates of the apparent liquid phase viscosity of
immiscible Hydrocarbon Liquid - Aqueous mixtures are
calculated using the following "mixing rules":
• If the volume fraction of the hydrocarbon phase is
greater than or equal to 0.5, the following equation is
used22:
where:
 = apparent viscosity
 = viscosity of Hydrocarbon phase
 = volume fraction Hydrocarbon phase
• If the volume fraction of the hydrocarbon phase is less
than 0.33, the following equation is used5:
(A.53)
(A.54)
For more information on
the Tabular features, refer
to Chapter 2 - Fluid
Package.
μeff μoile
3.6 1 νoil–( )
=
μeff
μoil
νoil
μeff 1 2.5νoil
μoil 0.4μH2O+
μoil μH2O+
-----------------------------------
⎝ ⎠
⎜ ⎟
⎛ ⎞
+ μH2O=A-69
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-70 Physical & Transport Properties
ww
Thwhere:
 = apparent viscosity
 = viscosity of Hydrocarbon phase
 = viscosity of Aqueous phase
 = volume fraction Hydrocarbon phase
• If the volume of the hydrocarbon phase is between 0.33
and 0.5, the effective viscosity for combined liquid phase
is calculated using a weighted average between
Equation (A.53) and Equation (A.54).
The remaining properties of the pseudo phase are calculated as
follows:
(A.55)
μeff
μoil
μH2O
νoil
MWeff xiMWi∑=
ρeff
1
xi
ρi
----⎝ ⎠
⎛ ⎞∑
-----------------=
Cpeff
xiCpi∑=
(molecular weight)
(mixture density)
(mixture specific heat)A-70
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-71
ww
ThA.5.5 Thermal Conductivity
As in viscosity predictions, a number of different models and
component specific correlations are implemented for prediction
of liquid and vapour phase thermal conductivities. The text by
Reid, Prausnitz and Poling18 was used as a general guideline in
determining which model was best suited for each class of
components.
For hydrocarbon systems the corresponding states method
proposed by Ely and Hanley4 is generally used. The method
requires molecular weight, acentric factor and ideal heat
capacity for each component. These parameters are tabulated
for all library components and may either be input or calculated
for hypothetical components. It is recommended that all of
these parameters be supplied for non-hydrocarbon
hypotheticals to ensure reliable thermal conductivity coefficients
and enthalpy departures.
The modifications to the method are identical to those for the
viscosity calculations. Shape factors calculated in the viscosity
routines are used directly in the thermal conductivity equations.
The accuracy of the method depends on the consistency of the
original PVT map.
For vapour phase thermal conductivity predictions, the Misic
and Thodos, and Chung et al.16 methods are used (except for
H2O, C1, H2, CO2, NH3 which use a polynomial for pure
components). The effect of higher pressure on thermal
conductivities is taken into account by the Chung et al. method.
For liquid phase thermal conductivity predictions, the following
methods are used:
• For pure water, the Steam Tables is used.
• For water, C1, C2, C3, 3M-3Epentane, propene, DEG,
TEG, EG, He, H2, Ethylene, Ammonia, a proprietary
polynomial correlation is used.
If both water and DEG are present in the mixture,
additional corrections are made for these two
compounds.
• For Hydrocarbons with MW > 140 and TR < 0.8, a
modified Missenard & Reidel method16 is used.A-71
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-72 Physical & Transport Properties
ww
Th• For Alcohol, Ester, and other Hydrocarbons not included
in the previous categories, the Latini method16 is used.
• For all other compounds, the Sato-Reidel method is
used.
The liquid phase thermal conductivity is calculated using the
following mixing rule:
where:
 = liquid thermal conductivity of the mixture
 = liquid thermal conductivity of component i
 = mole fraction of component i
As with viscosity, the thermal conductivity for two liquid phases
is approximated by using empirical mixing rules for generating a
single pseudo liquid phase property. The thermal conductivity
for this pseudo liquid phase is calculated by the following
equation15:
where:
 = liquid thermal conductivity of the combined two liquid
phases
 = liquid thermal conductivity of liquid phase i at
temperature T
(A.56)
(A.57)
λmix xiλi
1 3⁄
i
∑⎝ ⎠
⎜ ⎟
⎛ ⎞ 3
=
λmix
λi
xi
λLmix
φLi
φLj
λLij
j
∑
i
∑=
λLmix
λLij
2
1 λLi
⁄( ) 1 λLj
⁄( )+
-------------------------------------------=
λLiA-72
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-73
ww
Th = liquid thermal conductivity of liquid phase j at
temperature T
 = molar phase fraction of liquid phase i
 = molar volume of liquid phase i
 = molar phase fraction of liquid phase k
 = molar volume of liquid phase k
For a two liquid phase system the equation simplifies to:
(A.58)
λLj
φLi
xLi
VLi
xLk
VLk
k 1=
∑
-------------------------=
xLi
VLi
xLk
VLk
λLmix
φL1
2λL1
2φL1
φL2
λ12 φL2
2λL2
+ +=A-73
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-74 Physical & Transport Properties
ww
ThA.5.6 Surface Tension
Surface tensions for hydrocarbon systems are calculated using a
modified form of the Brock and Bird equation17. The equation
expresses the surface tension ( ) as a function of the reduced
and critical properties of the component. The basic form of the
equation was used to regress parameters for each family of
components.
where:
 = surface tension (dynes/cm2)
TBR = reduced boiling point temperature (Tb/Tc)
a = parameter fitted for each chemical class
b =  (parameter fitted for each chemical
class, expanded as a polynomial in acentricity)
For aqueous systems, Aspen HYSYS employs a polynomial to
predict the surface tension.
(A.59)
Aspen HYSYS predicts only liquid-vapour surface tensions.
σ
σ Pc
2 3⁄ Tc
1 3⁄ Q 1 TR–( )a b×=
σ
Q 0.1207 1
TBR Pcln×
1.0 TBR–
--------------------------+⎝ ⎠
⎛ ⎞ 0.281–=
co c1ω c2ω2 c3ω3+ + +A-74
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-75
ww
ThA.5.7 Heat Capacity
Heat Capacity is calculated using a rigorous Cv value whenever
Aspen HYSYS can. The method used is given by the following
equations:
However, when ever this equation fails to provide an answer,
Aspen HYSYS falls back to the semi-ideal Cp/Cv method by
computing Cp/Cv as Cp/(Cp-R), which is only approximate and
valid for ideal gases. Examples of when Aspen HYSYS uses the
ideal method are:
• Equation (A.60) fails to return an answer
• The stream has a solid phase
• abs(dV/dP) < 1e-12
• Cp/Cv < 0.1or Cp/Cv > 20 - this is outside the range of
applicability of the equation used so Aspen HYSYS falls
back to the ideal method
A.6 Volumetric Flow Rate
Calculations
Aspen HYSYS has the ability to interpret and produce a wide
assortment of flow rate data. It can accept several types of flow
rate information for stream specifications as well as report back
many different flow rates for streams, their phases and their
components. One drawback of the large variety available is that
it often leads to some confusion as to what exactly is being
specified or reported, especially when volumetric flow rates are
involved.
In the following sections, the available flow rates are listed, each
corresponding density basis is explained, and the actual
formulation of the flow rate calculations is presented. For
volumetric flow rate data that is not directly accepted as a
stream specification, a final section is provided that outlines
(A.60)Cp Cv– T– dV dT⁄( )2 dV dT⁄( )⁄⋅=A-75
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-76 Volumetric Flow Rate Calculations
ww
Thtechniques to convert your input to mass flow rates.
A.6.1 Available Flow Rates
Many types of flow rates appear in Aspen HYSYS output.
However, only a subset of these are available for stream
specifications.
Flow Rates Reported in the Output
The flow rate types available through the numerous reporting
methods - property views, workbook, PFD, specsheets, and so
forth are:
• Molar Flow
• Mass Flow
• Std Ideal Liq Vol Flow
• Liq Vol Flow @Std Cond
• Actual Volume Flow
• Std Gas Flow
• Actual Gas Flow
Flow Rates Available for
Specification
The following flow rate types are available for stream
specifications:
• Molar Flows
• Mass Flows
• Std Ideal Liq Vol Flow
• Liq Vol Flow @Std CondA-76
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-77
ww
ThA.6.2 Liquid & Vapour Density
Basis
All calculations for volumetric stream flows are based on
density. Aspen HYSYS uses the following density basis:
Calculation of Standard & Actual
Liquid Densities
The Standard and Actual liquid densities are calculated
rigorously at the appropriate T and P using the internal methods
of the chosen property package. Flow rates based upon these
densities automatically take into account any mixing effects
exhibited by non-ideal systems. Thus, these volumetric flow
rates may be considered as "real world".
Density Basis Description
Std Ideal Liq
Mass Density
This is calculated based on ideal mixing of pure
component ideal densities at 60°F.
Liq Mass Density
@Std Cond
This is calculated rigorously at the standard reference
state for volumetric flow rates.
Actual Liquid
Density
This is calculated rigorously at the flowing conditions of
the stream (i.e., at stream T and P).
Standard Vapour
Density
This is determined directly from the Ideal Gas law.
Actual Vapour
Density
This is calculated rigorously at the flowing conditions of
the stream (i.e., at stream T and P).
The volumetric flow rate
reference state is defined
as 60°F and 1 atm when
using Field units or 15°C
and 1 atm when using SI
units.
Actual Densities are
calculated at the stream
Temperature and
Pressure.A-77
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-78 Volumetric Flow Rate Calculations
ww
ThCalculation of Standard Ideal Liquid
Mass Density
Contrary to the rigorous densities, the Standard Ideal Liquid
Mass density of a stream does not take into account any mixing
effects due to its simplistic assumptions. Thus, flow rates that
are based upon it do not account for mixing effects and are
more empirical in nature. The calculation is as follows:
where:
xi = molar fraction of component i
 = pure component Ideal Liquid density
Aspen HYSYS contains Ideal Liquid densities for all components
in the Pure Component Library. These values are determined in
one of three ways, based on the characteristics of the
component, as described below:
• Case 1 - For any component that is a liquid at 60°F and 1
atm, the data base contains the density of the
component at 60°F and 1 atm.
• Case 2 - For any component that can be liquified at 60°F
and pressures greater than 1 atm, the data base
contains the density of the component at 60°F and
Saturation Pressure.
• Case 3 - For any component that is non-condensable at
60°F under any pressure, i.e., 60°F is greater than the
critical temperature of the component, the data base
contains GPA tabular values of the equivalent liquid
density. These densities were experimentally determined
by measuring the displacement of hydrocarbon liquids by
dissolved non-condensable components.
(A.61)
Ideal DensityStream
1
xi
ρi
Ideal
-------------∑
---------------------=
ρi
IdealA-78
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-79
ww
ThFor all hypothetical components, the Standard Liquid density
(Liquid Mass Density @Std Conditions) in the Base Properties is
used in the Ideal Liquid density (Std Ideal Liq Mass Density)
calculation. If a density is not supplied, the Aspen HYSYS
estimated liquid mass density (at standard conditions) is used.
Special treatment is given by the Oil Characterization feature to
its hypocomponent such that the ideal density calculated for its
streams match the assay, bulk property, and flow rate data
supplied in the Oil Characterization Environment.
A.6.3 Formulation of Flow Rate
Calculations
The various procedures used to calculate each of the available
flow rates are detailed below, based on a known molar flow.
Molar Flow Rate
Mass Flow
Std Ideal Liq Vol Flow
This volumetric flow rate is calculated using the ideal density of
the stream and thus is somewhat empirical in nature.
(A.62)
(A.63)
(A.64)
Total Molar Flow Molar FlowStream=
Mass Flow Total Molar Flow MWStream×=
Even if a stream is all
vapour, it still has a Liq
Volume flow, based upon
the stream's Standard
Ideal Liquid Mass density,
whose calculation is
detailed in the previous
section. LiqVolFlow
Total Molar Flow MWStream×
Ideal DensityStream
--------------------------------------------------------------------------=A-79
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-80 Volumetric Flow Rate Calculations
ww
ThLiq Vol Flow @Std Cond
This volumetric flow rate is calculated using a rigorous density
calculated at standard conditions, and reflects non-ideal mixing
effects.
Actual Volume Flow
This volumetric flow rate is calculated using a rigorous liquid
density calculation at the actual stream T and P conditions, and
reflects non-ideal mixing effects.
Standard Gas Flow
Standard gas flow is based on the molar volume of an ideal gas
at standard conditions. It is a direct conversion from the
stream's molar flow rate, based on the following:
• Ideal Gas at 60°F and 1 atm occupies 379.46 ft3/lbmole
• Ideal Gas at 15°C and 1 atm occupies 23.644 m3/kgmole
Actual Gas Flow
This volumetric flow rate is calculated using a rigorous vapour
density calculation at the actual stream T and P conditions, and
reflects non-ideal mixing and compressibility effects.
(A.65)
(A.66)
(A.67)
Std Liquid Volume Flow Molar Flow MW×
 Std Liq Density
--------------------------------------------=
Actual Volume Flow Molar Flow MW×
Density
--------------------------------------------=
Actual Gas Flow Molar Flow MW×
 Density
--------------------------------------------=A-80
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-81
ww
ThA.6.4 Volumetric Flow Rates as
Specifications
If you require that the flow rate of your stream be specified
based on actual density or standard density as opposed to
Standard Ideal Mass Liquid density, you must use one of the
following procedures:
Liq Vol Flow @Std Cond
1. Specify the composition of your stream.
2. Use the Liq Vol Flow @Std Cond and calculate the
corresponding mass flow rate either manually or in the
SpreadSheet.
3. Use this calculated mass flow as the specification for the
stream.
Actual Liquid Volume Flow
1. Specify the composition and the flowing conditions (T and P)
of your stream.
2. Use the density reported for the stream and calculate the
corresponding mass flow rate either manually, or in our
spreadsheet.
3. Use this calculated mass flow as the specification for the
stream. A-81
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-82 Flash Calculations
ww
ThA.7 Flash Calculations
Rigorous three phase calculations are performed for all
equations of state and activity models with the exception of
Wilson's equation, which only performs two phase vapour-liquid
calculations. As with the Wilson Equation, the Amines and
Steam property packages only support two phase equilibrium
calculations.
Aspen HYSYS uses internal intelligence to determine when it can
perform a flash calculation on a stream, and then what type of
flash calculation needs to be performed on the stream. This is
based completely on the degrees of freedom concept. Once the
composition of a stream and two property variables are known,
(vapour fraction, temperature, pressure, enthalpy or entropy)
one of which must be either temperature or pressure, the
thermodynamic state of the stream is defined. When Aspen
HYSYS recognizes that a stream is thermodynamically defined,
it performs the correct flash automatically in the background.
You never have to instruct Aspen HYSYS to perform a flash
calculation.
Property variables can either be specified by you or back-
calculated from another unit operation. A specified variable is
treated as an independent variable. All other stream properties
are treated as dependent variables and are calculated by Aspen
HYSYS.
In this manner, Aspen HYSYS also recognizes when a stream is
overspecified. For example, if you specify three stream
properties plus composition, Aspen HYSYS prints out a warning
message that an inconsistency exists for that stream. This also
applies to streams where an inconsistency is created through
Aspen HYSYS calculations.
For example, if a stream Temperature and Pressure are
specified in a flowsheet, but Aspen HYSYS back-calculates a
different temperature for that stream as a result of an enthalpy
balance across a unit operation, Aspen HYSYS generates an
Inconsistency message.
Specified variables can
only be re-specified by
you or through Recycle
Adjust, or SpreadSheet
operations. They do not
change through any heat
or material balance
calculations.
If a flash calculation is
performed on a stream,
Aspen HYSYS knows all
the property values of
that stream, i.e.,
thermodynamic,
physical and transport
properties.A-82
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-83
ww
ThA.7.1 T-P Flash Calculation
The independent variables for this type of flash calculation are
the temperature and pressure of the system, while the
dependent variables are the vapour fraction, enthalpy, and
entropy.
With the equations of state and activity models, rigorous
calculations are performed to determine the co-existence of
immiscible liquid phases and the resulting component
distributions by minimization of the Gibbs free energy term. For
vapour pressure models or the semi-empirical methods, the
component distribution is based on the Kerosene solubility data
(Figure 9A1.4 of the API Data Book).
If the mixture is single-phase at the specified conditions, the
property package calculates the isothermal compressibility (dv/
dp) to determine if the fluid behaves as a liquid or vapour. Fluids
in the dense-phase region are assigned the properties of the
phase that best represents their current state.
Aspen HYSYS automatically performs the appropriate flash
calculation when it recognizes that sufficient stream
information is known. This information is either specified by
the user or calculated by an operation.
Depending on the known stream information, Aspen HYSYS
performs one of the following flashes: T-P, T-VF, T-H, T-S, P-
VF, P-H, or P-S.
The material solids appear in the liquid phase of two-phase
mixtures, and in the heavy (aqueous/slurry) phase of three-
phase systems. Therefore, when a separator is solved using
a T-P flash, the vapour phase is identical regardless of
whether or not solids are present in the feed to the flash
drum.
Use caution in specifying solids with systems that are
otherwise all vapour. Small amounts of non-solids may
appear in the "liquid" phase.
See Section 2.4.4 -
Stability Test Tab for
options on how to
instruct Aspen HYSYS to
perform phase stability
tests.A-83
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-84 Flash Calculations
ww
ThA.7.2 Vapour Fraction Flash
Vapour fraction and either temperature or pressure are the
independent variables for this type of calculation. This class of
calculation embodies all fixed quality points including bubble
points (vapour pressure) and dew points.
To perform bubble point calculation on a stream of known
composition, simply specify the Vapour Fraction of the stream
as 0.0 and define the temperature or pressure at which the
calculation is desired. For a dew point calculation, simply specify
the Vapour Fraction of the stream as 1.0 and define the
temperature or pressure at which the dew point calculation is
desired. Like the other types of flash calculations, no initial
estimates are required.
The vapour fraction is always shown in terms of the total
number of moles. For example, the vapour fraction (VF)
represents the fraction of vapour in the stream, while the
fraction, (1.0 - VF), represents all other phases in the stream
(i.e., a single liquid, 2 liquids, a liquid and a solid).
Dew Points
Given a vapour fraction specification of 1.0 and either
temperature or pressure, the property package calculates the
other dependent variable (P or T). If temperature is the second
independent variable, Aspen HYSYS calculates the dew point
pressure. Likewise, if pressure is the independent variable, then
the dew point temperature is calculated. Retrograde dew points
may be calculated by specifying a vapour fraction of -1.0. It is
important to note that a dew point that is retrograde with
respect to temperature can be normal with respect to pressure
and vice versa.
All of the solids appear in the liquid phase.A-84
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-85
ww
ThBubble Points/Vapour Pressure
A vapour fraction specification of 0.0 defines a bubble point
calculation. Given this specification and either temperature or
pressure, the property package calculates the unknown T or P
variable. As with the dew point calculation, if the temperature is
known, Aspen HYSYS calculates the bubble point pressure and
conversely, given the pressure, Aspen HYSYS calculates the
bubble point temperature. For example, by fixing the
temperature at 100°F, the resulting bubble point pressure is the
true vapour pressure at 100°F.
Quality Points
Bubble and dew points are special cases of quality point
calculations. Temperatures or pressures can be calculated for
any vapour quality between 0.0 and 1.0 by specifying the
desired vapour fraction and the corresponding independent
variable. If Aspen HYSYS displays an error when calculating
vapour fraction, then this means that the specified vapour
fraction doesn't exist under the given conditions, i.e., the
specified pressure is above the cricondenbar, or the given
temperature lies to the right of the cricondentherm on a
standard P-T envelope.
Vapour pressure and bubble point pressure are synonymous.
Aspen HYSYS calculates the retrograde condition for the
specified vapour quality if the vapour fraction is input as a
negative number.A-85
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-86 Flash Calculations
ww
ThA.7.3 Enthalpy Flash
Given the enthalpy and either the temperature or pressure of a
stream, the property package calculates the unknown
dependent variables. Although the enthalpy of a stream cannot
be specified directly, it often occurs as the second property
variable as a result of energy balances around unit operations
such as valves, heat exchangers and mixers.
If Aspen HYSYS responds with an error message, and cannot
find the specified property (temperature or pressure), this
probably means that an internally set temperature or pressure
bound was encountered. Since these bounds are set at quite
large values, there is generally some erroneous input that is
directly or indirectly causing the problem, such as an impossible
heat exchange.
A.7.4 Entropy Flash
Given the entropy and either the temperature or pressure of a
stream, the property package calculates the unknown
dependent variables.
A.7.5 Electrolyte Flash
The electrolyte stream flash differs from the Aspen HYSYS
material stream flash to handle the complexities of speciation
for aqueous electrolyte systems.
The Aspen HYSYS OLI Interface package is an interface to the
OLI Engine (OLI Systems) that enables simulations within Aspen
HYSYS using the full functionality and capabilities of the OLI
Engine for flowsheet simulation.
If a specified amount of energy is to be added to a stream,
this may be accomplished by specifying the energy stream
into either a Cooler/Heater or Balance operation.
Refer to the Aspen
HYSYS OLI Interface
Reference Guide for
detailed information on
electrolyte flash and
aqueous
thermodynamics.A-86
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-87
ww
ThWhen the OLI_Electrolyte property package is associated with
material streams, the streams exclusively become electrolyte
material streams in the flowsheet. That is, the stream conducts
a simultaneous phase and reaction equilibrium flash. For the
model used and the reactions involved in the flash calculation,
refer to the Aspen HYSYS OLI Interface Reference Guide.
An electrolyte material stream in Aspen HYSYS can perform the
following type of flashes:
• TP Flash
• PH Flash
• TH Flash
• PV Flash
• TV Flash
Due to the involvement of reactions in the stream flash, the
equilibrium stream flash may result in a different molar flow and
composition from the specified value. Therefore, mass and
energy are conserved for an electrolyte material stream against
the Aspen HYSYS stream for mass, molar and energy balances.
Limitations exist in the Aspen HYSYS OLI Interface package in
the calculation of the stream flash results. The calculation for
the electrolyte flash results must fall within the following
physical ranges to be valid.
• composition of H2O in aqueous phase must be > 0.65.
• Temperature must be between 0 and 300°C.
• Pressure must be between 0 and 1500 atm.
• Ionic strength must be between 0 and 30 mole/kg-H2O.
A.7.6 Handling of Water
Water is handled differently depending on the correlation being
used. The PR and PRSV equations are enhanced to handle H2O
rigorously whereas the semi-empirical and vapour pressure
models treat H2O as a separate phase using steam table
correlations.
Refer to Section 1.7 -
Range of Applicability
of the Aspen HYSYS OLI
Interface Reference
Guide for more
information on the
limitations of the HEO
models.A-87
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-88 Flash Calculations
ww
ThIn these correlations, H2O is assumed to form an ideal, partially-
miscible mixture with the hydrocarbons and its K value is
computed from the relationship:
where:
p° = vapour pressure of H2O from Steam Tables
P = system pressure
xs = solubility of H2O in hydrocarbon liquid at saturation
conditions.
The value for xs is estimated by using the solubility data for
kerosene as shown in Figure 9A1.4 of the API Data Book2. This
approach is generally adequate when working with heavy
hydrocarbon systems. However, it is not recommended for gas
systems.
For three phase systems, only the PR and PRSV property
package and Activity Models allow components other than H2O
in the second liquid phase. Special considerations are given
when dealing with the solubilities of glycols and CH3OH. For acid
gas systems, a temperature dependent interaction parameter
was used to match the solubility of the acid component in the
water phase.
The PR equation considers the solubility of hydrocarbons in H2O,
but this value may be somewhat low. The reason for this is that
a significantly different interaction parameter must be supplied
for cubic equations of state to match the composition of
hydrocarbons in the water phase as opposed to the H2O
composition in the hydrocarbon phase. For the PR equation of
state, the latter case was assumed more critical. The second
binary interaction parameter in the PRSV equation allows for an
improved solubility prediction in the alternate phase.
With the activity coefficient models, the limited mutual solubility
of H2O and hydrocarbons in each phase can be taken into
account by implementing the insolubility option (please refer to
(A.68)Kω
p°
xsP( )
------------=A-88
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-89
ww
ThSection A.3.2 - Activity Models). Aspen HYSYS generates,
upon request, interaction parameters for each activity model
(with the exception of the Wilson equation) that are fitted to
match the solubility of H2O in the liquid hydrocarbon phase and
hydrocarbons in the aqueous phase based on the solubility data
referred to in that section.
The Peng-Robinson and SRK property packages will always force
the water rich phase into the heavy liquid phase of a three
phase stream. As such, the aqueous phase is always forced out
of the bottom of a three phase separator, even if a light liquid
phase (hydrocarbon rich) does not exist. Solids are always
carried in the second liquid phase.
A.7.7 Supercritical Handling
Aspen HYSYS reports a vapor fraction of zero or one, for a
stream under supercritical conditions. Theoretically, this value
doesn’t have any physical meaning for a supercritcial fluid, since
there is no distinction of liquid or vapor phases in a supercritical
region. However, it is important to determine if a supercritical
fluid is liquid-like or a vapor-like fluid. This is because some of
the properties reported in Aspen HYSYS are calculated using
certain sets of specific phase models. In other words, phase
identification has to be carried out in order to decide which
model to use to calculate these properties.
In Aspen HYSYS, all flash results go through a phase order
function to identify the phase type. Different packages have
their own different order.
For example, the following criteria are used to identify phase
types for the PR, SRK, SourPR, and Sour SRK cubic equations of
state at supercritical region:
1. If the compressibility factor (Z) is greater than 0.3, and the
isothermal compressibility factor (beta) is greater than 0.75,
a vapor fraction of 1.0 is assigned to the stream.
2. If Z is greater than 0.75 and the sum of composition of light
compounds (NBP<230K) is greater than the sum of
composition of heavy compounds, a vapor fraction of 1.0 is
assigned to the stream.A-89
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-90 Flash Calculations
ww
ThOtherwise, vapor fraction of 0 is assigned to the stream and
liquid correlations are used.
A.7.8 Solids
Aspen HYSYS does not check for solid phase formation of pure
components within the flash calculations, however, incipient
solid formation conditions for CO2 and hydrates can be predicted
with the Utility Package.
Solid materials such as catalyst or coke can be handled as user-
defined, solid type components. The Aspen HYSYS property
package takes this type of component into account in the
calculation of the following stream variables: stream total flow
rate and composition (molar, mass and volume), vapour
fraction, entropy, enthalpy, specific heat, density, molecular
weight, compressibility factor, and the various critical
properties. Transport properties are computed on a solids-free
basis. Note that solids are always carried in the second liquid
phase, i.e., the water rich phase.
Solids do not participate in vapour-liquid equilibrium (VLE)
calculations. Their vapour pressure is taken as zero. However,
since solids do have an enthalpy contribution, they have an
effect on heat balance calculations. Thus, while the results of a
Temperature flash are the same whether or not such
components are present, an Enthalpy flash is affected by the
presence of solids.
A solid material component is entered as a hypothetical
component in Aspen HYSYS.
For more information on
utilities, refer to Chapter
14 - Utilities of the
Aspen HYSYS
Operations Guide.
Refer to Chapter 3 -
Hypotheticals for more
information on
Hypotheticals.A-90
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-91
ww
ThA.7.9 Stream Information
When a flash calculation occurs for a stream, the information
that is returned depends on the phases present within the
stream. The following table shows the stream properties that
are calculated for each phase:
Steam Property Applicable PhasesA
Vapour Phase Mole Fraction F V L S
Vapour Phase Mass Fraction F V L S
Vapour Phase Volume Fraction F V L S
Temperature F V L S
Pressure F V L S
Flow F V L S
Mass Flow F V L S
Liquid Volume Flow (Std, Ideal) F V L S
Volume Flow F V L S
Std. Gas Flow F V L S
Std. Volume Flow F L S
Energy F V L S
Molar Enthalpy F V L S
Mass Enthalpy F V L S
Molar Entropy F V L S
Mass Entropy F V L S
Molar Volume F V L S
Molar Density F V L S
Mass Density F V L S
Std. Liquid Mass Density FD L S
Molar Heat Capacity F V L S
Mass Heat Capacity F V L S
CP/CV F V L S
Thermal Conductivity FB,D V L
Viscosity FB,D V L
Kinematic Viscosity FB,D V L
Surface Tension FB L
Molecular Weight F V L S
Z Factor FB V L S
Air SG FB V
Watson (UOP) K Value F V L S
Component Mole Fraction F V L S
AStream phases:
F - Feed
V - Vapour
L - Liquid
S - SolidA-91
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-92 References
ww
ThBPhysical property queries are allowed on the feed phase of single phase streams.
CPhysical property queries are allowed on the feed phase only for streams containing vapour
and/or liquid phases.
DPhysical property queries are allowed on the feed phase of liquid streams with more than one
liquid phase.
A.8 References
 1 API Publication 955, A New Correlation of NH3, CO2 and H2S
Volatility Data From Aqueous Sour Water Systems, March 1978.
 2 API Technical Data Book, Petroleum Refining, Fig. 9A1.4, p. 9-15, 5th
Edition (1978).
 3 Chao, K. D. and Seader, J. D., A.I.Ch.E. Journal, pp. 598-605,
December 1961.
 4 Ely, J.F. and Hanley, H.J.M., "A Computer Program for the Prediction
of Viscosity and Thermal Conductivity in Hydrocarbon Mixtures",
NBS Technical Note 1039.
 5 Gambill, W.R., Chem. Eng., March 9, 1959.
 6 Grayson, H. G. and Streed, G. W., "Vapour-Liquid Equilibria for High
Temperature, High Pressure Systems", 6th World Petroleum
Congress, West Germany, June 1963.
 7 Hankinson, R.W. and Thompson, G.H., A.I.Ch.E. Journal, 25, No. 4,
p. 653 (1979).
Component Mass Fraction F V L S
Component Volume Fraction F V L S
Component Molar Flow F V L S
Component Mass Flow F V L S
Component Volume Flow F V L S
K Value (y/x)
Lower Heating Value
Mass Lower Heating Value
Molar Liquid Fraction F V L S
Molar Light Liquid Fraction F V L S
Molar Heavy Liquid Fraction F V L S
Molar Heat of Vapourization FC V L
Mass Heat of Vapourization FC V L
Partial Pressure of CO2 F V L S
Steam Property Applicable PhasesAA-92
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Property Methods & Calculations A-93
ww
Th 8 Hayden, J.G. and O’Connell, J.P., Ind. Eng. Chem., Process Des. Dev.
14, 209 (1975).
 9 Jacobsen, R.T and Stewart, R.B., 1973. "Thermodynamic Properties
of Nitrogen Including Liquid and Vapour Phases from 63 K to 2000K
with Pressure to 10 000 Bar." J. Phys. Chem. Reference Data, 2:
757-790.
 10Kabadi, V.N., and Danner, R.P. A Modified Soave-Redlich-Kwong
Equation of State for Water-Hydrocarbon Phase Equilibria, Ind.
Eng. Chem. Process Des. Dev. 1985, Volume 24, No. 3, pp 537-
541.
 11Keenan, J. H. and Keyes, F. G., Thermodynamic Properties of Steam,
Wiley and Sons (1959).
 12Knapp, H., et al., "Vapor-Liquid Equilibria for Mixtures of Low Boiling
Substances", Chemistry Data Series Vol. VI, DECHEMA, 1989.
 13Passut, C. A.; Danner, R. P., “Development of a Four-Parameter
Corresponding States Method: Vapour Pressure Prediction”,
Thermodynamics - Data and Correlations, AIChE Symposium
Series; p. 30-36, No. 140, Vol. 70.
 14Peng, D. Y. and Robinson, D. B., "A Two Constant Equation of State",
I.E.C. Fundamentals, 15, pp. 59-64 (1976).
 15Perry, R. H.; Green, D. W.; “Perry’s Chemical Engineers’ Handbook
Sixth Edition”, McGraw-Hill Inc., (1984).
 16Prausnitz, J.M., Lichtenthaler, R.N., Azevedo, E.G., "Molecular
Thermodynamics of Fluid Phase Equilibria", 2nd. Ed., McGraw-Hill,
Inc. 1986.
 17Reid, C.R., Prausnitz, J.M., and Sherwood, T.K., "The Properties of
Gases and Liquids", McGraw-Hill Book Company, 1977.
 18Reid, R.C., Prausnitz, J.M., and Poling, B.E., "The Properties of Gases
& Liquids", McGraw-Hill, Inc., 1987.
 19Soave, G., Chem Engr. Sci., 27, No. 6, p. 1197 (1972).
 20Stryjek, R., Vera, J.H., J. Can. Chem. Eng., 64, p. 334, April 1986.
 21Twu, C.H., I.E.C. Proc Des & Dev, 24, p. 1287 (1985).
 22Woelflin, W., "Viscosity of Crude-Oil Emulsions", presented at the
spring meeting, Pacific Coast District, Division of Production, Los
Angeles, Calif., Mar. 10, 1942.
 23Zudkevitch, D., Joffee, J. "Correlation and Prediction of Vapor-Liquid
Equilibria with the Redlich-Kwong Equation of State", AIChE
Journal, Volume 16, No. 1, January pp. 112-119.A-93
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
A-94 References
ww
ThA-94
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Oil Methods & Correlations B-1
ww
ThB  Oil Methods &
CorrelationsB-1
B.1  Introduction .................................................................................. 2
B.2  Characterization Method................................................................ 2
B.2.1  Generate a Full Set of Working Curves ........................................ 3
B.2.2  Light Ends Analysis................................................................... 4
B.2.3  Auto Calculate Light Ends.......................................................... 7
B.2.4  Determine TBP Cutpoint Temperatures ........................................ 8
B.2.5  Graphically Determine Component Properties............................... 9
B.2.6  Calculate Component Critical Properties ...................................... 9
B.2.7  Correlations........................................................................... 10
B.3  References................................................................................... 11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
B-2 Introduction
ww
ThB.1 Introduction
This appendix is a supplement to Chapter 4 - HYSYS Oil
Manager. Included in this appendix is the general procedure
used by Aspen HYSYS to characterize an oil and a list of
correlations used in the Oil Manager.
B.2 Characterization
Method
The procedure Aspen HYSYS uses to convert your assay data
into a series of petroleum hypocomponent involves four major
internal characterization steps:
1. Based on your input curves, Aspen HYSYS calculates a
detailed set of full range Working Curves that include the
true boiling point (TBP) temperature, molecular weight,
density and viscosity behaviour.
2. Next, by using either a default or user-supplied set of
cutpoint temperatures, the corresponding fraction for each
hypocomponent is determined from the TBP working curve.
3. The normal boiling point (NBP), molecular weight, density
and viscosity of each hypocomponent are graphically
determined from the working curves.
4. For each hypocomponent, Aspen HYSYS calculates the
remaining critical and physical properties from designated
correlations, based upon the component's NBP, molecular
weight, and density.
Knowledge of the four phases of the characterization process
provide a better understanding of how your input data
influences the final outcome of your characterization. The
following sections detail each step of the calculation.B-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Oil Methods & Correlations B-3
ww
ThB.2.1 Generate a Full Set of
Working Curves
To ensure accuracy, a true boiling point (TBP) curve and
associated molecular weight, density, and viscosity property
curves are required for the characterization calculations. Aspen
HYSYS takes whatever input curves you have supplied, and
interpolates and extrapolates them as necessary to complete
the range from 0 to 100%. These full range curves are referred
to as the working curves.
If you supply an ASTM D86, ASTM D1160, or EFV distillation
curve as input, it is automatically converted to a TBP distillation
curve. On the other hand, if you do not have any distillation
data, supplying two of the three bulk properties (molecular
weight, density, or Watson (UOP) K factor) allows Aspen HYSYS
to calculate an average1 TBP distillation curve.
Physical property curves that were not supplied are calculated
from default correlations designed to model a wide variety of
oils, including condensates, crude oils, petroleum fractions, and
coal-tar liquids. If you supply a bulk molecular weight or bulk
density, the corresponding physical property curve (either user-
supplied or generated) is smoothed and adjusted such that the
overall property is matched. A typical TBP curve is illustrated
below.
 Figure B.1
Percent Distilled0 100
Te
m
p
er
at
u
re
IBP
FBPB-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
B-4 Characterization Method
ww
ThB.2.2 Light Ends Analysis
Aspen HYSYS uses your Light Ends data to either define or
replace the low boiling portion of your TBP, ASTM D86 or ASTM
D1160 curve with discrete pure components. Aspen HYSYS does
not require that you match the highest boiling point light-end
with the lowest boiling point temperature on the TBP curve.
Using the sample Light Ends analysis shown here, Aspen HYSYS
replaces the first portion of the TBP working curve to the assay
percentage just past the boiling point of n-pentane
(approximately 95°F or 36°C) or 11.3 vol% (the cumulative
light ends total), whichever is greater. The new TBP curve would
include the Light Ends Free portion of the original sample
beginning at 0% distilled with the associated IBP representing
the remaining portion of the original sample.
Three possible Light Ends/Assay situations can exist as depicted
in the next three figures. In the following figures:
• Point A represents the boiling point of the heaviest light-
end, n-Pentane in this example.
• Point B represents the temperature at which the total
Light Ends percentage intersects the TBP working curve.
Default values of the IBP and FBP can be changed on the
Boiling Ranges property view.
Refer to Section 4.4 -
Oil Characterization
Property View for more
information.B-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Oil Methods & Correlations B-5
ww
ThIf points A and B coincide exactly as shown in Figure B.2,
Aspen HYSYS assigns the TBP working curve's IBP equal to the
boiling point of the heaviest light end and normalizes the
remaining portion of the TBP curve with the light ends removed.
All points that lie below point B on the curve are eliminated.
Figure B.3 depicts the situation that may arise from
inconsistent data or from a poor extrapolation of the IBP.
These situations are corrected by assuming that the Light Ends
analysis is correct and that the error exists in the internal TBP
curve. In the figure, Point A (boiling point of the heaviest light
end component) lies below Point B (internal TBP curve
temperature associated with your cumulative light ends
percentage) on the internal TBP working curve. Aspen HYSYS
replaces point B (the Light Ends free IBP) by a point that uses
the cumulative light ends percentage and the normal boiling
 Figure B.2
 Figure B.3
Percent Distilled0 100
Te
m
p
er
a
tu
re
IBP
FBP
NBP
nC5
Portion of Original Assay that will
be Renor-malized to be on a Light
Ends Free Basis
Cumulative Light
Ends % Distilled
A B
Percent Distilled0 100
Te
m
p
er
at
u
re
IBP
FBP
NBP
nC5
Portion of Original Assay that will
be Renor-malized to be on a Light
Ends Free Basis
Cumulative Light Ends % Distilled
B
A
B-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
B-6 Characterization Method
ww
Thpoint of the heaviest light ends component. The Light Ends free
portion of the curve is smoothed before normalizing.
Figure B.4 shows the boiling point of the heaviest light-end
occurring at an assay percentage greater than the cumulative
Light Ends total. Aspen HYSYS corrects this situation by
successively eliminating TBP working curve points from point B
up to the first temperature point greater than the heaviest light
end temperature (Point A).
For example, if in the above figure Point B represents 5% and
Point A represents 7%, the new TBP curve (which is light ends
free) is stretched, i.e., what was 93% of the assay (determined
from point A) is now 95% of the assay. As in the previous case,
Point A's temperature is assigned to the new TBP curve’s IBP,
and the Light Ends free portion is smoothed and normalized.
 Figure B.4
Percent Distilled0 100
Te
m
p
er
a
tu
re
IBP
FBP
NBP
nC5
Portion of Original Assay that
will be Renor-malized to be
on a Light Ends Free Basis
Cumulative Light Ends % Distilled
A
B
Portion of TBP that is eliminated due to
inconsistencies between the Distillation
and Light-Ends AnalysesB-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Oil Methods & Correlations B-7
ww
ThB.2.3 Auto Calculate Light
Ends
Aspen HYSYS' Auto Calculate Light Ends procedure internally
plots the boiling points of the defined components on the TBP
working curve and determines their compositions by
interpolation. Aspen HYSYS adjusts the total Light Ends fraction
such that the boiling point of the heaviest light end is at the
centroid volume of the last Light Ends component. The figure
below illustrates the Auto Calculate Light Ends removal
procedure.
 Figure B.5
Te
m
p
er
at
u
re
IBP
FBP
NBP nC5
nC4
iC5
iC4
0 100
iC4 iC5
nC5nC4
Percent Distilled
Cumulative
Light Ends
% Distilled
Portion of Original Assay that will be
Renormalized to be on a Light Ends Free Basis
New IBP point for the TBP curve
Centroid Volume of the Last
Light-End ComponentB-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
B-8 Characterization Method
ww
ThB.2.4 Determine TBP Cutpoint
Temperatures
You may specify the hypocomponent breakdown by supplying a
number of cutpoint temperatures and the corresponding number
of cuts for each temperature range, or you may let Aspen
HYSYS calculate an optimal set of cutpoints for you based upon
the overall number of hypocomponent you have designated. The
characterization process then uses its TBP working curve and
the specified set of TBP cutpoints to determine the fraction of
each hypocomponent on the input curve basis.
In Figure B.6, four components are generated from the TBP
curve using five TBP cutpoints of equal temperature increment.
Refer to Section 4.6 - Hypocomponent Generation for more
details.
 Figure B.6
Percent Distilled0 100
Te
m
p
er
at
u
re
T4
CUT1
CUT2 CUT3
CUT4
IBP
T3
T2
T1B-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Oil Methods & Correlations B-9
ww
ThB.2.5 Graphically Determine
Component Properties
After the cutpoints and the fraction of each hypocomponent are
known, the average boiling point may be determined. This is the
normal boiling point (NBP), which is calculated for each
component by equalizing the areas between the TBP curve and a
horizontal line representing the NBP temperature. This is shown
in the figure below, with the grey areas representing the
equalized areas. The average molecular weight, density, and
viscosity of each hypocomponent are subsequently calculated
from the corresponding smoothed working curves for molecular
weight, density and viscosity.
B.2.6 Calculate Component
Critical Properties
Knowing the normal boiling point, molecular weight, and density
enables Aspen HYSYS to calculate the remaining physical and
thermodynamic properties necessary to completely define the
petroleum hypocomponent. These properties are estimated for
each hypocomponent using default or user-selected correlations
as outlined in Section B.2.7 - Correlations.
 Figure B.7
Te
m
p
er
at
u
re
T4
IBP
T3
T2
T1
Percent Distilled
0 100
CUT1 CUT2 CUT3 CUT4B-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
B-10 Characterization Method
ww
ThB.2.7 Correlations
The range of applicability for the critical property correlations
are explained below:
Critical Property
Correlation
Range of Applicability
Lee-Kesler These equations yield nearly identical results to those obtained using the
graphical correlations found in the API Data Book for boiling temperatures
below 1250°F (677°C). The equations are modified to extend beyond this
range, but an upper limit is not given by the authors.
Cavett The author does not present any reference as to which data were used for
the development of the correlations or their limitations. Experience has
proven these correlations to produce very good results for fractions whose
API gravity is greater than zero or for highly aromatic and naphthenic
fractions such as coal tar liquids.
Riazi-Daubert In the boiling point range 0 - 602°F (-18 - 317°C), these correlations
perform slightly better than other methods. Their most serious drawback
is the limitation of the boiling point to 855°F (457°C) for the calculation of
critical pressure and molecular weight.
Nokay Limitations for these correlations are not presented in the original
publications. The critical temperature and molecular weight correlations
are particularly good for highly aromatic or naphthenic systems as shown
in a paper by Newman, "Correlations Evaluated for Coal Tar Liquids".
Roess The main limitation of these correlations is that they should not be used
for fractions heavier than C20 (650°F, 343°C). They highly underestimate
critical temperatures for heavier fractions and should not be used for
heavy oil applications.
Edmister These equations are very accurate for pure components, but are restricted
to condensate systems with a limited amount of isomers. Edmister
acentric factors tend to be lower than Lee-Kesler values for fractions
heavier than C20 (650°F, 343°C). It is recommended that application of
the Edmister equation be restricted to the range below C20.
Bergman These correlations were developed for lean gases and gas condensates
with relatively light fractions, thereby limiting their general applicability to
systems with carbon numbers less than C15.
Spencer-Daubert This family of correlations is a modification of the original Nokay equations
with a slightly extended range of applicability.
Rowe These equations were presented for estimating boiling point, critical
pressure and critical temperature of paraffin hydrocarbons. Carbon
number, which is used as the only correlating variable, limits the range of
applicability to lighter paraffinic systems.
Standing The data of Matthews, Roland and Katz was used to develop these
correlations. Molecular weight and specific gravity are the correlating
variables. Although Standing claims the correlations are for C7+ fractions,
they appear to be valid for narrower boiling point cuts as well. The
correlations should be used with caution for fractions heavier than C25
(841°F, 450°C).B-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Oil Methods & Correlations B-11
ww
ThB.3 References
 1 Whitson, C. H., “Characterizing Hydrocarbon Plus Fractions”, Society
of Petroleum Engineers Journal, August 1983.
Lyderson These correlations are based on the PNA (Paraffin/Napthene/Aromatic)
concept similar to Peng-Robinson PNA.
Bergman This method is limited to components whose gravity does not exceed
0.875 because of the form of the PNA equations. Acentric factors for
fractions heavier than C20 are considerably higher than those estimated
from either the Edmister or Lee-Kesler equation. These correlations are
included primarily for completeness and should not be used for fluids
containing fractions heavier than C20.
Yarborough This method is only for use in the prediction of specific gravity of
hydrocarbon components. Carbon number and aromaticity are the
correlating variables for this equation. The Yarborough method assumes
that the C7+ molecular weight and specific gravity are measured. It also
assumes that the mole fractions are measured from chromatographic
analysis (paraffin molecular weights are assumed to convert weight to
mole fractions).
Katz-Firoozabadi These correlations are only available for the prediction of molecular weight
and specific gravity. Normal boiling point is the only correlating variable
and application should be restricted to hydrocarbons less than C45.
Mathur Limitations for these correlations are not published by the author. These
equations produce excellent results for highly aromatic mixtures such as
coal-tar liquids, but are not rigorously examined for highly paraffinic
systems.
Penn State These correlations are similar to Riazi-Daubert correlations and should
have approximately the same limitations.
Aspen These correlations yield results quite close to the Lee-Kesler equations,
but tend to produce better results for aromatic systems. Limitations for
these equations are not available, but the Lee-Kesler limitations should
provide a good guide.
Hariu Sage These correlations were developed for estimating molecular weight from
boiling point and specific gravity utilizing the Watson Characterization
Factor, Kw. It provides reasonable extrapolation to boiling points greater
than 1500°F (816°C) and is more accurate than the Lee-Kesler molecular
weight correlation.
Critical Property
Correlation
Range of ApplicabilityB-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
B-12 References
ww
ThB-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Amines Property Package C-1
ww
ThC  Amines Property
PackageC-1
C.1  Amines Property Package .............................................................. 2
C.2  Non-Equilibrium Stage Model......................................................... 5
C.3  Stage Efficiency ............................................................................. 7
C.3.1  Non-Equilibrium Stage Model ..................................................... 8
C.4  Equilibrium Solubility..................................................................... 9
C.4.1  Kent & Eisenberg Model ............................................................ 9
C.4.2  Li-Mather Electrolyte Model ..................................................... 13
C.5  Phase Enthalpy ............................................................................ 19
C.6  Simulation of Amine Plant Flowsheets ......................................... 20
C.6.1  Solving the Columns............................................................... 20
C.6.2  Converging the Contactor........................................................ 21
C.6.3  Converging the Regenerator .................................................... 22
C.6.4  Recycle Convergence .............................................................. 22
C.6.5  Operating Conditions .............................................................. 23
C.7  Program Limitations .................................................................... 24
C.7.1  Range of Applicability ............................................................. 24
C.8  References................................................................................... 25
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C-2 Amines Property Package
ww
ThC.1 Amines Property
Package
The removal of acid gases such as hydrogen sulphide (H2S) and
carbon dioxide (CO2) from process gas streams is often required
in natural gas plants and in oil refineries. There are many
treating processes available. However, no single process is ideal
for all applications. The initial selection of a particular process
may be based on feed parameters such as composition,
pressure, temperature and the nature of the impurities, as well
as product specifications.
Final selection is ultimately based on process economics,
reliability, versatility, and environmental constraints. The
selection procedure is not a trivial matter; any tool that provides
a reliable mechanism for process design is highly desirable.
Acid gas removal processes using absorption technology and
chemical solvents are popular, particularly those using aqueous
solutions of alkanolamines. The Amines Property Package is a
special property package designed to aid in the modeling of
alkanolamine treating units in which H2S and CO2 are removed
from gas streams. The Property Package contains data to model
the absorption/desorption process which use the following:
• aqueous solutions of single amines – monoethanolamine
(MEA), diethanolamine (DEA), methyldiethanolamine
(MDEA), triethanolamine (TEA), 2,2'-hydroxy-
aminoethylether (DGA), or diisopropanolamine (DIPA)
• aqueous solutions of blended amines – MEA/MDEA or
DEA/MDEA
• a physical solvent – dimethyl ethers of polyethylene
glycol (DEPG) also known as Coastal AGR
Any combination of two amines can be used for the Li-Mather
model.
The Amines Property Package is a special option available
for Aspen HYSYS. For more information on this option or get
information on other Aspen HYSYS additions please contact
your AspenTech Agent.C-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Amines Property Package C-3
ww
ThFigure C.1 shows the conventional process configuration for a
gas treating system that uses aqueous alkanolamine solutions.
The sour gas feed is contacted with amine solution counter-
currently in a trayed or packed absorber. Acid gases are
absorbed into the solvent that is then heated and fed to the top
of the regeneration tower. Stripping steam produced by the
reboiler causes the acid gases to desorb from the amine solution
as it passes down the column. A condenser provides reflux and
the acid gases are recovered overhead as a vapour product.
Lean amine solution is cooled and recycled back to the absorber.
A partially stripped, semi-lean amine stream may be withdrawn
from the regenerator and fed to the absorber in the split-flow
modification to the conventional plant flowsheet. A three-phase
separator or flash tank may be installed at the outlet of the
absorber to permit the recovery of dissolved and entrained
hydrocarbons and to reduce the hydrocarbon content of the acid
gas product.
 Figure C.1C-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C-4 Amines Property Package
ww
ThThe design of amine treating units involves the selection of the
following:
• the process configuration
• the amine type and concentration
• the solution circulation rate
• the reboiler heat requirements
• the operating pressures and temperatures.
The mechanical tray design and the number of stages in the
contactor are known to affect the process performance and are
particularly important in selective absorption applications.
Amine treating units were designed in the past using hand
calculations and operating experience. Design conditions were
typically chosen within a conservative range to cover the
deficiencies in the data used in the hand calculations. Simulation
is one means of obtaining values for the key design variables in
the process, and is generally used to confirm the initial design
obtained by the above methods.
Rules-of-thumb do not exist for the design of selective
absorption applications since operating experience is limited.
Furthermore, the process is generally controlled by reaction
kinetics and cannot be designed on the basis of chemical
equilibrium alone. The simulation program must be relied upon
as a predictive tool in these cases.
The AMSIM program uses technology developed by DB Robinson
& Associates Ltd. to model the equilibrium solubility of acid
gases in aqueous amine solutions.
A new nonequilibrium stage model which is based on the stage
efficiency concept is used to simulate the performance of
contactors and regenerators. A list of reference articles on the
research leading to the development of AMSIM can be found at
the end of this section. The best data known to exist is used to
determine the component properties in the AMSIM databank.
Currently Aspen HYSYS uses AMSIM version 7.2. AMSIM has
also been integrated with COMThermo.C-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Amines Property Package C-5
ww
Th
C.2 Non-Equilibrium Stage
Model
A non-equilibrium stage model developed to simulate the multi-
component multistage mass transfer process encountered in an
amine treating unit is used in the Amines Property Package.
The generalized stage model shown in Figure C.2 gives the flow
geometry and nomenclature for an individual stage in a column.
The fundamental concept used is that the rate of absorption/
desorption of acid gases to/from the amine solution must be
considered as a mass-transfer rate process. This rate process
depends on the equilibrium and kinetic parameters that describe
the acid gas/amine system.
The model incorporates a modified Murphree-type vapour
efficiency to account for the varying mass-transfer rates of
individual acid gas components. The acid gas stage efficiencies
are, in turn, functions of mass-transfer coefficients and the
mechanical design of the tray.
The AMSIM models is designed for one amine or two amines.
When two amines are selected, the Amines property package
expects both amines to have a composition or both amines
to be zero. You cannot specify one amine composition to be
greater than zero and the other to be equal to zero. It is
suggested that instead of specifying one amine to be zero,
input a very small composition value for said amine.C-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C-6 Non-Equilibrium Stage Model
ww
ThWhen the generalized stage model is extended to the multistage
case, the resulting column flow geometry and nomenclature is
shown in Figure C.2. The resulting set of balance equations
that characterize the multistage unit are given in Section C.4 -
Equilibrium Solubility. This set of equations must be solved
for each column in the flowsheet. A modified Newton-Raphson
method is used to solve the rigorous non-linear stage equations
simultaneously for temperature, composition and phase rates on
each stage in a column.
 Figure C.2C-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Amines Property Package C-7
ww
ThC.3 Stage Efficiency
The stage efficiency as defined under the Amines property
package option is given by:
where:
 = Stage efficiency
i = Component number
j = Stage number
K = Equilibrium ratio
V = Molar flow rate of vapour
X = Mole fraction in liquid phase
Y = Mole fraction in vapour phase
The stage efficiency is a function of the kinetic rate constants for
the reactions between each acid gas and the amine, the
physico-chemical properties of the amine solution, the pressure,
temperature and the mechanical tray design variables such as
tray diameter, weir height and weir length.
You may specify the stage efficiencies or have them calculated
in Aspen HYSYS.
(C.1)
If the Amines option is selected, Aspen HYSYS always uses
stage-component efficiencies. Note that the efficiencies used
are only for H2S and C02 components. If the efficiencies are
not specified for the column, Aspen HYSYS calculates
efficiencies based on the tray dimensions specified in the
Amines page of the Column property view. If no tray
dimensions are specified, Aspen HYSYS uses the default tray
dimensions to calculate the stage efficiencies. These are real
stages, not ideal stages.
η
Vj SVj+( )Yj Vj 1+ Yij 1+–
Vj SVj+( )K1jXij Vj 1+ Yij 1+–
------------------------------------------------------------------------=
η
C-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C-8 Stage Efficiency
ww
ThC.3.1 Non-Equilibrium Stage
Model
Overall Material Balance
Component Material Balance
Energy Balance
Equilibrium Relationship
Summation Equation
(C.2)
(C.3)
(C.4)
(C.5)
(C.6)
Fj Lj 1– Lj SLj+( )– Vj SVj+( )–+ 0=
Fjzij Lj 1– xij 1– Vj 1+ Yij 1+ Lj SLj+( )xij– Vj SVj+( )yij–+ + 0=
FjHFj Qj Lj 1– hj 1– Vj 1+ Hj 1+ Lj SLj+( )hj– Vj SVj+( )Hi–+ + + 0=
ηi jKijxij Vj SVj+( ) Vj SVj+( )yij– 1 ηij–( )Vj 1+ yij 1++ 0=
yij 1.0–∑ 0=C-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Amines Property Package C-9
ww
ThC.4 Equilibrium Solubility
C.4.1 Kent & Eisenberg Model
A model based on the Kent and Eisenberg approach is used to
correlate the equilibrium solubility of acid gases in the amine
solutions. The reference articles contain experimental data that
were used to validate the solubility model. Additional
unpublished data for DEA, MDEA, MEA/MDEA, and DEA/MDEA
systems have also been incorporated.
Improvements were made to the model to extend the reliable
range to mole loadings between 0.0001 and 1.2. A proprietary
model was developed to predict the solubility of acid gas
mixtures in tertiary amine solutions. Solubilities of inert
components such as hydrocarbons are modelled using a Henry's
constant adjusted for ionic strength effects.
The prediction of equilibrium ratios or K-values involves the
simultaneous solution of a set of non-linear equations that
describe the chemical and phase equilibria and the
electroneutrality and mass balance of the electrolytes in the
aqueous phase. These equations are provided below. The model
is used to interpolate and extrapolate the available experimental
solubility data in the Amines Property Package. For tertiary
amines that do not form carbamate, the equations involving that
ionic species are eliminated from the model.
These equations are shown as follows:
Chemical Reactions
(C.7)
(C.8)
(C.9)
R1R2NH H2O R1R2NH2
+ OH-+⇔+
R1R2R3N H2O R1R2R3NH+ OH-+⇔+
R1R2NH CO2 R1R2NCOO- H++⇔+C-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C-10 Equilibrium Solubility
ww
Th
(C.10)
(C.11)
(C.12)
(C.13)
(C.14)
Equilibrium Relations
(C.15)
(C.16)
(C.17)
(C.18)
(C.19)
(C.20)
(C.21)
(C.22)
Chemical Reactions
H2O H+⇔ OH-+
H2S H+⇔ HS-+
CO2 H2O+ H+⇔ HCO3
-+
HS- H+⇔ S=+
HCO3
- H+⇔ CO3
=+
K1
H+[ ] R1R2NH[ ]
R1R2NH2
+[ ]
--------------------------------------=
K2
H+[ ] R1R2R3N[ ]
R1R2R3NH+[ ]
----------------------------------------=
K3
HCO3
-[ ] R1R2NH[ ]
R1R2NCOO-[ ]
-----------------------------------------------=
K4
H+[ ] OH-[ ]
H2O[ ]
---------------------------=
K5
H+[ ] HS-[ ]
H2S[ ]
--------------------------=
K6
H+[ ] HCO3
-[ ]
CO2[ ] H2O[ ]
--------------------------------=
K7
H+[ ] S=[ ]
HS-[ ]
----------------------=
K8
H+[ ] CO3
=[ ]
HCO3
-[ ]
----------------------------=C-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Amines Property Package C-11
ww
Th
Phase Equilibria
(C.23)
(C.24)
Charge Balance
(C.25)
Mass Balance
(C.26)
(C.27)
(C.28)
(C.29)
yH2SφH2S
V P HH2S H2S[ ]=
yCO2
φCO2
V P HCO2
CO2[ ]=
H+[ ] R1R2NH2
+[ ] R1R2R3NH+[ ]+ +
OH-[ ] R1R2NCOO-[ ] HCO3
-[ ] HS-[ ] 2 CO3
=[ ] 2 S=[ ]+ + + + +
=
C1 2 amine–, R1R2NH[ ] R1R2NH2
+[ ] R1R2NCOO-[ ]+ +=
C3 amine– R1R2R3N[ ] R1R2R3NH+[ ]+=
CCO2
C1 2 amine–, C3 amine–+( )αCO2
CO2[ ] R1R2NCOO-[ ] HCO3
-[ ] CO3
=[ ]+ + +
= =
CH2S C1 2 amine–, C3 amine–+( )αH2S
H2S[ ] HS-[ ] S=[ ]+ +
= =C-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C-12 Equilibrium Solubility
ww
ThThe fugacity coefficient of the molecular species is calculated by
the Peng-Robinson equation of state:
where:
The temperature-dependent quantity  has the following form.
The parameters  and  are substance-dependent and are
determined through rigorous regressions against reliable data.
For mixtures, equation parameters a and b are estimated by the
following mixing rules.
(C.30)
(C.31)
(C.32)
(C.33)
(C.34)
(C.35)
p RT
v b–
----------- a T( )
v v b+( ) b v b–( )+
---------------------------------------------–=
a α 0.45724( )R2Tc
2 Pc⁄=
b 0.07780( )RTc Pc⁄=
α
α1 2⁄ 1 α1 1 Tr–( ) α2 1 Tr–( ) 0.7 Tr–( )+ +=
α1 α2
a i j xixj aiaj( )0.5 1 kij–( )∑∑=
b i j xixj
bi bj+
2
--------------⎝ ⎠
⎛ ⎞ 1 lij–( )∑∑=C-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Amines Property Package C-13
ww
ThC.4.2 Li-Mather Electrolyte
Model
The Amines property package is modified to simulate three
phase behaviour. For the three phase simulation, the K values
from the Peng-Robinson property package were combined with
the K values from the Amines LLE and VLE package.
The Li-Mather model shows a strong predictive capability over a
wide range of temperatures, pressures, acid gas loadings, and
amine concentrations. AMSIM is capable of simulating processes
with blended solvents made up of any two of six principle
amines (MEA, DEA, MDEA, TEA, DGA and DIPA).
The framework of the thermodynamic model is based on two
types of equilibria: vapour-liquid phase equilibria and liquid-
phase chemical equilibria.
Phase Equilibria
The vapour-liquid equilibria of the molecular species is given by:
where:
Hi = Henry’s constant
P = system pressure
xi, yi = mole fraction of molecular specied i in the liquid and
gas phase
 = fugacity coefficient on the gas phase
 = activity coefficient in the liquid phase
(C.36)yiΦi
VP Hixiγi
L=
Φi
V
γi
L
C-13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C-14 Equilibrium Solubility
ww
ThThe fugacity coefficient is calculated by the Peng-Robinson
equation of state (Peng and Robinson, 1976):
Where the parameters are obtained from the EQUI-PHASE
EQUI90TM program library. The activity coefficient is calculated
by the Clegg-Pitzer equation that is described later in this
section.
Chemical Equilibria
In case of single amine-H2S-CO2-H2O systems, the important
chemical dissociation reactions are as follows:
The chemical equilibrium constants in the acid gas - amine
systems play an important role in the prediction of the
equilibrium solubilities of acid gases in the aqueous amine
solutions. The equilibrium constant K can be expressed by:
(C.37)
Chemical Dissociation Reactions
(C.38)
(C.39)
(C.40)
(C.41)
(C.42)
(C.43)
(C.44)
P RT
V b–
------------ a T( )
V V b+( ) b V b–( )+
------------------------------------------------–=
Amine+ Amine H++⇔
H2S HS- H++⇔
CO2 H2O HCO3
- H++⇔+
H2O OH- H++⇔
HCO3
- CO3
= H++⇔
HS- S= H++⇔
K Πi xiyi( )
βi=C-14
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Amines Property Package C-15
ww
ThThe equilibrium constant is expressed as a function of
temperature:
Henry’s constant has the same function of temperature as that
in equation (C.45). In the liquid phase, there are four molecular
species, Amine, H2O, CO2, H2S and seven ionic species, Amine+,
HCO3
-, HS-, H+, OH-, CO3
=, S= for the amine-H2S-CO2-H2O
system. In the gas phase, there are only four molecular species,
Amine, H2O, CO2 and H2S.
The determination of the compositions of all molecular and ionic
species in both vapour and liquid phases involves the
simultaneous solution of a set of non-linear equations that
describe the phase equilibria and chemical equilibria,
electroneutrality (charge balance) and mass balance of the
electrolytes in the aqueous solution.
The Clegg-Pitzer Equation
The original Pitzer equation (Pitzer, 1973) did not consider the
solvent molecules in the system as interacting particles. Thus it
is not suitable for the thermodynamic description of the mixed-
solvent systems. In the Clegg-Pitzer model, all the species in the
system were considered as interacting particles. The long-range
electrostatic term and the short-range hard-sphere-repulsive
term deduced from the McMillan-Mayer's statistical osmotic-
pressure theory remained unchanged. The excess Gibbs free
energy, gex consists of the long-range Debye-Huckel
electrostatic interaction term, gDH and the short-range Margules
expansions with two- and three-suffix, gs:
(C.45)
(C.46)
(C.47)
Kln C1 C2 T C3 T C4T+ln+⁄+=
gex gDH gs+=
gDH
RT
---------
4AxIx
ρ
------------- 1 ρIx
1 2⁄+( ) xcxaBacg αIx
1 2⁄( )
a
∑
c
∑+ln=C-15
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C-16 Equilibrium Solubility
ww
Thwhere:
The expressions of activity coefficient for solvent N and ion M+
are as follows:
(C.48)
(C.49)
gs
RT
------ aijxixj aijkxixjxk
k
∑
j
∑
i
∑+
a
∑
c
∑=
gs
RT
------ xI xn FcFaWnca xnxn' Ann'xn' An'nxn+( )
n""
∑
n
∑+
a
∑
c
∑
n
∑=
Ann' 2ann' 3an'n+=
Ann' 2ann' 3ann'n''+=
Wnca 2wnc 2wna wca– 2unc 2una+ + +( ) 4⁄=
wij 2aij 3 2 aiij aijj+( )⁄+=
uij 3 2 aiij aijj–( )⁄=
γNln
2AxIx
3 2⁄
1 ρIx
1 2⁄+
---------------------- xcxaBca αIx
1 2⁄–( ) xI 1 xN–( ) FcFaWNca
xI ′xn FcFaWnca ′xn ANnxn 1 2xN–( ) 2AnNxN 1 xN–( )+[ ]
2 ′ ′xnxn' Ann'xn' An'nxn+( )
n'
∑
n
∑–
n
∑+
a
∑
c
∑
n
∑–
a
∑
c
∑+exp
a
∑
c
∑–=C-16
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Amines Property Package C-17
ww
ThWhere subscripts c, a, n and n’ represent cation, anion and
molecular species, respectively. The subscript 2 in equation
(C.50) stands for water. the total mole fraction of ions (xI) is
given by:
The cation and anion fractions Fc and Fa are defined for fully
symmetrical electrolyte systems by
The mole fraction ionic strength Ix is defined as
(C.50)
(C.51)
(C.52)
(C.53)
(C.54)
γ
M+ln zM
2 Ax
2
ρ
-- 1 ρIx
1 2⁄+( )
Ix
1 2⁄ 1 2Ix zM
2⁄–( )
1 ρIx
1 2⁄+
-----------------------------------------+ln– xaBmag αIx
1 2⁄( )
xcxaBca
zM
2 g αIx
1 2⁄( )
2Ix
---------------------------- 1 zM
2 2Ix⁄–( ) αIx
1 2⁄–( )exp+ 2 xn FaWnMa
xn 1 xI+( ) FcFaWnca 2 FaW2Ma FcFaW2ca
2 xnxn' Ann'xn' An'nxn+( )
n'
∑
n
∑–
a
∑
c
∑+
a
∑–
a
∑
c
∑
n
∑–
a
∑
n
∑+
a
∑
c
∑–
a
∑+=
xI 1 xn∑–=
Fc 2xc xI⁄=
Fa 2xa xI⁄=
Ix 1 2 zi
2xI∑⁄=C-17
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C-18 Equilibrium Solubility
ww
ThThe function of g(x) is expressed by
where:
Ax is the Debye-Huckel parameter on a mole fraction basis:
where:
Ci, Cn = molar concentrations of the ion i and solvent n,
respectively
I = ionic strength in molar concentration
 = Debye-Huckel parameter, which is a function of
temperature, density and dielectric constant of the
mixed solvents
 = related to the hard-core collision diameter, or distance of
closest approach between ions in solution
An'n and Ann' = interaction parameters between and among
the molecular species, respectively
Bca = hard sphere repulsion parameter between ions
Wnca = the interaction parameter between ions and between
ion and solvent
Parameters An'n, Ann', Bca and Wnca share the same function
of temperature:
(C.55)
(C.56)
(C.57)
g x( ) 2 1 1 x+( ) x–( )exp–[ ] x2⁄=
x αIx
1 2⁄ 2I1 2⁄= =
I 1 2⁄ zi
2Ci∑=
Ax Aφ Cn∑( )
1 2⁄
=
Aφ
ρ
Y a b T⁄+=C-18
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Amines Property Package C-19
ww
ThThe Clegg-Pitzer equations appear to be uncompromisingly long
and contain many terms and parameters. However, it should be
pointed out that only a few parameters were used and many
terms, such as the quaternary terms in the original Clegg-Pitzer
equations were omitted in this model. It can be seen that only
Ann', An'n, Bca and Wnca appear in the expressions and are
treated as adjustable parameters.
In this model, both water and amine are treated as solvents.
The standard state of each solvent is the pure liquid at the
system temperature and pressure. The adopted reference state
for ionic and molecular species is the ideal and infinitely dilute
aqueous solution.
C.5 Phase Enthalpy
Vapour phase enthalpy is calculated by the Peng-Robinson
equation-of-state which integrates ideal gas heat capacity data
from a reference temperature. Liquid phase enthalpy also
includes the effect of latent heat of vaporization and heat of
reaction.
The absorption or desorption of H2S and CO2 in aqueous
solutions of alkanolamine involves a heat effect due to the
chemical reaction. This heat effect is a function of amine type
and concentration, and the mole loadings of acid gases. The
heat of solution of acid gases is obtained by differentiating the
experimental solubility data using a form of the Gibbs-Helmholtz
equation.
The heat effect which results from evaporation and
condensation of amine and water in both the absorber and
regenerator is accounted for through the latent heat term which
appears in the calculation of liquid enthalpy. Water content of
the sour gas feed can have a dramatic effect on the predicted
temperature profile in the absorber and should be considered,
particularly at low pressures.C-19
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C-20 Simulation of Amine Plant
ww
ThC.6 Simulation of Amine
Plant Flowsheets
The key to solving an amine treating system lies in the
simulation of the contactor and the regenerator. In both
columns, rigorous non-equilibrium stage efficiency calculations
are used. In addition, the contactor efficiency incorporates
kinetic reaction and mass transfer parameters. Only the Amines
Property Package can effectively simulate this system, and only
components included in this package should be used.
C.6.1 Solving the Columns
Follow these general guidelines:
• Ensure that the gas to the Contactor is saturated with
water.
• Use actual, not ideal, stages.
• Change stage efficiencies for CO2 and H2S from their
default values of 1.0 to fractions for the regenerator and
the initial absorber run.
• Use calculated efficiencies for subsequent absorber runs
as detailed below.
• Change the damping factor from a default value of 1.0 to
a fraction as recommended in the following section. This
may be necessary to prevent oscillation during
convergence.C-20
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Amines Property Package C-21
ww
ThC.6.2 Converging the
Contactor
Convergence is most readily achieved by first solving with
estimated efficiencies (suggested values are 0.3 for CO2 and 0.6
for H2S), then requesting calculated efficiencies and restarting
the column. To do this, you must first specify three dimensions
for each tray: tray diameter, weir length and weir height.
Specify these parameters in the Amines page of the Parameters
tab in the Column property view.
For an existing column, use the actual dimensions. For a design
situation (or when the tray dimensions are unknown) use the
Tray Sizing utility to estimate these parameters. Input the
calculated tray dimensions and select Run. Aspen HYSYS will
calculate the individual component efficiencies (H2S, CO2) based
on the tray dimensions. Only single pass trays can be modeled
with the Amines Property Package. If the trays in your column
are multipass, you must estimate the dimensions based on a
single pass tray.
After the tray dimensions are specified, the column is
recalculated. Note that efficiencies can be calculated only when
using the Amines Property Package. These values apply
specifically to CO2 and H2S. Damping factors in the range 0.4 -
0.8 usually give the fastest convergence.
Temperatures around the contactor should be as follows:
Contactor  Temperature Range
Feed Gas 65 - 130 °F
Lean MEA, DEA, TEA, MDEA 100 - 120 °F
Lean DGA 140 °F
(lean amine minimum 10 °F > feed gas)
Absorber Bottoms 120 - 160 °FC-21
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C-22 Simulation of Amine Plant
ww
ThC.6.3 Converging the
Regenerator
As with the Contactor, efficiencies can be either specified by the
user, or calculated by the program. For the condenser and
reboiler, values of 1.0 must be used. For the remaining trays,
efficiencies of 0.15 for CO2 and 0.80 for H2S are suggested
initial estimates.
The easiest specifications to converge are the stage 1
(condenser) temperature and the reboiler duty. Following is a
guideline for typical duties.
The reboiler temperature should not exceed 280 F to avoid
physical degradation of the amines into corrosive by-products.
Regenerators usually converge best with reflux ratio estimates
of 0.5 - 3.0 and damping factors of 0.2 - 0.5.
C.6.4 Recycle Convergence
The remaining unit operations in the flowsheet are
straightforward. Note that you need a water makeup stream, as
indicated in Figure C.1. Since the lean amine concentration
may vary due to water carryover in the product from the
vessels, a water makeup is required to maintain a desired
concentration.
Amine losses in the contactor overhead are usually negligible
and the makeup stream replaces any water lost so the amine
concentration in the recycle does not change significantly during
the recycle convergence. Thus, you can quite easily make an
excellent initial estimate for the lean amine recycle. The phase,
of course, is liquid and the temperature, pressure, total flow rate
Amine Duty, BTU/US Gallon
TEA, MDEA 800
DEA 1,000
MEA 1,200
DGA 1,300C-22
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Amines Property Package C-23
ww
Thand composition are known. Although the composition of CO2
and H2S is unknown, these sour components have only a very
minor impact on the recycle and can initially be specified to be
zero in the recycle stream.
C.6.5 Operating Conditions
The Amines property package contains data for the following
alkanolamines and mixtures of alkanolamines.
Many different amine system designs can be modelled. However,
for both good tower convergence and optimum plant operation,
the following guidelines are recommended:
* Amine mixtures are assumed to be primarily MDEA.
Amine
Aspen HYSYS
Name
Monoethanolamine MEA
Diethanolamine DEA
Triethanolamine TEA
Methyldiethanolamine MDEA
Diglycolamine DGA
Diisopropanolamine DIPA
Monoethanolamine/Methyldiethanolamine Blend MEA/MDEA
Diethanolamine/Methlydiethanolamine Blend DEA/MDEA
Amine
Lean Amine
Strength
Maximum Acid Gas Loading
(Moles Acid Gas/ Mole Amine)
Weight % CO2 H2S
MEA 15 - 20 0.50 0.35
DEA 25 - 35 0.45 0.30
TEA, MDEA 35 - 50 0.30 0.20
DGA 45 - 65 0.50 0.35
DEA/MDEA* 35 - 50 0.45 0.30
MEA/MDEA* 35 - 50 0.45 0.30C-23
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C-24 Program Limitations
ww
ThC.7 Program Limitations
The Amines property package contains correlations of data
which restrict its use to certain conditions of pressure,
temperature, and composition. These limitations are given
below.
The chemical and physical property data base is restricted to
amines and the following components:
C.7.1 Range of Applicability
The following table displays the equilibrium solubility limitations
that should be observed when using this property package.
Available Components with Amines Property Package
Acid Gases CO2, H2S, COS, CS2
Hydrocarbons CH4 to C12
Olefins C2=, C3=, C4=, C5=
Mercaptans M-Mercaptan, E-Mercaptan
Non-Hydrocarbons H2, N2, O2, CO, H2O
Aromatic C6H6, Toluene, e-C6h6, m-Xylene
This method does not allow for the use of any hypotheticals.
Amine
Alkanolamine
Concentration
Acid Gas Partial
Pressure
Temperature
Range (Wt%) psia oF
MEA 0 – 30 0.00001 – 300 77 – 260
DEA 0 – 50 0.00001 – 300 77 – 260
TEA 0 – 50 0.00001 – 300 77 – 260
MDEA 0 – 50 0.00001 – 300 77 – 260
DGA 50 – 70 0.00001 – 300 77 – 260
DIPA 0 – 40 0.00001 – 300 77 – 260
DEPG 90 – 100 0.01 – 600 -4 – 212
For amine mixtures, use the values for MDEA (assumed to be
the primary amine).C-24
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Amines Property Package C-25
ww
ThC.8 References
 1 Atwood, K., M.R. Arnold and R.C. Kindrick, "Equilibria for the System,
Ethanolamines-Hydrogen Sulfide-Water", Ind. Eng. Chem., 49,
1439-1444, 1957.
 2 Austgen, D.M., G.T. Rochelle and C.-C. Chen, "Model of Vapour-Liquid
Equilibria for Aqueous Acid Gas Alkanolamine Systems", Ind. Eng.
Chem. Res., 03, 543-555, 1991.
 3 Bosch, H., "Gas-Liquid Mass Transfer with Parallel Reversible
Reactions-III. Absorption of CO2 into Solutions of Blends of
Amines", Chem. Eng. Sci., 44, 2745-2750, 1989.
 4 Chakravarty, T., "Solubility Calculations for Acid Gases in Amine
Blends", Ph.D. Dissertation, Clarkson College, Potsdam, NY, 1985.
 5 Danckwerts, P.V., and M.M. Sharma, "The Absorption of Carbon
Dioxide into Solutions of Alkalis and Amines", The Chemical
Engineer, No.202, CE244-CE279, 1966.
 6 Deshmukh, R.D. and A.E. Mather, "A Mathematical Model for
Equilibrium Solubility of Hydrogen Sulfide and Carbon Dioxide in
Aqueous Alkanolamine Solutions",
 7 Chem. Eng. Sci., 36, 355-362, 1981.
 8 Dingman, J.C., "How Acid Gas Loadings Affect Physical Properties of
MEA Solutions", Pet. Refiner, 42, No.9, 189-191, 1963.
 9 Dow Chemical Company, "Alkanolamines Handbook", Dow Chemical
International, 1964.
 10Isaacs, E.E., F.D. Otto and A.E. Mather, "Solubility of Mixtures of H2S
and CO2 in a Monoethanolamine Solution at Low Partial Pressures",
J. Chem. Eng. Data, 25, 118-120, 1980.
 11Jou, F.-Y., A.E. Mather, and F.D. Otto, "Solubility of H2S and CO2 in
Aqueous Methyldiethanolamine Solutions", Ind. Eng. Chem. Process
Des. Dev., 21, 539-544, 1982.
 12Jou, F.-Y., F.D. Otto and A.E. Mather, “Solubility of H2S and CO2 in
Triethanolamine Solutions”, Presented at the AIChE Winter National
Meeting, Atlanta, Georgia, March 11-14, 1984.
 13Jou, F.-Y., F.D. Otto and A.E. Mather, "Solubility of Mixtures of H2S
and CO2 in a Methyldiethanolamine Solution", Paper 140b,
Presented at the AIChE Annual Meeting, Miami Beach, Florida,
Nov.2-7, 1986.C-25
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C-26 References
ww
Th 14Jou, F.-Y., A.E. Mather and F.D. Otto, "The Solubility of Mixtures of
Hydrogen Sulfide and Carbon Dioxide in Aqueous
Methyldiethanolamine Solutions", Submitted to The Canadian
Journal of Chemical Engineering, 1992.
 15Kahrim, A. and A.E. Mather, "Enthalpy of Solution of Acid Gases in
DEA Solutions", Presented at the 69th AIChE Annual Meeting,
Chicago, Illinois, Nov.28-Dec.2, 1976.
 16Katz, D.L., D. Cornell, R. Kobayashi, F.H. Poettmann, J.A. Vary, J.R.
Elenbaas and C.F. Weinaug, "Handbook of Natural Gas
Engineering", McGraw-Hill, New York, 1959.
 17Kent, R.L., and B. Eisenberg, "Better Data for Amine Treating",
Hydrocarbon Processing, 55, No.2, 87-90, 1976.
 18Kohl, A.L. and F.C. Riesenfeld, "Gas Purification", 4th Ed., Gulf
Publishing Co., Houston, Texas, 1985.
 19Lal, D., E.E. Isaacs, A.E. Mather and F.D. Otto, "Equilibrium Solubility
of Acid Gases in Diethanolamine and Monoethanolamine Solutions
at Low Partial Pressures", Proceedings of the 30th Annual Gas
Conditioning Conference, Norman, Oklahoma, March 3-5, 1980.
 20Lawson, J.D., and A.W. Garst, "Gas Sweetening Data:Equilibrium
Solubility of Hydrogen Sulfide and Carbon Dioxide in Aqueous
Monoethanolamine and Aqueous     Diethanolamine Solutions", J.
Chem. Eng. Data, 21, 20-30, 1976.
 21Lawson, J.D., and A.W. Garst, "Hydrocarbon Gas Solubility in
Sweetening Solutions: Methane and Ethane in Aqueous
Monoethanolamine and Diethanolamine", J. Chem Eng. Data, 21,
30-32, 1976.
 22Lee, J.I., F.D. Otto, and A.E. Mather, "Solubility of Carbon Dioxide in
Aqueous Diethanolamine Solutions at High Pressures", J. Chem.
Eng. Data, 17, 465-468, 1972.
 23Lee, J.I., F.D. Otto, and A.E. Mather, "Solubility of Hydrogen Sulfide in
Aqueous Diethanolamine Solutions at High Pressures", J. Chem.
Eng. Data, 18, 71-73, 1973a.
 24Lee, J.I., F.D. Otto, and A.E. Mather, "Partial Pressures of Hydrogen
Sulfide over Aqueous Diethanolamine Solutions", J. Chem. Eng.
Data, 18, 420, 1973b.
 25Lee, J.I., F.D. Otto, and A.E. Mather, "The Solubility of Mixtures of
Carbon Dioxide and Hydrogen Sulphide in Aqueous Diethanolamine
Solutions", Can. J. Chem. Eng., 52, 125-127, 1974a.C-26
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Amines Property Package C-27
ww
Th 26Lee, J.I., F.D. Otto and A.E. Mather, "The Solubility of H2S and CO2 in
Aqueous Monoethanolamine Solutions", Can. J. Chem. Eng., 52,
803-805, 1974b.
 27Lee, J.I., F.D. Otto and A.E. Mather, "Solubility of Mixtures of Carbon
Dioxide and Hydrogen Sulfide in 5.0 N Monoethanolamine
Solution", J. Chem. Eng. Data, 20, 161-163, 1975.
 28Lee, J.I., F.D. Otto and A.E. Mather, "Equilibrium in Hydrogen Sulfide-
Monoethanolamine-Water System", J.Chem. Eng. Data, 21, 207-
208, 1976a.
 29Lee, J.I., F.D. Otto and A.E. Mather, "The Measurement and Prediction
of the Solubility of Mixtures of Carbon Dioxide and Hydrogen
Sulphide in a 2.5 N
 30 Monoethanolamine Solution", Can. J. Chem. Eng., 54, 214-219,
1976b.
 31Lee, J.I., F.D. Otto and A.E. Mather, "Equilibrium Between Carbon
Dioxide and Aqueous Monoethanolamine Solutions", J. Appl. Chem.
Biotechnol., 26,
 32541-549, 1976c.
 33Lee, J.I. and A.E. Mather, "Solubility of Hydrogen Sulfide in Water",
Ber. Bunsenges z. Phys. Chem., 81, 1020-1023, 1977.
 34Mason, D.M. and R.Kao, "Correlation of Vapor-Liquid Equilibria of
Aqueous Condensates from Coal Processing" in Thermodynamics of
Aqueous Systems with Industrial Applications, S.A. Newman, ed.,
ACS Symp. Ser., 133, 107-139, 1980.
 35Murzin, V.I., and I.L. Leites, "Partial Pressure of Carbon Dioxide Over
Its Dilute Solutions in Aqueous Aminoethanol", Russian J. Phys.
Chem., 45, 230-231, 1971.
 36Nasir, P. and A.E. Mather, "The Measurement and Prediction of the
Solubility of Acid Gases in. Monoethanolamine Solutions at Low
Partial Pressures", Can. J. Chem. Eng., 55, 715-717, 1977.
 37Otto, F.D., A.E. Mather, F.-Y. Jou, and D. Lal, "Solubility of Light
Hydrocarbons in Gas Treating Solutions", Presented at the AIChE
Annual Meeting, Paper 21b, San Francisco, California, November
25-30, 1984.
 38Peng, D.-Y., and D.B. Robinson, "A New Two-Constant Equation of
State", Ind. Eng. Chem. Fundam., 15, 59-64, 1976.
 39Rangwala, H.A., B.R. Morrell, A.E. Mather and F.D. Otto, "Absorption
of CO2 into Aqueous Tertiary Amine/MEA Solutions", The Canadian
Journal of Chemical Engineering, 70, 482-490, 1992. C-27
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
C-28 References
ww
Th 40Tomcej, R.A. and F.D. Otto, "Computer Simulation and Design of
Amine Treating Units", Presented at the 32nd Canadian Chemical
Engineering Conference, Vancouver, British Columbia, Oct.3-6,
1982.
 41Tomcej, R.A., F.D. Otto and F.W. Nolte, "Computer Simulation of
Amine Treating Units", Presented at the 33rd Annual Gas
Conditioning Conference, Norman,
 42Oklahoma, March 7-9, 1983.
 43Tomcej, R.A., "Simulation of Amine Treating Units Using Personal
Computers", Presented at the 35th Canadian Chemical Engineering
Conference, Calgary, Alberta, Oct.5-8, 1985.
 44Tomcej, R.A. and F.D. Otto, "Improved Design of Amine Treating
Units by Simulation using Personal Computers", Presented at the
World Congress III of Chemical Engineering, Tokyo, Japan,
September 21-25, 1986.
 45Tomcej, R.A., D. Lal, H.A. Rangwala and F.D. Otto, "Absorption of
Carbon Dioxide into Aqueous Solutions of Methyldiethanolamine",
Presented at the AIChE Annual Meeting, Miami Beach, Florida,
Nov.2-7, 1986.
 46Tomcej, R.A., F.D. Otto, H.A. Rangwala and B.R. Morrell, "Tray Design
for Selective Absorption", Presented at the 37th Annual Laurance
Reid Gas Conditioning Conference, Norman, Oklahoma, March 2-4,
1987.
 47Union Carbide Corporation, "Gas Treating Chemicals", Union Carbide
Petroleum Processing, Chemicals and Additives, 1969.
 48Versteeg, G.F., J.A.M. Kuipers, F.P.H. Van Beckum and W.P.M. Van
Swaaij, "Mass Transfer with Complex Reversible Chemical Reactions
- I. Single Reversible Chemical Reaction", Chem. Eng. Sci., 44,
2295-2310, 1989.
 49Winkelman, J.G.M., S.J. Brodsky and A.A.C.M. Beenackers, "Effects
of Unequal Diffusivities on Enhancement Factors of Reversible
Reactions: Numerical Solutions and Comparison with Decoursey's
Method", Chem. Eng. Sci., 47, 485-489, 1992.
 50Zhang, Dan D., Gordon X. Zhao, H.-J. Ng, Y.-G. Li and X.-C. Zhao, “An
Electrolyte Model for Amine Based Gas Sweetening Process
Simulation”, Preceeding of the 78th GPA Annual Convention, p25,
1999.
 51Zhange, Dan D., H.-J. Ng and Ray Vledman, “Modeling of Acid Gas
Treating Using AGR Physical Solvent”, Proceeding of the 78th GPA
Annual Convention, p62, 1999.C-28
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Glycol Property Package D-1
ww
ThD  Glycol Property
PackageD-1
D.1  Introduction .................................................................................. 2
D.2  Pure Component Vapor Pressure ................................................... 4
D.3  Mixing Rules .................................................................................. 4
D.3.1  TST Mixing Rules ..................................................................... 4
D.3.2  Zero-Pressure CEOS/AE Mixing Rules.......................................... 7
D.3.3  Liquid GE Model ..................................................................... 11
D.4  Phase Equilibrium Prediction ....................................................... 12
D.5  Enthalpy/Entropy Calculations .................................................... 13
D.6  References................................................................................... 13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
D-2 Introduction
ww
ThD.1 Introduction
In the gas processing industry, it is necessary to dehydrate/
remove water vapour present in the natural gas stream. In
nature, impurities like water vapor are mixed in the natural gas.
Water vapor in the gas stream can cause the following
problems:
• Hydrate formation, at low temperature conditions, that
can plug valves and fittings in gas pipelines.
• React with hydrogen sulfide or carbon dioxide to form
weak acids that can corrode gas pipelines.
The standard method to remove water vapor from natural gas
stream is to use triethylene glycol (TEG) to absorb the water.
Aspen HYSYS provides the Glycol property package for use in
modeling glycol dehydration process using TEG.  This property
package is based on the TST (Twu-Sim-Tassone) equation of
state. The property package contains the necessary pure
component and binary interaction parameters for components
commonly encountered in natural gas dehydration process. The
property package is tuned to represent accurately, the phase
behaviour of these components, especially that for the TEG-
water binary system.
The TST equation of state can accurately predict:
• activity coefficients of the TEG-water solutions within the
average absolute deviation of 2%
• dew point temperatures within an average error of
• water content of gas within the average absolute
deviation of 1%
The Glycol property package should be applicable over the range
of temperatures, pressures, and component concentration
encountered in a typical TEG-water dehydration system:
between 15°C to 50°C and between 10 atm to 100 atm for the
gas dehydrator, and between 202°C to 206°C and 1.2
atmospheres for the glycol regenerator.
1°C±D-2
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Glycol Property Package D-3
ww
ThThe table below displays the prediction of equilibrium water
content in lbH2O/MMSCF for a gas stream in contact with 99.5
weight percent TEG, using the Glycol property package.
The figure below displays the predicted equilibrium water dew
point vs. contact temperature at various TEG concentrations in
weight %.
The BIP databank for the Glycol property package will be
updated in future releases of Aspen HYSYS. Currently, there
The accuracy of predicted solubility of hydrocarbons in
aqueous phase is expected to be within the experimental
uncertainty.
T dew (K)
Reported by: Predicted from TST (EOS):
McKetta2 Bukacek1 Water Content Pressure (Pa)
277.59 390 396 393 838
266.48 170 176 174 370
255.37 70 72 71 151
244.26 28 27 26 56.1
233.15 9.2 9.1 9 18.7
222.04 2.4 2.8 2.6 6
 Figure D.1D-3
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
D-4 Pure Component Vapor Pressure
ww
Thmay be some limitations or missing BIP for certain component
pairs. For example, heavy hydrocarbons or hypothetical
components which may not have any interaction parameters
available. For assitance in using this property package, please
contact Technical Support.
D.2 Pure Component
Vapor Pressure
For the Glycol property package, three alpha function
parameters are used to correlate the vapor pressure of the
component in the Aspen HYSYS component database. The alpha
function parameters are:
• L in Equation (D.6)
• M in Equation (D.6)
• N in Equation (D.6)
D.3 Mixing Rules
For Glycol property package, three adjustable parameters are
used to correlate Vapor-Liquid-Equilibrium (VLE) mixture data.
The parameters corresponding to the TST (Twu-Sim-Tassone) AE
mixing rules are:  binary interaction parameters in
Equations (D.30) and (D.31).
D.3.1 TST Mixing Rules
The TST (Twu et al. 20025) cubic equations of state is:
where:
a, b = parameters values that correspond to the critical
temperature of the component
(D.1)
Aij Aji αij,,,
P RT
v b–
----------- a
v 3b+( ) v 0.5b–( )
--------------------------------------------–=D-4
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Glycol Property Package D-5
ww
ThThe critical temperature are found by setting the first and
second derivatives of pressure with respect to volume to zero at
the critical point:
where:
c = indicates the variable at the critical point
The parameter a is a function of temperature. The value of a(T)
at temperatures other than the critical temperature is calculated
using the following equation:
where:
 = function of the reduced temperature
• For vapor pressure prediction, the Twu  correlation
(Twu et al., 19913) is used:
(D.2)
(D.3)
(D.4)
(D.5)
where:
L,M,N = parameters that are unique for each component
(D.6)
ac 0.470507R2Tc
2
Pc
-----=
bc 0.0740740R
Tc
Pc
-----=
Zc 0.296296=
a T( ) α T( )ac=
α T( ) Tr T Tc⁄=
α T( )
α T( ) Tr
N M 1–( )e
L 1 Tr
NM–( )
=
D-5
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
D-6 Mixing Rules
ww
Th• For non-library components, the generalized alpha
function, , is expressed as a function of two
variables: the reduced temperature and the acentric
factor.
• For non-library and petroleum fractions, the generalized
alpha function, , is:
Each  is a function of the reduced temperature only.
where:
L,M,N = databank values corresponding to subcritical and
supercritical conditions
For :
(D.7)
where:
 = corresponds to
 = corresponds to
(D.8)
(D.9)
(D.10)
L 0.196545 0.704001
M 0.906437 0.790407
N 1.26251 2.13086
α T( )
α α Tr ω,( )=
α T( )
α α 0( ) ω α 1( ) α 0( )–( )+=
α 0( ) ω 0=
α 1( ) ω 1=
α
α 0( ) Tr
N 0( ) M 0( ) 1–( )e
L 1 Tr
NM 0( )
–⎝ ⎠
⎛ ⎞
=
α 1( ) Tr
N 1( ) M 1( ) 1–( )e
L 1 Tr
NM 1( )
–⎝ ⎠
⎛ ⎞
=
Tr 1≤
α 0( ) α 1( )D-6
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Glycol Property Package D-7
ww
ThFor :
D.3.2 Zero-Pressure CEOS/AE
Mixing Rules
The zero-pressure mixing rules for the cubic equation of state
mixture a and b parameters are as given:
where:
 = equation of state a and b parameters which are
evaluated from the van der Waals mixing rule
 = excess Helmholtz energies at zero pressure
 = function of reduced liquid volume at zero pressure
L 0.358826 0.0206444
M 4.23478 1.22942
N -0.200000 -8.00000
(D.11)
(D.12)
The mixing rules given by Equations (D.11) and (D.12) are
volume-dependent through .
(D.13)
Tr 1>
α 0( ) α 1( )
a∗ b∗
avdw∗
bvdw∗
------------- 1
Cv0
-------
A0
E
RT
------
A0vdw
E
RT
--------------
bvdw
b
----------⎝ ⎠
⎛ ⎞ln––
⎝ ⎠
⎜ ⎟
⎛ ⎞
+=
b∗
bvdw∗ avdw∗–
1
avdw∗
bvdw∗
------------- 1
Cv0
-------
A0
E
RT
------
A0vdw
E
RT
--------------
bvdw
b
----------⎝ ⎠
⎛ ⎞ln––
⎝ ⎠
⎜ ⎟
⎛ ⎞
+–
----------------------------------------------------------------------------------------------------------=
avdw bvdw,
A0
E A0vdw
E,
Cv0
Cv0
v0∗ v0 b⁄=
Cv0
1
w u–( )
-----------------–
v0∗ w+
v0∗ u+
-----------------
⎝ ⎠
⎜ ⎟
⎛ ⎞
vdw
ln=D-7
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
D-8 Mixing Rules
ww
Th = zero pressure liquid volume is calculated from the
cubic equation of state using the van der Waals mixing
rule for its a and b parameters by setting pressure
equal to zero and selecting the smallest root:
The mixing rule for the parameter b as given by Equation
(D.12) forces the mixing rule to satisfy the quadratic
composition dependence of the second virial coefficient.
Alternatively, the conventional linear mixing rule could be
chosen for the b parameter, in other words, ignoring the second
virial coefficient boundary condition.
To omit the need for the calculation of  from the equation of
state, the zero-pressure liquid volume of the van der Waals
fluid, , is made a constant, r.
Thus Equation (D.13) becomes:
where:
 = constant replacing  and signifies that  is no longer
a density dependent function
(D.14)
Equation (D.14) has a root as long as:
(D.15)
(D.16)
(D.17)
v0∗vdw
v0∗ 1
2
-- a∗
b∗
----- u w––⎝ ⎠
⎛ ⎞ u w a∗
b∗
-----–+⎝ ⎠
⎛ ⎞ 2
4 uw a∗
b∗
-----+⎝ ⎠
⎛ ⎞–
1
2
--
–
⎩ ⎭
⎪ ⎪
⎨ ⎬
⎪ ⎪
⎧ ⎫
=
a∗
b∗
----- 2 u w+ +( ) 2 u 1+( ) w 1+( )+≥
b xixj
1
2
-- bi bj+( )
j
∑
i
∑=
v0∗
v0∗vdw
Cr
1
w u–( )
-----------------– r w+
r u+
------------⎝ ⎠
⎛ ⎞ln=
Cr Cv0
CrD-8
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Glycol Property Package D-9
ww
ThThus Equations (D.11) and (D.12) become:
 is derived from the equation of state by assuming a fixed
reduced liquid molar volume r for a van der Waals fluid at zero
pressure:
where:
 = equation of state a and b parameters which are
evaluated from the conventional van der Waals mixing
rules
The excess Helmholtz energy is much less pressure-dependent
than the excess Gibbs energy. Therefore, the excess Helmholtz
energy of the van der Waals fluid at zero pressure can be
approximated by the excess Helmholtz energy of van der Waals
fluid at infinite pressure.
(D.18)
(D.19)
(D.20)
(D.21)
(D.22)
a∗ b∗
avdw∗
bvdw∗
------------- 1
Cr
-----
A0
E
RT
------
A0vdw
E
RT
--------------
bvdw
b
----------⎝ ⎠
⎛ ⎞ln––
⎝ ⎠
⎜ ⎟
⎛ ⎞
+=
b∗
bvdw∗ avdw∗–
1
avdw∗
bvdw∗
------------- 1
Cr
-----
A0
E
RT
------
A0vdw
E
RT
--------------
bvdw
b
----------⎝ ⎠
⎛ ⎞ln––
⎝ ⎠
⎜ ⎟
⎛ ⎞
+–
--------------------------------------------------------------------------------------------------------=
A0vdw
E
A0vdw
E
RT
------------- xi
bi
bvdw
----------⎝ ⎠
⎛ ⎞ln Cr
avdw∗
bvdw∗
------------- xi
ai∗
bi∗
------
i
∑–
⎝ ⎠
⎜ ⎟
⎛ ⎞
+
i
∑=
avdw bvdw,
avdw xixj aiaj 1 kij–( )
j
∑
i
∑=
bvdw xixj
1
2
-- bi bj+( )
j
∑
i
∑=D-9
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
D-10 Mixing Rules
ww
Thwhere:
 = constant
For algebraic simplicity, the following development is limited to a
binary mixture, in order to obtain the following expression for
the excess Helmholtz energy of a van der Waals fluid from
Equation (D.23):
where:
 = characteristic parameter of interaction between
molecules 1 and 2
Extending these relations to a multi-component
mixture,Equations (D.24) and (D.25) become:
(D.23)
(D.24)
(D.25)
(D.26)
(D.27)
(D.28)
A0vdw
E
RT
-------------
A∞vdw
E
RT
-------------- C1
avdw∗
bvdw∗
------------- xi
ai∗
bi∗
------
i
∑–
⎝ ⎠
⎜ ⎟
⎛ ⎞
= =
C1
1
w u–( )
----------------- 1 w+
1 u+
------------⎝ ⎠
⎛ ⎞ln–=
A0vdw
E
RT
-------------
x1x2b1b2δ12
x1b1 x2b2+( )
--------------------------------=
δ12
δ12
C1
RT
------
a1
b1
---------
a2
b2
---------–
⎝ ⎠
⎜ ⎟
⎛ ⎞
2
2k12
a1
b1
---------
a2
b2
---------+–=
A0vdw
E
RT
------------- 1
2
-- bδij( )ΦiΦj
j
∑
i
∑=
δij
C1
RT
------
ai
bi
--------
aj
bj
--------–
⎝ ⎠
⎜ ⎟
⎛ ⎞
2
2kij
ai
bi
--------
aj
bj
--------+–=
Φi
xibi
b
--------=D-10
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Glycol Property Package D-11
ww
ThD.3.3 Liquid GE Model
A general multi-component equation for a liquid activity model is
now proposed for incorporation in the zero-pressure mixing
rules as:
Equation (D.29) is similar to the NRTL equation but not the
same. The NRTL assumes  are the parameters of the
model, but the excess Gibbs energy model assumes  are
the binary interaction parameters. For example, to obtain the
NRTL model,  are calculated from the NRTL parameters
:
Equation (D.29) can recover the conventional van der Waals
mixing rules when the following expressions are used for :
The above two equations are expressed in terms of the cubic
equation of state parameters,  and the binary interaction
parameter .
(D.29)
(D.30)
(D.31)
(D.32)
(D.33)
GE
RT
------ xi
xjτj iGji
j
n
∑
xkGki
k
n
∑
------------------------
i
n
∑=
Aij Aji αij,,
τij Gij,
τij Gij,
Aij Aji αij,,
τji
Aji
T
------=
Gji αji– τji( )exp=
τij Gij,
τji
1
2
--δi jbi=
Gji
bj
bi
---=
ai bi,
kijD-11
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
D-12 Phase Equilibrium Prediction
ww
ThBy substituting Equations (D.32) and (D.33) into Equation
(D.29), Equation (D.26) is obtained.
Subsequently, the mixing rules, Equations (D.18) and (D.16),
are reduced to the classical van der Waals one-fluid mixing
rules.
D.4 Phase Equilibrium
Prediction
The following equations are the TST (Twu-Sim-Tassone) zero
pressure mixing rules used for phase equilibrium prediction in
the Glycol property package:
(D.1)
(D.16)
(D.18)
(D.23)
(D.29)
P RT
v b–
----------- a
v 3b+( ) v 0.5b–( )
--------------------------------------------–=
b xixj
1
2
-- bi bj+( )
j
∑
i
∑=
a∗ b∗
avdw∗
bvdw∗
------------- 1
Cr
-----
A0
E
RT
------
A0vdw
E
RT
--------------
bvdw
b
----------⎝ ⎠
⎛ ⎞ln––
⎝ ⎠
⎜ ⎟
⎛ ⎞
+=
A0vdw
E
RT
-------------
A∞vdw
E
RT
-------------- C1
avdw∗
bvdw∗
------------- xi
ai∗
bi∗
------
i
∑–
⎝ ⎠
⎜ ⎟
⎛ ⎞
= =
GE
RT
------ xi
xjτj iGji
j
n
∑
xkGki
k
n
∑
------------------------
i
n
∑=D-12
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Glycol Property Package D-13
ww
ThD.5 Enthalpy/Entropy
Calculations
The Glycol property package uses the Cavett model for enthalpy
and entropy calculations.
D.6 References
 1 Bukacek, R.F., “Equilibrium Moisture Content of Natural Gases”,
Research Bulletin 8, Institute of Gas Technology, Chicago, IL, 1955.
 2 McKetta, J.J. and Wehe, A.H., cited by GPA Engineering Data Book,
Fig. 15-10, Ninth Edition, Fourth Revision, Gas Processors Suppliers
Associations, Tulsa, OK, 1979.
 3 Twu, C.H., Bluck, D., Cunningham, J.R., and Coon, J.E., “A Cubic
Equation of State with a New Alpha Function and a New Mixing
Rule”, Fluid Phase Equilib. 1991, 69, 33-50.
 4 Twu, C.H., Tassone, V., Sim, D.W., and Watanasiri, S., “Advanced
Equation of State Method for Modeling TEG-Water for Glycol Gas
Dehydration”, Fluid Phase Equilibria, 2005 (in press).
 5 Twu, C.H., Sim, W.D., and Tassone, V., “A Versatile Liquid Activity
Model for SRK, PR, and A New Cubic Equation of State TST”, Fluid
Phase Equilibria, 2002, 194-197, 385-399.D-13
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
D-14 References
ww
ThD-14
w.cadfamily.com    EMail:cadserv21@hotmail.com
e document is for study only,if tort to your rights,please inform us,we will delete
Index
www.c
The doA
Activity Models 2-11, A-5, A-23
 See models - Chien Null, Margules, NRTL,
NRTL Options, UNIQUAC, van
Laar, and Wilson
additional specifications 2-15, 2-106
binary interaction parameters 2-59, 2-
115
choosing vapour phase model 2-16, A-25,
A-45
departure calculations A-59
estimating interaction parameters 2-60
immiscible liquid phases A-28
Amines Property Package 2-13, A-52
Antoine
modified vapour pressure model A-49
parameters tab 2-50
vapour pressure model 2-13, 2-101
ASME Steam A-54
property package 2-13
Assay and Blend Association 4-86
Assay Data
general guidelines 4-37
no distillation data available 4-32, 4-35
physical properties 4-28
standard input 4-32
Assays
characterizing 4-14, 4-17
correlations 4-55
inputting 4-20
light ends 4-38
analysis B-4
auto calculating 4-42, B-7
included 4-39
inputting 4-41
light ends free 4-40
notes 4-58
plotting 4-54
selecting 4-61
types of 4-53
user curves 4-57
working curves 4-53
ASTM D1160. See Laboratory Assay
Procedures
ASTM D2887. See Laboratory Assay
Procedures
ASTM D86. See Laboratory Assay Procedures
Auto Cut 4-65
B
Basis Environment 1-viii
Basis Manager
component maps tab 6-2
fluid package tab 2-3
hypotheticals tab 3-4
oil manager tab 4-10
reactions tab 5-3
user properties tab 7-3
Blends
auto cutting 4-65
bulk data 4-62
composite plots 4-74
correlations 4-68
cut ranges 4-62
distribution plots 4-73
information 4-70
notes 4-76
oil distributions 4-71
plots summary 4-75
property plots 4-71
Braun K10 2-13, 2-101, A-50
Bubble Point A-84
Bulk Properties 4-28
BWR Equation A-15
C
Cavett Correlation A-59
Chao Seader A-5, A-47
models 2-12, 2-101
parameters tab 2-49
semi-empirical method 2-12, 2-101
Chien Null A-25, A-29
activity model 2-11
parameters tab 2-47, 2-109
Chromatographic Analysis. See Laboratory
Assay Procedures
Chromatographic Assay Input 4-34
Coal Analysis 3-38
Collection (Component Maps) 6-2
Component List Selection 2-22, 2-104
Component Selection 1-13
family filter 1-12
family type filter 1-12
filter options 1-12
general procedure 1-9
property package filter 1-12
tips 1-8I-1
adfamily.com    EMail:cadserv21@hotmail.com
cument is for study only,if tort to your rights,please inform us,we will delete
I-2
www.c
The dowarning messages 2-22
Components
adding 1-5
cloning. See Hypotheticals, cloning library
components
creating custom. See Hypotheticals,
adding
filtering 1-9
hypotheticals quick access 1-28
incompatible 2-24
manager 1-2
mapping 6-2
master component list 1-2
name format 1-8, 1-10
non recommended 2-23
parameters tab 2-25, 2-109
removing 1-6, 1-14
selected components group 1-6
selection 1-8, 1-13
sorting 1-7, 1-16
substituting 1-6, 1-15
synonyms 1-8
transferring 1-13
viewing 1-7, 1-17
Components Manager 1-2
Conversion Reactions 5-6, 5-8–5-12
rank 5-42
Correlations
assay 4-55
blend 4-68
critical property B-10
oil characterization 4-81
Cubic EOS
mixing rules D-7
Cut 4-62
Cut/Blend. See Blends or Oil Characterzation
Cutpoint B-8
D
D86 Interconversion Methods 4-16
D86. See Laboratory Assay Procedures
Density.See  Liquid Density or Vapour Density
Dew Point A-83
E
EFV (Equilibrium Flash Vapourization). See
Laboratory Assay Procedures
Eley-Rideal Model 5-27
Enthalpy Basis A-56
tabular 2-85
Enthalpy Departure Calculations A-56
Enthalpy Flash A-85
Entropy Flash A-85
Equations of State (EOS) 2-9, A-11
additional information 2-15, 2-106
departure calculation A-56
enthalpy calculation A-21
interaction parameters 2-58, 2-112
See models - GCEOS, Kabadi Danner,
Lee-Kesler Plocker, Peng
Robinson, PRSV, Peng Robinson
Options, SRK, SRK Options,
Zudkevitch Joffee.
TST CEOS D-4
Equilibrium Reactions 5-6, 5-13–5-19
fractional approach 5-18
temperature approach 5-18
Esso Tabular A-51
vapour pressure model 2-13, 2-101
Extended NRTL. See NRTL Options
F
Flash Calculations A-81
handling water A-86
temperature-pressure (TP) A-82
vapour fraction A-83
Flow Rate
actual gas A-79
actual volume A-79
as a specification A-80
available A-74
densities, liquid and vapour A-76
liquid volume A-78
mass A-78
molar A-78
standard gas A-79
standard liquid volume A-79
volumetric A-74
Fluid Package
activity models 2-11
adding 2-3
adding - quick start 2-5
adding notes 2-94
advantages 2-2
associated flowsheet 2-4
base property selection 2-9
copy 2-4
delete 2-4I-2
adfamily.com    EMail:cadserv21@hotmail.com
cument is for study only,if tort to your rights,please inform us,we will delete
I-3
www.c
The doequations of state 2-9
export 2-4
import 2-4
property package selection 2-8
property view 2-7, 2-95
reactions 2-68
stability test 2-64, 2-118
tabular 2-69
 See also Tabular Package
Fugacity Coefficients A-63
G
GCEOS
binary coeffs tab 2-52
Generalized Cubic Equation of State 2-10
Generalized Cubic Equations of State 2-25
interaction parameters 2-52
parameters tab 2-25
General NRTL. See NRTL Options
Glycol Property Package D-2
enthalpy calculation D-13
entropy calculation D-13
liquid activity model D-11
mixing rules D-4
phase equilibrium prediction D-12
pure component vapor pressure D-4
Grayson Streed A-6, A-47
parameters tab 2-49
semi-empirical method 2-12, 2-101
H
Henry's Law A-42
Heterogeneous Catalytic Reactions 5-7, 5-26–
5-32
Eley-Rideal 5-27
Langmuir-Hinshelwood 5-27
Mars-van Krevelen Model 5-27
Hypothetical Components. See Hypotheticals
Hypothetical Group
controls 3-14
creating 3-4, 3-13
deleting 3-4
exporting 3-5
group name 3-14
importing 3-5
moving 3-45
moving between 3-5
viewing 3-4, 3-44
Hypotheticals
adding 1-28, 3-15
adding a hypothetical - quick start 3-5
adding hypothetical group 1-28
base properties 3-16
cloning library components 3-5, 3-14, 3-
42
critical properties 3-29
deleting 3-15
estimating properties 3-14, 3-30
estimation methods 3-14, 3-18
individual controls 3-15
minimum information required 3-18
moving 3-5
property view 3-26
quick reference 3-5
solid hypotheticals 3-15, 3-36
temperature dependent properties 3-32
UNIFAC structure builder 3-15, 3-23
vapour pressure properties 3-17
viewing 3-5, 3-15
viewing group. See Hypothetical Group,
viewing
I
Ideal Gas Law A-45
departure calculations A-59
Installing
oils 4-14
reaction set 5-45
Interaction Parameters
activity models 2-59, 2-115, A-26
equations of state 2-58, 2-112
estimating A-22
Henry’s Law A-43
K
K/ln(K) Equilibrium Constant 5-16
Kabadi Danner A-11, A-14
equation of state 2-10
parameters tab 2-35
Kinetic Reactions 5-20–5-26
requirements 5-7
L
Laboratory Assay Procedures
ASTM D1160 4-6, 4-31
ASTM D2887 4-6, 4-31
ASTM D86 4-6, 4-31
ASTM D86 and D1160 4-31I-3
adfamily.com    EMail:cadserv21@hotmail.com
cument is for study only,if tort to your rights,please inform us,we will delete
I-4
www.c
The dochromatographic analysis 4-6, 4-31
assay input 4-34
D2887 interconversion method 4-16
D86 interconversion method 4-16
equilibrium flash vapourization 4-6, 4-32
preparation 4-39
TBP analysis 4-5, 4-31
Langmuir-Hinshelwood Model 5-27
Lee Kesler Plocker 2-10, A-11, A-15
Lee-Kesler Enthalpy A-22, A-47, A-61
Liquid Density A-65
actual A-76
ideal A-77
standard A-76
M
Mapping
collection 6-2
components 6-1
target 6-2
transfer options 6-5
Margules A-25, A-33
activity model 2-11
Mars-van Krevelen Model 5-27
MBWR A-54
property package 2-10
N
NBS Steam A-54
property package 2-14
NRTL (Non Random Two Liquid) A-25, A-28,
A-34
activity model 2-12
NRTL Options A-28
Extended NRTL 2-11, A-32
General NRTL 2-11, A-32
O
Oil Characterization
analysis methods. See Laboratory Assay
Procedures
bulk blending data 4-62
component critical properties B-9
composite plots 4-74
correlations 4-9, 4-14, 4-55, 4-81
cutting/blending 4-14, 4-59
deleting 4-15
density curves 4-47
determining TBP cutpoints B-8
distribution plots 4-73
FBP 4-15
IBP 4-15
installing oil 4-87
laboratory data corrections 4-8
light ends 4-38–4-39, 4-41, B-4
method B-2
molecular weight curves 4-46
notes 4-86
output settings 4-15
physical property curves 4-8, 4-34
procedure 4-9
property plots 4-71
property view 4-14
purpose 4-3
user properties 4-14, 4-76
viscosity curves 4-48
working curves 4-53
P
Peng Robinson A-6–A-7, A-12
departure calculations A-56
equation of state 2-10
fugacity coefficient A-63
modelling vapour phase A-45
Peng Robinson Options A-12
PRSV 2-10
Sour PR 2-10, A-20
Physical Properties A-64
Poynting Correction 2-16, A-26
PPDS 2-79, 2-81
Property Package
selecting a A-4
Property Packages
See Amines Property Package, Braun K10,
Chao Seader, Esso Tabular,
Grayson Streed, Lee Kesler
Plocker, Margules, MBWR, PRSV,
Peng Robinson,
Peng Robinson Options, SRK, SRK
Options, Steam Packages,
UNIQUAC, van Laar and Wilson.
PRSV (Peng Robinson Stryjek Vera) A-8, A-18
equation of state 2-10
parameters tab 2-45
Pseudo Component Generation 4-59
Q
Quality Pressure A-84I-4
adfamily.com    EMail:cadserv21@hotmail.com
cument is for study only,if tort to your rights,please inform us,we will delete
I-5
www.c
The doR
Reaction Package
adding 5-46
Reaction Rank 5-42
Reaction Sets 5-36
adding 5-37
adding to fluid package 5-37, 5-45
advanced features 5-40
attaching to unit operations 5-45
copying 5-37
deleting 5-37
exporting 5-37, 5-44
importing 5-37, 5-44
quick access 2-69
solver method 5-39
viewing 5-37
Reactions
activating 5-39
adding 5-7
components 5-3–5-4
conversion. See Conversion Reactions
copying 5-7
deactivating 5-39
deleting 5-7
equilibrium. See Equilibrium Reactions
heterogeneous catalytic. See
Heterogeneous Catalytic
Reactions
kinetic. See Kinetic Reactions
library reactions 5-5
quick start 5-48
selecting components 5-3–5-4
sets. See Reaction Sets
simple rate. See Simple Rate Reactions
thermodynamic consistency 5-22
viewing 5-7
Redlich Kwong (RK) A-45
departure calculations A-60
S
Simple Rate Reactions 5-33–5-36
requirements 5-7
Solids A-89
Sour PR. See Peng Robinson Options
Sour SRK. See SRK Options
Sour Water Options A-20
See SRK Options and Peng Robinson
Options
SRK (Soave Redlich Kwong) A-7, A-11–A-12
departure calculations A-57
equation of state 2-10
fugacity coefficient A-63
modelling vapour phase A-45
SRK Options A-12
See Kabadi Danner and Zudkevitch Joffee
Sour SRK 2-10, A-20
Stability Test 2-62, 2-116
parameters 2-64, 2-118
Steam Packages A-54
See ASME Steam and NBS Steam
Stream Information A-90
Surface Tension A-73
T
Tabular Package 2-69
active properties selection 2-77
data 2-78
enthalpy basis 2-85
library 2-79, 2-81
plotting 2-82
regression 2-86
requirements 2-71
supplying data 2-85
using 2-73
viewing selection 2-81
Target (Component Maps) 6-2
TEG D-2
Thermal Conductivity A-70
Transport Properties A-64
triethylene glycol D-2
TST
mixing rules D-4
U
UNIFAC LLE
interaction parameter estimation 2-60
UNIFAC Property Estimation A-27
UNIFAC Structure Builder 3-23
UNIFAC VLE
interaction parameter estimation 2-60
UNIQUAC (Universal Quasi Chemical
Parameters) 2-12, A-25, A-36
User Points 4-65
User Properties 4-57, 4-76, 7-2–7-9
adding 7-3
deleting 7-3
mixing rules 7-7I-5
adfamily.com    EMail:cadserv21@hotmail.com
cument is for study only,if tort to your rights,please inform us,we will delete
I-6
www.c
The donotes 7-9
viewing 7-3
User Ranges 4-66
V
van Laar A-25, A-38
activity model 2-12
Vapour Density A-66
Vapour Pressure A-84
Vapour Pressure Models 2-13, A-9, A-48
Antoine 2-13, 2-101
Braun K10 2-13, 2-101
Esso Tabular 2-13, 2-101
Virial Equation A-26
departure calculations A-60
modelling vapour phase A-46
Viscosity A-66
liquid phase mixing rules A-68
W
Water A-86
Wilson 2-12, A-25, A-39
parameters tab 2-49
Working Curves B-3
Z
Zudkevitch Joffee A-11, A-21
equation of state 2-11
parameters tab 2-46I-6
